Diode Dynamics Heavy Duty Dual Output 2-Pin Off-Road Wiring Harness Automotive Light Mounts & Accessories Truck & Automotive

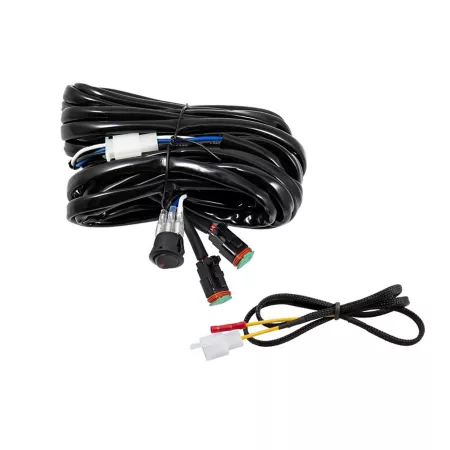

This harness can be used with Diode Dynamics Stage Series light bars and pods without backlight functionality. As well as other products using a 2-pin DT power input. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

Includes 3/4" universal toggle switch
Includes wiring adapter if using an aftermarket or OEM switch panel to control accessories
Two 2-pin DT outputs
High capacity 14AWG wiring.
Connects directly to the battery to power your light.
Black wire sheathing to protect cables.
Deutsch DT output connector.
30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

This harness safely powers up to 25A of auxiliary accessories.

Diode Dynamics Heavy Duty Dual Output 2-Pin Off-Road Wiring Harness Automotive Light Mounts & Accessories Truck & Automotive> Automotive Lighting> Automotive Light Mounts & Accessories

Specification	Description
Brand	Diode Dynamics
Country of Origin	Imported
Battery Size	N/A
Bulb Count	N/A
Bulb Type	N/A
Compatibility	Deutsch DT
Coverage Area	234 in.
Features	Universal dual-output DT harness
Finish	Not Applicable
Housing Color	Black
Indoor/Outdoor	Outdoor
Light Type	N/A
Lumen Rating	0lm
Package Quantity	1
Power Type	12V
Primary Material	ABS Plastic
Product Height	4 in.
Product Length	9 in.
Product Weight	2.45 lb.
Product Width	6 in.
Voltage	12v
Warranty	3-year
Wattage	25A
Manufacturer PartNumber	DD4045
