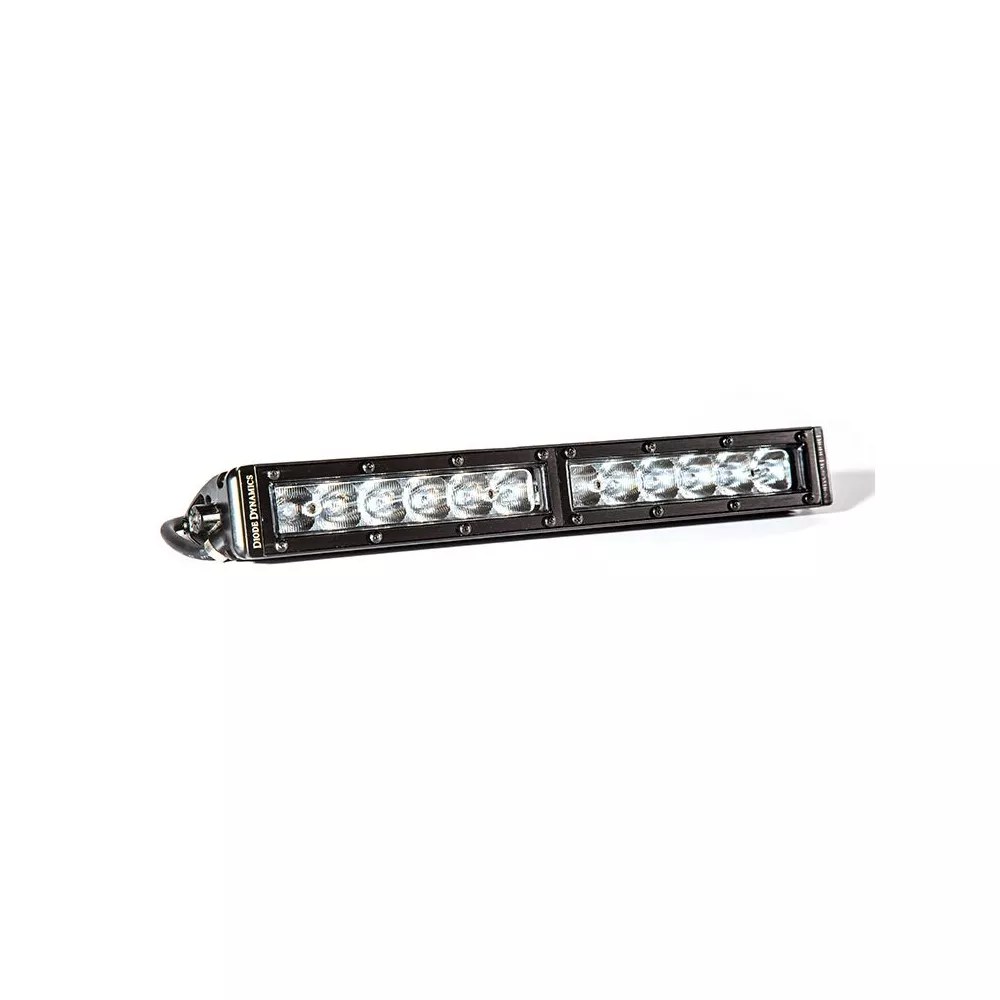

Diode Dynamics SS12 White SAE Driving Light Bar (Single) Light Bars Truck & Automotive

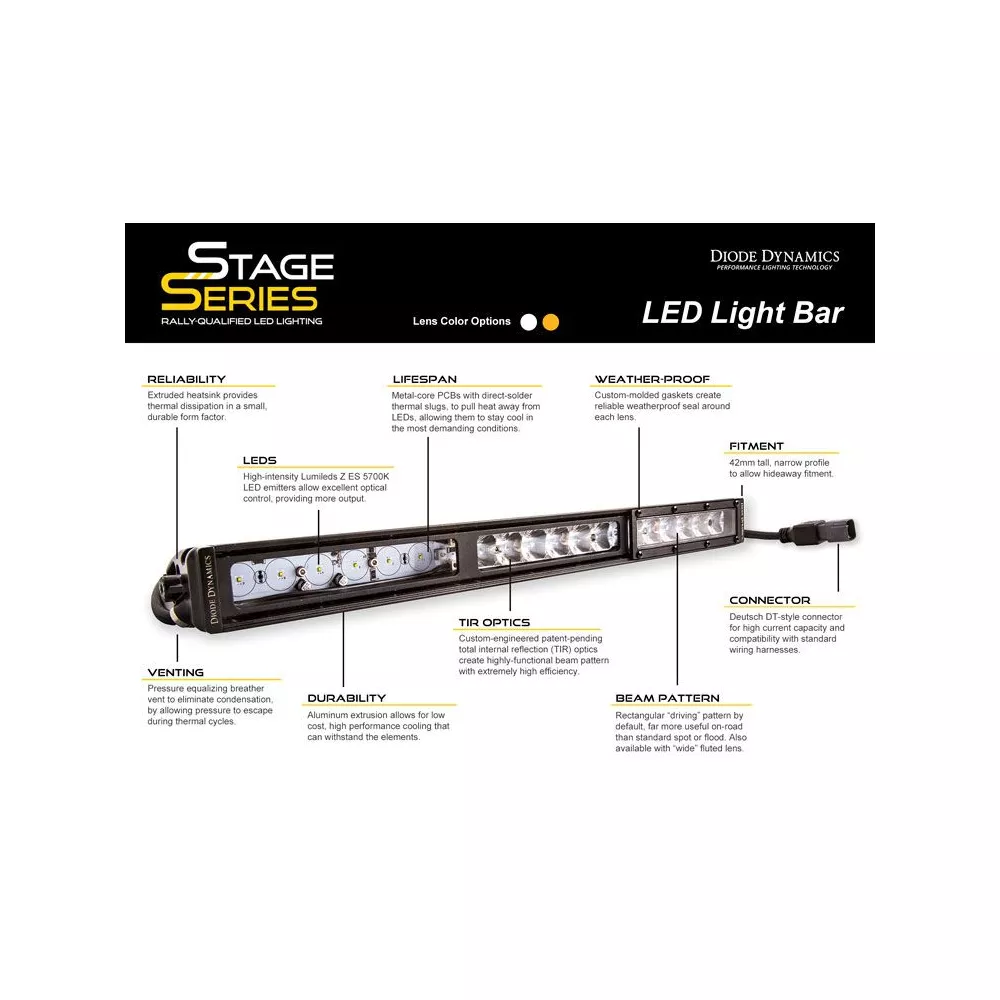

Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Stage Series lightbars are based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings. The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

High-intensity automotive-type LEDs with pure white color

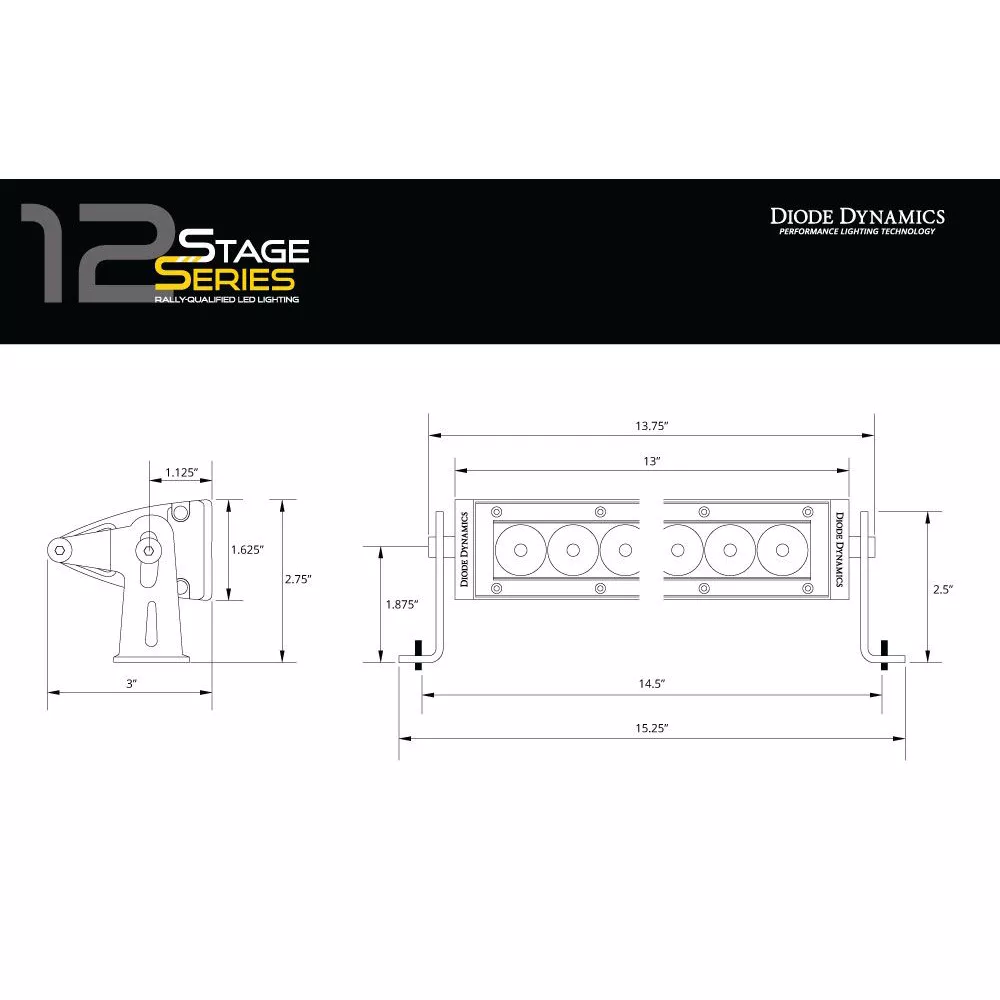

Slim 42mm housing for low-profile fitment
Durable matte powdercoated extrusion
Equipped w/ Driving optic
Advanced TIR optics provide high efficiency and focus

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

Diode Dynamics SS12 White SAE Driving Light Bar (Single) Light Bars Truck & Automotive> Automotive Lighting> Light Bars

Specification	Description
Brand	Diode Dynamics
Country of Origin	Imported
Battery Size	N/A
Beam Patterns	Driving
Bulb Count	1
Bulb Type	LED
Compatibility	Universal
Coverage Area	20Wx 8H degree pattern
Features	With the included universal bracket set, this product can be installed on any make or model.
Finish	Powder-Coated
Housing Color	Black
Indoor/Outdoor	Outdoor
Light Type	Bar Lights
Lumen Rating	4,560 lm
Package Quantity	1
Power Type	12V
Primary Material	Aluminum
Product Height	2.75 in.
Product Length	13 in.
Product Weight	3.58 lb.
Product Width	3 in.
Voltage	12-24v
Warranty	8-Year
Wattage	4.2A at 14V
Manufacturer PartNumber	DD5015S
