Diode Dynamics SS42 White Combo Light Bar Light Bars Truck & Automotive

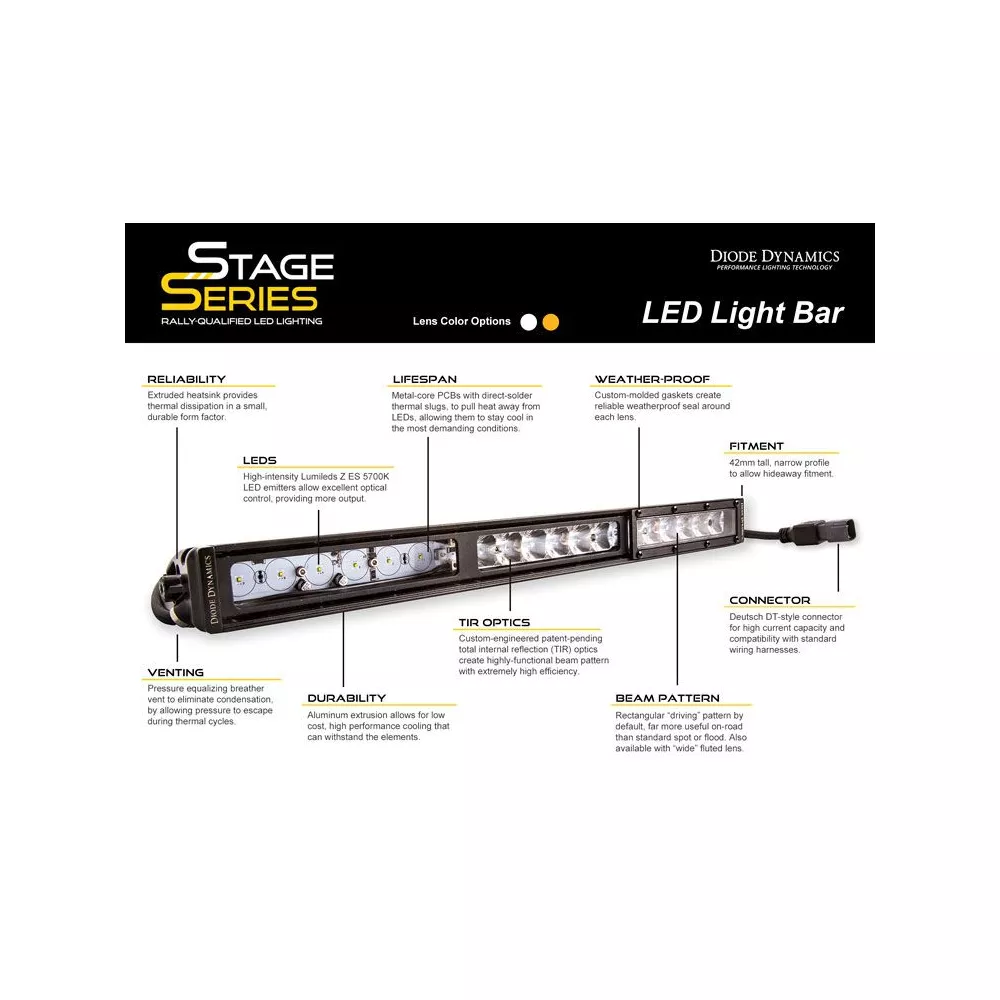

Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Stage Series lightbars are based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings. The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

High-intensity automotive-type LEDs with pure white color
Combo beam pattern for short and long-range illumination
Durable matte powdercoated extrusion
Slim 42mm housing for low-profile fitment
Advanced TIR optics provide high efficiency and focus

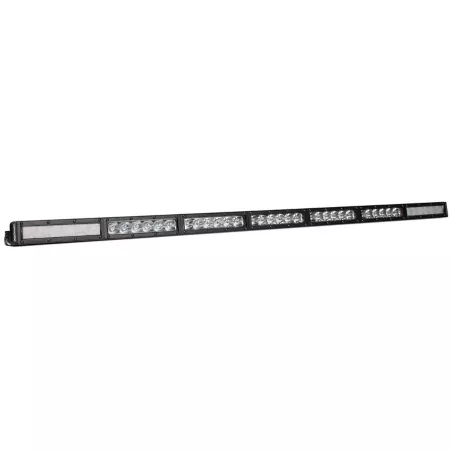

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 42" Combo Light Bar features five driving lenses in the middle with two flood lenses on the outer edges.

Diode Dynamics SS42 White Combo Light Bar Light Bars Truck & Automotive> Automotive Lighting> Light Bars

Specification	Description
Brand	Diode Dynamics
Country of Origin	Imported
Battery Size	N/A
Beam Patterns	Combination
Bulb Count	1
Bulb Type	LED
Compatibility	Universal
Coverage Area	80Wx 50H and 20Wx 8H
Features	With the included universal bracket set, this product can be installed on any make or model.
Finish	Powder-Coated
Housing Color	Black
Housing Material	Aluminum
Indoor/Outdoor	Outdoor
Light Color	White
Light Type	Bar Lights
Lumen Rating	15,960 lm
Package Quantity	1
Power Type	12V
Primary Material	Aluminum

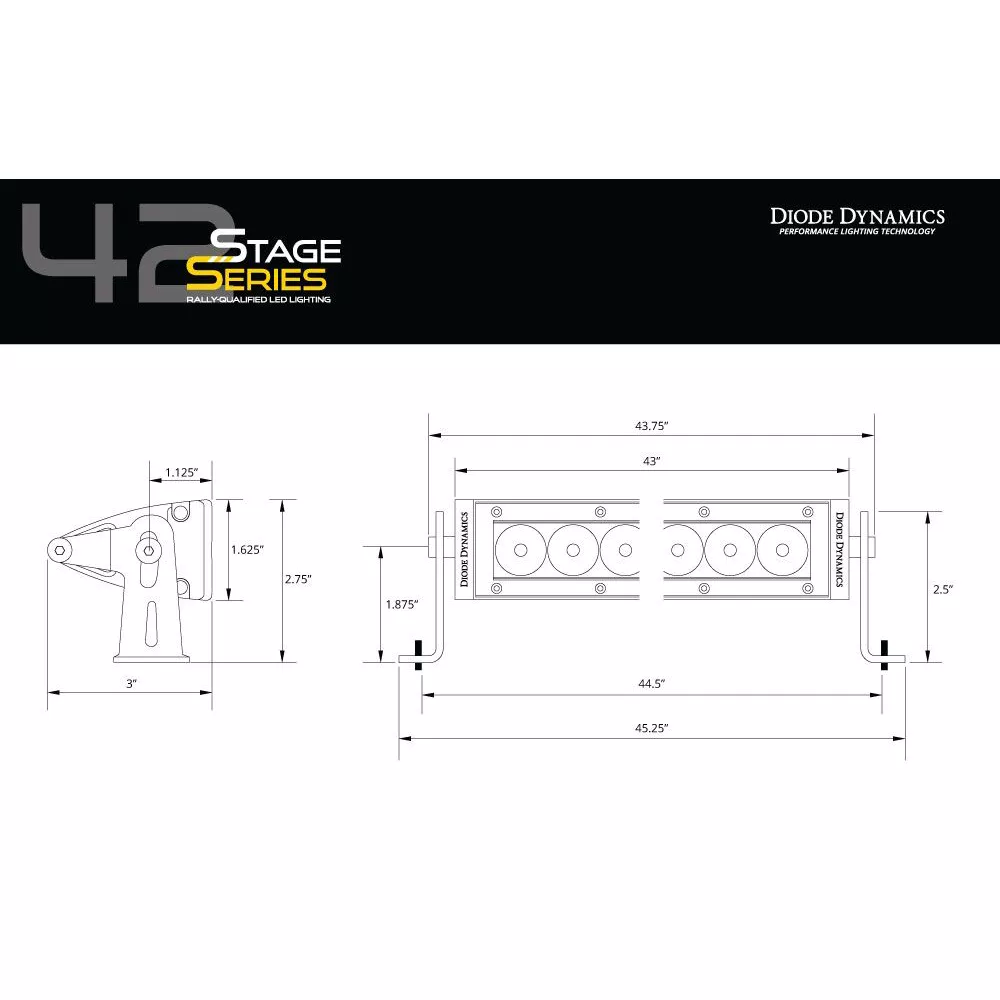

Product Height	43 in.
Product Length	3 in.
Product Weight	9.85 lb.
Product Width	1.63 in.
Voltage	9-24v
Warranty	8-year
Wattage	16A at 14v
Manufacturer PartNumber	DD5034

Diode Dynamics SS42 White Combo Light Bar Specifications expand/collapse Specification Description Brand Diode Dynamics Country of Origin Imported Battery Size N/A Beam Patterns Combination Number of Bulbs 1 Bulb Type LED Compatibility Universal Coverage Area 80Wx 50H and 20Wx 8H Features With set of Universal brackets included, this product can be installed on any make or model. Finish Powder Coated Housing Color Black Housing Material Aluminum Indoor/Outdoor Outdoor Light Color White Light Type Light Bar Lumen Rating 15,960 lm Package Quantity 1 Power Type 12V Main Material Aluminum Product Height 43" . Product length 3 in. Product weight 9.85 lbs. Product Width 1.63 in. Voltage 9-24 V 8-year warranty Power 16 A at 14 V Manufacturer part number DD5034
