Diode Dynamics SS50 White Combo Light Bar Light Bars Truck & Automotive

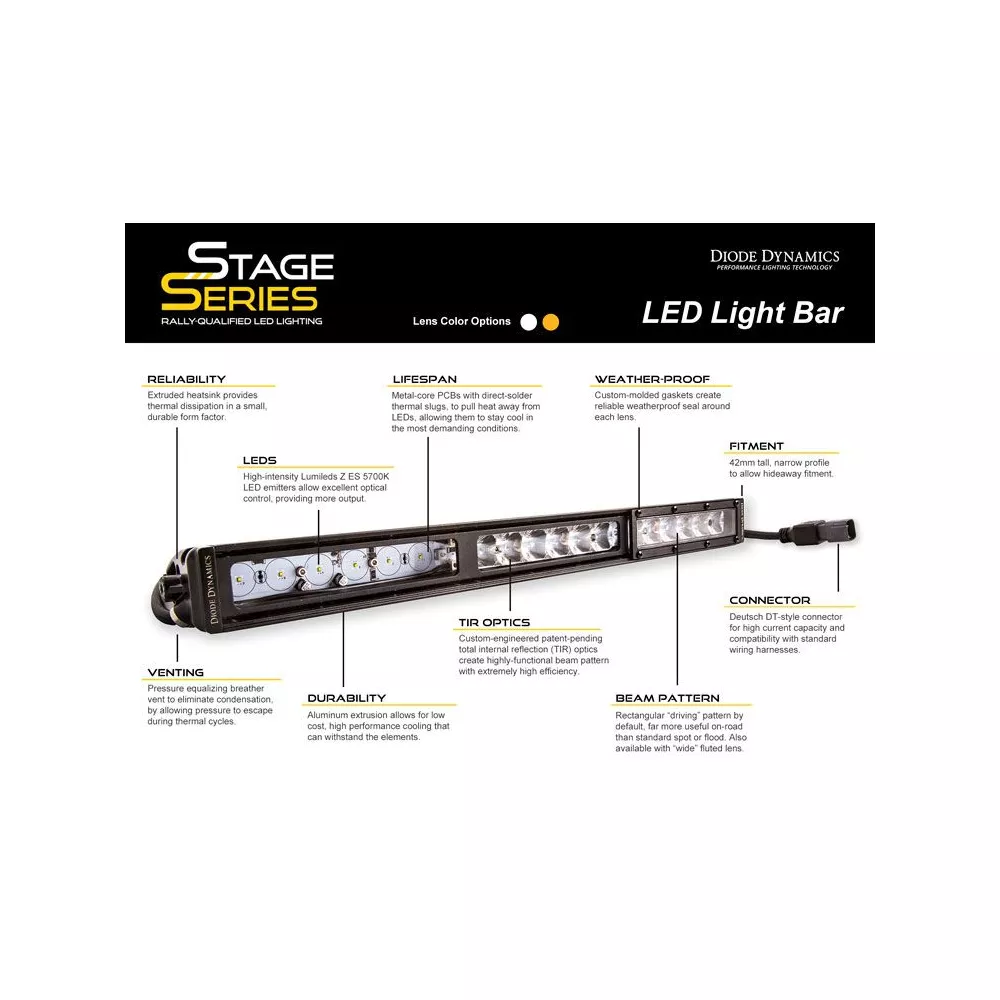

Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Stage Series lightbars are based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings. The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

High-intensity automotive-type LEDs with pure white color
Slim 42mm housing for low-profile fitment
Durable matte powdercoated extrusion
Combo beam pattern for short and long-range illumination

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 50" Combo Light Bar features six driving lenses in the middle with two flood lenses on the outer edges.

Diode Dynamics SS50 White Combo Light Bar Light Bars Truck & Automotive> Automotive Lighting> Light Bars

Specification	Description
Brand	Diode Dynamics
Country of Origin	Imported
Battery Size	N/A
Bulb Count	1
Bulb Type	N/A
Compatibility	With the included universal bracket set, this product can be installed on any make or model.
Coverage Area	80Wx 50H degree spread
Features	With the included universal bracket set, this product can be installed on any make or model.
Finish	Powder-Coated
Housing Color	Black
Indoor/Outdoor	Outdoor
Light Type	Bar Lights
Lumen Rating	18,240 lm
Package Quantity	1
Power Type	12V
Primary Material	Aluminum
Product Height	49 in.
Product Length	3 in.
Product Weight	11 lb.
Product Width	1.63 in.
Voltage	9-24v
Warranty	8-Year
Wattage	18.5A at 14v
Manufacturer PartNumber	DD5035

Diode Dynamics SS50 White Combo Light Bar Specifications expand/collapse Specification Description Brand Diode Dynamics Country of Origin Imported Battery Size N/A Number of Bulbs 1 Bulb Type N/A Compatibility With the included universal bracket set, this product can be installed on any no matter what brand or model. Coverage Area 80W x 50H Spread Degrees Features With the included universal bracket set, this product can be installed on any make or model. Finish Powder Coated Housing Color Black Indoor/Outdoor Outdoor Light Type Light Bar Lumen Rating 18,240 lm Package Quantity 1 Power Type 12V Primary Material Aluminum Product Height 49" Product Length 3" Product Weight 11 lb Product Width 1.63 in. Voltage 9 -24V Warranty, 8 Year Power, 18.5A at 14V, Manufacturer Part Number DD5035.
