DK2 3-Stage Planetary Gear Electric Winch 12V 20 000 lb Capacity 85ft Galvanized Cable Truck & SUV Winches Truck & Automotive

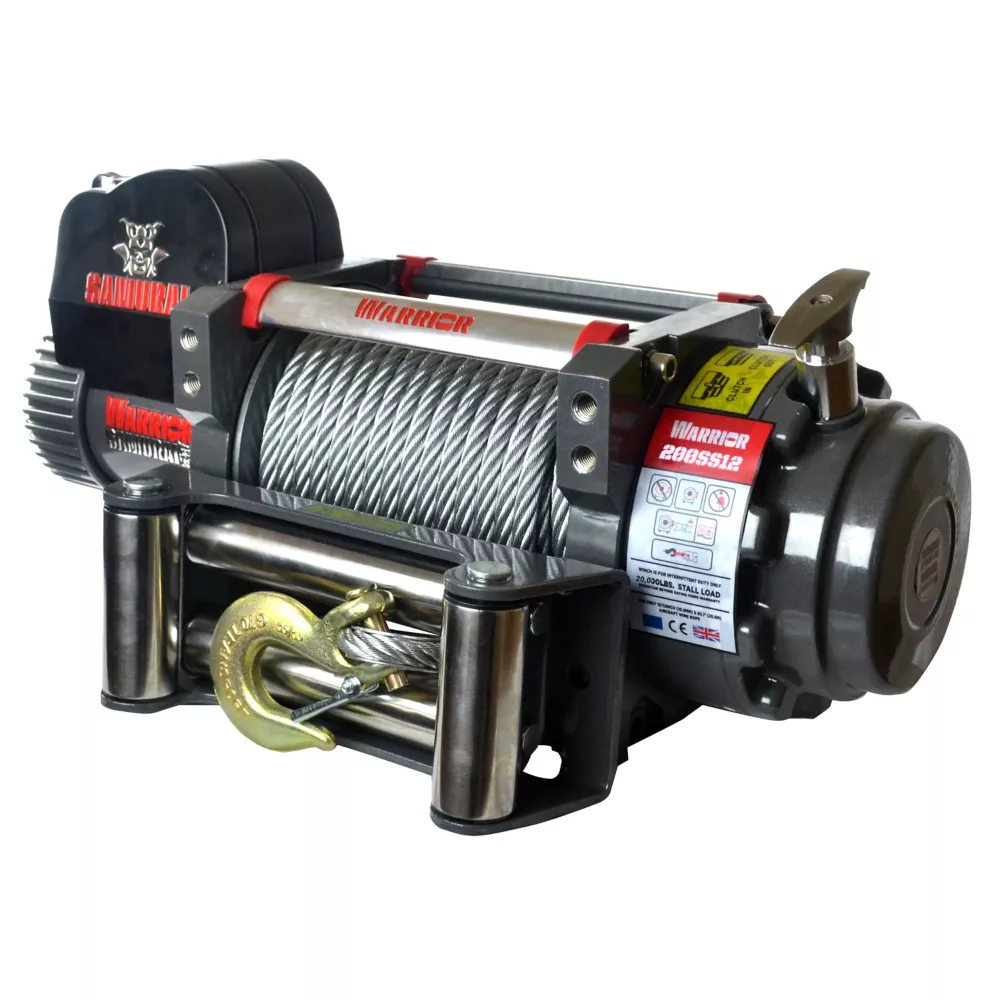

Introducing the DK2 Samurai 20,000 lb. Electric Planetary Gear Winch with Galvanized Cable. Designed for the toughest of applications and tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 HP Series wound motor, which is housed in full steel supports, ensuring this immense warrior is ready for any battle. Available in 12V or 24V, this premium level winch comes packed with all the features you would expect from the Samurai Range. The motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings including the roller fairleads are stainless steel, and the smooth planetary gearing is full steel. All this is backed up by the unrivalled 1-year limited warranty.- Premium level winch with a 20,000 lb. rated pull line

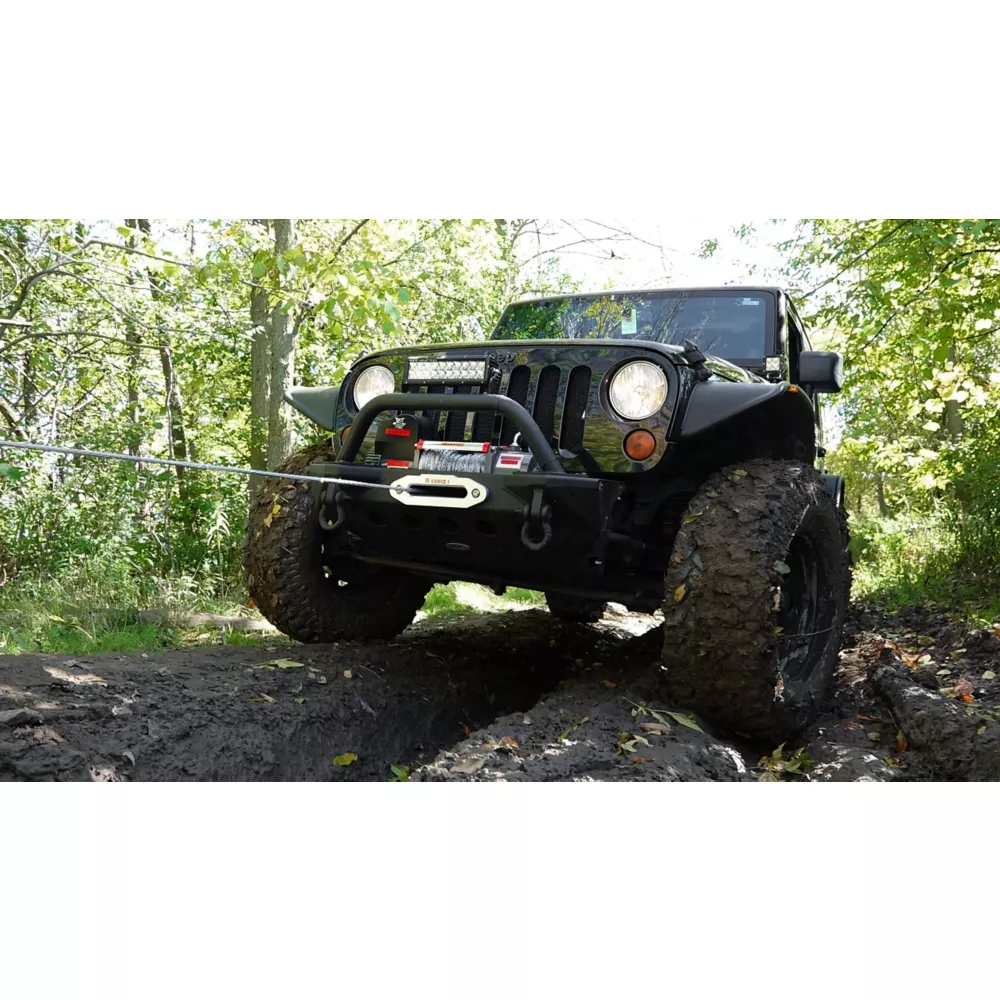

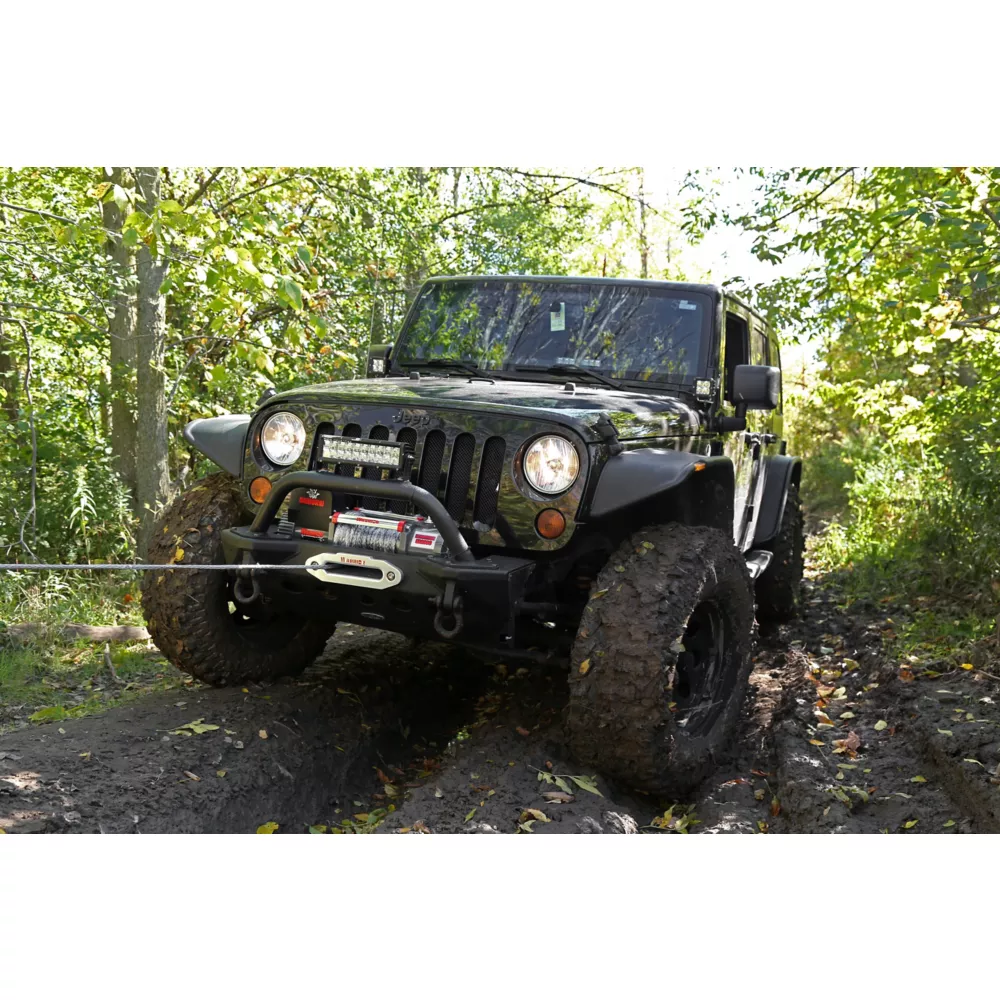

- Ideal winch for recovery and 4x4 applications

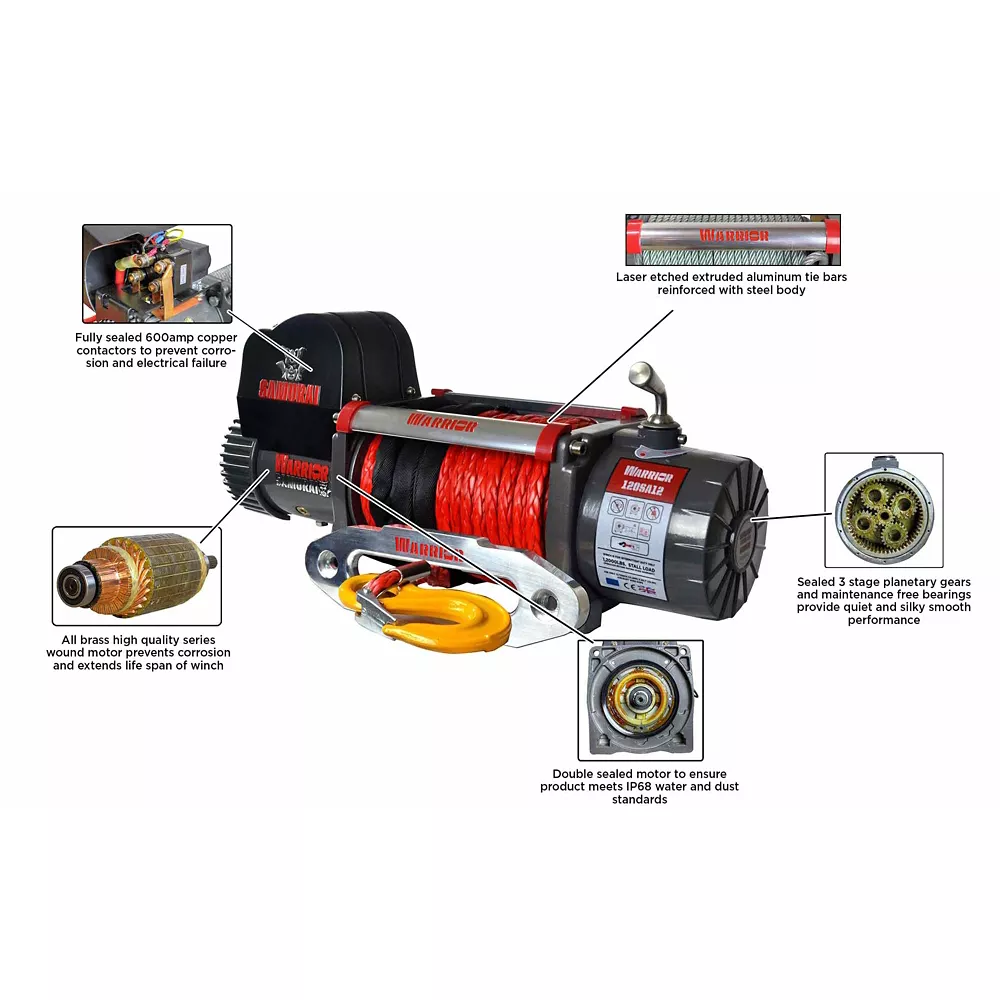

- Equipped with a double-sealed motor with solid brass fittings, heavy-duty waterproof contactors, and double-sealed drum on maintenance free bearings
- Quiet, efficient full steel 3-stage planetary gearing
- Chip-resistant powder-coated finish ensures lasting quality
- 1-year limited warranty
- Cable size: 0.47 in. x 86.95 ft.
- Certification: IP 68
- Motor: 12 Volt 7.5 Horsepower
- Breaking action: Auto in the drum
- Gearing: 430:1
- Drum size: 3.5" x 8.6" (Diameter x Length)
- Cable size: 0.5" x 85 feet (Diameter x Length)
- Galvanized Steel cable
- Mount pattern: 10" x 4.5"
- Product dimensions: 24" x 8.6" x 10.7" (LxWxH)
- Weight: 159 lbs

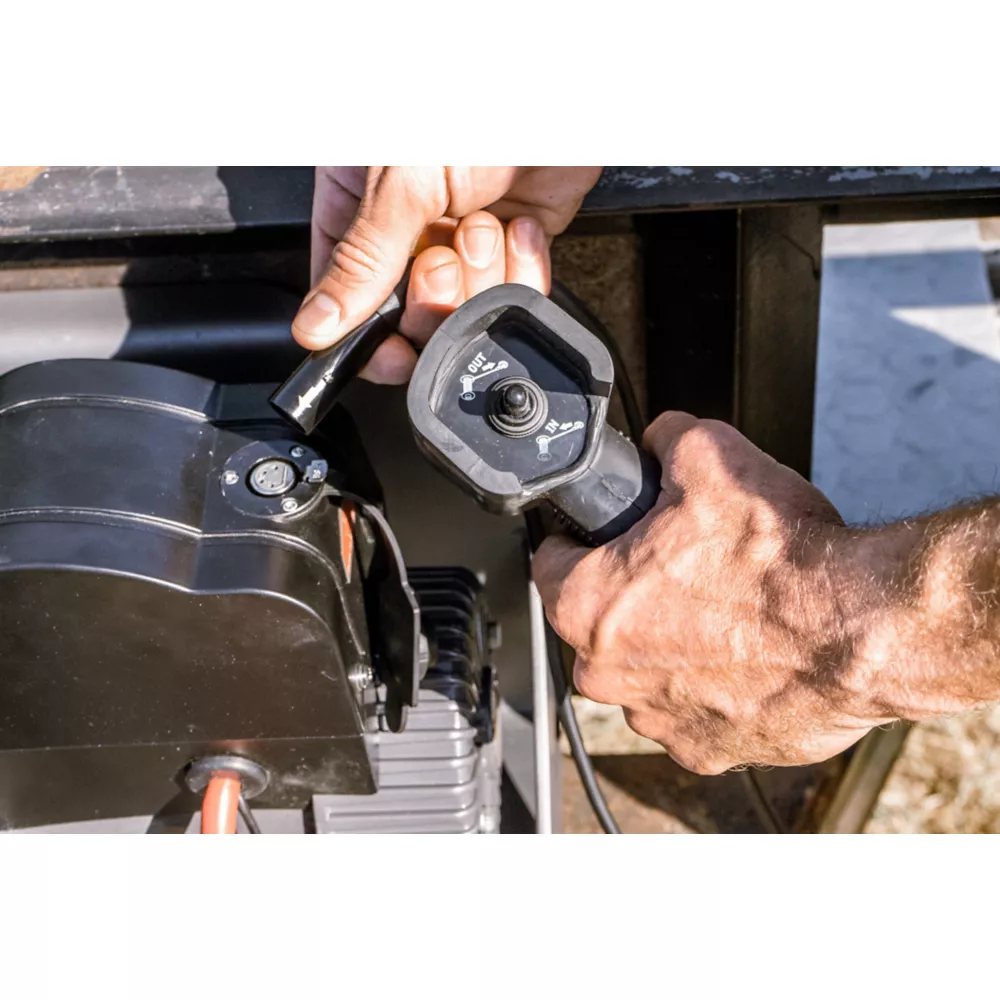

- 10 ft remote wireless handset
- Solid cast iron 5/16 " Clevis hook

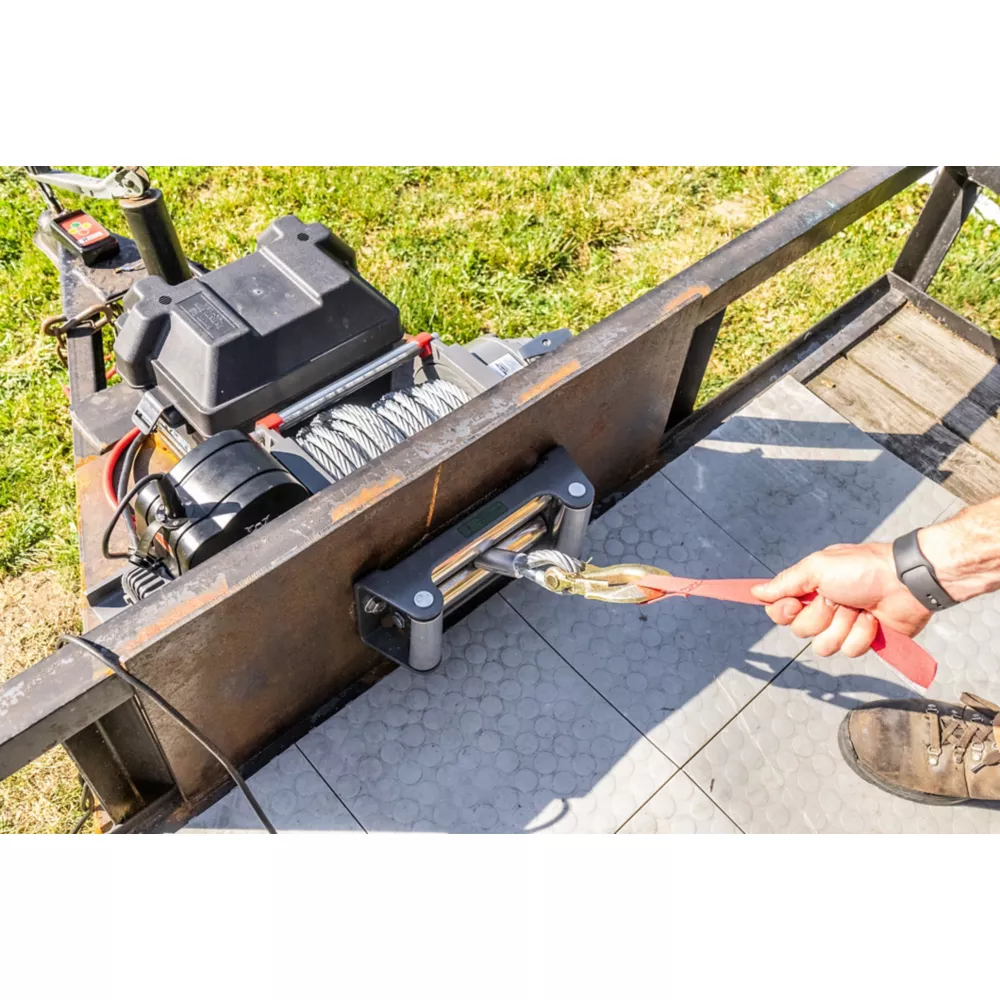

- Stainless steel 4-way fairleads, battery leads & mounting hardware
- High quality steel drum supports
- Isolation switch
- Line speed: 3.6 foot per minute at 20,000 lbs
- Video depicts comparable Samurai S17500 - 17,500 line rated pull Winch
DK2 3-Stage Planetary Gear Electric Winch 12V 20 000 lb Capacity 85ft Galvanized Cable Truck & SUV Winches Truck & Automotive> Truck Accessories> Truck Towing Supplies> Truck & SUV Winches
| Specification | Description |
|---|---|
| Brand | DK2 |
| Country of Origin | Imported |
| Braking Mechanism | Drum |
| Capacity | 20,000 lb. rate pull |
| Clutch Type | Manual |
| Compatibility | N/A |
| Engine Brand | N/A |
| Engine Displacement | 7.5 Horsepower |
| Engine Type | None |
| Fairlead Included | Yes |
| Fairlead Type | Roller |
| Features | Cable Included |
| Gear Ratios | 430:1 |
| Handle Length | N/A |
| Horsepower | 7.5 HP |
| Line Diameter | 0 N/A |
| Line Length | 87 ft. |
| Line Pull Capacity | 20,000 lb. |
| Line Speed | 5.6 ft. per min. 10,000 lb. line pull |
| Maximum Operating Range | 87 ft. |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | 1 |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 10.9 in. |
| Product Length | 24 in. |
| Product Weight | 159 lb. |
| Product Width | 8.5 in. |
| Line Type | Galvanized |
| Voltage | 12 V |
| Warranty | 1 Year Limited |
| Motor Type | Electric |
| Manufacturer PartNumber | S20000 |
