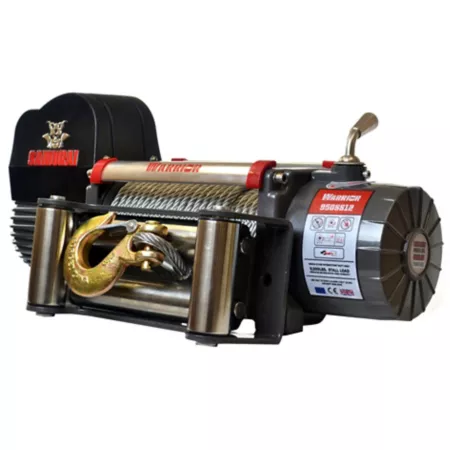

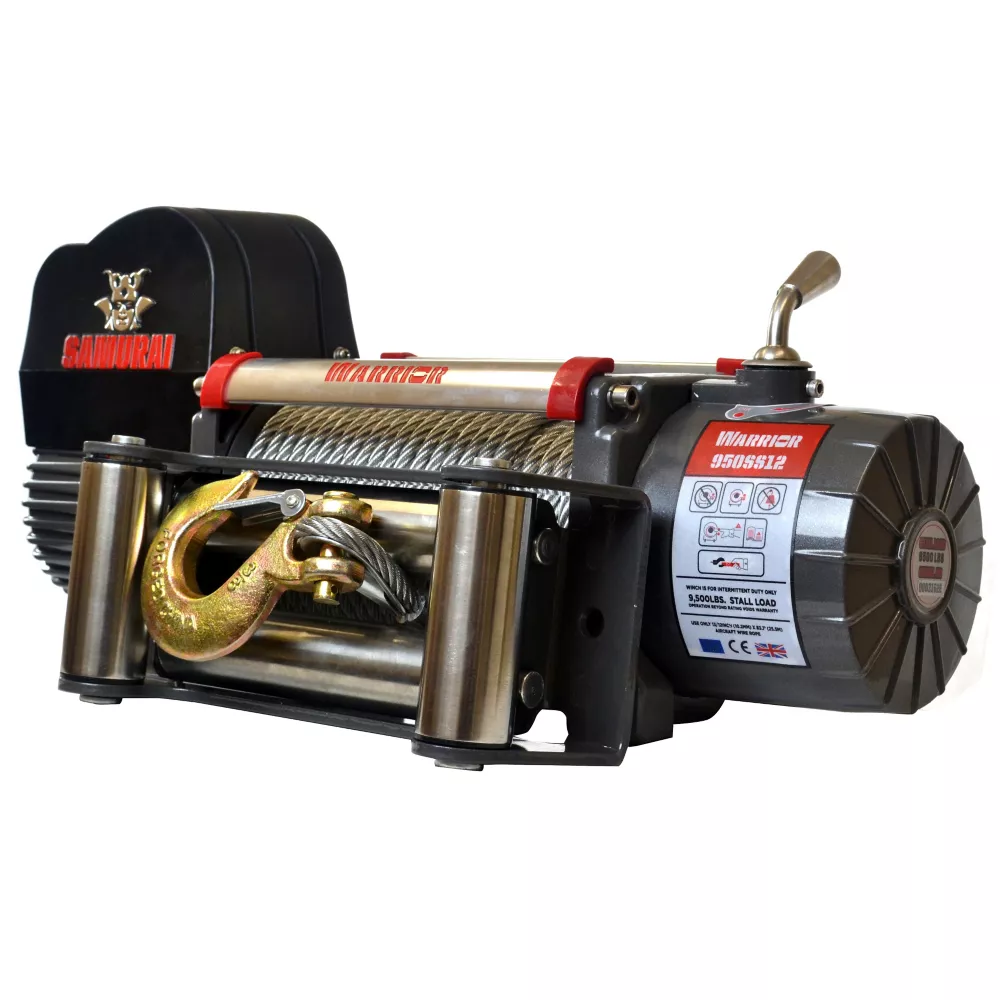

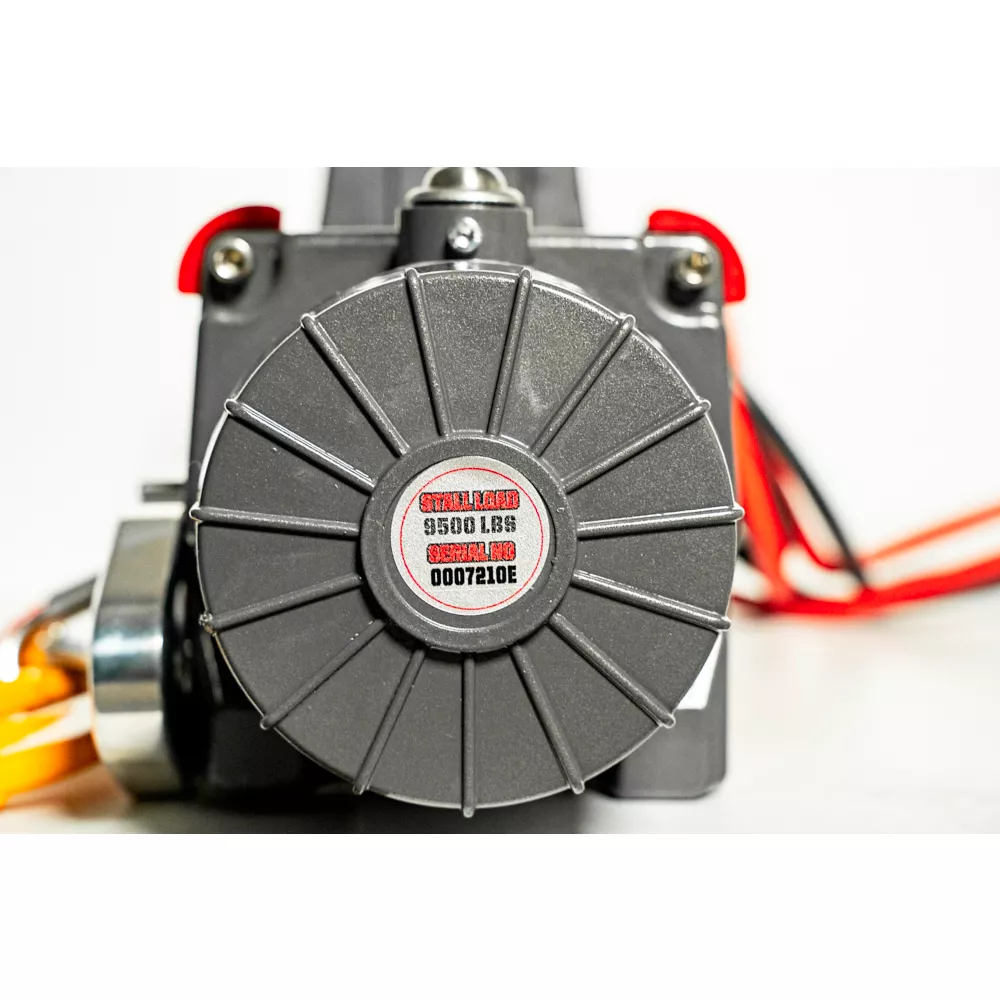

DK2 Warrior Samurai Electric Planetary Gear Winch 9 500 lb Capacity 12V with Galvanized Steel Cable Electric Trailer Winches Trailers & Towing

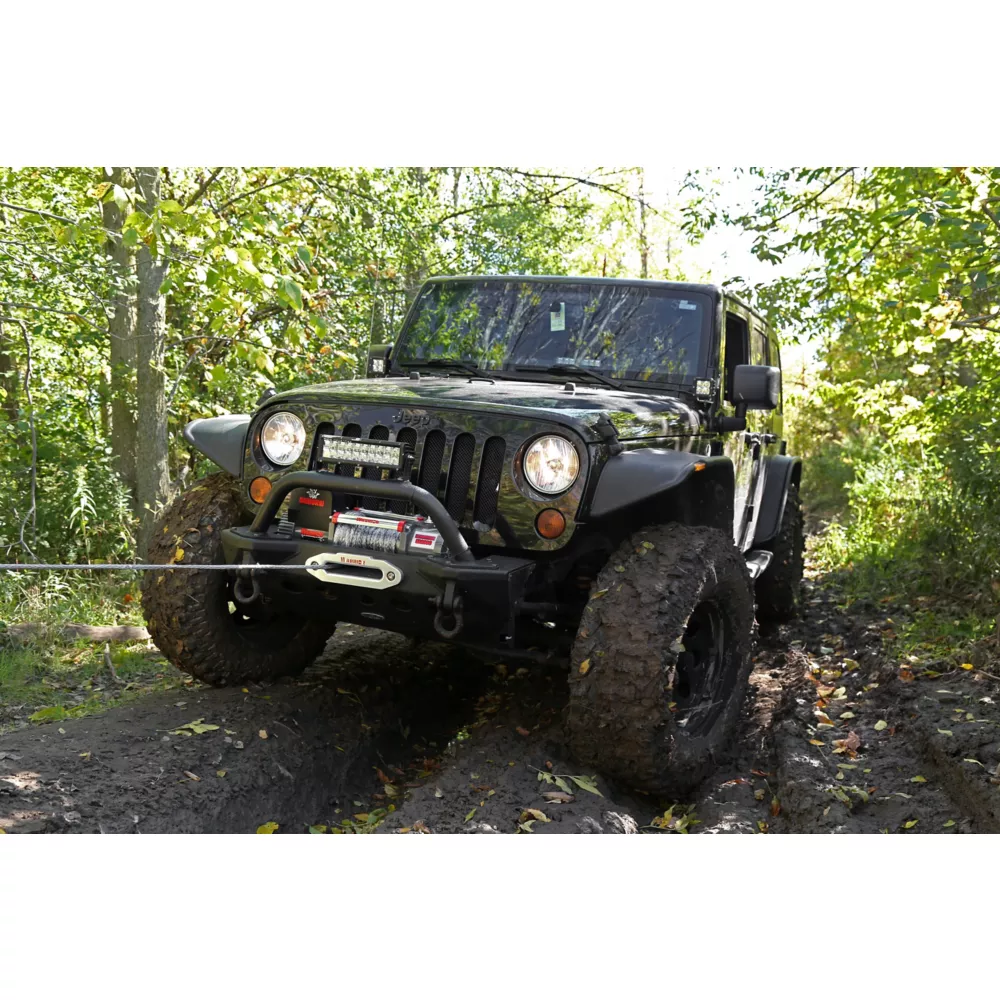

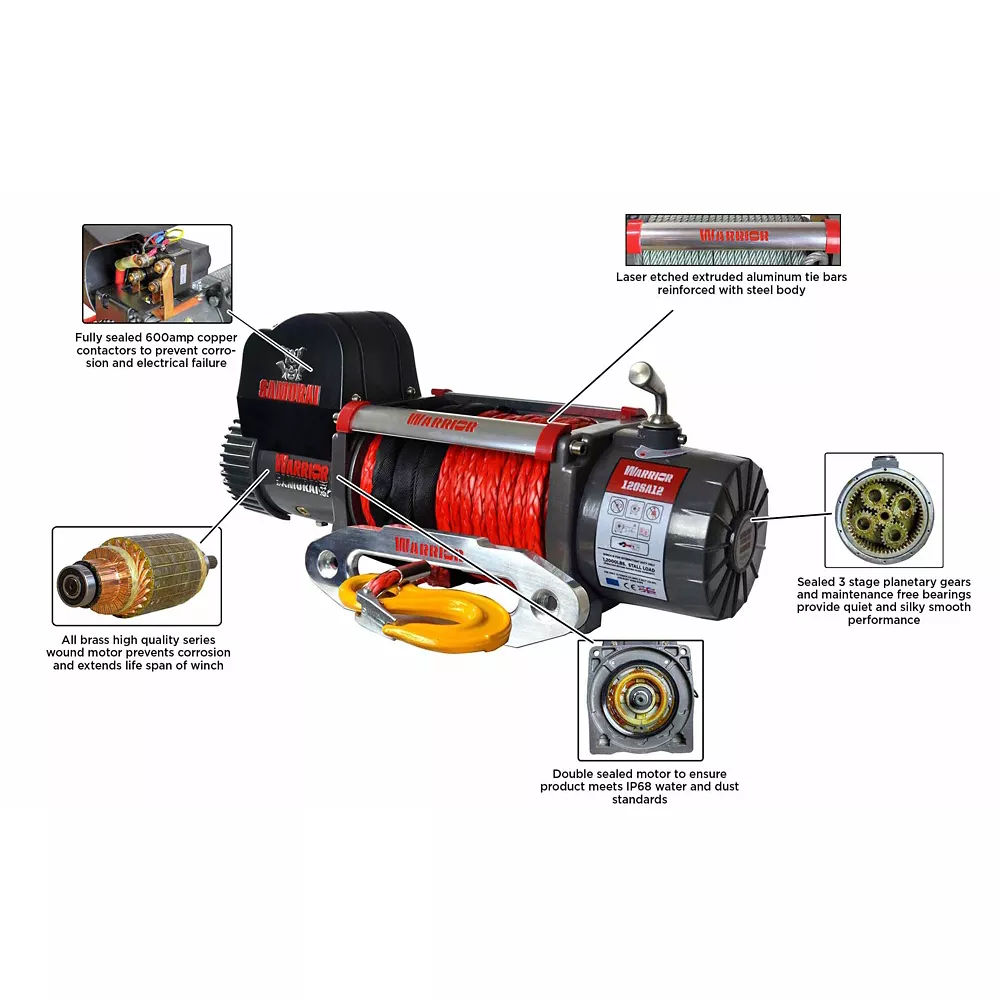

The DK2 Warrior Samurai 9500lb is a Superb, high specification winch. Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12 Volt version comes complete with Heavy Duty integrated wireless remote. Limited Lifetime warranty. Makes a great gift!- Laser etched extruded Aluminum tie bars, reinforced with Steel body, Double sealed motor to ensure product meets IP68 water and dust standards
- 3 sealed Planetary gears and maintenance free bearings provide quiet and silky smooth performance
- All brass high quality series wound motor prevents corrosion and extends life span of winch
- Stainless Steel 4 Way Fairleads, Fully sealed 600 amp copper contactors for protection and to prevent corrosion and electrical failure
- Integrated Wireless Remote (12Volt only)
- Rated Line Pull 9500 lbs
- Motor: 12 Volt 4.6 Horsepower
- Gearing: 230:1
- Drum Size- Diameter x Length: 2.48 inch x 8.78 inch
- Cable - Diameter x Length: (0.36 inch x 1.2 inch)
- Dimensions: 21.25 x 6.3 x 8.6 inch
- Mounting Pattern: 10 x 4.5 inch
- Breaking Action: Auto in the drum
- 6.4 ft/min @ 9500 line pull
DK2 Warrior Samurai Electric Planetary Gear Winch 9 500 lb Capacity 12V with Galvanized Steel Cable Electric Trailer Winches Trailers & Towing> Winches & Recovery> Electric Winches> Electric Trailer Winches
| Specification | Description |
|---|---|
| Brand | DK2 |
| Country of Origin | Imported |
| Braking Mechanism | Drum |
| Capacity | 9,500 lb. |
| Clutch Type | N/A |
| Compatibility | Light truck and off road |
| Engine Brand | NA |
| Engine Displacement | 0 cc |
| Engine Type | Electric |
| Fairlead Included | Yes |
| Fairlead Type | Stainless steel roller |
| Features | Limited Lifetime warranty, Galvanized steel cable, Stainless Steel 4 Way Fairleads, Fully sealed 600 amp copper contactors for protection and to prevent corrosion and electrical failure |
| Gear Ratios | 230:1 |
| Horsepower | 4.6 horse power |
| Line Diameter | 0.4 in. |
| Line Length | 85 ft. |
| Line Pull Capacity | 9,500 lb. |
| Line Speed | 6.4 ft. per minute |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | Variable |
| Power Type | 12 Volt |
| Primary Material | Steel |
| Product Height | 8.6 in. |
| Product Length | 21.3 in. |
| Product Weight | 90 lb. |
| Product Width | 6.3 in. |
| Line Type | Galvanized |
| Voltage | 12 V |
| Warranty | Limited Lifetime |
| Motor Type | Electric |
| Manufacturer PartNumber | S9500 |
