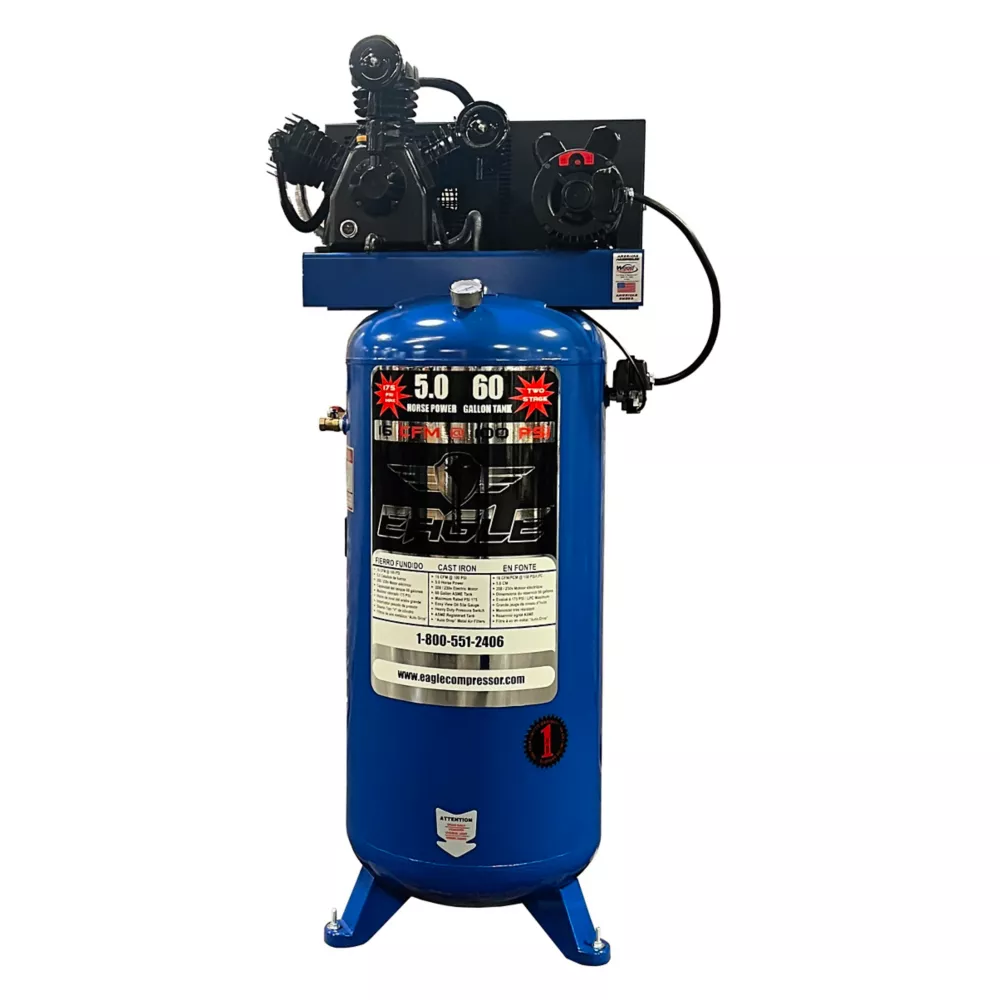

Eagle 5 HP 60 gal 2-Stage Vertical Stationary Air Compressor 175 PSI Stationary Air Compressors Air Compressors

Choose the Eagle Upright 2-Stage Stationary Air Compressor if you need a reliable 2-stage air compressor. The unit features a 60 gal. tank that is ASME registered.

Stationary air compressor with a 60 gal. ASME-registered tank
Thermally protected 5.0 HP electric motor helps the 2-stage air compressor work at peak performance

Eagle 5 HP 60 gal 2-Stage Vertical Stationary Air Compressor 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Eagle
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	14 com
Airflow Volume	16 CFM @ 100 PSI
Air Outlet Size	1/4 in.
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V
Drain System	Manual
Drive Type	Belt
Features	V style design, Heavy duty pressure switch with on/off control, ASME registered tank, Sturdy metal belt guard, Outlet valve included
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Blue
Primary Material	Steel
Product Height	66 in.
Product Length	31 in.
Product Weight	247 lb.
Product Width	23 in.
Pump Material	Cast iron
Stage Type	Two-Stage
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	5160V2

Eagle 5 HP 60 gal. 2-Stage Upright Stationary Air Compressor, 175 PSI Specifications expand/collapse Specification Description Brand Eagle Country of Origin Made in USA Air Flow SCFM at 90 PSI 14 com Air Flow Volume 16 CFM at 100 PSI Air Outlet Size 1/4 in. Compressor Power 5 HP Compressor Maximum PSI 175 PSI Compressor Tank Capacity 60 gal Compressor Type Vertical Compressor Voltage 208V/230V Drain System Manual Drive Type Belt Features V-Style Design, Heavy-Duty Pressure Switch with On/Off Control shut-off, ASME registered tank, Heavy-duty metal belt guard, Outlet valve included Number of power speeds Single number of wheels 0 Power type Electric Primary color Blue Primary material Steel Product height 66 in. Product length 31 in. Product weight 247 lbs. Product width 23 in. Pump Material Cast Iron Stage Type Two-Stage Tank Orientation Vertical Warranty 1 Year Manufacturer Part Number 5160V2
