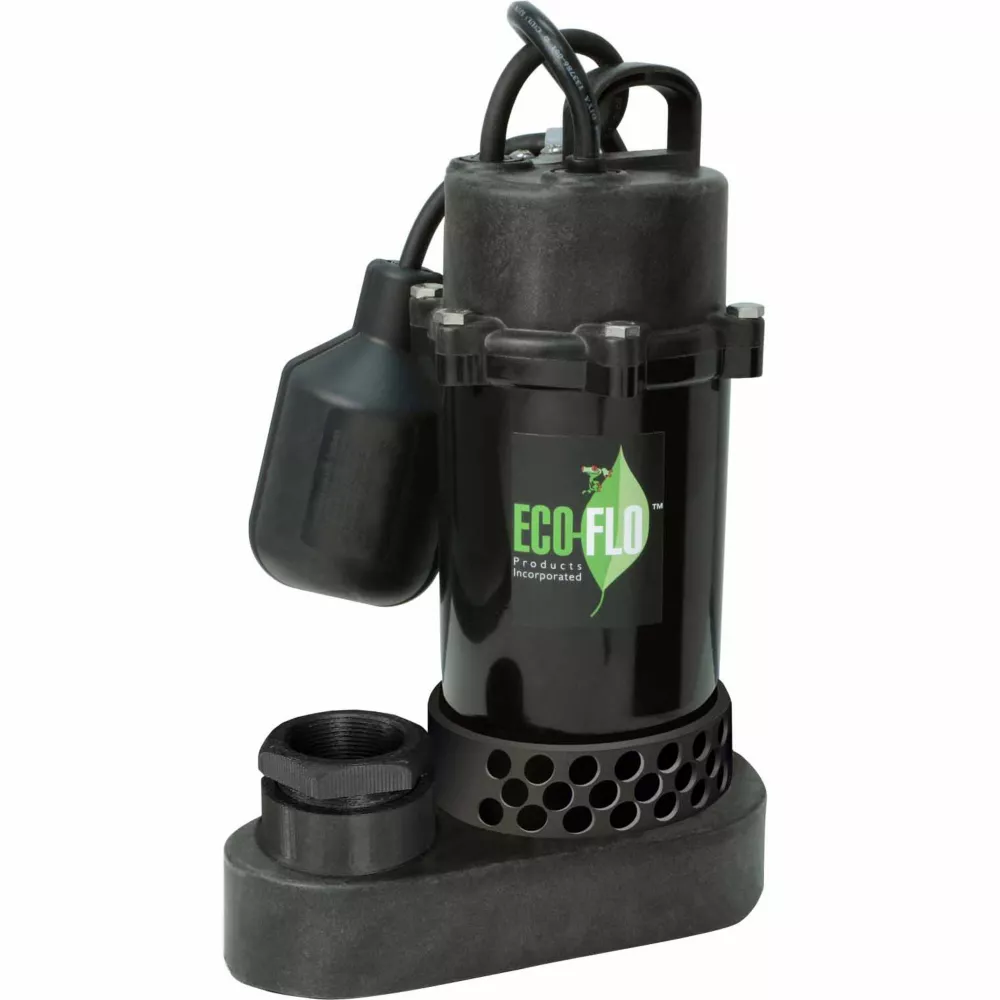

ECO-FLO Products Inc Anodized Aluminum Electric Sump Pump 1/3 HP 115V with Wide Angle Switch 3 540 GPH Sump Pumps Farm & Ranch

The ECO-FLO Anodized Aluminum Sump Pump features an anodized aluminum motor housing for efficient motor cooling. The submersible sump pump has built-in overload motor protection and thermoplastic construction for extra durability. This sump pump handles 3/8 in. solids for no clogging.

Continuous duty, efficient 115V PSC (permanent split capacitor) motor for a lower carbon footprint
1-1/2 in. FNPT discharge with 1-1/2 in. MNPT x 1-1/4 in. FNPT adaptor
Features a wide angle switch
Wide angle automatic on/off switches (14 in. diameter basin)
1-year limited warranty
8 ft. Cord Length
up to 3540 GPH

ECO-FLO Products Inc Anodized Aluminum Electric Sump Pump 1/3 HP 115V with Wide Angle Switch 3 540 GPH Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Basin Diameter	18 in.
Body Material	Aluminum
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1.5 in.
Discharge Rate at 0 ft.	3,540gph
Discharge Rate at 10 ft.	2,640gph
Engine Displacement	0na
Features	Horsepower 3540 GPH Thermoplastic and Aluminum Construction Built-in Overload Motor Protection Wide Angle Switch Operates in basins 18" in diameter x 24" depth Solids Handling Vortex, Thermoplastic Impeller - " Solids Handling
Horsepower	0.33hp
Hose Diameter	1.5 in.
Inlet Connection	None
Inlet Diameter	0na
Maximum Flow Rate	3,540gph
Maximum Head Lift	25 ft.
Maximum Operating Pressure	10.8 PSI
Maximum Operating Temperature	104 deg. F
Maximum Solids Diameter	3/8 in.
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0na
Minimum Operating Temperature	33 deg. F
Power Cord Length	8 ft.
Power Type	Electric
Product Height	13.4 in.
Product Length	9-7/16 in.
Product Weight	10 lb.
Product Width	8-1/4 in.
Pump Mechanism	Centrifugal
Motor Type	115V PSC
Switch-Off Height	7.59 in.
Switch-On Height	14.68 in.
Voltage	115v
Warranty	1 Year
Manufacturer PartNumber	SPP33W

ECO-FLO Products Inc. 1/3 HP 115V Electric Anodized Aluminum Sump Pump with Wide-Angle Switch, 3,540 GPH Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Basin Diameter 18 in. Body Material Aluminum Compatible Hose Material PVC Discharge Connection Female Threaded Discharge Port Diameter 1.5 in. Motor Displacement 10 ft. 2,640 gph 0na Features Power 3,540 GPH Thermoplastic and aluminum construction Built-in motor overload protection Wide angle switch Works in 18" diameter x 24" deep ponds Solids handling vortex, Thermoplastic Impeller - "Solids Handling Horsepower 0.33 hp Pipe Diameter 1.5" Inlet Connection None Inlet Diameter 0na Maximum Flow 3,540 gph Maximum Head Lift 25 ft Maximum Operating Pressure 10.8 PSI Maximum operating temperature 104 deg F Maximum solids diameter 3/8 in. Maximum suction height 25 ft. Minimum operating pressure 0na Temp.minimum operating ature 33 deg. F Power cord length 8 ft. Power Type Electric Product Height 13.4 in. Product Length 9-7/16 in. Product weight 10 lbs. Product width 8-1/4 in. Pump Mechanism Motor Type Centrifugal 115V PSC Stopping Height 7.59 in. Ignition height 14.68 in. Voltage 115 V Warranty 1 year Manufacturer part number SPP33W
