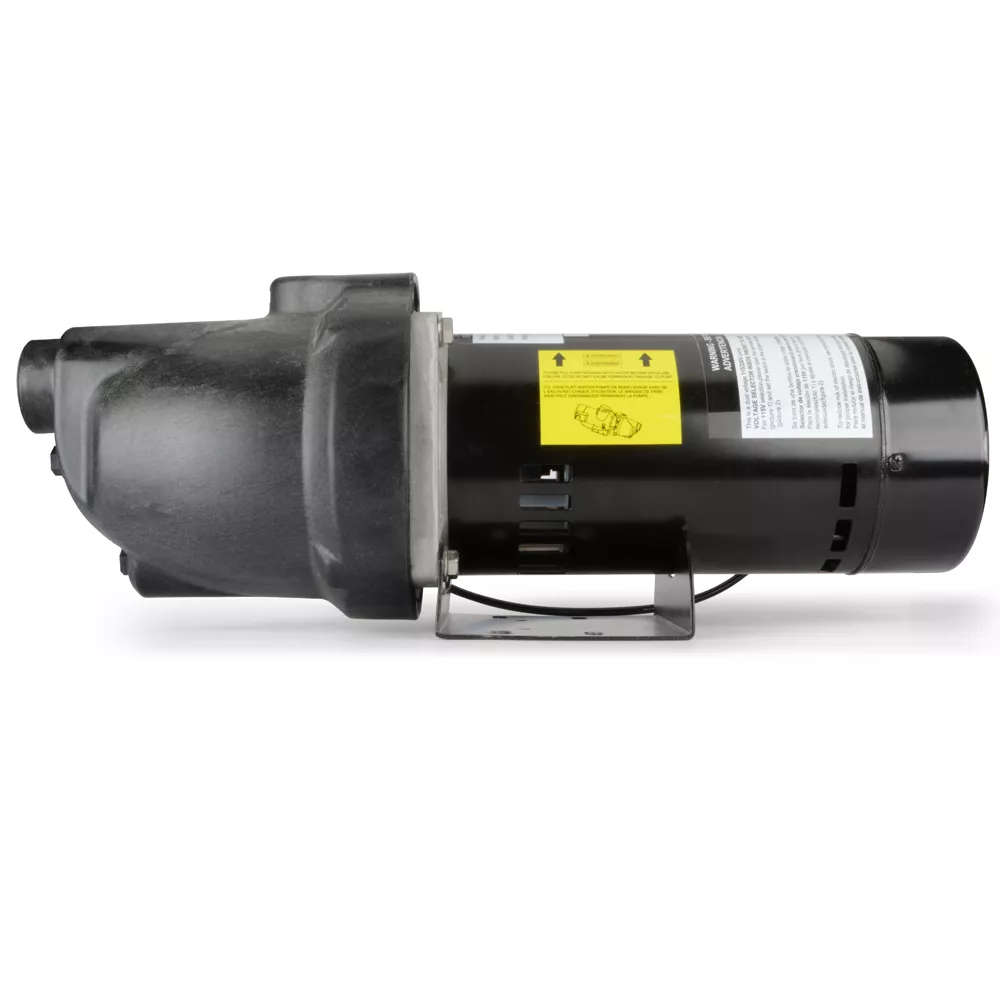

ECO-FLO Products Inc Electric Shallow Well Jet Pump 3/4 HP 115/230 V 16 GPM Plastic Well Pumps Home Improvement

The ECO-FLO Shallow Well Jet Pump provides superior performance and a higher capacity with more pressure for shallow wells of 25 feet or less. The shallow well pump comes with a pressure gauge and switch.

Capacities to 16 GPM
Built-in overload motor has corrosion-resistant nozzle and venturi
Motor features a stainless-steel shaft, heavy-duty bearings, a balanced rotor, a mechanical shaft seal and insulated windings
Well jet pump comes with a pressure gauge and switch
Pre-set, pre-wired pressure switch for automatic operation
Dual voltage: 115/230V
1 in. discharge
1-year limited warranty

ECO-FLO Products Inc Electric Shallow Well Jet Pump 3/4 HP 115/230 V 16 GPM Plastic Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	12.7 Amps
Body Material	Plastic
Compatible Pipe Material	Poly, PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	15.1 GPM
Discharge Rate at 25 ft.	5.6 GPM
Discharge Rate at 50 ft.	0 GPM
Features	Provide superior performance and high capacities with more pressure for shallow wells at 25 ft. or less. Built-in shallow well jet has corrosion-resistant nozzle and venturi. Motor features stainless steel shaft, heavy-duty bearings, balanced rotor
Horsepower	0.75 hp
Impeller Material	Plastic
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	16 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	32 deg. F
Power Cord Length	0 ft.
Power Type	Electric
Product Height	8 in.
Product Length	21 in.
Product Weight	39 lb.
Product Width	11 in.
Motor Type	PSC
Voltage	115V/230V
Warranty	1 Year
Manufacturer PartNumber	EFSWJ7P

ECO-FLO Products Inc. 3/4 HP 115/230V Electric Shallow Well Jet Pump, 16 GPM, Plastic Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 12.7 Amps Body Material Plastic Compatible Hose Material Poly, PVC Compatible Well Diameter 3 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge rate at 0 ft. Discharge rate of 15.1 GPM at 25 feet. Discharge rate of 5.6 GPM at 50 feet. 0 GPM Features Provide superior performance and high capacities with more pressure for shallow wells to 25 feet or less. The integrated shallow well jet features a corrosion-resistant nozzle and venturi. Motor features stainless steel shaft, heavy duty bearings, balanced rotor Power 0.75 hp Impeller Material Plastic Inlet Fitting Female Threaded Inlet Diameter 1.25 in. Maximum flow 16 GPM Maximum head lift 25 feet Maximum operating depth 25 feet Operating temperaturemaximum 104 degrees. F Minimum operating temperature 32 degrees. F Power cord length 0 ft. Power Type Electric Product Height 8 in. Product length 21 in. Product weight 39 lbs. Product width 11 in. Motor Type PSC Voltage 115V/230V Warranty 1 Year Manufacturer Part Number EFSWJ7P
