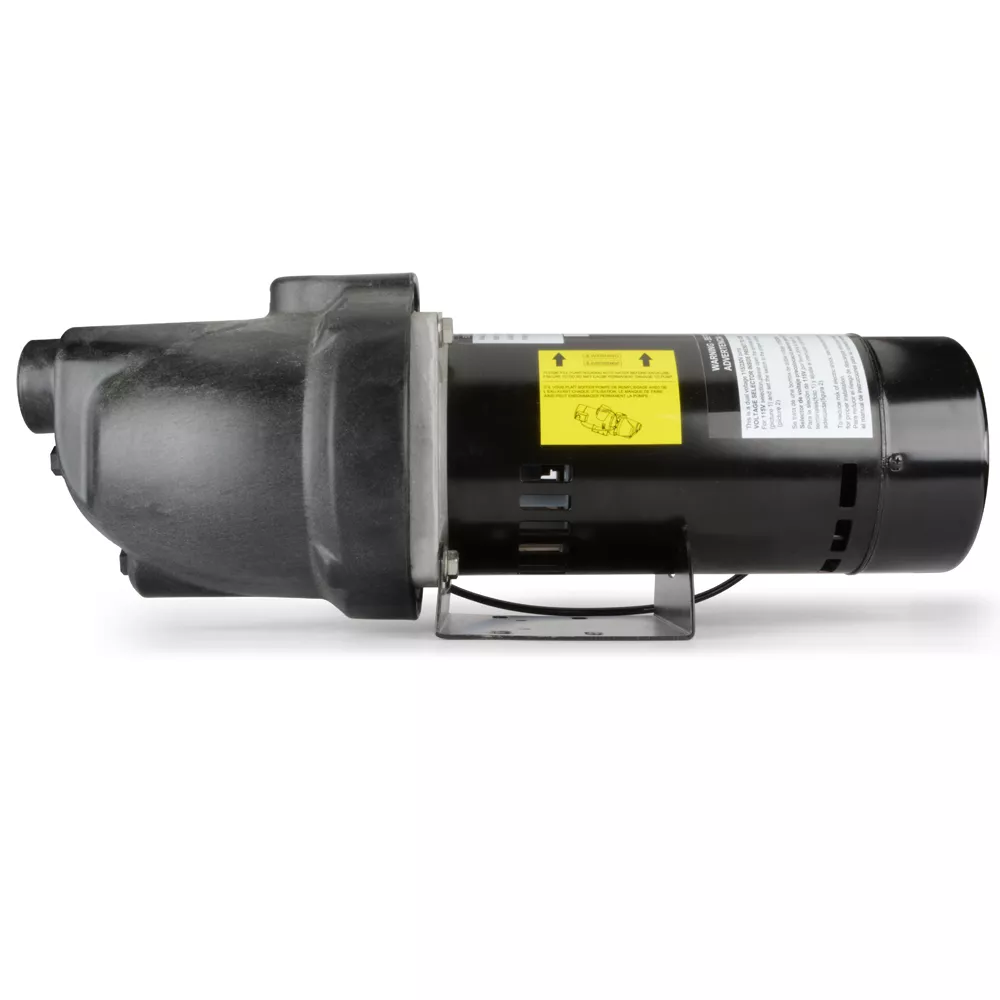

ECO-FLO Products Inc Shallow Well Jet Pump 1/2 HP Plastic Well Pumps Home Improvement

The ECO-FLO Shallow Well Jet Pump provides superior performance and a higher capacity with more pressure for shallow wells of 25 feet or less. The shallow well pump comes with a pressure gauge and switch.

Capacities to 16 GPM
Shallow well pump features a strong, cast-iron pump head
Built-in overload motor has corrosion-resistant nozzle and venturi
Motor features a stainless-steel shaft, heavy-duty bearings, a balanced rotor, a mechanical shaft seal and insulated windings
Well jet pump with a pressure gauge and switch included
Pre-set, pre-wired pressure switch for automatic operation
Dual voltage: 115/230V
1 in. discharge

ECO-FLO Products Inc Shallow Well Jet Pump 1/2 HP Plastic Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	9.5 Amp
Body Material	Plastic
Compatible Pipe Material	PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	8.1 gpm
Discharge Rate at 25 ft.	3.9 gpm
Discharge Rate at 50 ft.	0 gpm
Features	Provides superior performance and high capacities with more pressure for shallow wells at 25 ft. or less. Motor features stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seand and insulated windings. Dual voltage 115/230V
Head Pressure	61 PSI
Horsepower	0.5 hp
Impeller Material	Plastic
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	16 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	35 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	32 deg. F
Power Type	Electric
Product Height	9 in.
Product Length	22 in.
Product Weight	38.3 lb.
Product Width	12 in.
Motor Type	PSC
Voltage	115V/230V
Warranty	1 Year
Manufacturer PartNumber	EFSWJ5P

ECO-FLO Products Inc. Shallow Well Jet Pump, 1/2 HP, Plastic Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 9.5A Body Material Plastic Hose Material Compatible PVC Well Diameter 3 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge Rate at 0 ft. 8.1 gpm Discharge Rate at 25 ft. 3.9 gpm Discharge Rate at 50 ft. 0 gpm Features Offers superior performance and high capacities with more pressure for shallow wells to 25 ft. or less. The motor features a stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft and insulated windings. Dual Voltage 115/230 V Head Pressure 61 PSI Power 0.5 hp Impeller Material Plastic Inlet Fitting Female Threaded Inlet Diameter 1.25 in. Maximum flow 16 GPM Maximum head lift 25 feet. Maximum operating depth 35 feet. Maximum operating temperature 104 degrees. F Operating temperatureminimum 32 degrees. F Power Type Electric Product Height 9 in. Product length 22 in. Product weight 38.3 lbs. Product width 12 in. Motor Type PSC Voltage 115V/230V Warranty 1 Year Manufacturer Part Number EFSWJ5P
