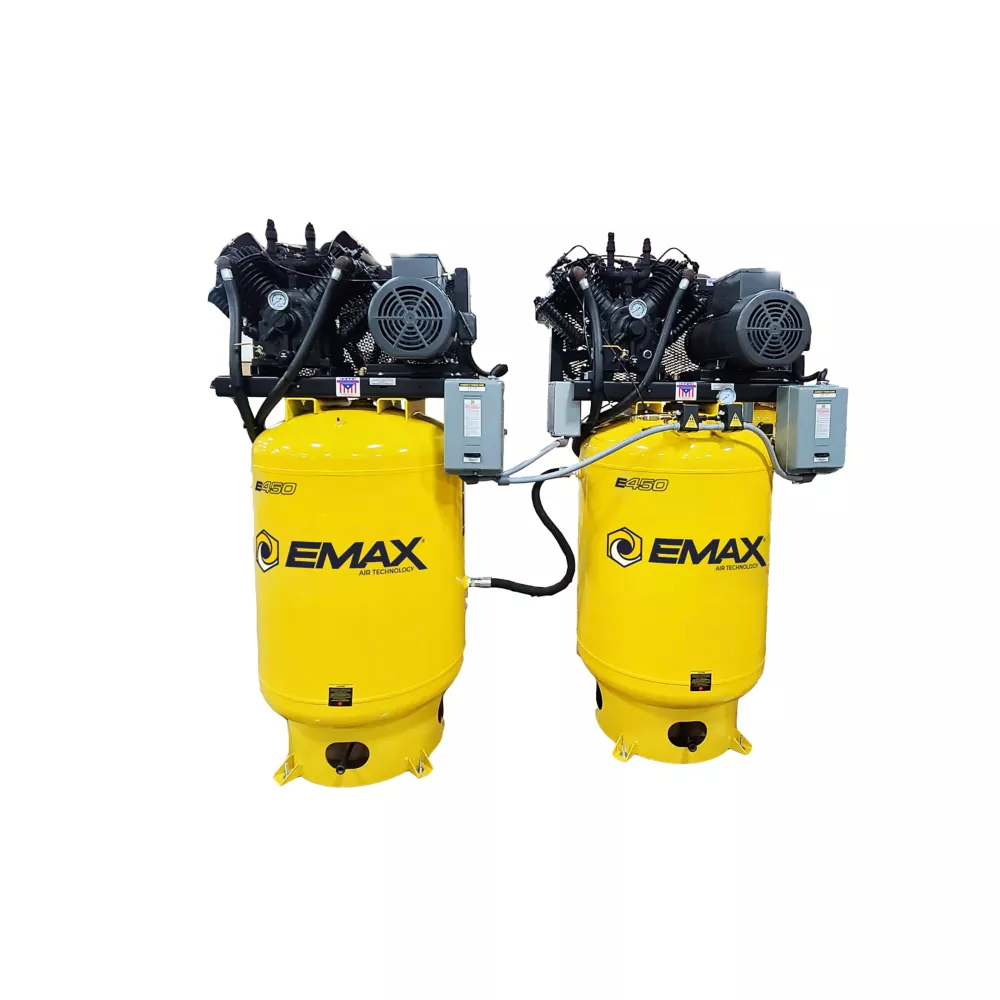

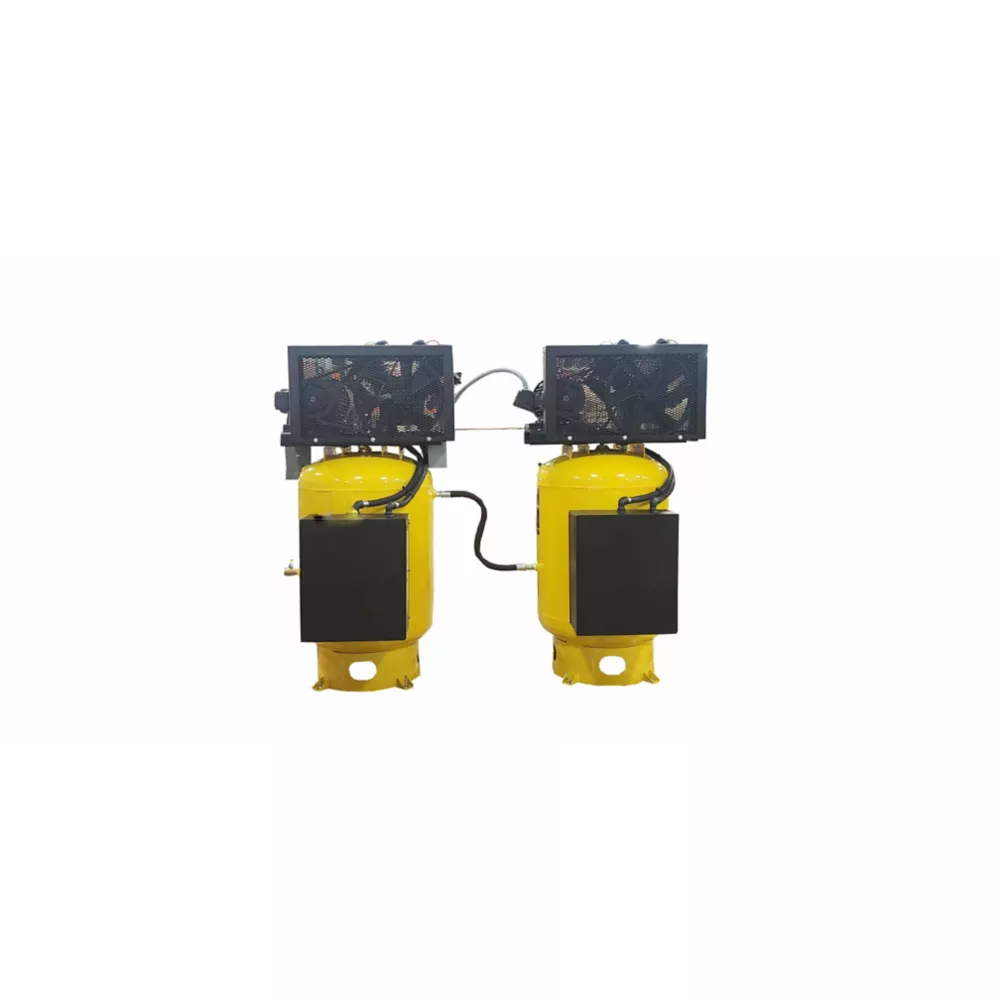

EMAX 10 HP 120 gal Airlink Expandable Quiet Industrial Reciprocating Air Compressor System Patented 2-Stage 175 PSI Stationary Air Compressors Air Compressors

EMAX Compressor has added our Alternating line to the EMAX Silent Air family. By adding these alternating compressors to our Silent Air line, we have added to the needs of our high demand customers all while keeping with their quiet air needs. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the dual control run mode. These units also feature our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

Pump RPM: 800 RPM
Oil capacity: 2.5 qt. (x2)
78 CFM @ 100 PSI (x2)
Max PSI: 175 PSI
Voltage: 208/230/460 option
Tank Outlet Size: 31 inch (x2)

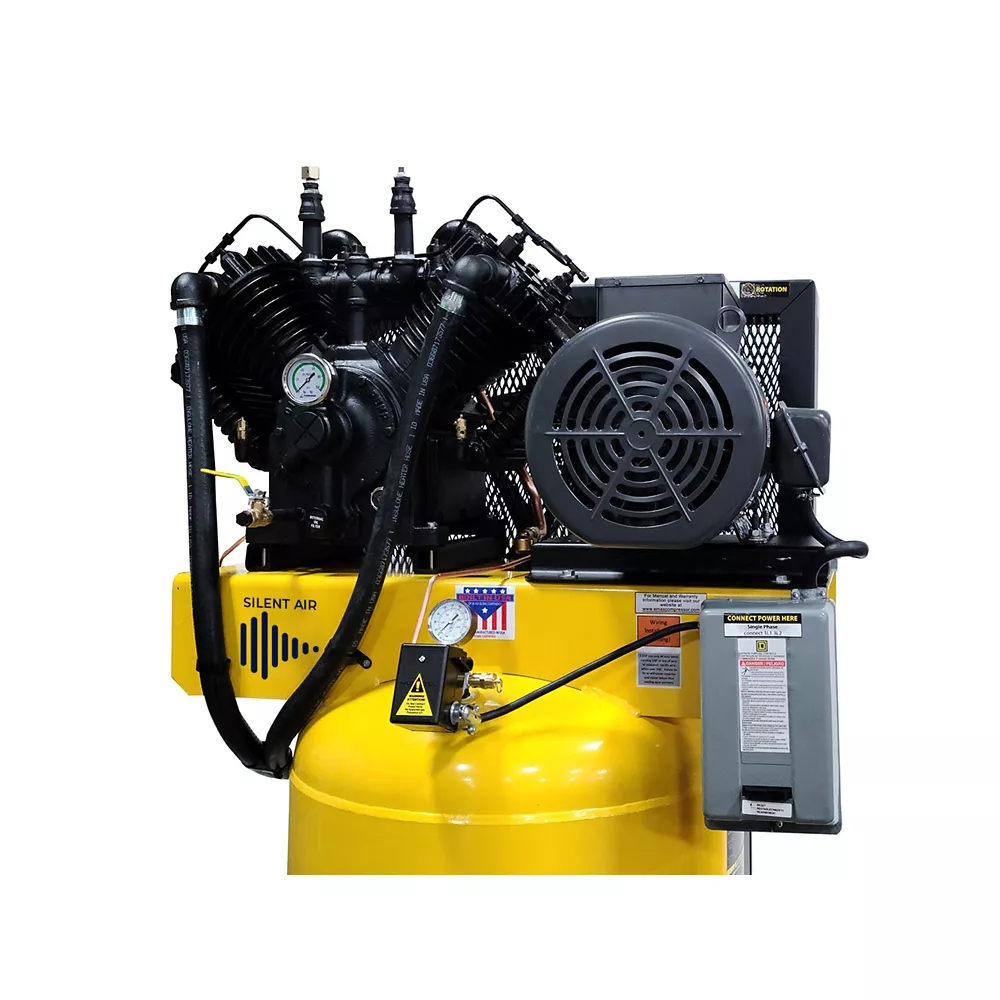

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or dual run rated at up to 70,000 hours (2) Magnetic starters w/relays
Alternating Switch allow the units to alternate from one pump to the other. Eliminates excessive running and allows pumps to cool under heavy loads
Dual run mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

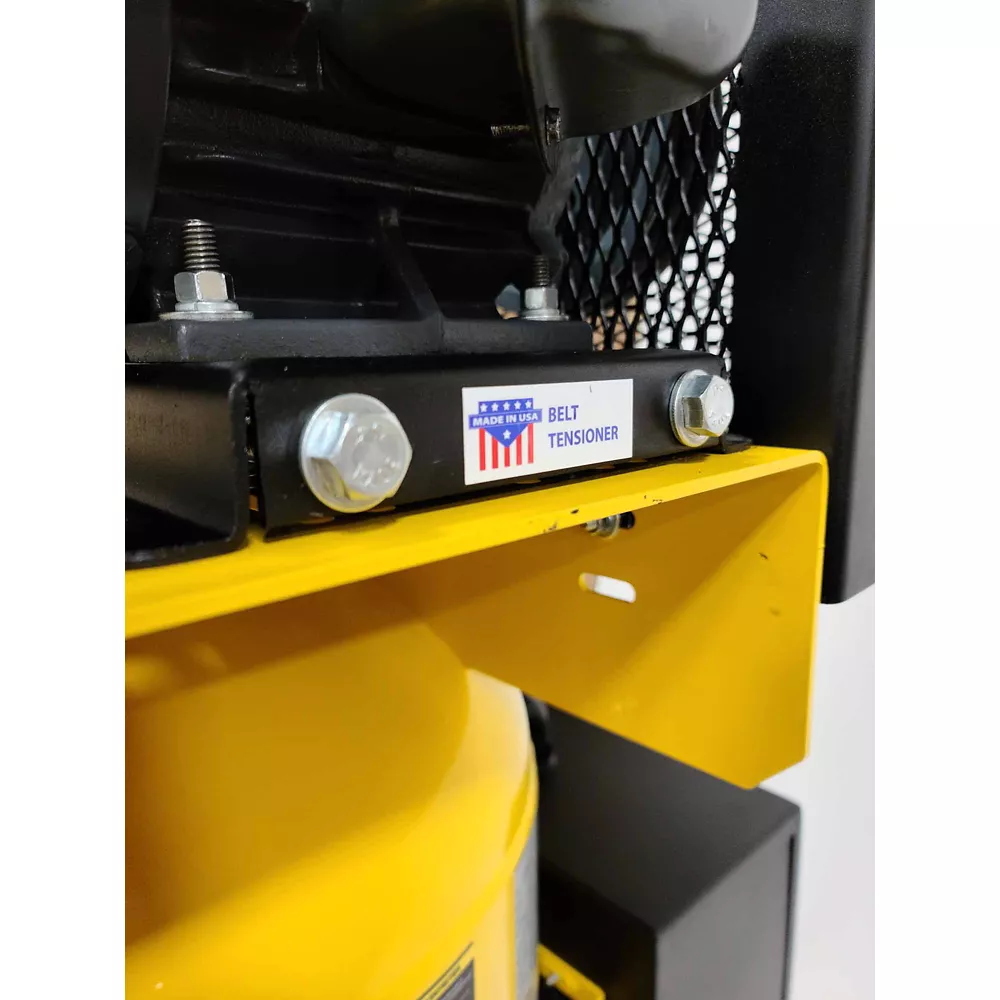

Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Built in Inner-cooler and After cooler
(2) Industrial-Duty Motors: 1750 RPM
Certifications: ETL, UL & CSA
ASME Certified powder coated Air Tanks up to 200PSI Max. Approved for ALL 50 states

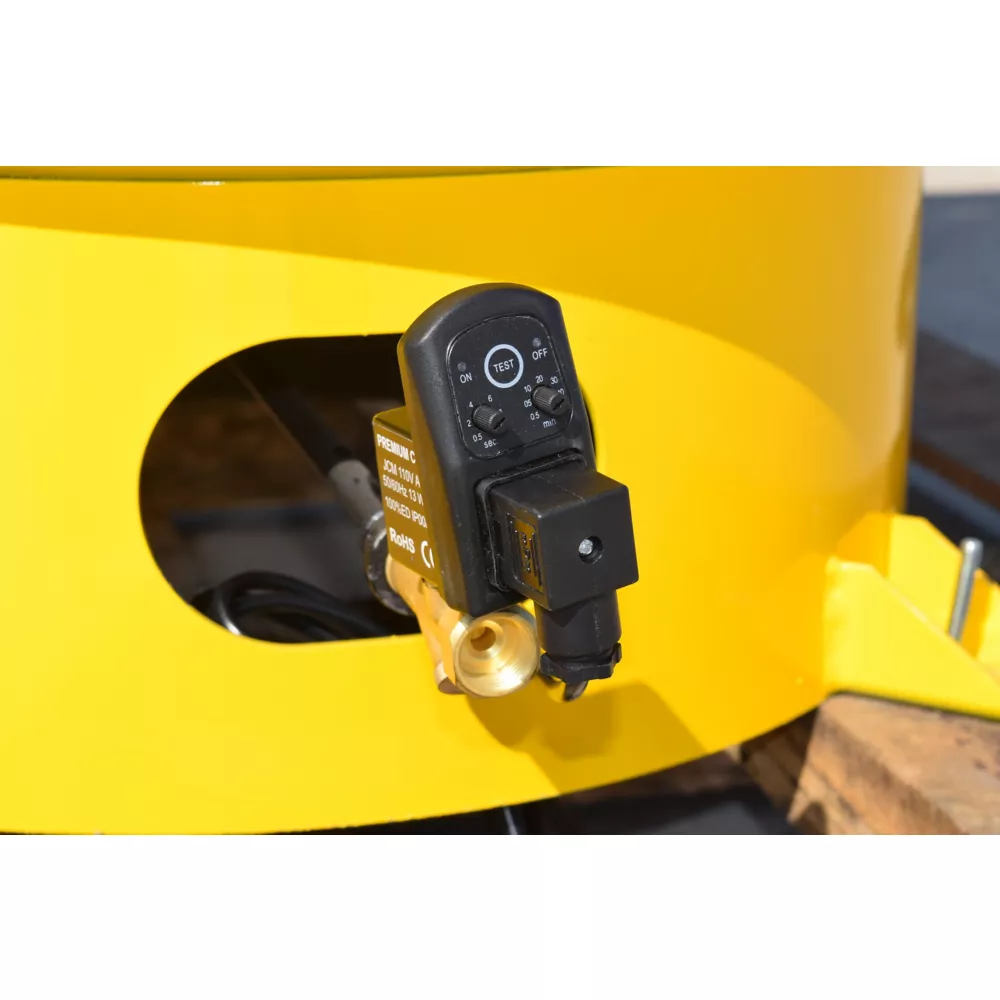

Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
Gate valve oil drain provides quick, clean oil changes
120 gal. Vertical Tanks (x2)
Tank outlet size: 1 in
Dimensions: 41 in. x 43 in. x 78 in. (LxWxH)
Weight: 1020 lb.
Running Amps: 24 AMP @ 208/230 VOLT- 12 AMP @ 460 VOLT (x2)

1 Year Standard, 5 Year Extended, Eligible Lifetime Pump warranty with Maintenance kit

EMAX 10 HP 120 gal Airlink Expandable Quiet Industrial Reciprocating Air Compressor System Patented 2-Stage 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	38 CFM at 100 PSI
Airflow Volume	38 CFM at 100 PSI
Air Outlet Size	1 in.
Amperage	24 Amps 208,230V , 12 Amps 12V
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	120 gal
Compressor Type	Oil lubricated
Compressor Voltage	208V/230V
Connection Type	NPT
Drain System	Automatic
Drive Type	Belt
Features	Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented Silent Air System noise suppression system
Fuel Tank Capacity	120 gal.
Maximum RPM	800 Pump , 1,750 Motor
Phase	Triple
Nozzle Fitting Size	1 inch tank outlet size
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	78 in.
Product Length	95 in.
Product Weight	1,020 lb.
Product Width	43 in.
Pump Life	70,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt. x 2
Stage Type	Two-Stage
Tank Fill Time	5 min.
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Eligible for Lifetime Extended Pump, with maintenance kit
Manufacturer PartNumber	ESP10A120V3
