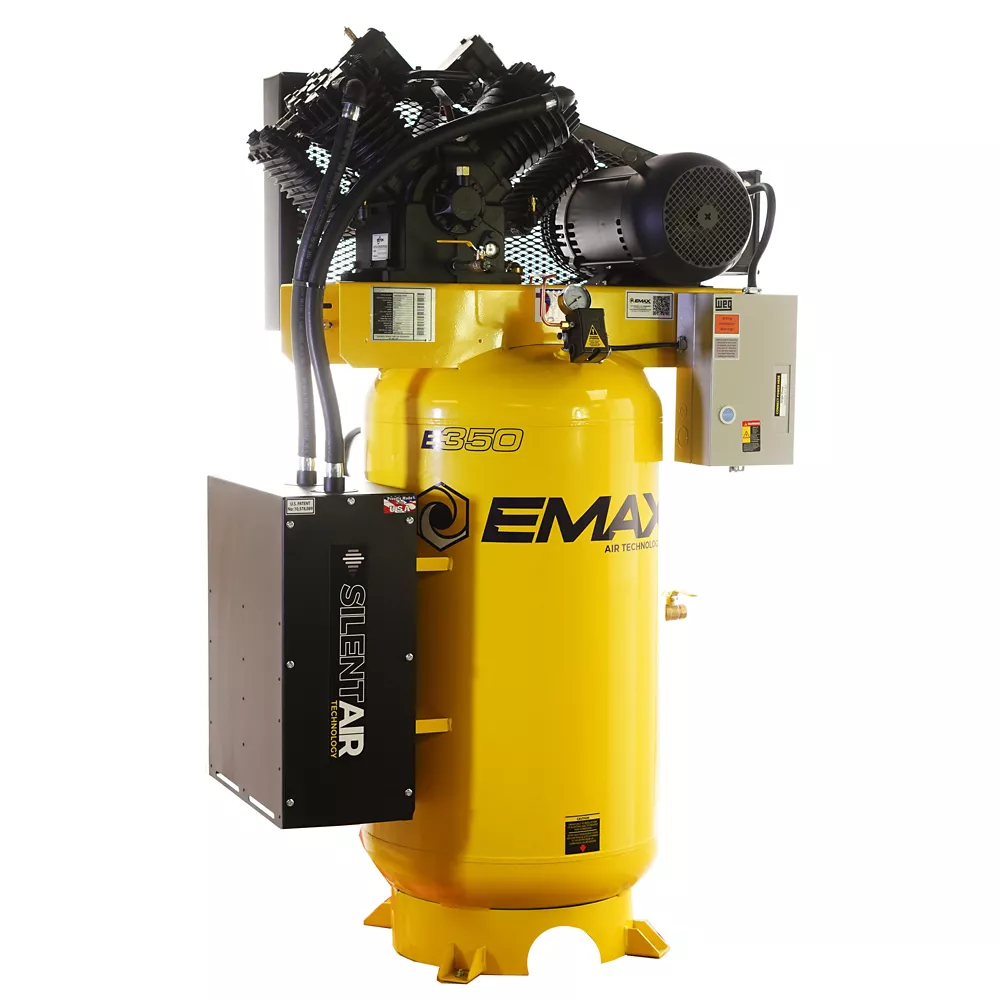

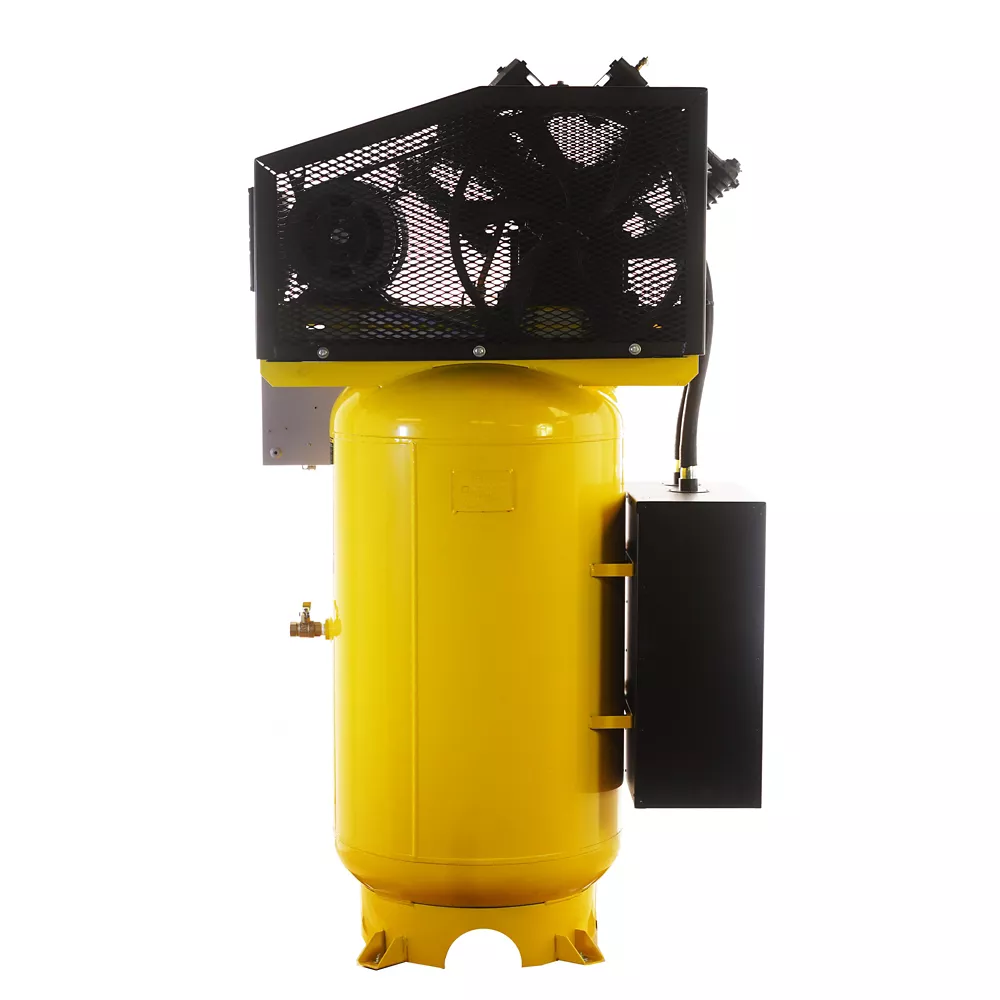

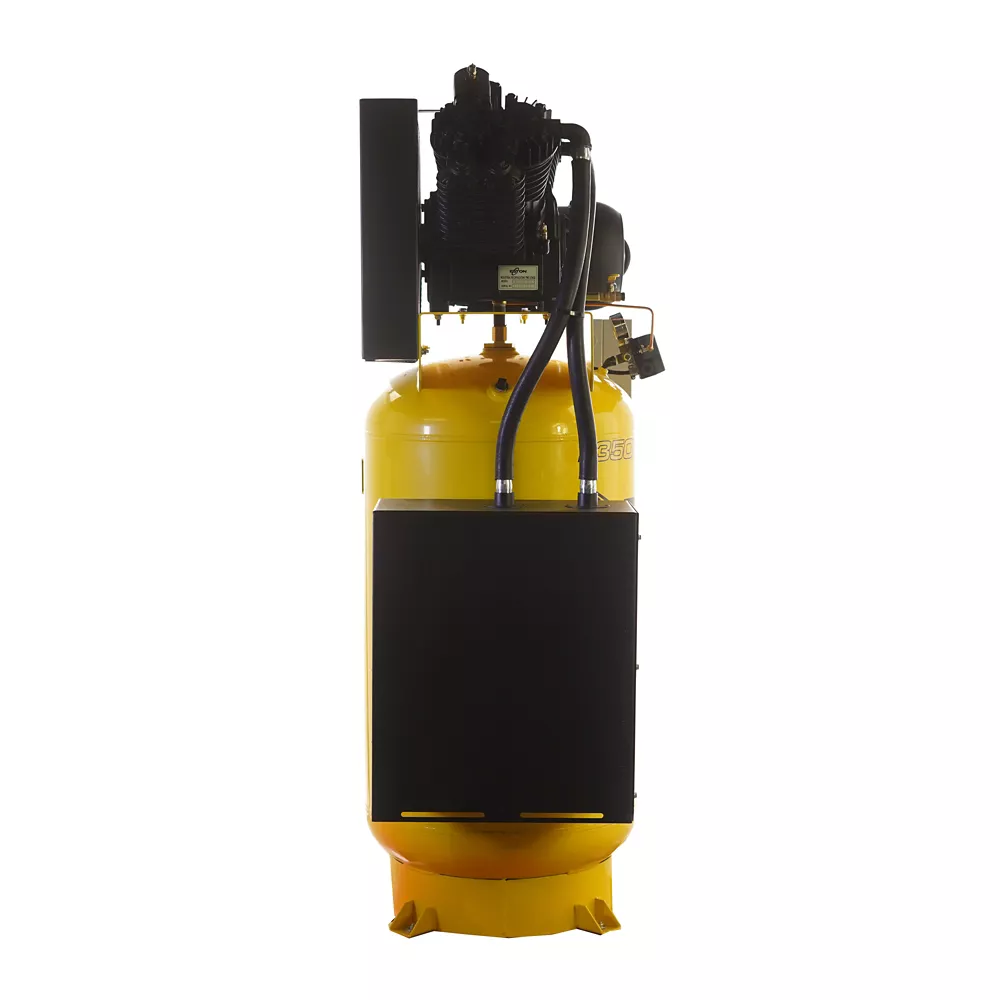

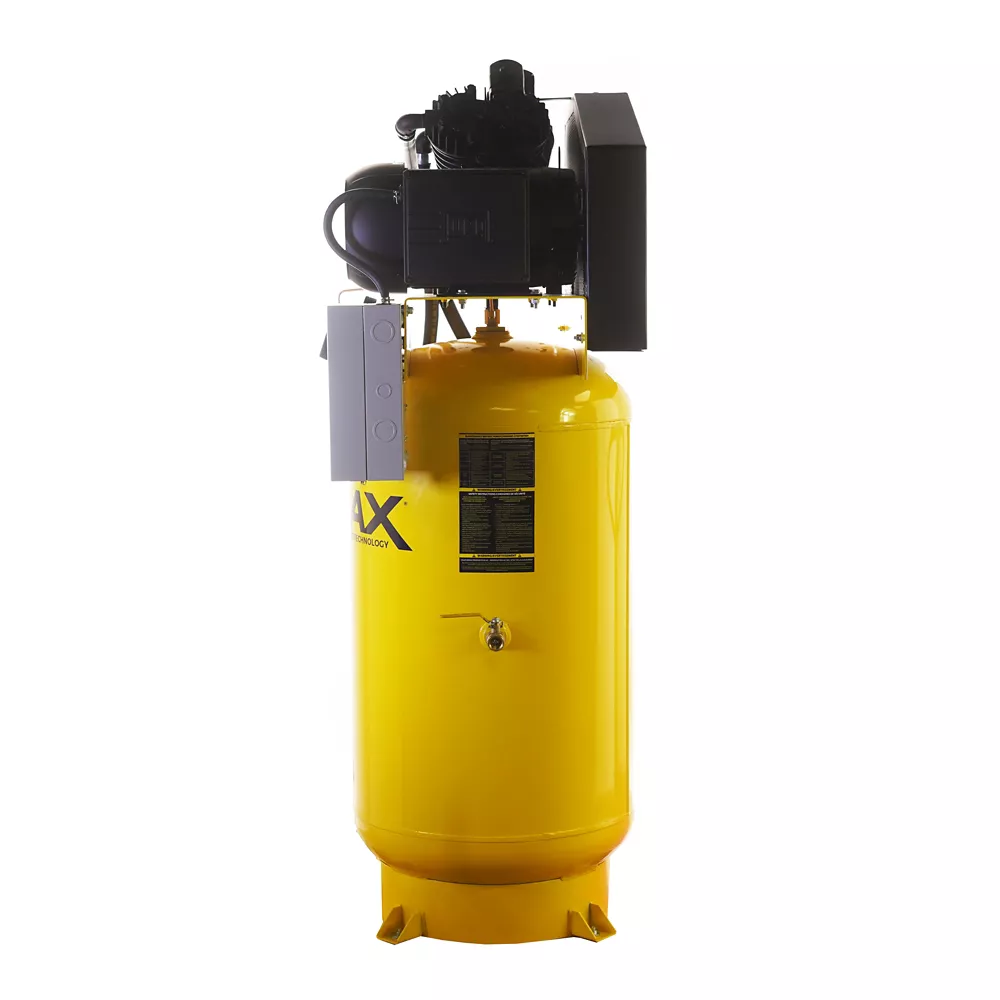

EMAX 10 HP 80 gal Industrial V4 2-Stage Splash Lubricated Pump SILENT Electric Air Compressor 175 PSI Single Phase Stationary Air Compressors Air Compressors

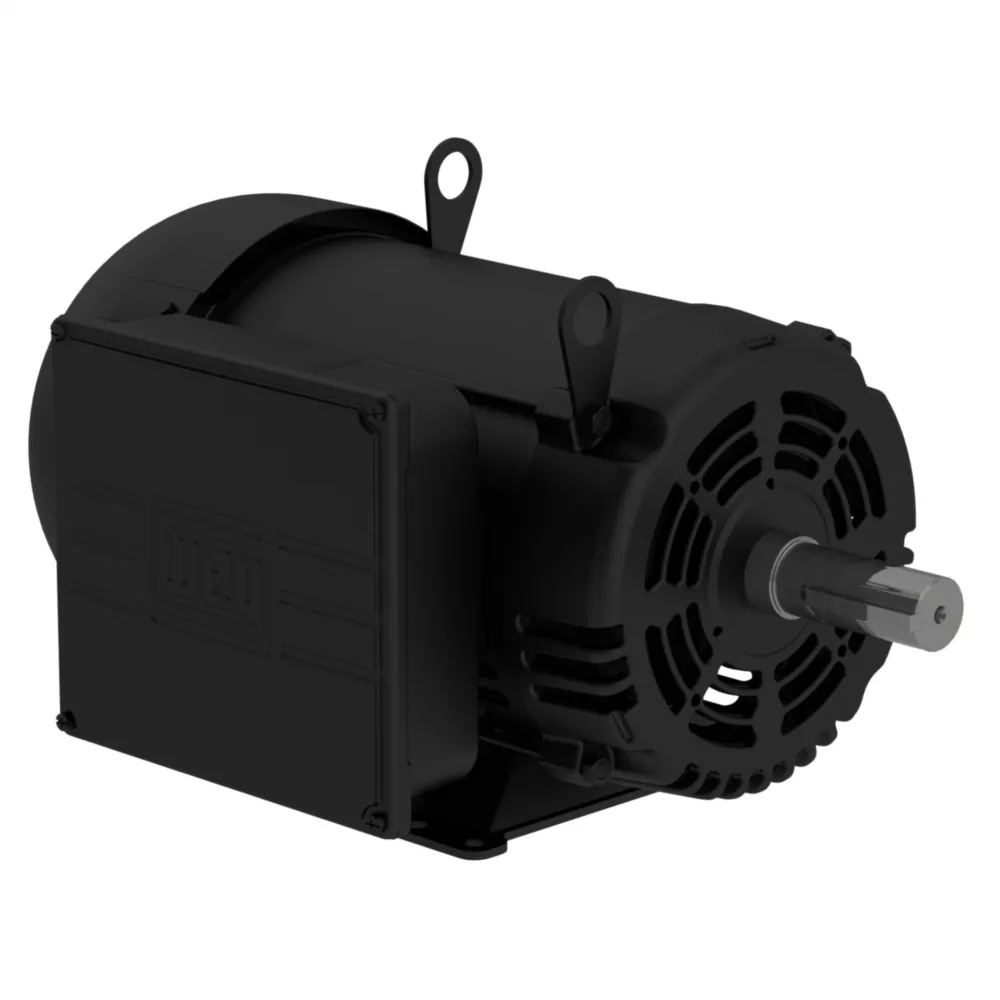

The EMAX 250 Silent Air Series 10HP 80 Gal. 2-stage V4, single phase air compressor is designed for up to 50,000-hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 38 CFM at 100 PSI. This unit features our patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features industrial grade 1.1 Service Factor 1740 RPM electric motor, magnetic starter, manual drain valve, 80 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.

SILENT air electric compressor
38 CFM @ 100 PSI
Maximum PSI: 175
Pump Life: 50,000 hours

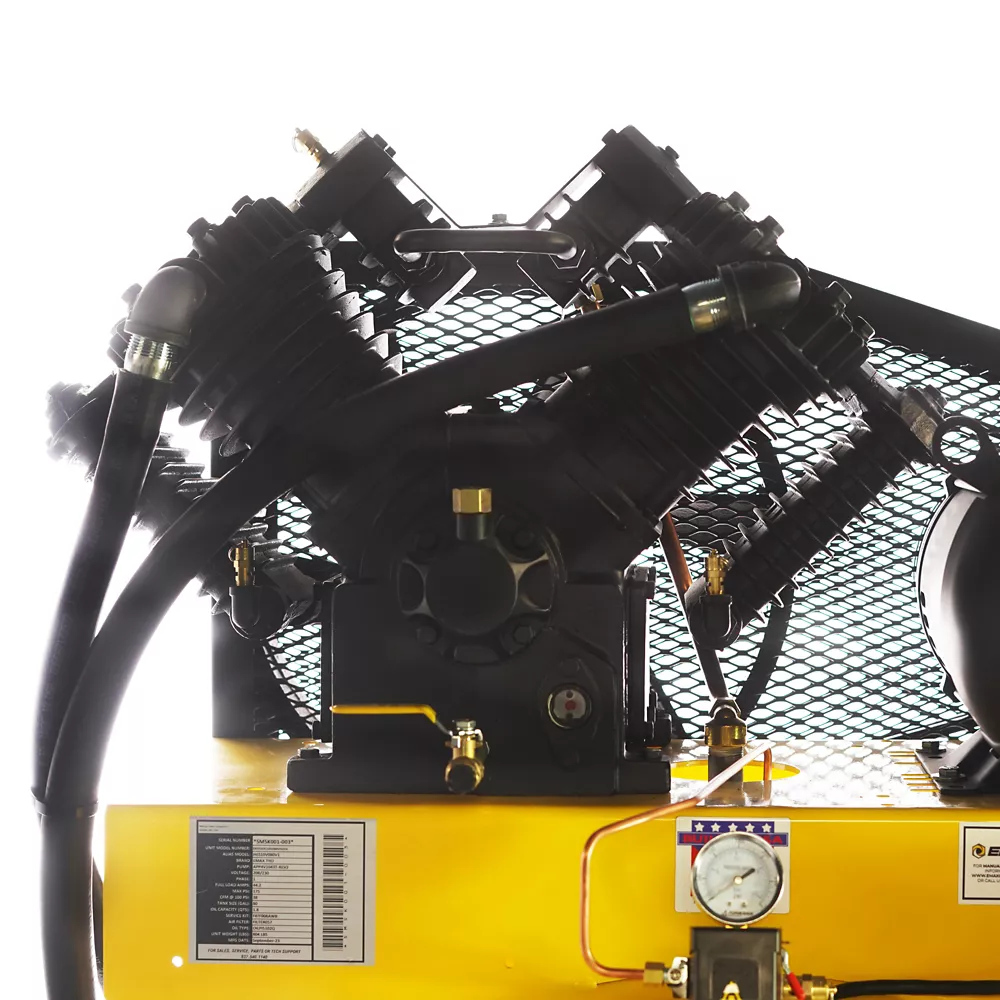

Splash lubricated Solid Cast Iron Pump
Pump Low RPM: 800
230 Volt
Running Amps: 40
Manual Tank Drain
Isolator Pads
1 Year Standard, 5 Year Extended, Lifetime Extended with Maintenance kit
Certifications: ETL & ASME Tank - Approved in all 50 states
Product dimensions: 41" x 24.5" x 72" (LxWxH)
Weight: 914 lbs
Tank outlet size: 3/4"

Includes Silent air silencer, 50,000 hour pump,

EMAX 10 HP 80 gal Industrial V4 2-Stage Splash Lubricated Pump SILENT Electric Air Compressor 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	38 CFM 100 PSI
Airflow Volume	38 CFM
Air Outlet Size	0.75 in.
Amperage	40 Running Amps
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual Tank Drain
Drive Type	Belt Drive
Features	SILENT air silencer, ETL / ASME Certified Air Tank - Approved for ALL 50 states
Maximum RPM	Low Pump RPM 800
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	72 in.
Product Length	41 in.
Product Weight	914 lb.
Product Width	24.5 in.
Pump Life	50,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4-5 min.
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Lifetime Extended with maintenance kit
Manufacturer PartNumber	ESS10V080V1

EMAX 10 HP 80 gal. 2-Stage Industrial V4 Splash Lubricated Pump SILENT Electric Air Compressor, 175 PSI, 1-Phase Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 38 CFM 100 PSI Air Flow Volume 38 CFM Air Outlet Size 0.75 in. Amperage 40 Operating Amps Compressor Power 10 HP Maximum Compressor PSI 175 PSI Compressor Operation Automatic Start/Stop Compressor Tank Capacity 80 gal Compressor Type Oil Lubricated Compressor Voltage 230 V Connection Type Drain System NPT Drain Tank Manual Drive Type Belt Drive Features SILENT Air Silencer, ETL/ASME Certified Air Tank - Approved for ALL 50 States Maximum RPM Low Pump RPM 800 Single Phase Number of Power Speeds Power Type Single Electric Primary Color Black Primary Material Steel Product Height 72 in. Product length 41 in. Product weight 914 lbs. Product width 24.5 in. Lifespane of the pump 50,000 hours. Pump Material Cast Iron Pump Oil Capacity 2 quarts. Stage type Two-stage tank filling time 4-5 min. Tank Orientation Vertical Warranty 1 Year Standard, 5 Year Extended, Extended Life with MaintenanceFinancing Kit Manufacturer Part Number ESS10V080V1
