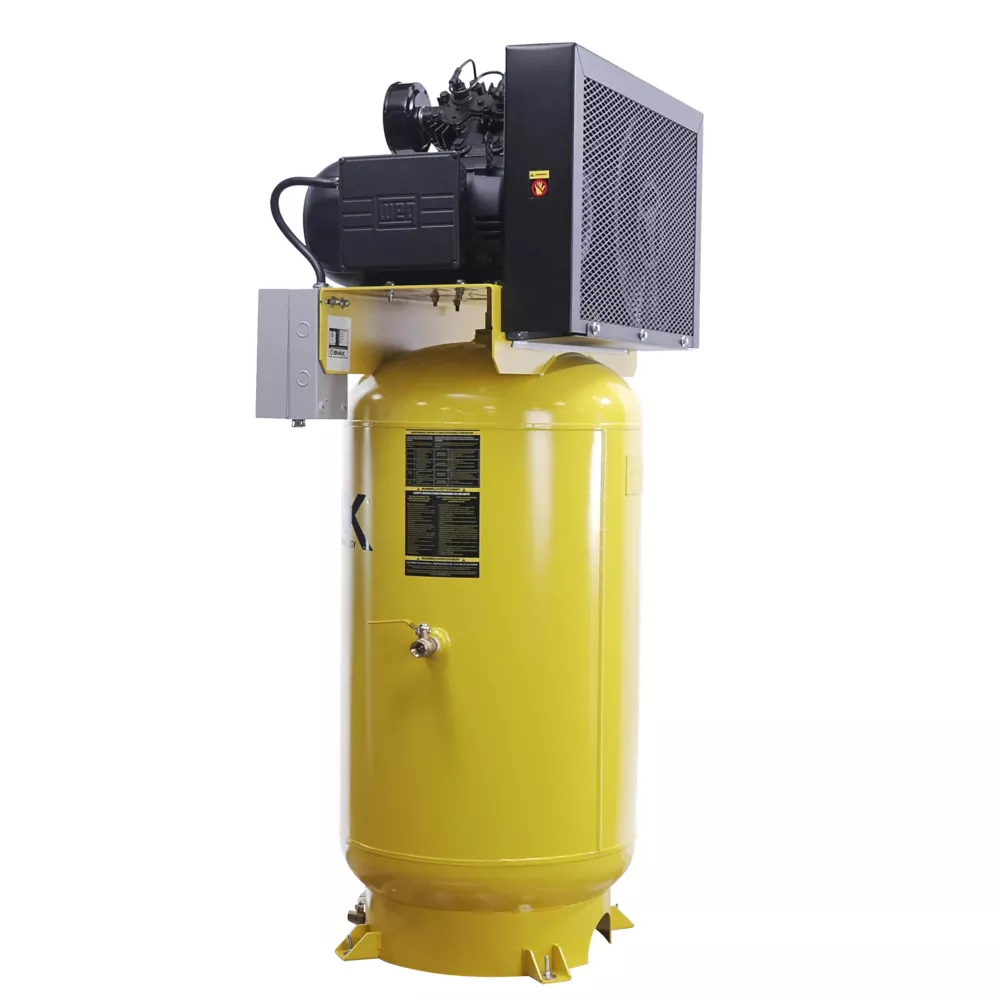

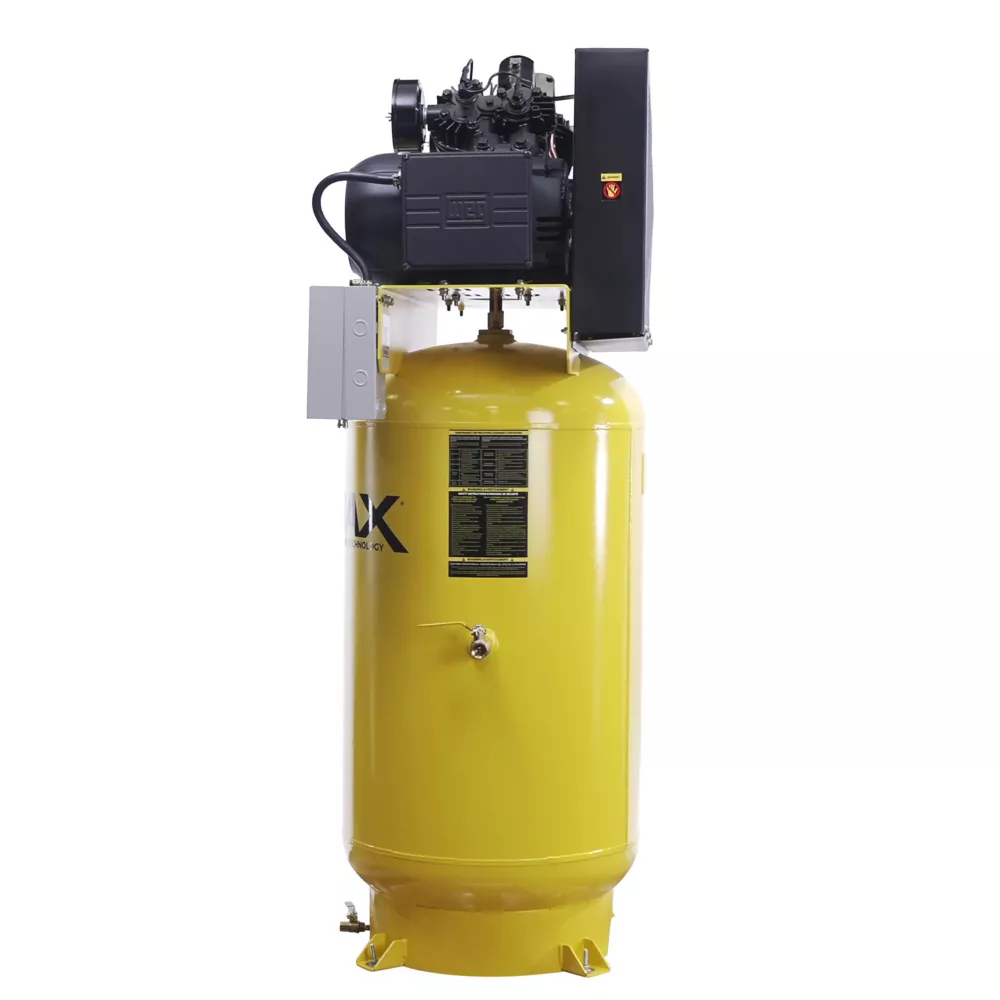

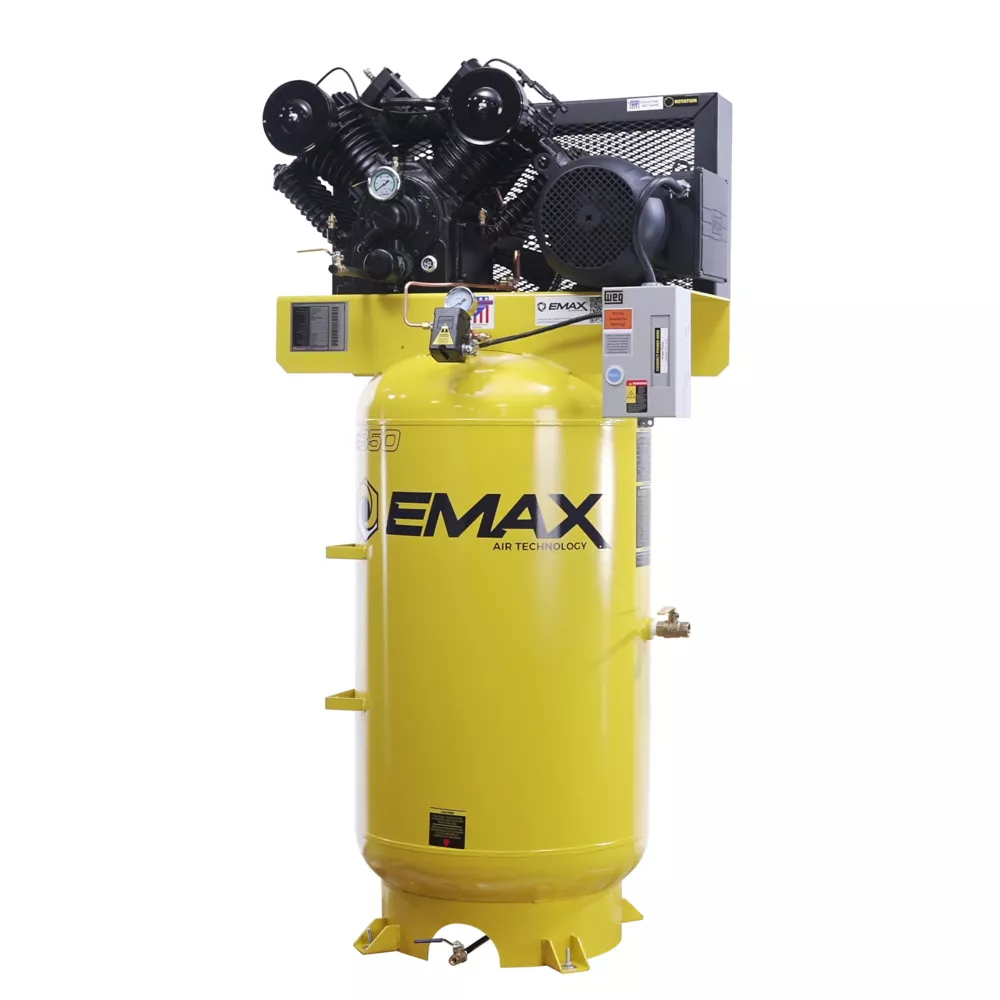

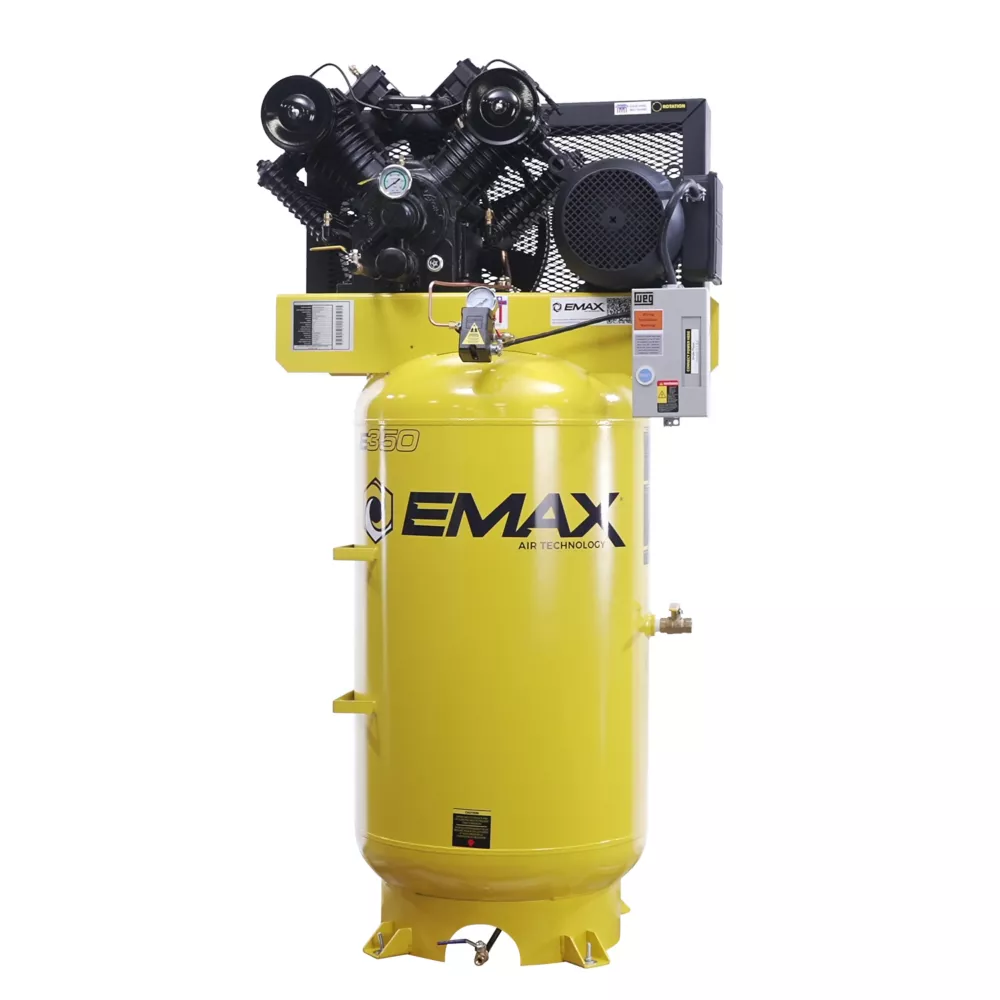

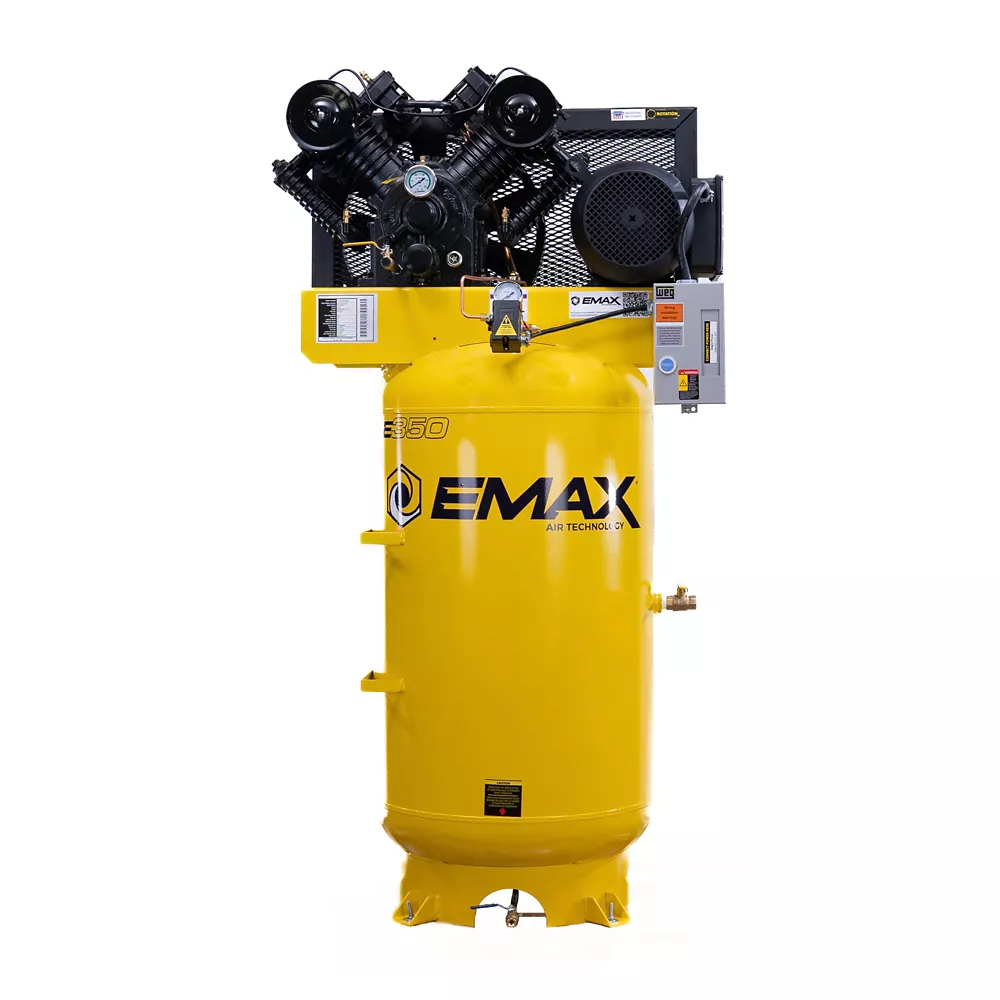

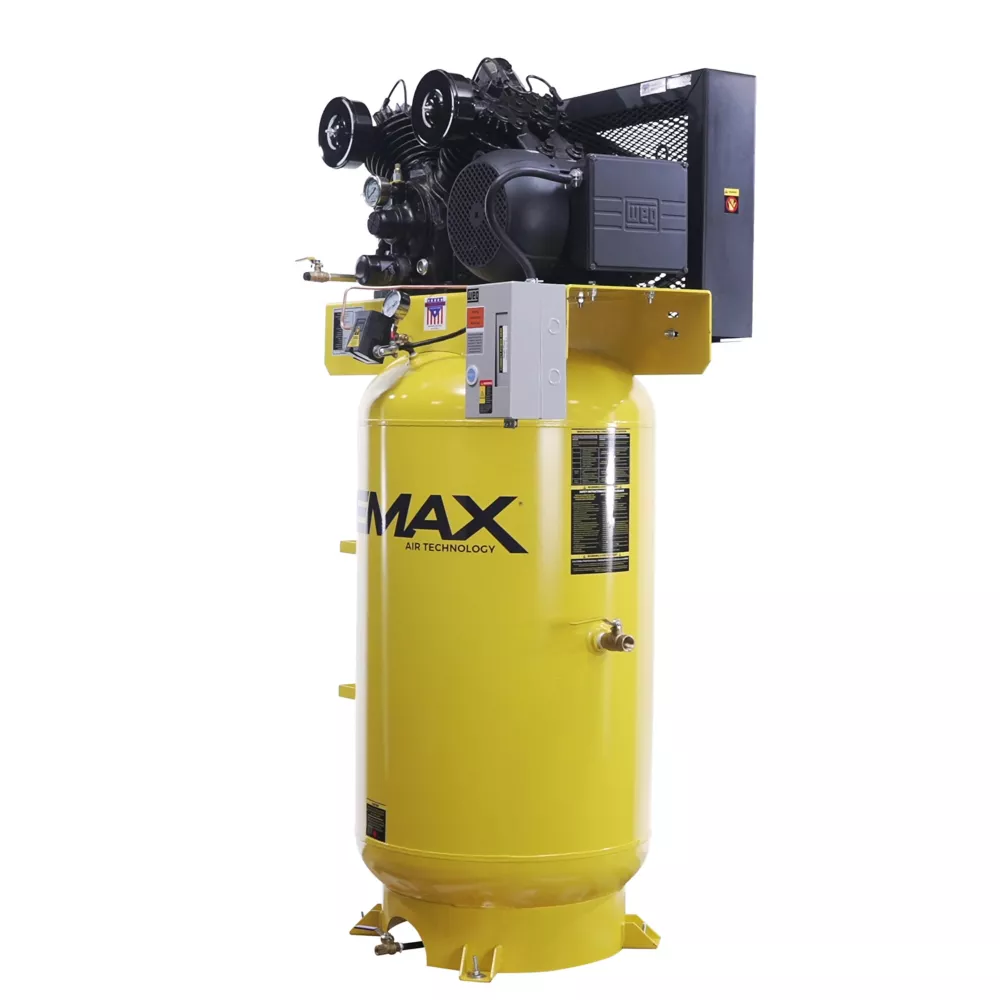

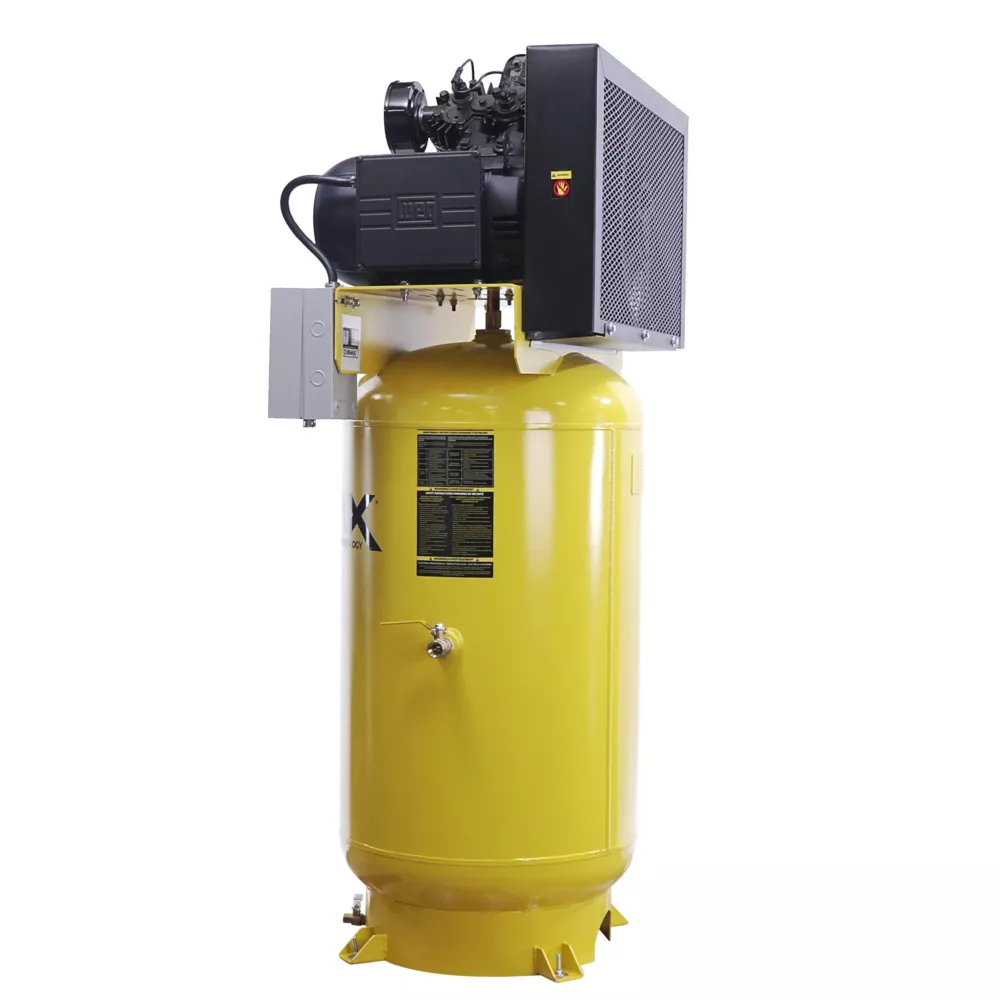

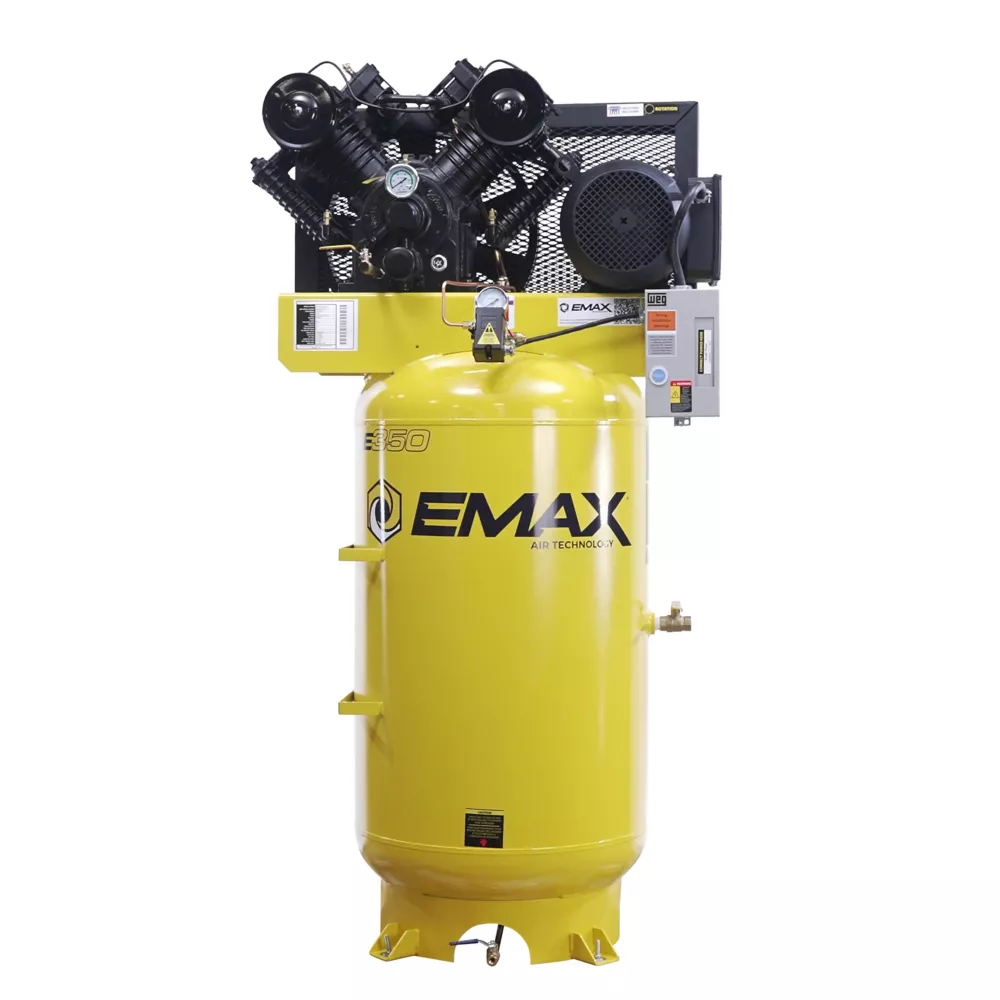

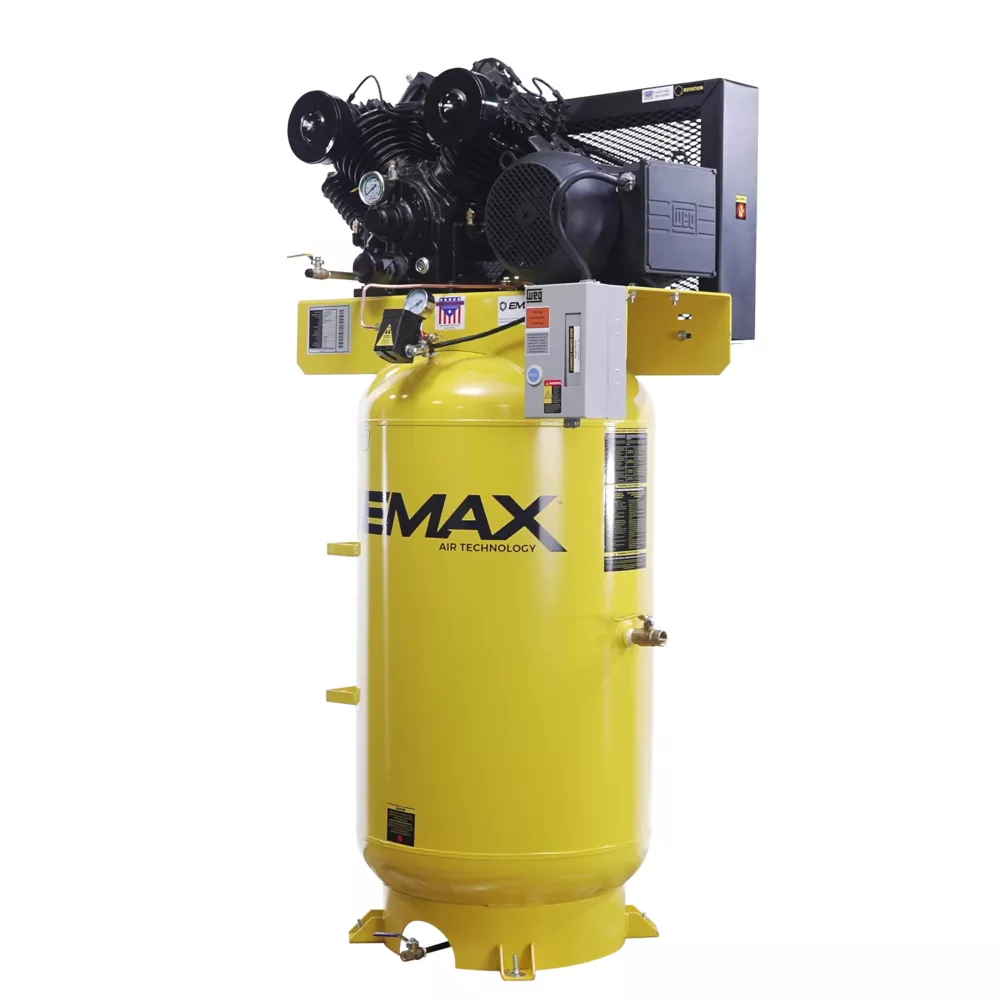

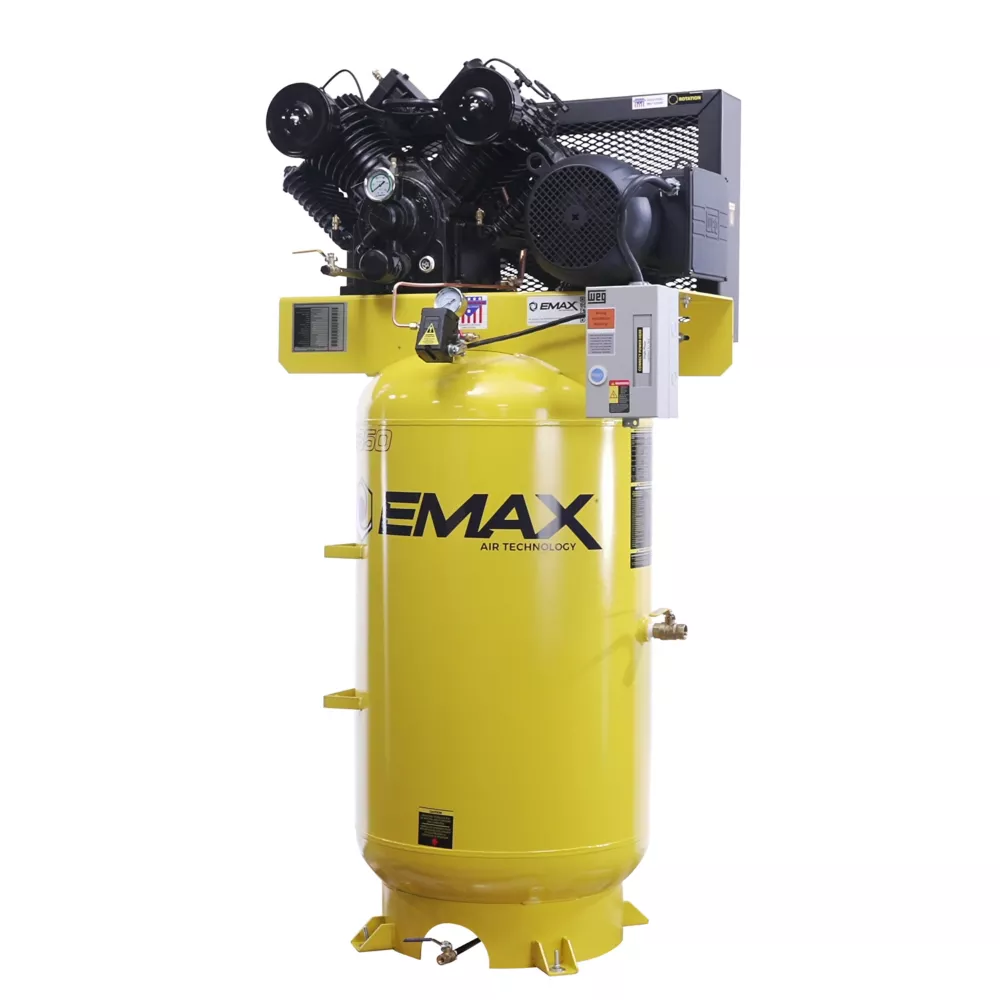

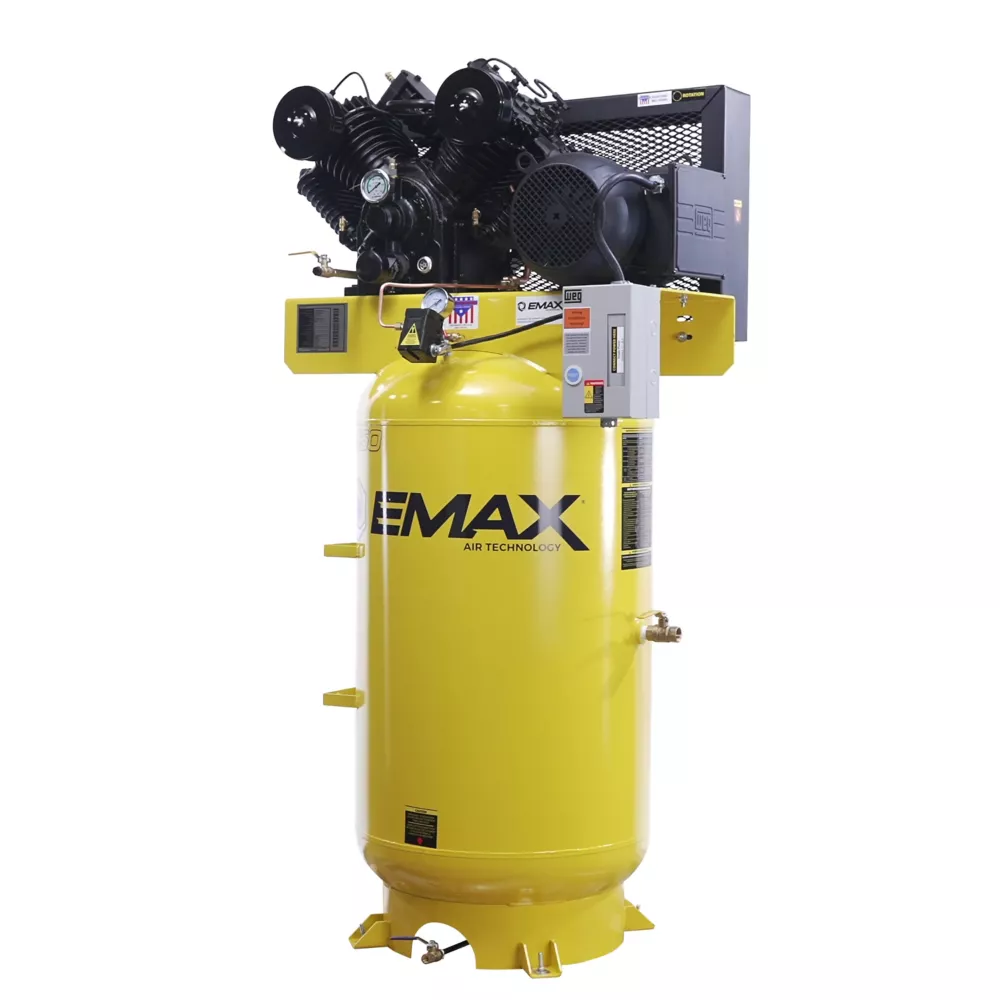

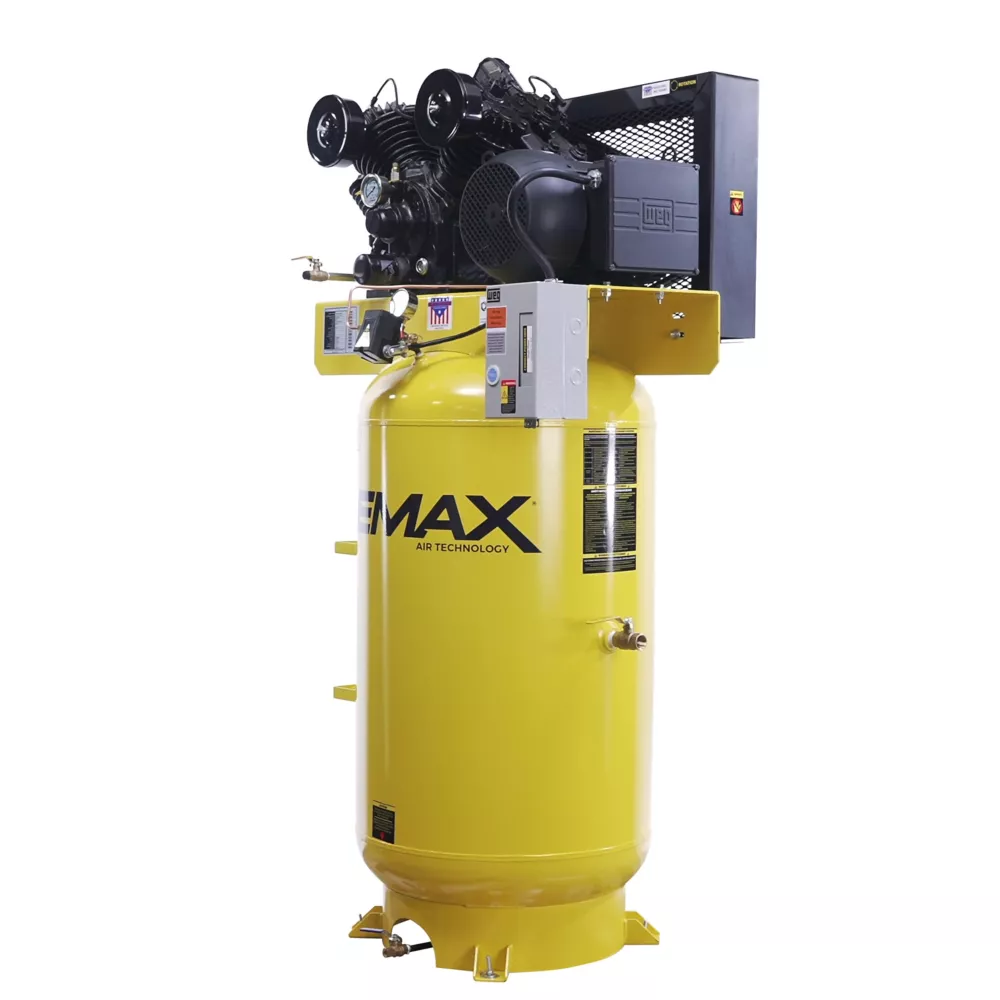

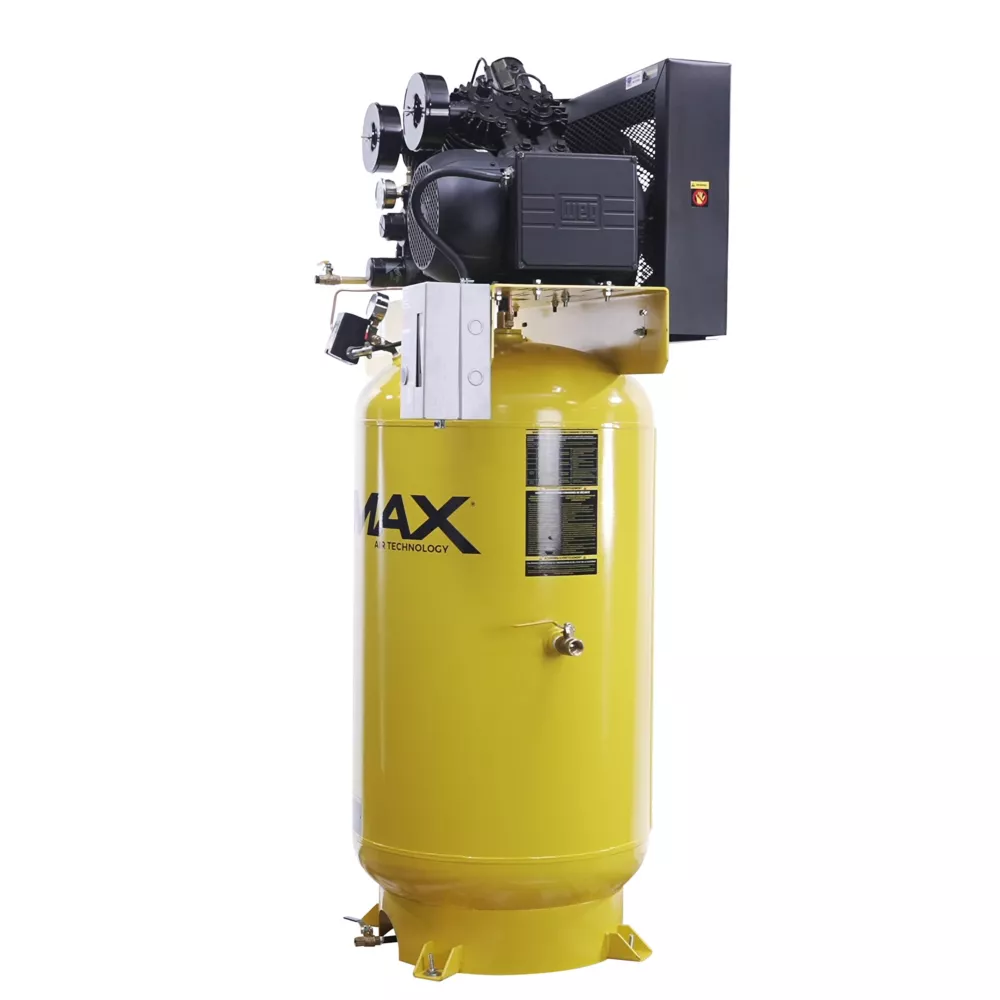

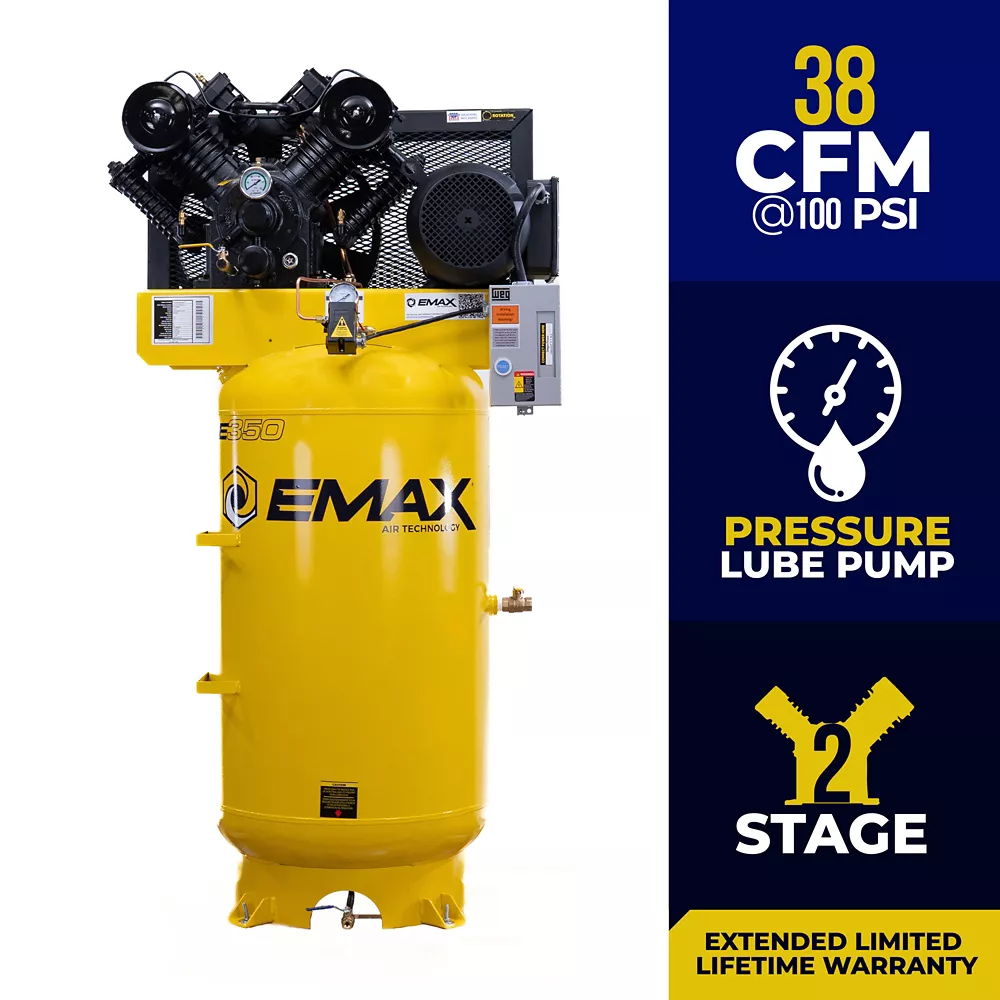

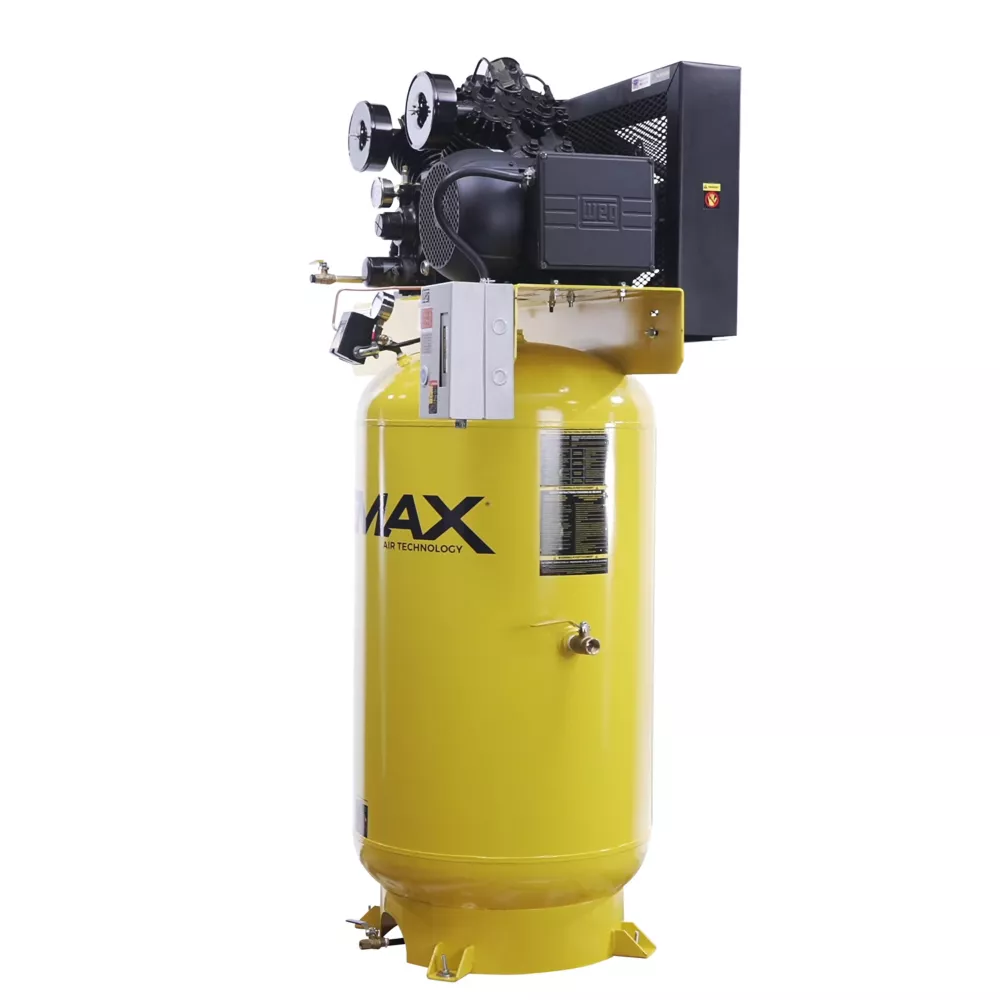

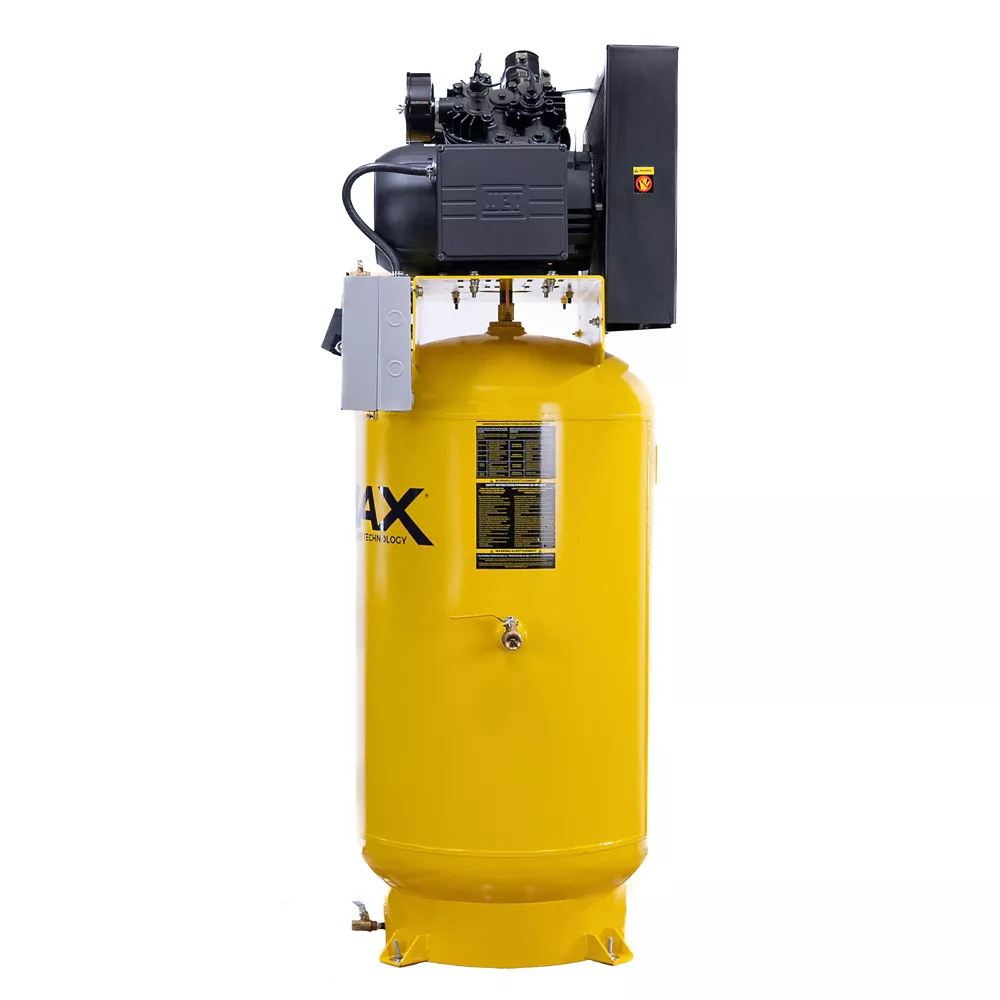

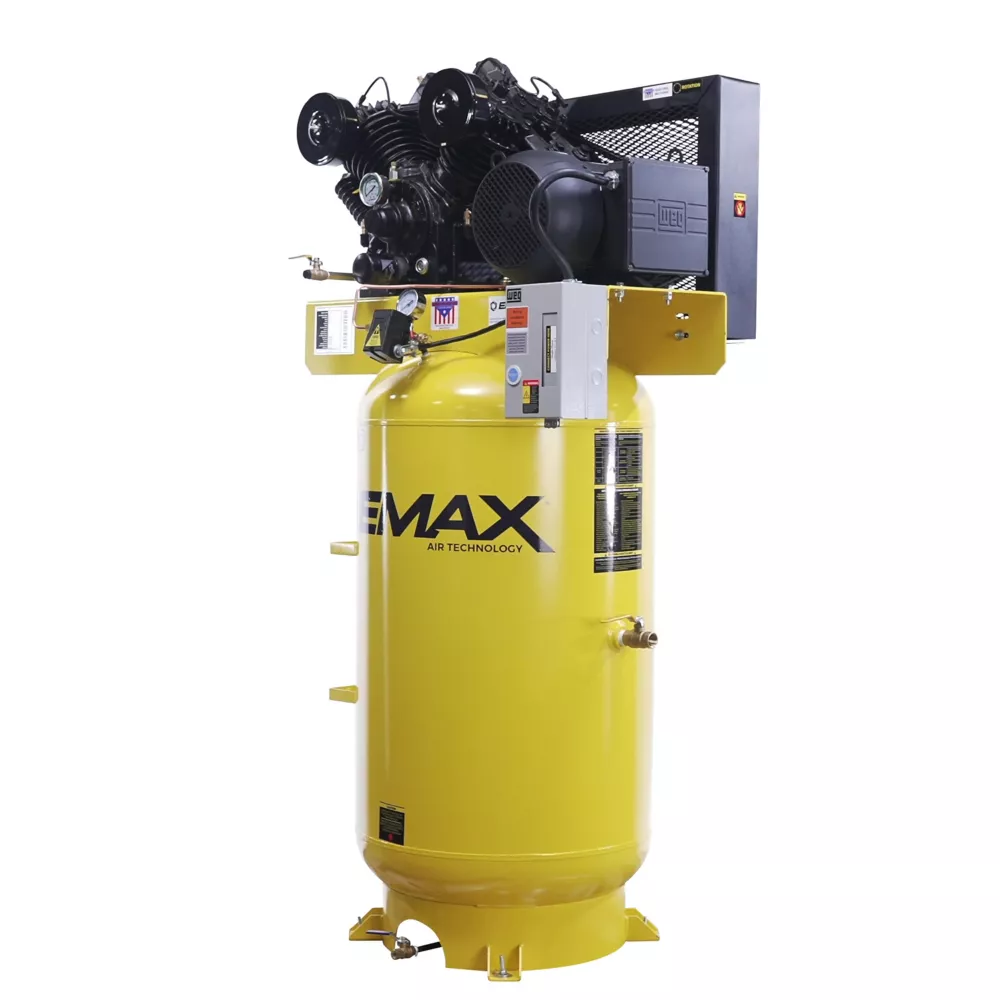

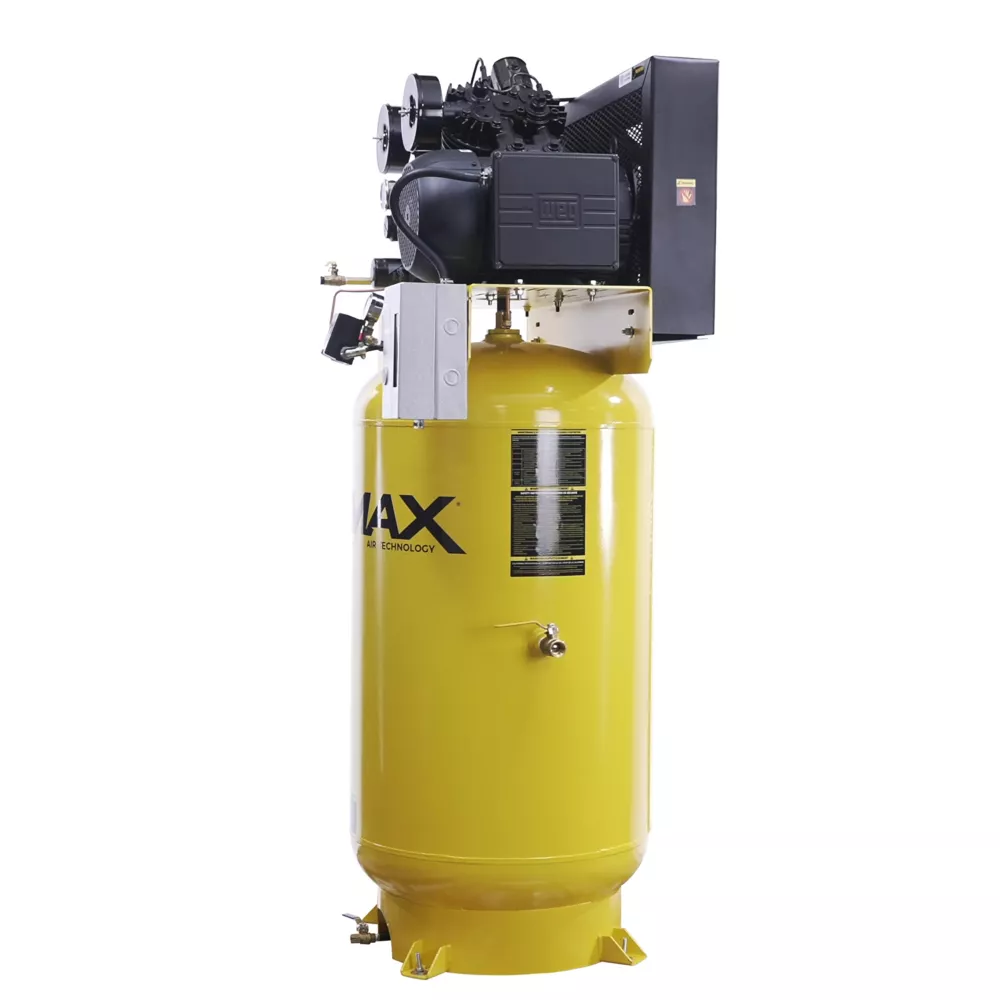

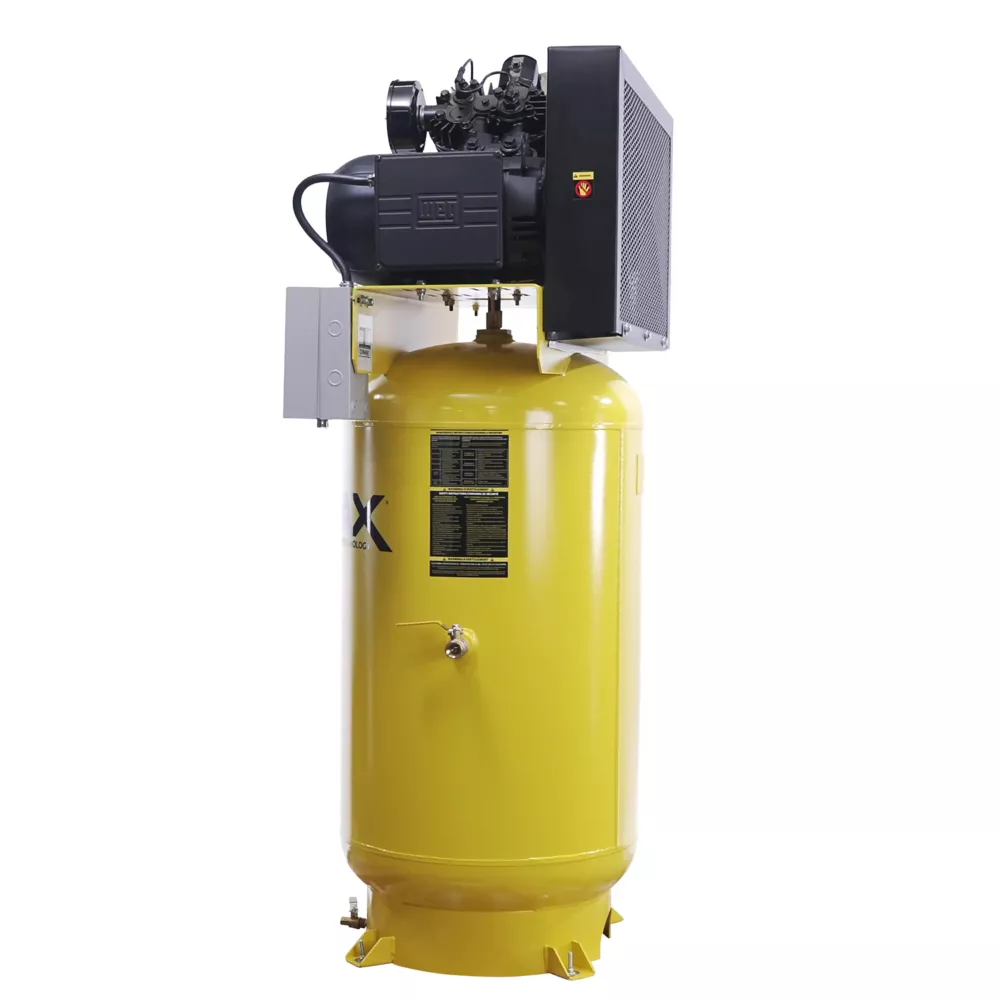

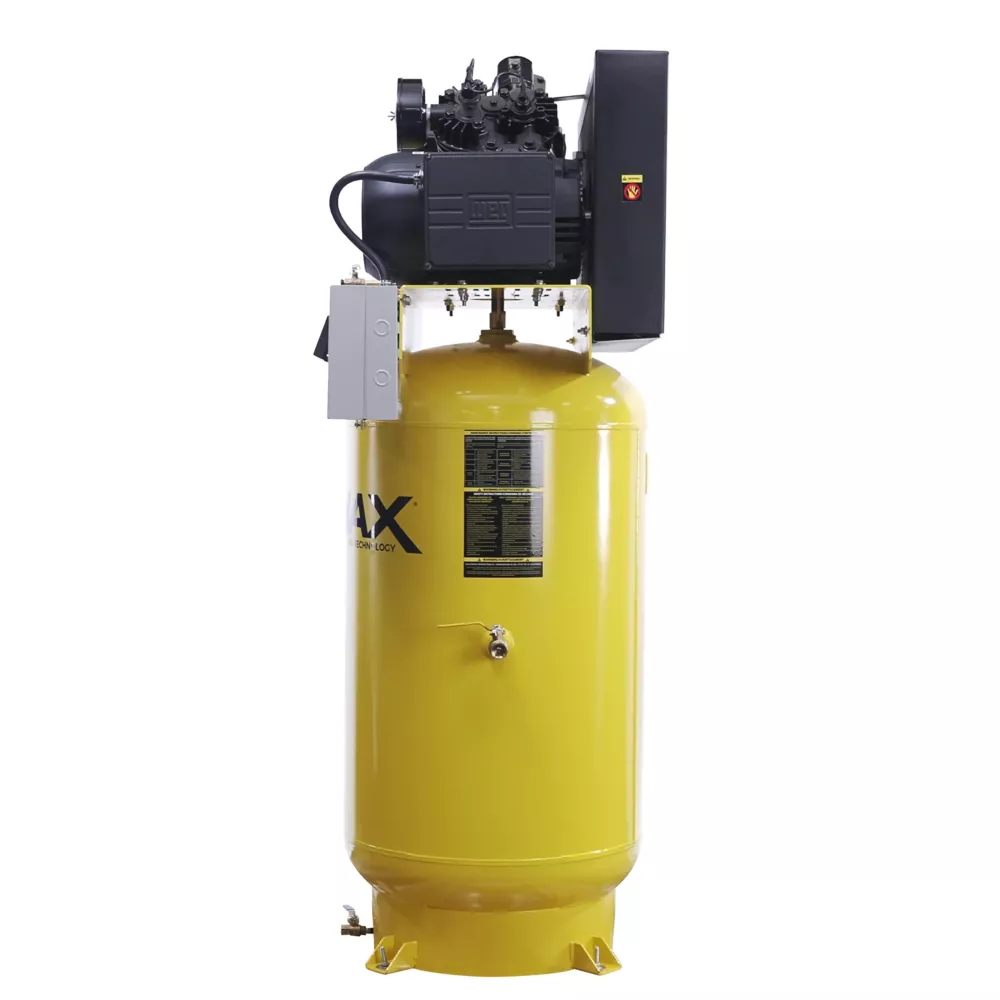

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Air Compressors

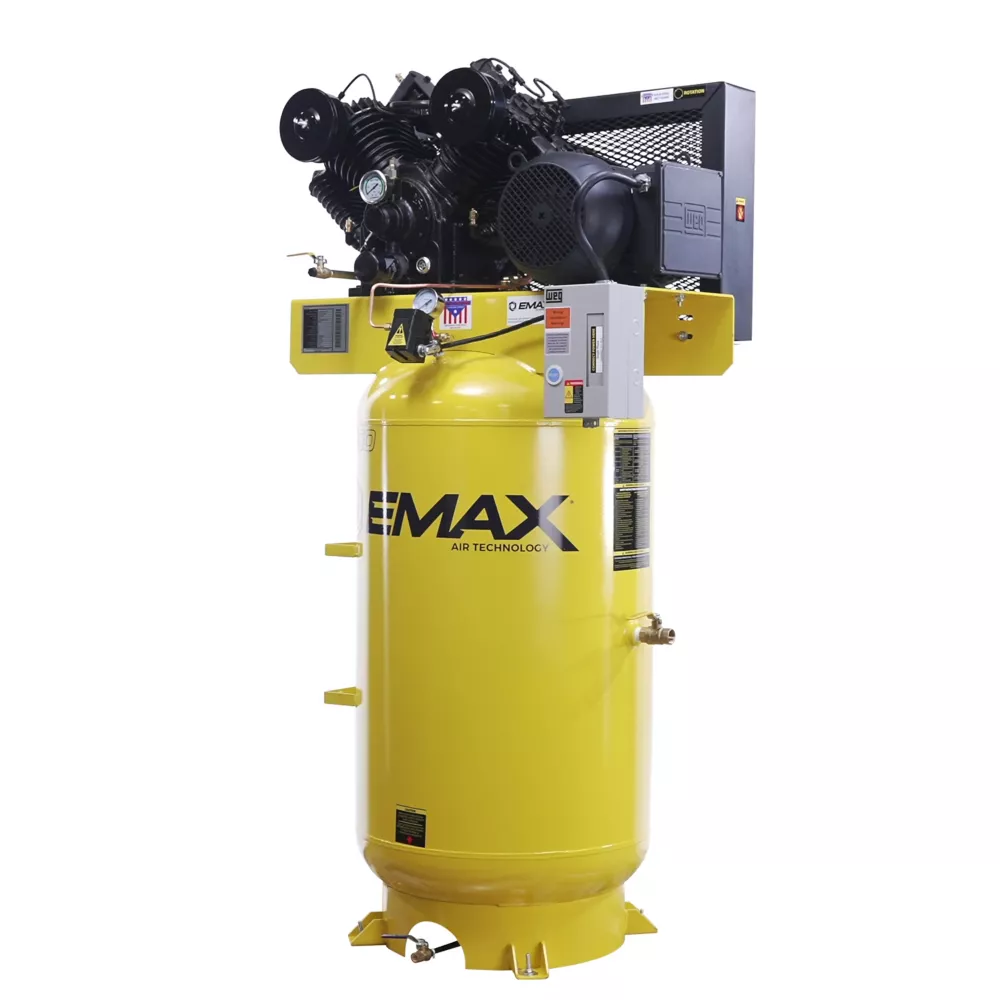

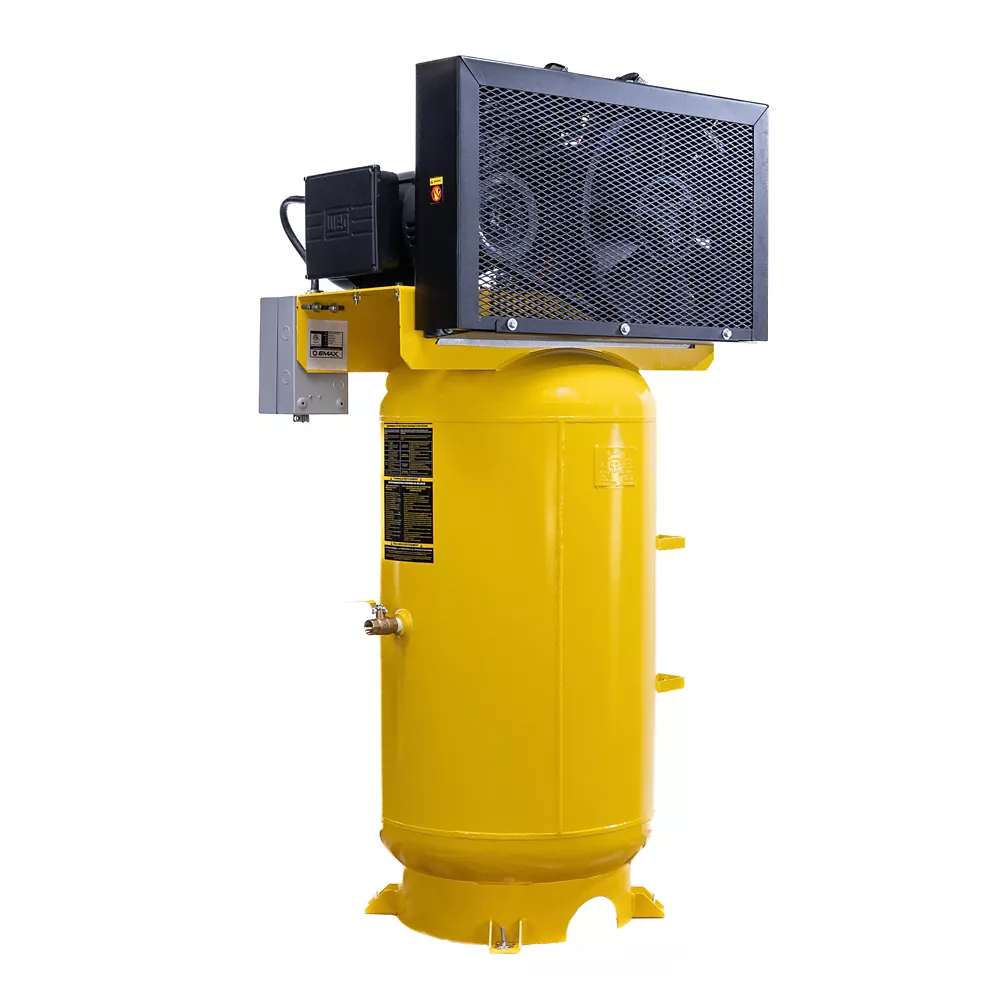

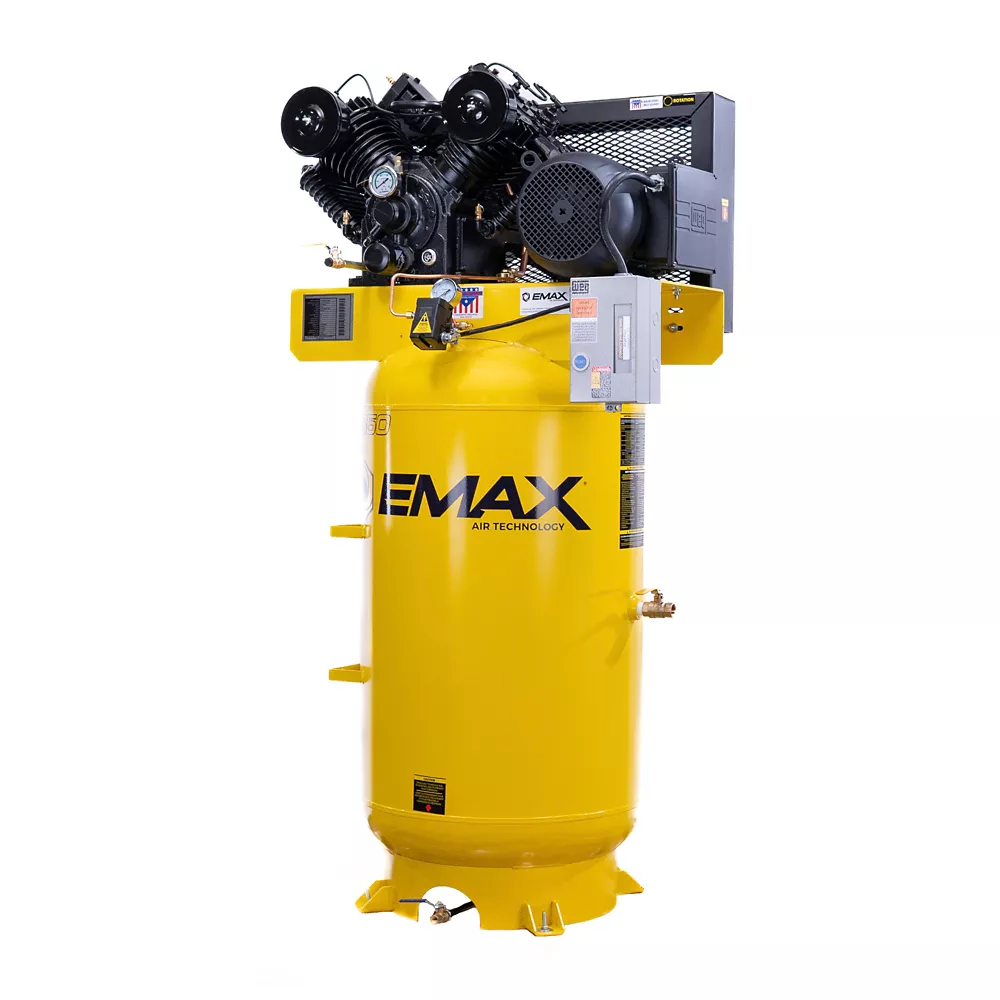

This EMAX 10 HP 80 Gal Industrial Air Compressor is a 2-stage, SINGLE-PHASE V4 vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM at 100 PSI, Maximum PSI 175. The unit features industrial grade electric motor at 800 maximum RPM, magnetic starters, Condor pressure switch, manual ball valve tank drain, and powder coated ASME tank, rated at 200PSI. This air compressor is paired with all cast iron, 70,000 Hours rated, patented pressure lubricated reciprocating pump. This unit includes our patented, MADE IN THE USA. ETL, UL, CSA, ASME Certified. Includes 1 Year Standard, 5 Year Extended warranty & Eligible for LIFETIME PUMP WARRANTY with maintenance kit,

MADE IN USA

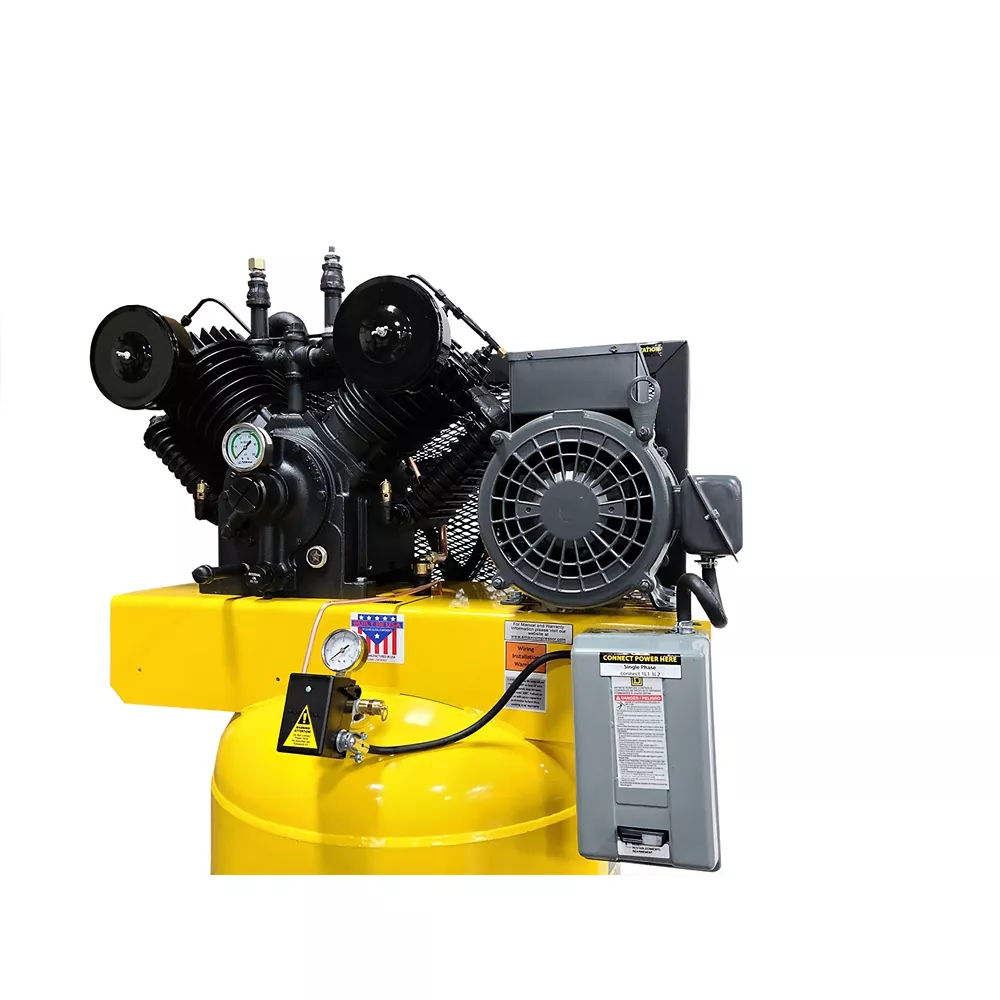

Prewired magnetic starter
All steel connecting rods with replaceable rod bearing inserts allows our rods to be rebuilt
Easy Spin-on Re-usable oil filter
Oil pressure gauge
Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
Soild Cast iron heads are more durable and dependable
Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
Precision ground pistons machined to tight tolerances ensures low oil carry over
Premium non-absorbent gaskets prevent oil seepage from air compressor pump
All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
Built-in head unloaders
Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank.
Certifications: ETL,UL,CSA, ASME
Eligible for EXTENDED lifetime pump warranty with maintenance kit
Maximum Pump RPM: 800, for extended life
Industrial Duty Motor RPM: 1750
Powder coated 200 PSI ASME certified 80 Gallon tank- approved in all 50 states
2 stage Solid cast iron PRESSURE LUBRICATED Pump
SINGLE PHASE Electric
Air Outlet size: 3/4"
Maximum PSI: 175
Built in Inner-cooler and After-cooler

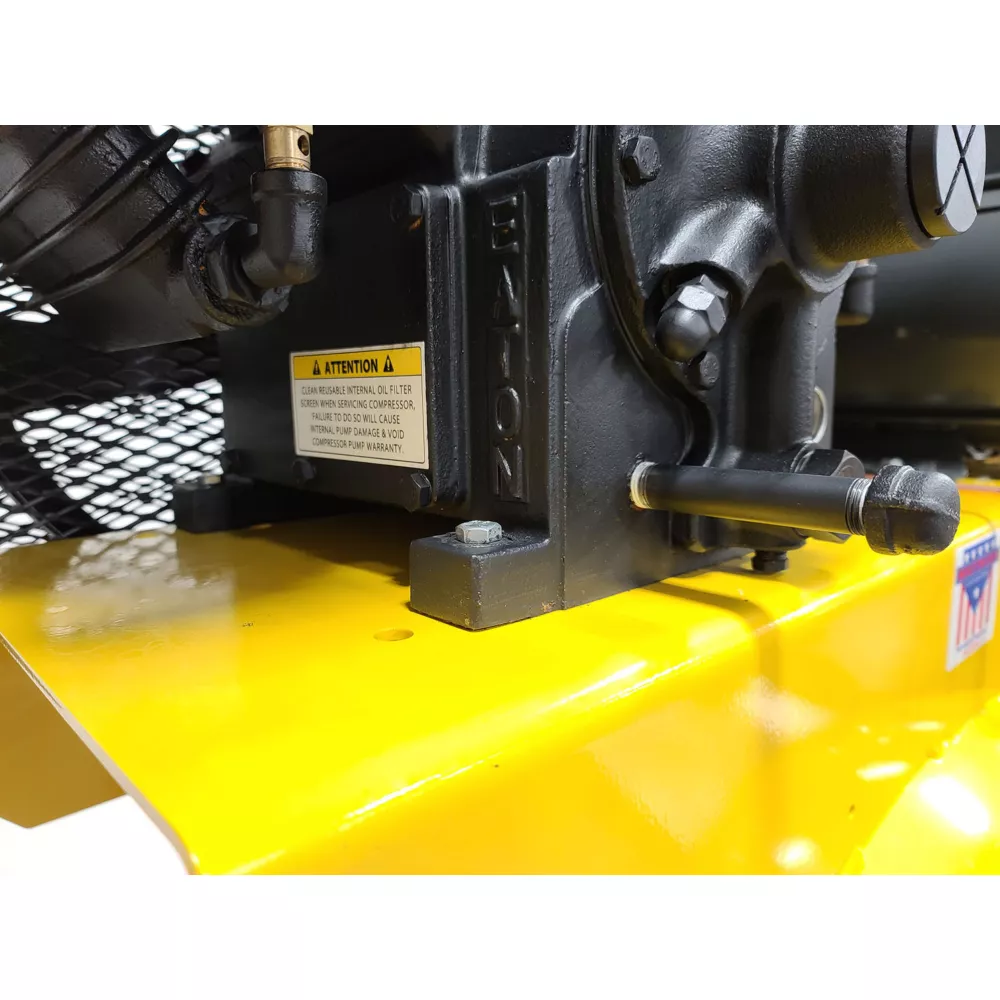

Solid Cast Iron Crankcase with oil sight glass NOT Aluminum
Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
Dimensions: 28" x 42" x 72"
Weight: 795 lbs
Large 1-3/8 inch output shaft
Running Amps: 40
40 CFM @ 90 PSI & 42 CFM @ 40 PSI

Eligible for lifetime pump warranty with maintenance kit

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	44 CFM
Air Delivery SCFM At 90 PSI	41 CFM
Airflow Volume	38 CFM
Air Outlet Size	3/4 in.
Amperage	40A
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	208V/230V
Connection Type	NPT
Drain System	Manual
Drive Type	Electric Motor
Engine Brand	N/A
Features	Magnetic starter, Solid Cast Iron pressure lubricated, Low RPM Pump, Industrial grade low RPM electric motor, 2 stage single phase, ASME, ETL, CSA, UL certified
Fuel Tank Capacity	0 N/A
Hose Fitting Size	3/4 in.
Maximum RPM	800 RPM
Phase	Single
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	28 in.
Product Weight	795 lb.
Product Width	42 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes
Tank Orientation	Vertical
Warranty	1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty
Manufacturer PartNumber	EI10V080V1

EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI Specifications Expand/Collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 40 PSI 44 CFM Air Flow SCFM at 90 PSI 41 CFM Air Flow Volume 38 CFM Outlet Size air 3/4 in. Amperage 40 Amp Compressor Power 10 HP Compressor Maximum PSI 175 PSI Compressor Operation Auto Start/Stop Compressor Tank Capacity 80 gal Compressor Type Oil Lubricated Compressor Voltage 208V/230V Connection Type Drain System NPT Manual Drive Type Electric Motor Motor Make N/A Features Magnetic Starter, Pressure Lubricated Solid Cast Iron, Low RPM Pump, Industrial Grade, Single Phase, 2 Stage, Low RPM Electric Motor, ASME, ETL, CSA, UL Listed Fuel Tank Capacity 0 N/A Hose Connection Size 3/4 in. Maximum RPM 800 RPM Phase Single Nozzle Connection Size 3/4 in. Number of Power Speeds Single Number of Impellers0 Power Type Electric Primary Color Yellow Primary Material Steel Product Height 72 in. Product Length 28 in. Product Weight 795 lb. Product Width 42 in. Pump Life 70,000 hours Pump Material Cast Iron Pump Oil Capacity 2 quart pump. Stage Type Two-Stage Tank Fill Time 4.5 minutes Tank Orientation Vertical Warranty 1 year standard warranty, 5 years extended lifetime pump warranty Manufacturer part number EI10V080V1
