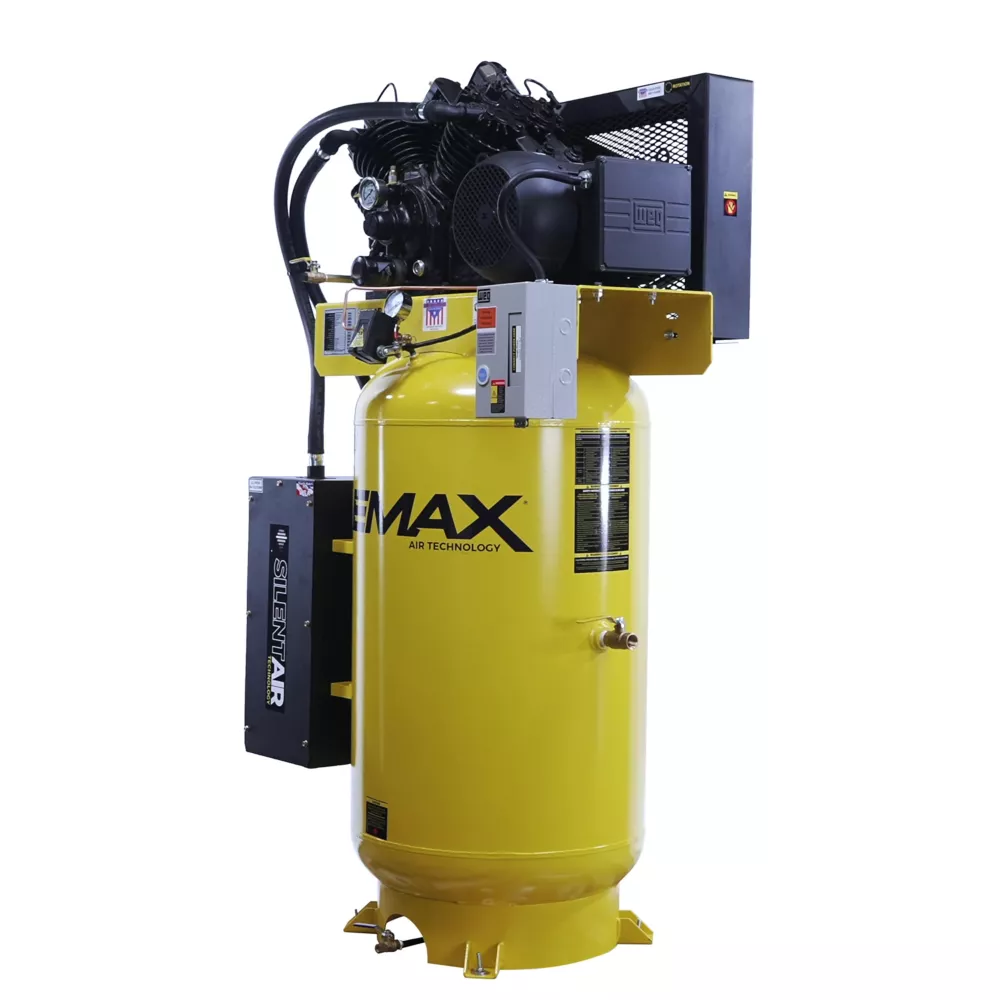

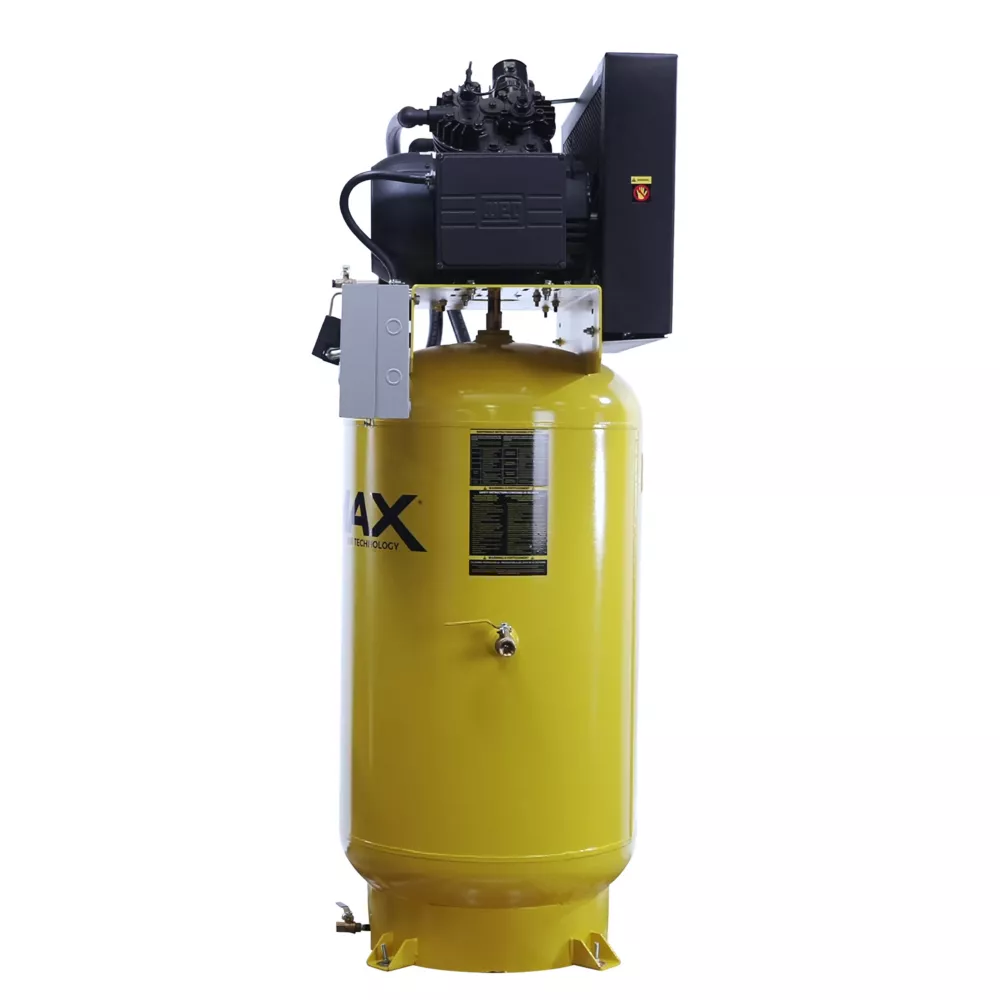

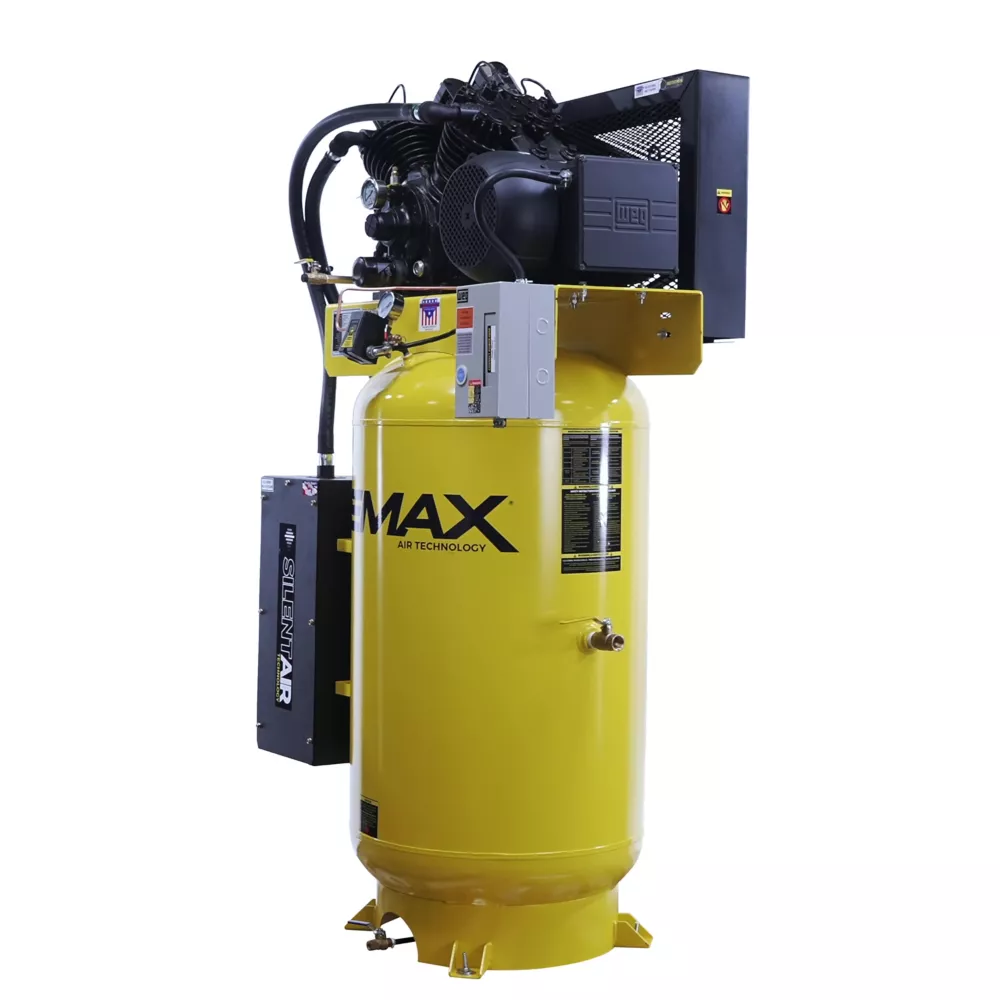

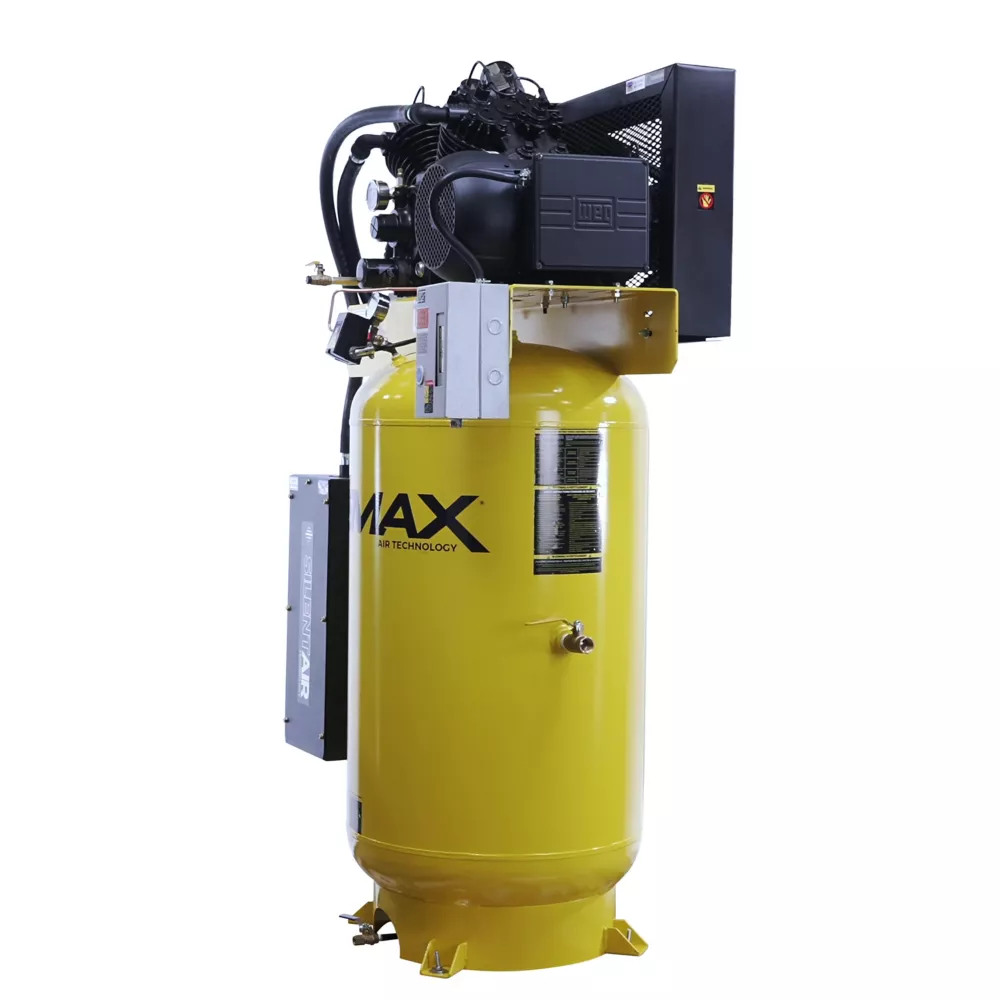

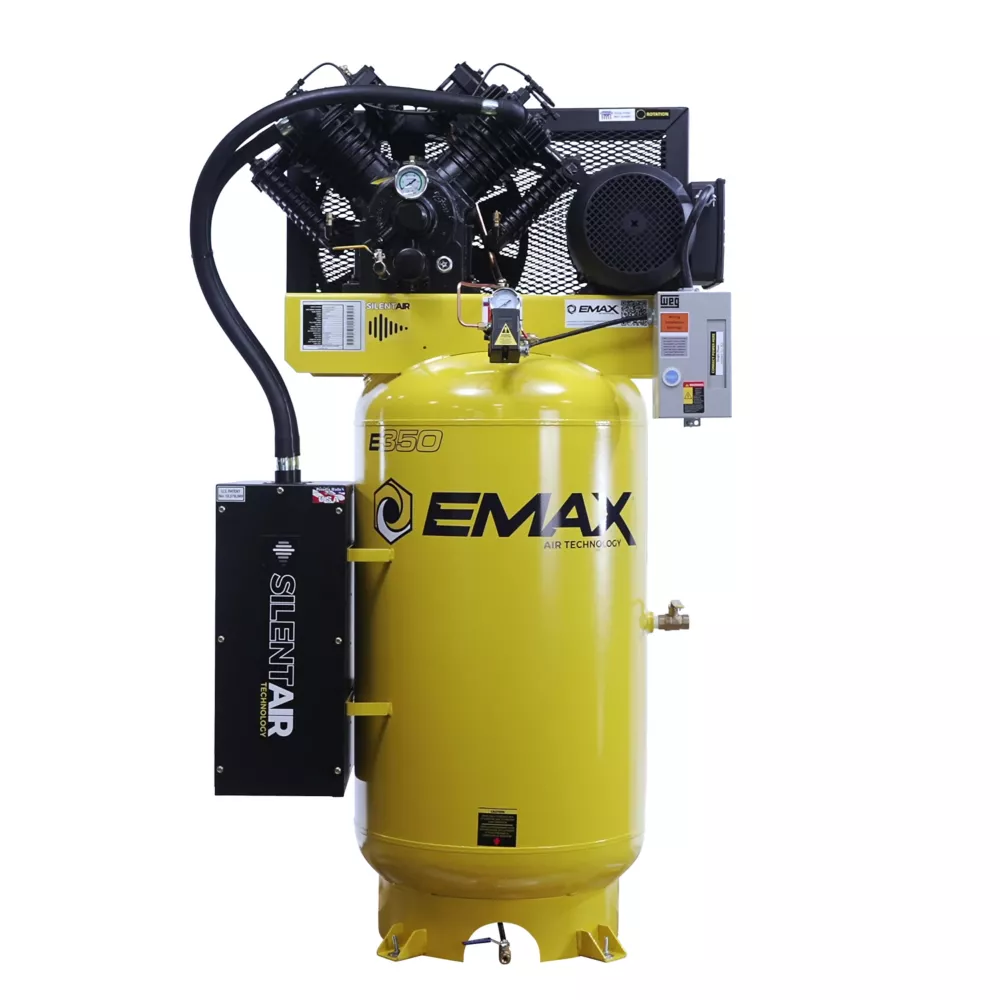

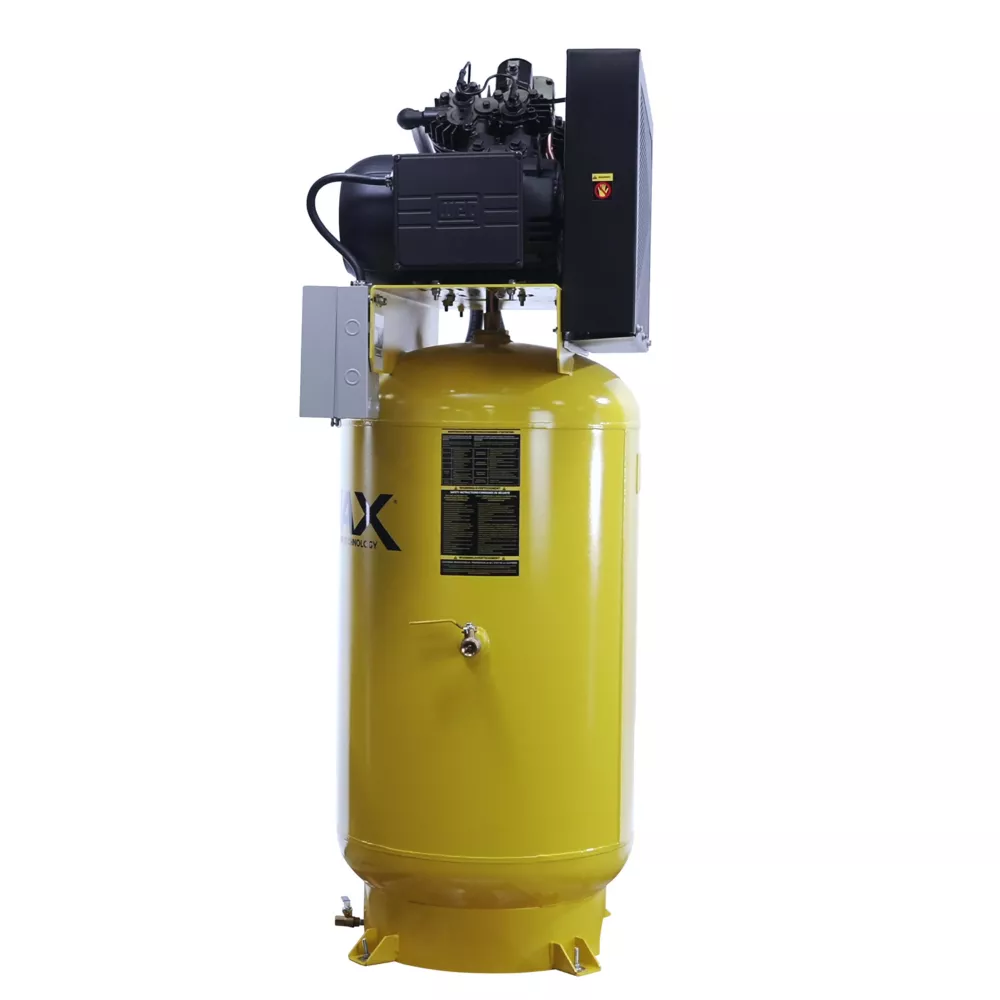

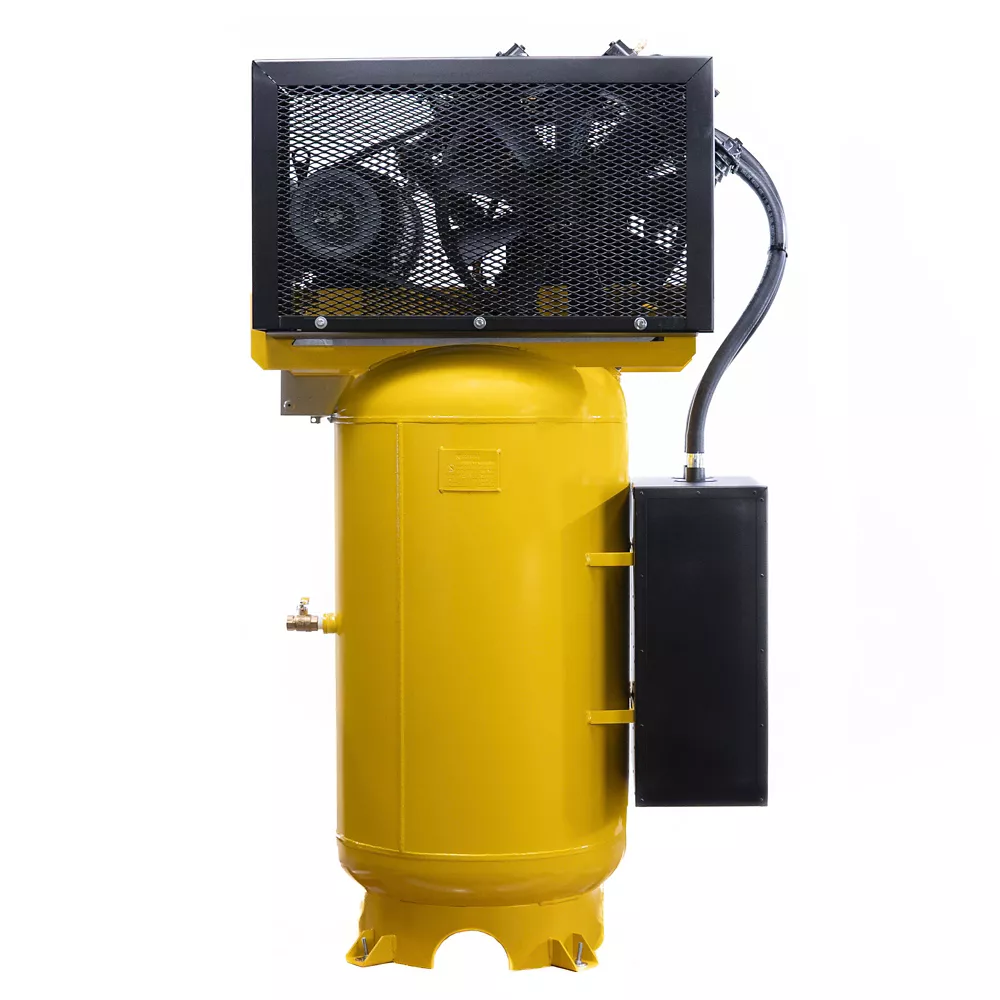

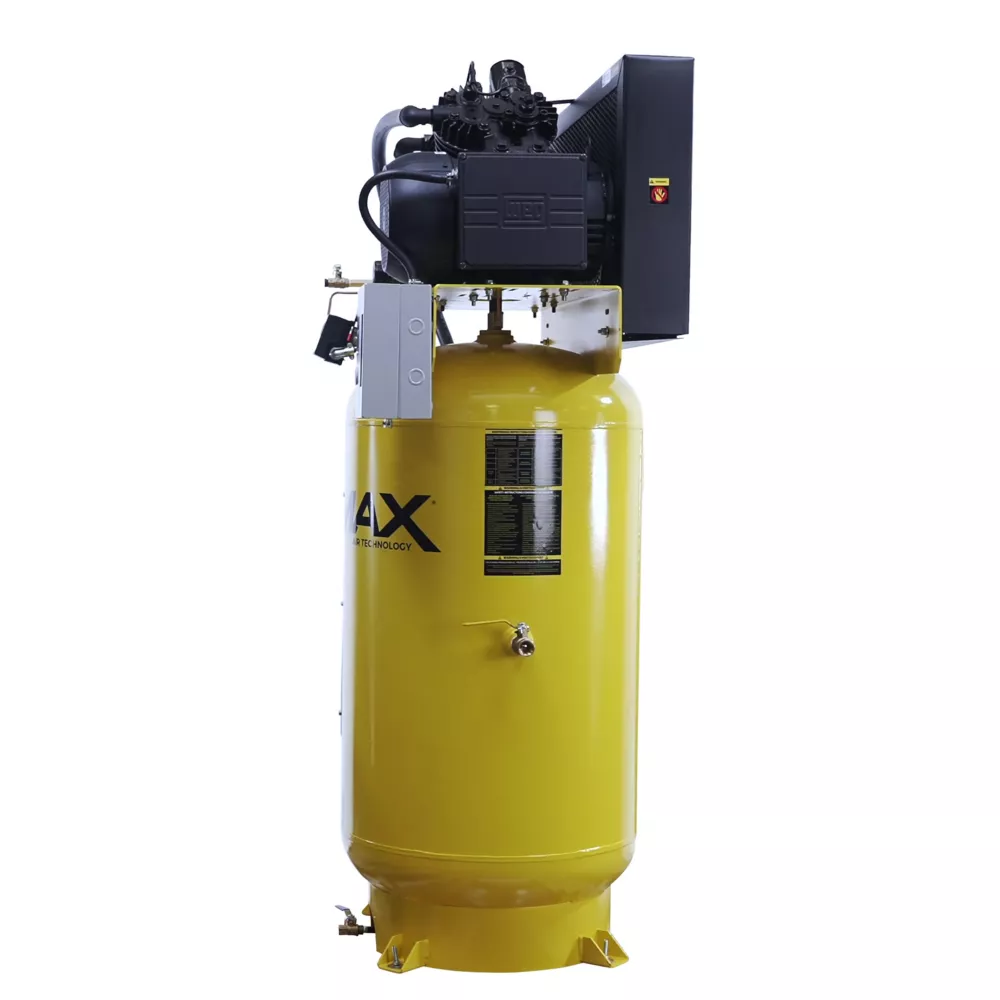

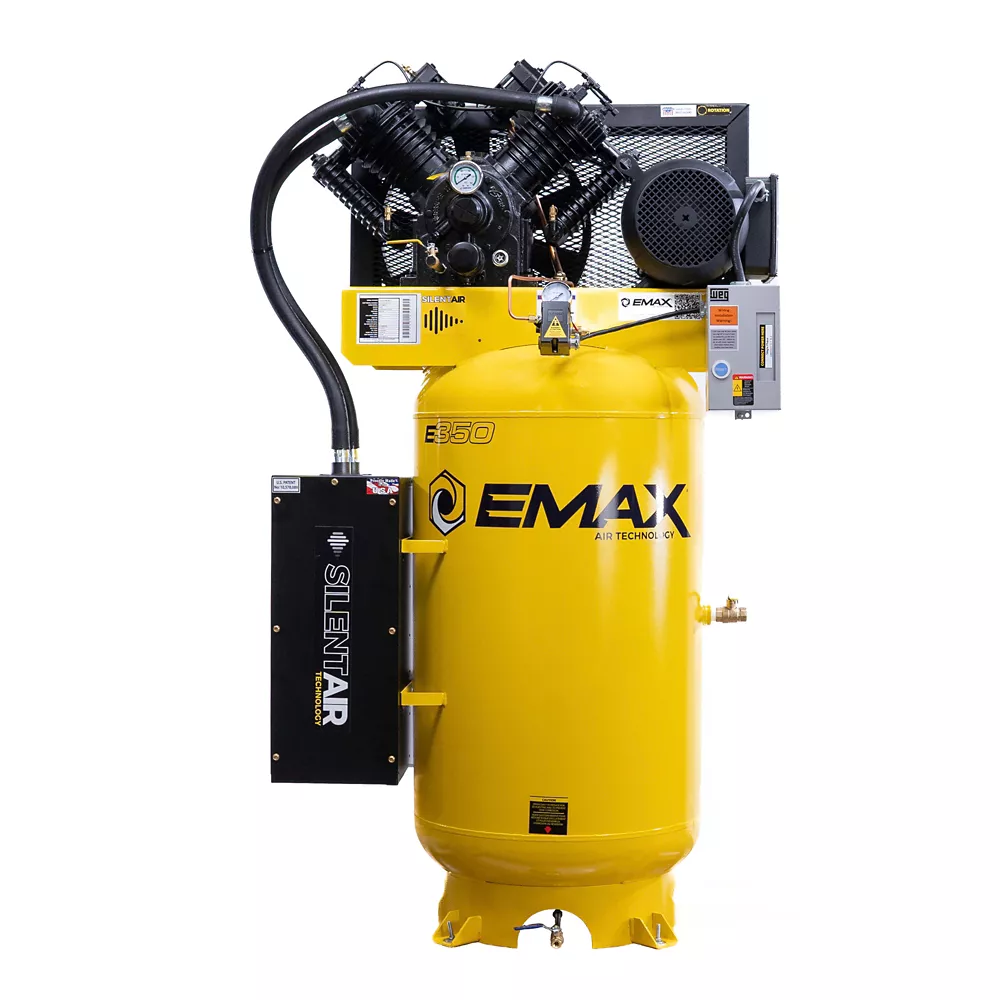

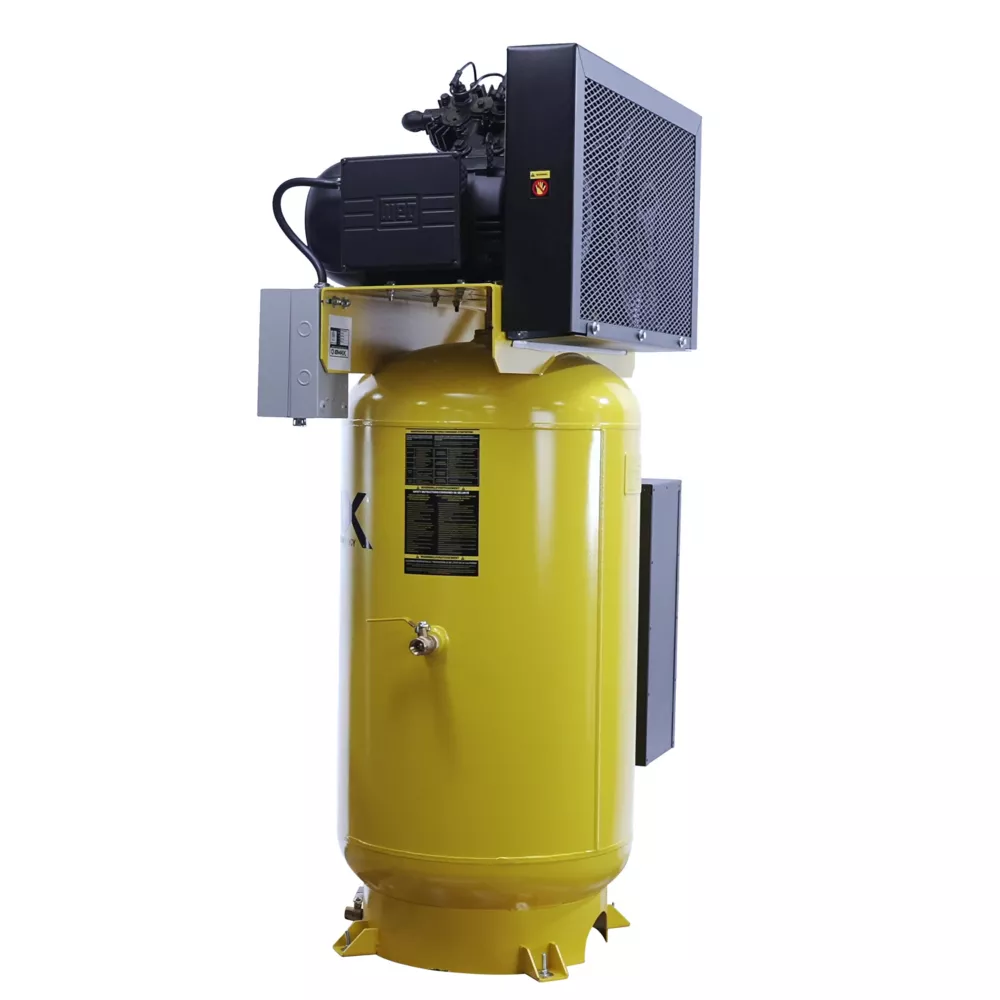

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Air Compressors

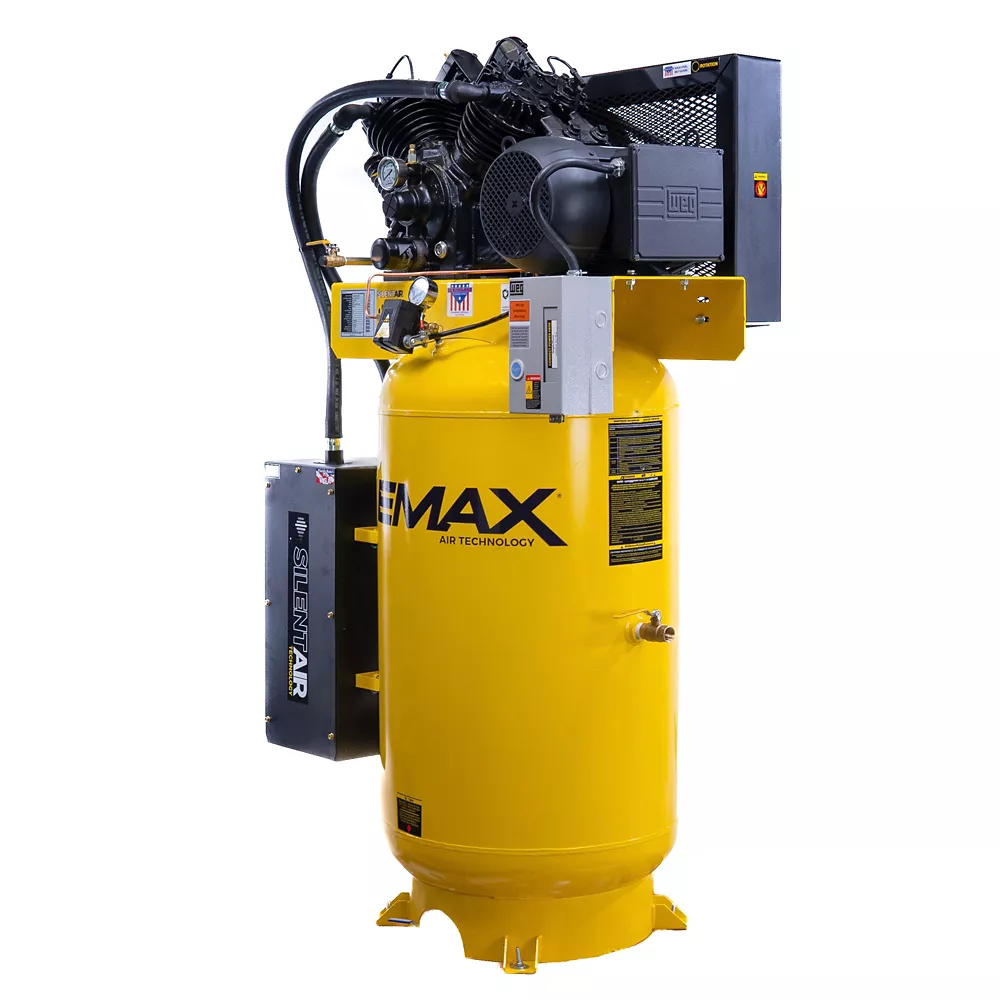

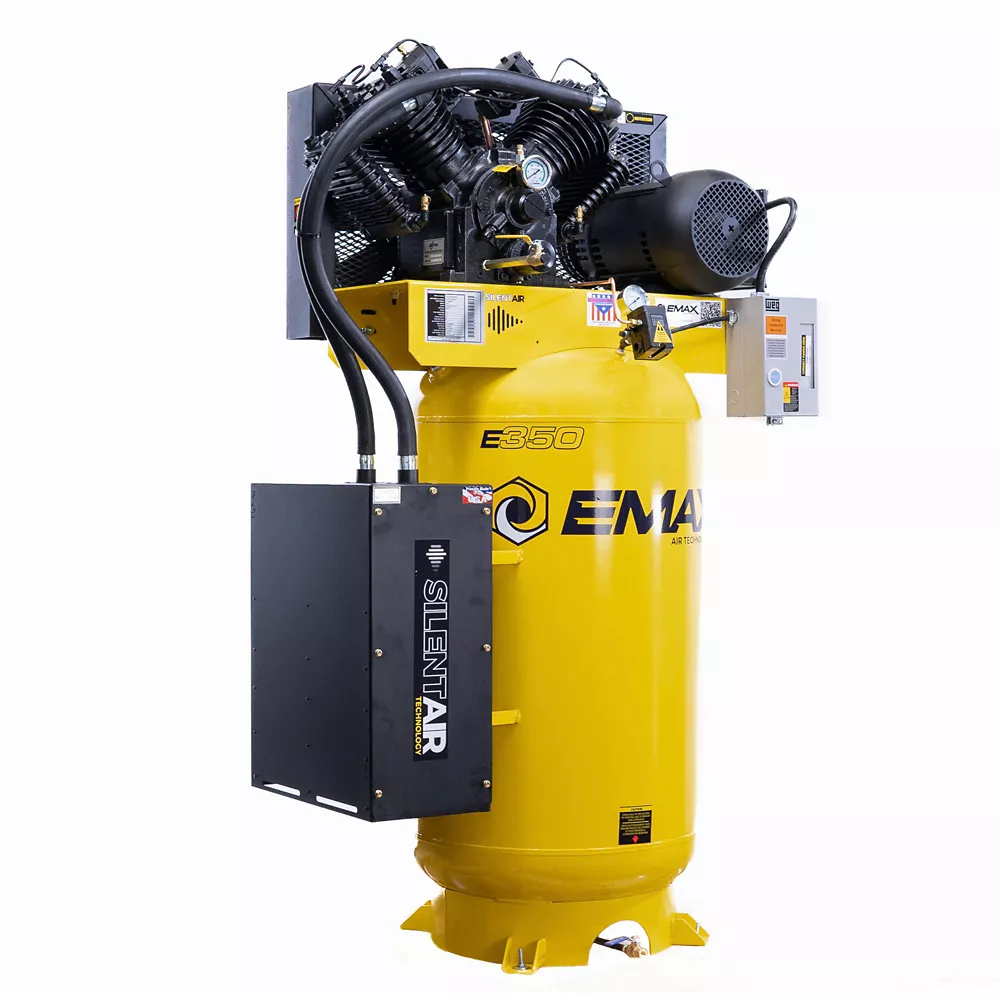

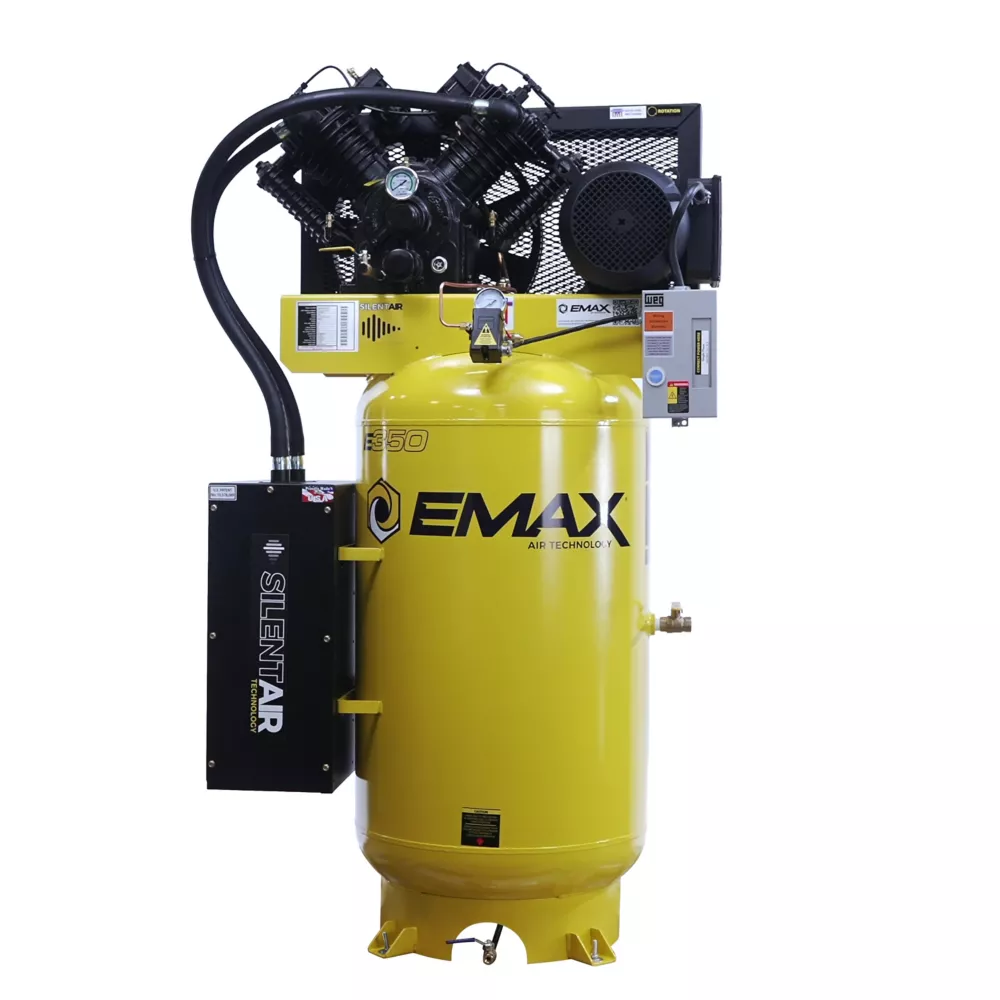

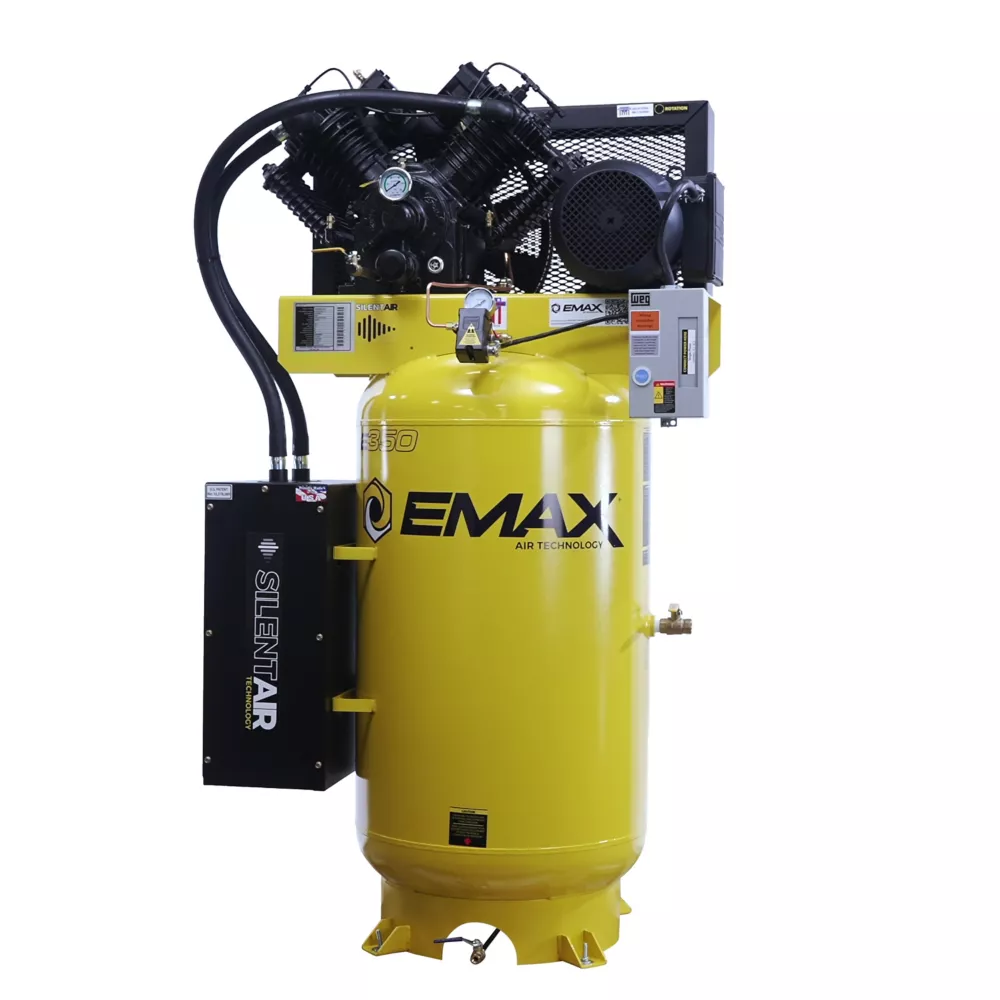

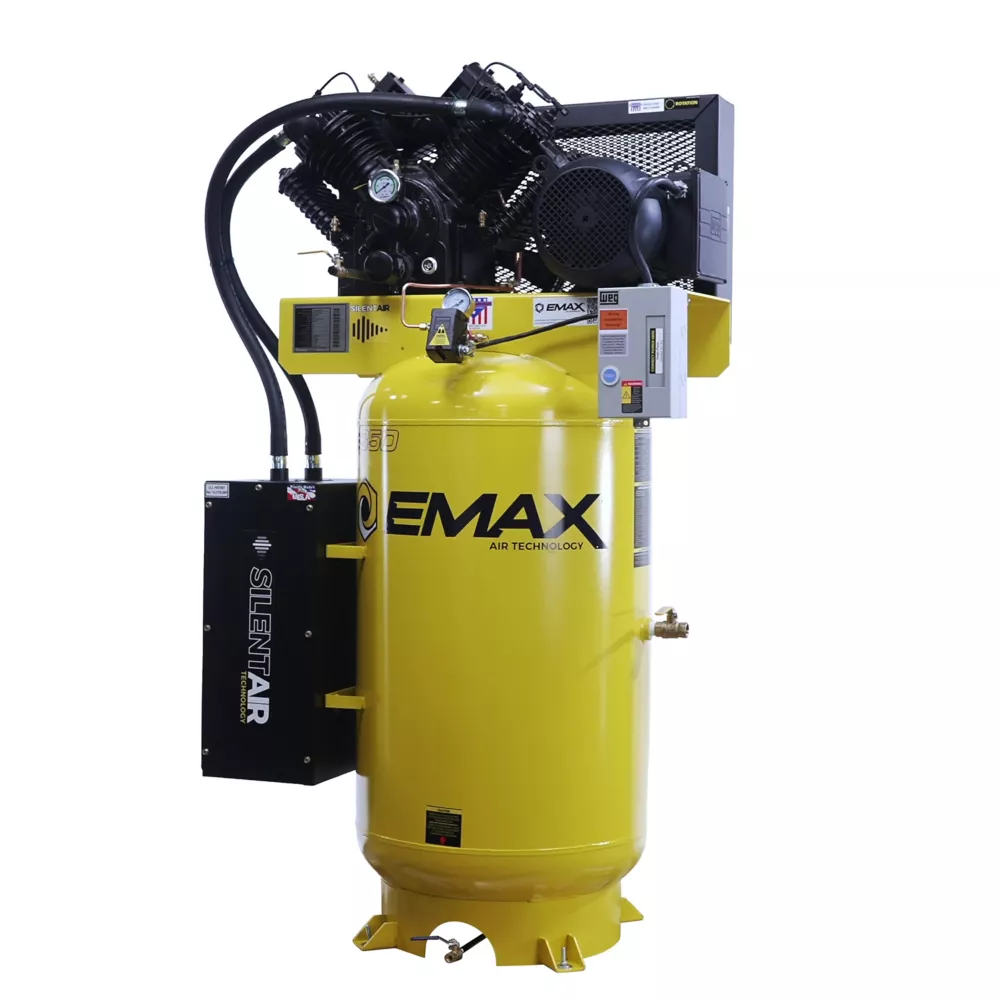

This EMAX 10 HP 80 Gallon Industrial Air Compressor is a 2-stage pressure lubricated, SINGLE PHASE, V4 vertical piston SILENT AIR compressor designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This EMAX air compressor delivers 38 CFM at 100 PSI, maximum PSI 175. The unit features industrial grade electric motors at 1750 maximum RPM, Pump 800 Maximum RPM and 40 running AMPS, magnetic starters, manual bal valve tank drain, and powder coated ASME tank 200PSI. This air compressor is paired with cast iron, 60,00 Hours rated, patented pressure lubricated reciprocating pump. Engineered and manufactured in the USA our patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of ba e plates. This low-pro le system adds 4 levels of air fltration along with making the compressor quiet, reducing DBA ratings by as much as 50%. Now that's being seen but not heard! Our Industrial Plus series come with standard features and only the best quality components. All backed by the best warranty in the industry. The EMAX includes our patented, MADE IN THE USA, SILENT AIR system, installed. ETL,UL,CSA, ASME Certified. Eligible for LIFETIME PUMP WARRANTY, 1 Year Standard, 5 Year Extended.

MADE IN USA
Patented Pressure Lubricated Pump

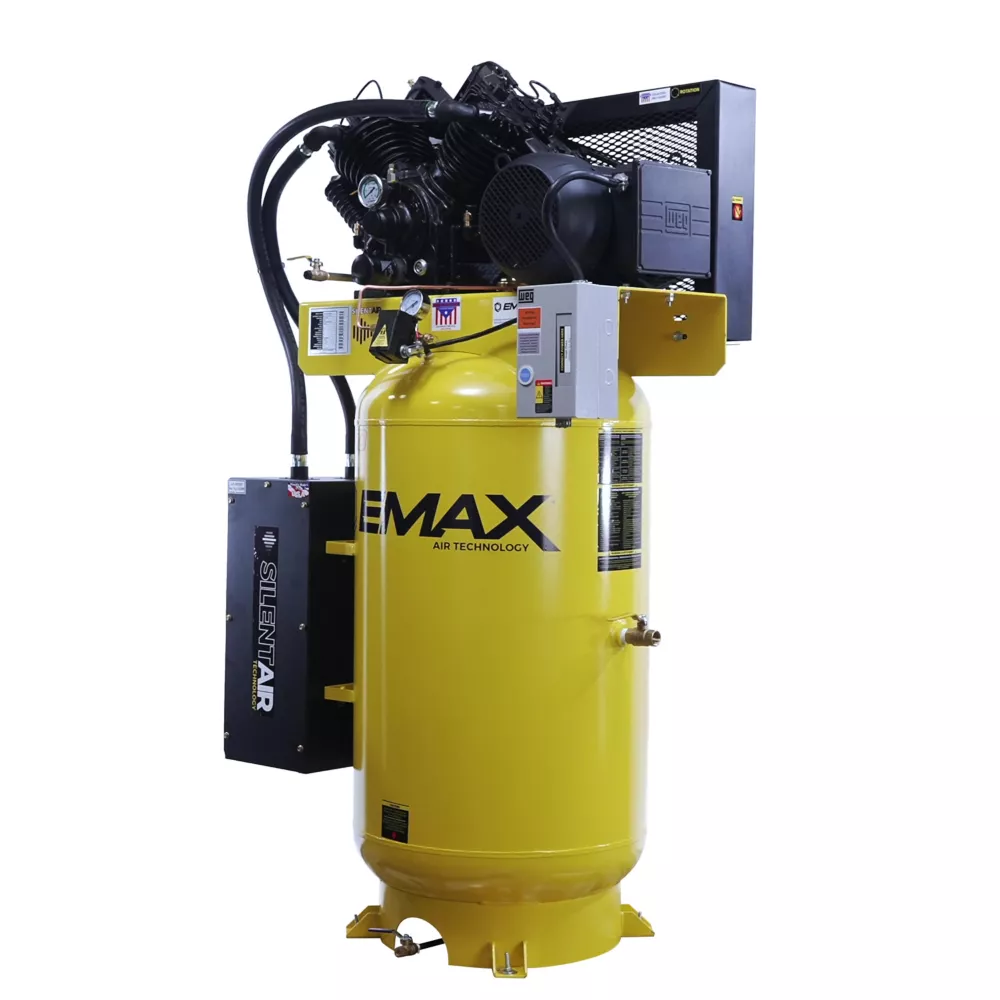

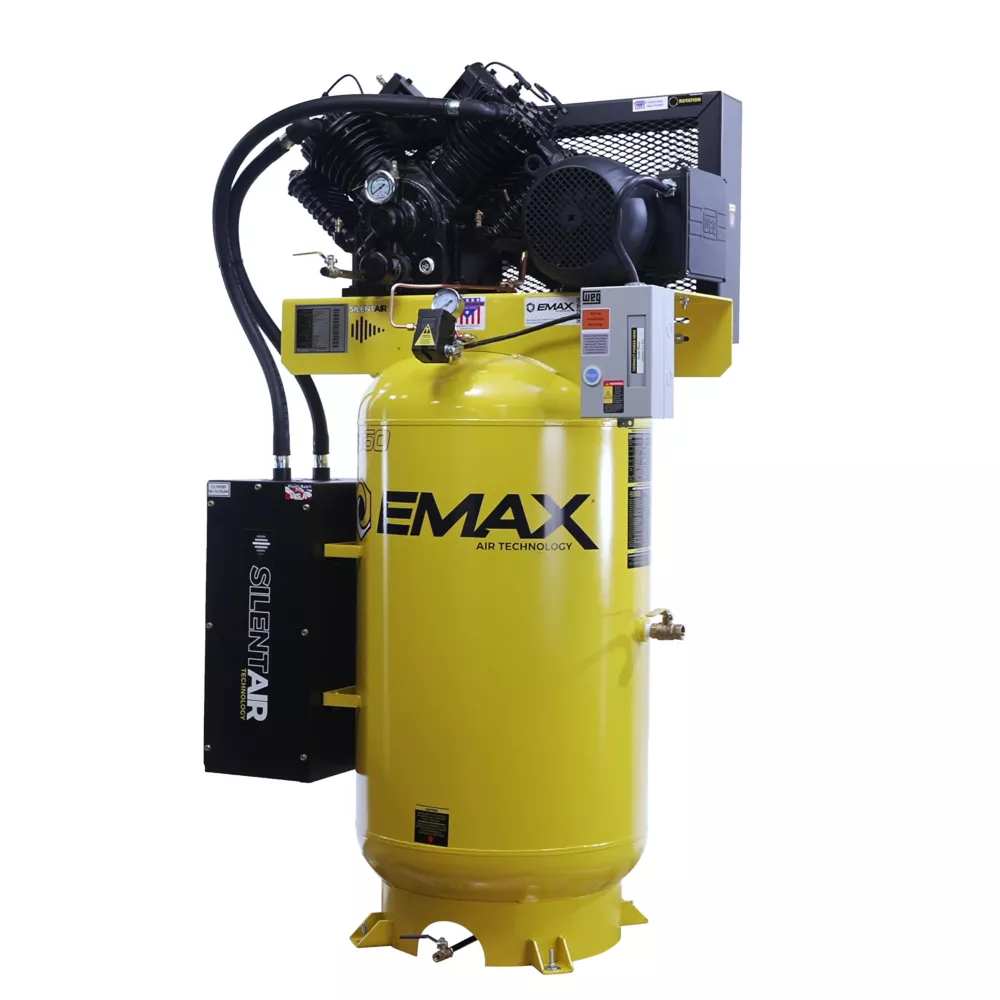

Silent Air Technology helps this air compressor run quietly
All steel connecting rods with replaceable rod bearing inserts can be rebuilt
Easy Spin-on Re-usable oil filter

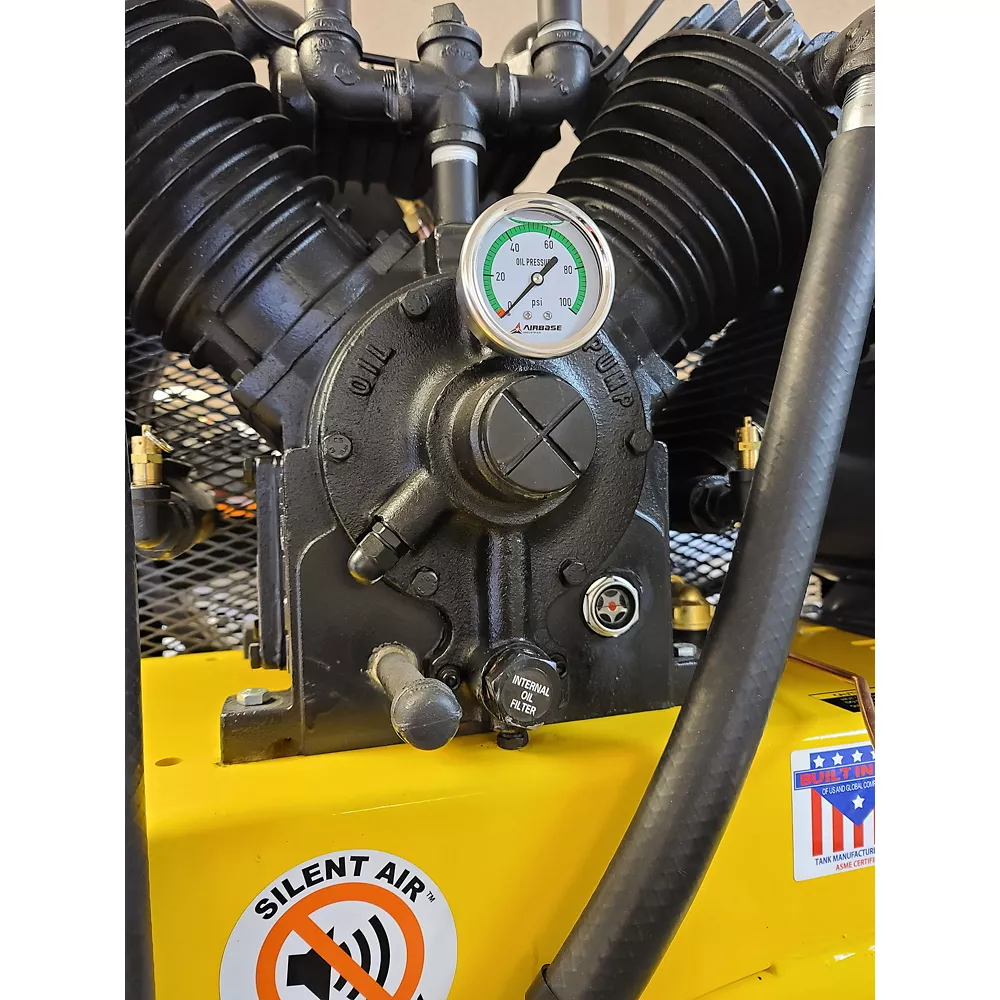

Oil pressure gauge & level site glass
Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
All cast iron cylinder heads are more durable and dependable
Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
Precision ground pistons machined to tight tolerances ensures low oil carry over
Premium non-absorbent gaskets prevent oil seepage from pump
All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
Built-in head unloaders
Inter-cooler allows air to be cooled between stages while the air cooled. After-cooler provides a second cooling stage that cools the air before it goes into the tank
Large 1-3/8 in. output shaft
Dynamically balanced armature for low vibration levels
ETL, CSA, ASME, UL Certified
Eligible for EXTENDED lifetime pump warranty
1 Year Standard, 5 Year EXTENDED warranty available
Maximum Pump RPM: 800, for extended life
Running Amperage: 40
Manual Tank Drain
40 CFM @ 90 PSI & 42 CFM @ 40 PSI
Industrial Motor: 1750 RPM
Maximum PSI: 175
ETL,UL,CSA, ASME Certified
Running Amps: 40
Single Phase 208/230 volt
Air Outlet size: 3/4 in.

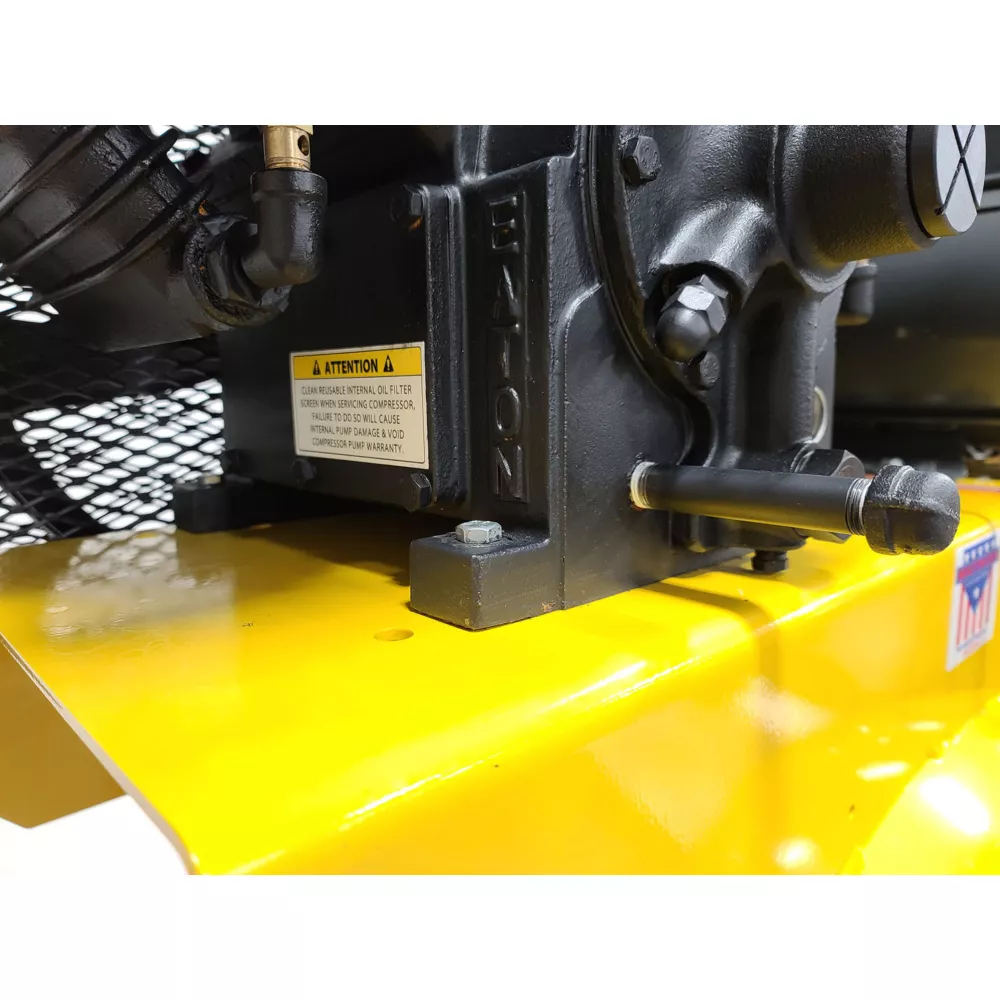

Solid Cast Iron Crankcase with oil sight glass NOT Aluminum
Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
Powder coated 200 PSI ASME certified 80 gal. tank- approved in all 50 states
Weight: 810 lb.
Prewired Magnetic starter
Pump Oil Capacity: 2.5 qt.
Manual ball valve tank drain
Dimensions: 38 x 42 x 72 in. (LxWxH)

1 Year Standard, 5 Year EXTENDED warranty, Eligible for Pump lifetime warranty with maintenance kit

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	44 CFM
Air Delivery SCFM At 90 PSI	41 CFM
Airflow Volume	38 CFM
Air Outlet Size	3/4 in.
Amperage	40A
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual
Drive Type	Belt Drive
Engine Brand	U.S.
Features	30% quieter, Patented silent air system, Industrial Electric Motor, 1750 Motor RPM, 2 stage Pressure lubricated solid cast iron pump, Magnetic starter, Manual tank drain, Lifetime pump warranty eligible with maintenance kit
Fuel Tank Capacity	0 qt.
Hose Fitting Size	3/4 in.
Maximum RPM	800 RPM
Phase	Single
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	38 in.
Product Weight	810 lb.
Product Width	42 in.
Pump Life	60,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes
Tank Orientation	Vertical
Warranty	1 year Standard, 5 year extended, lifetime pump extended
Manufacturer PartNumber	ES10V080V1
