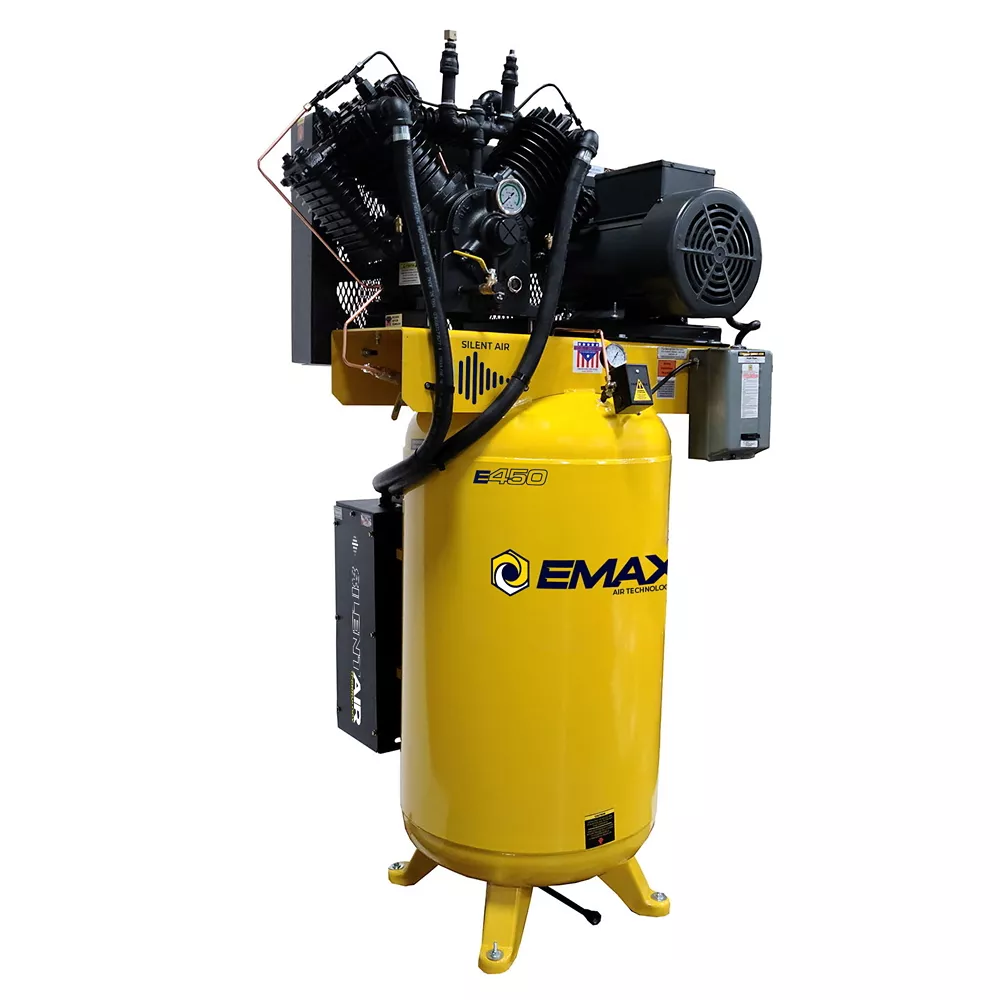

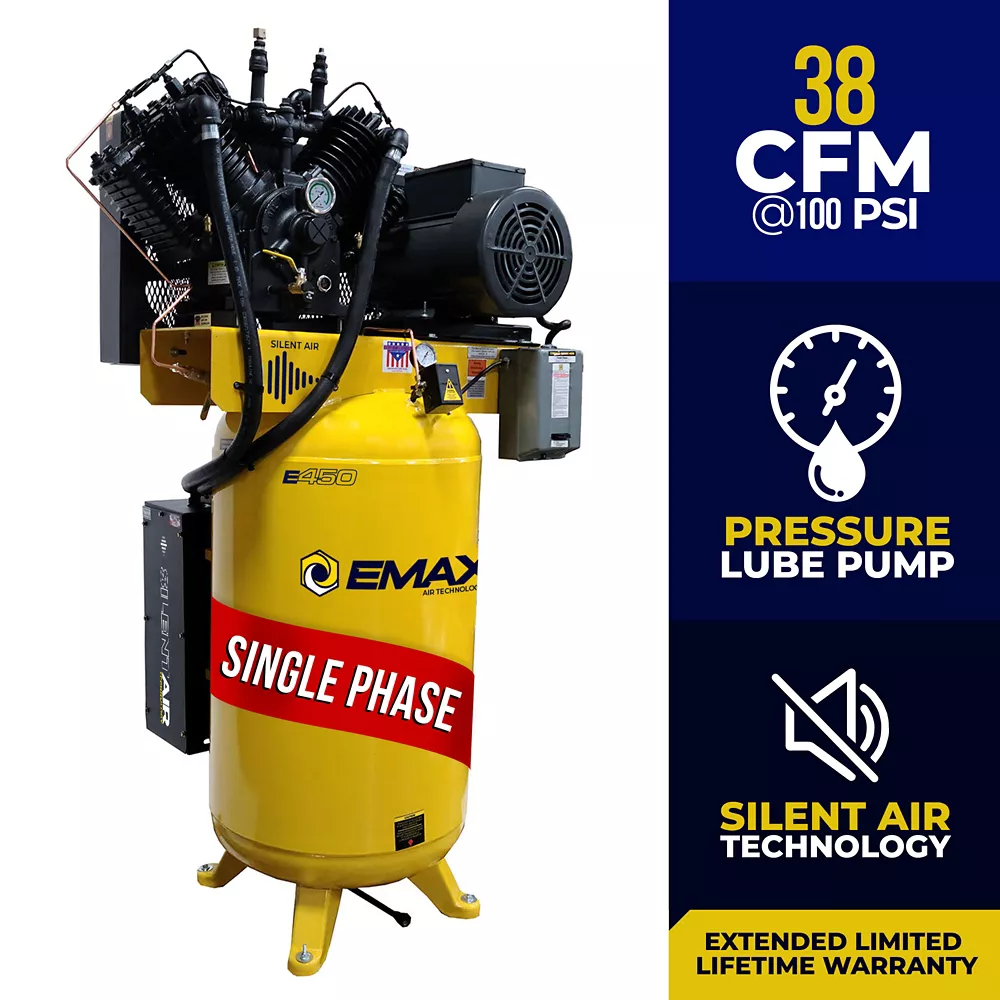

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Air Compressors

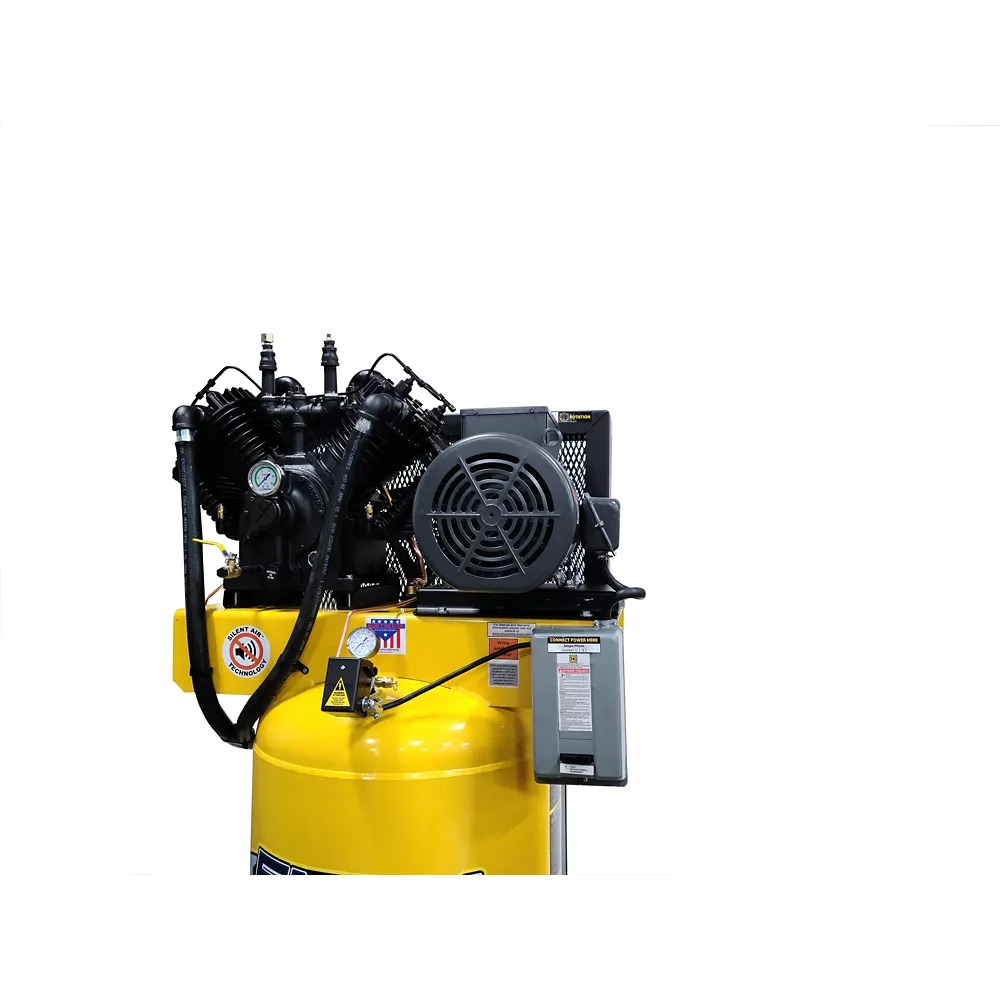

This EMAX 10 HP 80 Gal Industrial Air Compressor is a 2-stage, single-phase SILENT Air V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM at 100 PSI, with a top PSI of 175. The unit features an industrial electric motor at 1750 maximum RPM and 40 running AMPS, magnetic starter, Automatic Tank drain, powder coated ASME tank with a 200PSI rating and Maximum 800 RPM Pump. This air compressor is paired with a solid cast iron 70,000 hour rated patented pressure lubricated reciprocating V4 pump. This Industrial Compressor includes our patented MADE IN THE USA, SILENT AIR system, which is 35% more quite. ETL, UL, CSA, ASME Certified.

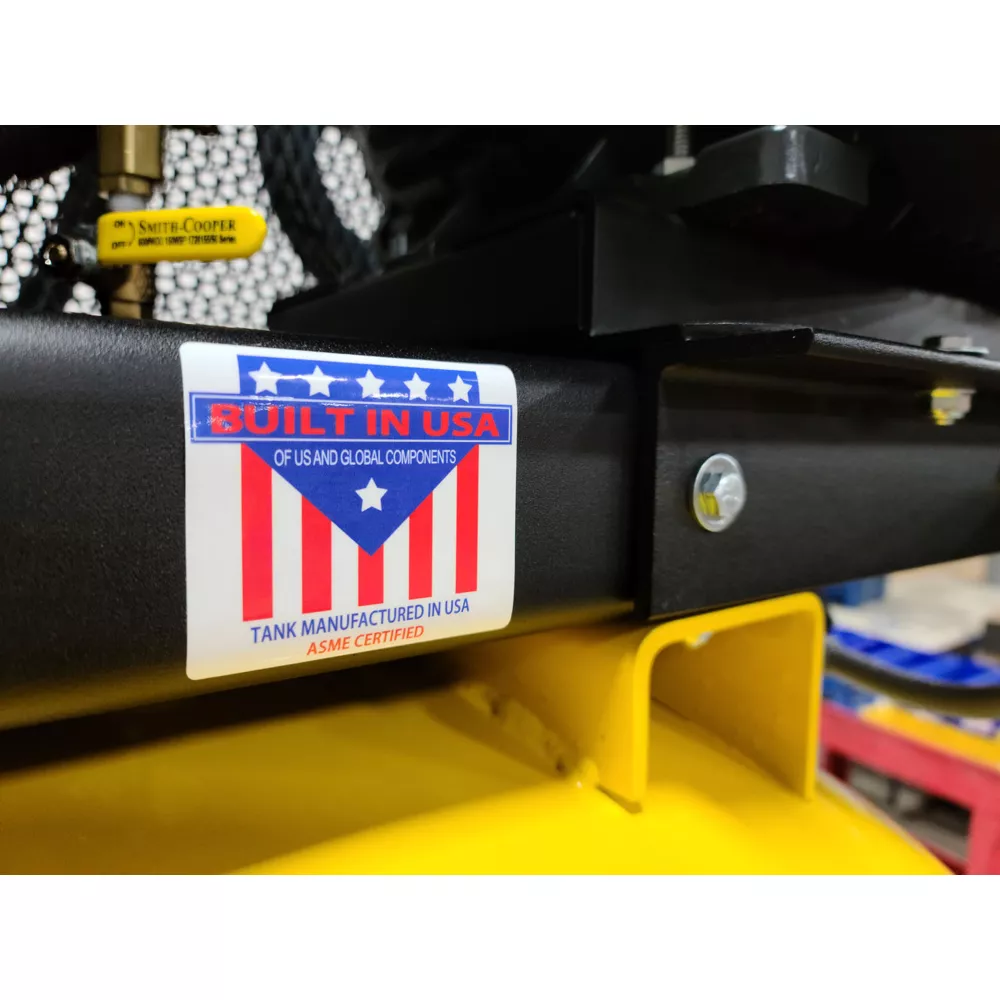

MADE IN USA
Patented Pressure Lubricated Pump

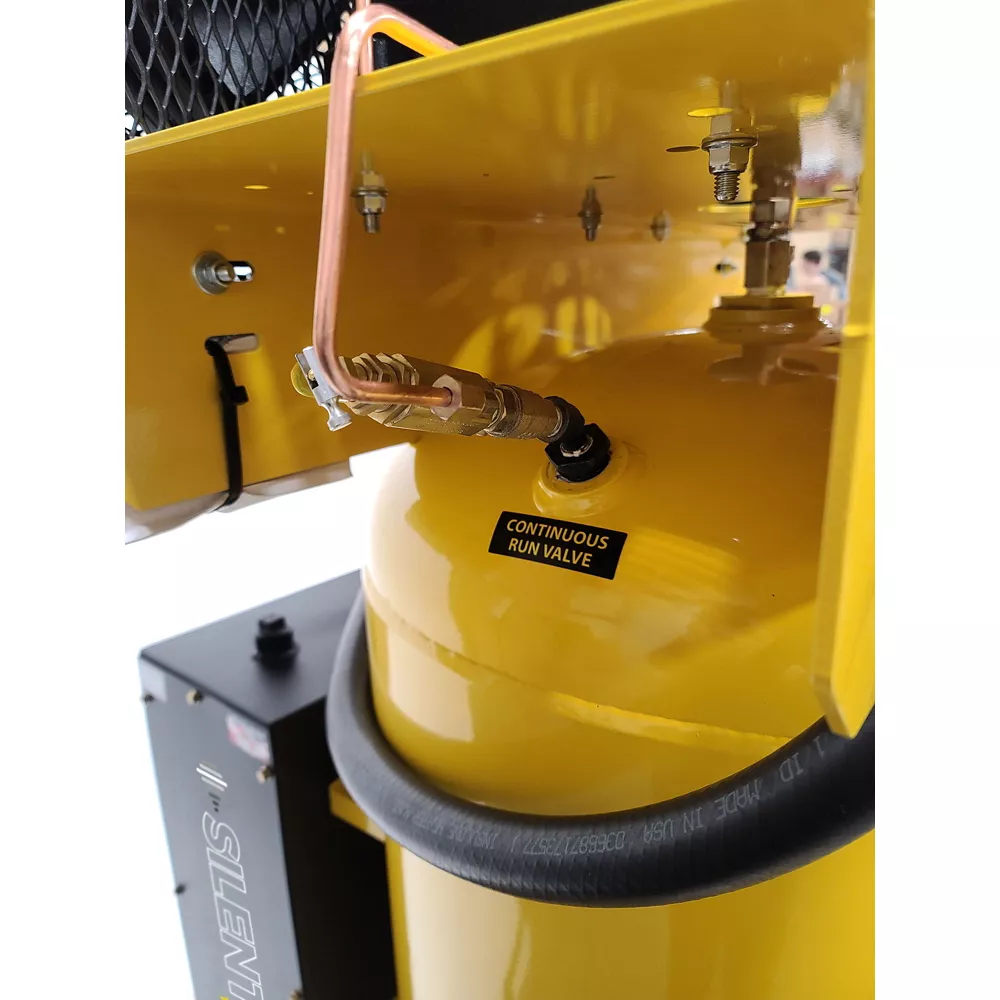

Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

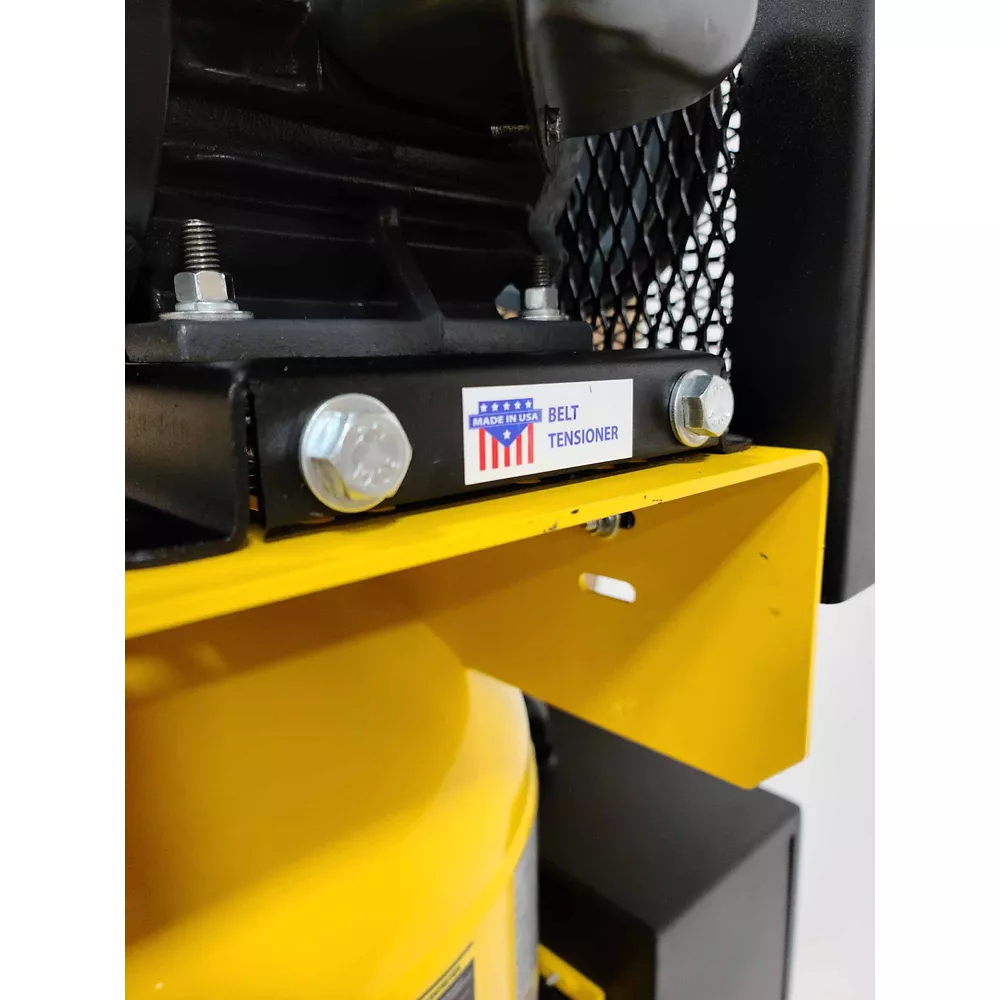

Belt tension adjuster for fast, easy one-turn design reduces vibration and extends belt life
Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
Certified: ASME, CSA, UL, ETL

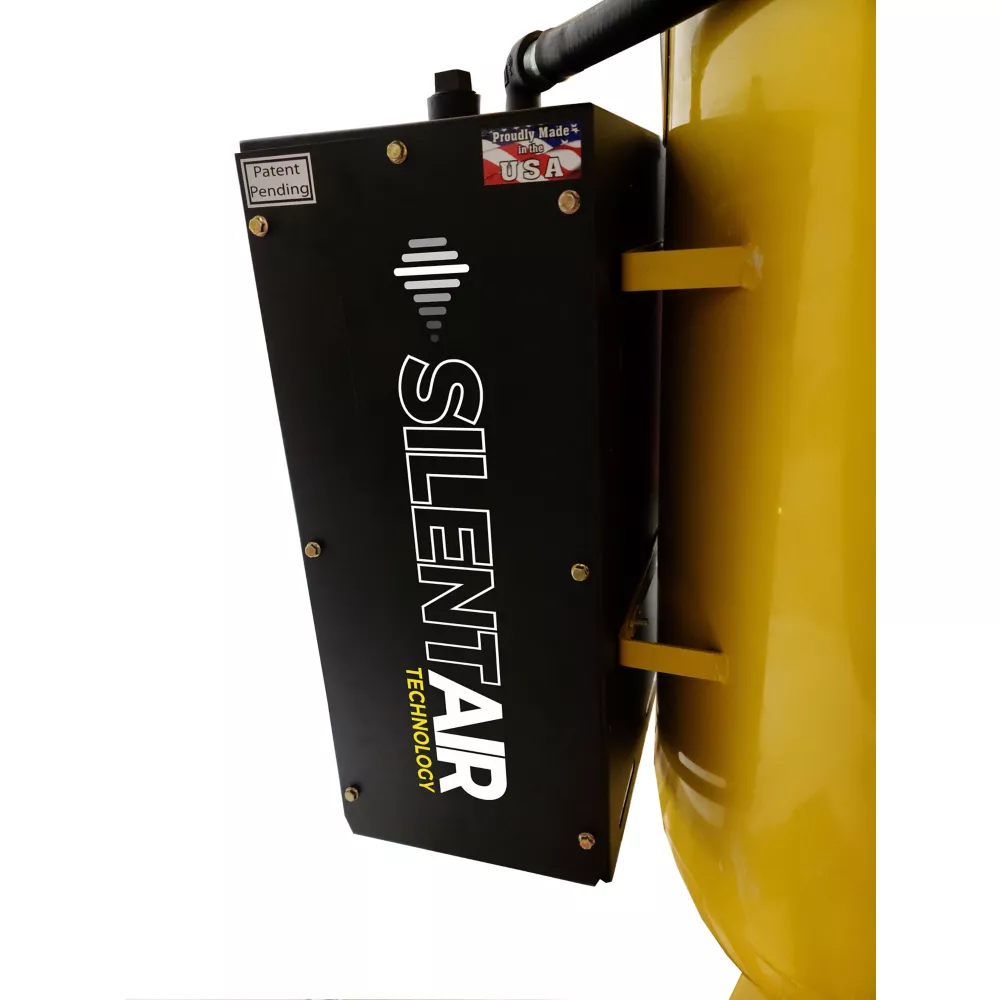

SILENT AIR system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth operation
All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
Re-usable oil filter, Heavy Duty Steel Belt guard
Removable 100% cast iron cylinders do not warp from heat
All cast iron cylinder heads are durable and dependable
Disc valve design intake and exhaust valves can be serviced in minutes
Top quality compression and oil rings ensure performance with low oil carry over
Precision ground pistons are machined to tight tolerances that ensure low oil carry over
Premium non-absorbent gaskets prevent oil seepage from the pump
All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor
Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
Built-in inner-cooler and after-coolers

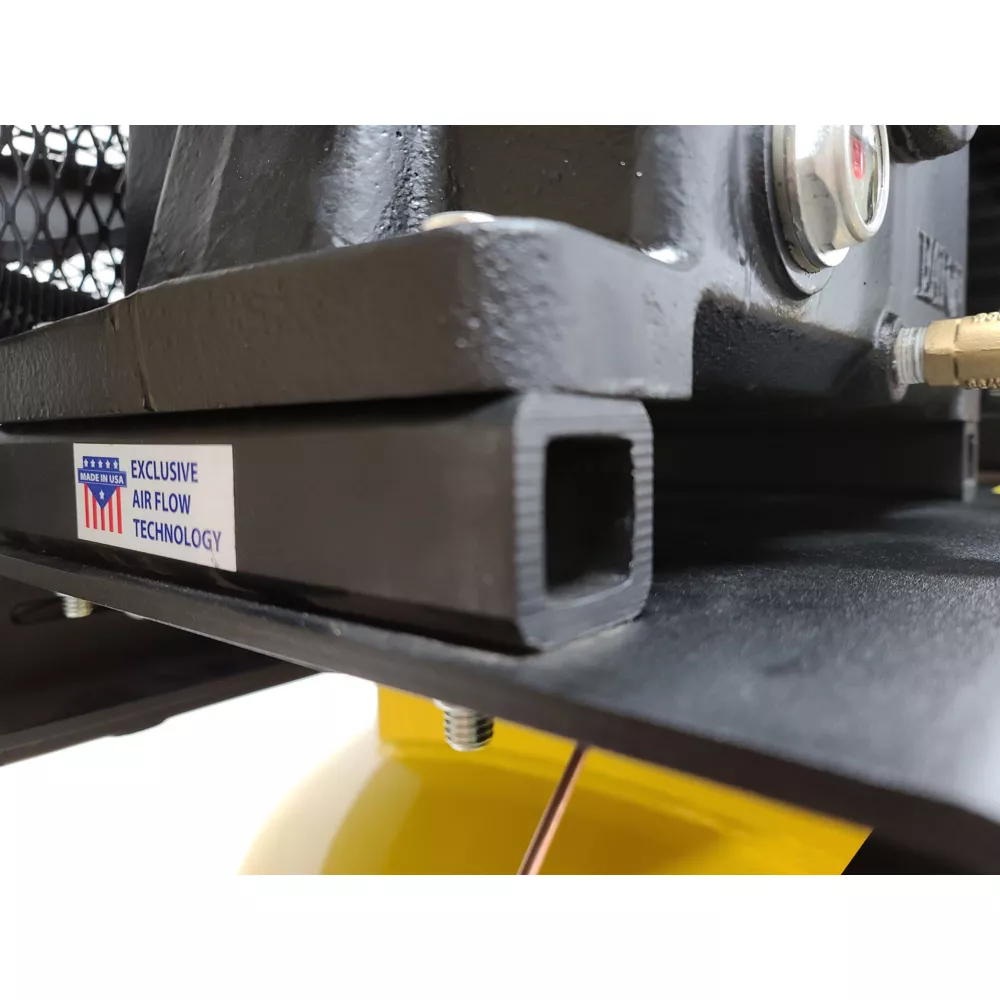

Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
Name brand electric motor meets all UL and CSA requirements
Large 1-3/8 in. output shaft on the motor
Large starting and running capacitors
Motor can be pulled 15% over full load for more break horsepower
Dynamically balanced armature for low vibration levels

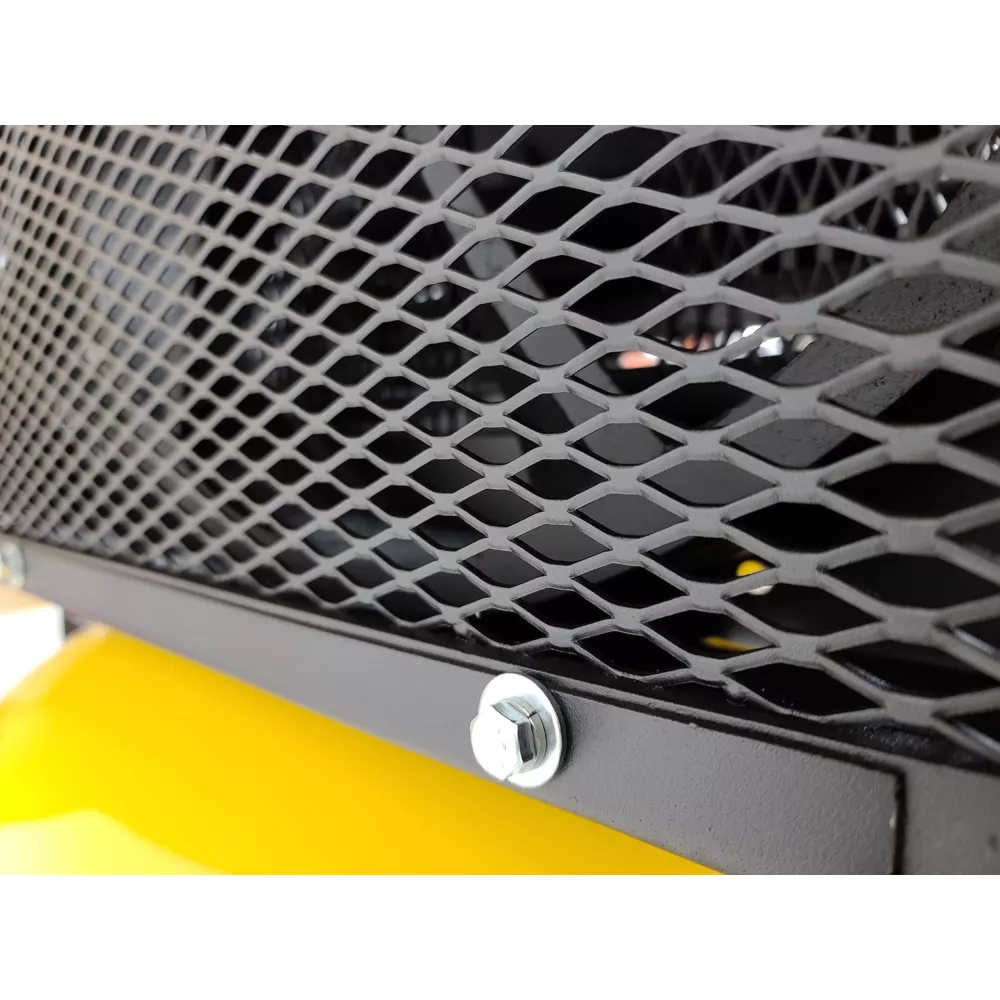

Belt guard is made from 13-gauge steel and premium grade expanded metal
Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
100% brass ASME safety valves are preset and sealed for correct settings
35% more quiet
Eligible for EXTENDED lifetime pump warranty
Heavy Duty Steel Belt guard
Maximum Pump RPM: 800, for extended life
Running Amperage: 40

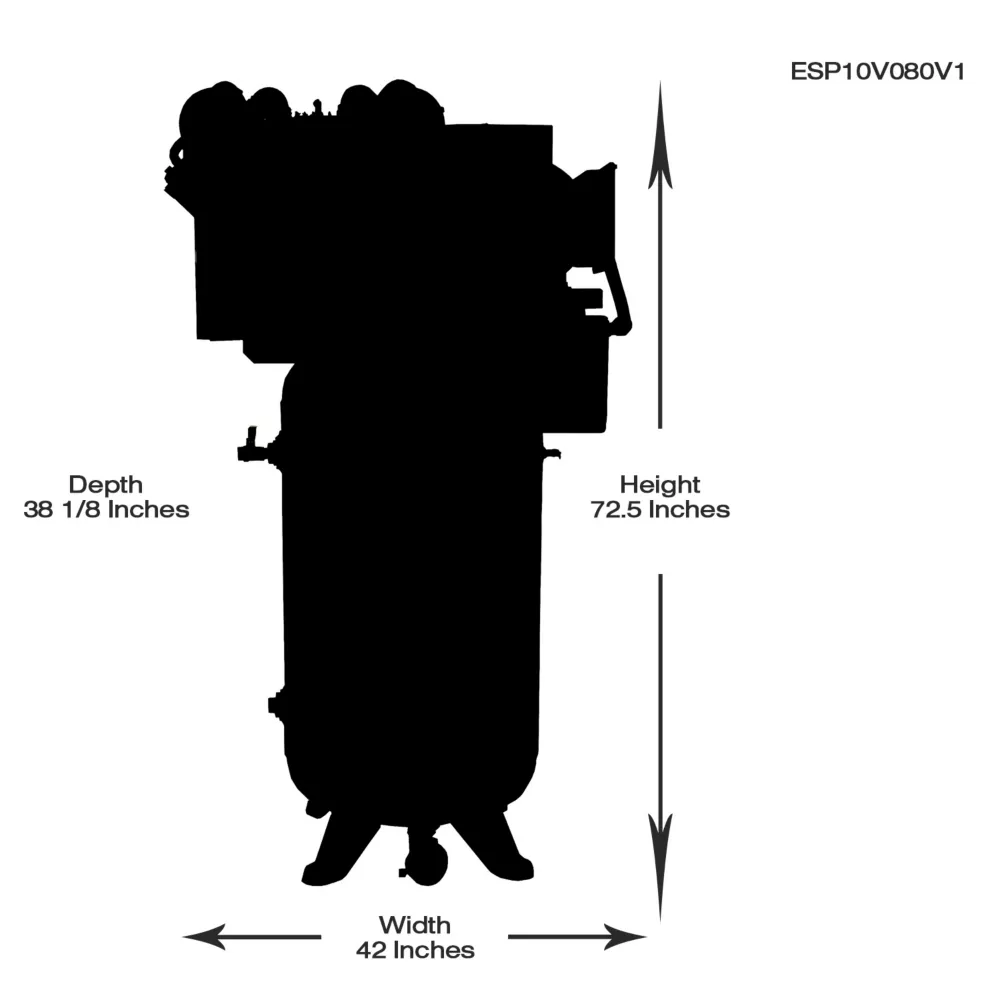

Dims: 38 in. x 42 in. x 72 in. (LxWxH) 810lbs
Maximum PSI: 175
Industrial Motor RPM: 1750
Oil Capacity: 2.5 quarts
Oil level site glass

Eligible for LIFETIME WARRANTY with maintenance kit, 1 Year Standard, 5 Year Extended available

EMAX 10 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 38 CFM to 100 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	44 CFM
Air Delivery SCFM At 90 PSI	41 CFM
Airflow Volume	38 CFM
Air Outlet Size	3/4 in.
Amperage	40A
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	230V
Connection Type	NPT
Drain System	Automatic tank drain
Drive Type	Electric Motor
Engine Brand	N/A
Features	Magnetic starter, Solid Cast Iron pressure lubricated Low RPM Pump, Industrial grade low RPM electric motor, 2 stage single phase, ASME, ETL, CSA, UL certified
Fuel Tank Capacity	0 gal.
Hose Fitting Size	3/4 in.
Maximum RPM	1,750 RPM
Phase	Single
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	48 in.
Product Weight	810 lb.
Product Width	42 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year extended, Lifetime Pump Extended eligible with maintenance kit
Manufacturer PartNumber	ESP10V080V1
