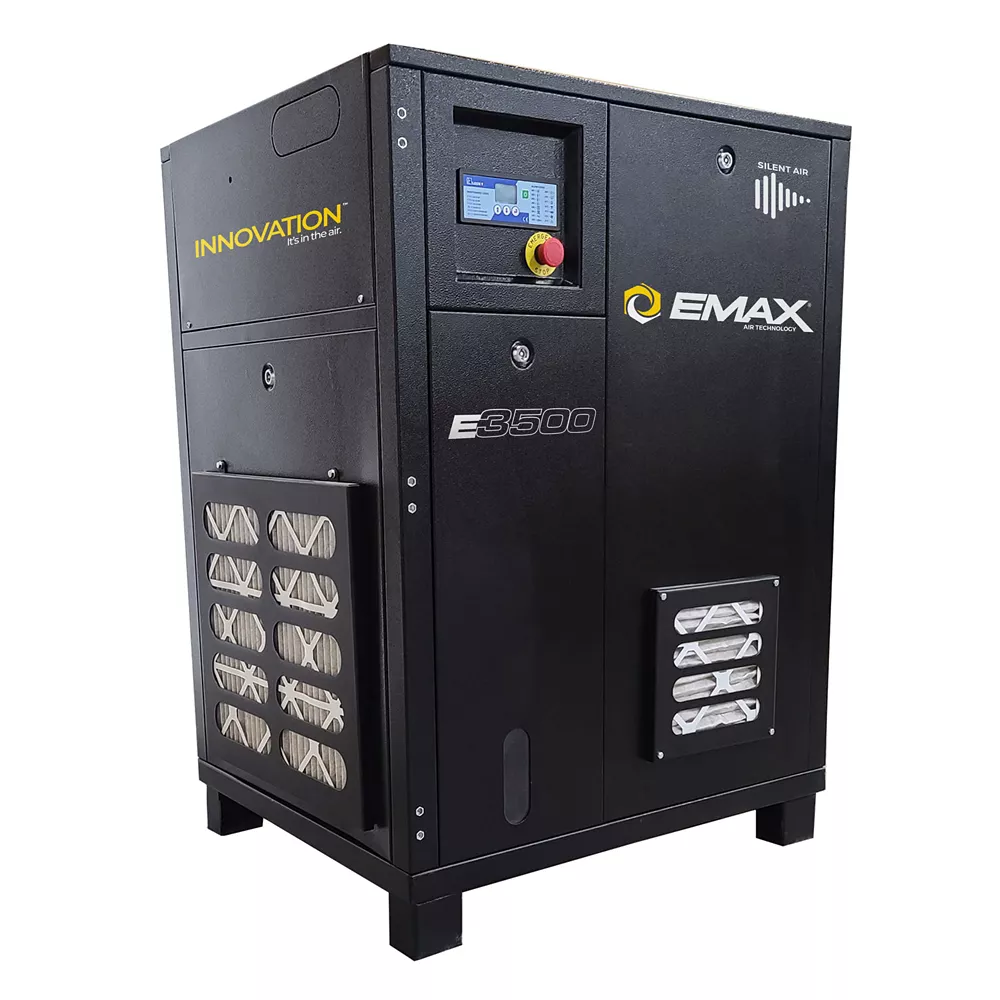

EMAX 10 HP Industrial Rotary Screw Compressor 3 Phase 230/460 V Motor 45 CFM at 100 PSI 1750 RPM Soft Start Rotary Screw Air Compressors Air Compressors

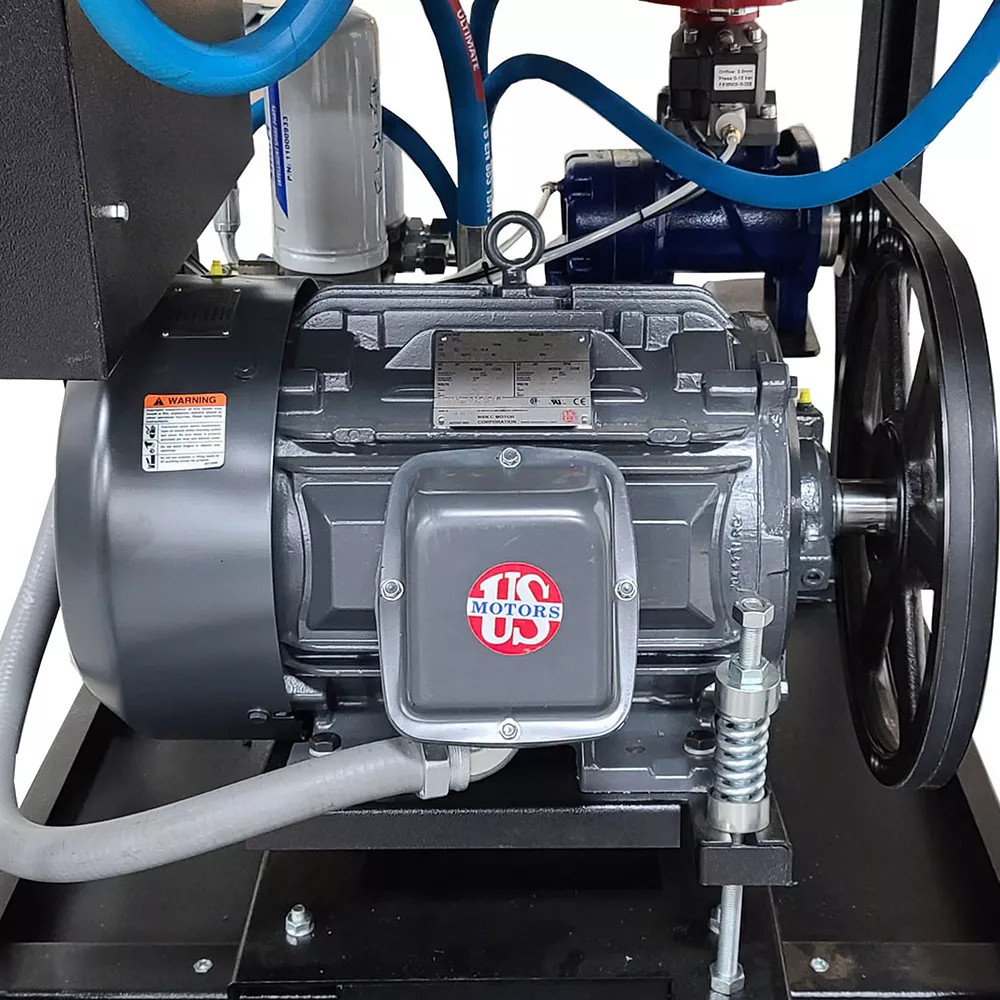

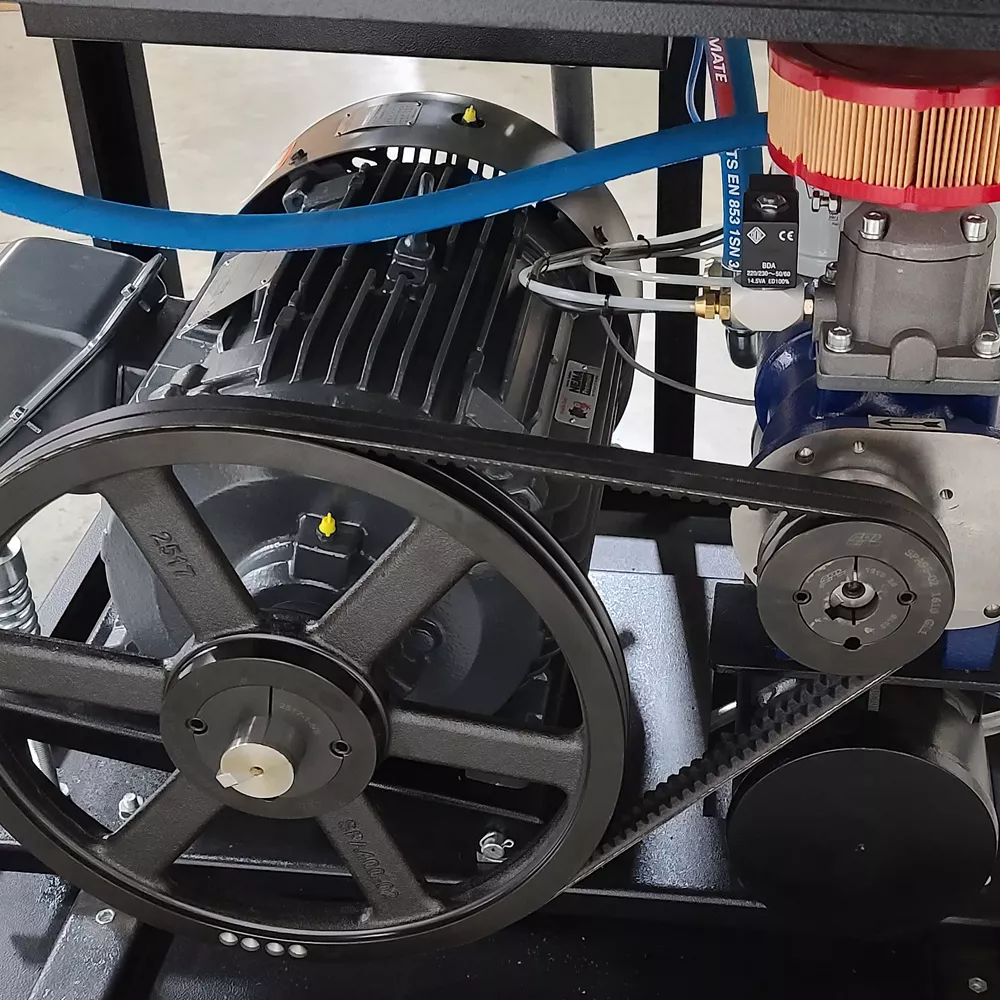

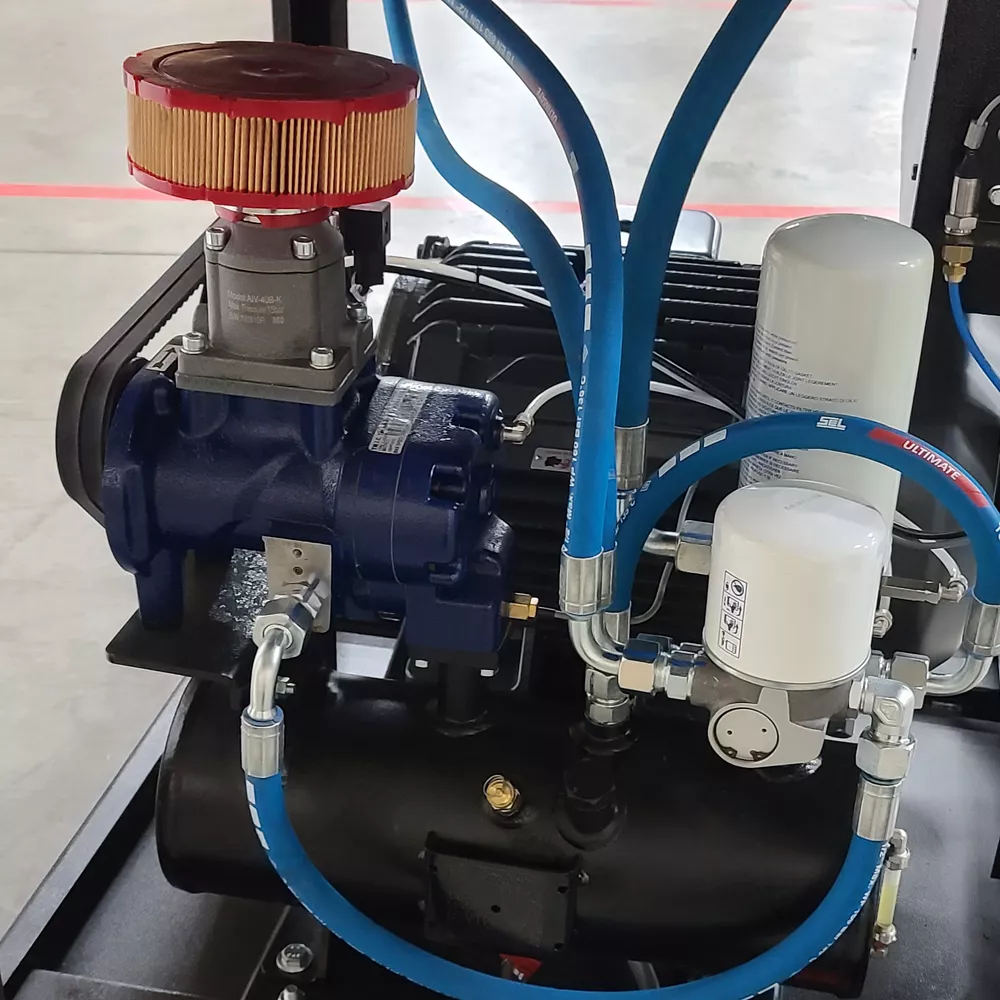

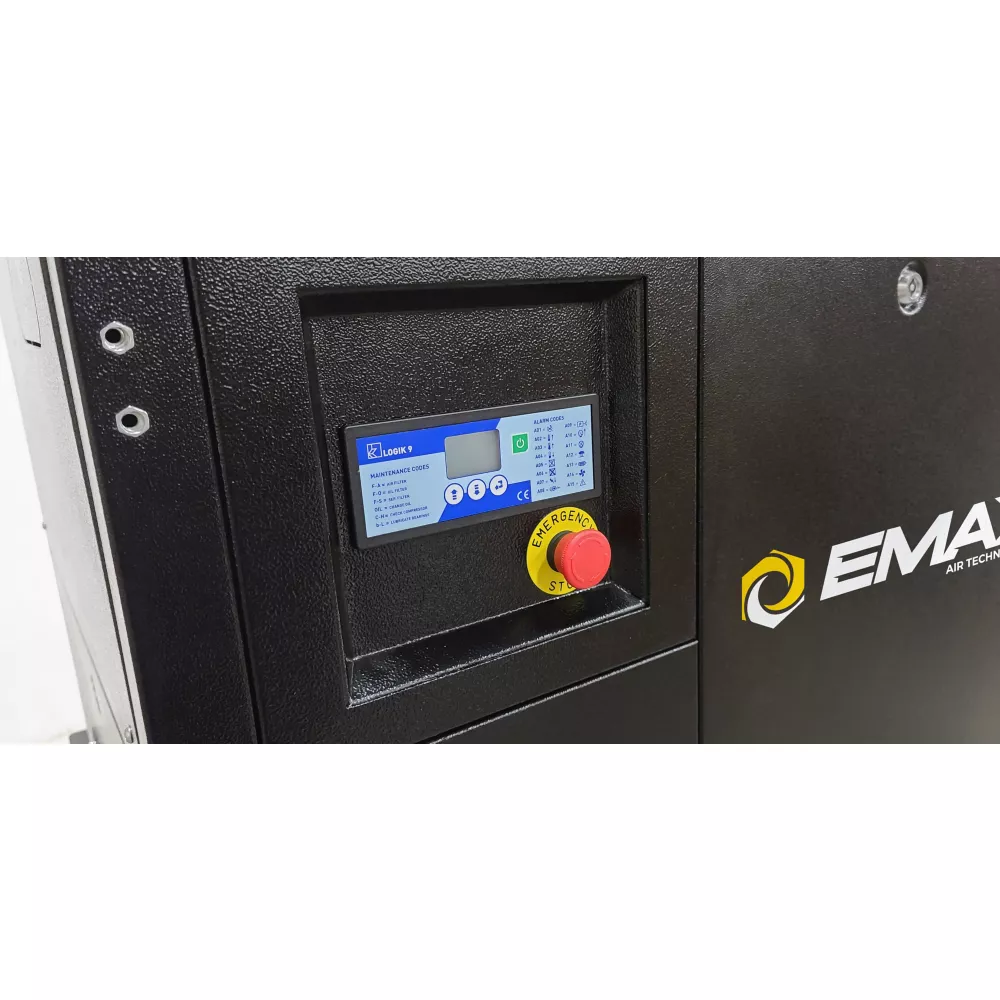

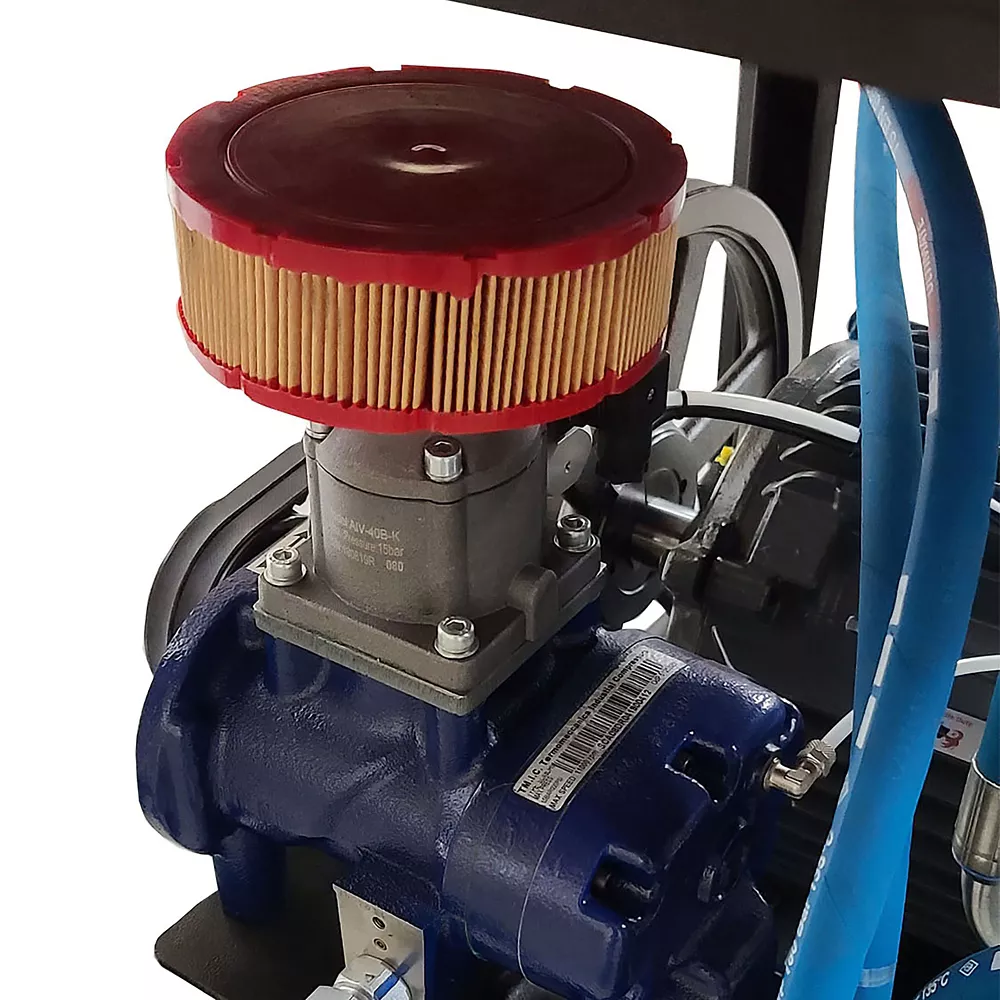

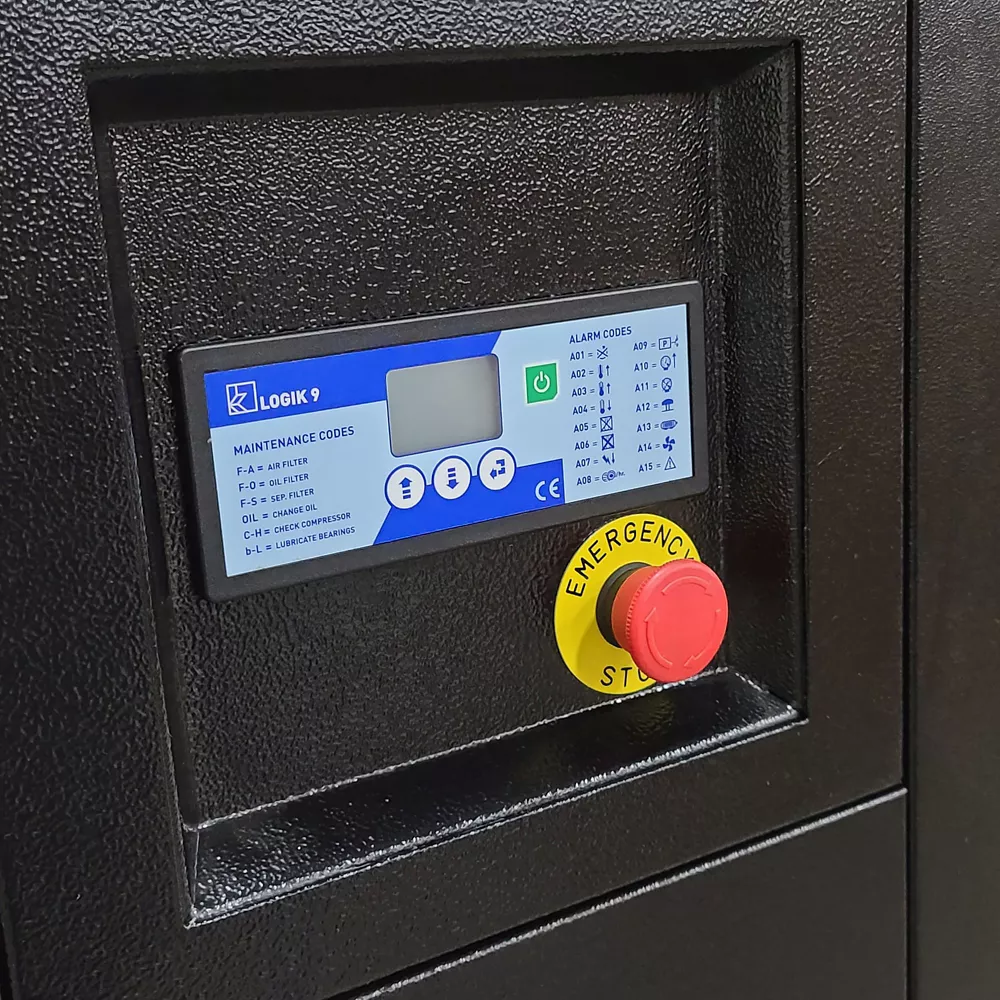

EMAX Compressors 10HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer. Warranty: 1 Year Standard, extended 5 Year with maintenance kit

EMAX 10 HP Industrial Rotary Screw Compressor 3 Phase 230/460 V Motor 45 CFM at 100 PSI 1750 RPM Soft Start Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	45 CFM
Airflow Volume	100 PSI
Air Outlet Size	34 in.
Compressor Horsepower	10 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Type	Oil lubricated
Compressor Voltage	230V/460V
Connection Type	NPT
Drain System	N/A
Drive Type	Belt
Features	Controller type: Logik 9, Low Motor 1750 RPM, 60,000 hours pump life
Phase	Triple
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	41 in.
Product Length	34.7 in.
Product Weight	467 lb.
Product Width	24 in.
Pump Life	60,000 hr.
Pump Material	Steel
Tank Orientation	Vertical
Warranty	1 Year Standard, extended 5 Year with maintenance kit
Manufacturer PartNumber	ERI0100003

EMAX 10 HP 3 Phase Industrial Rotary Screw Compressor, 230/460V Motor, 45 CFM at100 PSI, 1,750 RPM, Soft Start Specifications expand/collapse Specification Description Brand EMAX Country of Origin Imported Air Flow SCFM at 90 PSI 45 CFM Air Flow Volume 100 PSI Air Outlet Size 34 in. Compressor Power 10 HP Compressor Maximum PSI 145 PSI Compressor Operation Auto Start/Stop Compressor Type Oil Lubricated Compressor Voltage 230V/460V Connection Type NPT Drain System N/A Drive Type Belt Specifications Controller Type: Logik 9, Low Motor 1750 RPM, Pump Life 60,000 Hours Phase Triple Number of Power Speeds Single Power Type Electric Primary Color Yellow Main Material Steel Product Height 41 Product Length 34.7 in. Product weight 467 lbs. Product width 24 in. Pump life 60,000 hours. Pump Material Steel Reservoir Orientation Vertical Warranty 1 year standard, extended to 5 years with maintenance kit Manufacturer part numberERI0100003
