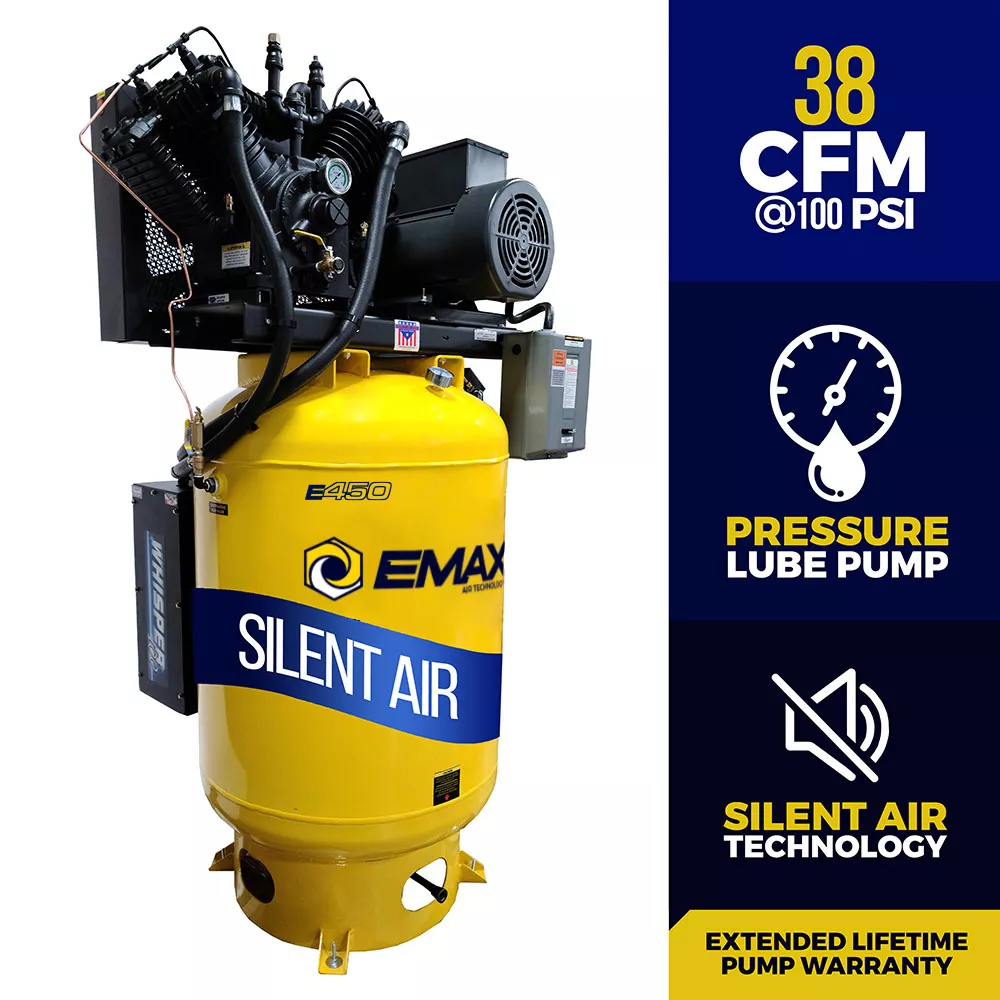

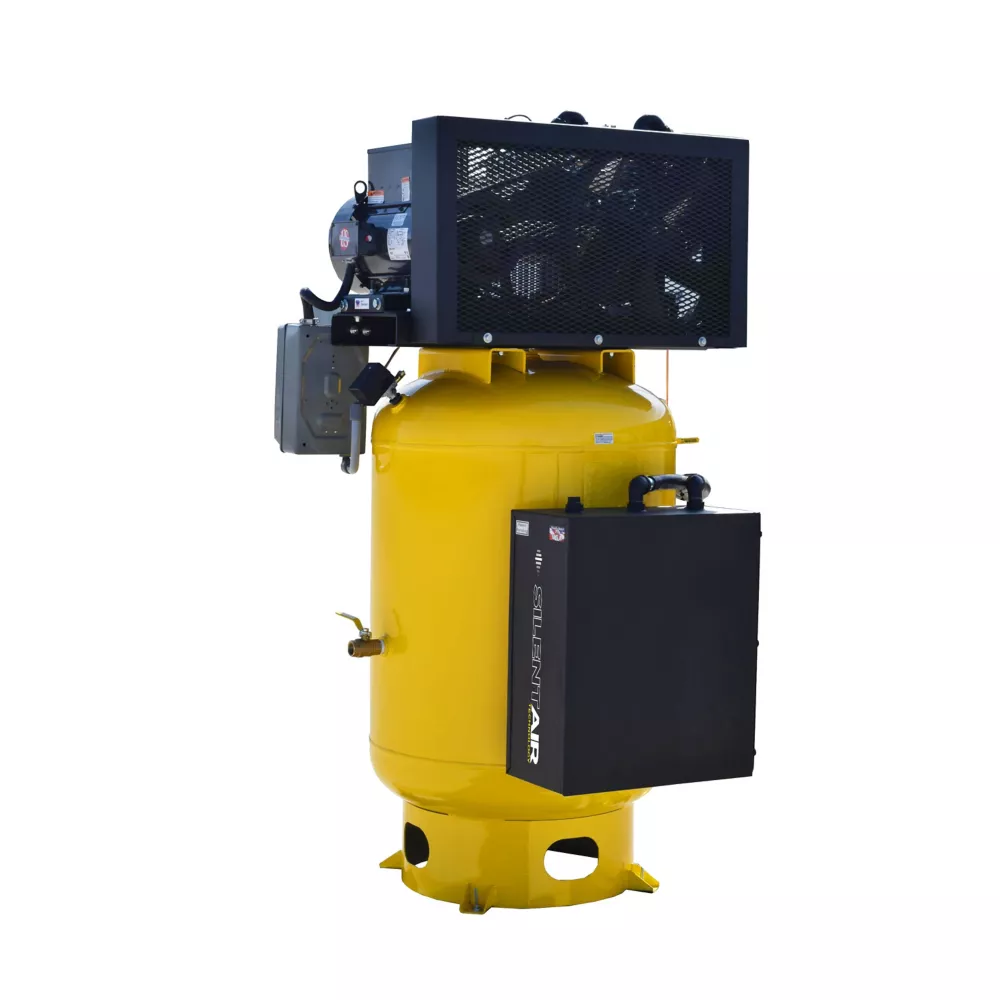

EMAX 10HP 120G 2 Stage 3 Phase V4 Industrial Pressure Lubricated Pump 38CFM @ 100PSI Plus Quiet Air Compressor-ESP10V120V3 Stationary Air Compressors Air Compressors

This EMAX 10 HP 120 gal. 3-Phase Plus Silent Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This silent compressor delivers 38 CFM at 100 PSI, with a top PSI of 175. Our compressor features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank, and a 200 PSI rating, along with our continuous run functionality. All of this is paired with an all-cast iron 70,000 hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds four levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the best warranty in the industry!

MADE IN USA
Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating

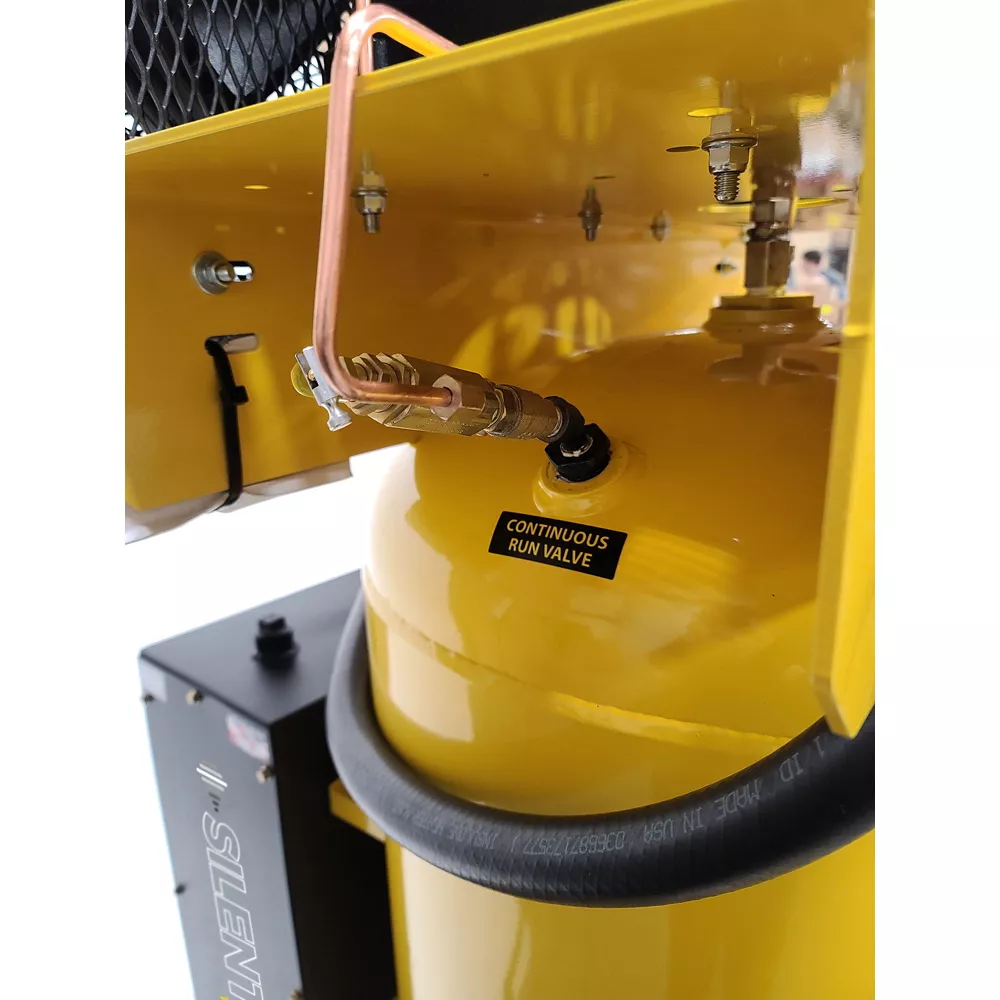

Continuous mode functionality on the silent compressor is for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

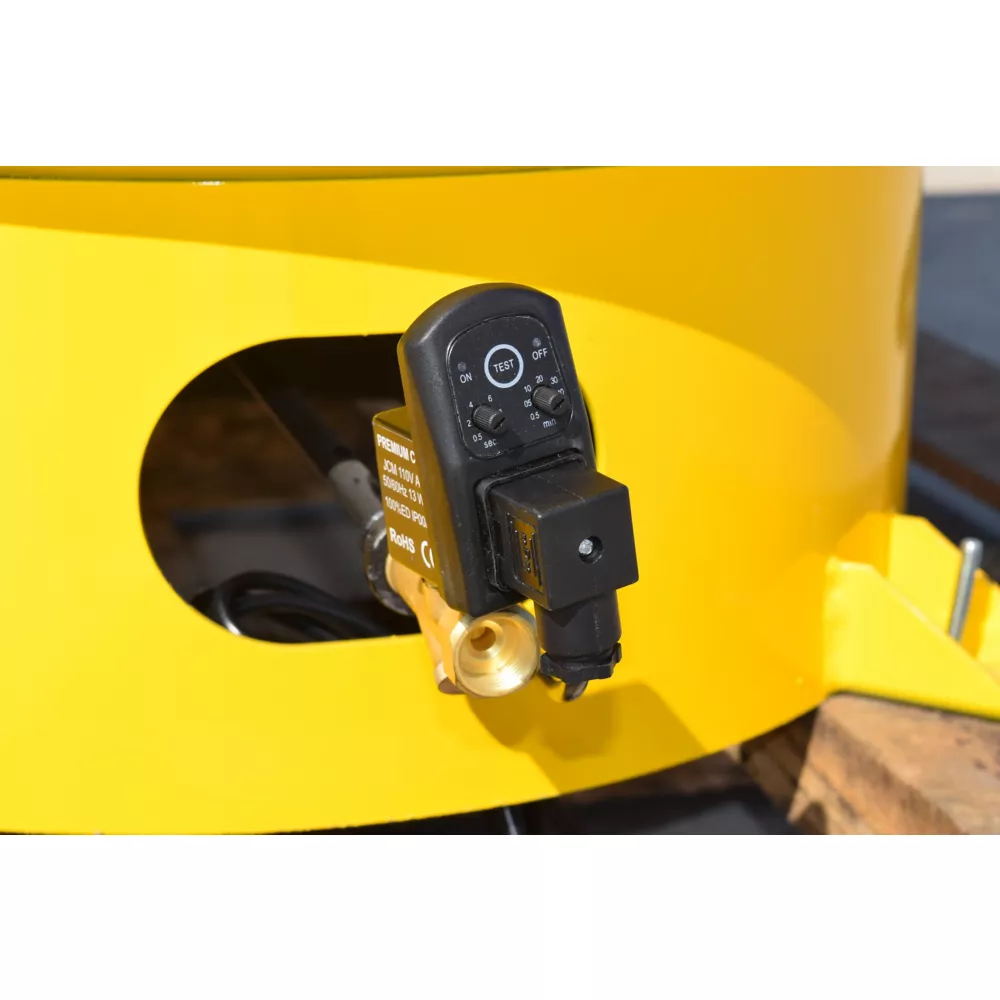

Auto tank drain 110-volt dual is timer controlled and eliminates daily maintenance
Silent air technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates
ETL Certified
208/230/460 Volt options available
3-phase compressor delivers 38 SCFM at 100 PSI with a top PSI of 175
Powder-coated ASME tank in the compressor is weather resistant
Low-profile design adds 4 levels of air filtration

Patented Silent Air technology, Magnetic starter, Automatic Tank drain, Eligible for Lifetime Pump warranty with Maintenance kit

EMAX 10HP 120G 2 Stage 3 Phase V4 Industrial Pressure Lubricated Pump 38CFM @ 100PSI Plus Quiet Air Compressor-ESP10V120V3 Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	40 CFM
Airflow Volume	38 CFM
Air Outlet Size	1 in.
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	120 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V/460V
Connection Type	NPT
Decibel Rating	50% lower decibels
Drain System	Auto tank drain
Drive Type	Belt Drive
Engine Brand	Heavy duty Industrial Brand
Features	Patented Silent Air technology, Magnetic starter, Automatic Tank drain, Eligible for Lifetime Pump warranty with Maintenance kit, ASME, ETL, CSA, UL Certified
Fuel Tank Capacity	0 gallongs
Maximum RPM	800 RPM
Phase	Double
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel

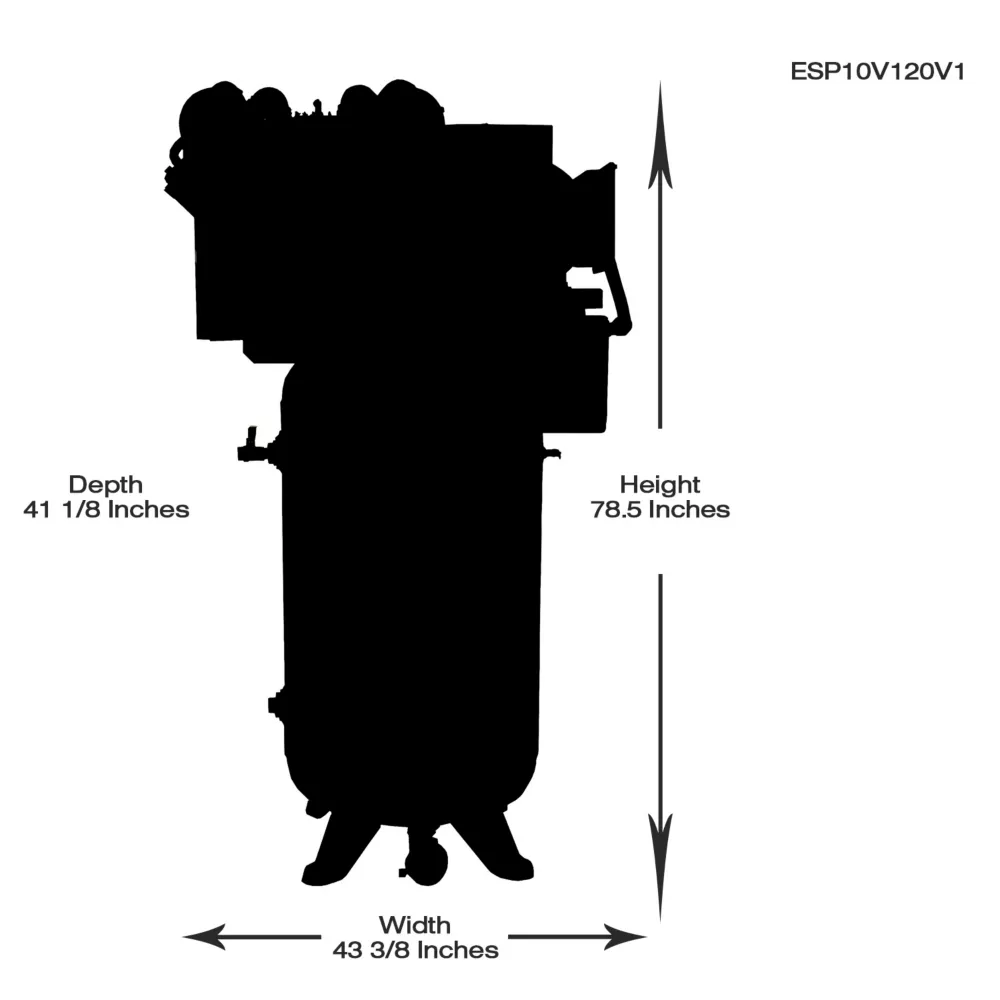

Product Height	78 in.
Product Length	41 in.
Product Weight	1020 lb.
Product Width	43 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes
Tank Orientation	Horizontal
Warranty	1 Year Standard, 5 Year EXTENDED warranty available, Eligible for lifetime pump warranty with maintenance kit
Manufacturer PartNumber	ESP10V120V3

EMAX 10HP 120G 2-Stage 3Phase Industrial V4 Pressure Lubricated Pump 38CFM @100PSI Plus SILENT Air Compressor-ESP10V120V3 Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 40 CFM Air Flow Volume 38 CFM Air Outlet Size 1 in. Compressor Power 10 HP Maximum Compressor PSI 175 PSI Compressor Operation Dual Control Compressor Tank Capacity 120 gal Compressor Type Vertical Compressor Voltage 208V/230V/460V Connection Type NPT Decibel Rating 50% decibels Lower Drain System Automatic Tank Drain Drive Type Belt Drive Motor Brand Heavy Duty Industrial Brand Features Patented Silent Air Technology, Magnetic Starter, Automatic Tank Drain, Lifetime Eligible Pump Warranty with Repair Kit maintenance, certified ASME, ETL, CSA, UL Fuel tank capacity 0 gallons Maximum RPM 800 RPM Phase Dual number of power speeds Single number of wheels 0 TypePower Electric Main Color Yellow Main Material Steel Product Height 78 in. Product Length 41 in. Product weight 1,020 lbs. Product width 43 in. Pump life 70,000 hours Pump material Cast iron Pump oil cap 2 quart capacity. Stage Type Two-Stage Tank Fill Time 4.5 minutes Tank Orientation 1-year horizontal warranty standard, 5-year EXTENDED warranty available, eligible for lifetime pump warranty with maintenance kit Manufacturer's part number ESP10V120V3
