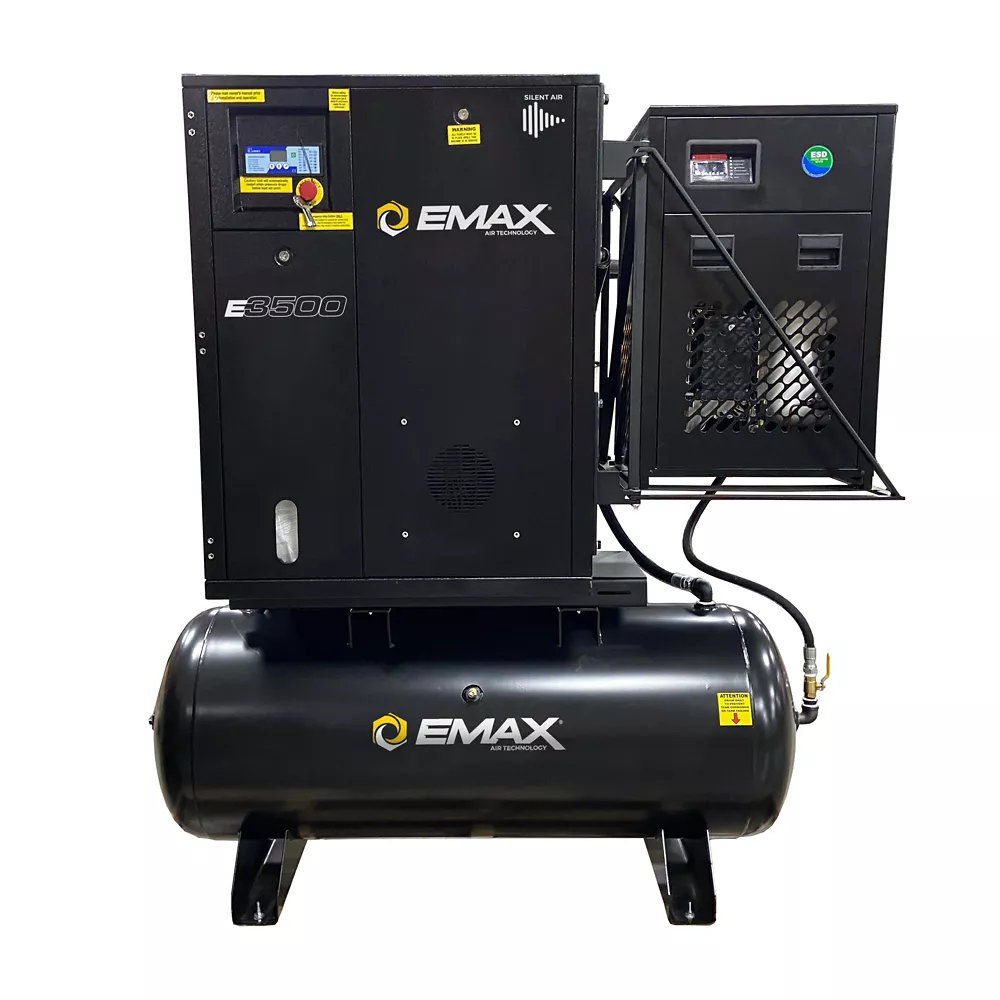

EMAX 10HP 3PH 45CFM @ 100PSI 230/460 Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-120G Tank Rack with Air Dryer Rotary Screw Air Compressors Air Compressors

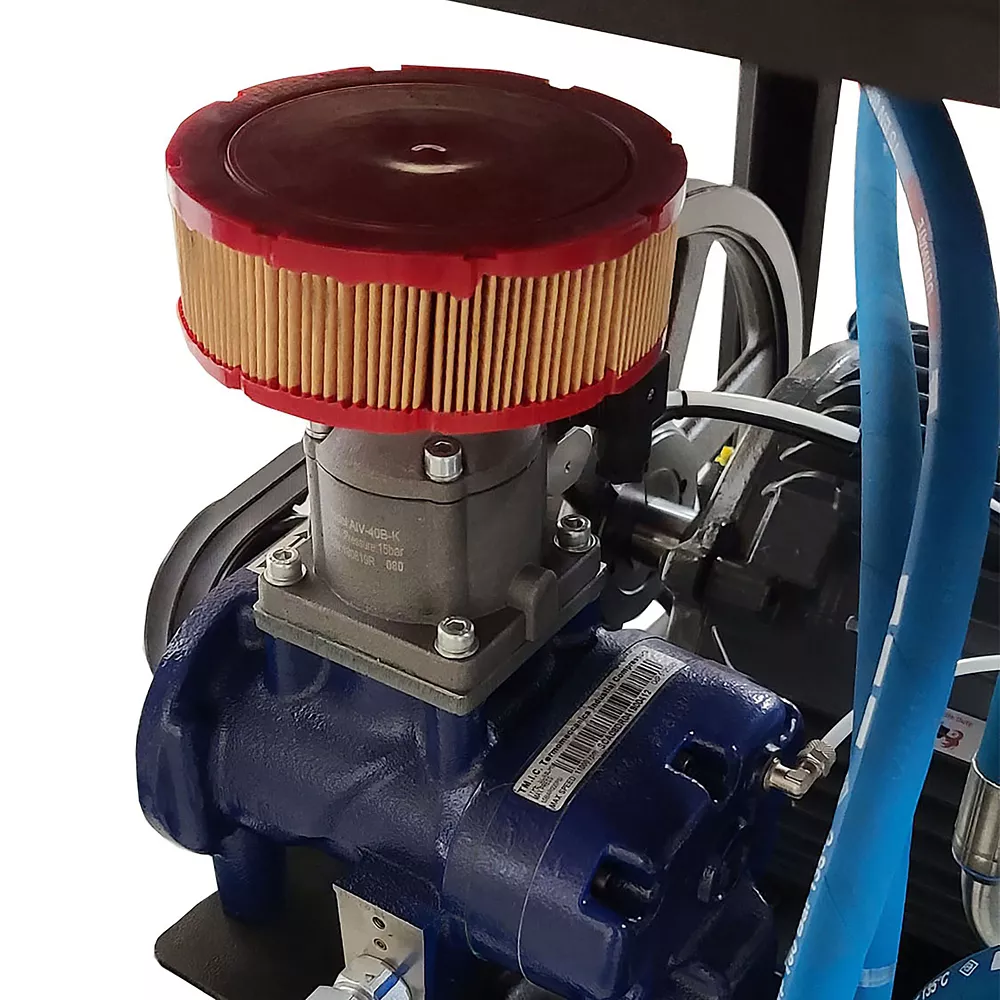

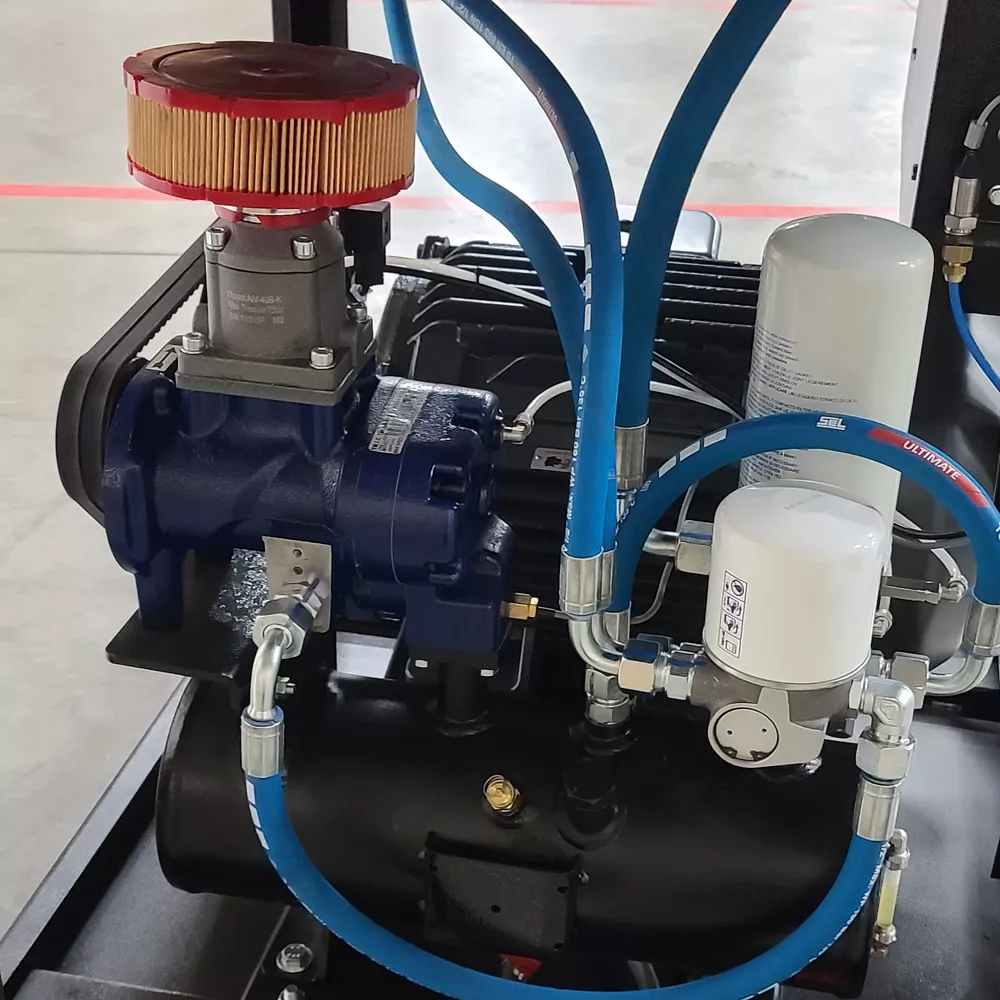

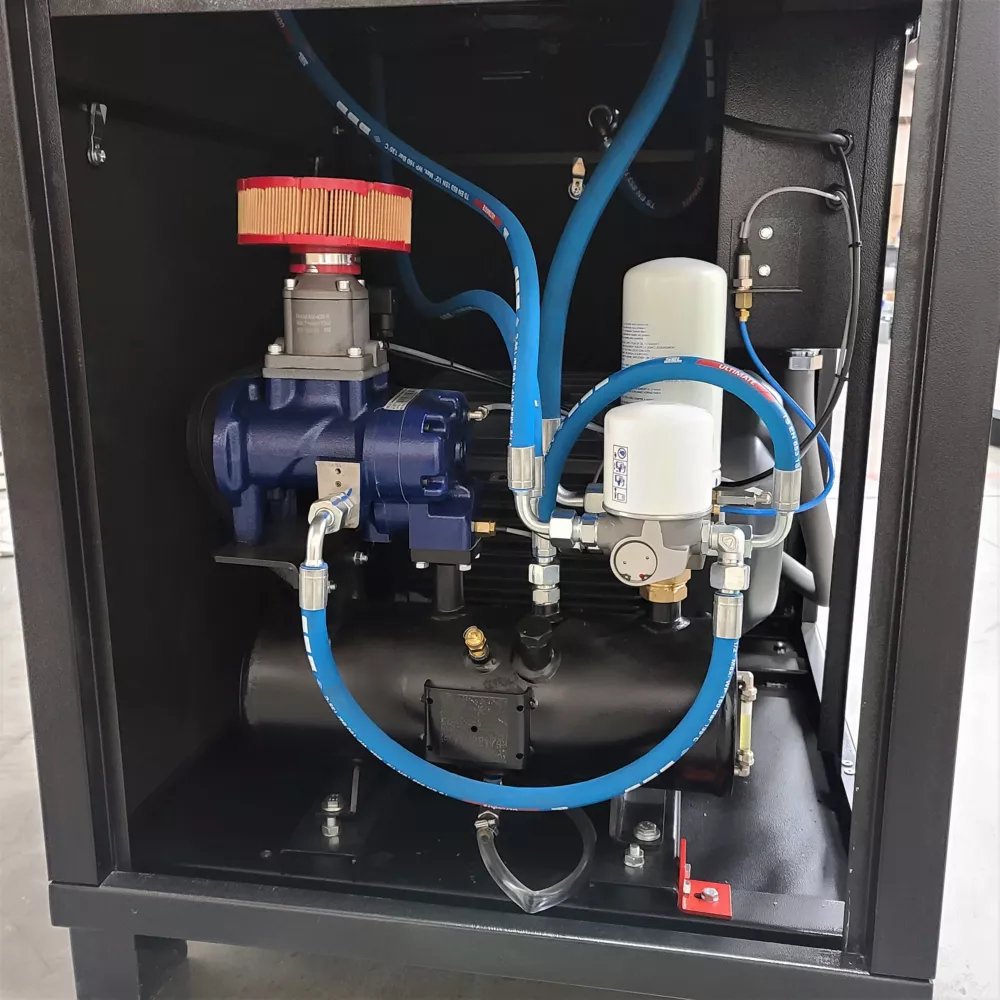

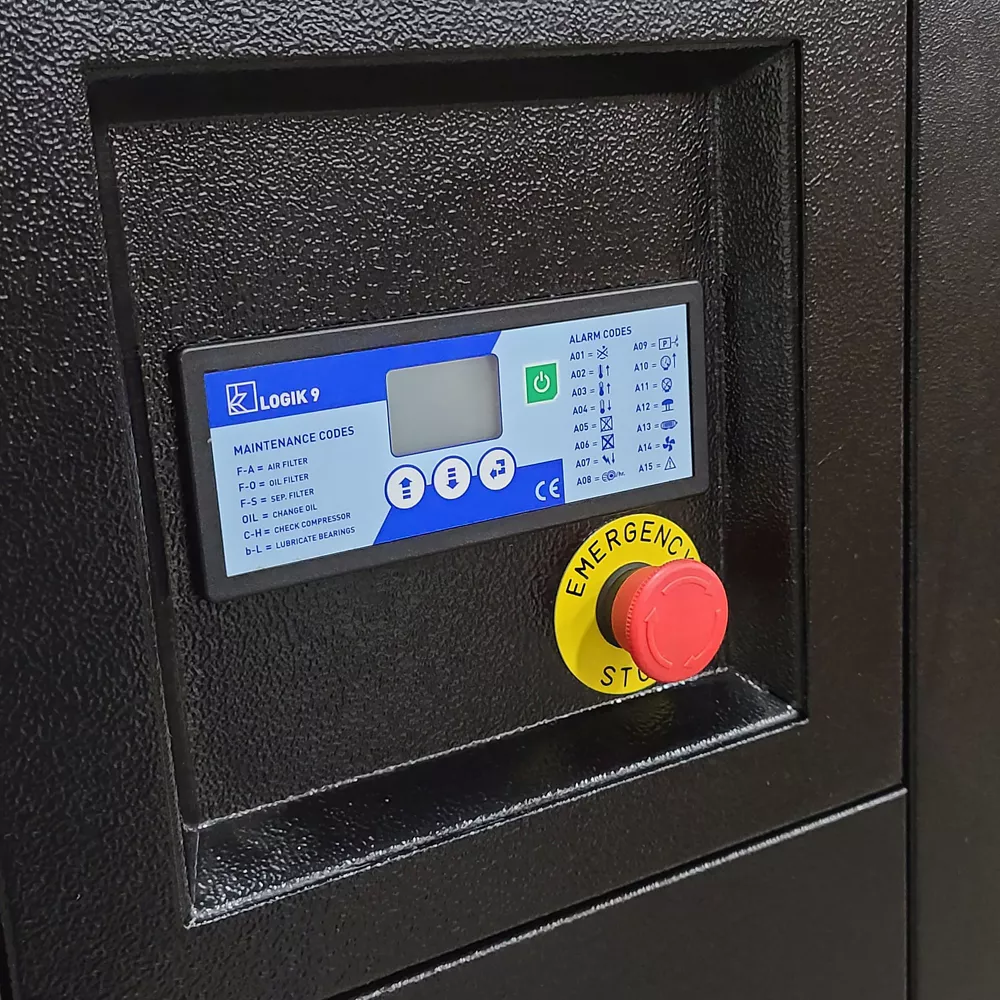

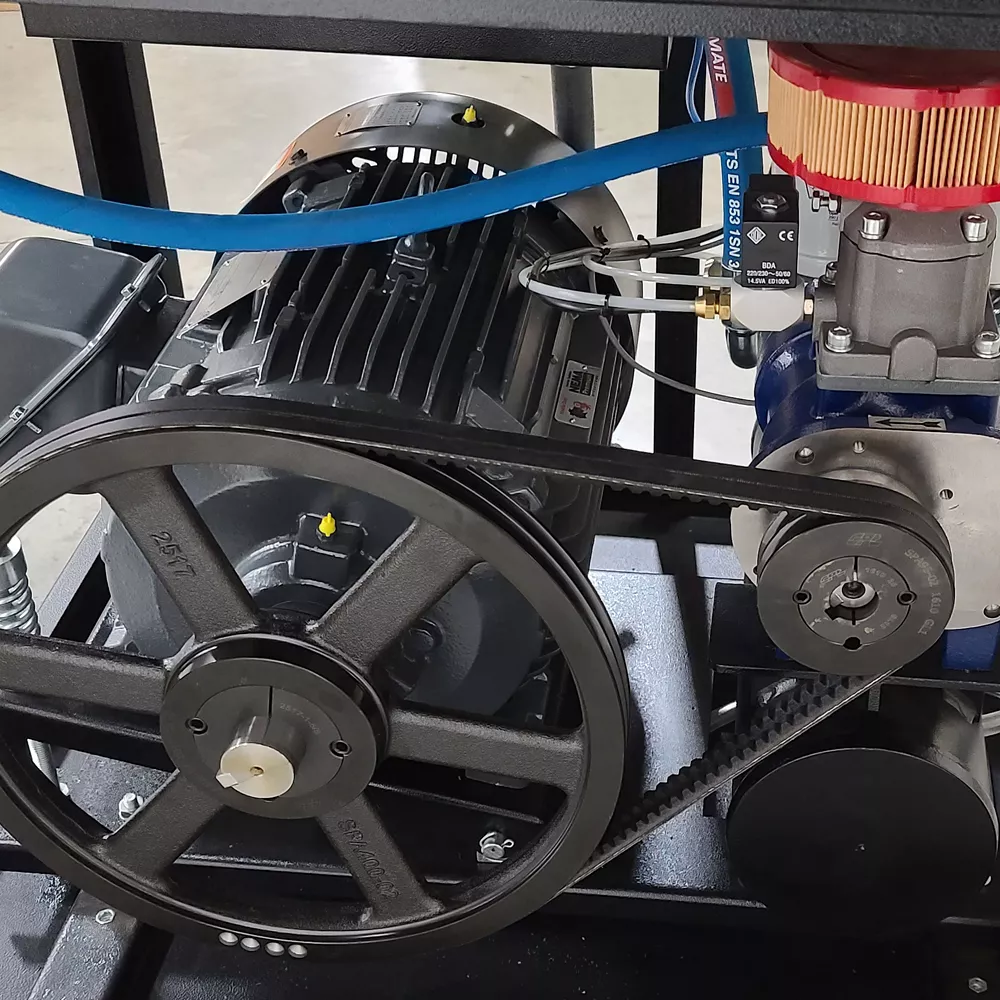

EMAX Piston air Compressors 10HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance.

1 Year Standard, extended 5 Year with maintenance kit

Includes: 58CFM refrigerated environmental friendly air dryer, coalescing filter, 120 Gallon Horizontal steel tank, soft start, Logik 9 controller

EMAX 10HP 3PH 45CFM @ 100PSI 230/460 Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-120G Tank Rack with Air Dryer Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	45 CFM
Airflow Volume	100 PSI
Air Outlet Size	0.75 in. NPT
Compressor Horsepower	10 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	120 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V/460V
Connection Type	NPT
Drain System	Auto Tank Drain
Drive Type	Belt

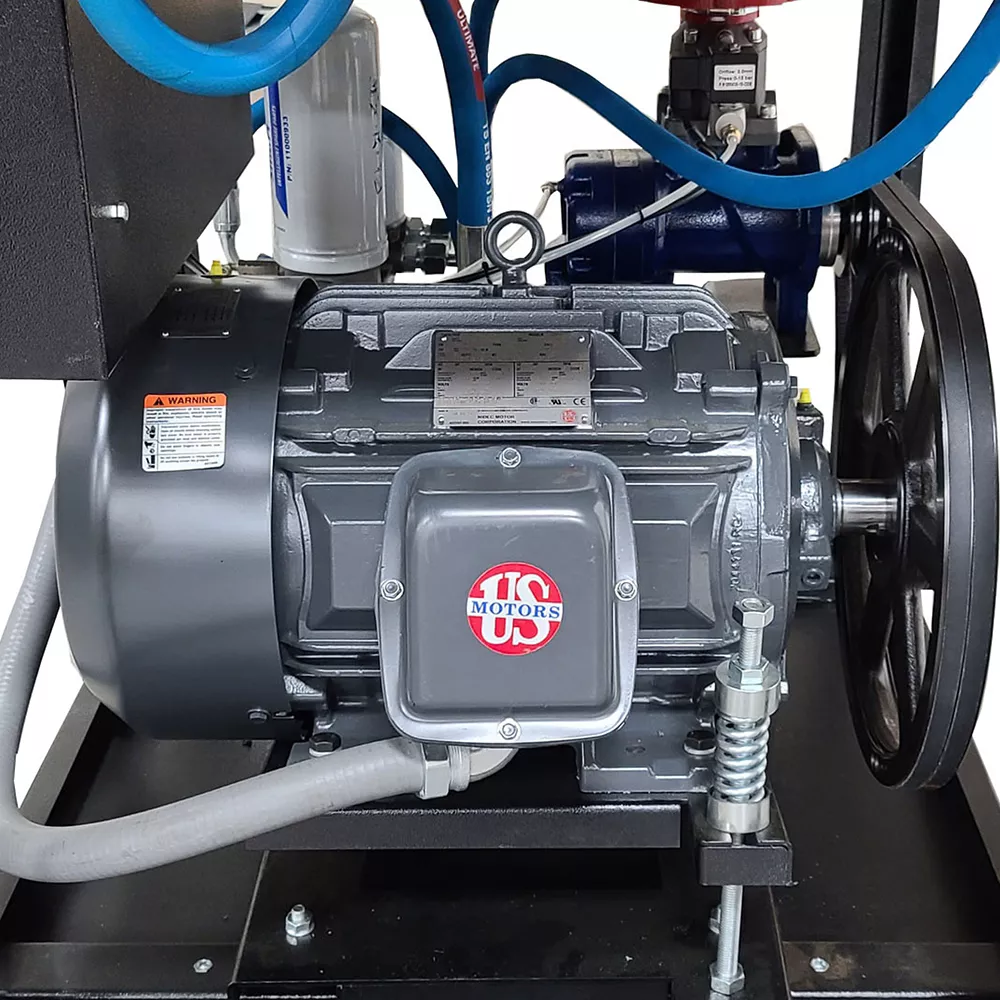

Engine Brand	Industrial USA Brand Electric Motor
Features	Includes: 58CFM refrigerated environmental friendly air dryer, coalescing filter, 120 gal. Horizontal ASME steel tank, soft start, Logik 9 controller
Maximum RPM	1,750 rpm
Phase	Triple
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	105 in.
Product Length	106 in.
Product Weight	900 lb.
Product Width	45 in.
Pump Life	60,000 hr.
Pump Material	Steel
Stage Type	N/A
Tank Orientation	Horizontal
Warranty	1 Year Standard, extended 5 Year with maintenance kit
Manufacturer PartNumber	ERIK010003
