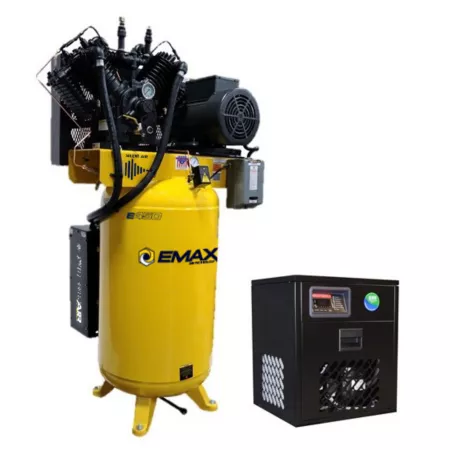

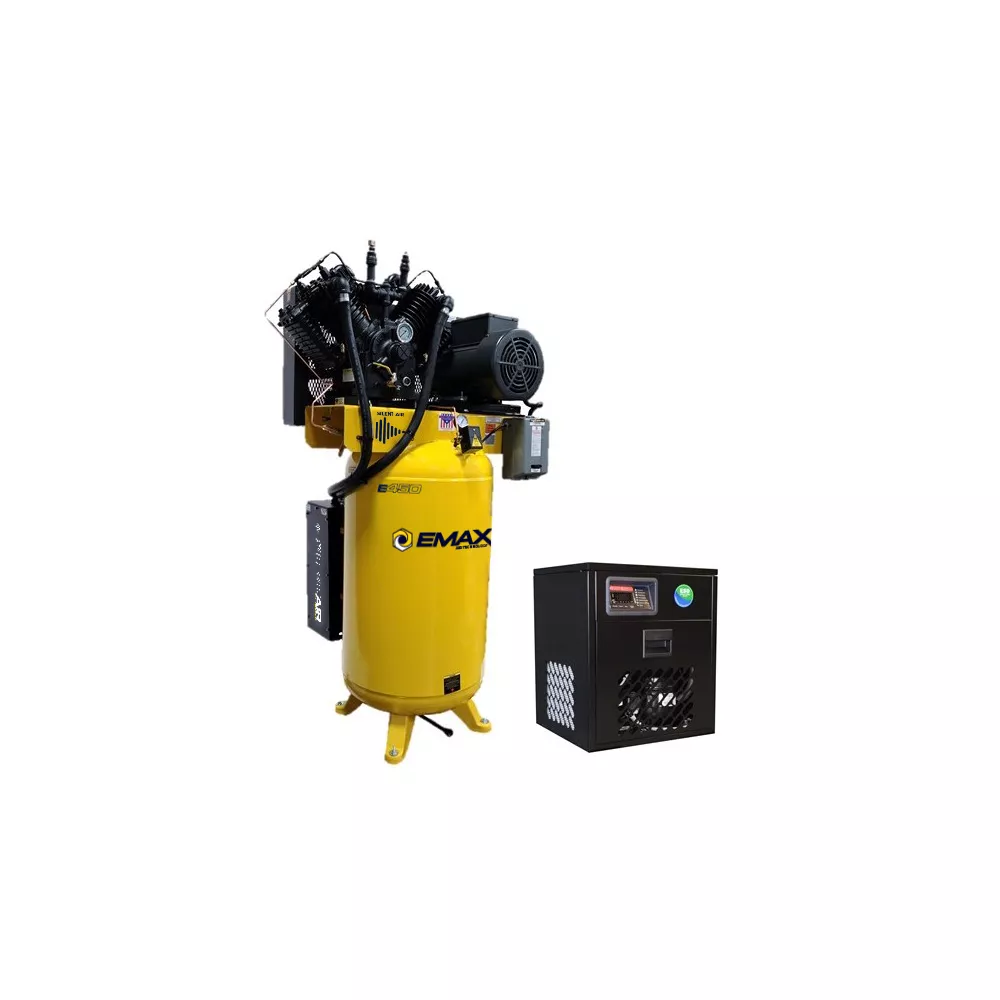

EMAX 10HP 80g 2 pieces V4 1PH Industrial Pressure Lubrication Pump 38CFM@100PSI Quiet Air Compressor and 115V 58CFM Dryer Stationary Air Compressors Air Compressors
EMAX Bundle comes with our Industrial Plus 10HP 2Stage V4 1-Phase vertical 80G Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This Solid cast iron pump delivers 38 CFM @100 PSI, max PSI 175. EMAX features industrial electric motor, magnetic starter, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality. Paired with a SOLID cast iron patented pressure lubricated reciprocating pump. Equipped with our unique patented SILENT AIR silencer system already installed. The SILENT AIR system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 1Phase, 115V, 58CFM energy efficient refrigerated air dryer to make your buying experience easy! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. This kit includes: 58CFM refrigerated air dryer, Belt Tension Adjuster, Automatic Tank Drain, reusable oil filter, Air stream Technology, Continuous Run Kit, magnetic starter, and Industrial Grade motor. Backed by the best warranty in the industry!- MADE IN USA

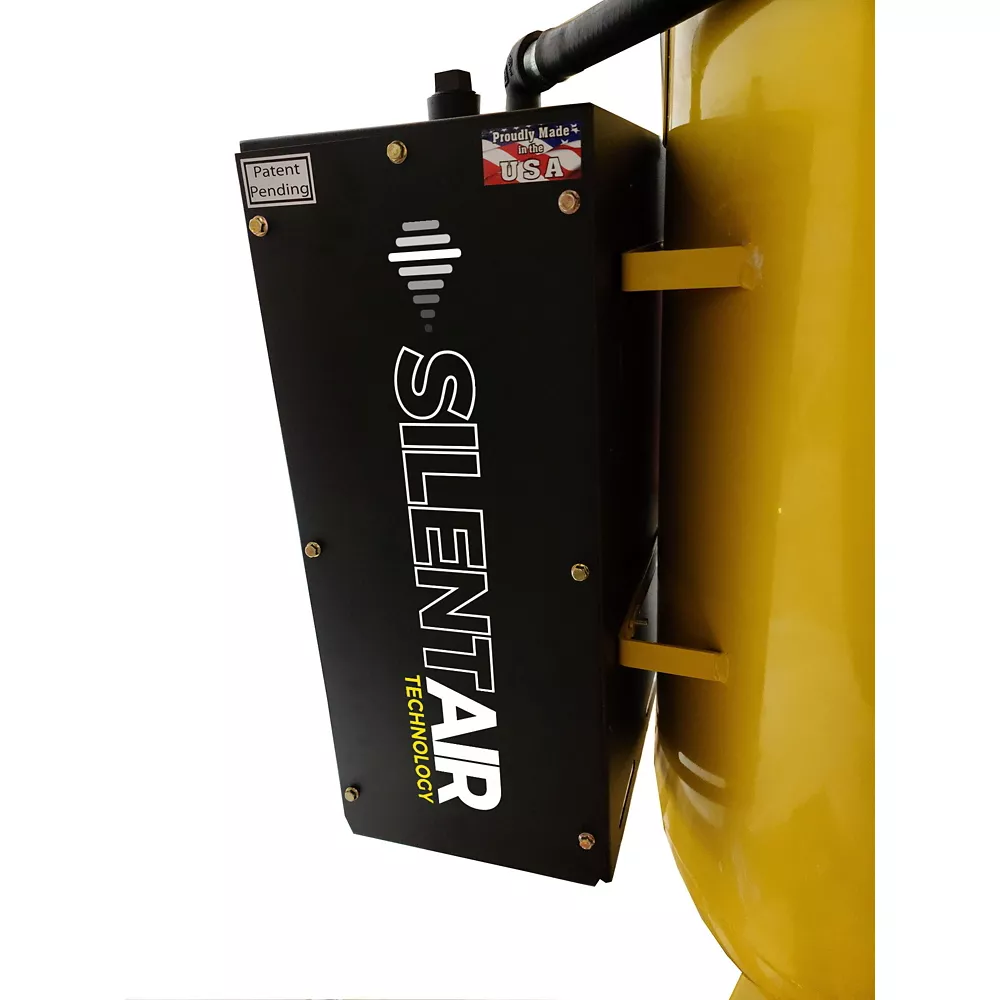

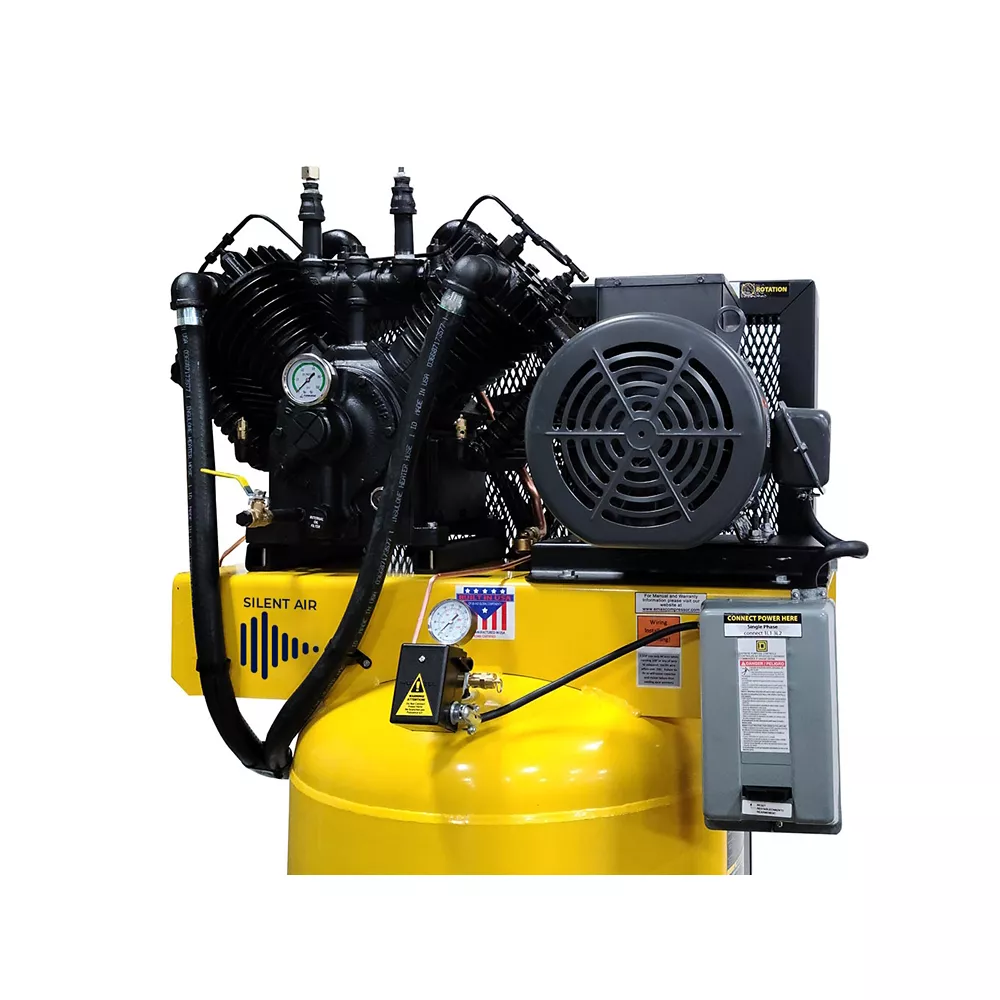

- SILENT AIR silencer
- Patented Pressure lubricated, Removable 100% Solid cast iron pump cylinders, do not warp from heat
- Maximum PSI:175
- Pump RPM: 800RPM
- Pump Oil capacity: 2.5 qt. Reusable filter
- Automatic Tank Drain
- Single Phase electric: 115/120 Volt
- 80 gal.Powder coated Vertical ASME certifed 200 PSI steel air tank- Approved in all 50 states
- Certifications: ETA, UL, CSA, ASME
- 38CFM @100 PSI Pump
- Dimensions: 28 in. x 42 in. x 72 in. - Weight: 752 lb.
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

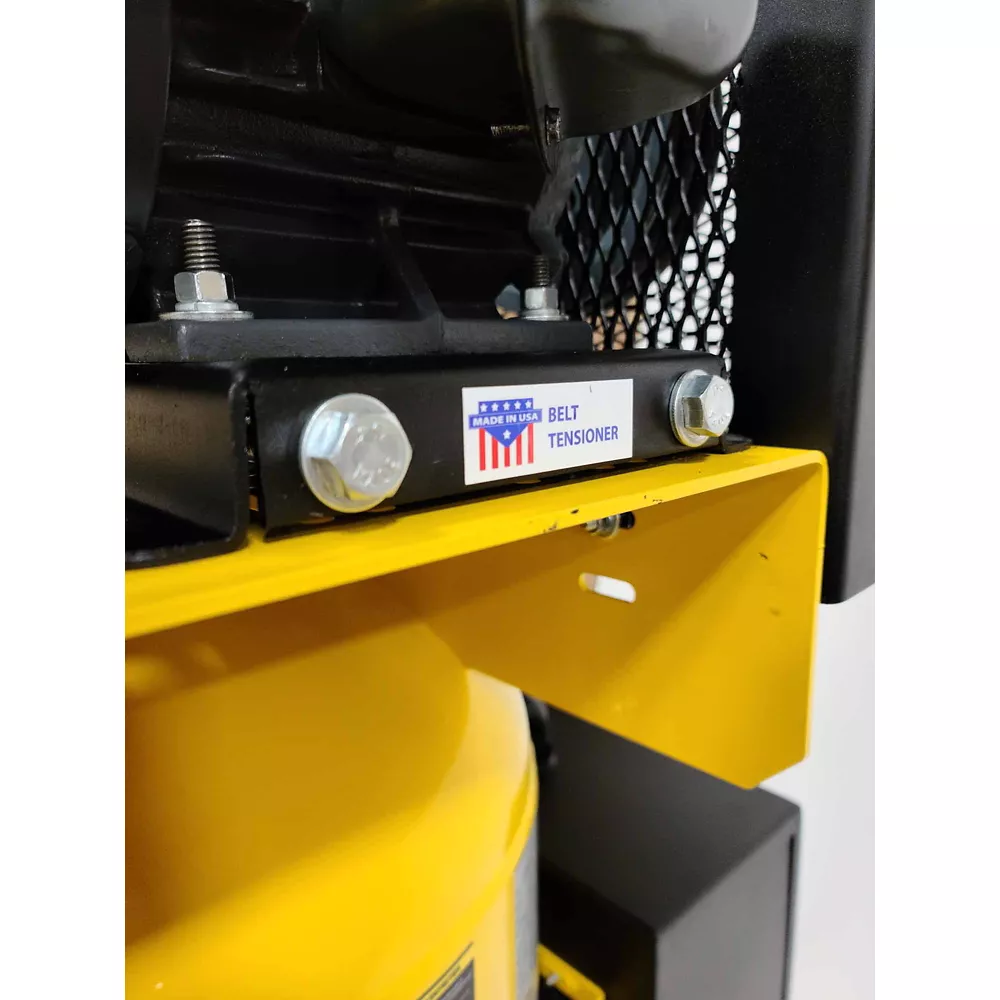

- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
- Built in Inner-cooler and After cooler
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours with regularly scheduled oil changes and routine maintenance
- Industrial-Duty, 1750 RPM (not 3450 RPM) Name Brand Motor meets UL & CSA requirements

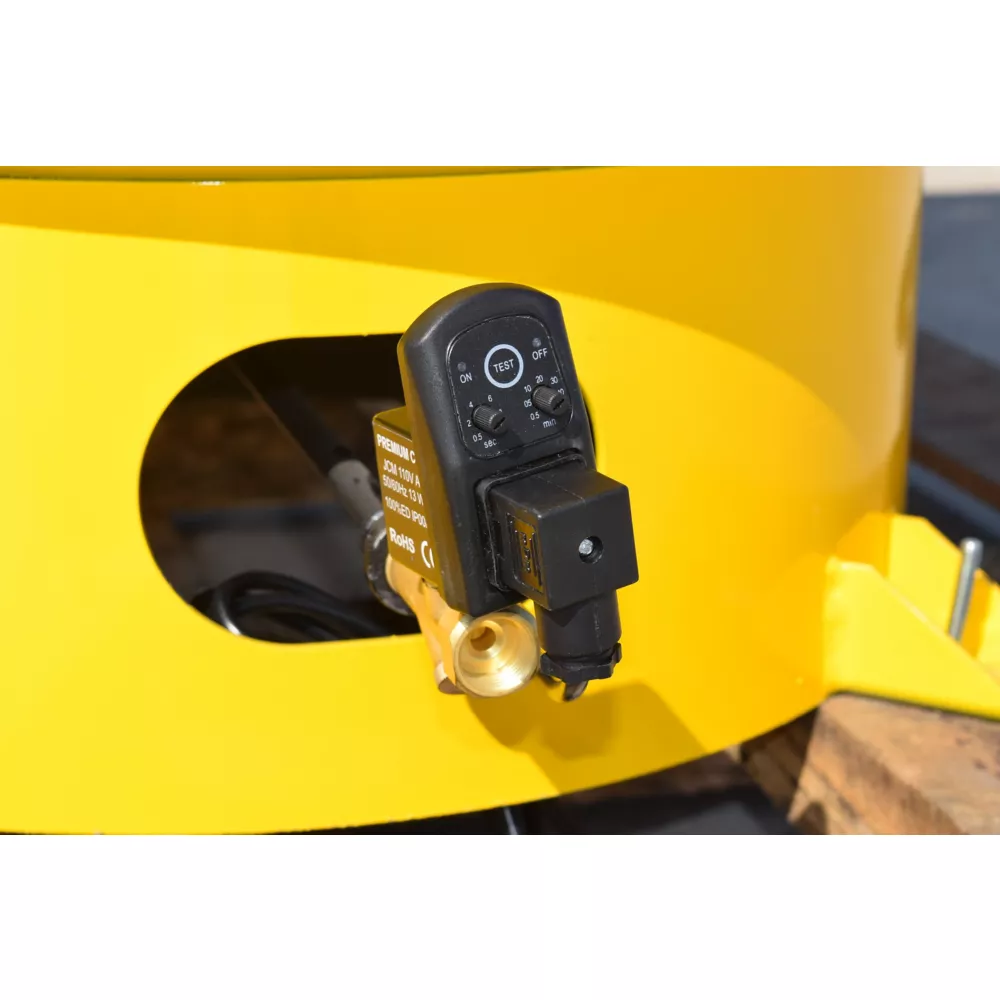

- Auto tank drain 110V dual timer controlled, eliminates daily maintenance
- Running Amps: 40A

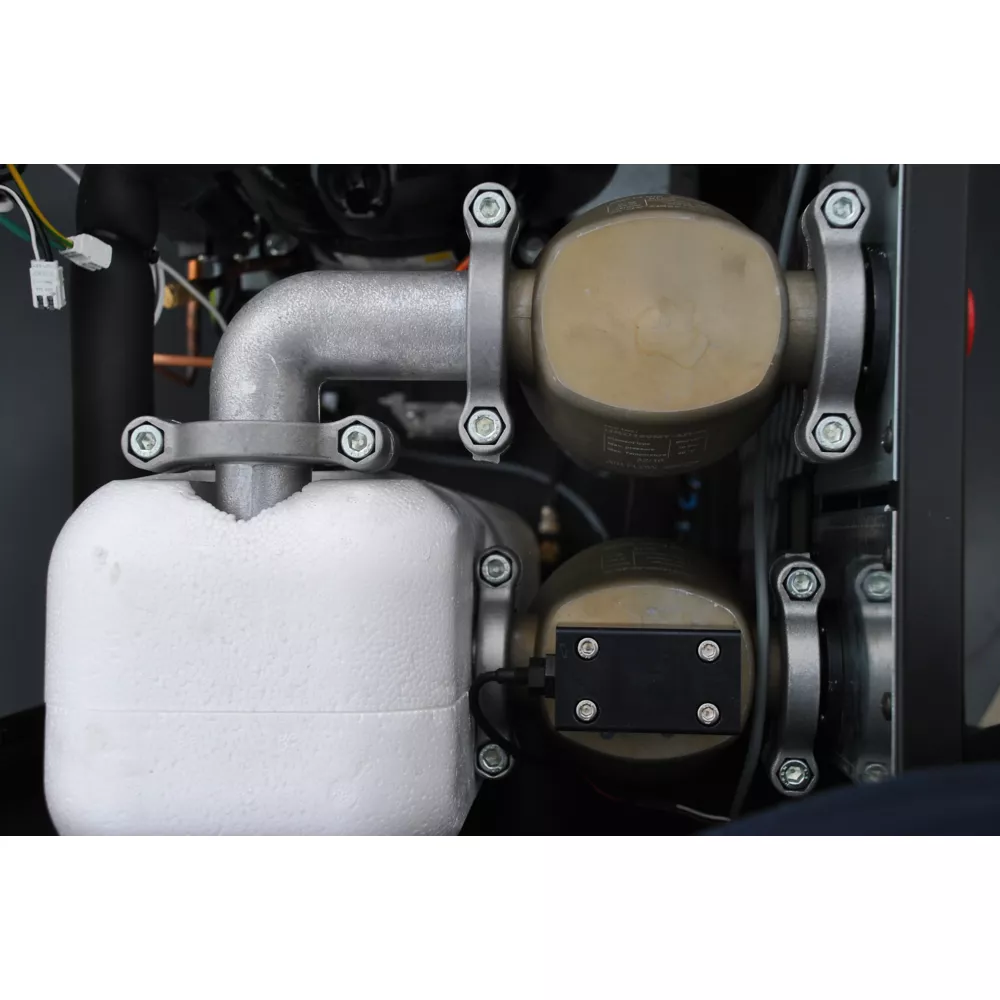

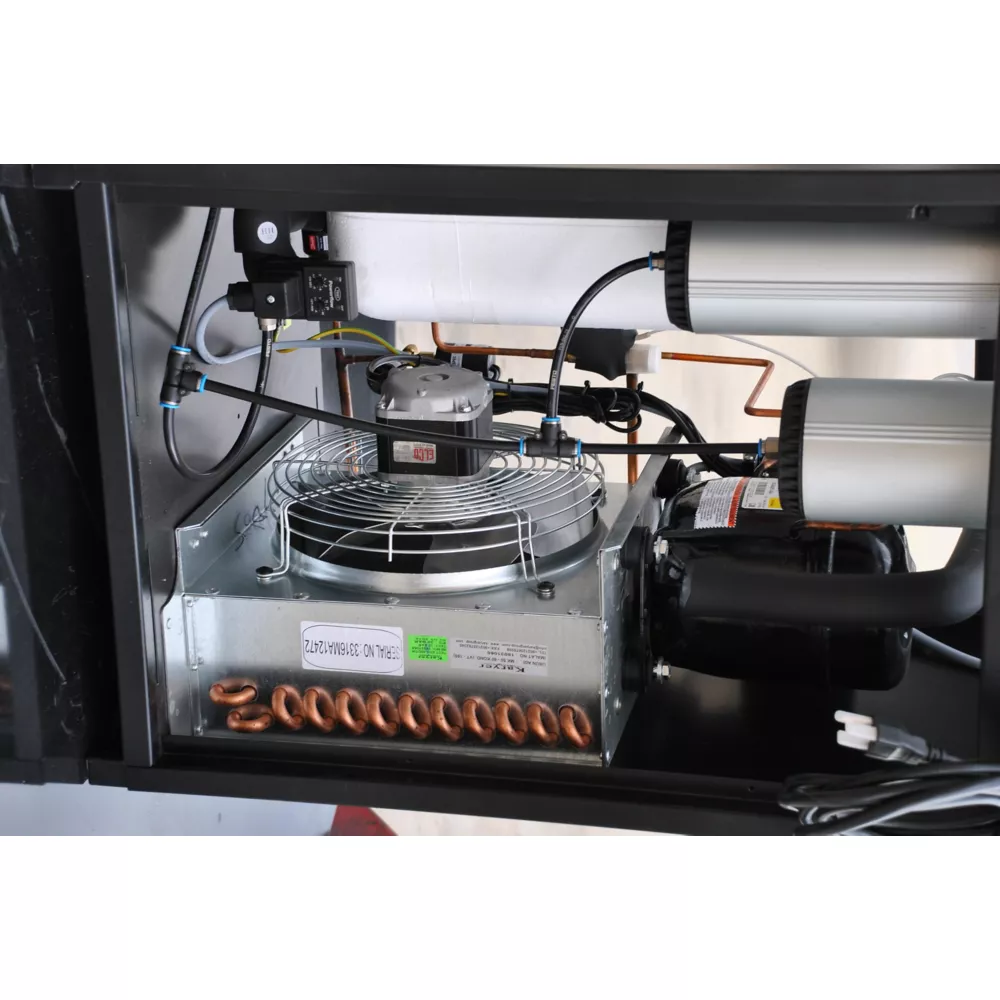

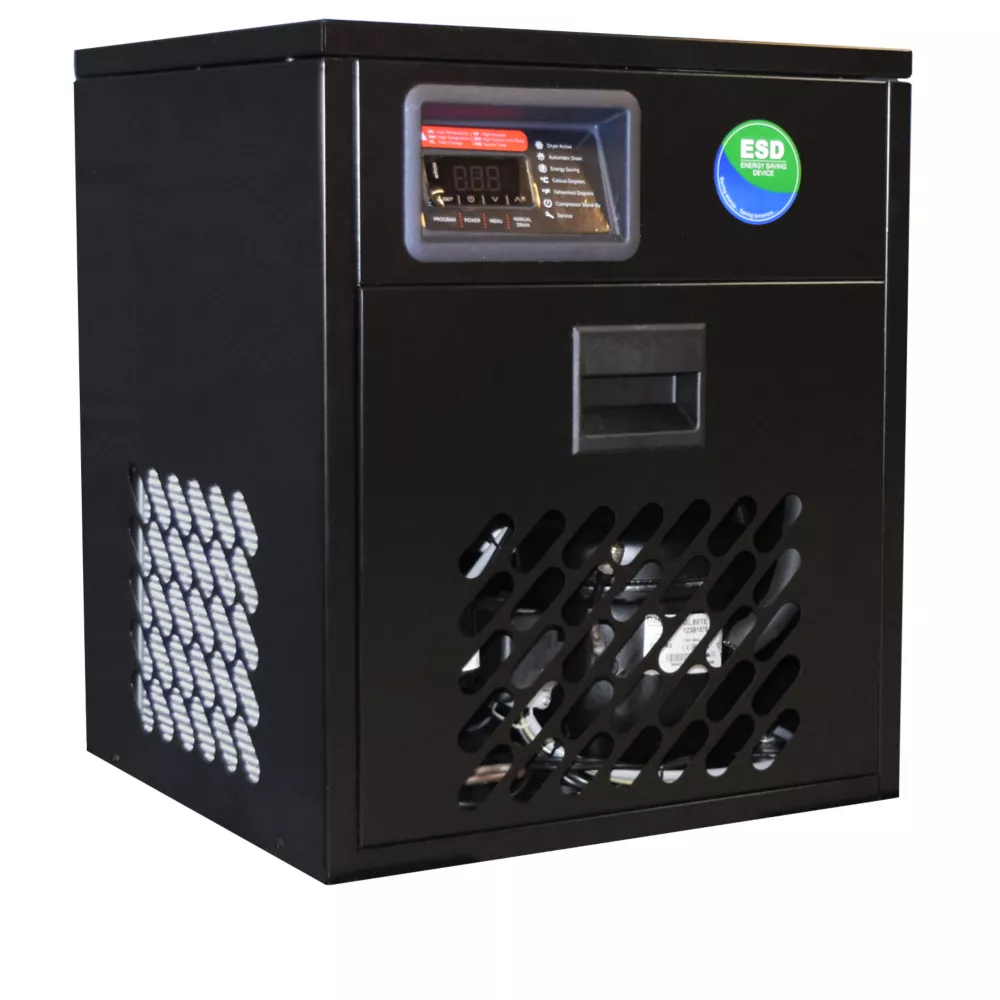

- Includes: EDRCF1150058 EMAX 58CFM refrigerated air dryer
- Gate valve oil drain provides quick, clean oil changes
- 100% brass ASME safety valves are preset and sealed for correct settings. Brass check valves & Teflon seating to reduce tank noise
- Discovery Channel: https://www.youtube.com/watch?v=EuWepRdjD4w
- Disc valve design intake and exhaust valves for easy access
- Precision ground pistons are machined to tight tolerances that ensure low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from the pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor
- Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
- Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
- Large 1-3/8 in. output shaft, starting & running capacitors on the motor
- Motor can be pulled 15% over full load for more break horsepower
- 13 ga. heavy duty steel Belt guard & premium grade expanded metal
EMAX 10HP 80g 2 pieces V4 1PH Industrial Pressure Lubrication Pump 38CFM@100PSI Quiet Air Compressor and 115V 58CFM Dryer Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 43 CFM |
| Air Delivery SCFM At 90 PSI | 38 CFM 100 PSI |
| Airflow Volume | 38 CFM |
| Air Outlet Size | 0.75 in. |
| Amperage | 40 running amps |
| Compressor Horsepower | 10 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 120V |
| Connection Type | NPT |
| Drain System | Automatic |
| Drive Type | Belt |
| Features | Magnetic starter, Auto tank drain, Continuous run, Silent Air technology, Eligible for lifetime pump warranty |
| Maximum RPM | 1,750 Industrial Low RPM Electric Motor |
| Phase | Single |
| Number Of Power Speeds | Variable |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 752 lb. |
| Product Width | 42 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2.5 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 min. |
| Tank Orientation | Vertical |
| Warranty | 1 Year Standard, 5 Year Extended, Eligible Lifetime Pump warranty with Maintenance kit |
| Manufacturer PartNumber | ESP10V080V1PK |
