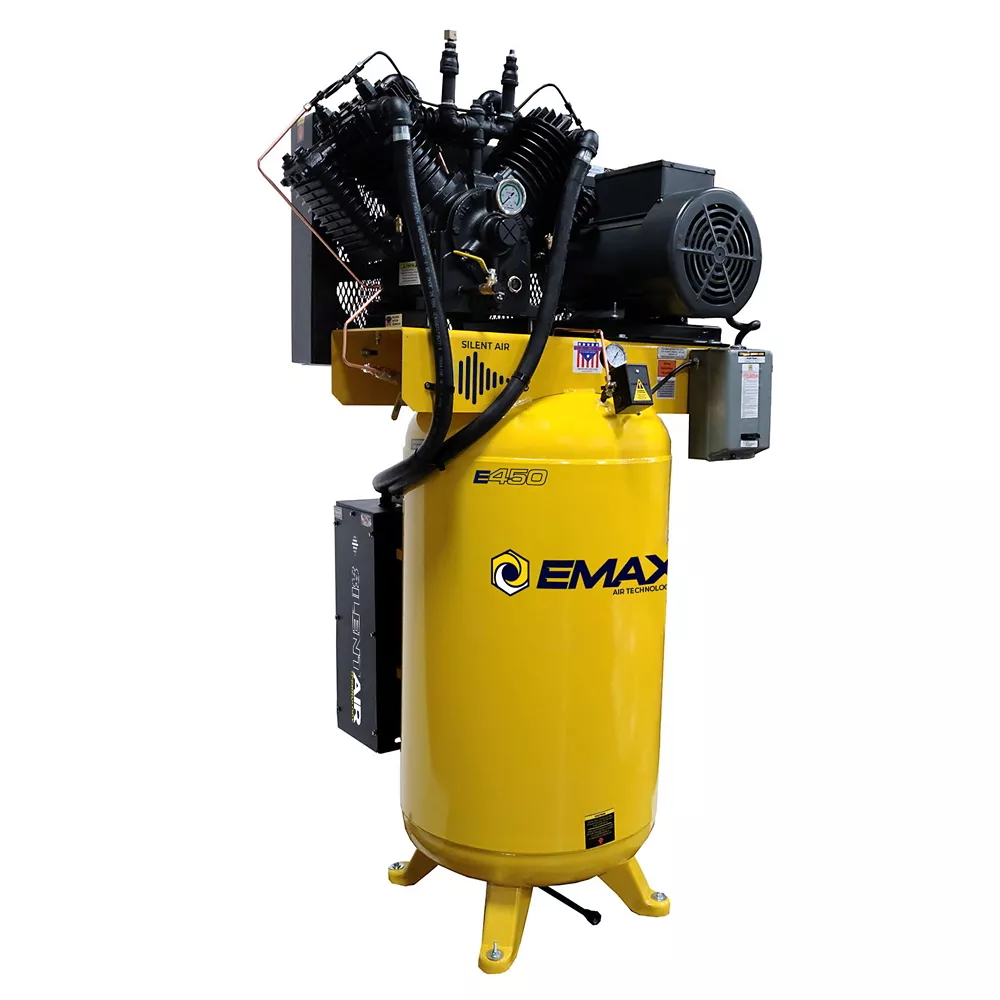

EMAX 10HP 80G 2 Stage 3 Phase V4 Industrial Pressure Lubricated Pump 38CFM @ 100 PSI Plus Quiet Air Compressor-ESP10V080V3 Stationary Air Compressors Air Compressors

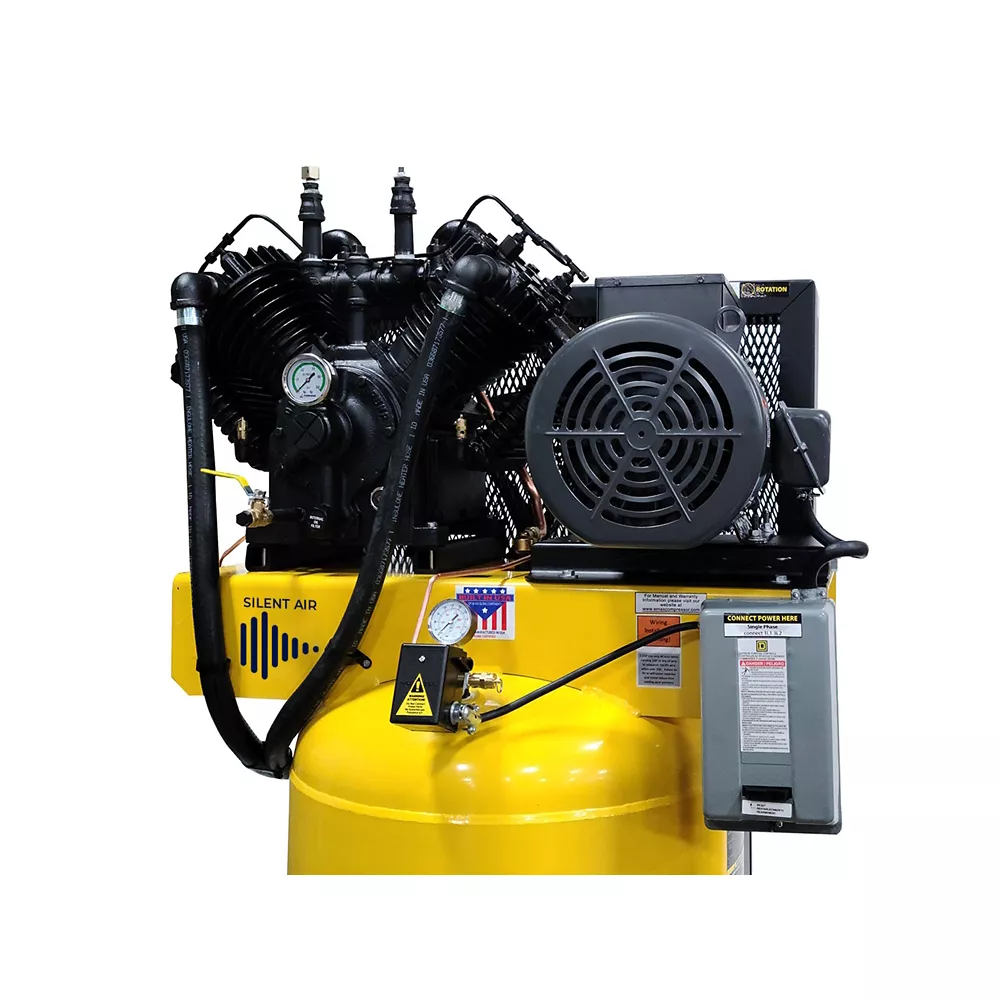

This EMAX 10 HP 80 gal. Industrial Air Compressor is a 2-stage, three-phase V4 35% more quiet SILENT AIR silencer system, vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM @ 100PSI, max PSI of 175. The unit features industrial grade electric motor, continuous run kit, magnetic starter, Dual timer controlled automatic tank drain, 200PSI powder coated ASME certifed tank. This reciprocating V4 2 stage pump, is engineered with 100% cast iron, up to 70,000 Hours rated, patented pressure lubricated. This unit includes out patented, MADE IN THE USA, SILENT AIR silencer air system. ETL,UL,CSA, ASME Certified. Eligible for LIFETIME WARRANTY, 1 Year Standard, 5 Year Extended.- MADE IN USA
- Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Continuous mode functionality on the silent compressor is for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

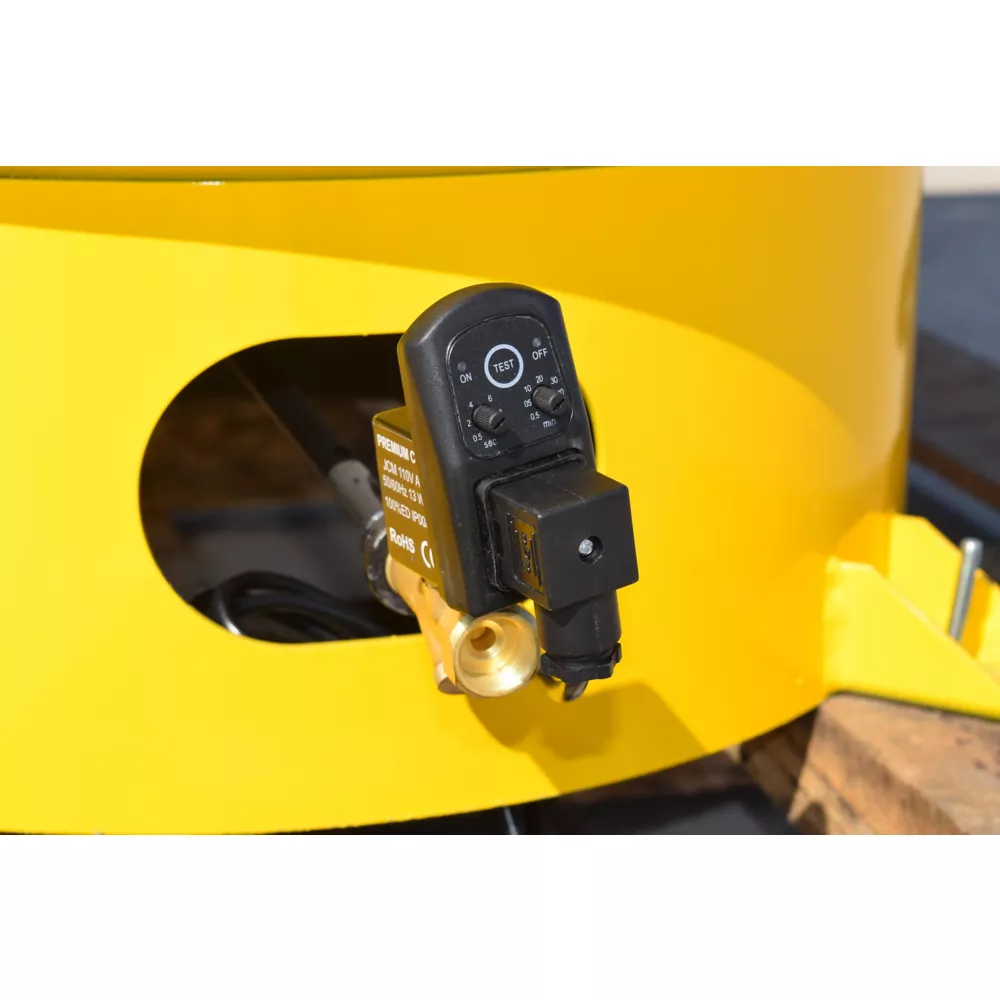

- Automatic 110V dual timer controlled Tank Drain eliminates daily maintenance

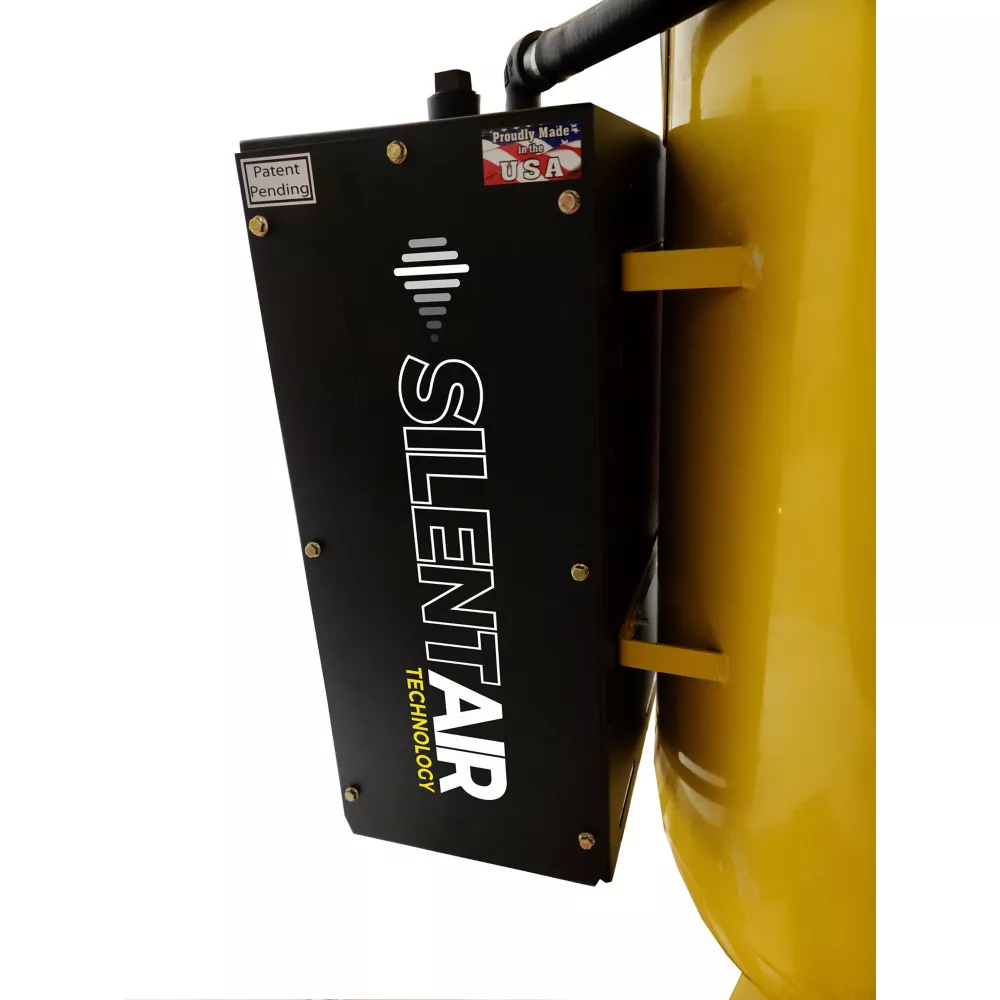

- SILENT AIR technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates
- Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal
- Pump is built with a solid cast iron crankcase that can handle heavy workloads
- Precision balanced solid cast iron crankshaft with Timken-style stainless steel roller bearings on the front and rear for a smooth and efficient operation
- All steel connecting rods with replaceable rod bearing inserts
- Re-usable oil filter and oil pressure gauge
- Removable 100% cast iron cylinders in the pump are stable and do not warp from heat
- All cast iron cylinder heads are durable and dependable
- Disc valve design intake and exhaust valves can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over
- Precision ground pistons are machined to tight tolerances
- Premium non-absorbent gaskets prevent oil seepage from pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke to result in fewer loads on the electric motor
- Built-in head unloaders are built into the intake valve assembly on the compressor head to reduce internal pump heat
- Built-in inter-cooler allows air to be cooled between stages
- After-cooler provides a second cooling stage that cools the air before it goes into the tank
- Low 800 rpm pump still yields a high CFM output while reducing friction and heat buildup

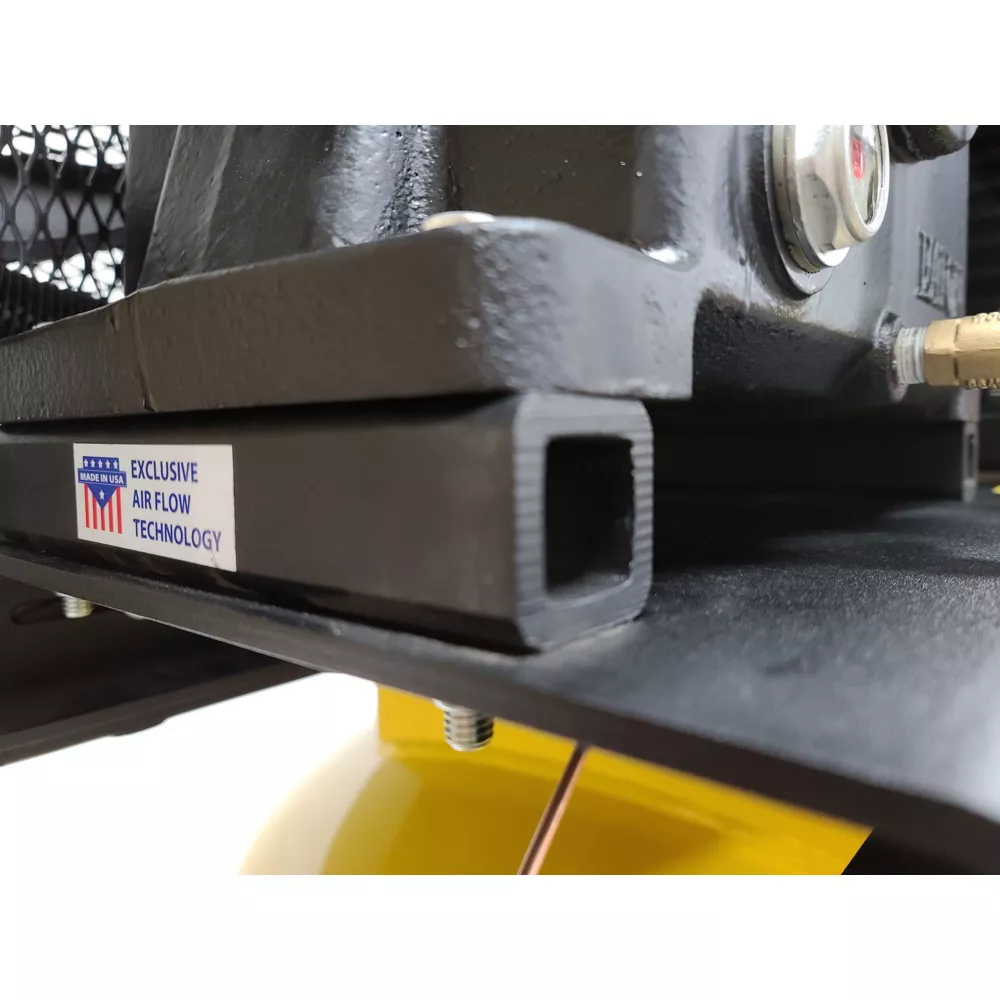

- 2 in. raised pump platform keeps the oil cool within the pump
- ETL, UL & CSA Certified
- Pump oil capacity: 2.5 quarts with Oil level site glass
- 1 Year Standard, 5 Year EXTENDED warranty available
- Maximum Pump RPM: 800, for extended life
- Running Amperage: 24

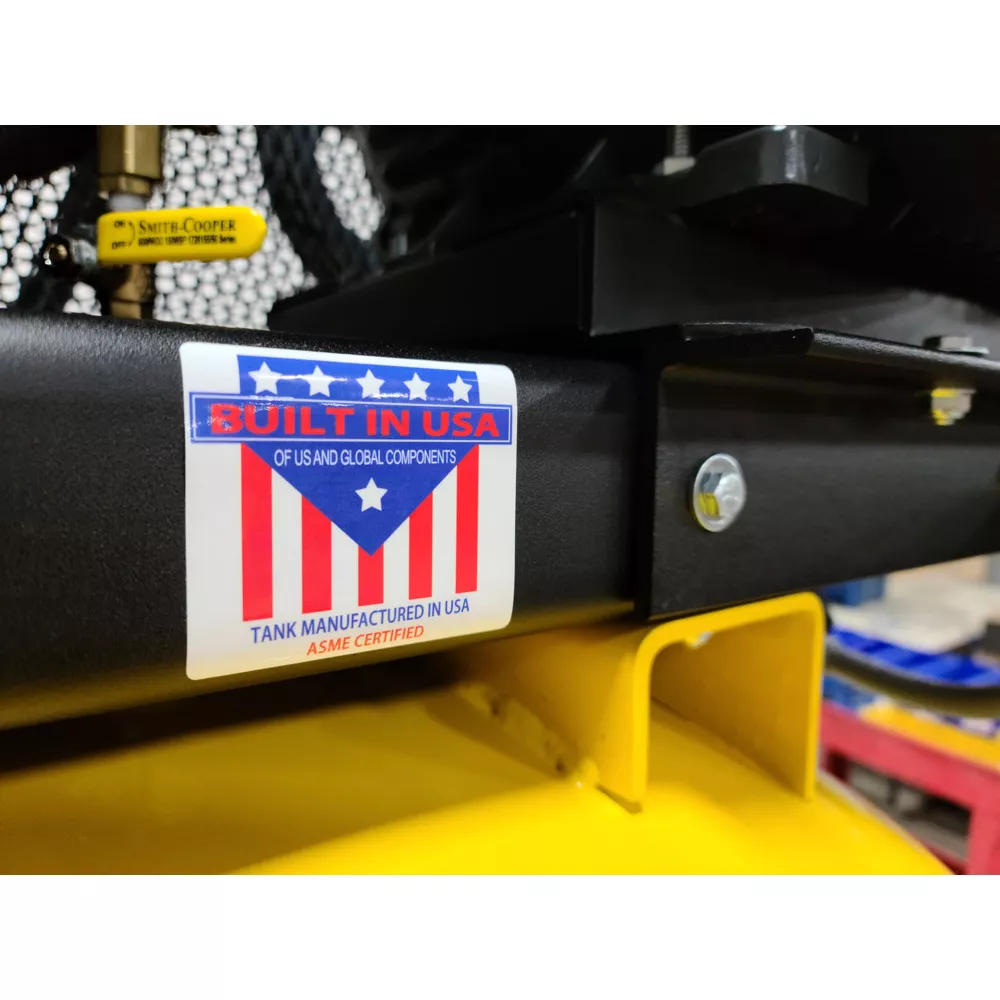

- 200 PSI 80 gal. ASME certified in all 50 states, Powder coated tank
- 44 SCFM: @ 40 PSI, 41 SCFM: @ 90 PSI
- Industrial grade Motor RPM: 1750
- Tank outlet size: 3/4 in.

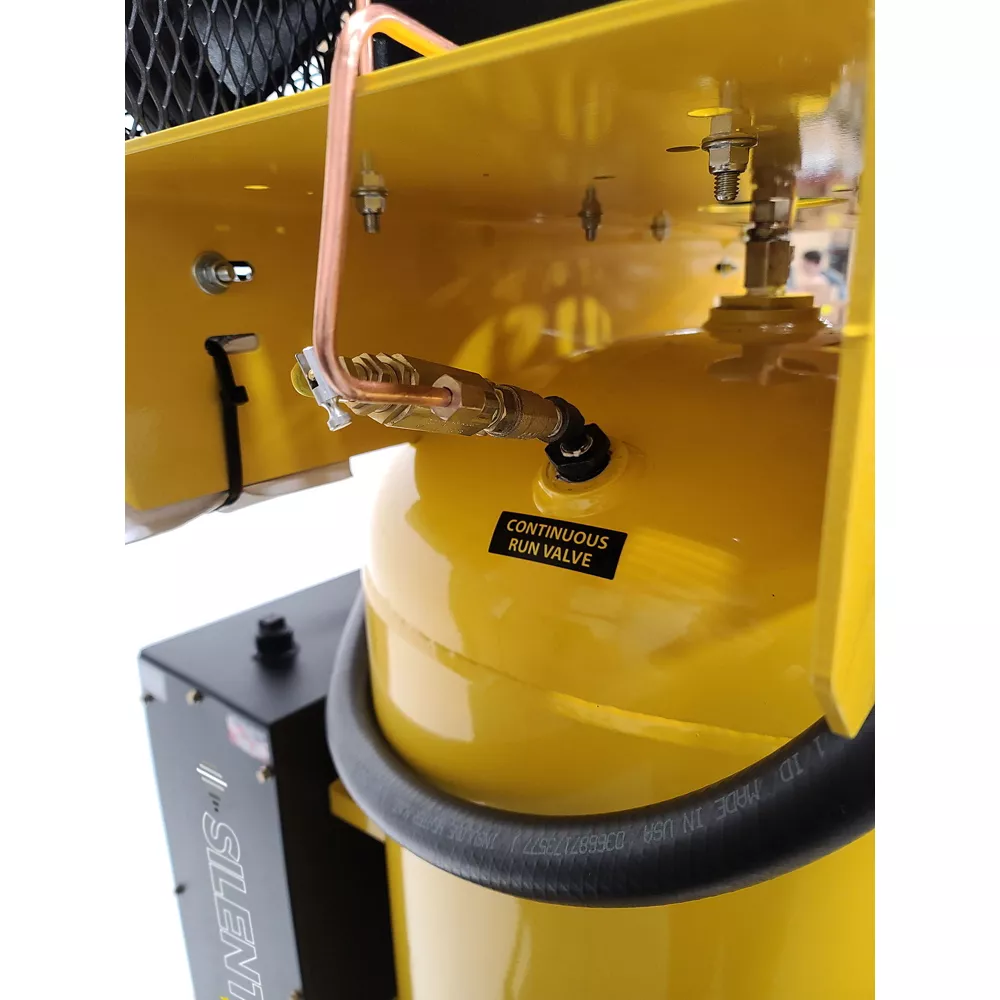

- Continuous run kit
- Sound: 62 decibels
- 230/460 Voltage
EMAX 10HP 80G 2 Stage 3 Phase V4 Industrial Pressure Lubricated Pump 38CFM @ 100 PSI Plus Quiet Air Compressor-ESP10V080V3 Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 44 CFM |
| Air Delivery SCFM At 90 PSI | 41 CFM |
| Airflow Volume | 38 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 24A @ 208/230V, 12A @ 460V |
| Compressor Horsepower | 10 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Vertical |
| Compressor Voltage | 208V/230V/460V |
| Connection Type | NPT |
| Decibel Rating | 62 dB |
| Drain System | Automatic with dual timer |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Features | Magnetic starter, patented silent air silencer, Industrial grade low RPM motor, Solid cast iron low RPM pump, auto tank drain, ASME, ETL, UL & CSA certified |
| Fuel Tank Capacity | 0 qt. |
| Hose Fitting Size | 3/4 in. |
| Maximum RPM | 800 RPM |
| Phase | Double |
| Nozzle Fitting Size | 3/4 in. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 752 lb. |
| Product Width | 42 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Orientation | Vertical |
| Warranty | 1 year Standard, 5 year extended, Eligible for LIFETIME |
| Manufacturer PartNumber | ESP10V080V3 |
