EMAX 14 HP 20 gal 3-in-1 2-Stage Industrial Air Compressor Generator and Welder 175 PSI KOHLER C.PRO Engine Stationary Air Compressors Air Compressors

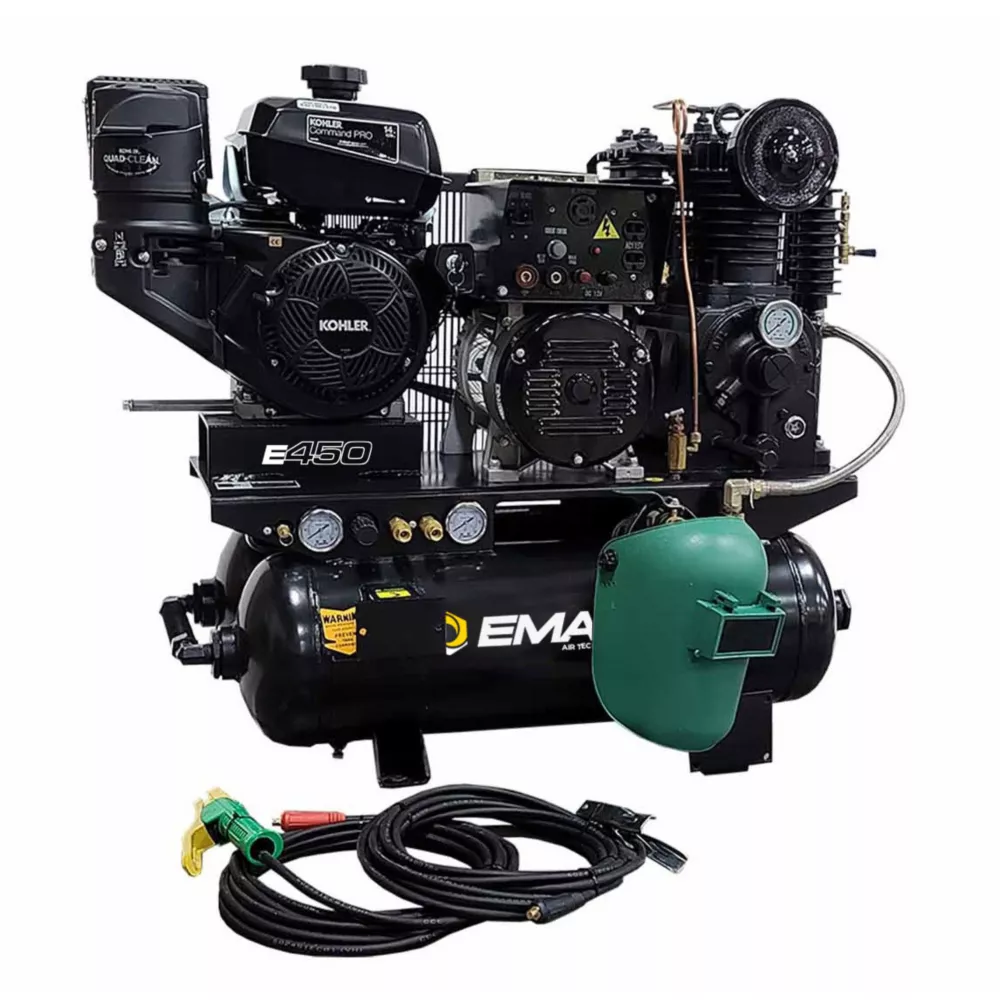

This EMAX Electric start 14 HP 20G KOHLER Command PRO Gas Engine Industrial 3-in-1 Air Compressor, Generator and Welder is powered by a 14HP CH440 Commercial Command PRO series gas engine and a 5HP two-stage all cast iron pressure lubed inline pump. This unit will provide compressed air, three 120 and 240V power outlets and a DC 190A welder. The two-stage all cast iron pressure lubed pump delivers high 17 CFM output, reliability. The DUAL (2 x 20 gal.) ASME horizontal twin tanks provides a total of 40 gal. of air storage, quick disconnect, rubber isolator pads and liquid filled gauges, plus a heavy-duty steel belt guard to make this air compressor. It's backed by a 3-year KOHLER command pro gas engine warranty, 1-year standard, 5-year pump extended and lifetime pump extended optional warranty with maintenance kit, and ASME certified 20 gallon tank in all 50 states. The steel construction of this air compressor offers strength and long-lasting use.

14HP KOHLER Command PRO Commercial Series engine CH440
17 CFM at 100 PSI air compressor; 5,000W generator; 190A DC welder

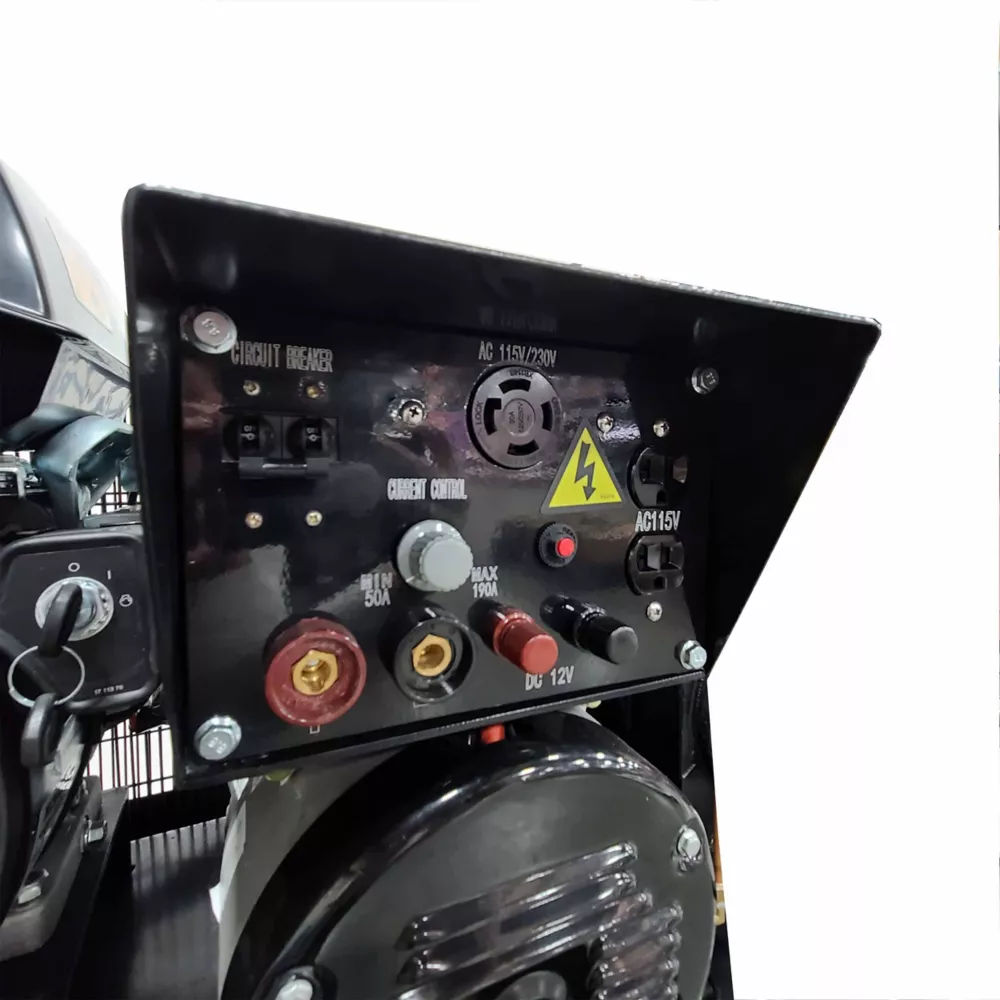

Three 120V outlets and 240V outlet make the air compressor suitable for any job site
2-stage solid cast iron pressure lubricated inline pump in the 3-in-1 air compressor delivers high CFM output and reliability
ASME twin tanks provide 20 gal. of air storage and quick disconnect
1-year standard; 5-year extended; lifetime pump extended
Heavy-duty steel belt guard makes the air compressor durable to withstand any task
ASME certified
Maximum 175 PSI at 17 CFM
3-in-1 air compressor
5,000W continuous run generator/6,000 surge watts

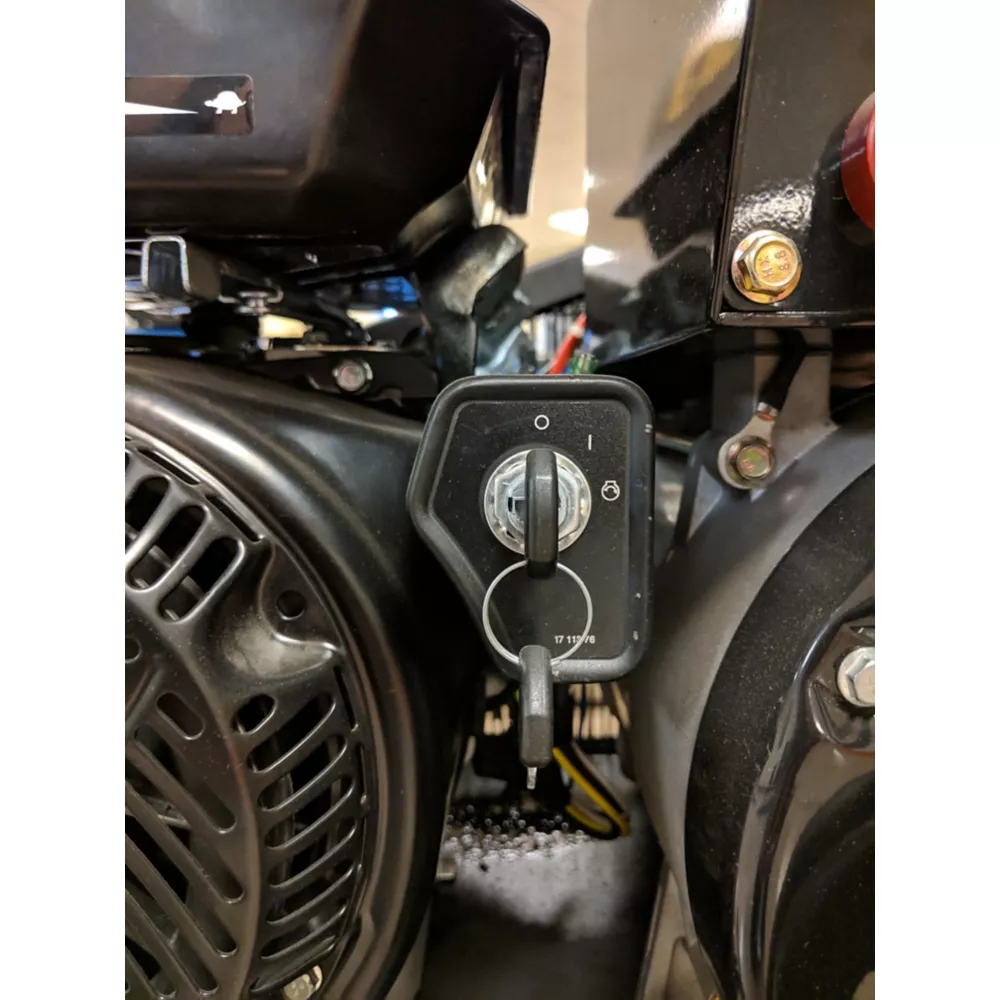

Includes: SLA Battery for electric start
Air power: 17 CFM at 100 PSI
Stationary truck mounted
Pressure lubricated two-stage pump delivers a continuous flow of oil to critical engine components

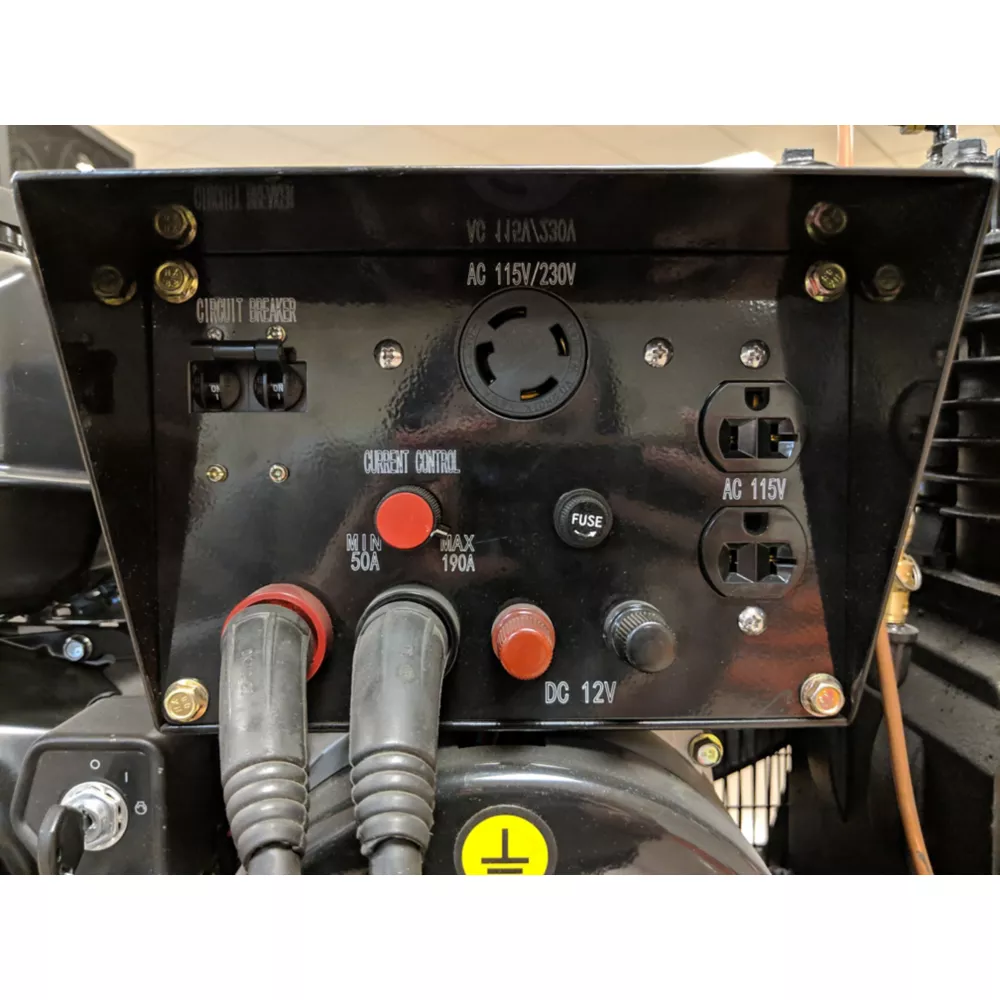

Two 120V, 20A outlets; one 240V outlet

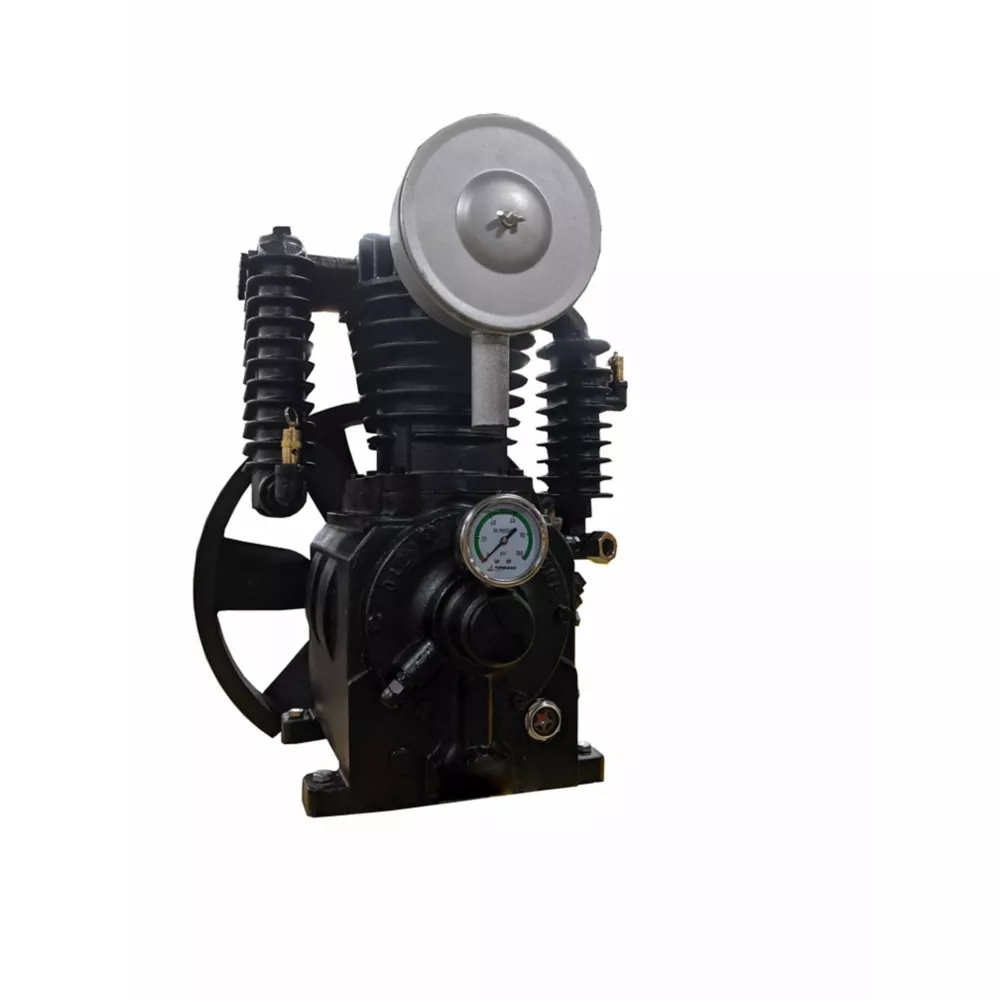

5 HP two-stage pump features industrial disc valves for extended life and easy maintenance and site oil glass
Solid cast-iron pump provides maximum durability
Liquid led gauges
Rubber vibration isolator pads

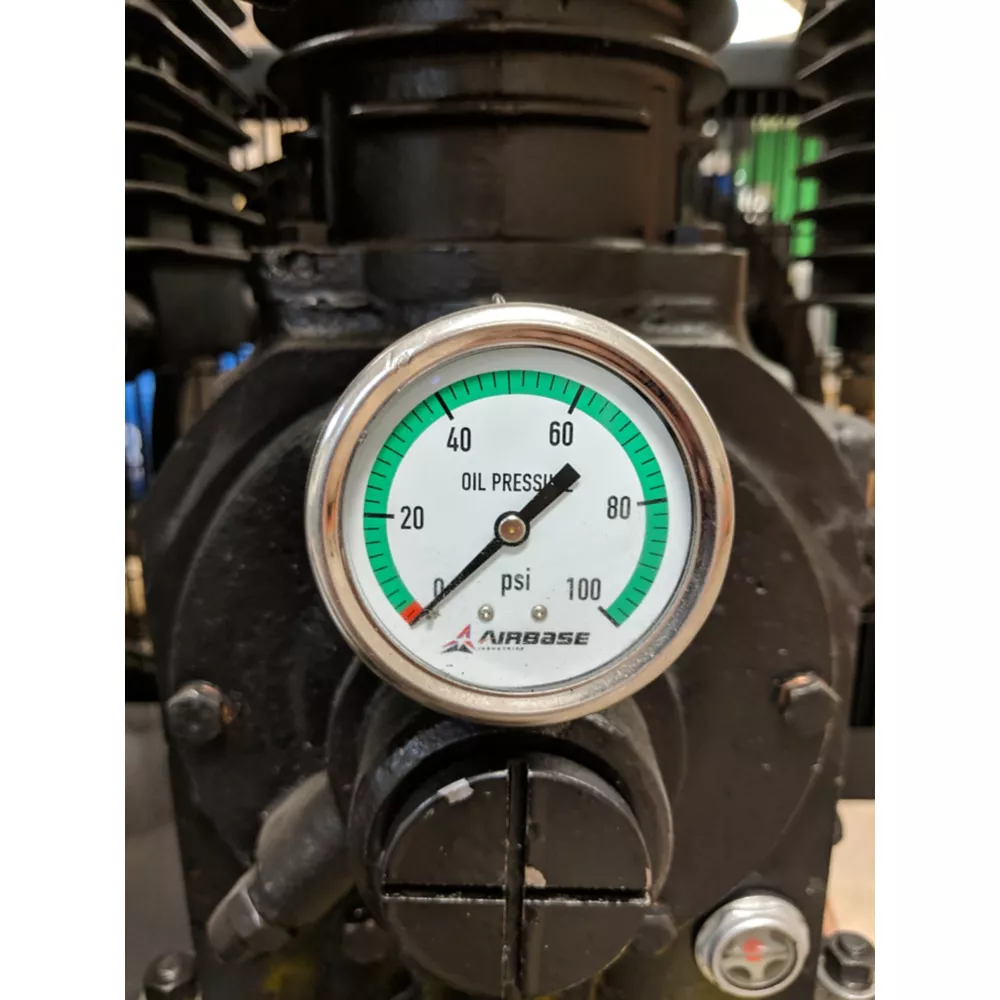

Liquid filled built-in gauges on the regulator

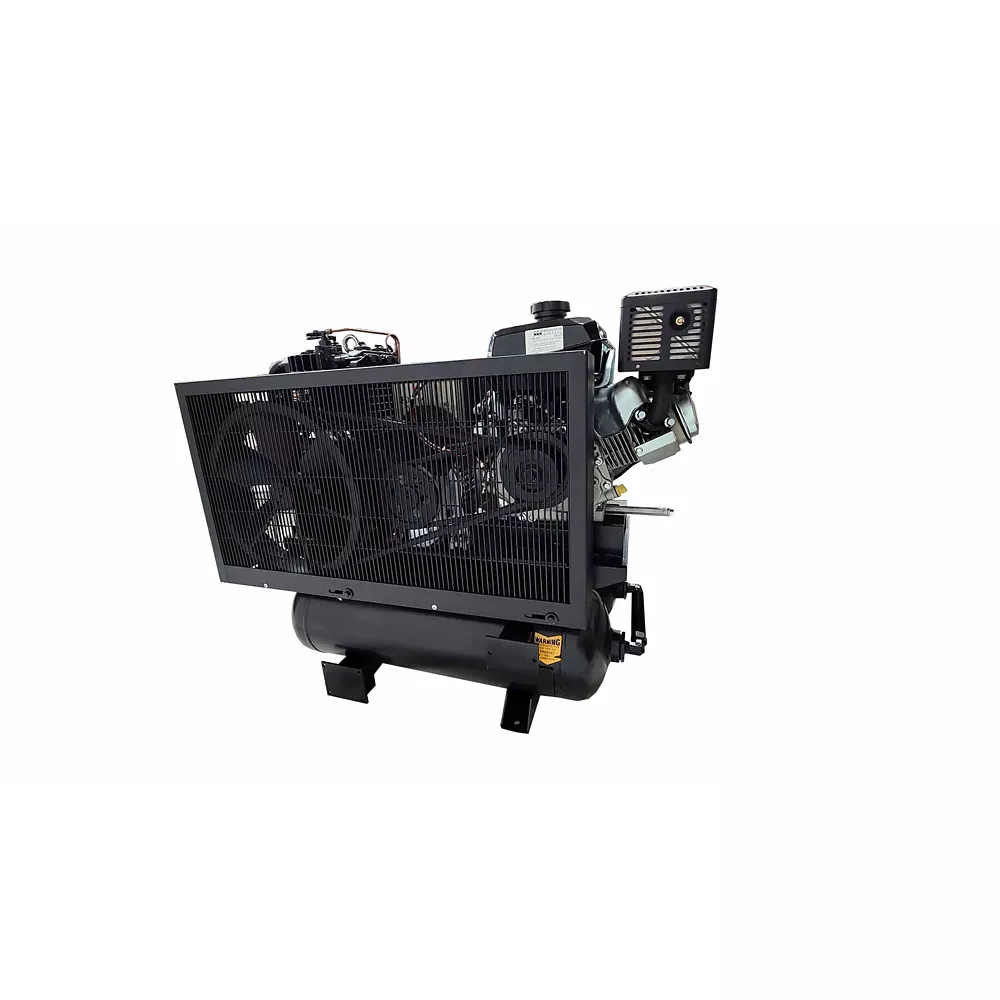

Heavy-duty steel belt guard
DC (Direct Current) 190A stick welder with 50 leads
DC jump starter
3-year warranty on Kohler Command Pro CH440 gas engine
Includes a welding mask and 50 welding leads
Dimensions: 45 in. L x 36.5 in. W x 25 in. H; 570 lb.
2-stage inline pump
1-year standard; 5-year extended; eligible extended and lifetime warranty plan on Pump

Commercial KOHLER 14HP CH440 Gas Engine with 3 year Commercial gas engine warranty

EMAX 14 HP 20 gal 3-in-1 2-Stage Industrial Air Compressor Generator and Welder 175 PSI KOHLER C.PRO Engine Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	25 SCFM
Air Delivery SCFM At 90 PSI	20 SCFM
Airflow Volume	17 CFM
Air Outlet Size	3/4 in.
Amperage	17A
Compressor Horsepower	14 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Constant
Compressor Tank Capacity	20 gal
Compressor Type	Oil lubricated
Compressor Voltage	120V/240V
Connection Type	NPT
Drain System	Manual
Drive Type	Belt Drive
Engine Brand	KOHLER Command Pro Gas
Features	Regulator Included
Fuel Tank Capacity	1.5 gal.
Hose Fitting Size	3/4 in.
Maximum RPM	650 RPM
Phase	Single
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Gas
Primary Color	Black
Primary Material	Steel
Product Height	36 1/2 in.
Product Length	45 in.
Product Weight	570 lb.
Product Width	25 ft.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	2.5 minutes
Tank Orientation	Horizontal
Warranty	1 Year Standard, 5 Year extended, Lifetime Pump Extended warranty eligible with maintenance kit
Manufacturer PartNumber	EGES14020T
