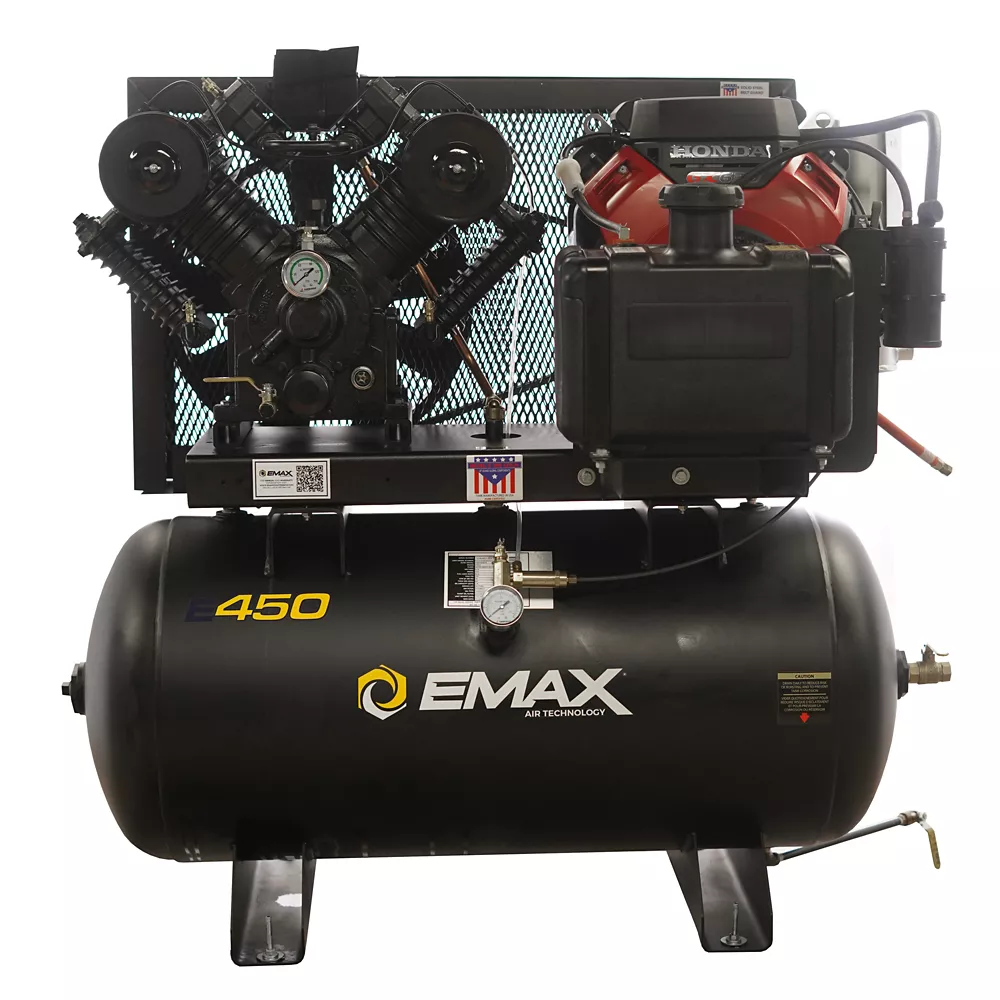

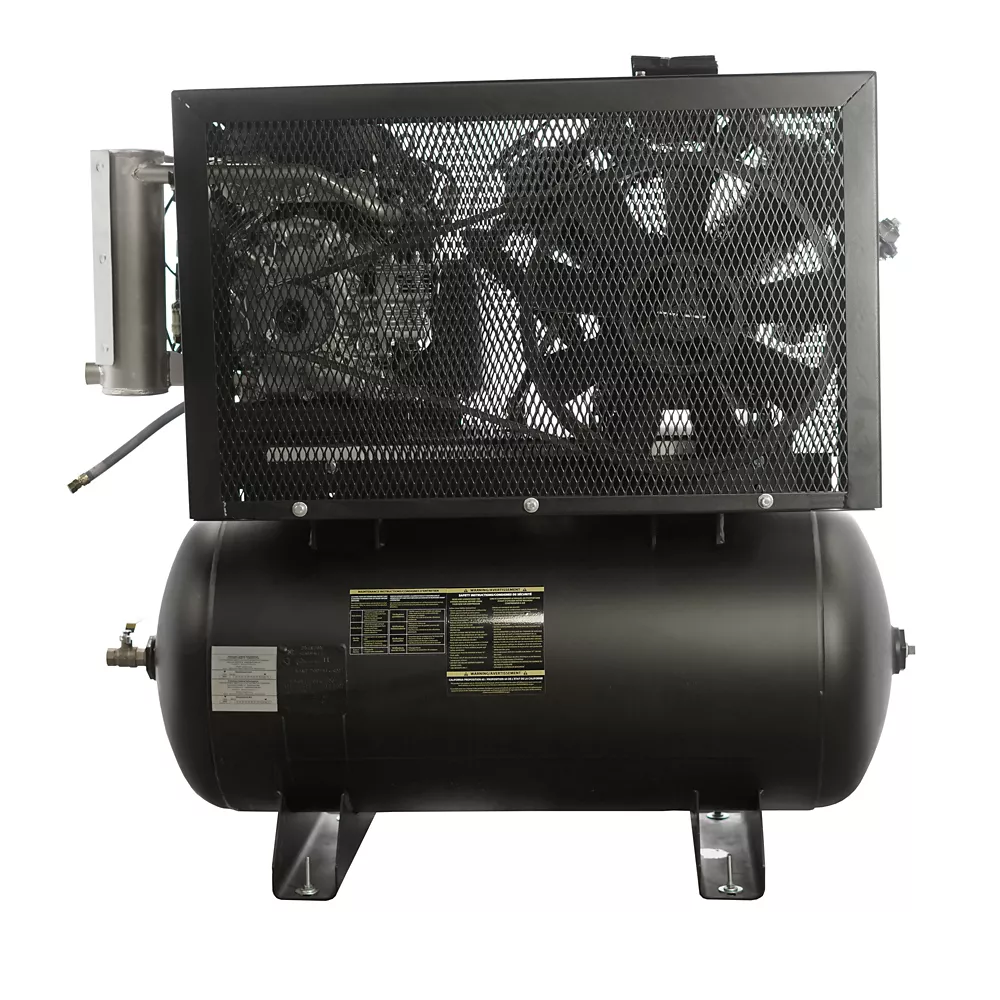

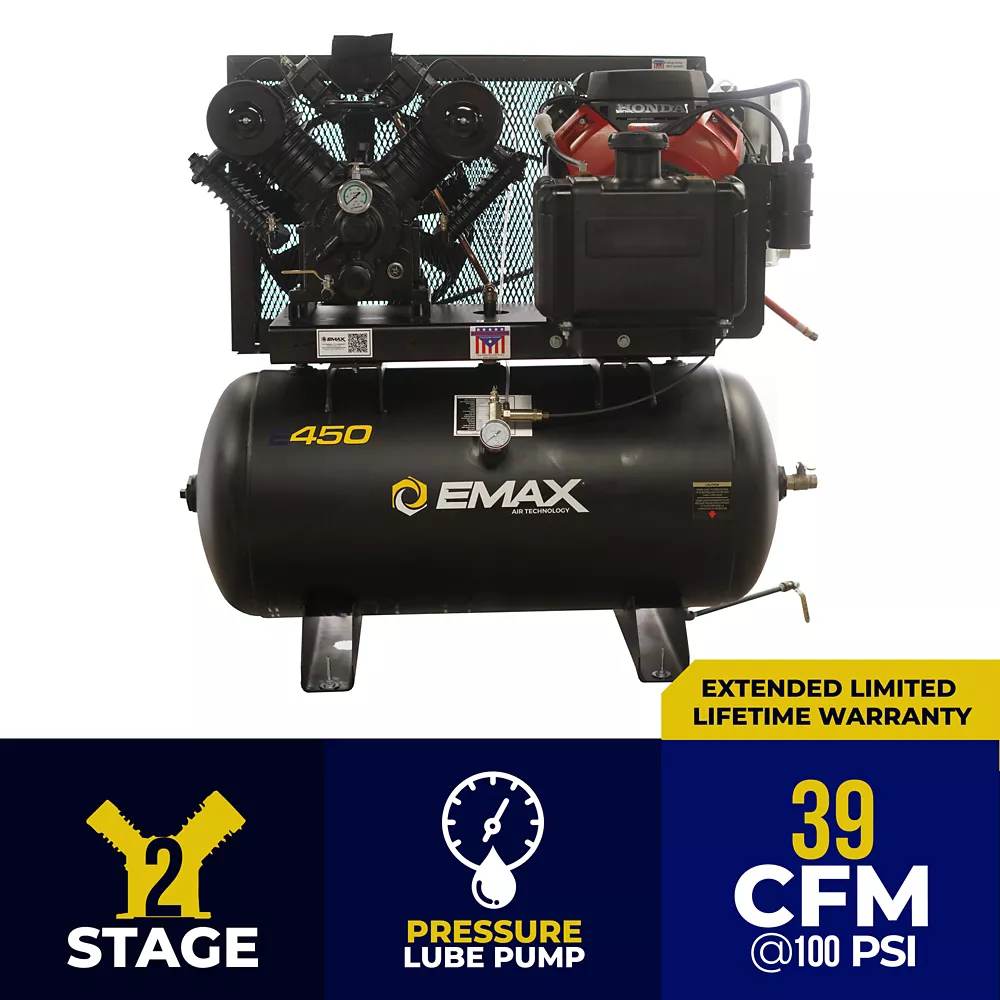

EMAX 18HP 30G Elect Start V4 Industrial Pressure Lubricated Pump 2 Piece 39 CFM at 100 PSI Gas Powered Air Compressor-EGES1830ST Stationary Air Compressors Air Compressors
You can count on the EMAX 18 Horsepower 30 gallon electric start 2 stage Industrial V4 pressure lubricated solid cast iron 800 rpm pump Gasoline powered Air Compressor for all your fleet and field service applications! Producing 39 CFM at 100 PSI, this air compressor is up for any task. This gas air compressor is ideal for truck bed mounting to delivery on site air where electric service is scarce. Cool-Tek technology reduces moisture build-up ad lowers the operating temperature by 35% to extend the life of the air compressor.- MADE IN USA
- Produces 39 CFM at 100 PSI, Max PSI: 175
- Electric start, slant cylinder design for smooth motor operation
- All cast iron high performance pump helps prevent cylinder distortion
- 1 Year Standard, 5 Year extended, Lifetime Pump Extended eligible with Maintenance kit, 3 year Honda engine warranty
- V-style shape of the pump helps eliminates hotspots to give consistent cooling
- OHV engine design of the air compressor provides excellent torque and fuel efficiency
- Flow-Tek concentric disc valves deliver maximum air flow & reliability with low replacement cost
- Cool-Tek reduces moisture build-up and lowers operating temperature by 35%
- Air-Stream technology in the gas air compressor offers up to 50% longer pump life @ 800 RPM
- Belt tension adjuster reduces vibration and extends belt life
- Gate valve oil drain provides quick, clean oil changes
- Timken-style roller bearing on the crank ends on each end of the crankshaft ensures good crank stability
- Twin belt drive ensures better belt grippage and longer belt life
- Head unloaders are great for continuous run applications
- Site glass allows you to view your oil level
- One piece connecting rod with a re-buildable rod-to-crank bearing insert
- 5 gallon gas tank mounted to the tank of the air compressor
- Engine idle-down when unit is in free-wheel mode
- 30-gallon Horizontal powder coated weather resistant ASME tank-approved in 50 states.
- Custom-built engine stand under the engine braces the platform of the tank and is easy for belt tightening
- Air receiver has a drain 1/4 inch ball valve coming out the front of the tank for easy access to draining
- All safety valves and pop-offs are ASME approved
- 3/4 inch ball valve as an air outlet
- Belt guard is custom built and constructed from 13 ga. expanded metal
- Air compressor requires 12-volt battery and 2 battery cables, not included

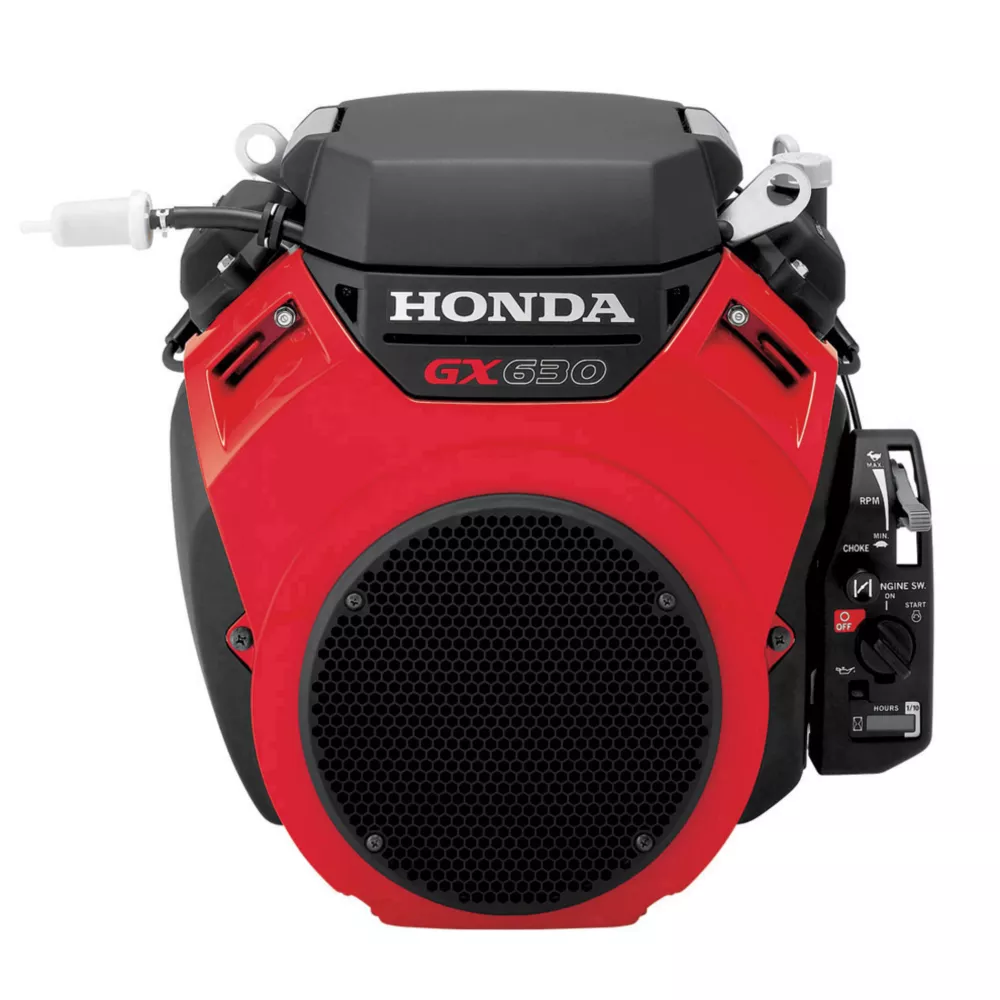

- HONDA GX630 18 Horsepower Gas engine
EMAX 18HP 30G Elect Start V4 Industrial Pressure Lubricated Pump 2 Piece 39 CFM at 100 PSI Gas Powered Air Compressor-EGES1830ST Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 90 PSI | 39 CFM 100PSI |
| Airflow Volume | 39 CFM |
| Air Outlet Size | 3/4 in. |
| Compressor Horsepower | 18 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 30 gal |
| Compressor Type | Horizontal |
| Compressor Voltage | N/A |
| Connection Type | NPT |
| Drain System | Manual |
| Drive Type | Gas driven engine |
| Engine Brand | Honda |
| Features | EPA, CSA, ASME approved, Pressure lubricated Solid Cast Iron V4 800 rpm Pump, Stationary, Truck mounted, Electric Start, 5 gal. Gas Tank, HONDA GX630 |
| Fuel Tank Capacity | 5 gal. |
| Maximum RPM | 800 rpm |
| Phase | Single |
| Nozzle Fitting Size | 0.75 in. tank outlet size |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 50 in. |
| Product Length | 35 in. |
| Product Weight | 832 lb. |
| Product Width | 57 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2.5 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 3.5 min. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year Standard, 5 Year Extended, Lifetime Pump Extended eligible with maintenance kit |
| Manufacturer PartNumber | EGES1830ST |
