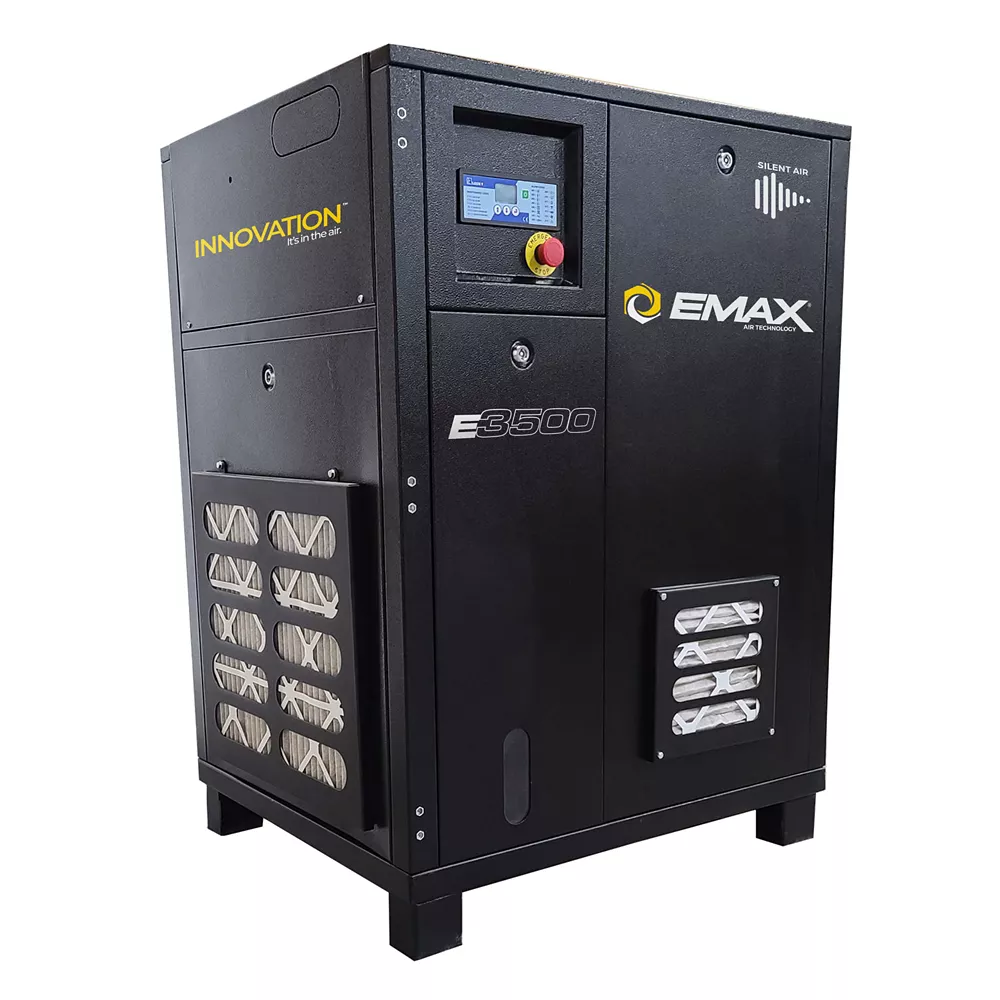

EMAX 20HP 3 Phase 77CFM @ 100 PSI 230/460 Volt Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-ERI0200003 Rotary Screw Air Compressors Air Compressors

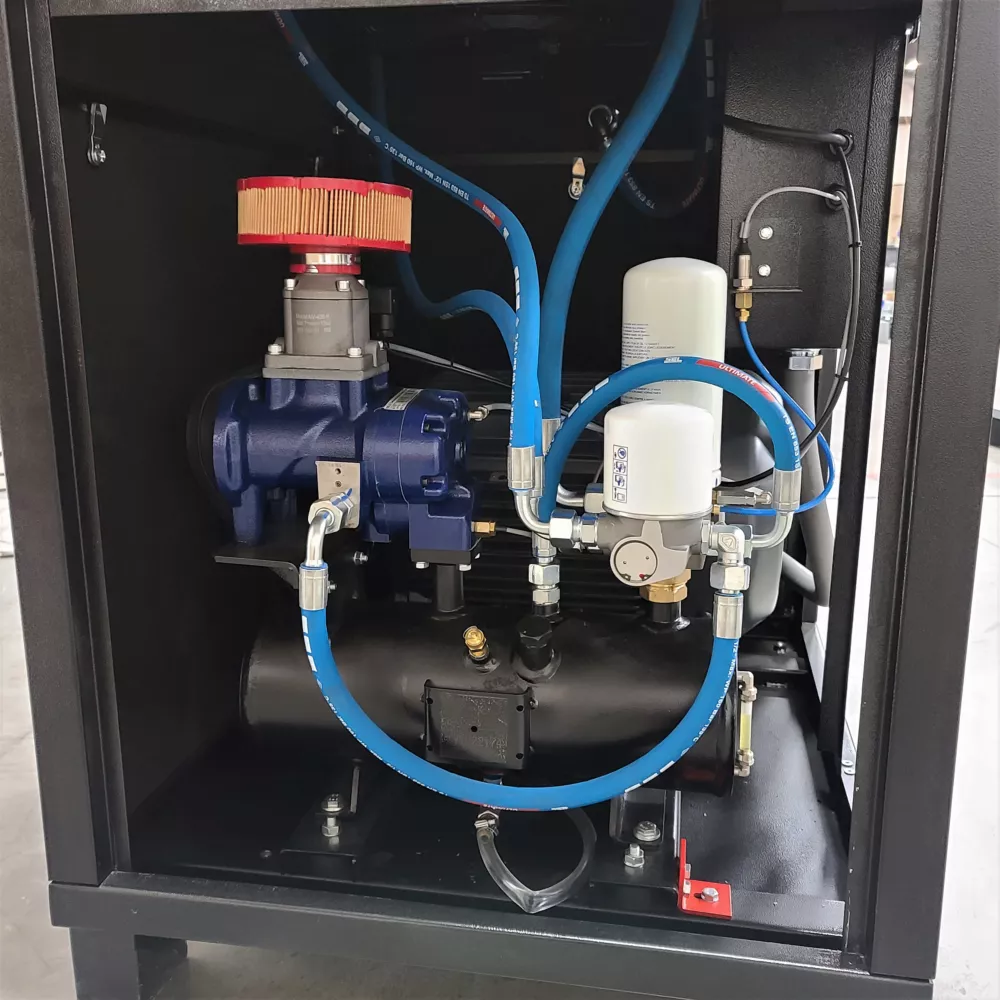

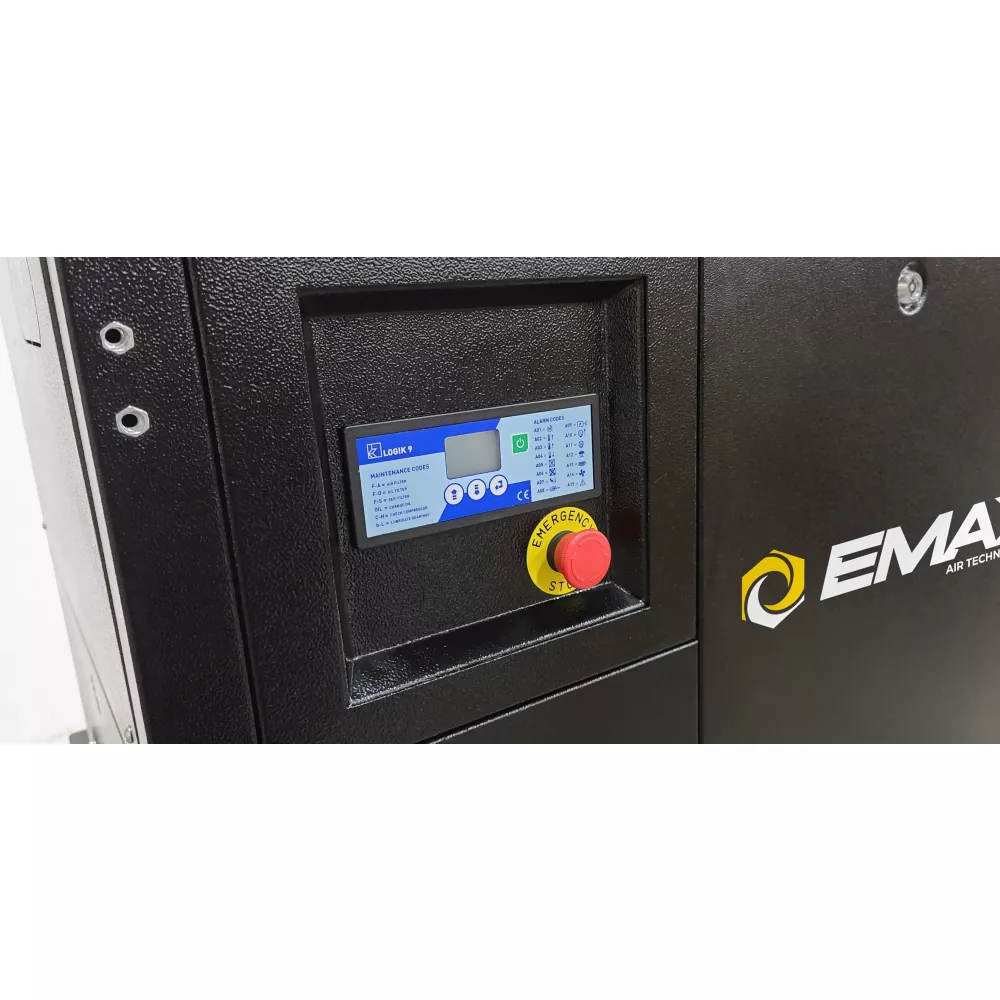

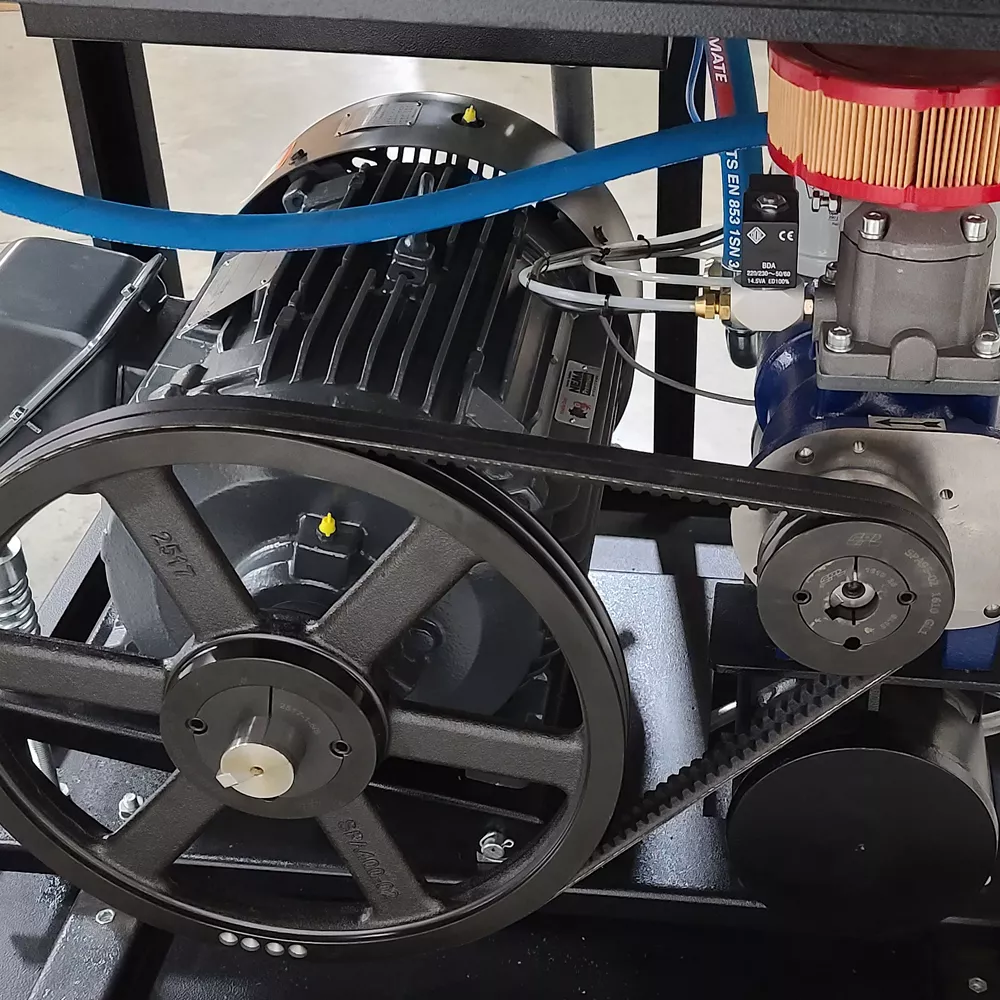

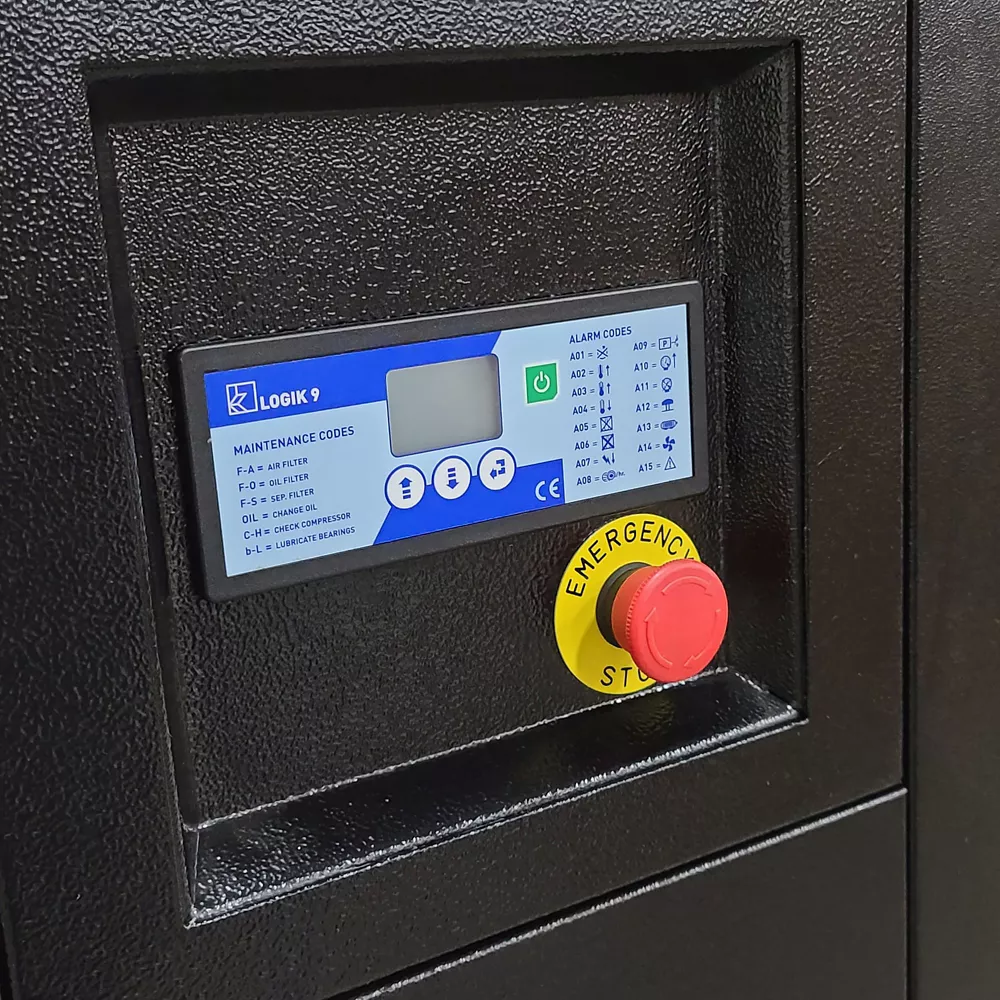

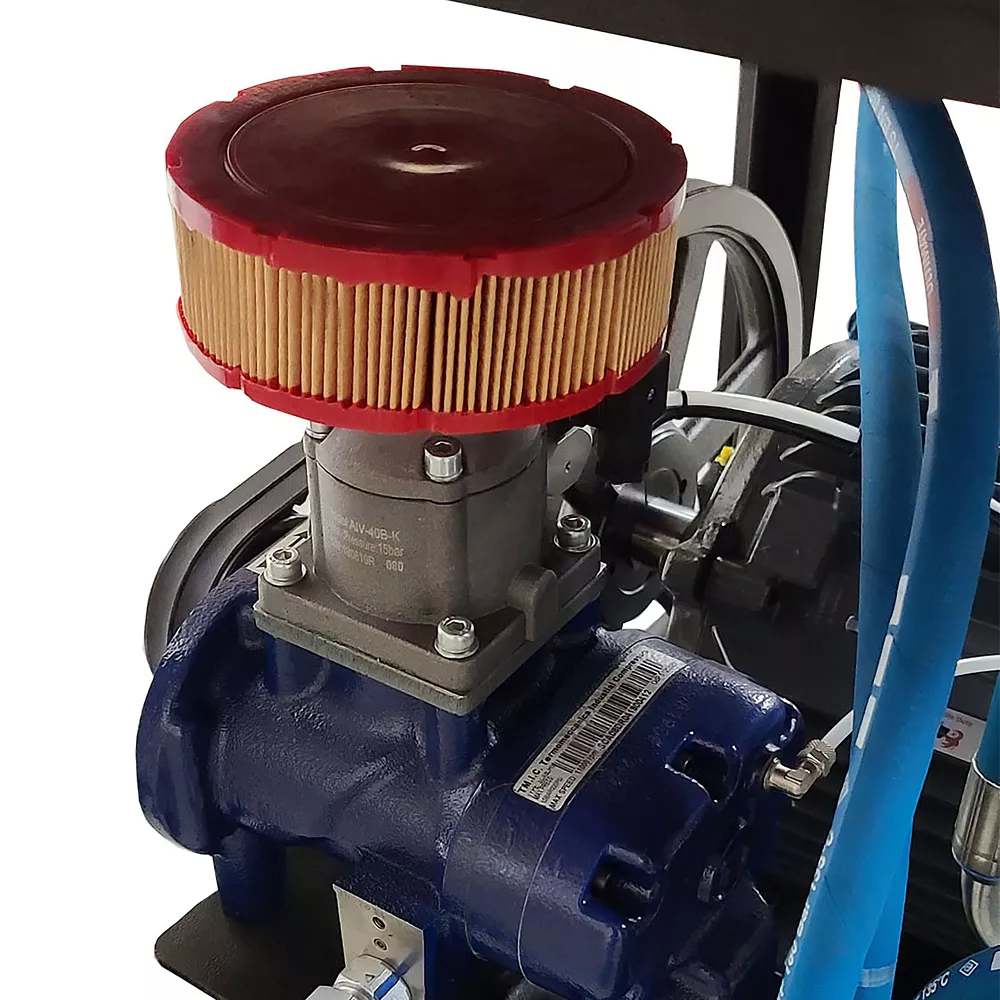

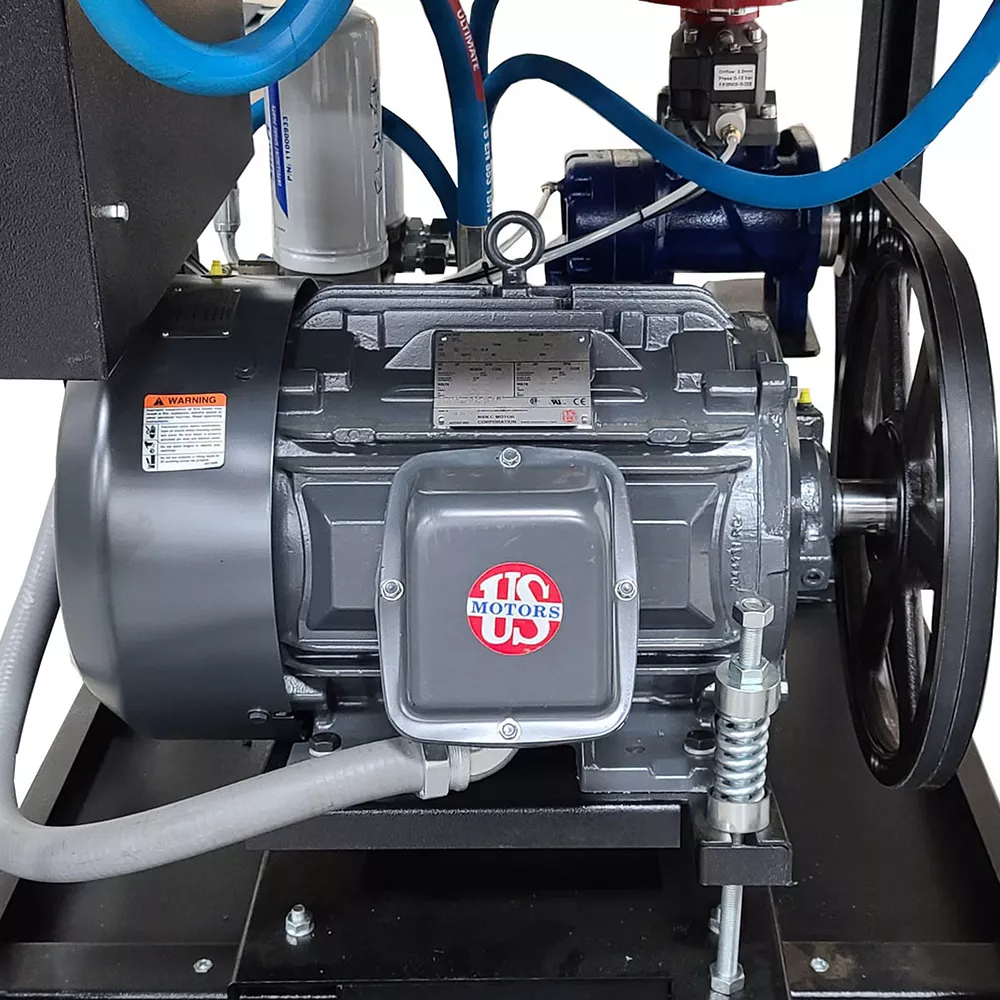

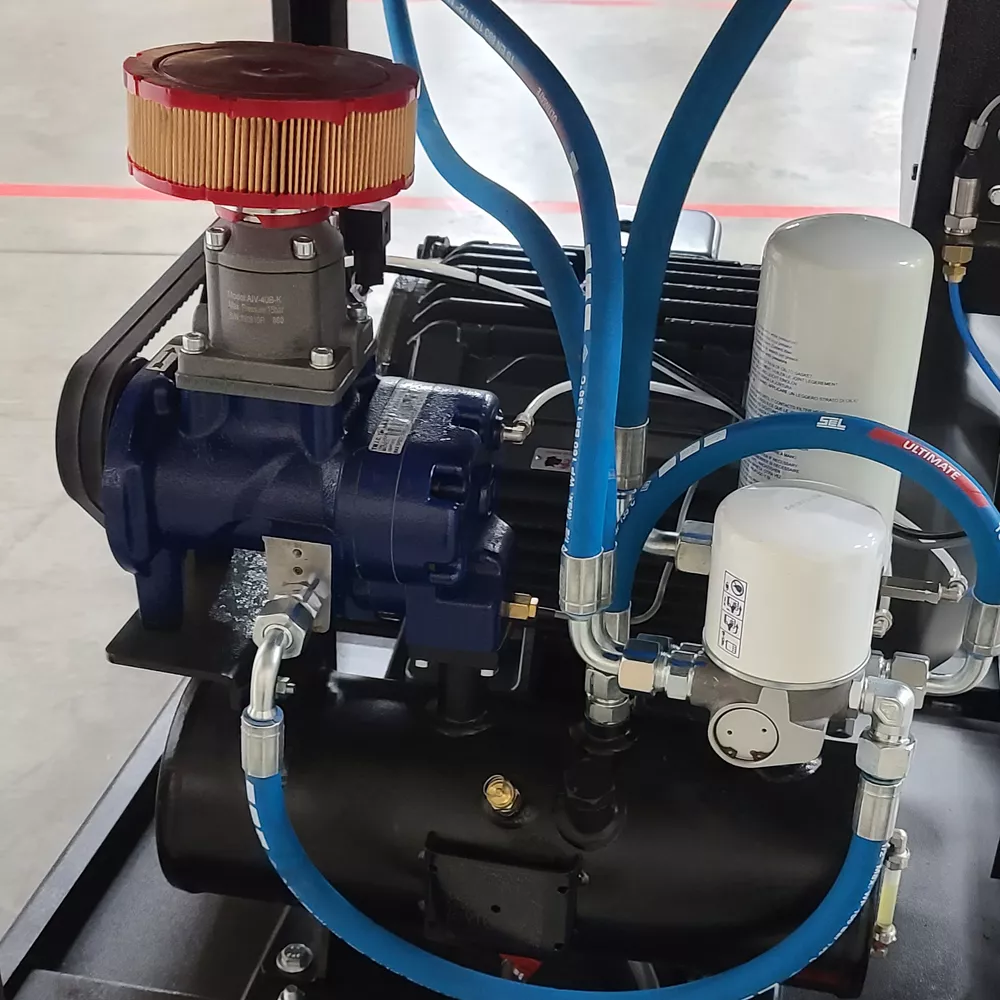

EMAX Compressors 20HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer. Warranty:1 Year Standard, extended 5 Year with maintenance kit warranty.- Made in Italy
EMAX 20HP 3 Phase 77CFM @ 100 PSI 230/460 Volt Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-ERI0200003 Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Imported |
| Air Delivery SCFM At 90 PSI | 77 CFM |
| Airflow Volume | 65CFM 145 Max PSI |
| Air Outlet Size | 1 in. |
| Compressor Horsepower | 20 HP |
| Compressor Maximum PSI | 145 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 230V/460V |
| Connection Type | NPT |
| Drain System | NA |
| Drive Type | Belt |
| Features | Industrial USA Motor, Wye/Delta start, Belt drive, Logik 9 controller, RotorComp German Screw Pump, Auto start/stop |
| Maximum RPM | 1,750 rpm |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 49 in. |
| Product Length | 38 in. |
| Product Weight | 546 lb. |
| Product Width | 30 in. |
| Pump Life | 60,000 hr. |
| Pump Material | Anodized steel |
| Stage Type | N/A |
| Tank Orientation | Vertical |
| Warranty | 1 Year Standard, extended 5 Year with maintenance kit warranty. |
| Manufacturer PartNumber | ERI0200003 |
