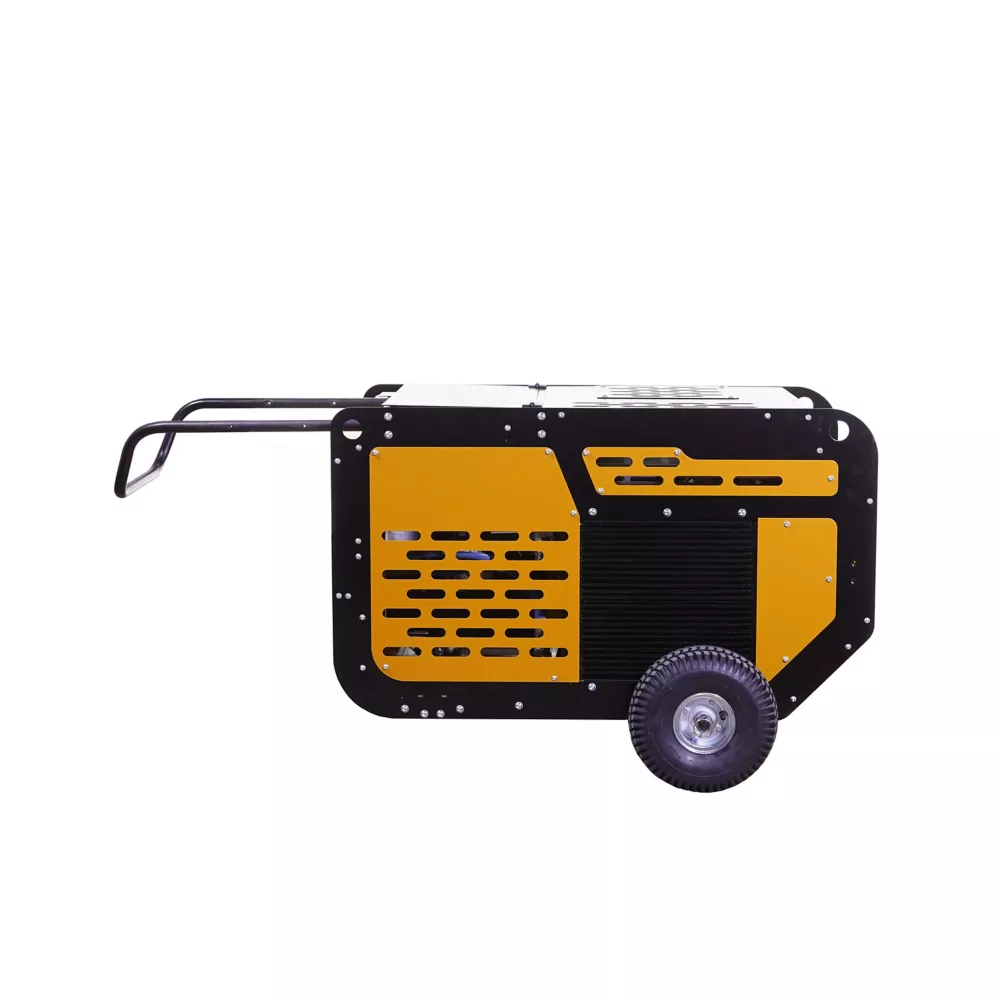

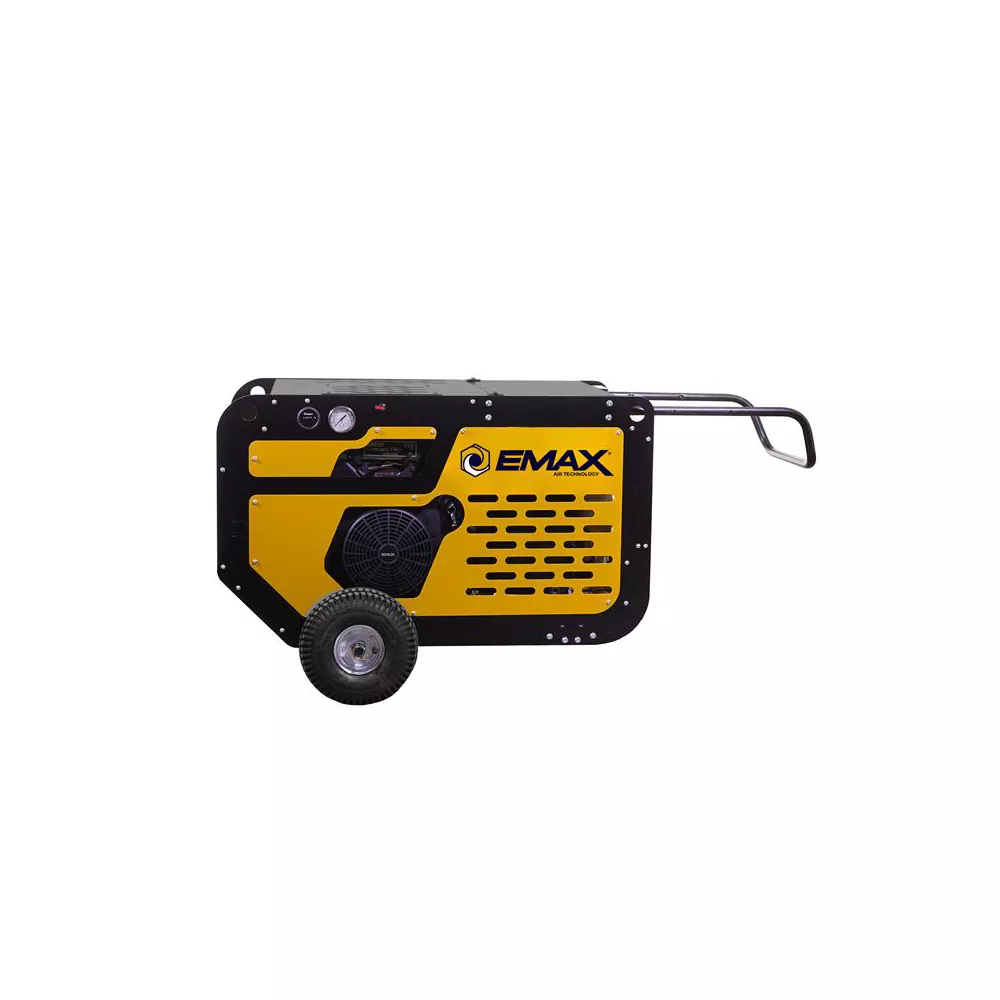

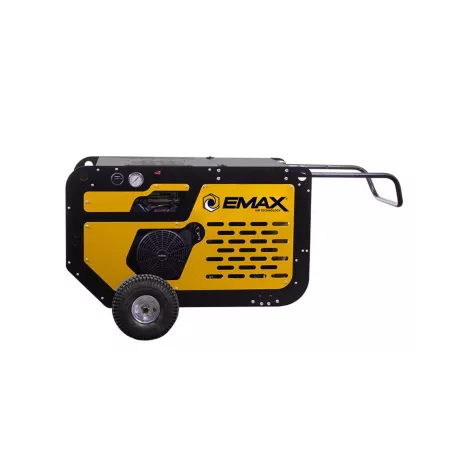

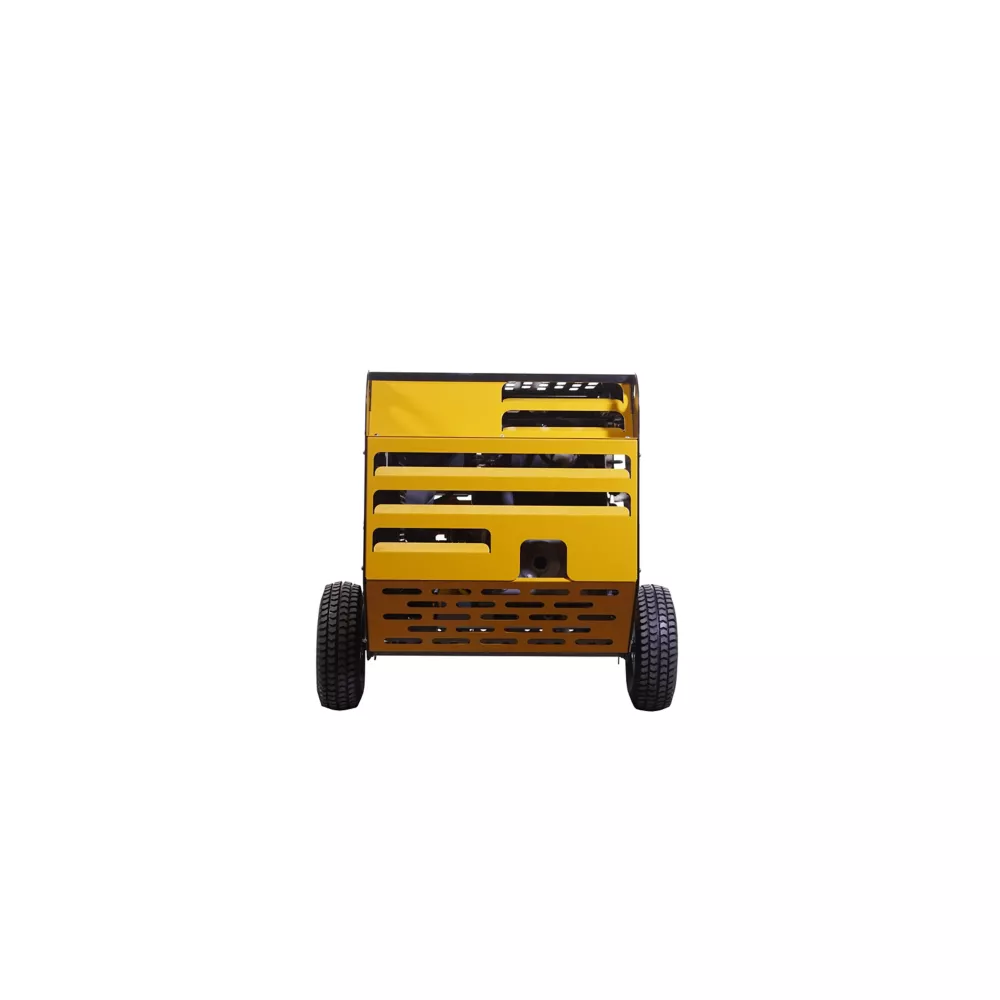

EMAX 24 HP Portable and Truck Mounted Gasoline Rotary Screw Air Compressor CH730 KOHLER Command PRO Engine Electric Start Rotary Screw Air Compressors Air Compressors

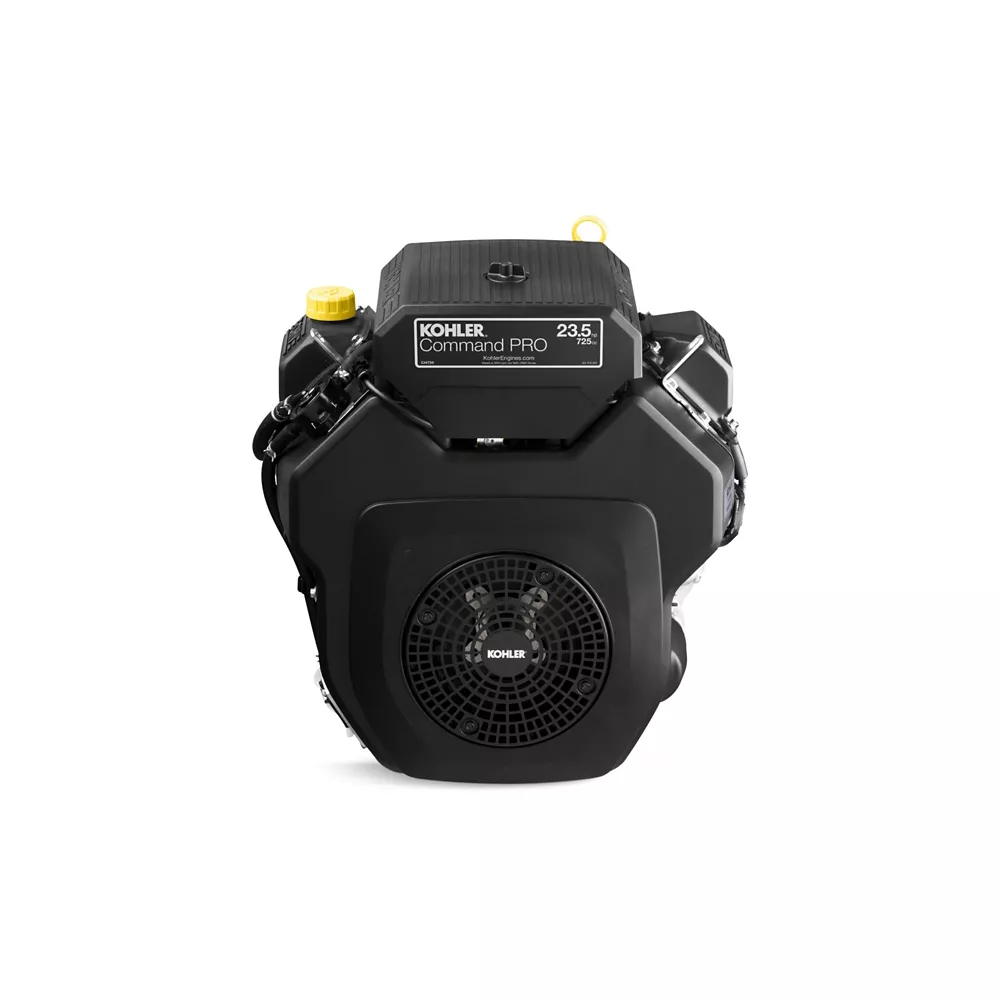

EMAX 24 HP Electric Start (12-volt battery included), Tankless Portable KOHLER Gas-Driven 70 CFM Rotary Screw Air Compressor delivers premium performance, quality, and value. Ideal for applications such as sandblasting, air brushing, hydrogommage, concrete breakers, construction, air fasteners, bites, irrigation/winterization, and jack hammers. 3 gallon Gas tank. Fits in back of gator and perfect for mobile applications. 1 Year Standard, 3 year on KOHLER CH730 gas Engine, Eligible for 10 year extended warranty- KOHLER Command PRO Commercial Gas Engine- Model: CH730 https://kohlerpower.com/en/engines/product/command-pro-ch730
- 24 Horsepower, 725 cc displacement, 3 Gallon fuel tank, 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
- 3 Year Warranty on KOHLER Command PRO Commercial Gas engine
- 62 CFM @ 145 PSI (Max Set PSI: 145)
- Emissions Compliance: EPA Phase III, EU Stage V, CARB Phase III, China Phase II
- Engine oil capacity: 2 qt.
- High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
- Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
- Extra-large sleeve bearings support heavy loads in commercial and industrial environments
- Fuel throttle regulation control for fuel usage on low and high demands
- Electric Start- 12 Volt Battery included, 330 volt start up current, 35 Ah Capacity
- Progressive air flow regulation from idling up to full load, due to engine speed and air intake regulation
- Automatic unloading phase at engine stop
- Extendable/reversable handle
- Made in Germany ROTORCOMP (Since 1939) EVO rotary screw air end
- Pneumatic suction valve. Safety valve calibrated for suitable service pressure
- Rotary screw pump oil capacity: 2 quarts
- Removable wheels and handle for Stationary application to service truck

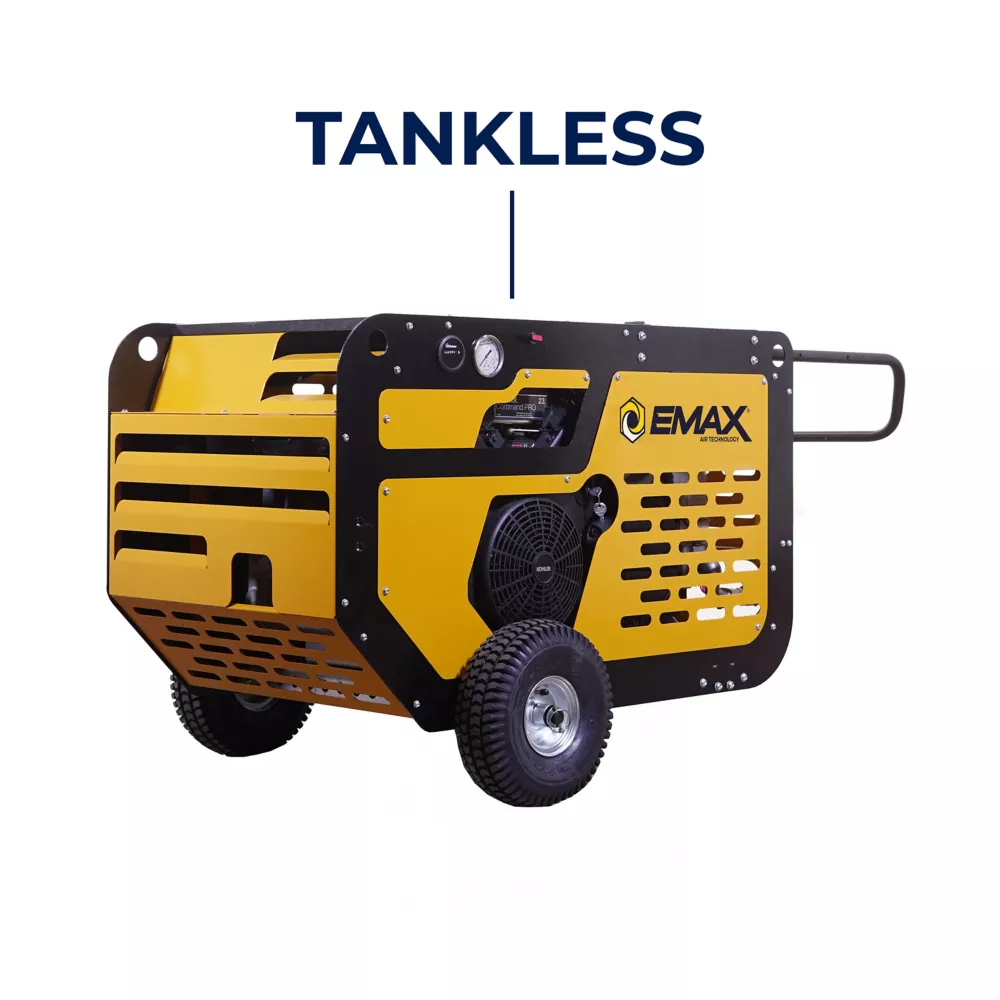

- Tankless
- Bore: 3.3 inches, Stroke: 2.6 inches
- Peak torque: 38.4 ft-lb @ 2800 RPM
- Engine compression ratio: 9.0:1
- Dry weight: 90 lbs
- Engine: Full pressure lubrication with full-flow filter
- Belt Drive
- Portable and Truck mount versatility
- Video depicts KUBOTA Diesel Rotary screw with trailer model(s) EDS090TR, EDS115TR & EDS185TR CFM
- Remove wheels to mount on trucks/vehicles
- Running hours: 2550 RPM = 7.2 L/per hour
EMAX 24 HP Portable and Truck Mounted Gasoline Rotary Screw Air Compressor CH730 KOHLER Command PRO Engine Electric Start Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Imported |
| Air Delivery SCFM At 40 PSI | 100 SCFM |
| Air Delivery SCFM At 90 PSI | 75 SCFM |
| Airflow Volume | 70 SCFM @ 100 PSI |
| Air Outlet Size | 3/4 in. |
| Amperage | 330A |
| Compressor Horsepower | 24 HP |
| Compressor Maximum PSI | 145 PSI |
| Compressor Tank Capacity | 3 gal |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 12V |
| Drain System | None |
| Drive Type | Belt Drive |
| Engine Brand | Kohler Command PRO Commercial engine |
| Features | 3 year Warranty on CH730 725cc KOHLER Commercial Command PRO gas Engine, eligible for extended 10 YR or Pump Lifetime warranties |
| Fuel Tank Capacity | 3 gal. |
| Maximum RPM | 3,200 RPM |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Gas |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 31 in. |
| Product Length | 47 in. |
| Product Weight | 396 lb. |
| Product Width | 31 in. |
| Pump Material | Steel |
| Pump Oil Capacity | 2 qt. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year Standard, 3 year on KOHLER gas Engine, eligible for extended 10 YR or Pump Lifetime warranties |
| Manufacturer PartNumber | EGS070PT |
