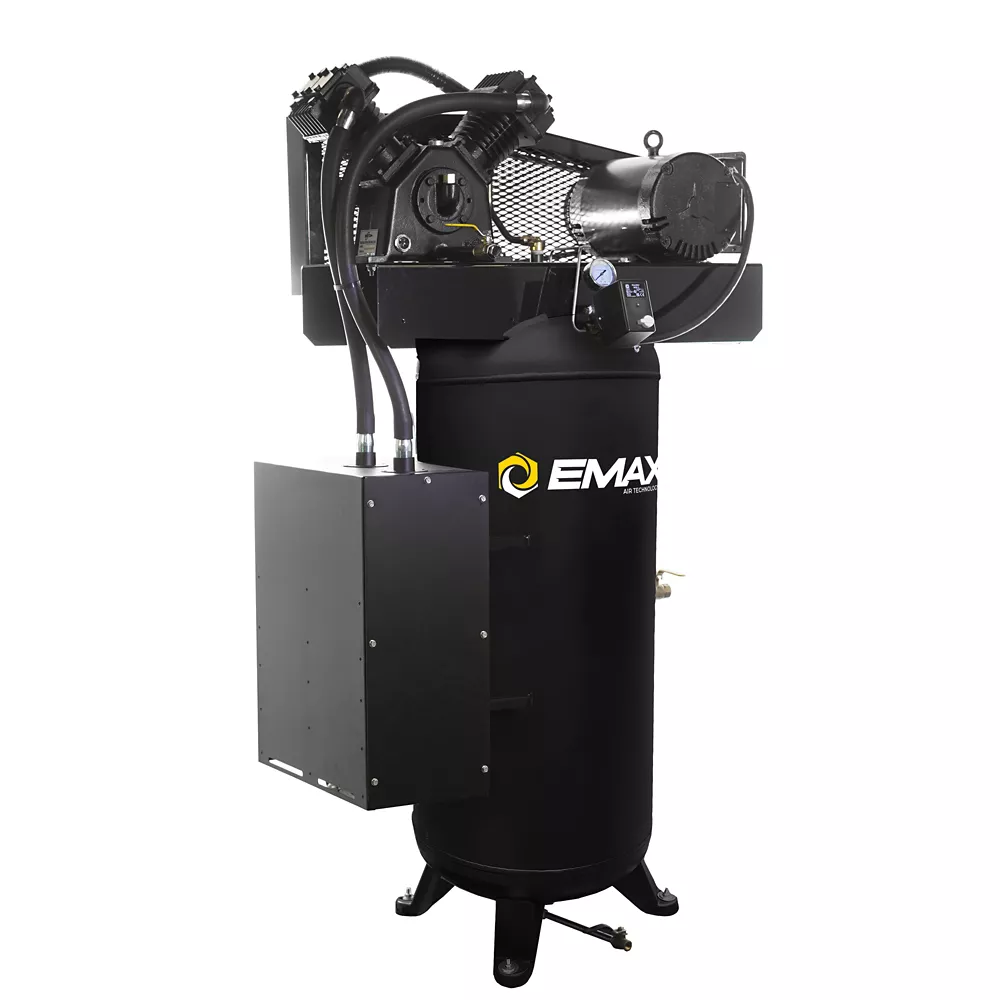

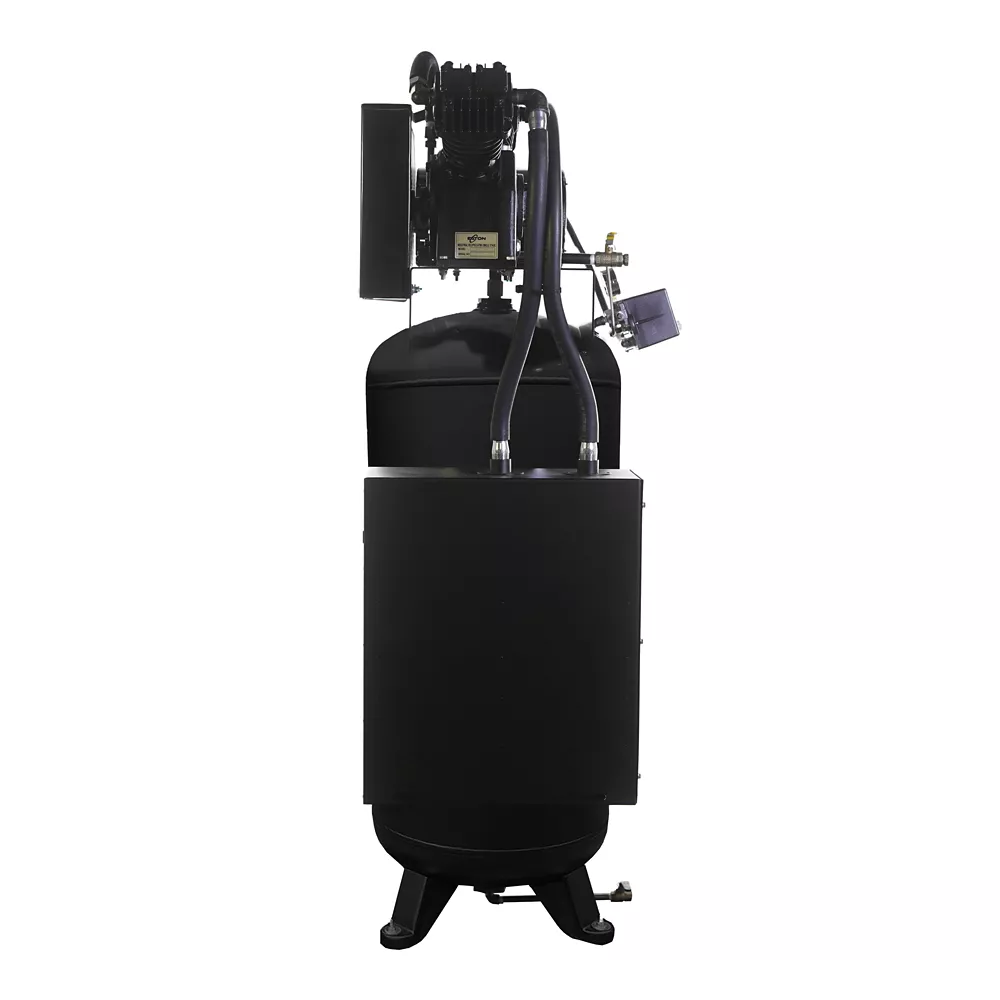

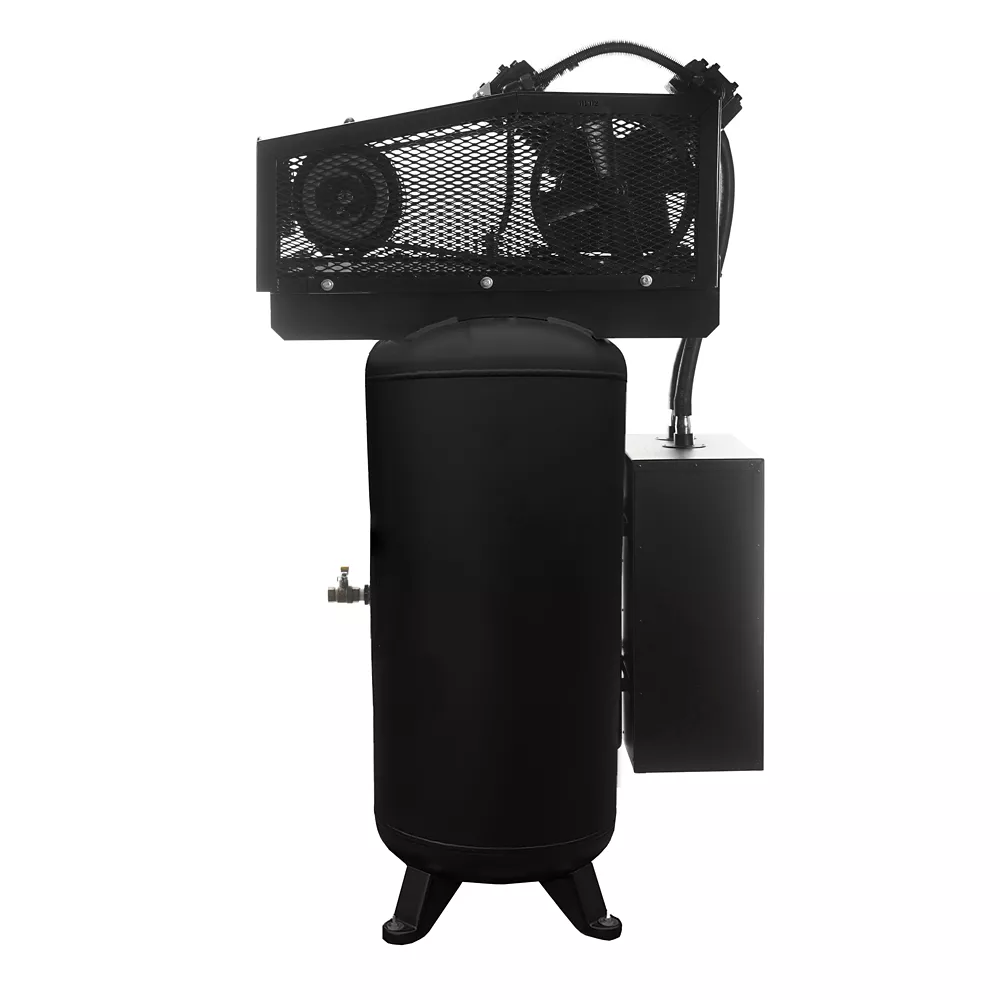

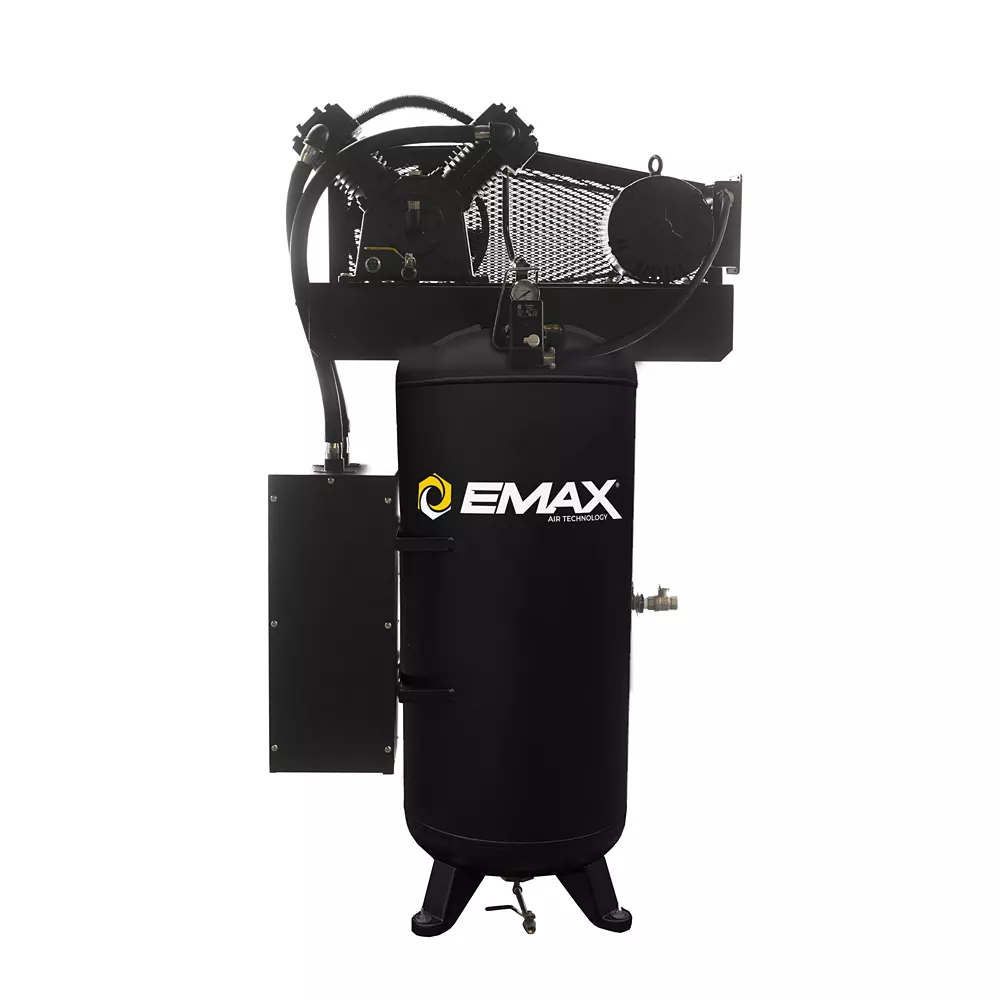

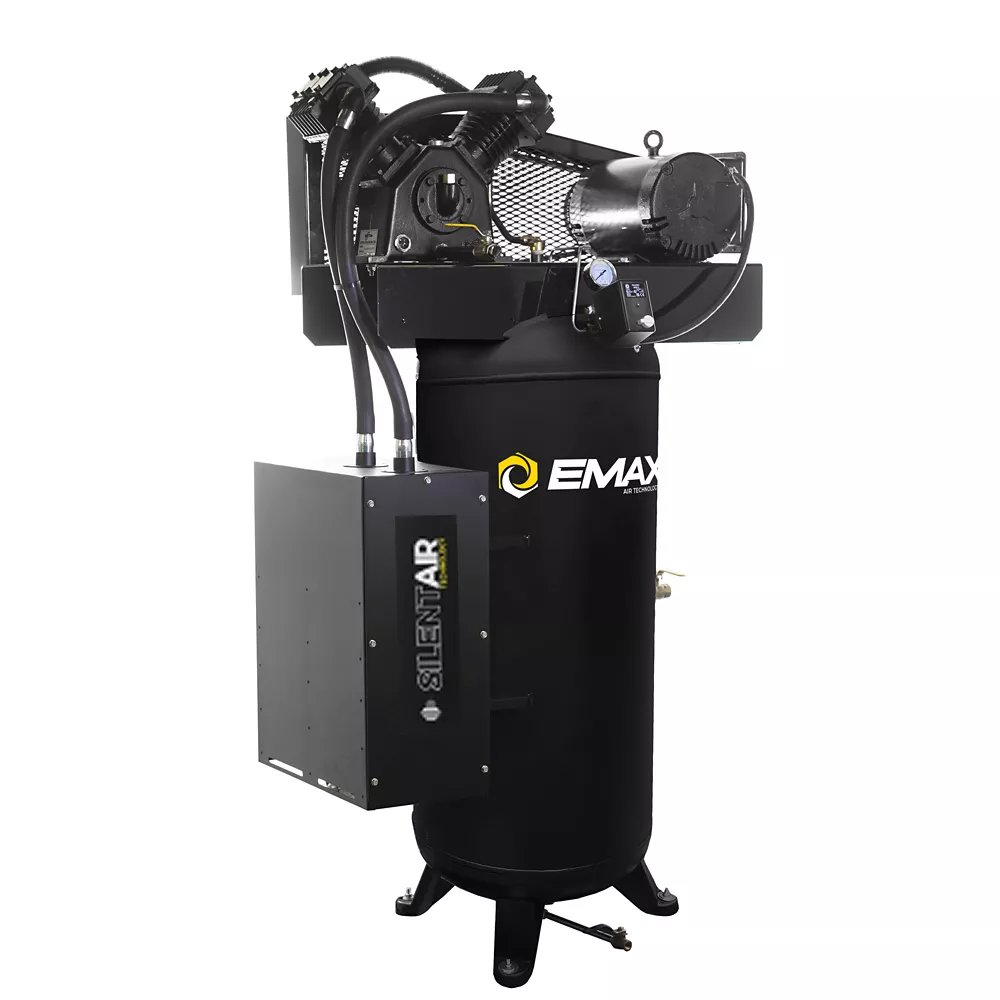

EMAX 5 HP 60 gal Industrial Splash Lubricated Pump 1 Stage 2 Stroke SILENT Air Compressor 150 PSI Single Phase 19 CFM Stationary Air Compressors Air Compressors

The EMAX 250 Silent Air Series 5 HP 60 Gal. 1-stage 2 Cylinder, single phase air compressor is designed for up to 50,000-hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 19 CFM at 100 PSI. This unit features our patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features industrial grade 1.1 Service Factor 1740 RPM electric motor, Condor Pressure Switch, manual drain valve, 60 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.

SILENT air electric compressor
Max PSI: 150
Pump Life: 50,000 hours

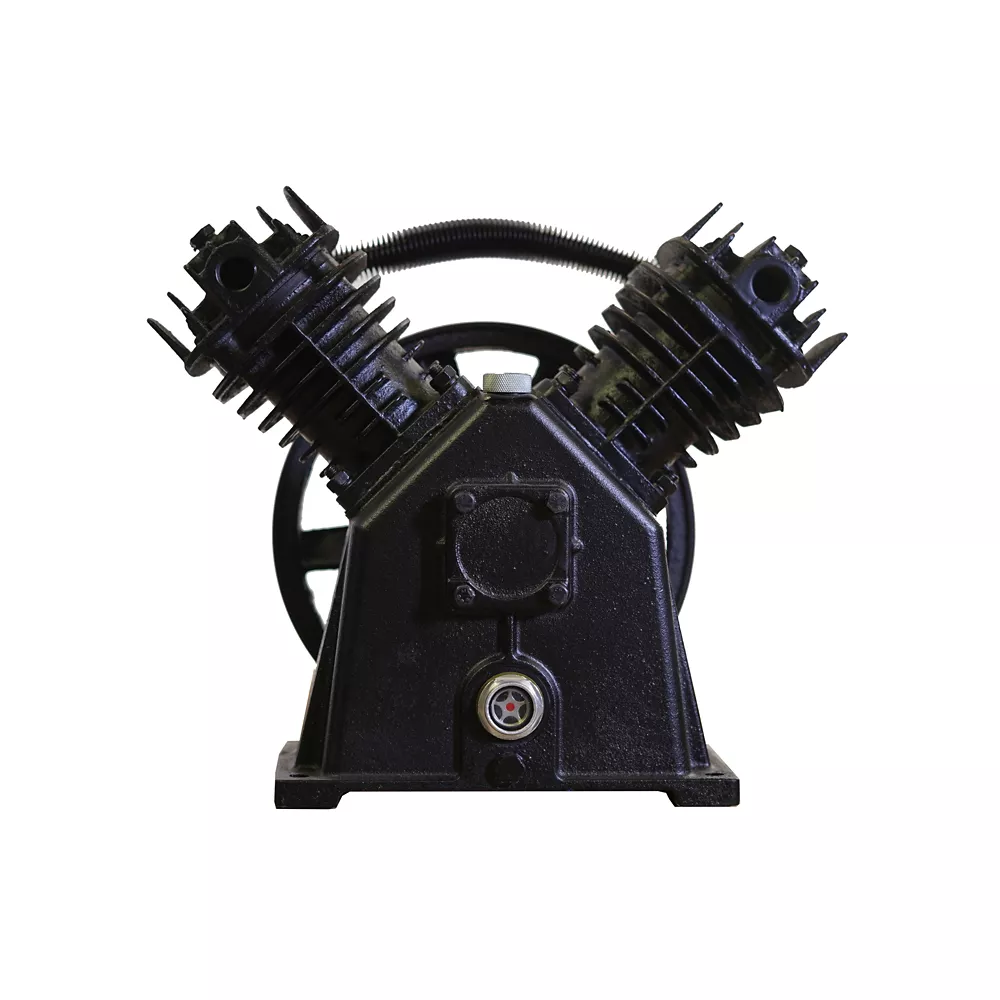

Splash lubricated Solid Cast Iron Pump
Pump Low RPM: 730
230 Volt
Running Amps: 24
Manual Tank Drain
Isolator Pads
1 Year Standard, 5 Year Extended, Lifetime Extended with Maintenance kit
Certifications: ETL & ASME Max 200 PSI Tank - Approved in all 50 states
Product dimensions: 35" x 21" x 69" (LxWxH)
Weight: 491 lbs
Silent air Compressor
19 CFM @ 100 PSI
Pump oil capacity: 1.2 quarts
Tank outlet size: 3/4"
Compressor operation: Automatic start/stop
Compressor Operation: Single Speed

Includes: Silent Air silencer

EMAX 5 HP 60 gal Industrial Splash Lubricated Pump 1 Stage 2 Stroke SILENT Air Compressor 150 PSI Single Phase 19 CFM Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	19 CFM 100 PSI
Airflow Volume	19 CFM
Air Outlet Size	0.75 in.
Amperage	24 Running Amps
Compressor Horsepower	5 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual tank drain
Drive Type	Belt Drive
Engine Brand	Industrial Electric Motor
Features	Silent Air, Splash lubricated, Isolator pads,
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	35 in.
Product Length	21 in.
Product Weight	491 lb.
Product Width	69 in.
Pump Life	50,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	1.2 qt.
Stage Type	Single-Stage
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Lifetime Extended with maintenance kit
Manufacturer PartNumber	ESS05V060V1

EMAX 5 HP 60 gal. 1-Stage Industrial 2-Cylce Splash Lubricated Pump SILENT Air Compressor, 150 PSI, 1-Phase, 19 CFM Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 19 CFM 100 PSI Air Flow Volume 19 CFM Air Outlet Size 0.75 in. Amperage 24 Operating Amps Compressor Horsepower 5 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 60 Gallons Compressor Type Oil Lubricated Compressor Voltage 230 V Connection Type NPT Drain System Manual Tank Drain Drive Type Belt Drive Motor Brand Industrial Electric Motor Features Silent Air, Splash Lubricated, Insulating Pads, Single Phase Number of Power Speeds Single Power Type Electric Primary Color Black Primary Material Steel Product Height 35 in. Product length 21 in. Product weight 491 lbs. Product width 69 in. Pump life 50,000 hours. Pump material Cast iron Pump oil capacity 1.2qt. Stage Type Single Stage Tank Orientation Vertical Warranty 1 Year Standard, 5 Year Extended, Extended Life with Maintenance Kit Manufacturer Part Number ESS05V060V1
