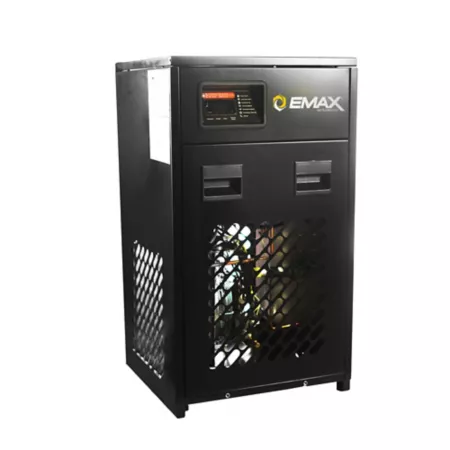

EMAX 58CFM 115V 10Amp 5 Micron Coalescing Filter Electric Industrial Refrigerated Air Dryer - EDRCF1150058 Compressed Air Dryers Compressed Air Dryers
Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Features the stainless steel heat exchanger for maximum dryer life and less maintenance. EMAX Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up. Keep Water, Oil, And Dirt Out of Your Compressed Air. Less corrosion of pipes and tools means less downtime. Avoid splotches & stains on your projects with proper filtration Energy Efficient Aluminum Refrigerated Air Cooling System Designed for maximum performance and efficiency Rust Free, Stainless Steel Heat Exchanger Maximum heat transfer, maximum dryer life & less maintenance Refrigerated Air Inlet Inner Cooler Provides trouble free operation for high temp cooling Environmentally Safe Uses 134A refrigerant to prevent damage to the ozone layer Compact And Efficient Great for a 10HP systems 58 CFM Easy To Install Uses 120V single-phase power, no special wiring needed Added Features Auto Drain System Refrigerant Pressure Gauge Outlet Air Baffle Heater Features and benefits Purifies compressed air by chilling to condense moisture Condensate is drained carrying oil & dirt partials away from the air Auto drain system - eliminates the need for daily maintenance Refrigerant pressure - gauge clearly monitors performance of dew point temp (models under 400 CFM) PLC Display (models 400 CFM & above) Outlet air baffle heater - prevents condensation on outlet air piping Heavy duty steel cabinet Trouble free operation refrigerated air inlet inner cooler for high temp cooling Top mounted condenser & fan motor Environmentally friendly 134A refrigerant Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up. 1 year standard warranty-Extended 3 Year warranty with qualifying annual service kit purchase- 7.5HP-10HP air compressor systems
- Environmentally friendly 134A refrigerant
- 58CFM 60hz 115 Voltage
- Easy To Install- Uses 120V single-phase power, no special wiring needed
- Added features: Auto Drain System, Refrigerant Pressure Gauge, Outlet Air Baffle Heater
- Refrigerant pressure gauge (models under 400 CFM)
- Outlet air baffle heater prevents condensation on outlet air piping
- Heavy duty steel cabinet
- Trouble free operation refrigerated air inlet inner cooler for high temp cooling
- Top mounted condenser & fan motor
- MADE IN GERMANY
- Dimensions: 24 in. x 19 in. x 30 in. (LxWxH)
- Weight:120 lb.
- Trouble free operation refrigerated air inlet inner cooler for high temp cooling
- Filtration: Built in 1 Micron Active Coalescing Filter
- Dryer Drain: Built in automatic; Every 5 Min / 5 Second drain
- Dew Point: 37-50 deg. F
- Maximum ambient temperature: 122 deg. F
- Pre-Filtration: 5 Micron
- Max. working PSI: 230
EMAX 58CFM 115V 10Amp 5 Micron Coalescing Filter Electric Industrial Refrigerated Air Dryer - EDRCF1150058 Compressed Air Dryers Tools> Air Compressors & Air Tools> Compressed Air Dryers
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Imported |
| Air Delivery SCFM At 90 PSI | Maximum 230 PSI |
| Airflow Volume | 58 CFM |
| Air Outlet Size | 58 CFM |
| Amperage | 7.2 Amp |
| Compressor Horsepower | N/A |
| Compressor Maximum PSI | 230 PSI |
| Compressor Type | Vertical |
| Compressor Voltage | 115V |
| Drive Type | N/A |
| Features | Built in 1 Micron active coalescing filter |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 30 in. |
| Product Length | 24 in. |
| Product Weight | 120 lb. |
| Product Width | 19 in. |
| Tank Orientation | Vertical |
| Warranty | 1 year standard warranty-Extended 3 Year warranty with qualifying annual service kit purchase |
| Manufacturer PartNumber | EDRCF1150058 |
