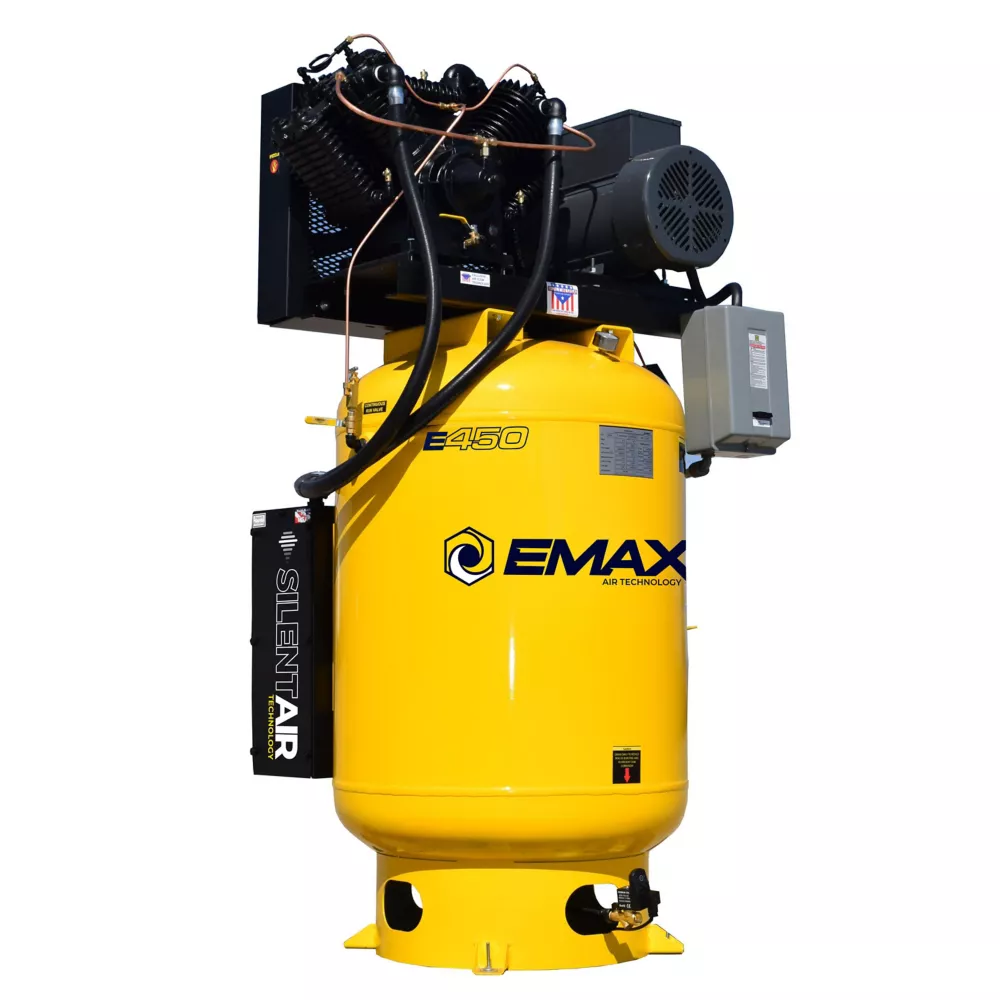

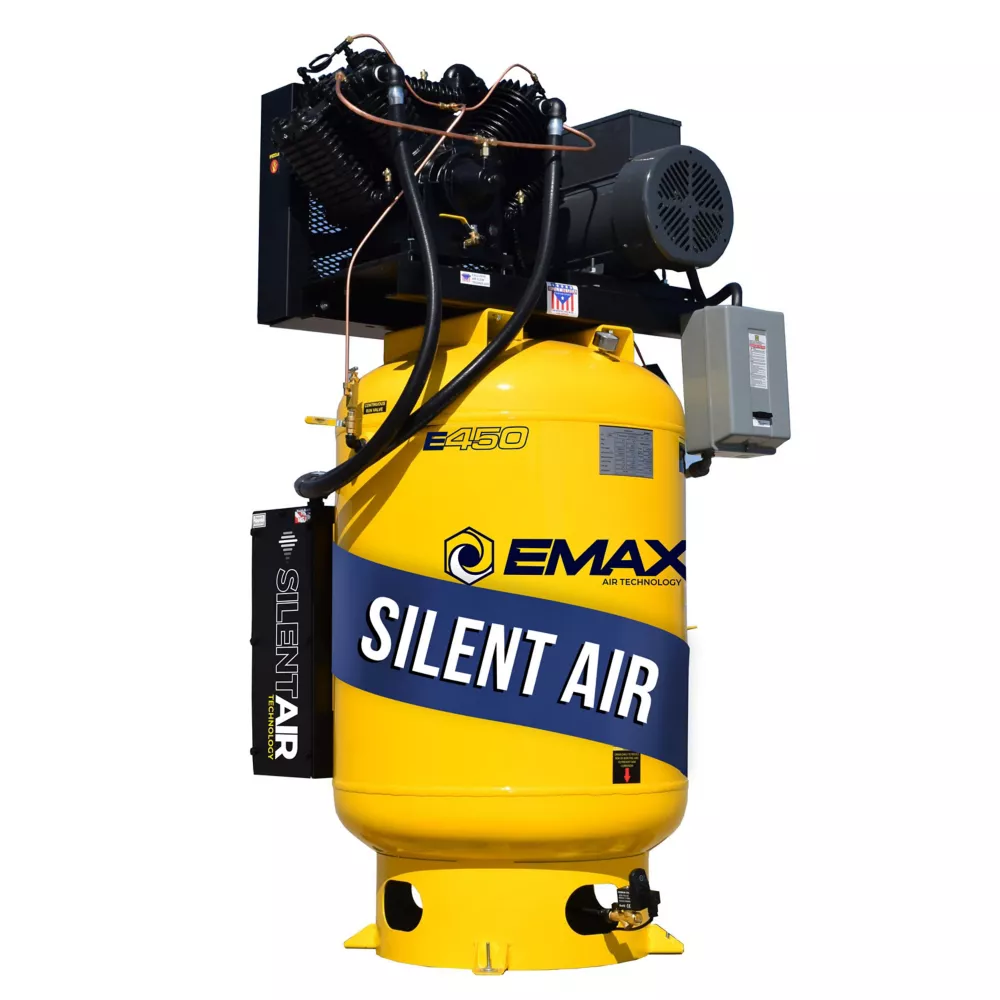

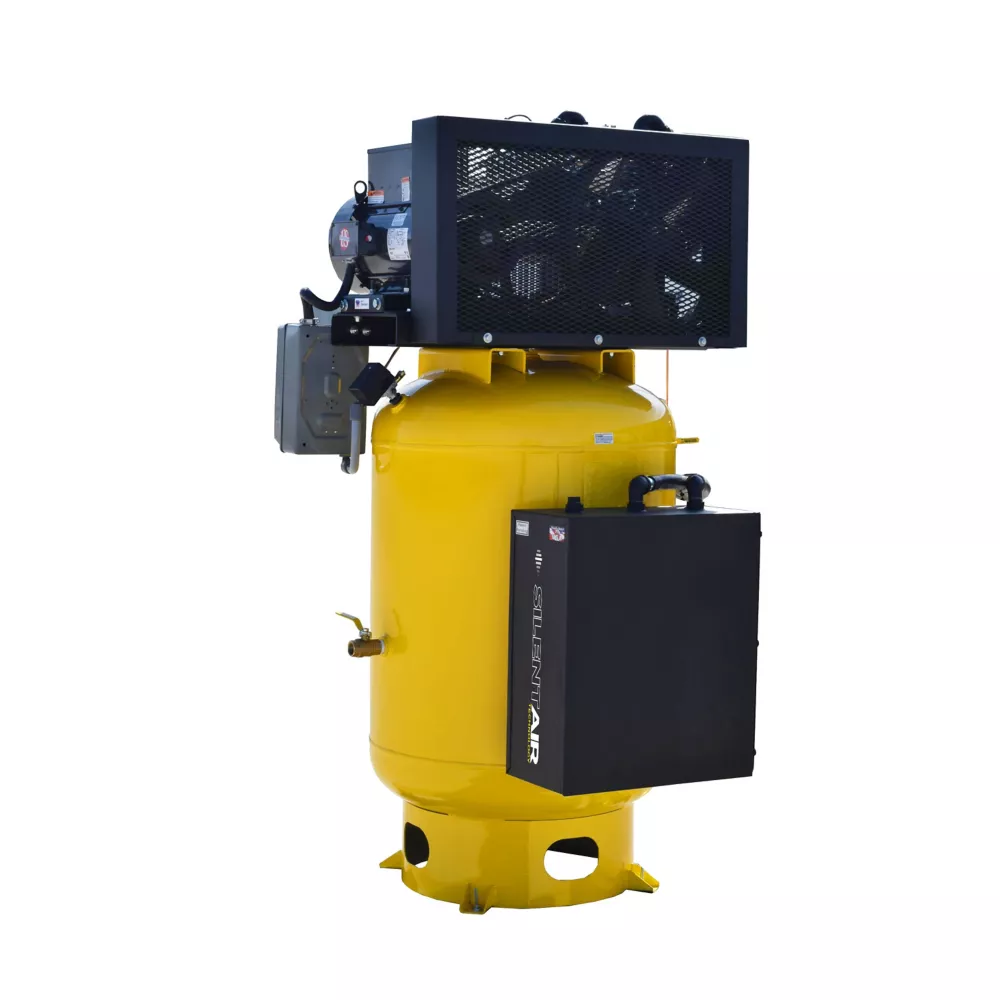

EMAX 7.5 HP 120 gal Industrial V4 Pressure Lubricated 2-Stage 3-Phase Pump 31 CFM at 100 PSI and QUIET Air Compressor Stationary Air Compressors Air Compressors

This EMAX 7.5 HP 120 gal. 2 stage 3 Phase Pressure lubricated pump Plus SILENT Air Compressor is a 2-stage V4 pressure lubricated Solid cast iron pump, 120 Gallon vertical tank, electric piston powered and designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This EMAX SILENT air compressor delivers 31 CFM at 100 PSI, top PSI of 175. Our unit features LOW rpm 1750 industrial electric motors, magnetic starter, automatic tank drain, powder coated ASME tank max 200 PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The patented SILENT air silencer dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It's backed by the best warranty in the industry!

MADE IN USA

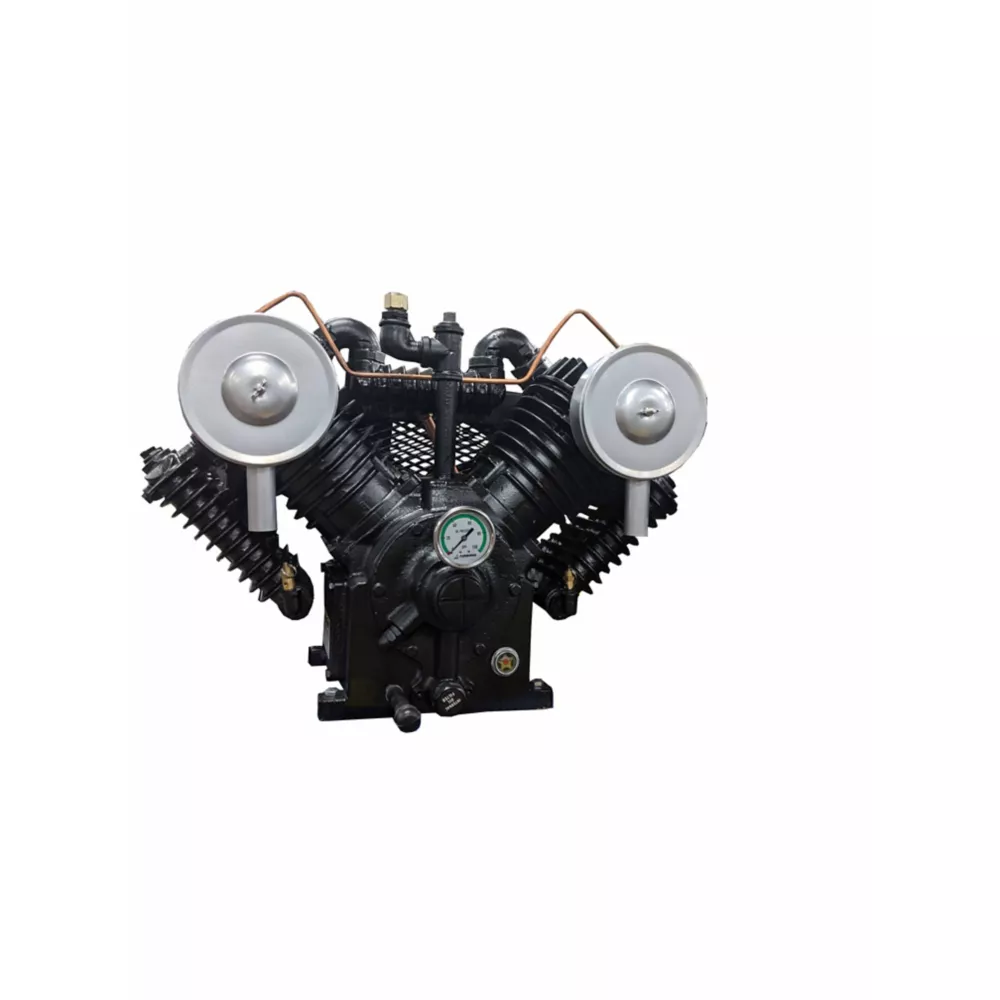

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance

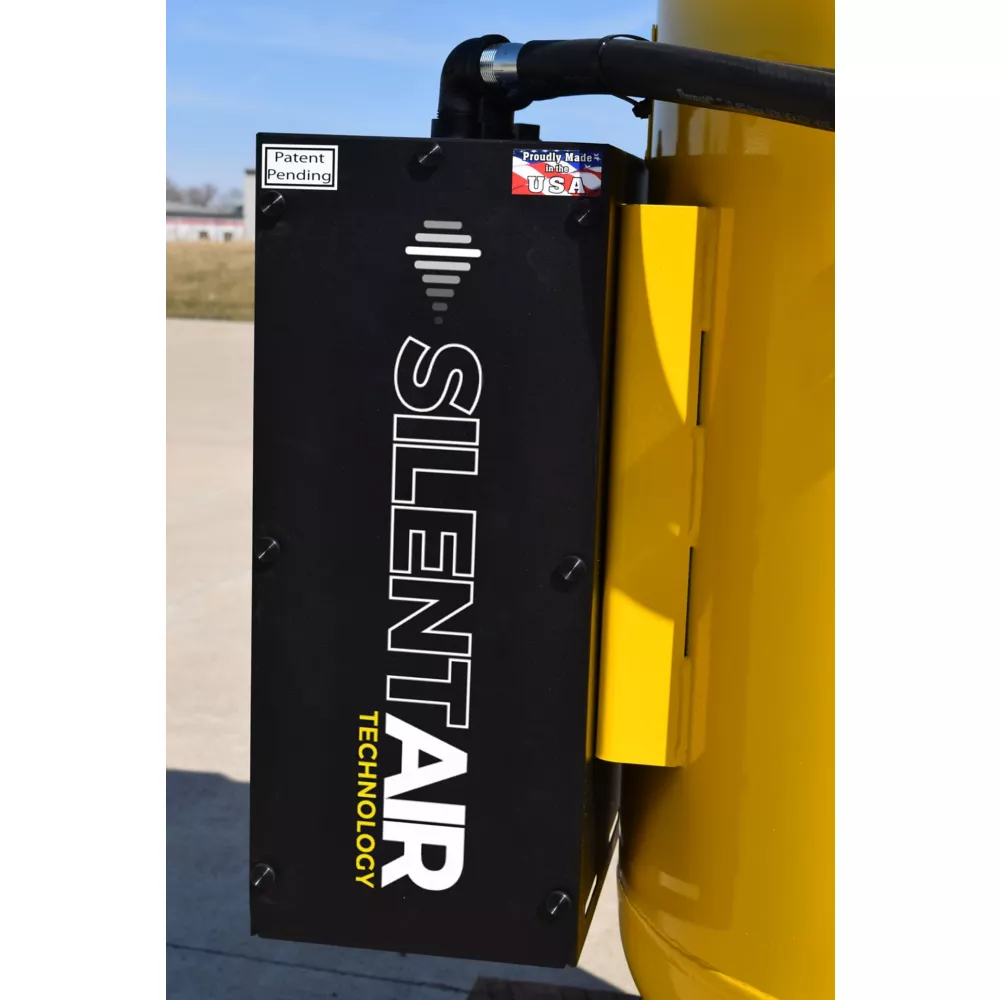

Silent Air Technology helps this air compressor run quietly
Certifications: ETL, UL, CSA, ASME
208/230/460 Volt Option Available
Magnetic starter
Electric: 18 AMP @ 208/230 VOLT - 9 AMP @ 460 VOLT (set up option)
Tank outlet size: 1 inch
1 Year Standard, 5 Year Extended, Lifetime Extended Pump eligible with maintenance kit
Industrial low rpm Motor & Pump
Warranty: 1 Year Standard, 5 Year Extended, Lifetime Extended Pump eligible with maintenance kit

Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented Silent Air System noise suppression system

EMAX 7.5 HP 120 gal Industrial V4 Pressure Lubricated 2-Stage 3-Phase Pump 31 CFM at 100 PSI and QUIET Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

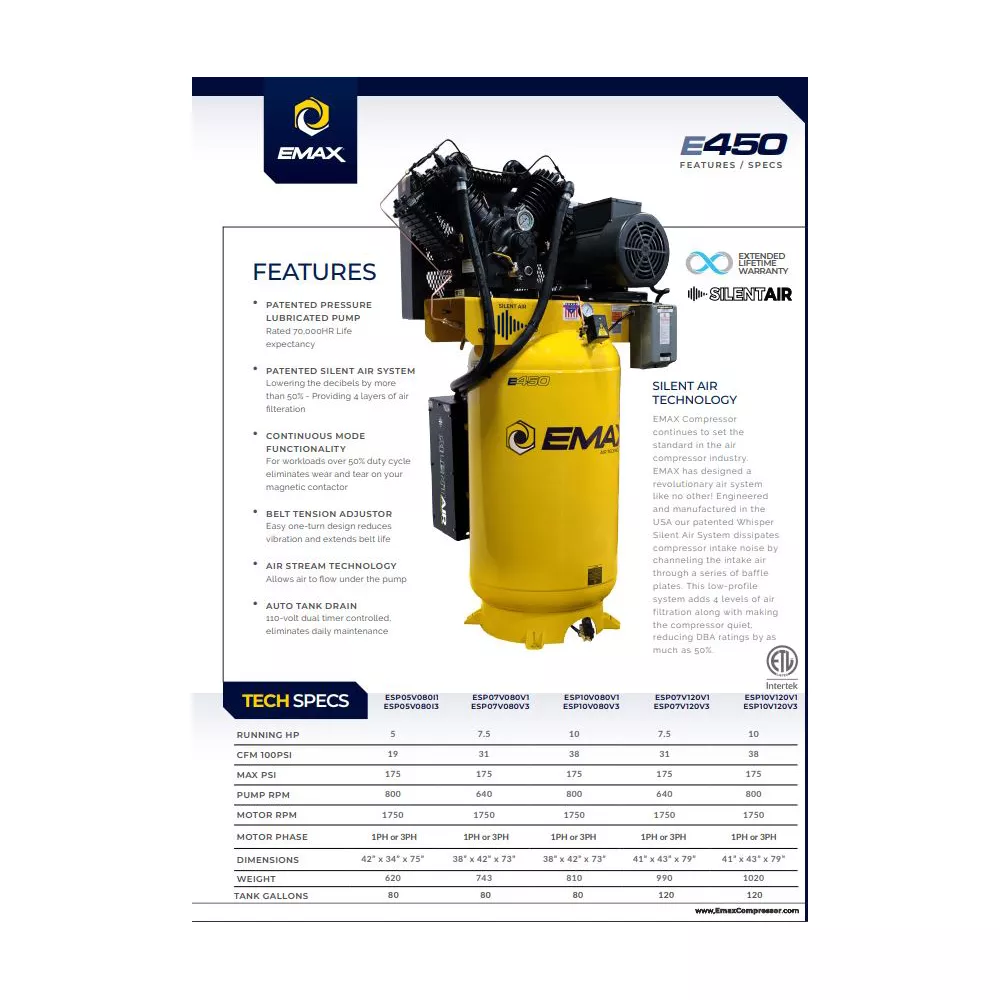

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	31 CFM 100 PSI
Airflow Volume	31 CFM
Air Outlet Size	1 in.
Amperage	18 Amp 208,230 V - 9 Amp 460 VOLT optional
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	120 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V/460V
Connection Type	NPT
Drain System	Electric Auto tank drain
Drive Type	Electric Motor belt drive
Features	Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented SILENT Air System noise suppression system
Fuel Tank Capacity	N/A
Maximum RPM	640 Pump RPM
Phase	Triple
Nozzle Fitting Size	Tank outlet size 1 in.
Number Of Power Speeds	Variable
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	78 in.
Product Length	41 in.
Product Weight	1020 lb.
Product Width	43 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt.
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes
Tank Orientation	Vertical
Warranty	1 Year Standard Warranty, 5 Year Extended, Eligible Extended Lifetime Pump Warranty with maintenance kit
Manufacturer PartNumber	ESP07V120V3

EMAX 7.5 HP 120 gal. 2-Stage 3 Phase Industrial V4 Pressure lubricated Pump 31 CFM @ 100PSI Plus SILENT Air Compressor Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 31 CFM 100 PSI Air Flow Volume 31 CFM Air Outlet Size 1 in. Amperage 18 A 208 230 V - 9 A 460 VOLT optional Compressor Power 7.5 HP Compressor Maximum PSI 175 PSI Compressor Operation Dual Control Compressor Tank Capacity 120 gal Compressor Type Vertical Compressor Voltage 208 V/230 V/ 460V Connection Type NPT Drain System Electric Auto Tank Drain Drive Type Electric Motor Belt Drive Features Belt Tension Adjuster, Auto Tank Drain, Air Flow Technology, Continuous Operation Kit, Motor industrial grade, patented noise suppression SILENT Air System Fuel Tank Capacity N/A Maximum RPM 640 Pump RPM Phase Triple Nozzle Connection Size Tank Outlet Sizerview 1 in. Number of Power Speeds Variable Number of Wheels 0 Power Type Electric Primary Color Yellow Primary Material Steel Product Height 78 in. Product length 41 in. Product weight 1020 lbs. Product width 43 in. Pump Life 70,000 hours Pump Material Cast Iron Pump Oil Capacity 2.5 qt. Stage Type Two-Stage Tank Fill Time 4.5 minutes Tank Orientation Vertical Warranty 1 year standard warranty, 5 years extended warranty and eligible for extended pump life with maintenance kit Part number manufacturer ESP07V120V3
