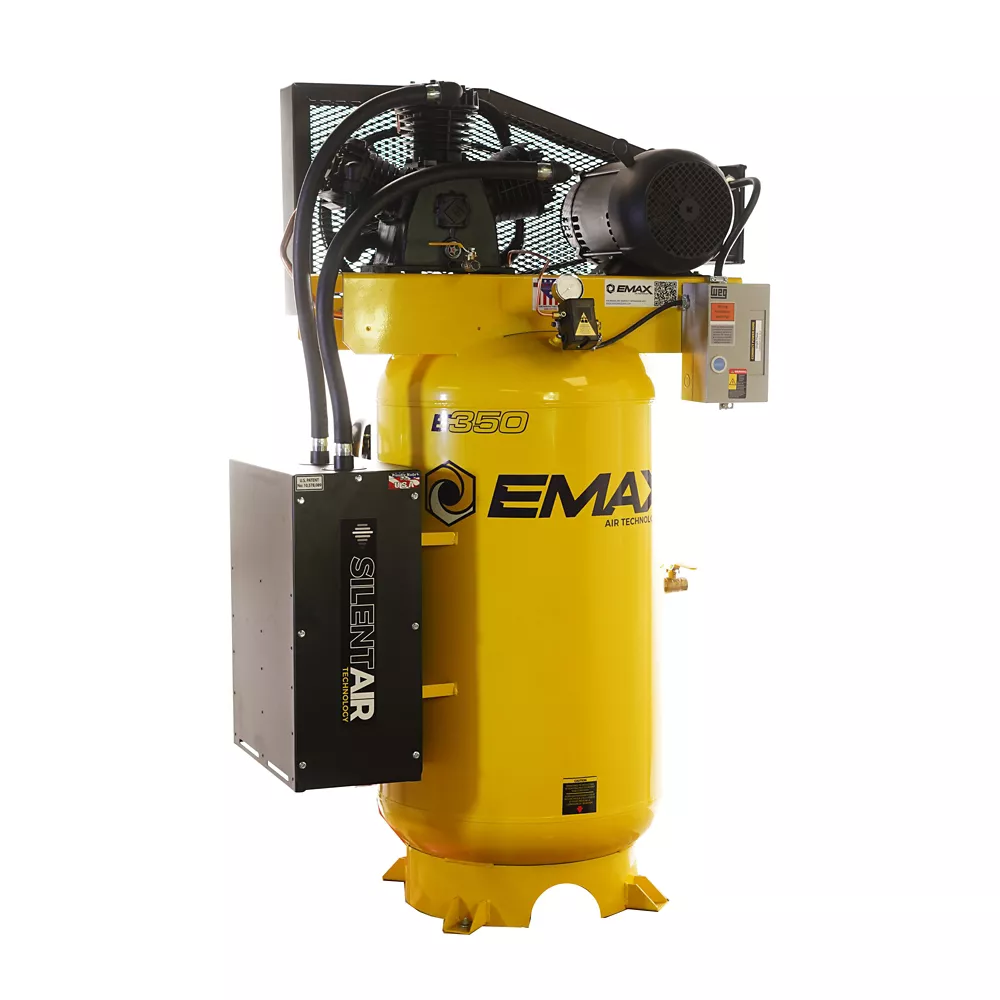

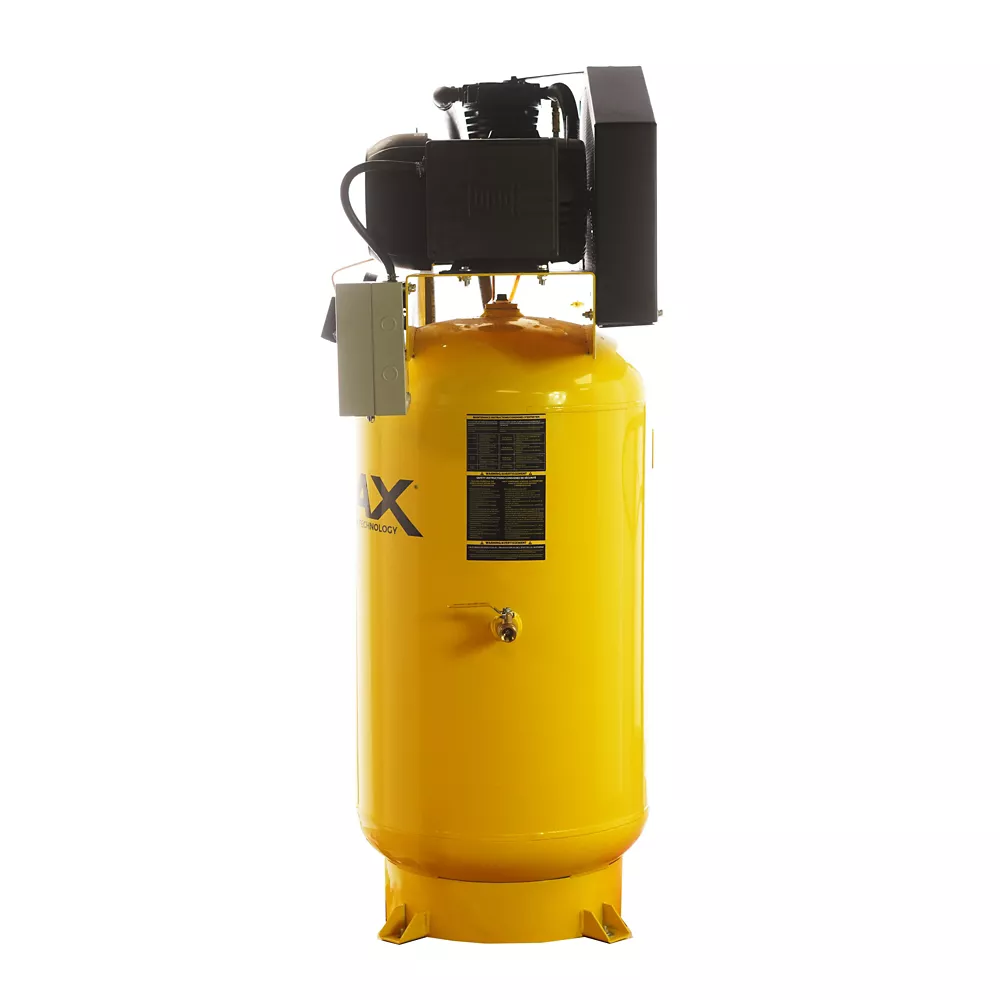

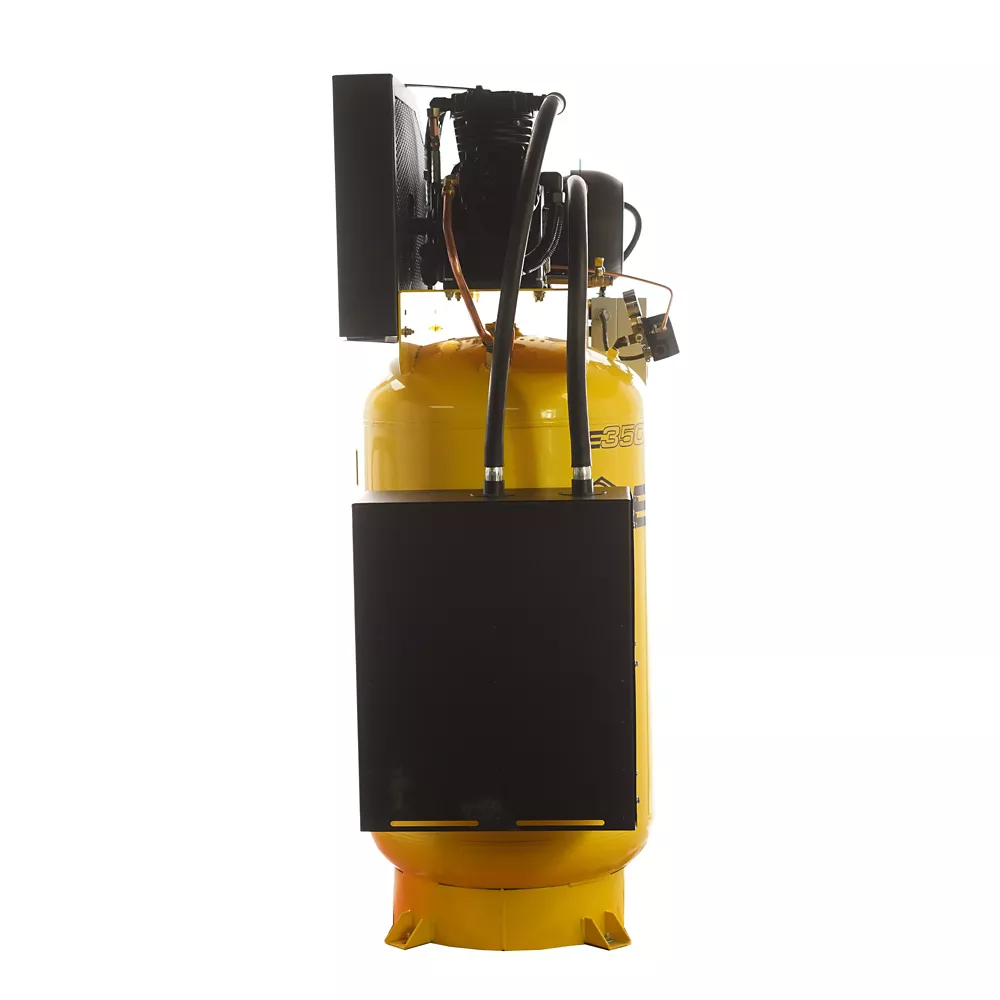

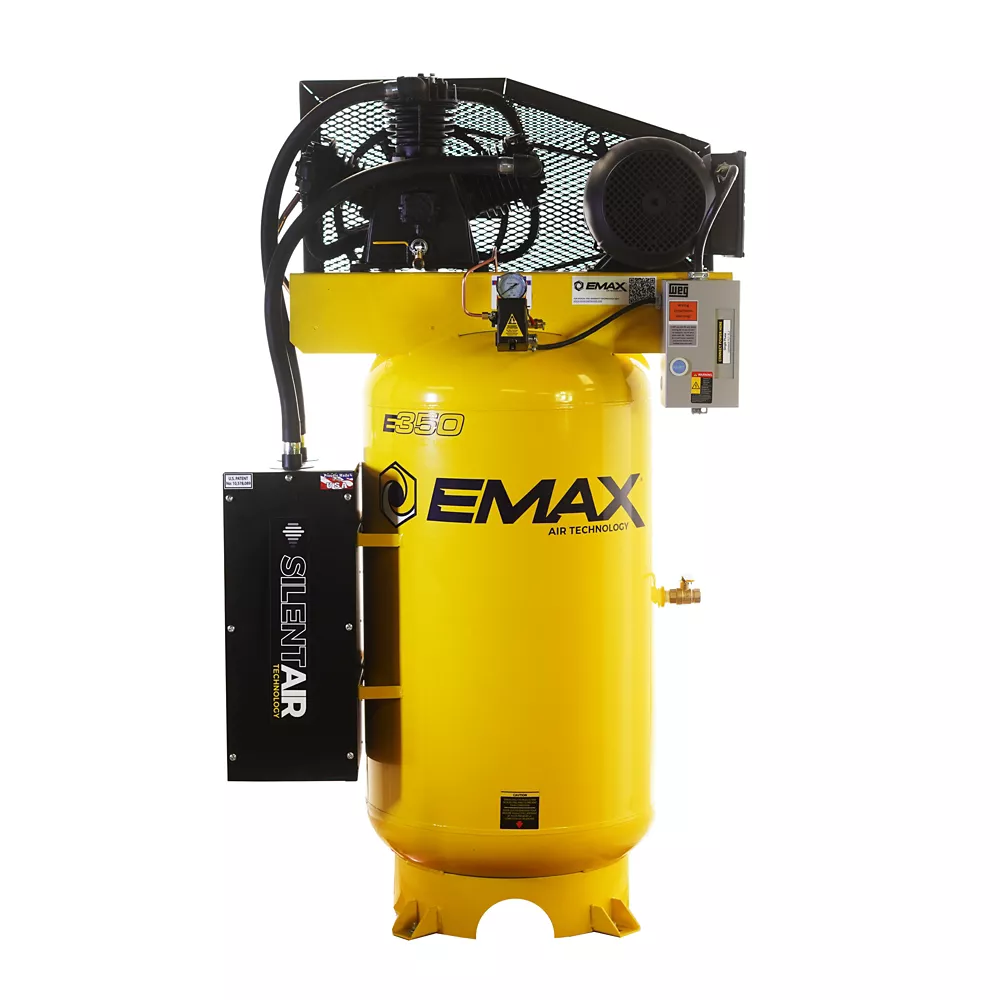

EMAX 7.5 HP 80 gal Industrial Splash Lubricated Pump 2 Stage 3 Cycle SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Air Compressors

The EMAX 250 Silent Air Series 7.5 HP 80 Gal. 2-stage 3 Cylinder, single phase air compressor is designed for up to 50,000-hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 26 CFM at 100 PSI. This unit features our patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features industrial grade 1750 RPM electric motor, magnetic starter, manual drain valve, 80 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.

SOLID Cast iron Splash lubricated 3 cylinder Pump
26 CFM @ 100 PSI
Max PSI: 175
Pump Low RPM: 640
230 volt - Single Phase Electric Powered
Running Amps: 32 A
Manual Tank Drain
Includes: Isolator Pads
1 Year Standard, 5 Year Extended, Lifetime Extended Eligible with Purchase of Maintenance kit
Certifications: ETL / ASME Tank Approved for ALL 50 states
Tank Maximum PSI: 200
Dimensions: 41"x 24.5" x 70" (LxWxH)
Product weight: 901 lbs

Eligible for LIFETIME PUMP WARRANTY with maintenance kit, 1 Year Standard, 5 Year Extended

EMAX 7.5 HP 80 gal Industrial Splash Lubricated Pump 2 Stage 3 Cycle SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	26 CFM
Airflow Volume	26 CFM
Air Outlet Size	0.75 in.
Amperage	32 Amps
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual tank drain
Drive Type	Belt Drive
Engine Brand	Industrial Motor
Features	Silent air Splash lubricated, SOLID cast iron pump
Maximum RPM	640 rpm
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	70 in.
Product Length	41 in.
Product Weight	901 lb.
Product Width	24.5 in.
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt.
Stage Type	Two-Stage
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Lifetime Extended with Maintenance kit
Manufacturer PartNumber	ESS07V080Y1

EMAX 7.5 HP 80 gal. 2-Stage Industrial 3-Cylce Splash Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 26 CFM Air Flow Volume 26 CFM Air Outlet Size 0.75 in. Amperage 32 A Compressor Power 7.5 HP Compressor Maximum PSI 175 PSI Compressor Operation Auto Start/Stop Compressor Tank Capacity 80 gal Compressor Type Oil Lubricated Compressor Voltage 230 V Connection Type NPT Drain System Drain Tank Manual Drive Type Belt Drive Motor Brand Industrial Motor Features Quiet Air Splash Lubricated SOLID Cast Iron Pump Maximum RPM 640 RPM Phase Single Number of Power Speeds Single Power Type Electric Primary Color Yellow Primary Material Steel Height of product 70 in. Product length 41 in. Product weight 901 lbs. Product width 24.5 in. Pump material Cast iron Pump oil capacity2.5qt. Stage Type Two-Stage Tank Orientation Vertical Warranty 1 Year Standard, 5 Year Extended, Extended Life with Maintenance Kit Manufacturer Part Number ESS07V080Y1
