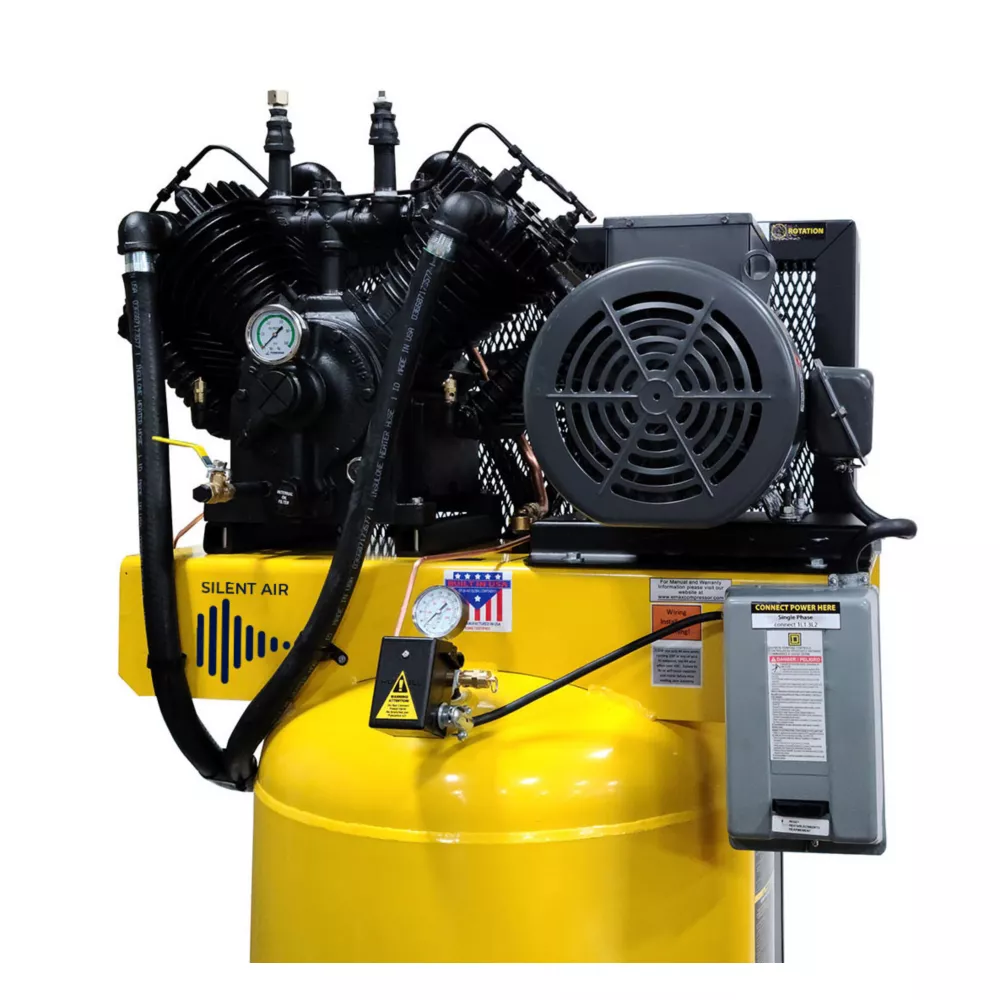

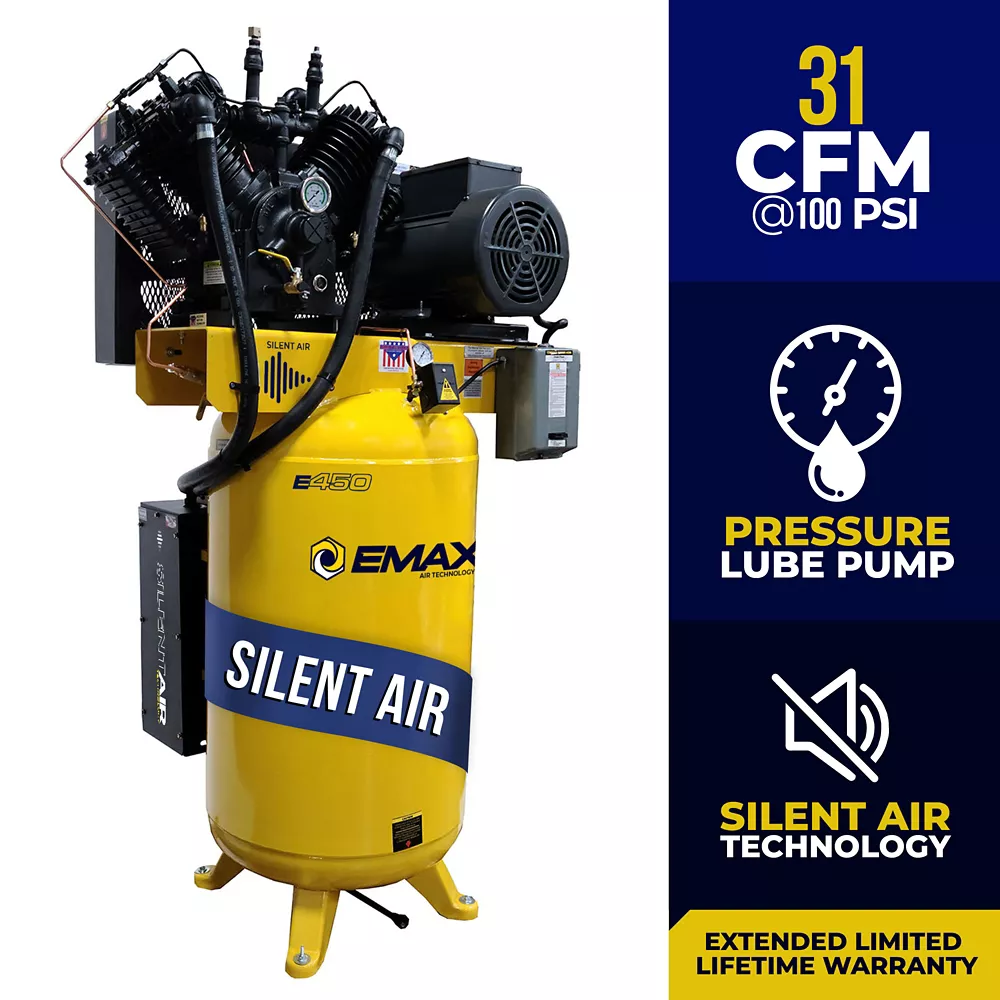

EMAX 7.5 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump and SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Air Compressors

This EMAX 7.5 HP 80 gal. Single Phase Plus Silent Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This air compressor delivers 31SCFM at 100PSI, with Max 175PSI. Our silent air PLUS compressor features an industrial electric motor, magnetic starter, automatic tank drain, powder coated ASME tank with a 200 PSI rating, along with our continuous run functionality. All of this is paired with an all cast iron 70,000 hour rated patented pressure lubricated reciprocating pump. This air compressor features our patented SILENT AIR silencer system, already installed. This system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds four levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the best warranty in the industry!

MADE IN USA
Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours

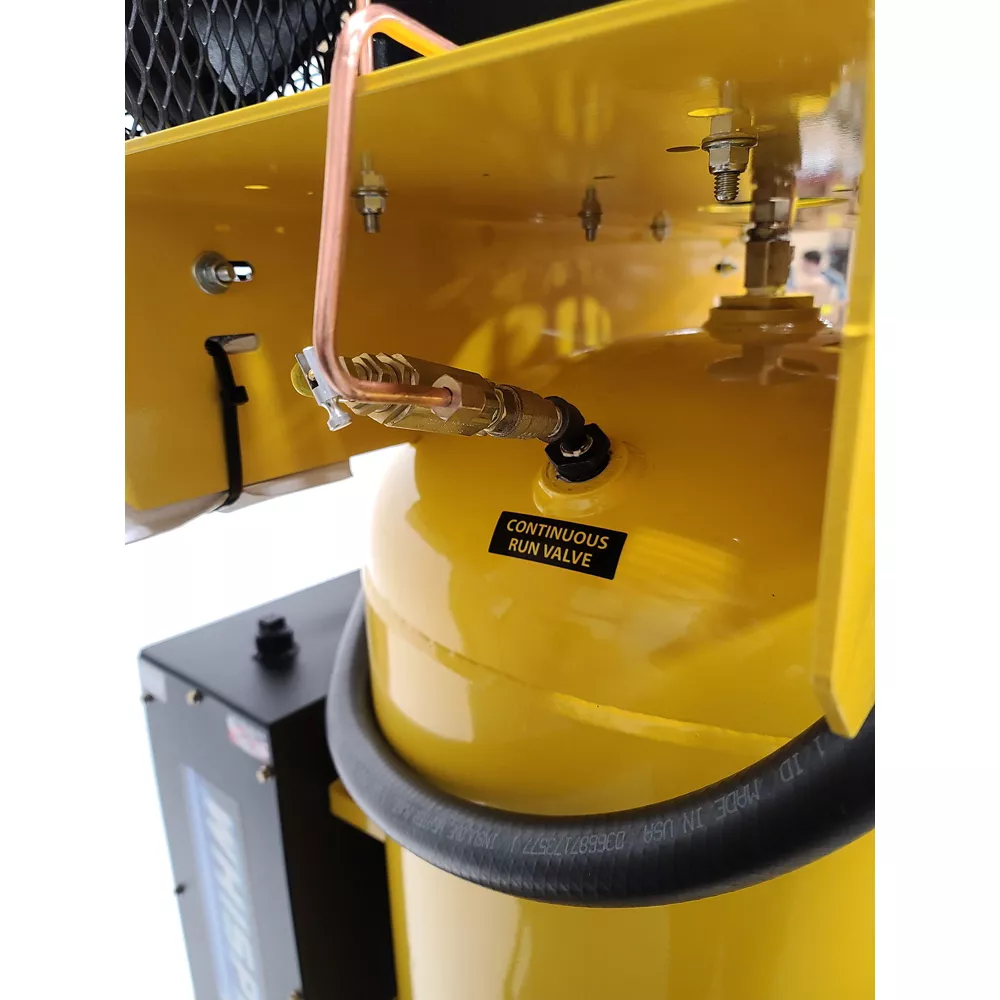

Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

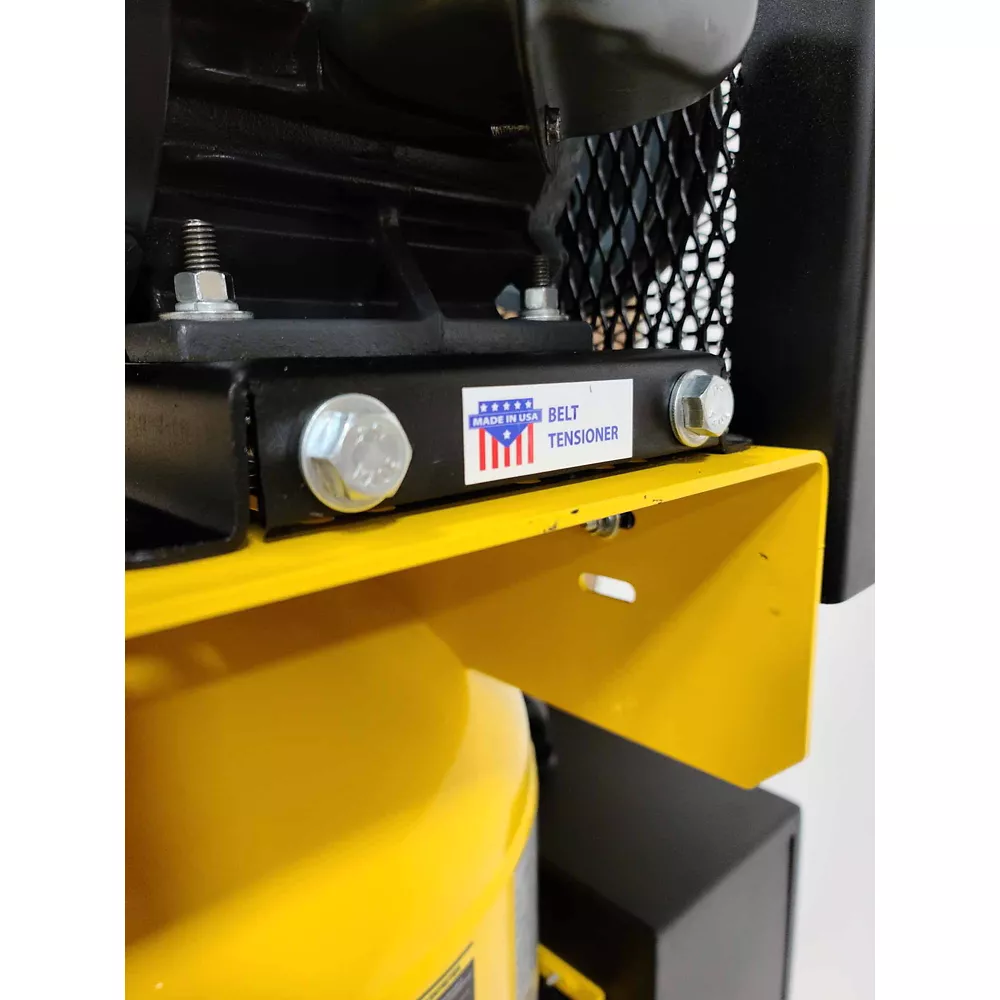

Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

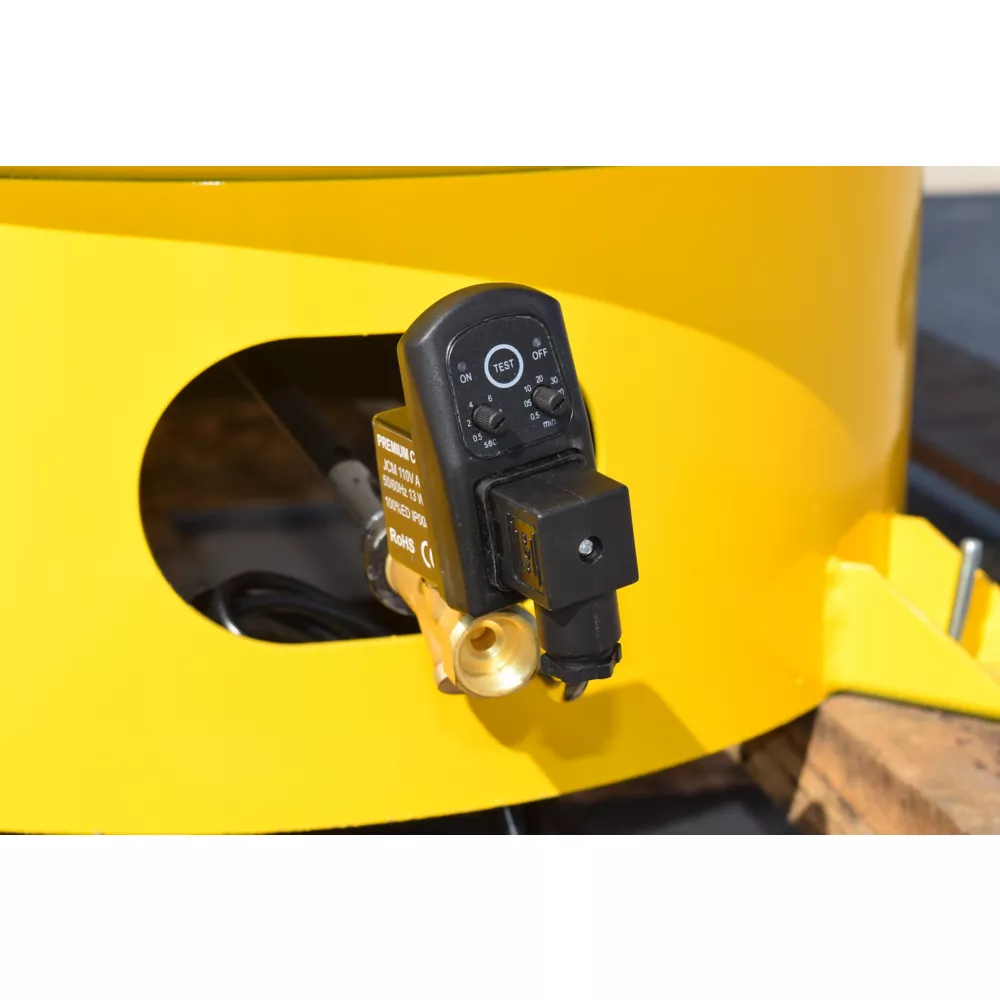

Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
Certified:ASME, CSA, UL, ETL
Silent air silencer system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation
All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
Re-usable oil filter
Removable 100% cast iron cylinders do not warp from heat
All cast iron cylinder heads are durable and dependable
Disc valve design intake and exhaust valves can be serviced in minutes
Top quality compression and oil rings ensure performance with low oil carry over
Precision ground pistons are machined to tight tolerances that ensure low oil carry over
Premium non-absorbent gaskets prevent oil seepage from the pump
All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the motor
Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
Built-in inter-cooler and after-coolers

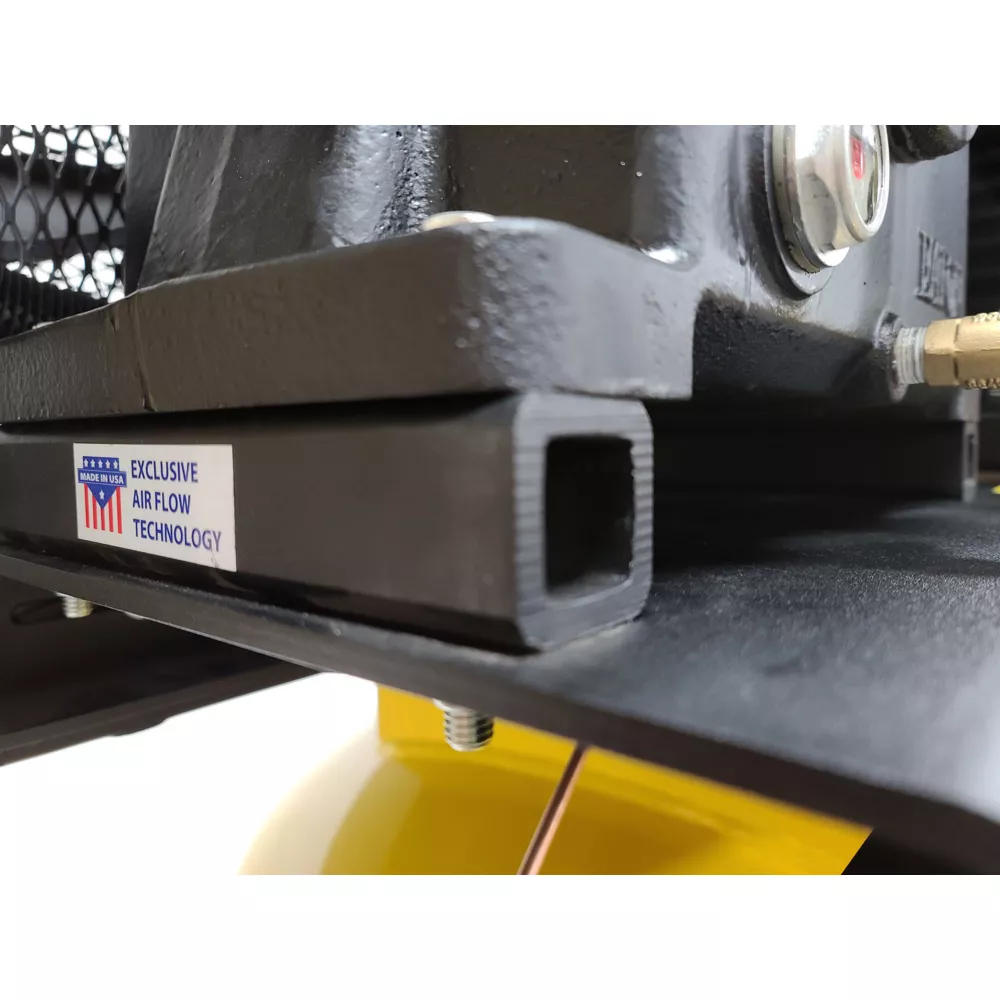

Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
Large 1-3/8 in. output shaft on the motor
Large starting and running capacitors
Motor can be pulled 15% over full load for more break horsepower
Dynamically balanced armature for low vibration levels

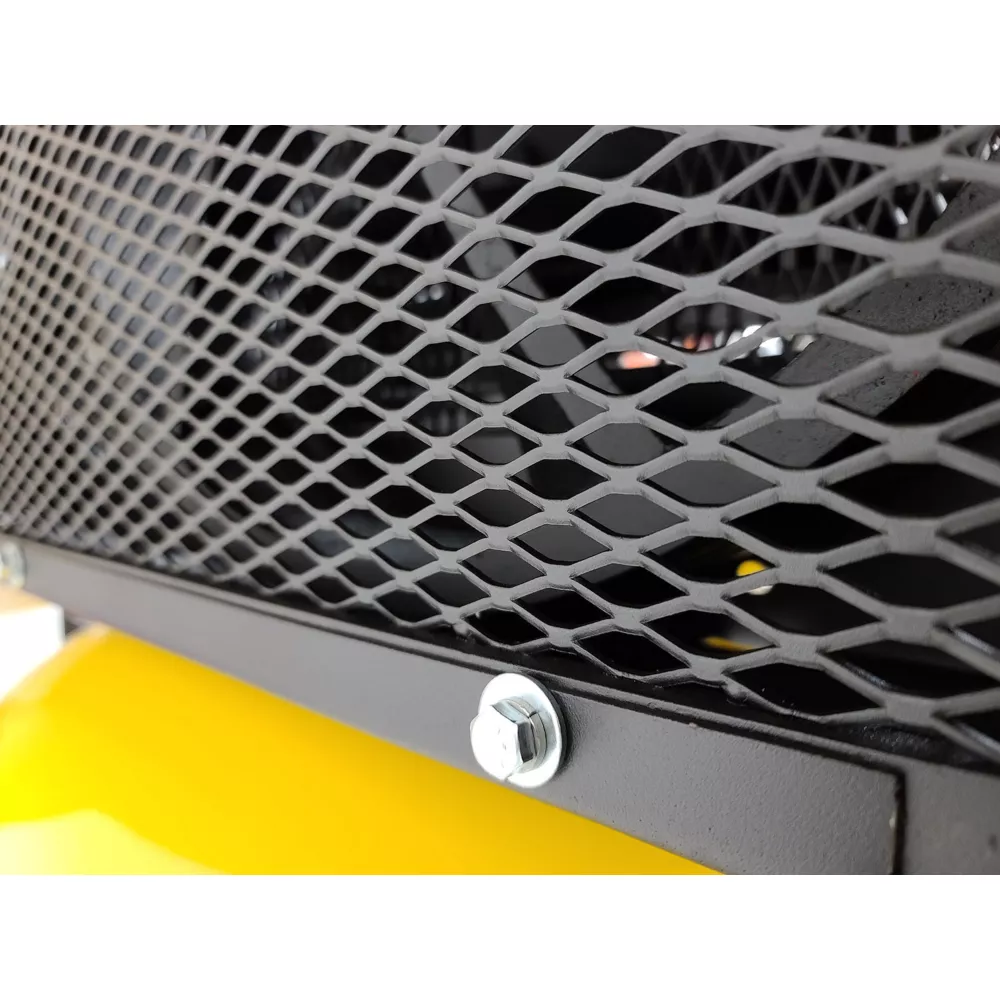

Belt guard is made from 13-ga. steel and premium grade expanded metal
Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
100% brass ASME safety valves are preset and sealed for correct settings
Running amps:32
Pump Oil Capacity:2.5 quarts
Tank outlet size:3/4 in.
Oil level site glass
Name Brand Industrial Motor RPM:1750
Electric motor meets ALL UL and CSA requirements

Eligible LIFETIME PumpWARRANTY with maintenance kit, 1Yr Standard, 5Yr Extended

EMAX 7.5 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump and SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	35 SCFN
Air Delivery SCFM At 90 PSI	32 SCFM
Airflow Volume	31 CFM
Air Outlet Size	3/4 in.
Amperage	32A
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	230V
Connection Type	NPT
Drain System	Electric Autodrain
Drive Type	Electric Motor
Engine Brand	N/A
Features	Magnetic starter, Solid Cast Iron pressure lubricated, Low RPM Pump, Industrial grade low RPM electric motor, 2 stage single phase, ASME, ETL, CSA, UL certified
Fuel Tank Capacity	N/A
Maximum RPM	640 RPM
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 ft.
Product Length	38 ft.
Product Weight	810 lb.
Product Width	42 ft.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4 minutes
Tank Orientation	Vertical
Warranty	1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty eligible with maintenance kit
Manufacturer PartNumber	ESP07V080V1
