EMAX 7.5 HP 80 gal V4 2-Stage Lubricated Industrial Pump Quiet Air Compressor and Dryer 30CFM 115V 175 PSI Stationary Air Compressors Air Compressors

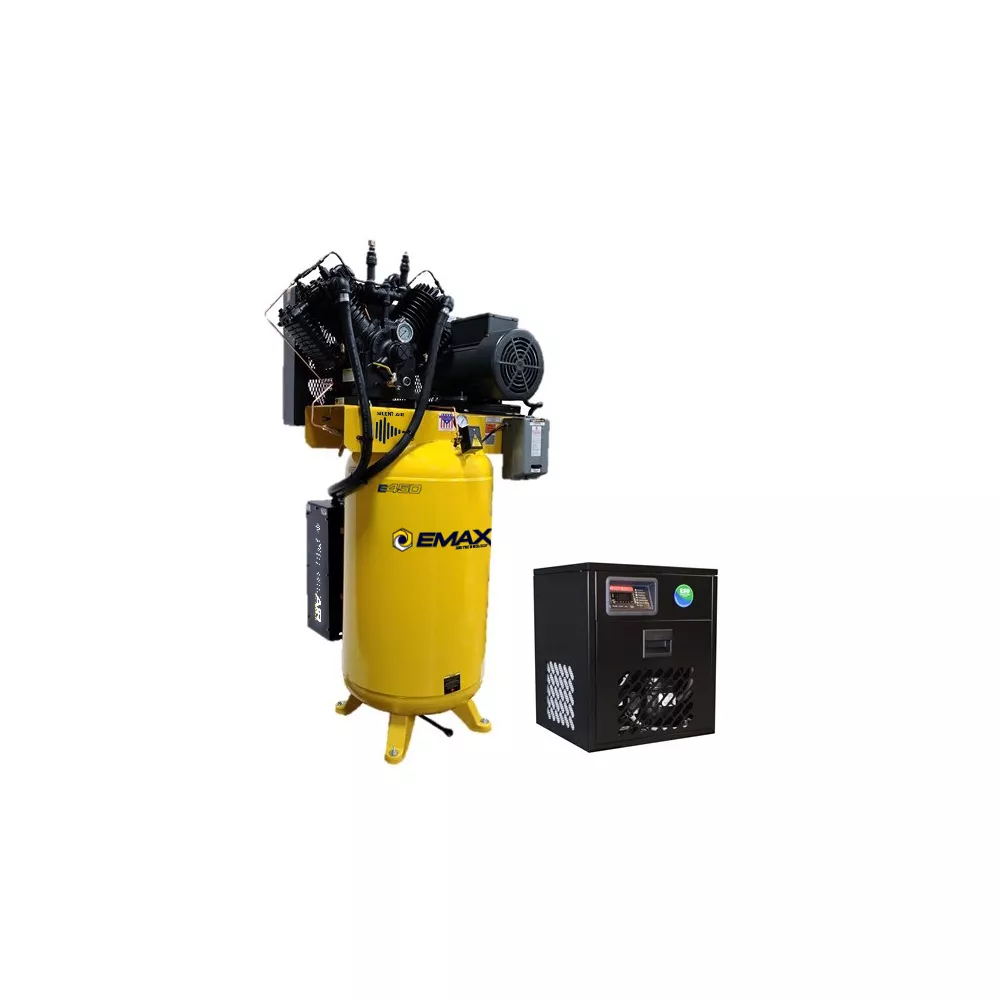

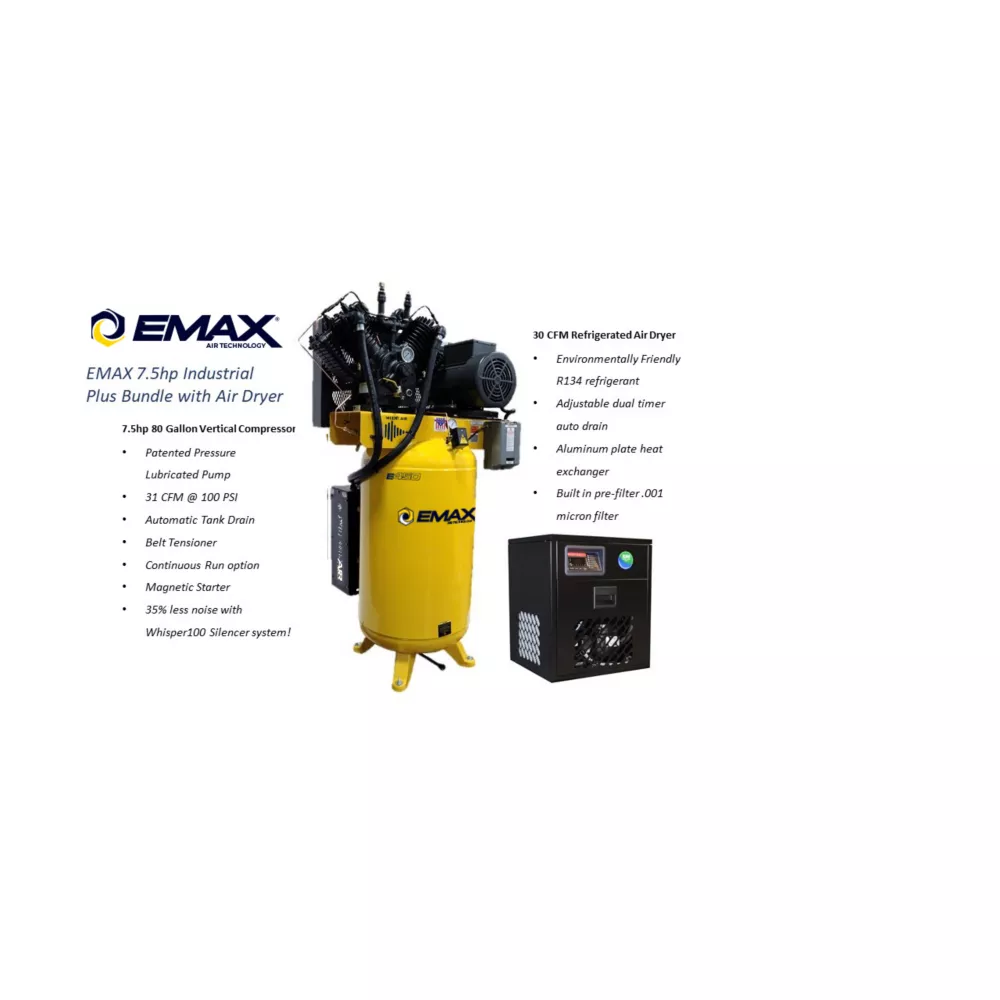

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 1Phase vertical 80 gal. SILENT air Piston Air Compressor with 30CFM 115 volt dryer is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starter, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our patented Silent Air SILENCER system is already installed. Silent Air dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry!

MADE IN USA
30CFM energy efficient refrigerated air dryer
Air Dryer filters air solid particles down to 0.01 microns
Air compressor 31CFM @100PSI
Maximum PSI: 175

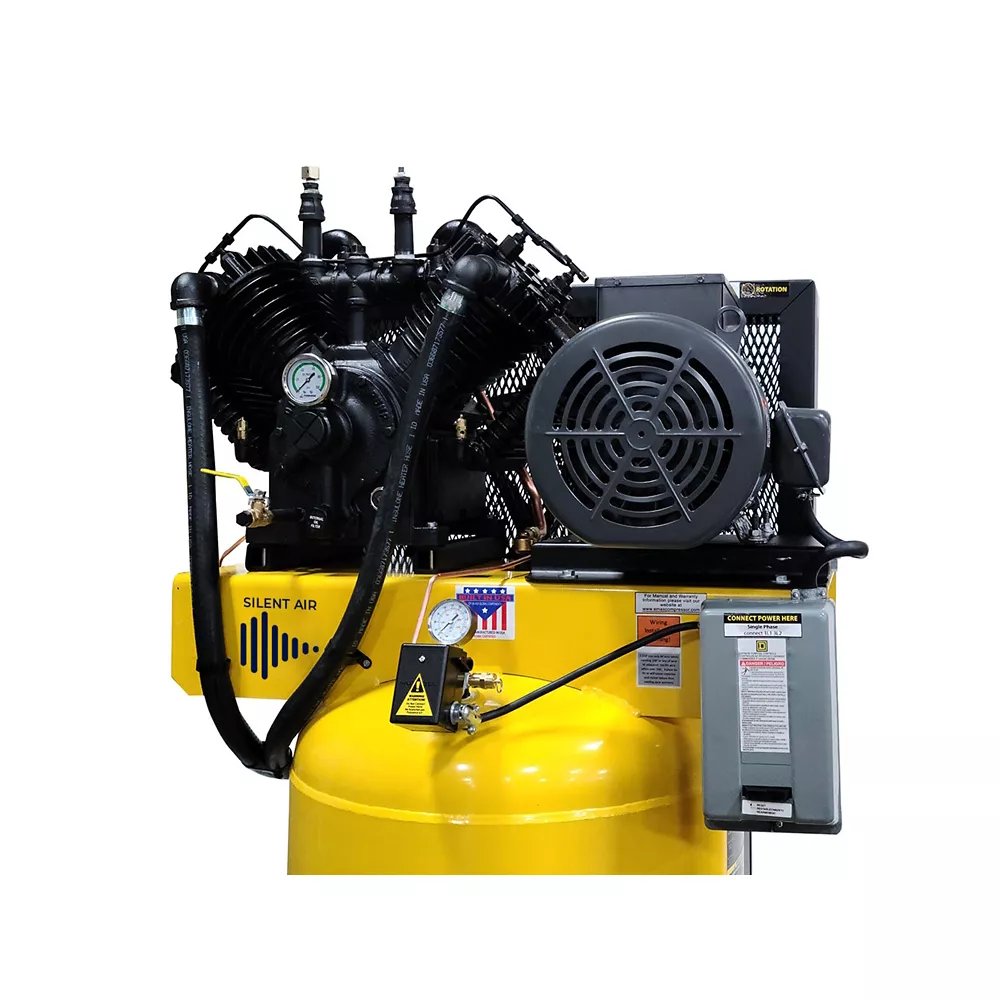

AIRBASE Pressure lubricated SOLID cast iron Pump: Model APP4V1043TP
Patented Pressure lubricated Solid Cast iron Pump RPM: 640
Pump Oil Capacity: 2.5 qt.
Single Phase 208/230 volt
Running AMP: 32 AMP
Tank Outlet Size: 3/4 in.

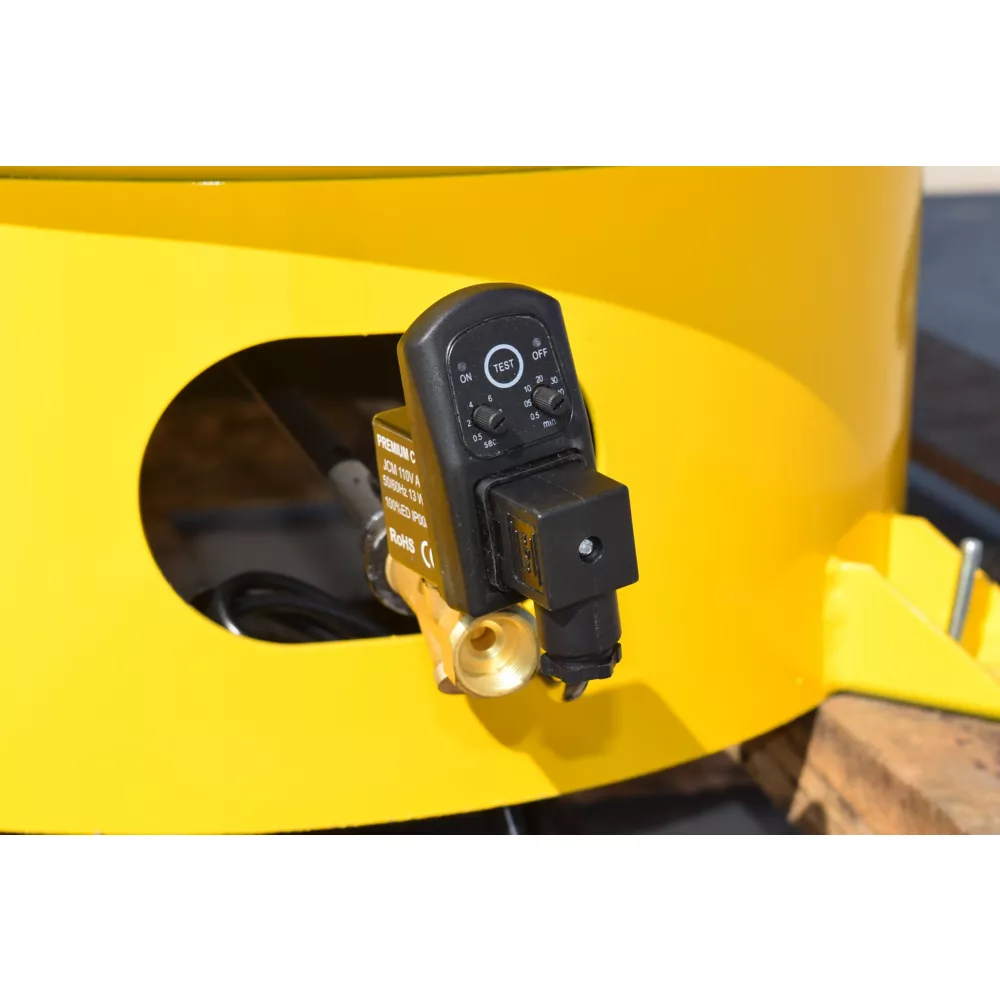

Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
80 gal. vertical, ASME Certified UV, rust resistant, Powder coated, Max 200PSI Air Tank Approved for ALL 50 states
Air stream Technology
Heavy duty Industrial 1750 RPM (not 3450 RPM) Name Brand Motor UL & CSA
1 Year Standard, 5 Year Extended, eligible for Lifetime Warranty
Certifications: ETL, UL,CSA, ASME
Air compressor Dimensions: 28 x 42 x 72 in. (LxWxH)
Product weight: 701 lb.
Patented SILENT AIR silencer system
Dual control design pump allows for automatic or continuous run rated at up to 70,000 hours

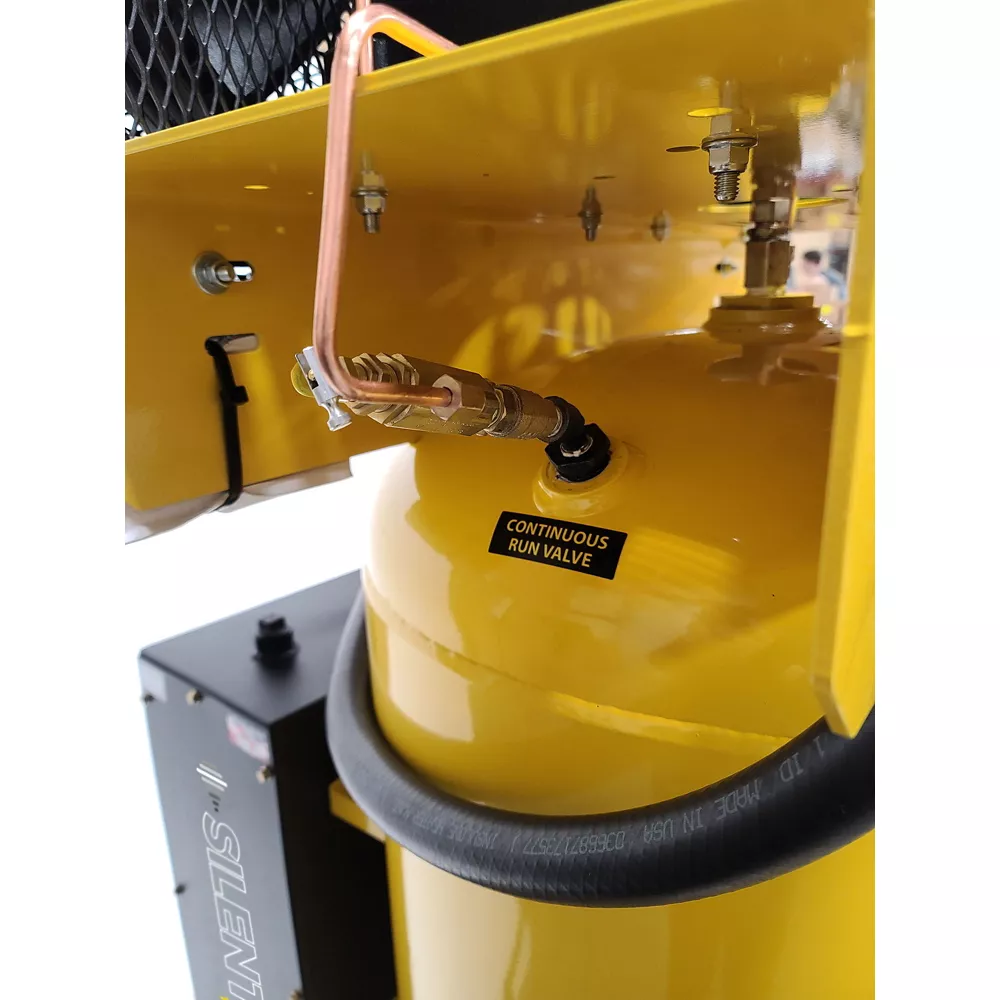

Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Built in Inner-cooler and After cooler
Gate valve oil drain provides quick, clean oil changes
Pump oil level site glass

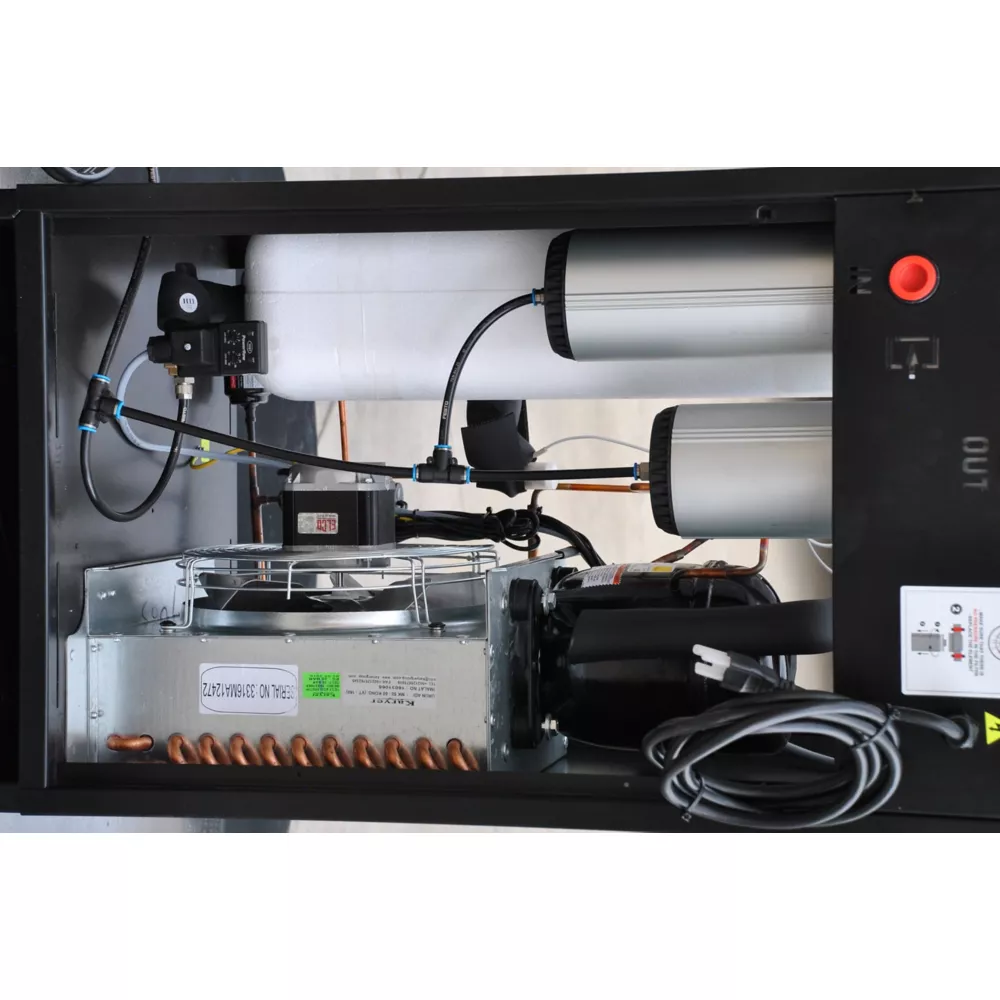

EMAX Refrigerated air dryer. Model #EDRCF1150030
Dryer: Keeps Water, Oil, And Dirt Out of Your Compressed Air
Dryer: Less corrosion of pipes and tools means less downtime
Dryer: Avoid splotches & stains on your projects with proper filtration
Dryer: Energy Efficient Aluminum Refrigerated Air Cooling System

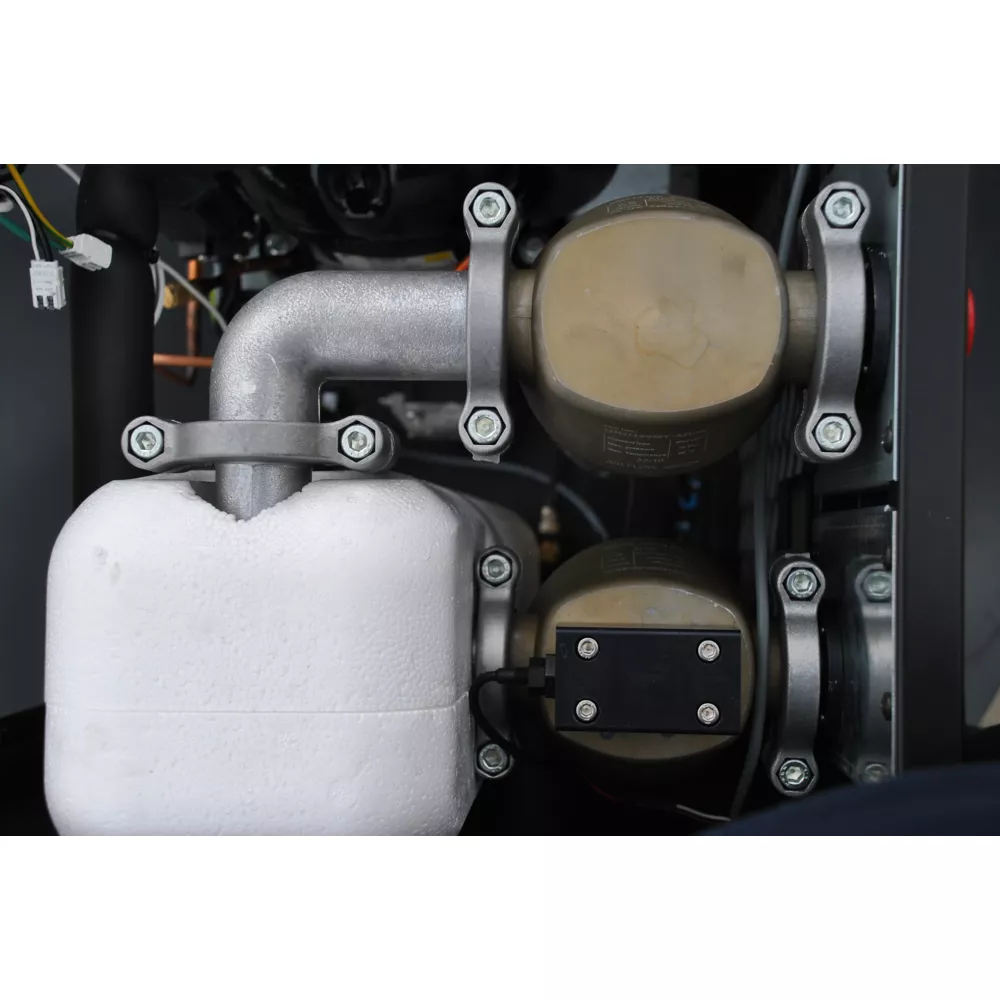

Dryer: Rust Free, Stainless Steel Heat Exchanger
Dryer: Maximum heat transfer, maximum dryer life & less maintenance
Dryer: Refrigerated Air Inlet Inner Cooler
Dryer: Provides trouble free operation for high temp cooling
Dryer: Environmentally safe 134A refrigerant to prevent damage to the ozone layer
Dryer dims: 16 x 18 x 24 in. (LxWxH), 110lbs
Includes: Auto drain, Built in Coalescing Filter
Dryer:1 Yr Standard, 3 Yr extended
Dryer Dew point: 37-50 degrees
Dryer pipe size: 1/2" NPT
Dryer Max rated inlet temp: 140 degrees
Dryer Max Ambient temp: 122 degrees
Dryer full load amps: 3.92 Amps
Dryer Amp draw: 6 amps
Dryer: 1 phase, 60Hz, 115V, 30CFM, .01 microns
Dryer: Refrigerant amount=11 oz.

Warranty-1yr standard, 3yr extended, 5yr Extended, Eligible Lifetime Pump with maintenance kit

EMAX 7.5 HP 80 gal V4 2-Stage Lubricated Industrial Pump Quiet Air Compressor and Dryer 30CFM 115V 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	31CFM 100PSI
Airflow Volume	30 CFM
Air Outlet Size	3/4 in.
Amperage	32 running amps
Compressor Horsepower	7 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	208V/230V
Connection Type	NPT
Decibel Rating	35% quieter
Drain System	Auto Tank drain
Drive Type	Belt Drive
Engine Brand	Industrial Low 1,750 RPM Electric Motor
Features	Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade motor, Rust-Resistant Powder coated, ASME max PSI 200 certified Tank in all 50 states, Magnetic starter, Single phase, low RPM pump and motor,
Fuel Tank Capacity	0 N/A
Hose Fitting Size	0.75 in. Tank Outlet
Maximum RPM	640 Pump RPM
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	Compressor: 72 in., Dryer: 24 in.
Product Length	Compressor: 28 in., Dryer: 16 in.
Product Weight	Compressor: 701 lb., Dryer: 110 lb.
Product Width	Compressor: 42 in., Dryer: 18 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	10 min.
Tank Orientation	Vertical
Warranty	Compressor: 1 Yr. Standard, 5 Yr. Extended, Lifetime eligible. Dryer: 1 Year Standard, 3 Year extended
Manufacturer PartNumber	ESP07V080V1PK
