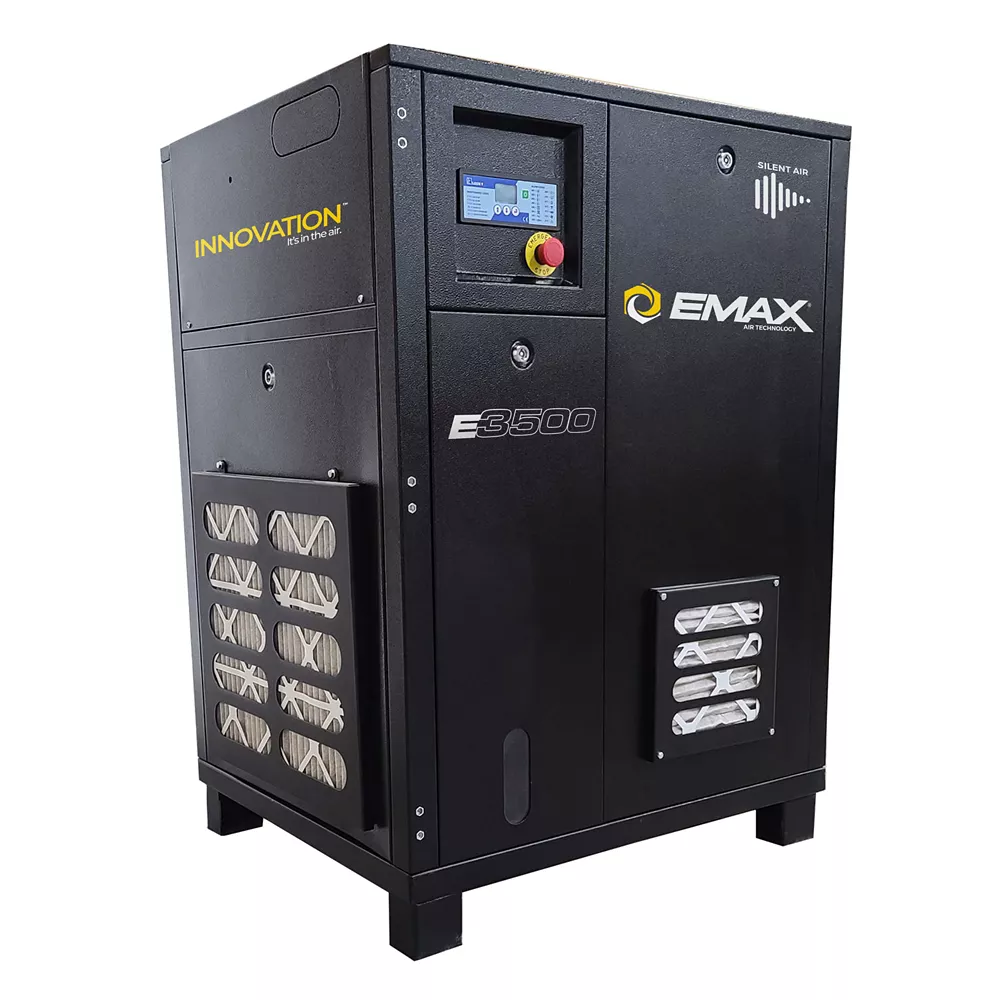

EMAX 7.5HP 1 Phase 24CFM @ 100PSI Motor 230 Volt 1750 RPM Soft Start Rotary Screw Air Compressor - ERI0070001 Rotary Screw Air Compressors Air Compressors

EMAX Compressors 7.5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer. 1 Year Standard warranty, extended 5 Year warranty with Maintenance kit.

Pump life: 60,000 hours

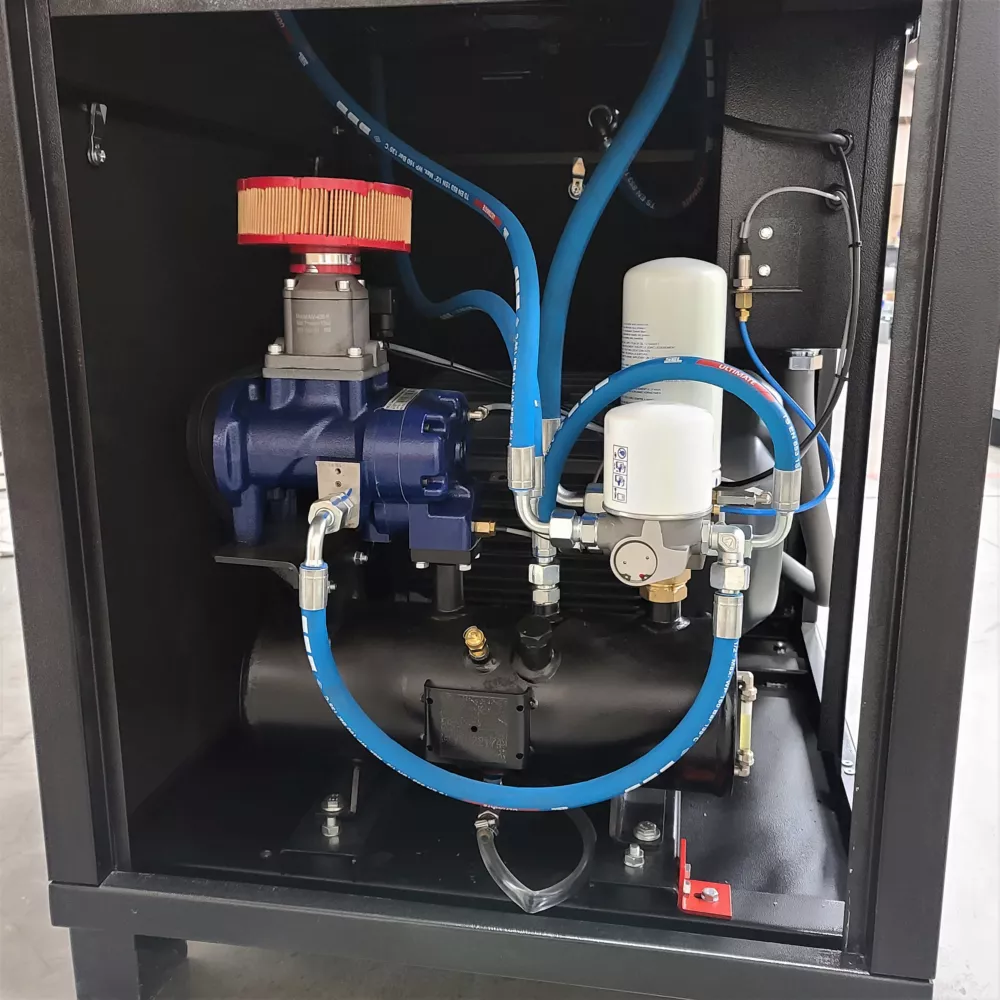

RotorComp rotary screw pump - Made in Germany
Cabinet: Made in Italy
24.01 CFM @100 PSI, 20.48 CFM @145 PSI Maximum
Dimensions: 34.7 in. x 24 in. x 41 in. (LxWxH)
Weight: 467 lb.
Starter Type: DOL

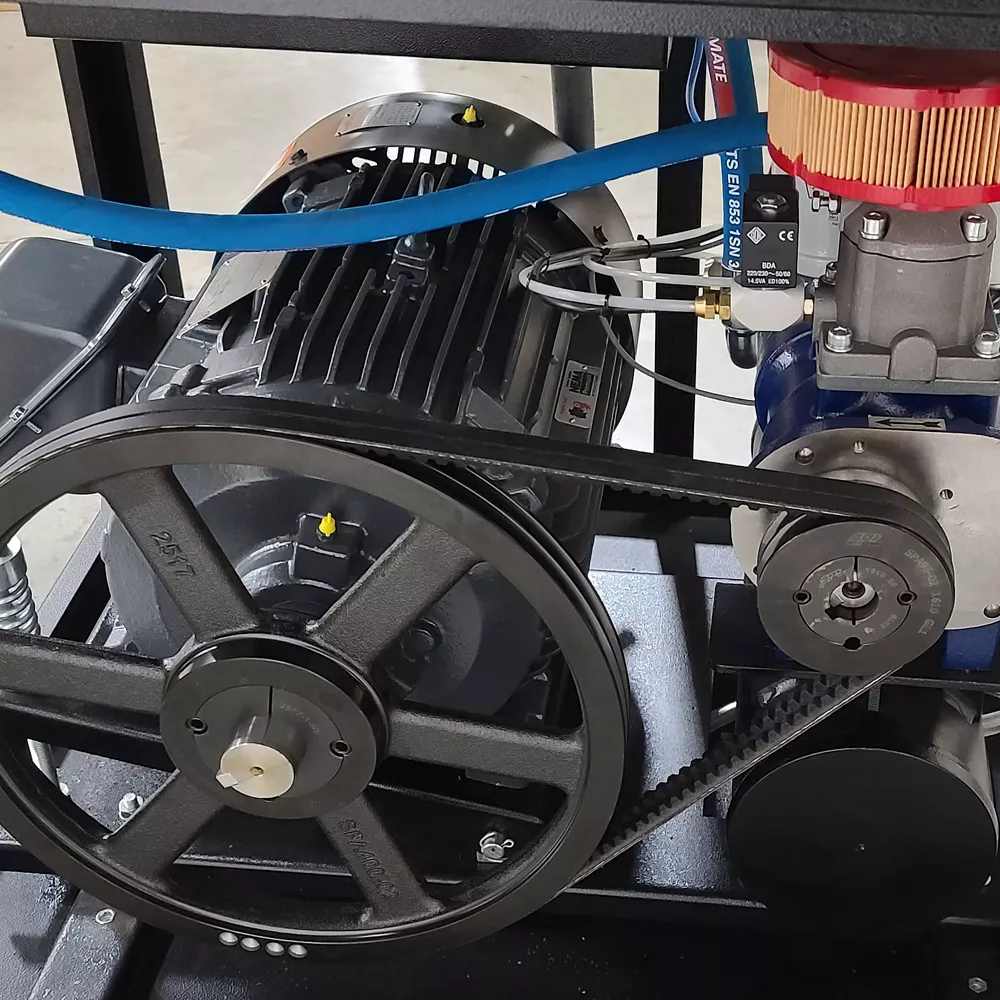

Drive type: Belt Drive

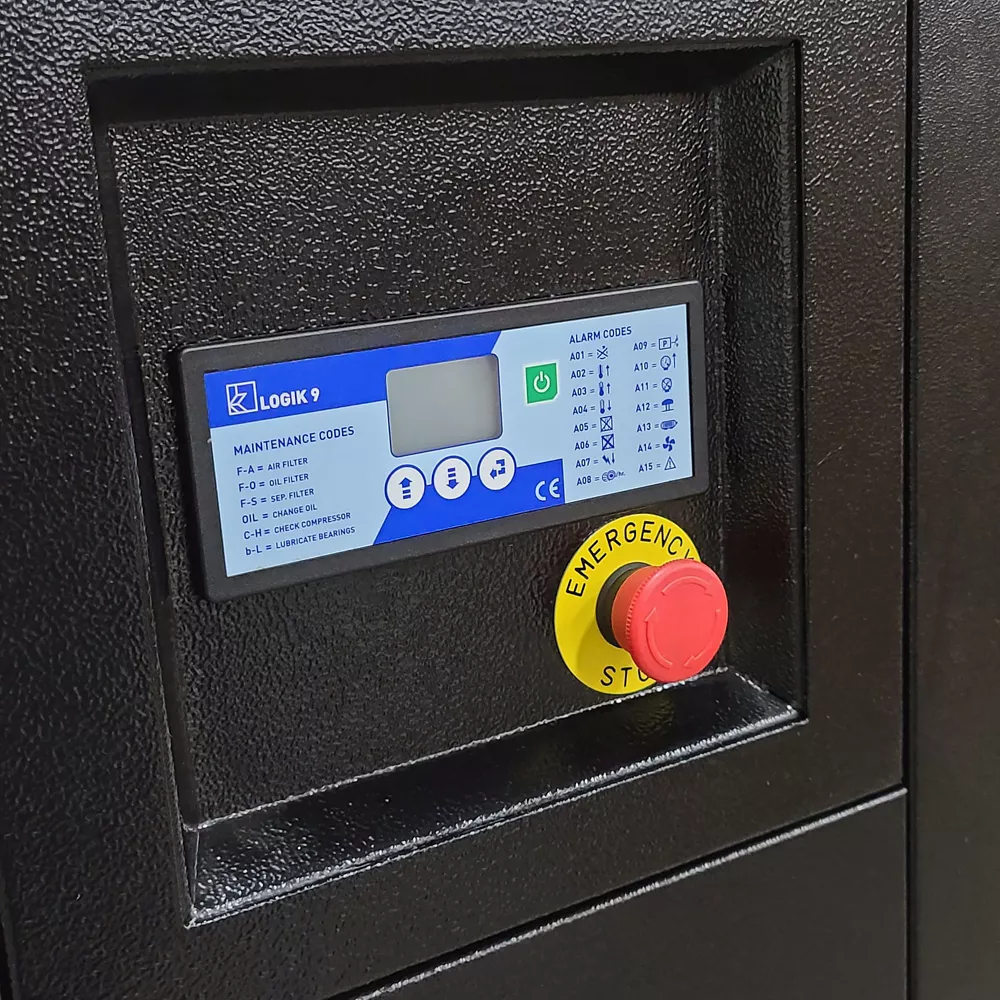

Controller type: Logik 9
Inlet Valve type: Poppet valve
Outlet connection: 3/4 in. NPT

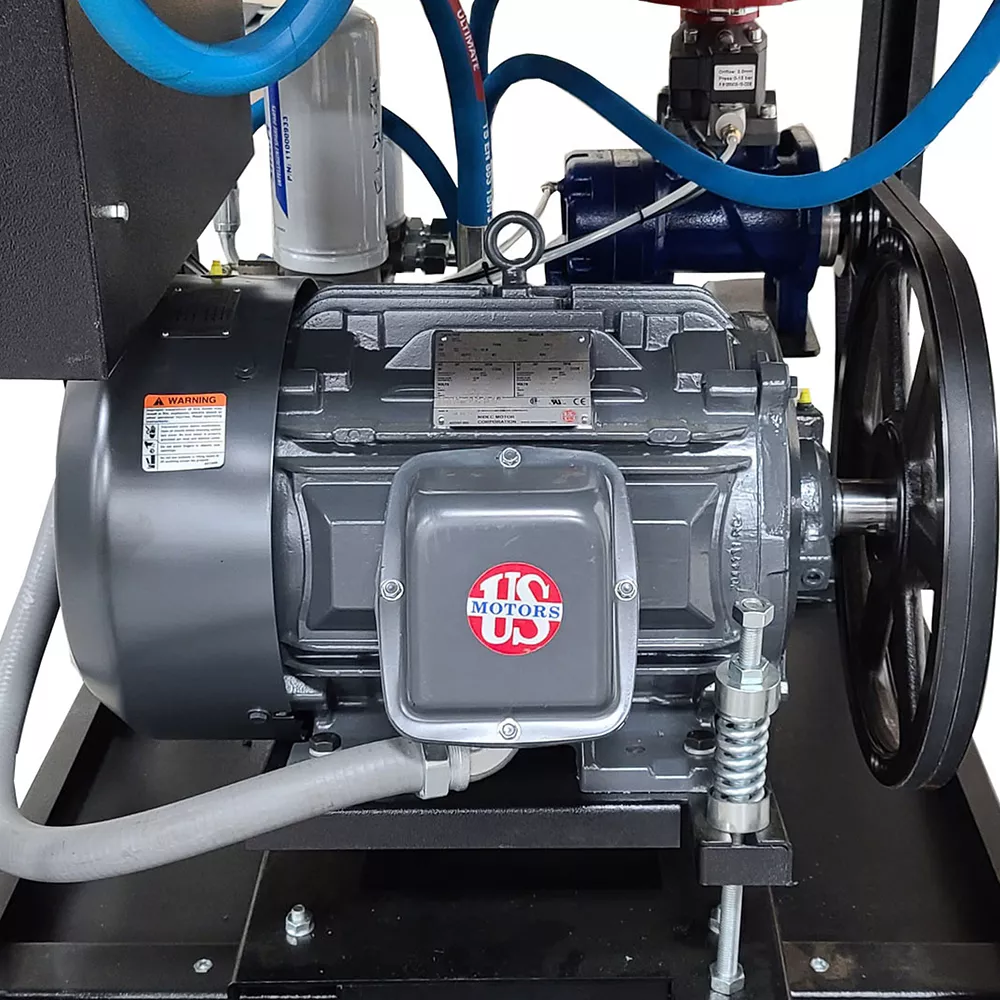

Industrial electric Motor with Slow 1750 RPM
Automatic start/stop operation

1 Year Standard warranty, extended 5 Year warranty with Maintenance kit.

EMAX 7.5HP 1 Phase 24CFM @ 100PSI Motor 230 Volt 1750 RPM Soft Start Rotary Screw Air Compressor - ERI0070001 Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	24 CFM
Airflow Volume	24 CFM 100 PSI
Air Outlet Size	0.75 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	0 N/A
Drive Type	Belt
Features	Made in Germany RotorComp screw pump, Logik 9 controller, Industrial Motor, DOL Start, Poppet inlet valve,
Maximum RPM	Motor 1,750 rpm
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	41 in.
Product Length	34.7 in.
Product Weight	467 lb.
Product Width	24 in.
Pump Life	60,000 hr.
Pump Material	Steel
Tank Orientation	Vertical
Warranty	1 Year Standard warranty, extended 5 Year warranty with Maintenance kit
Manufacturer PartNumber	ERI0070001

EMAX 7.5HP 1 Phase 24CFM @100PSI 230 Volt Motor 1750 RPM Soft start Rotary Screw Air Compressor- ERI0070001 Specifications expand/collapse Specification Description Brand EMAX Country of Origin Imported Air Flow SCFM at 90 PSI 24 CFM Air Flow Volume 24 CFM 100 PSI Air Outlet Size 0.75 in. Compressor Power 7.5 HP Compressor Maximum PSI 145 PSI Compressor Operation Auto Start/Stop Compressor Type Oil Lubricated Compressor Voltage 230V Connection Type NPT Drain System 0 N/A Drive Type Belt Specifications Made in Germany RotorComp Screw Pump, Logik 9 Controller, Industrial Motor, DOL Start, Poppet Inlet Valve, 1750 RPM Maximum RPM Motor Single Phase Number of Single Power Speeds Power Type Electric Main Color Black Main Material Steel Product height 41 in. Product length 34.7 in. Product weight 467 lbs. Product width 24 in. Pump life 60,000 hours. Pump material Steel Tank orientation Vertical warranty 1 aStandard Warranty, 5 Year Extended Warranty with Maintenance Kit Manufacturer Part Number ERI0070001
