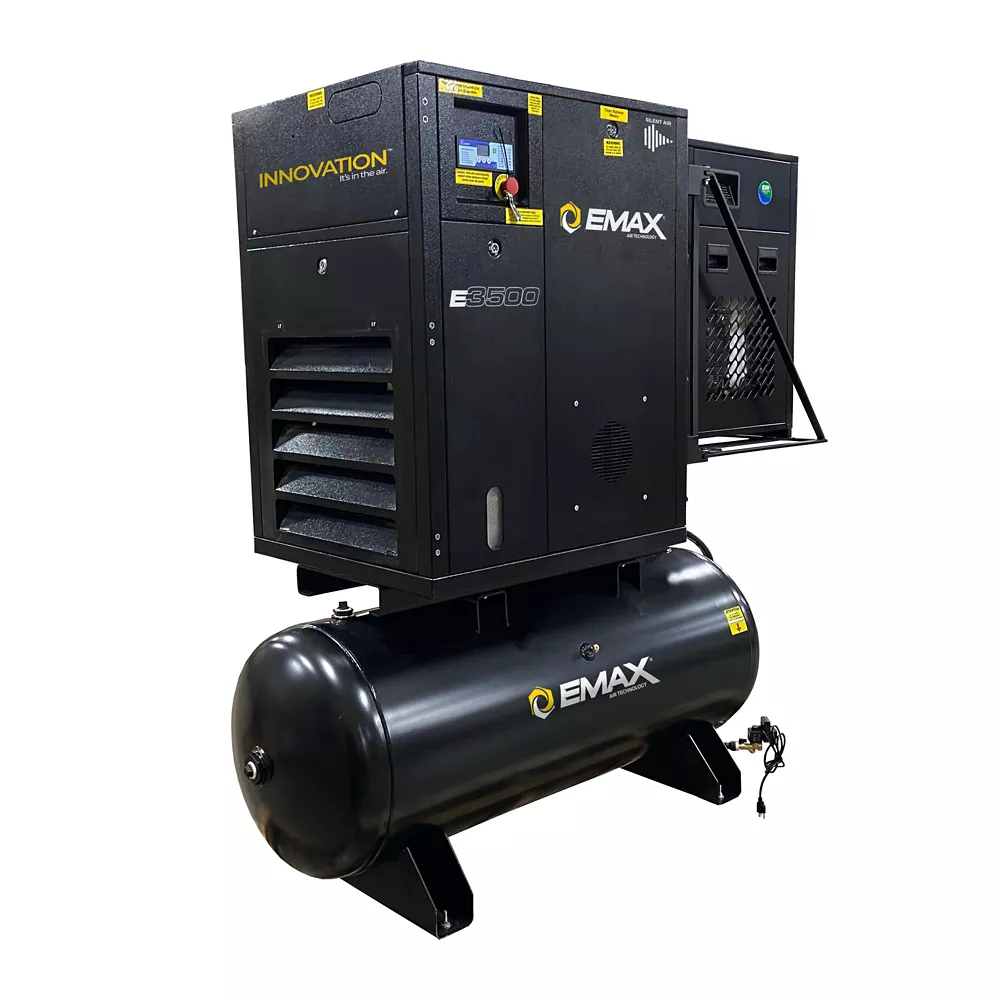

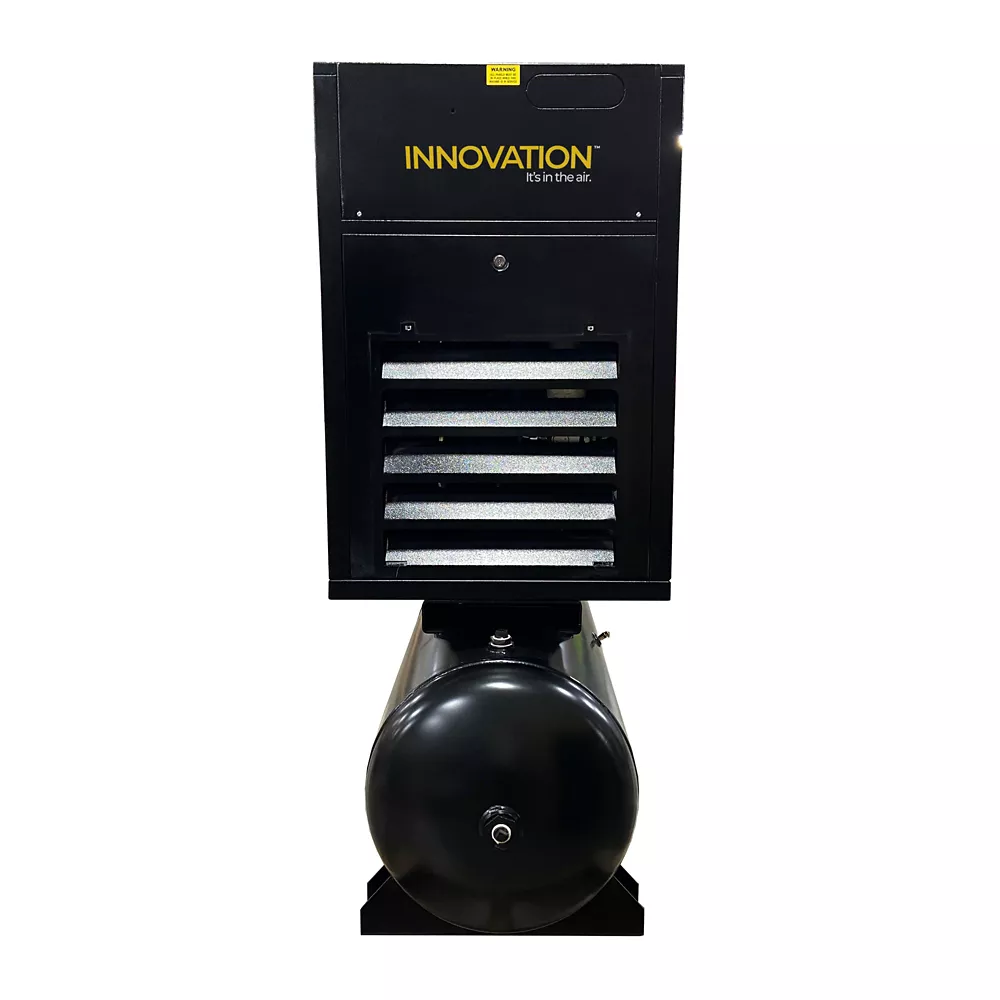

EMAX 7.5HP 1PH 24CFM @ 100PSI 230V Motor 1750RPM Soft Start Rotary Screw Compressor-80G Tank Stand with 30CFM Air Dryer Rotary Screw Air Compressors Air Compressors

EMAX Compressors 7.5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a horizontal, ASME certified 80 Gallon receiving tank with a patented swingarm mounted, refrigerated 30CFM 115Volt air dryer, for small foot print and easy maintenance. 1 Year Standard warranty, extended 5 Year warranty with Maintenance kit.

Pump life: 60,000 hours

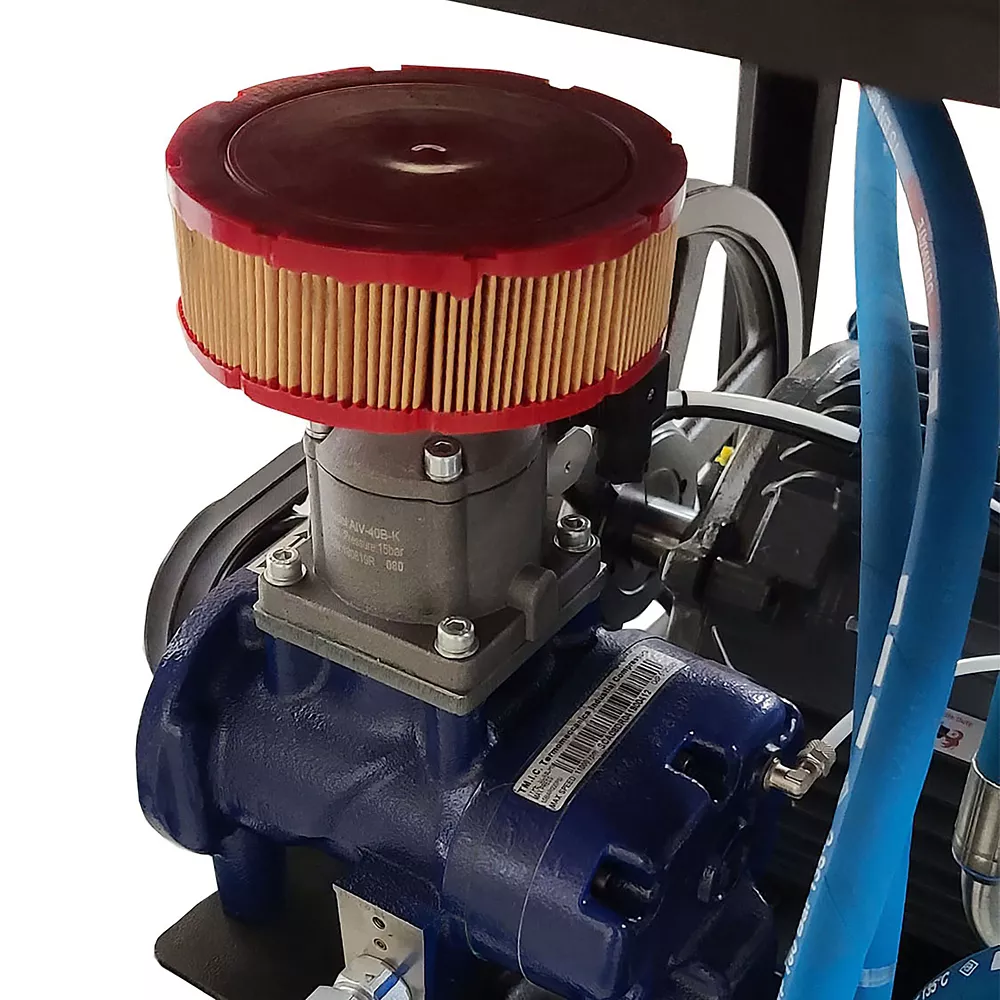

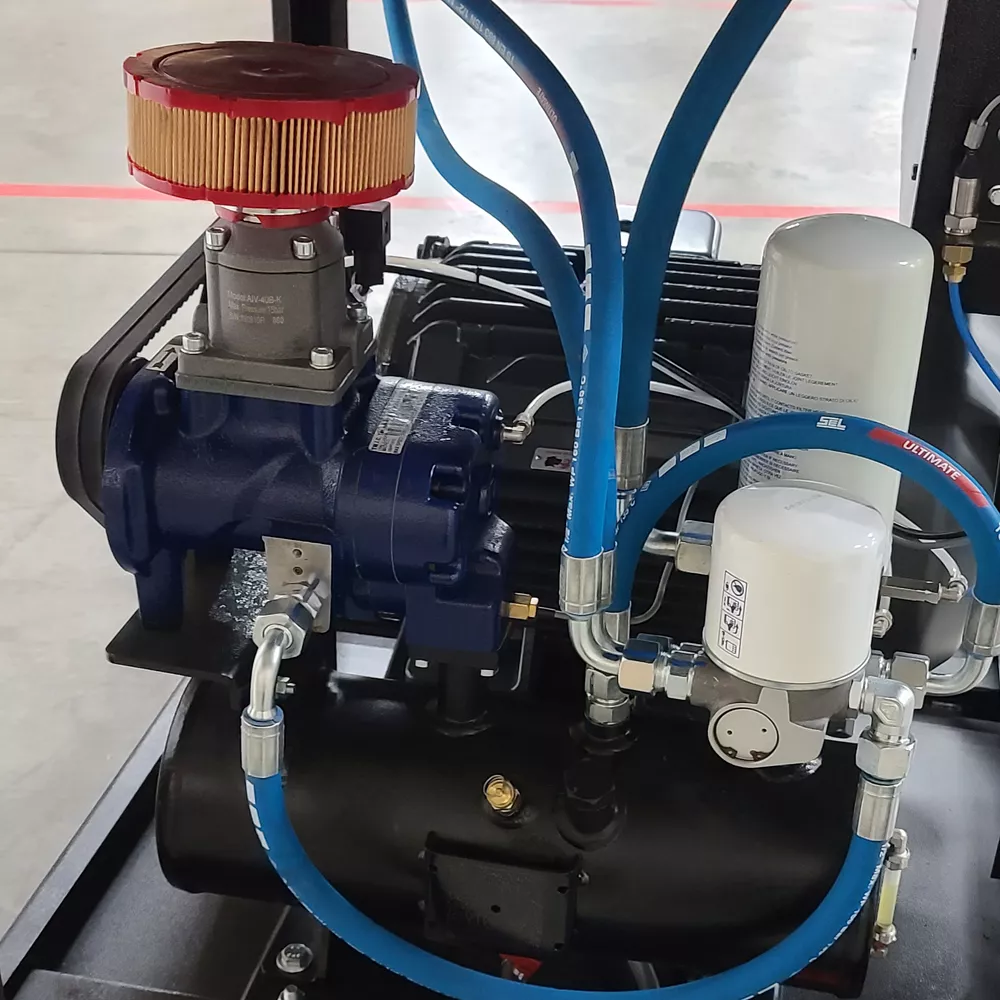

RotorComp rotary screw pump - Made in Germany
Cabinet: Made in Italy
24.01 CFM @100 PSI, 20.48 CFM @145 PSI Maximum
Starter Type: DOL

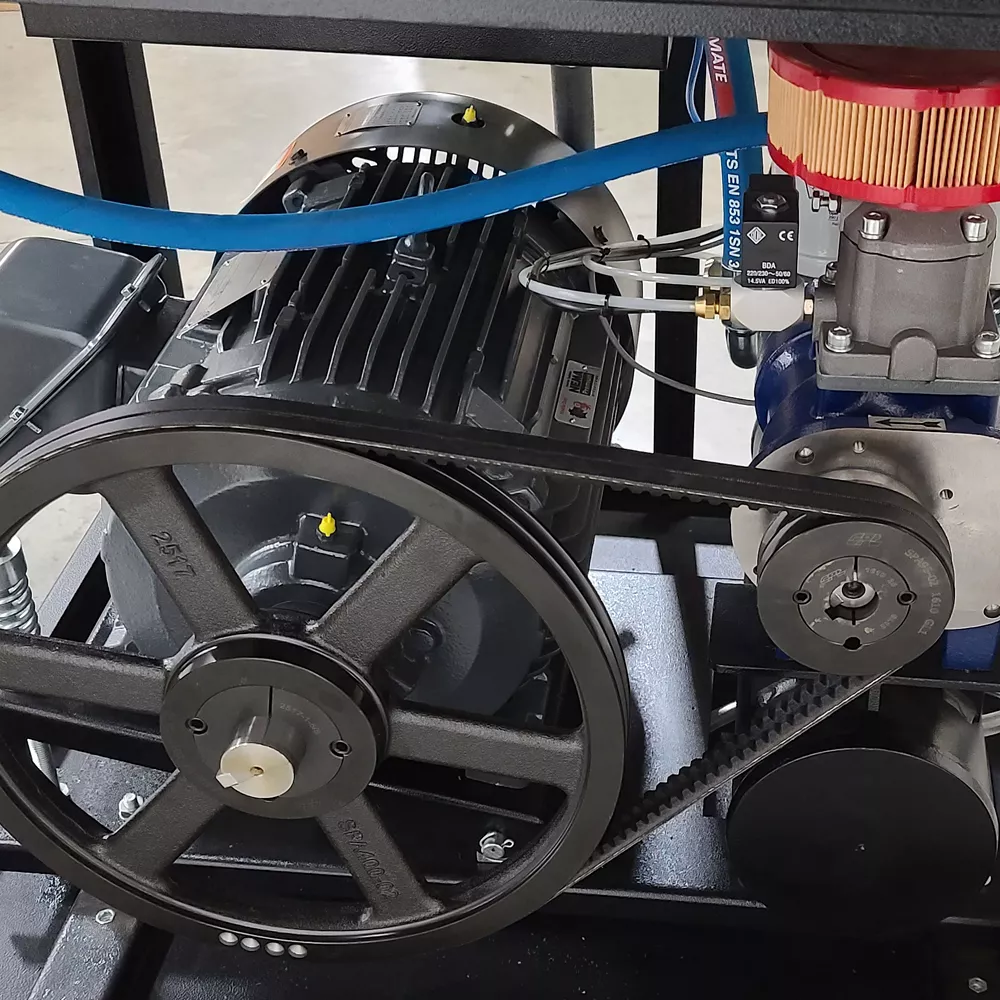

Drive type: V Belt Drive

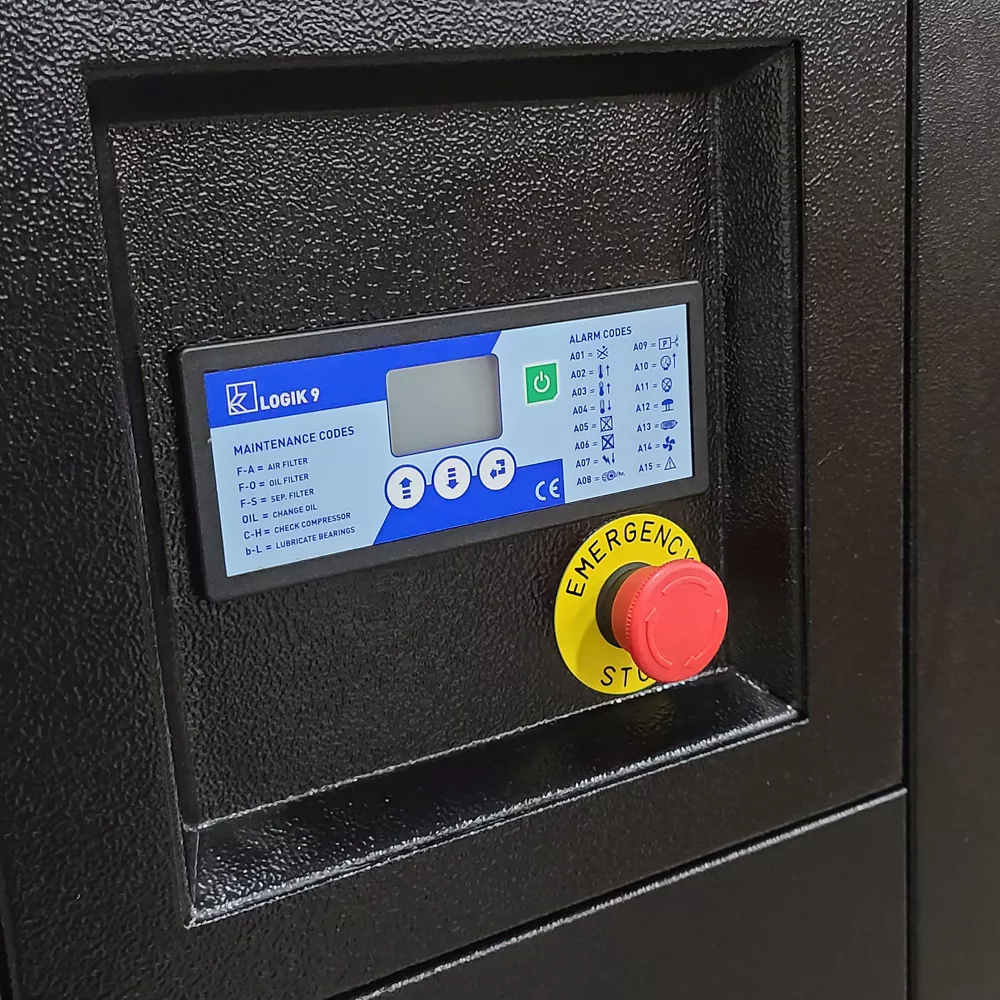

Controller type: Logik 9
Inlet Valve type: Poppet valve
Compressor Outlet connection: 3/4 in. NPT
Industrial electric Motor with Slow 1750 RPM
Automatic start/stop operation
Patented SWING arm dryer mount
30 CFM 115 Volt Air dryer, weight: 110 lb., 134A environmentally friendly refrigerant, Dew point: 37-50, Dryer pipe size: 1/2", Max rated inlet temp: 140, Max Ambient Temp: 122, Built-in coalescing filter
80 Gallon Horizontal ASME certified tank in all 50 states, Max Tank PSI: 200PSI
Drain type: Ball Valve
Dimensions: 98 x 48 x 128in. (LxWxH)
7.5 Horsepower, 320 Volt, 24 CFM @ 100 PSI, 20.48 CFM @ 145 PSI
Weight: 1200 lb.

1 Year Standard, 5 Year Extended with Maintenance kit

EMAX 7.5HP 1PH 24CFM @ 100PSI 230V Motor 1750RPM Soft Start Rotary Screw Compressor-80G Tank Stand with 30CFM Air Dryer Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	24 CFM 100PSI
Airflow Volume	20.48 CFM 145 PSI
Air Outlet Size	0.75 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Ball Valve
Drive Type	V Belt
Features	Made in Germany RotorComp screw pump, Logik 9 controller, Industrial Motor, DOL Start, Poppet inlet valve, Tank ball valve
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	128 in.
Product Length	104 in.
Product Weight	1,200 lb.
Product Width	48 in.
Pump Life	60,000 hr.
Pump Material	Anodized steel
Tank Fill Time	4-5 min.
Tank Orientation	Horizontal
Warranty	1 Year Standard warranty, extended 5 Year warranty with Maintenance kit
Manufacturer PartNumber	ERIK070001

EMAX 7.5HP 1PH 24CFM@100PSI 230V Motor 1750RPM Soft start Rotary Screw Compressor-80G Tank Mount with 30CFM Air Dryer Specifications expand/collapse Specification Description Brand EMAX Country of Origin Imported Air Flow SCFM at 90 PSI 24 CFM 100PSI Air Flow Volume 20.48 CFM 145 PSI Air Outlet Size 0.75 in. Compressor Power 7.5 HP Maximum Compressor PSI 145 PSI Compressor Operation Auto Start/Stop Compressor Tank Capacity 80 Gallons Compressor Type Oil Lubricated Compressor Voltage 230V Connection Type NPT Drain System Ball Valve Type drive V-belt Features Made in Germany RotorComp screw pump, Logik 9 controller, industrial motor, DOL start, poppet inlet valve, tank ball valve Number of power speeds Single power type Electric Main color Black Material Main Steel Product Height 128 in. Product length 104 in. Product weight 1,200 lbs. Product width 48 in. Pump life 60,000 hours. Pump material Anodized steelTank filling time 4-5 min. Tank orientation Horizontal warranty 1 year standard warranty, 5 year extended warranty with maintenance kit Manufacturer part number ERIK070001
