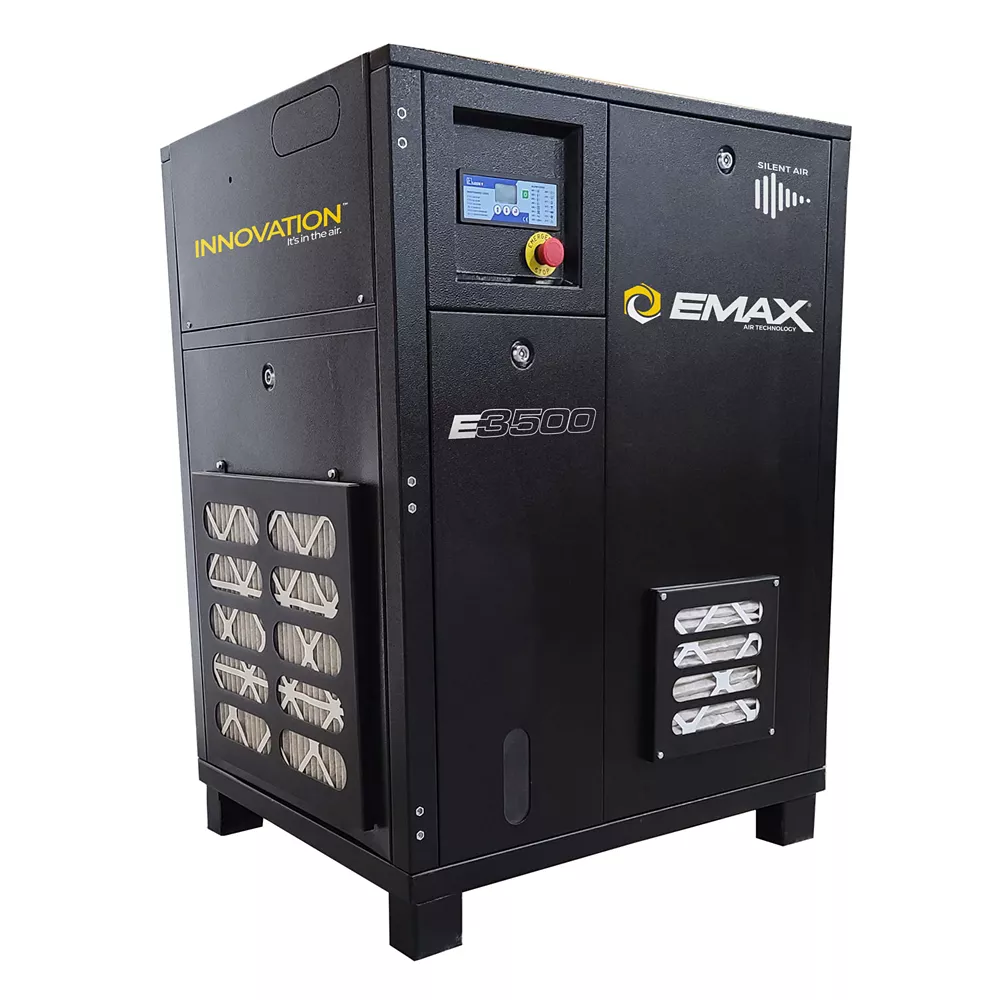

EMAX 7.5HP 3 Phase 24CFM@100PSI 230/460 Volt Motor 1750 RPM Soft Start Industrial Rotary Screw Air Compressor-ERI0070003 Rotary Screw Air Compressors Air Compressors

EMAX Compressors 7.5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer.

Warranty: 1 Year Standard, extended 5 Year with maintenance kit
Pump life: 60,000 hours
Cabinet: Made in Italy

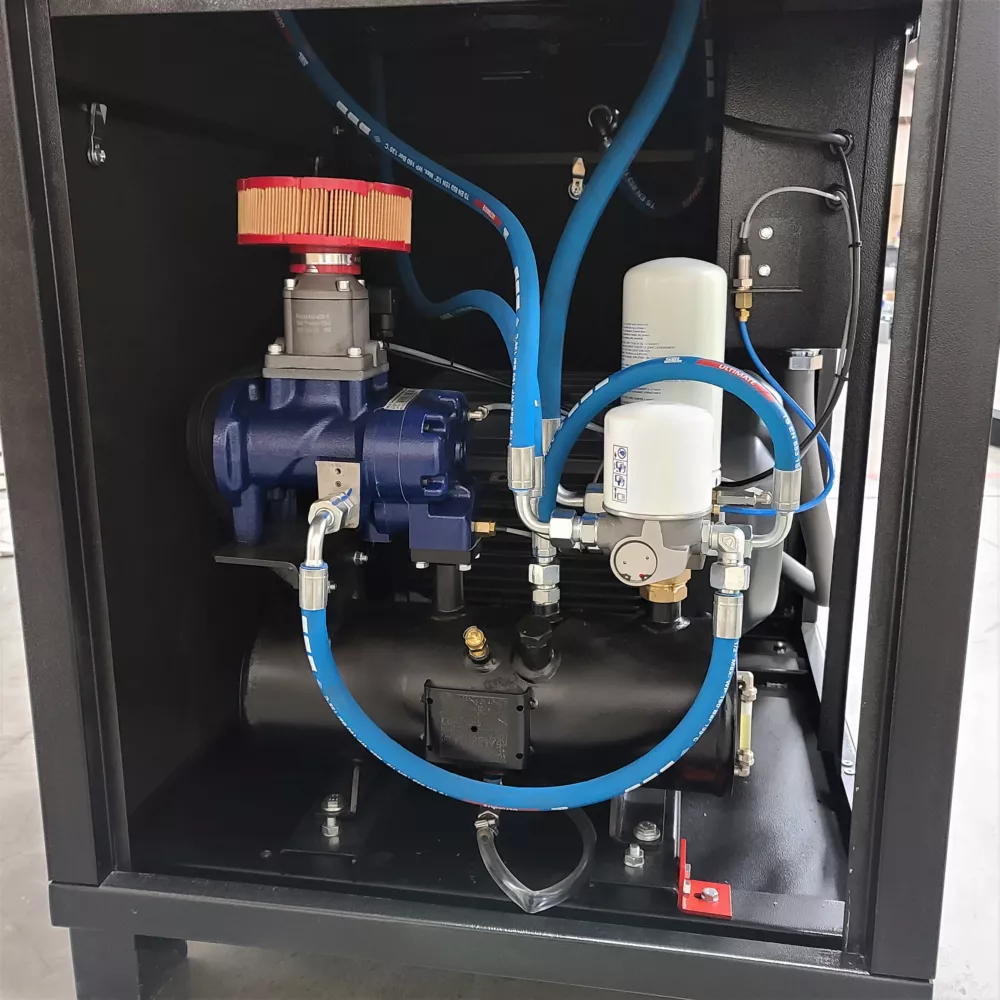

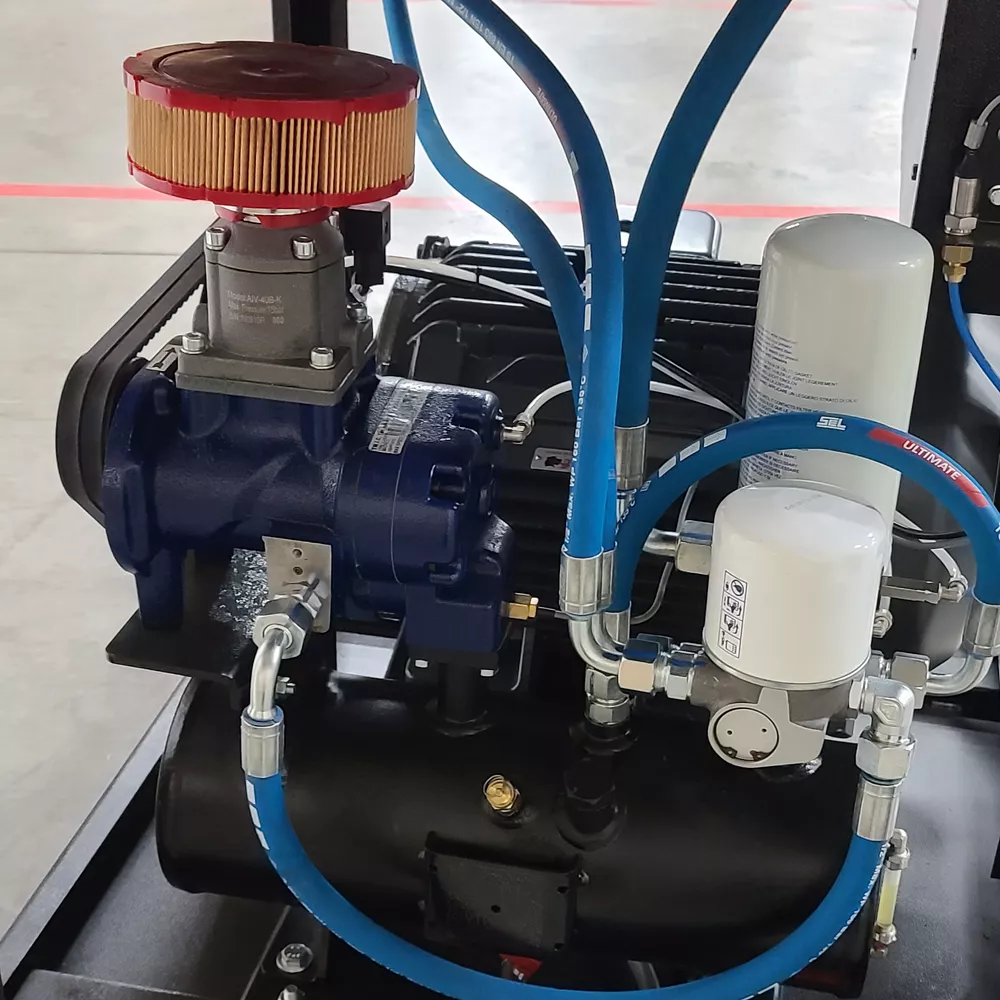

RotorComp rotary screw pump - Made in Germany
24 CFM @100 PSI, 20.48 CFM @145 PSI Maximum
Dimensions: 34.7 in. x 24 in. x 41 in. (LxWxH)
Weight: 467 lb.

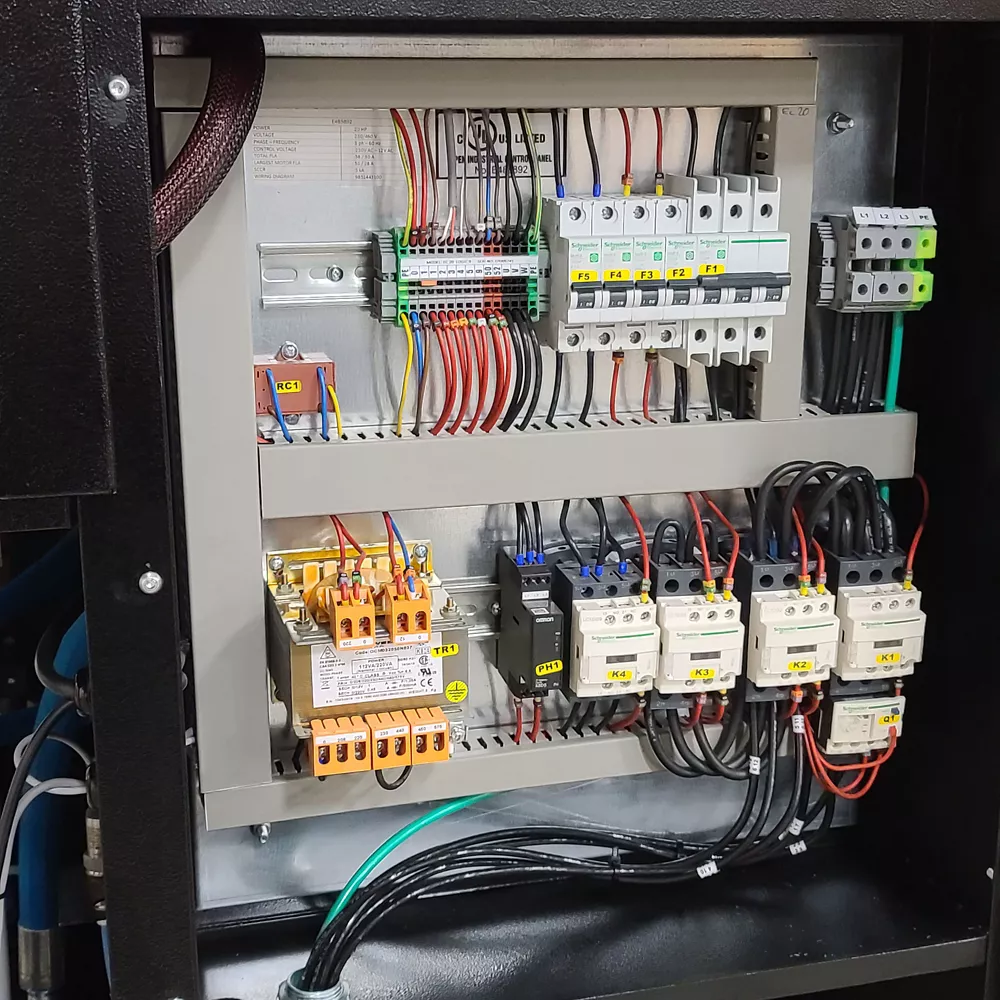

Starter Type: Wye/Delta

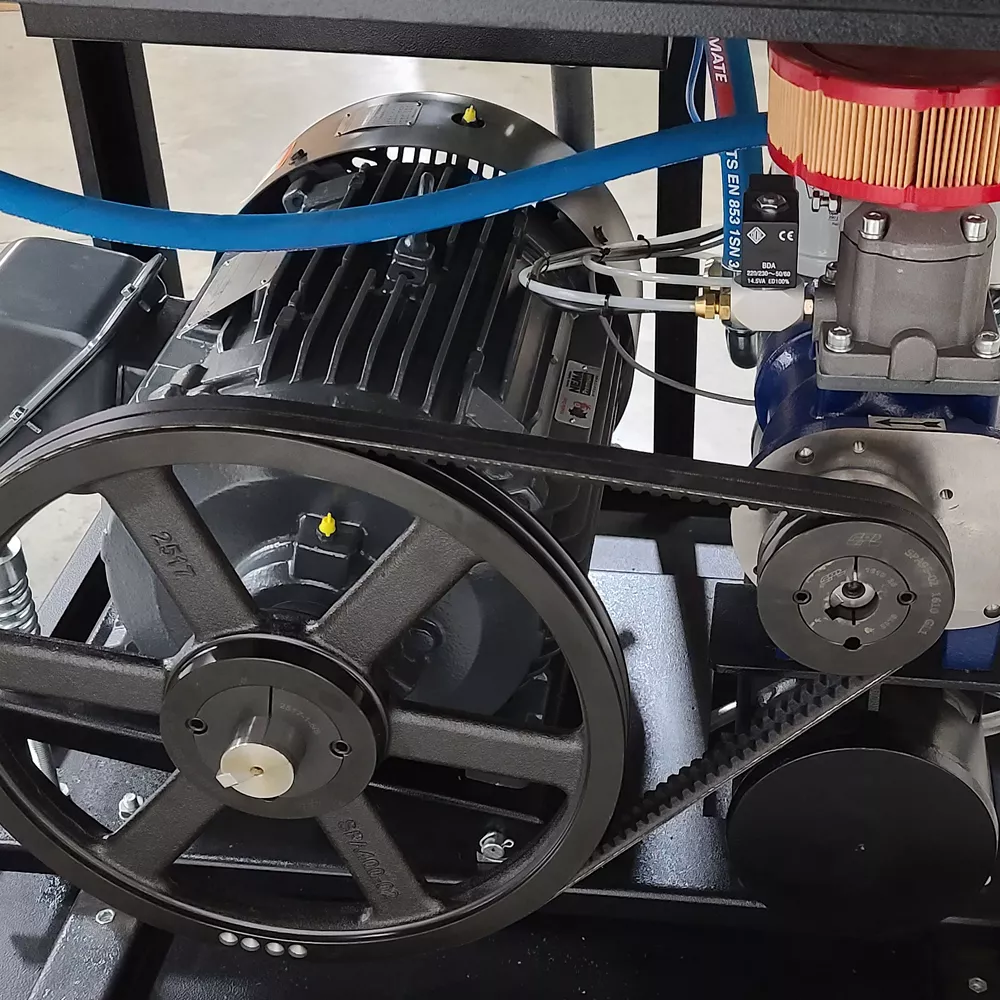

Drive type: Belt Drive

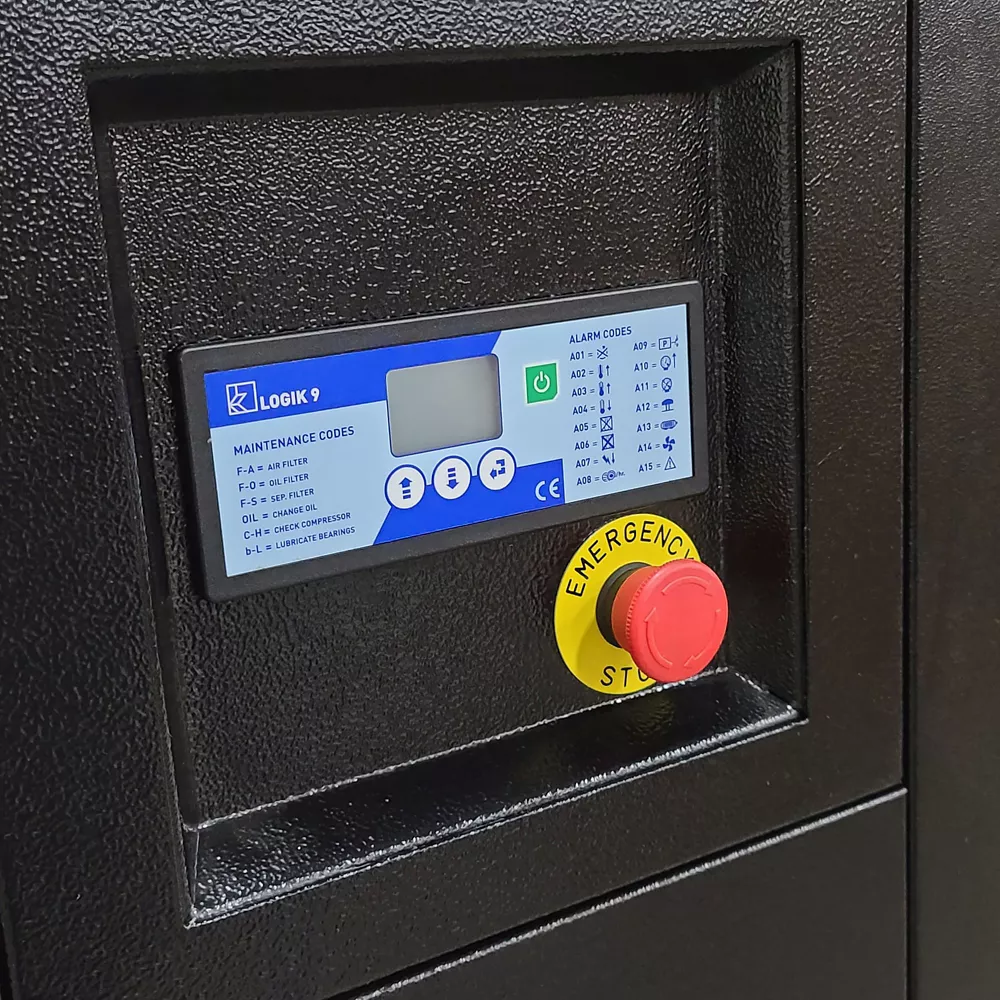

Controller type: Logik 9

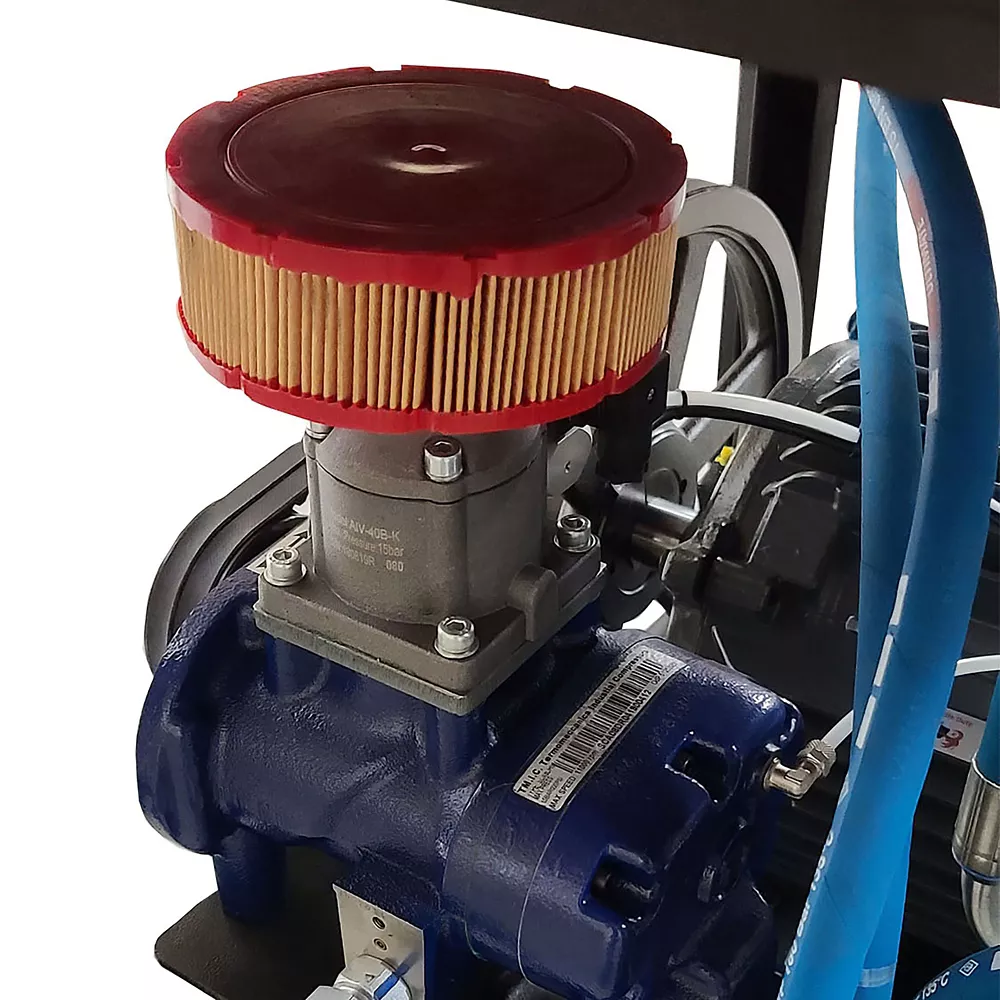

Inlet Valve type: Poppet valve
Outlet connection: 3/4 in. NPT

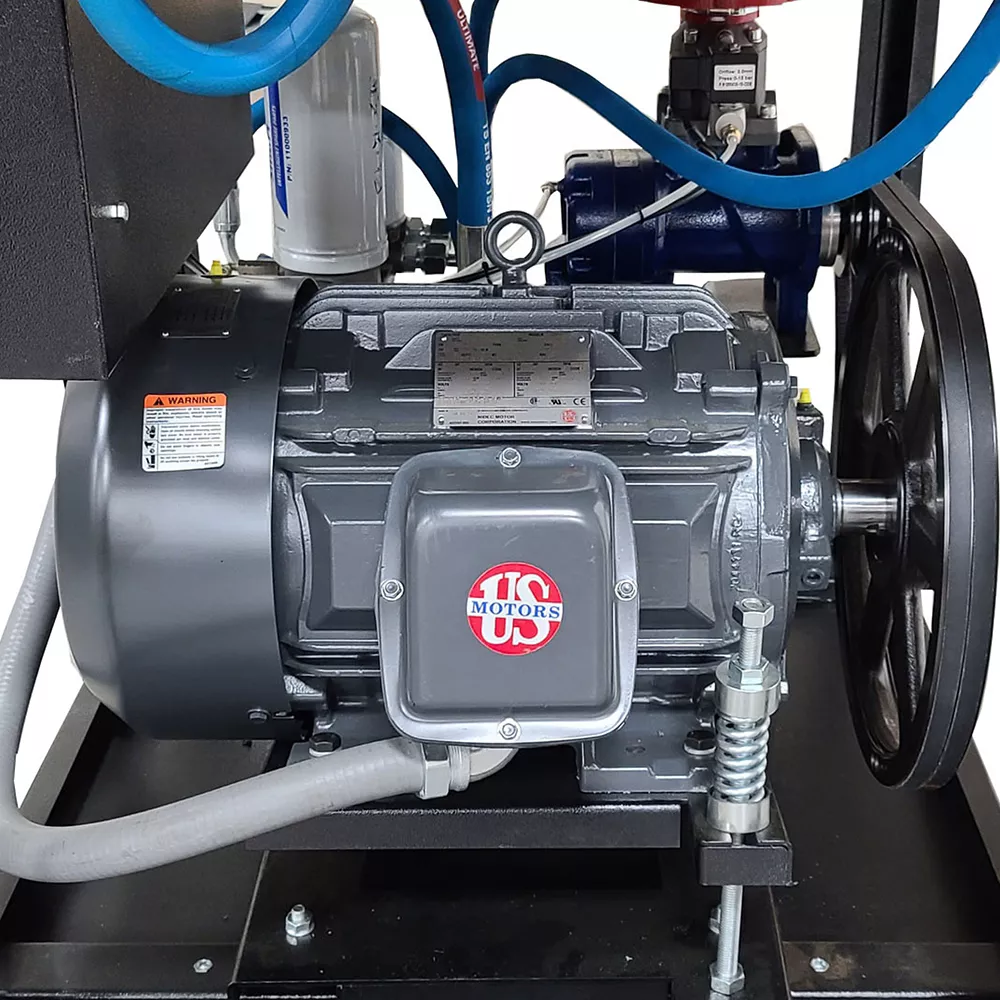

Industrial USA electric Motor with Slow 1750 RPM
Automatic start/stop operation

Controller type: Logik 9, Low Motor 1750 RPM, 60,000 hours pump life

EMAX 7.5HP 3 Phase 24CFM@100PSI 230/460 Volt Motor 1750 RPM Soft Start Industrial Rotary Screw Air Compressor-ERI0070003 Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	24 CFM 100PSI
Airflow Volume	24 CFM
Air Outlet Size	0.75 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Type	Oil lubricated
Compressor Voltage	230V/460V
Connection Type	NPT
Drain System	Automatic tank drain
Drive Type	Belt
Features	Controller type: Logik 9, Low Motor 1750 RPM, 60,000 hours pump life
Phase	Triple
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	41 in.
Product Length	34.7 in.
Product Weight	467 lb.
Product Width	24 in.
Pump Life	60,000 lb.
Pump Material	Anodized steel
Tank Orientation	Vertical
Warranty	1 Year Standard warranty, extended 5 Year warranty with Maintenance kit.
Manufacturer PartNumber	ERI0070003
