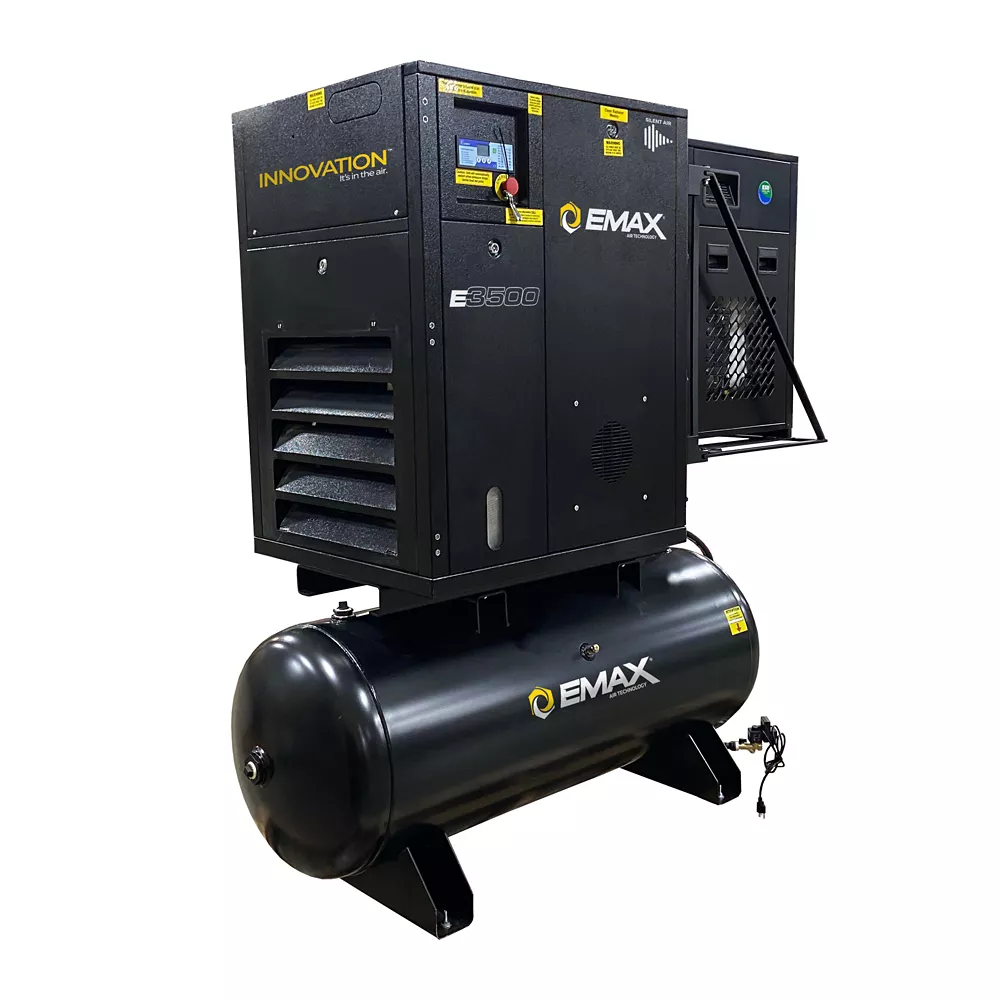

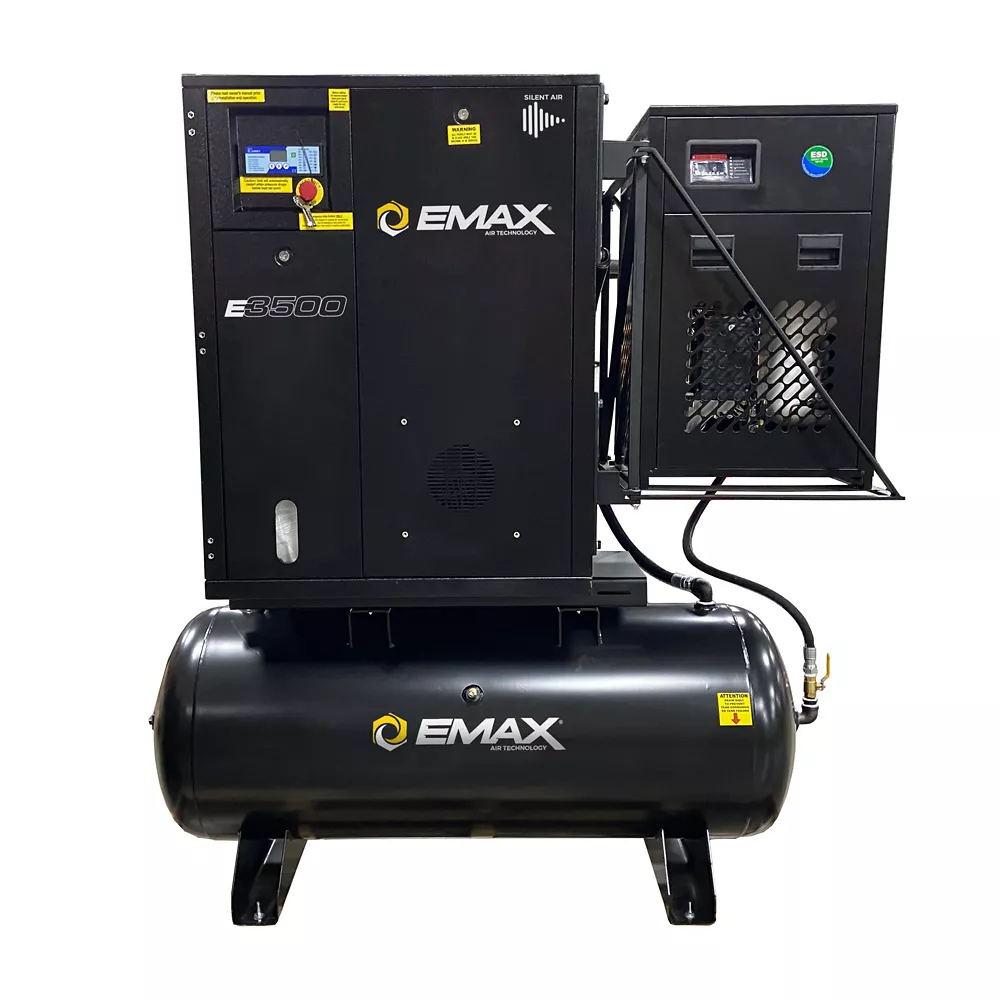

EMAX 7.5HP 3PH 24CFM @ 100PSI 230/460V Motor 1750RPM Soft Strt Indust.Rotary Screw Compressor-80G Tnk Mnt with Air Dryer-ERIK070003 Rotary Screw Air Compressors Air Compressors

EMAX Compressors 7.5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a 80 gallon vertical receiving air tank with a patented swingarm mounted refrigerated 30CFM air dryer for small foot print and easy maintenance.

Pump life: 60,000 hours

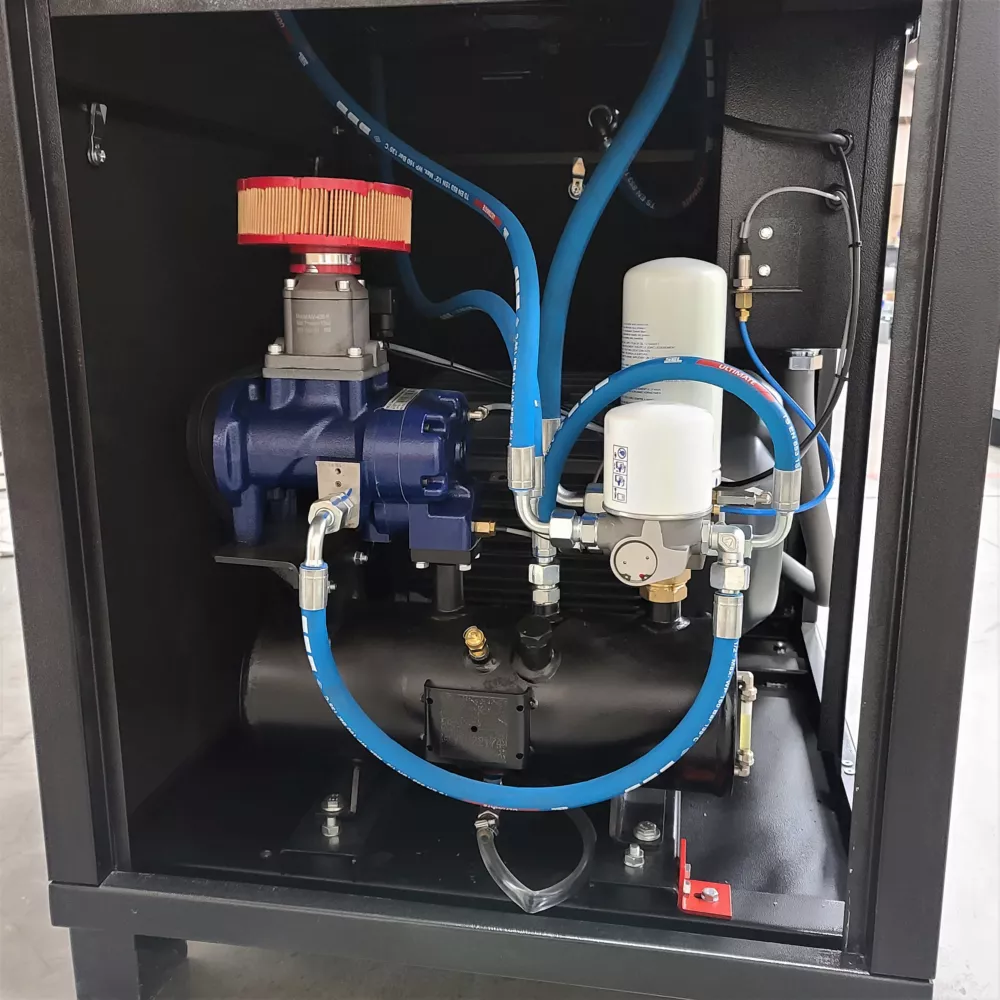

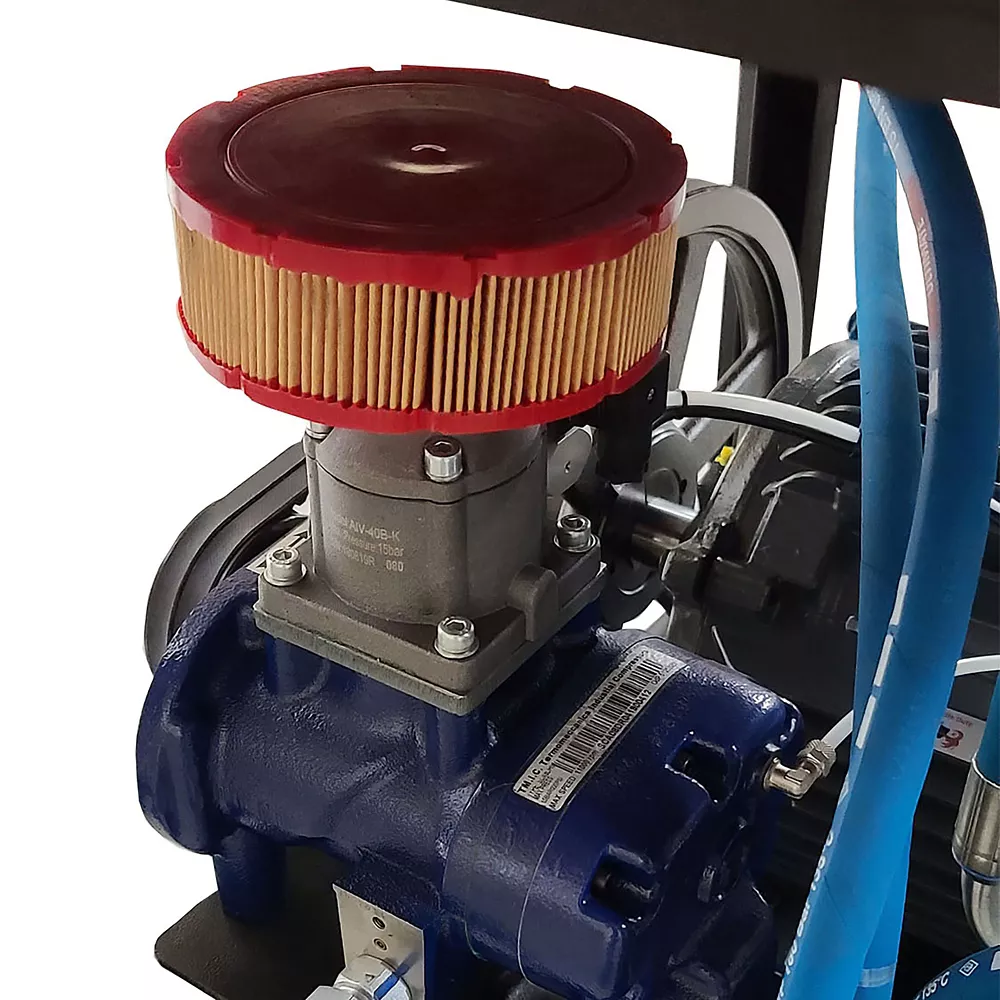

RotorComp rotary screw pump: Made in Germany
Cabinet: Made in Italy
27 CFM @ 100 PSI, 20.48 CFM @ 145 PSI Maximum
Dimensions: 82" x 45" x 80" (LxWxH)
Shipping weight: 1345 lbs
Poppet inlet valve
Outlet connection: 3/4" NPT

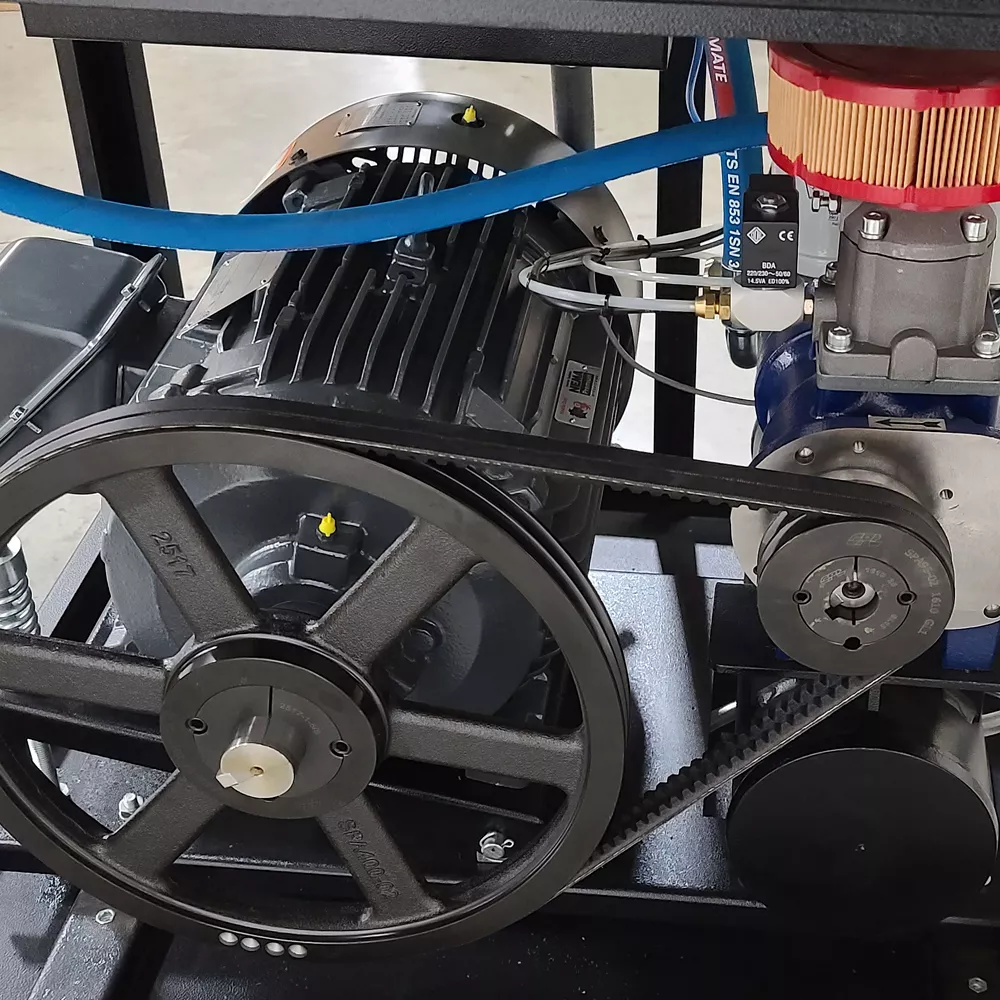

Industrial USA electric Motor with Slow 1750 RPM
Automatic start/stop operation

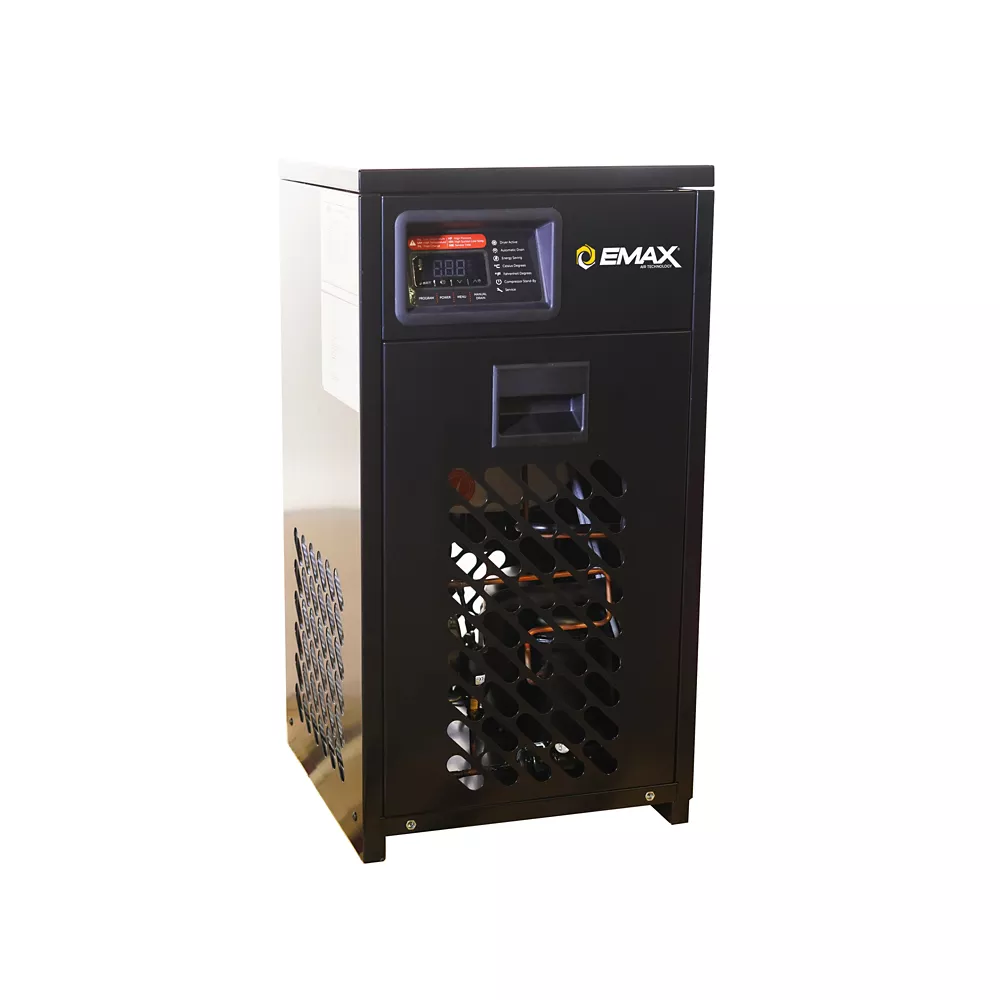

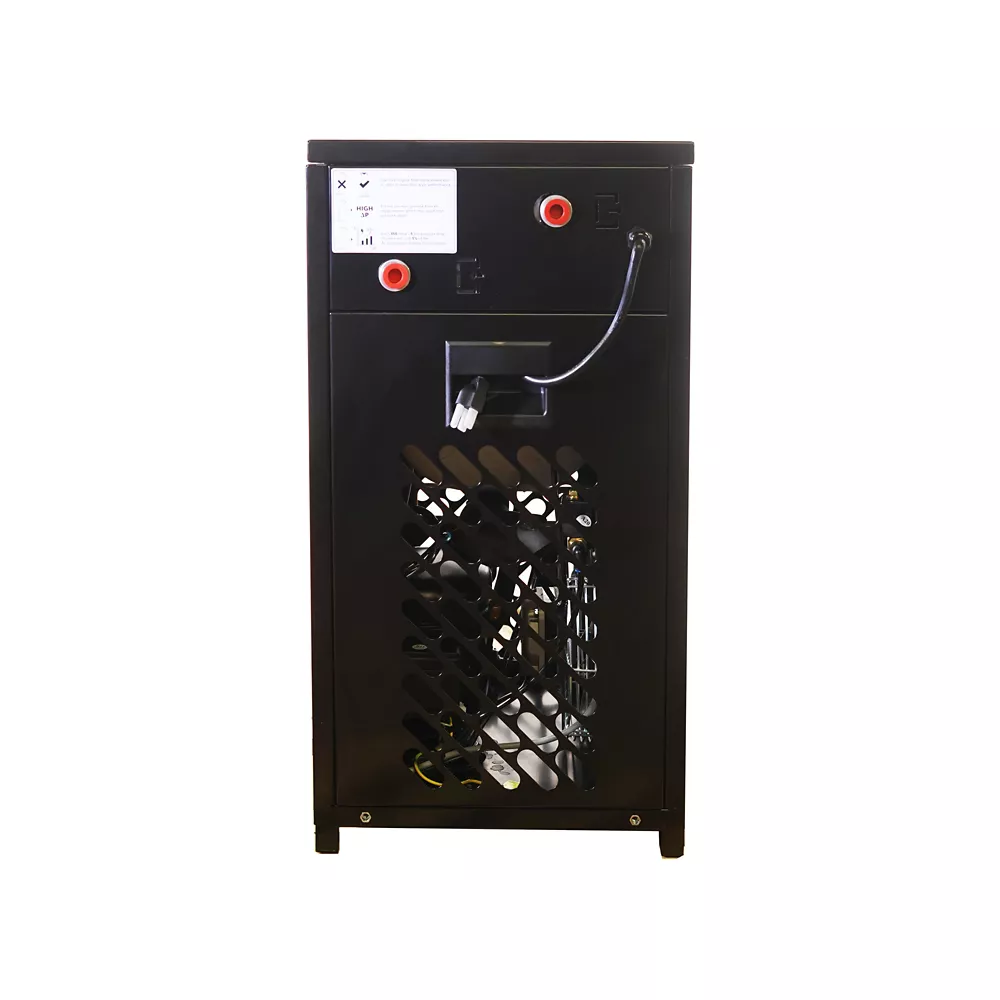

Included Dryer: 30CFM 115Volt refrigerated Dryer with 134A environmentally friendly refrigerant, Auto drain, Coalescing filter,
Dryer Continued: Swingarm Hinge Easy Access, Dew Point: 37-50, 1-1/2" dryer pipe size, 140 Max rated inlet temperature, 122 Max Ambient Temperature temperature, 122 Max Ambient Temperature
Dryer Continued: Weight- 180 lbs, Dims: 26" x 23" x 36" (LxWxH)
80 Gallon Vertical ASME certified tank in all 50 states, Max PSI: 200PSI

1 Year Standard, 5 Year Extended with Maintenance kit

EMAX 7.5HP 3PH 24CFM @ 100PSI 230/460V Motor 1750RPM Soft Strt Indust.Rotary Screw Compressor-80G Tnk Mnt with Air Dryer-ERIK070003 Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	24 CFM 100 PSI
Airflow Volume	24 CFM
Air Outlet Size	0.75 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V/460V
Drain System	Auto Tank drain 110Volt
Drive Type	V Belt
Features	Auto Tank Drain, Industrial USA Motor, Wye/Delta start, Belt drive, Logik 9 controller, RotorComp German Screw Pump, Auto start/stop
Phase	Triple
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	128 in.
Product Length	108 in.
Product Weight	900 lb.
Product Width	45 in.
Pump Life	60,000 hr.
Pump Material	Anodized steel
Tank Orientation	Horizontal
Warranty	1 Year Standard, extended 5 Year with maintenance kit
Manufacturer PartNumber	ERIK070003

EMAX 7.5HP 3PH 24CFM@100PSI 230/460V Motor1750RPM Soft Strt Indust.Rotary Screw Compressor-80G Tnk Mnt w/Air Dryer-ERIK070003 Specifications expand/collapse Specification Description Brand EMAX Country of Origin Imported Air Flow SCFM at 90 PSI 24 CFM 100 PSI Air Flow Volume 24 CFM Air Outlet Size 0.75 in. Compressor Power 7.5 HP Compressor Maximum PSI 145 PSI Compressor Operation Auto Start/Stop Compressor Tank Capacity 80 Gal Compressor Type Oil Lubricated Compressor Voltage 230V/460V Drain System Auto Tank Drain Type 110V Drive V-Belt Features Auto Tank Drain, American Industrial Motor, Star/Delta Start, Belt Drive, Logik 9 Controller, German RotorComp Screw Pump, Auto Start/Stop Phase Triple Number of Power Speeds Single Power Type Electric Primary Color Black Primary Material Steel Product Height 128 in. Product length 108 in. Product weight 900 lbs. Product width 45 in. Lifespan of thepump 60,000 hours. Pump Material Anodized Steel Reservoir Orientation Horizontal Warranty 1 year standard, extended to 5 years with maintenance kit Manufacturer part number ERIK070003
