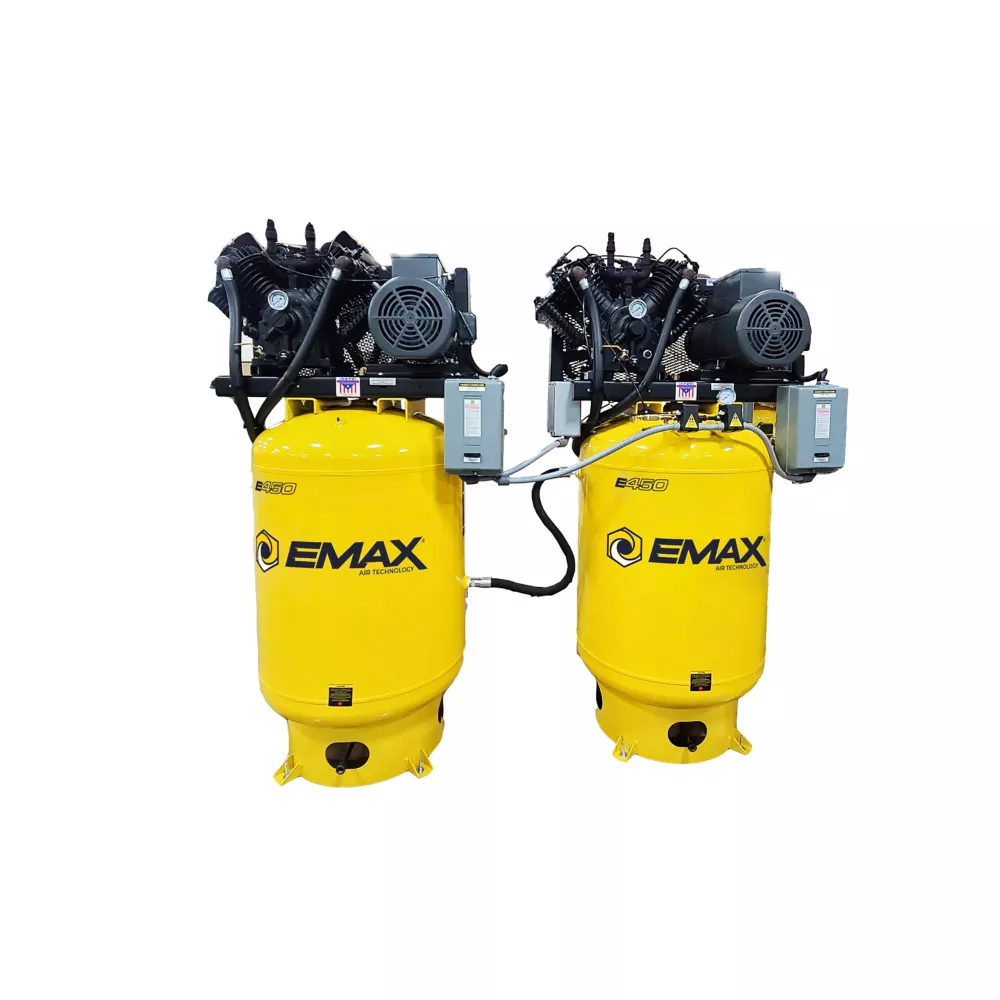

EMAX Compressor has added our Alternating line to the EMAX Silent Air family. By adding these alternating compressors to our Silent Air line, we have added to the needs of our high demand customers all while keeping with their quiet air needs. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the dual run mode. These units also feature our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

CFM @ 100 PSI: 62
Max PSI: 175
Pump RPM: 640
Pump Oil Capacity: 5 qt.
Voltage: 208/230 Single Phase
Tank Outlet Size: 3/4 in.
Automatic Tank Drain
Tank: 80 gal. Vertical x 2
1 Year Standard, 5 Year Extended, Lifetime Extended
Dimensions: 38 in. x 42 in. x 72 in. (LxWxH)
Weight: 743 lb.
Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or dual run rated at up to 70,000 hours
(2) Magnetic starters w/relay
Alternating Switch allow the units to alternate from one pump to the other. Eliminates excessive running and allows pumps to cool under heavy loads.
Dual run mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

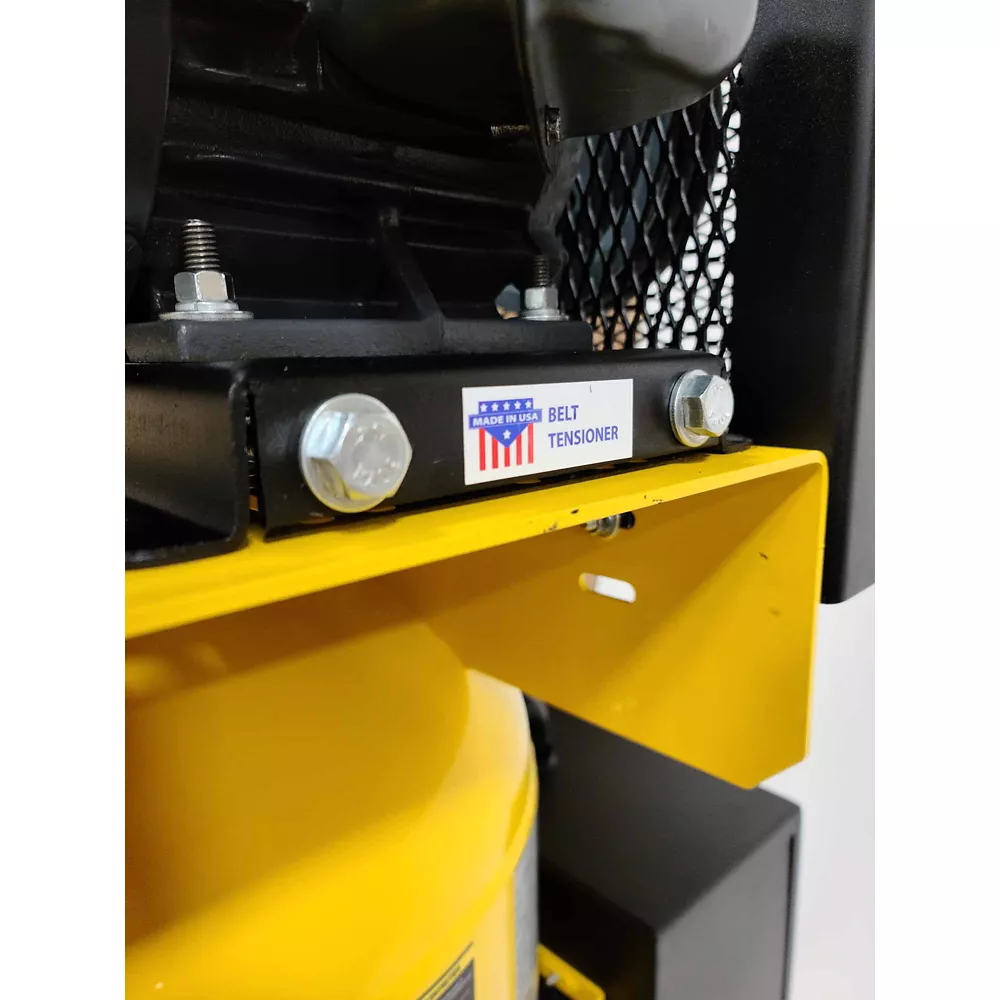

Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Built in Inner-cooler and After cooler
Dual Alternating Industrial motors
(2)Industrial-Duty Motors: 1750 RPM
Certifications: UL & CSA
ASME Certified powder coated Air Tanks up to 200PSI Max. Approved for ALL 50 states
1 Year Standard, 5 Year Extended, Lifetime Extended

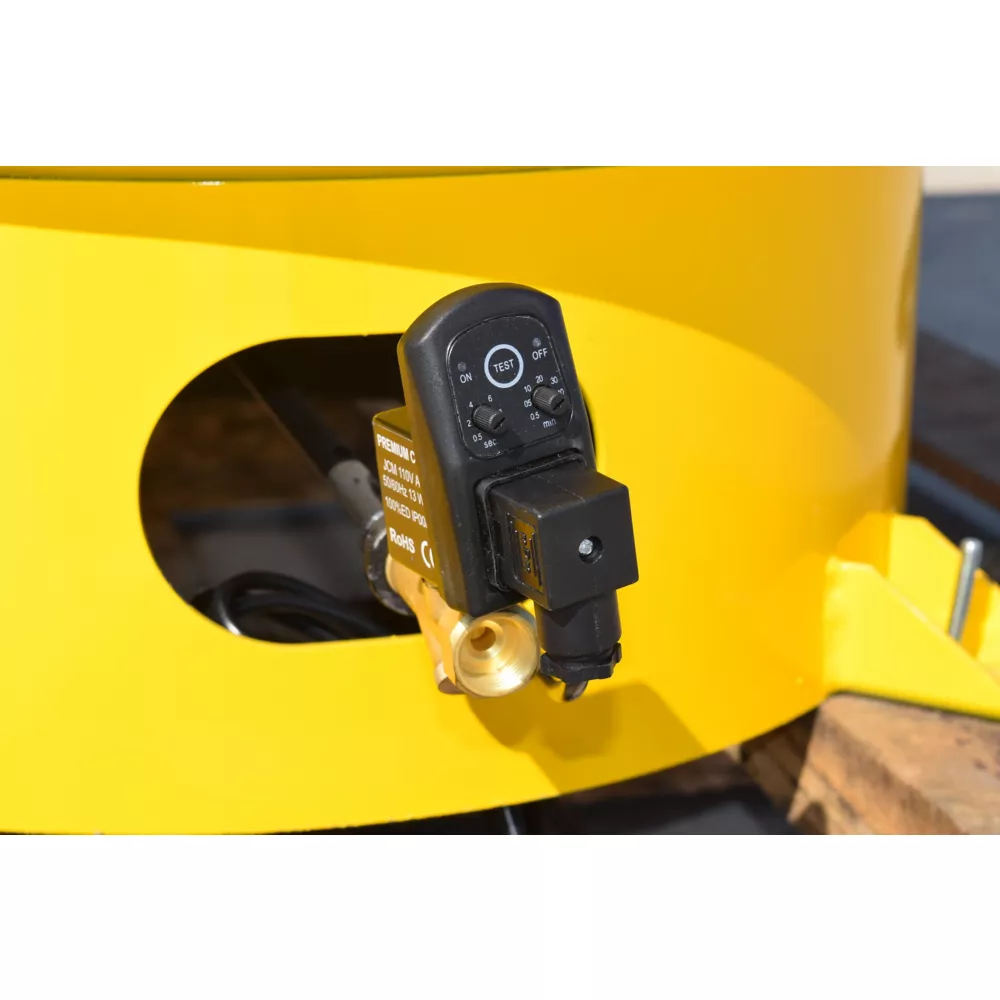

Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
Gate valve oil drain provides quick, clean oil changes

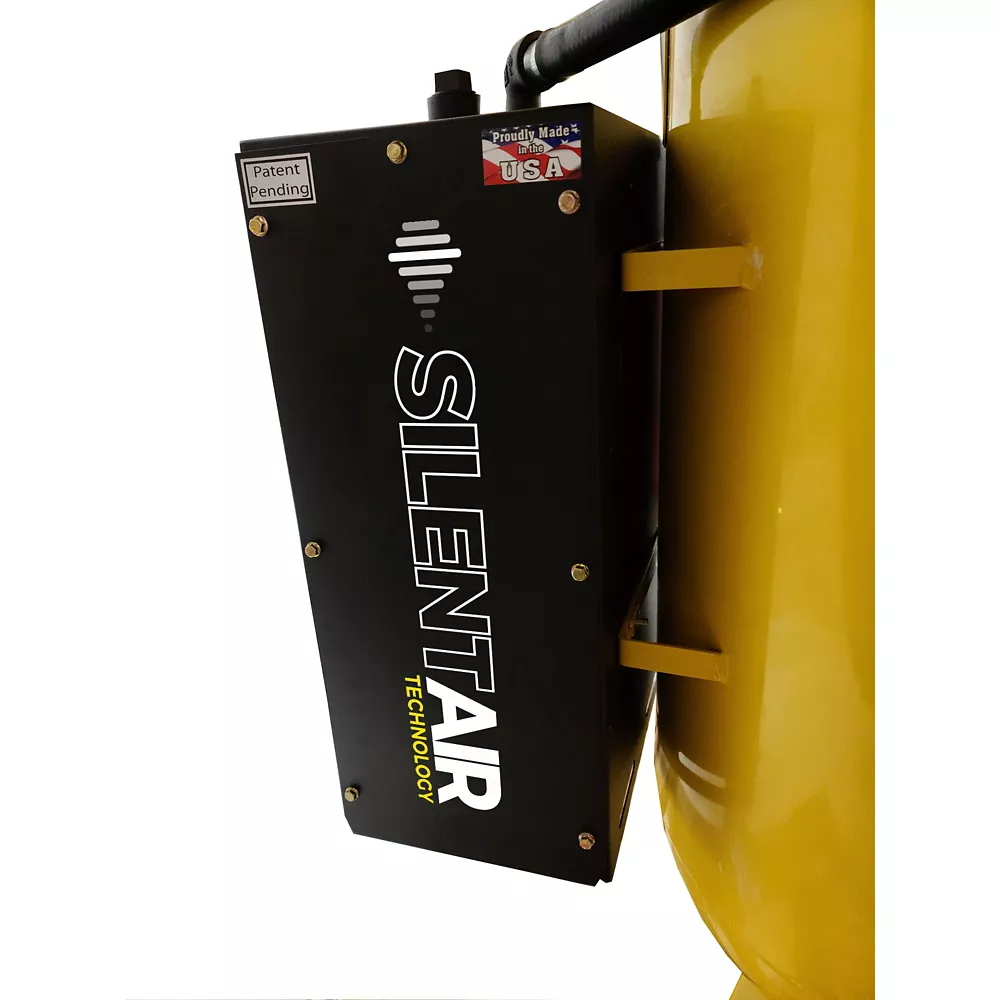

EMAX Patented SILENT AIR system, 35%- 50% quieter

(2) magnetic Starters, (2) Industrial Grade Motors, Relay, Dual Run, (2) All cast Iron Pumps, Inner & After Cooler. Patented Silent Air System

EMAX Two-7.5HP 80G Indust 2Stge V4 1PH Patented SILENT EXPANDABLE AIRLINK Solo Mounted Reciprocating Air Compressor System Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	67 SCFM
Airflow Volume	62CFM 100 PSI
Air Outlet Size	0.75 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V
Connection Type	NPT
Drain System	Automatic (x2)
Drive Type	Belt
Features	(2) magnetic Starters, (2) Industrial Grade Motors, Relay, Continuous Run, (2) All cast Iron Pumps, Inner & After Cooler. Patented Silent Air System
Hose Fitting Size	0.75 in.
Maximum RPM	640 Pump RPM x 2
Phase	Single
Nozzle Fitting Size	0.75 in.
Number Of Power Speeds	Variable
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	42 in.
Product Weight	743 lb.
Product Width	42 in.
Pump Life	70,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt. x 2
Stage Type	Two-Stage
Tank Fill Time	4.5 minutes x 2
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Eligible Lifetime Extended with maintenance kit
Manufacturer PartNumber	ESP07A080V1
