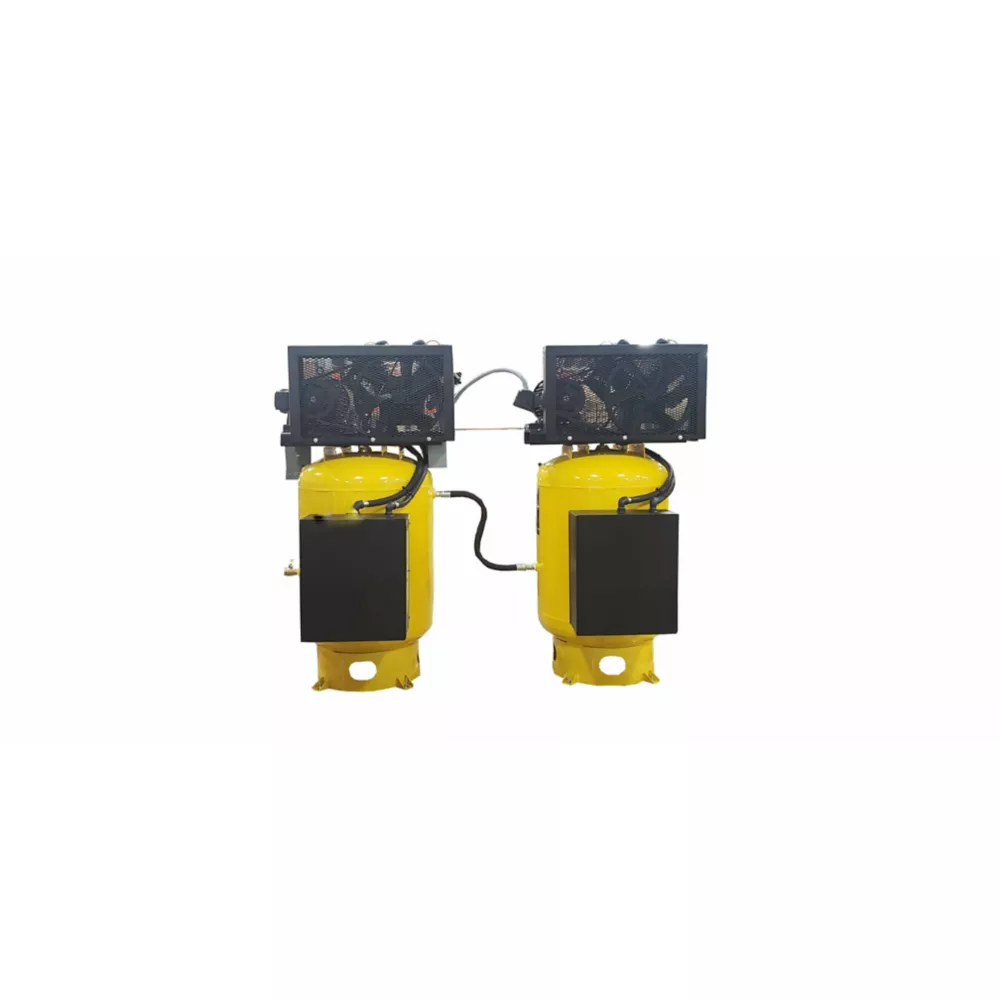

EMAX Two-7.5HP 80G Industrial 2Stge V4 3PH Alternating Patented Silencer Expandable AIRLINK Air Compressor System-ESP07A080V3 Stationary Air Compressors Air Compressors

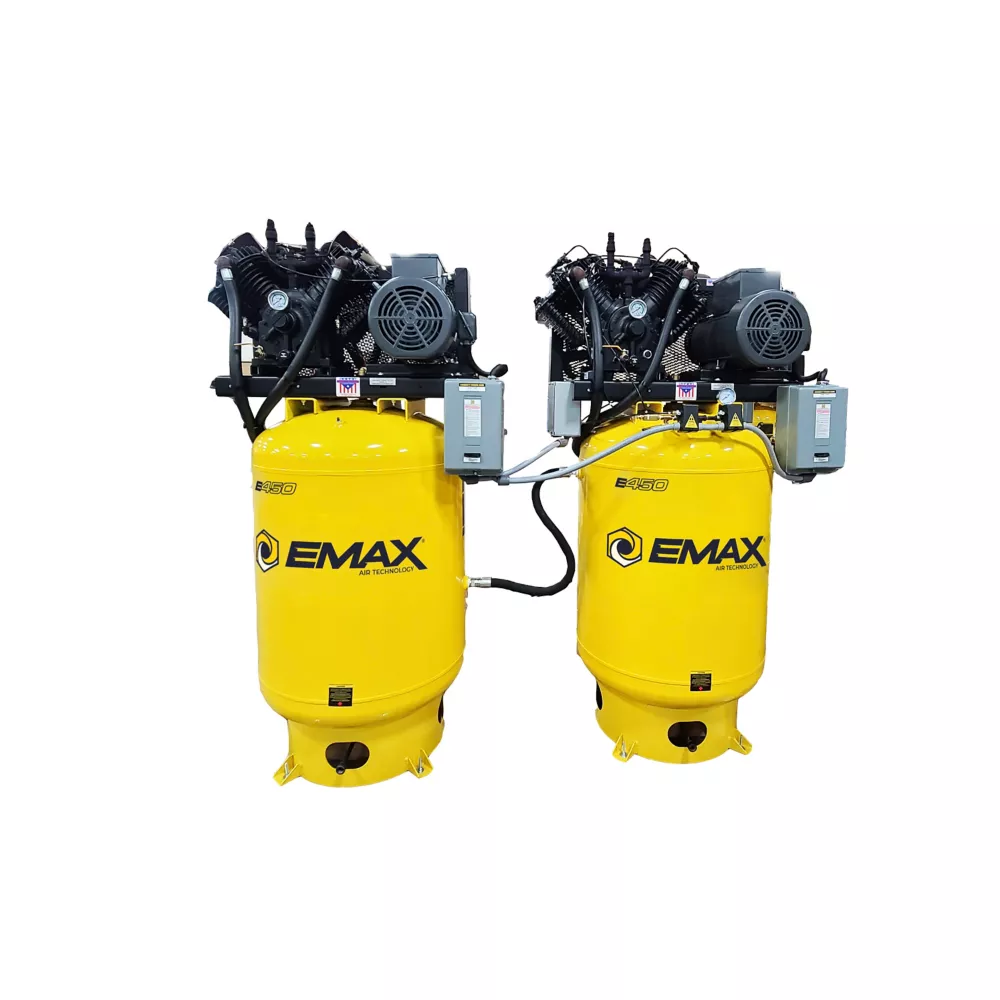

EMAX Compressor has added our Alternating line to the EMAX SILENT AIR family. By adding these Solo mounted alternating compressors to our Silent Air line, we have added to the needs of our high demand customers all while keeping with their quiet air needs. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the dual control. These units also feature our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

Alternating Switch allow the units to alternate from one pump to the other. Eliminates excessive running and allows pumps to cool under heavy loads
(2) Magnetic starters w/relay

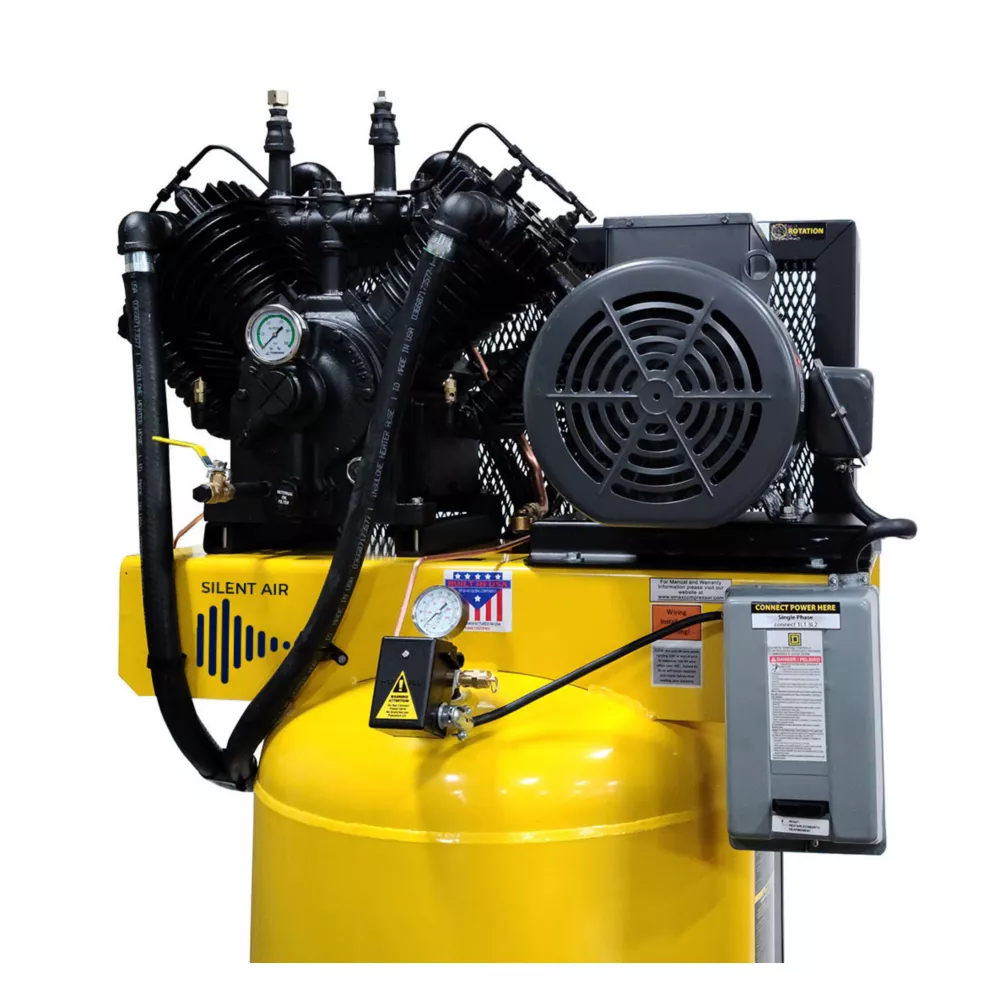

Patented Pressure Lubricated 2-stage cast iron pump with dual control

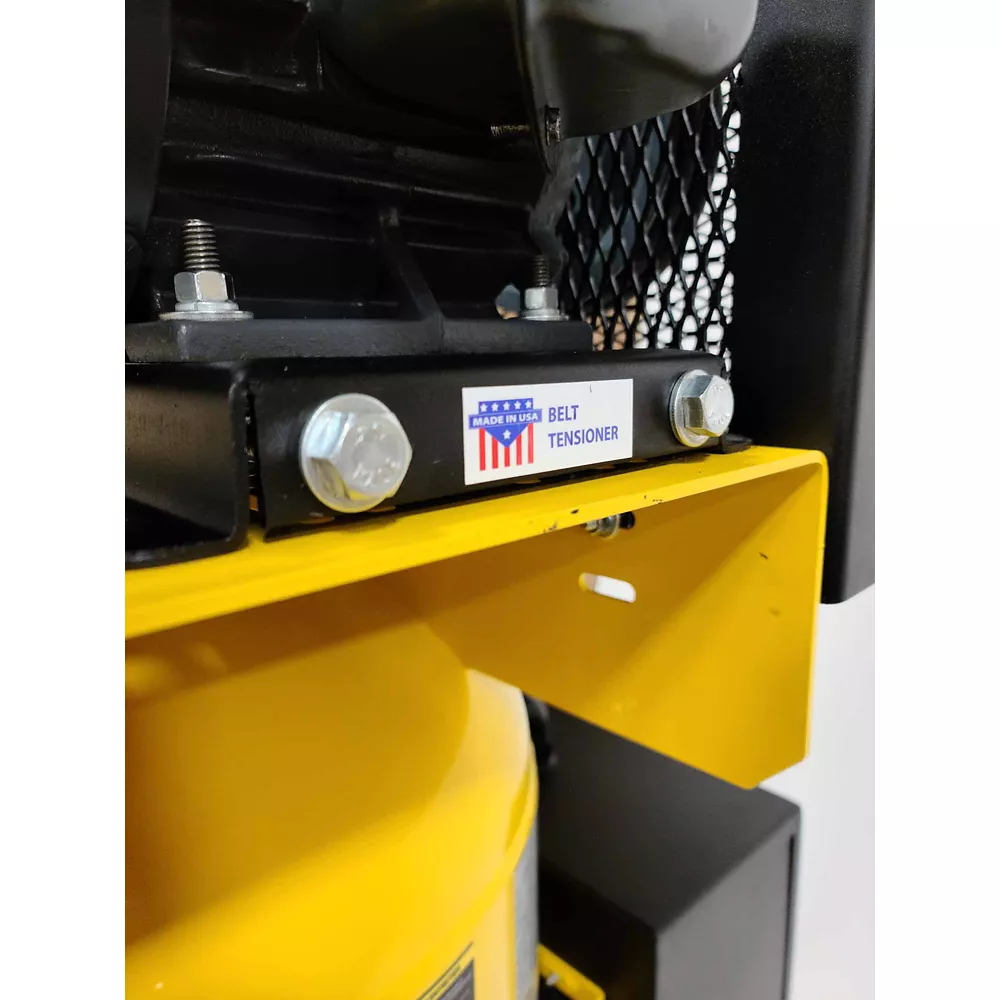

Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Built in Inner-cooler and After cooler
Dual Alternating Industrial electric motors
Industrial-Duty, 1750 RPM (not 3450 RPM) Name Brand Motor UL & CSA
ASME 200PSI Certified Air Tank Approved for ALL 50 states

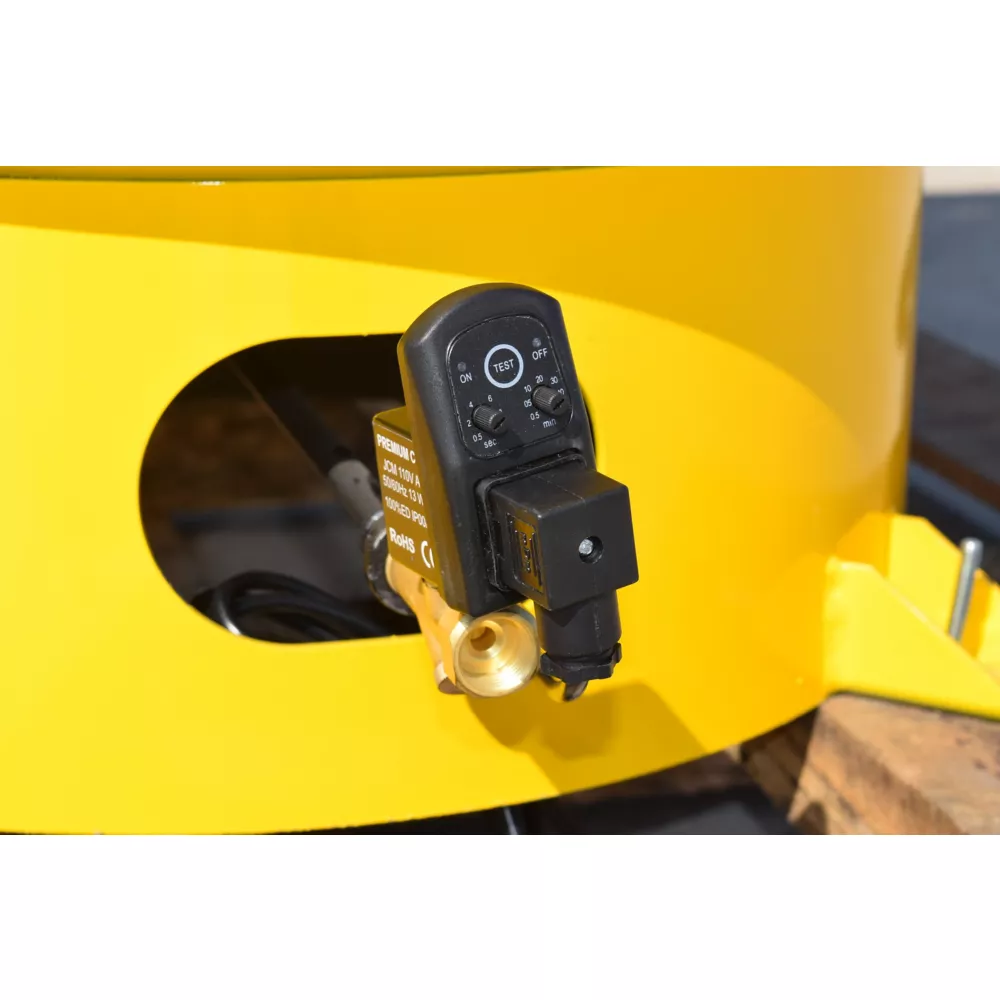

Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
Gate valve oil drain provides quick, clean oil changes
1 Year Standard, 5 Year Extended, Eligible for Pump Lifetime Extended

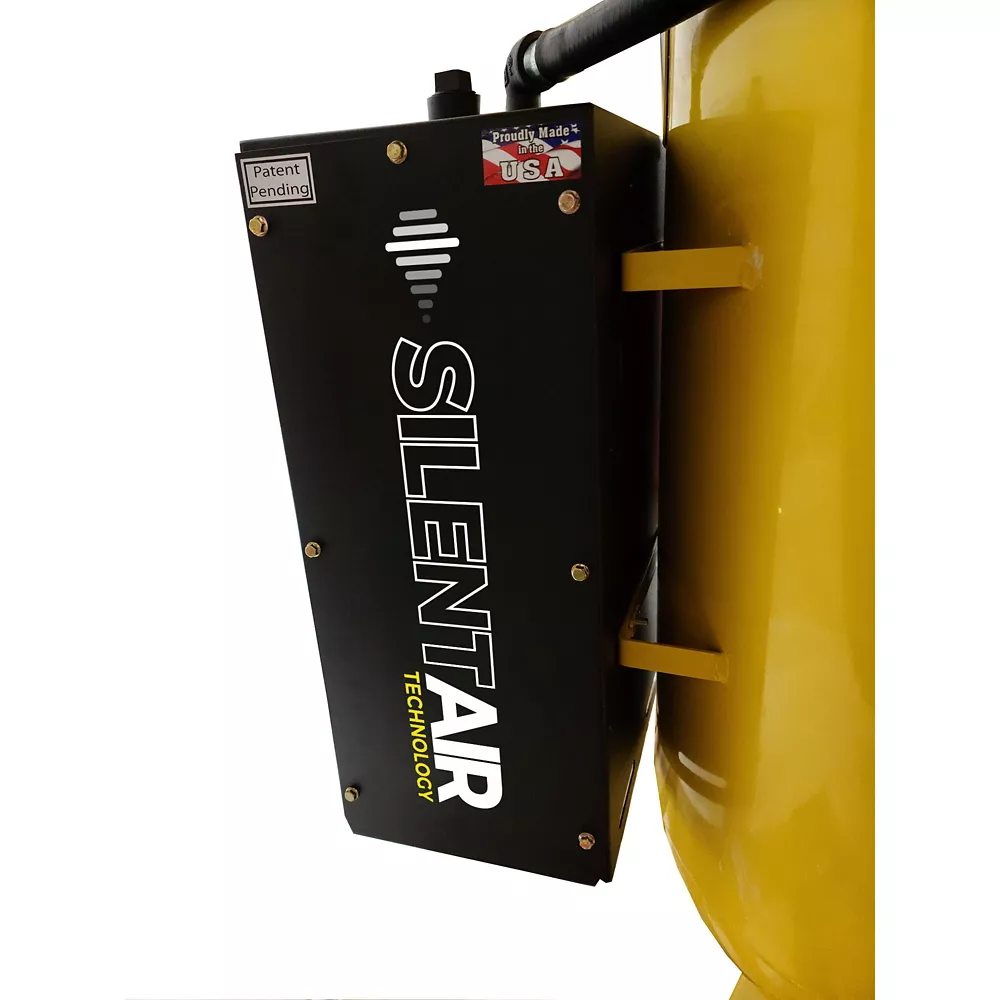

Patented SILENT AIR technology, Auto tank drain, magnetic starters, Industrial electric motor, dual control operation

EMAX Two-7.5HP 80G Industrial 2Stge V4 3PH Alternating Patented Silencer Expandable AIRLINK Air Compressor System-ESP07A080V3 Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	64 CFM
Airflow Volume	62 100 PSI
Air Outlet Size	0.75 in.
Compressor Horsepower	7 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V/460V
Connection Type	NPT
Drain System	Auto tank drain
Drive Type	Belt
Features	Patented SILENT AIR, Magnetic starters, auto tank drain, Eligible lifetime pump warranty
Hose Fitting Size	0.5 in.
Maximum RPM	640 Pump RPM
Phase	Triple
Nozzle Fitting Size	0.75 inches tank outlet
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	38 in.
Product Weight	743 lb.
Product Width	42 in.
Pump Life	70,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt. x 2
Stage Type	Two-Stage
Tank Fill Time	5 min.
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Eligible Pump Lifetime Extended with maintenance kit
Manufacturer PartNumber	ESP07A080V3

EMAX Two-7.5HP 80G Industrial 2Stge V4 3PH Alternating Patented SILENT EXPANDABLE AIRLINK Air compressor System-ESP07A080V3 Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 64 CFM Air Flow Volume 62,100 PSI Air Outlet Size 0.75 in. Compressor Power 7 HP Compressor Maximum PSI 175 PSI Compressor Operation Dual Control Compressor Tank Capacity 80 gal Compressor Type Vertical Compressor Voltage 208V/230V/460V Connection Type NPT Drain System Automatic Tank Drain Type Drive Features Patented SILENT AIR Belt, Magnetic Starters, Automatic Reservoir Drain, Lifetime Eligible Pump Warranty Hose Connection Size 0.5 in. Maximum RPM 640 Pump RPM Phase Triple Nozzle Fitting Size 0.75" Tank Outlet Number of Power Speeds Single Number of Impellers 0 Power Type Electric Primary Color Yellow Primary Material Steel Product Height 72" Product Length 38 in.product ids 743 lbs. Product width 42 in. Pump life 70,000 hours . Pump Material Cast Iron Pump Oil Capacity 2.5 quarts. x 2-stage type Two-stage tank filling time 5 min. Tank Orientation Vertical Warranty 1 Year Sstandard, 5 Years Extended, Extended Eligible Pump Life with Maintenance Kit Manufacturer Part Number ESP07A080V3
