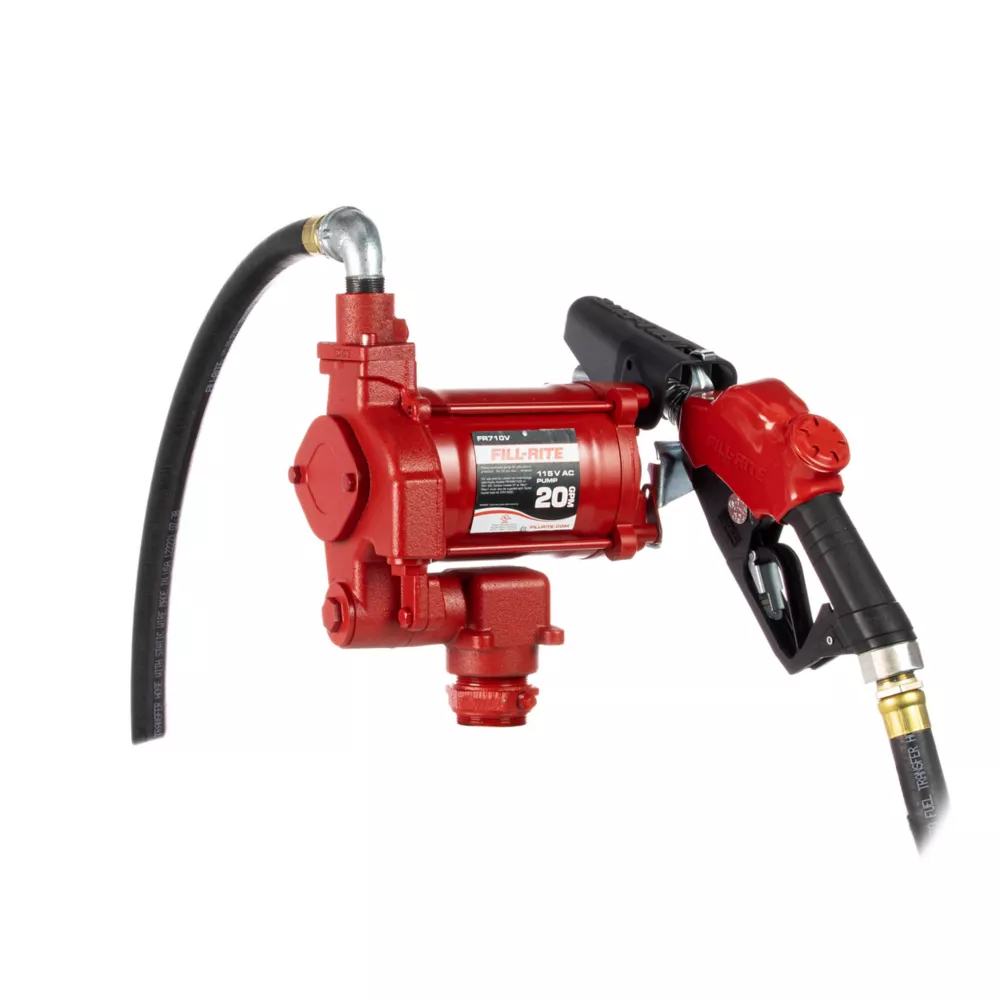

Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump with Discharge Hose and Auto Nozzle 20 GPM Fuel Transfer Pumps Truck & Automotive

The Fill-Rite 115VAC 20 GPM Fuel Transfer Pump with Discharge Hose and Automatic Nozzle is built to last with cast-iron construction and rotary vane technology, which maintains peak performance over time. The durable fuel transfer pump is a 115VAC, 20 GPM, heavy-duty fuel transfer pump for long-lasting use. This fuel transfer pump and accessory bundle comes complete with a hose, nozzle and installation components. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

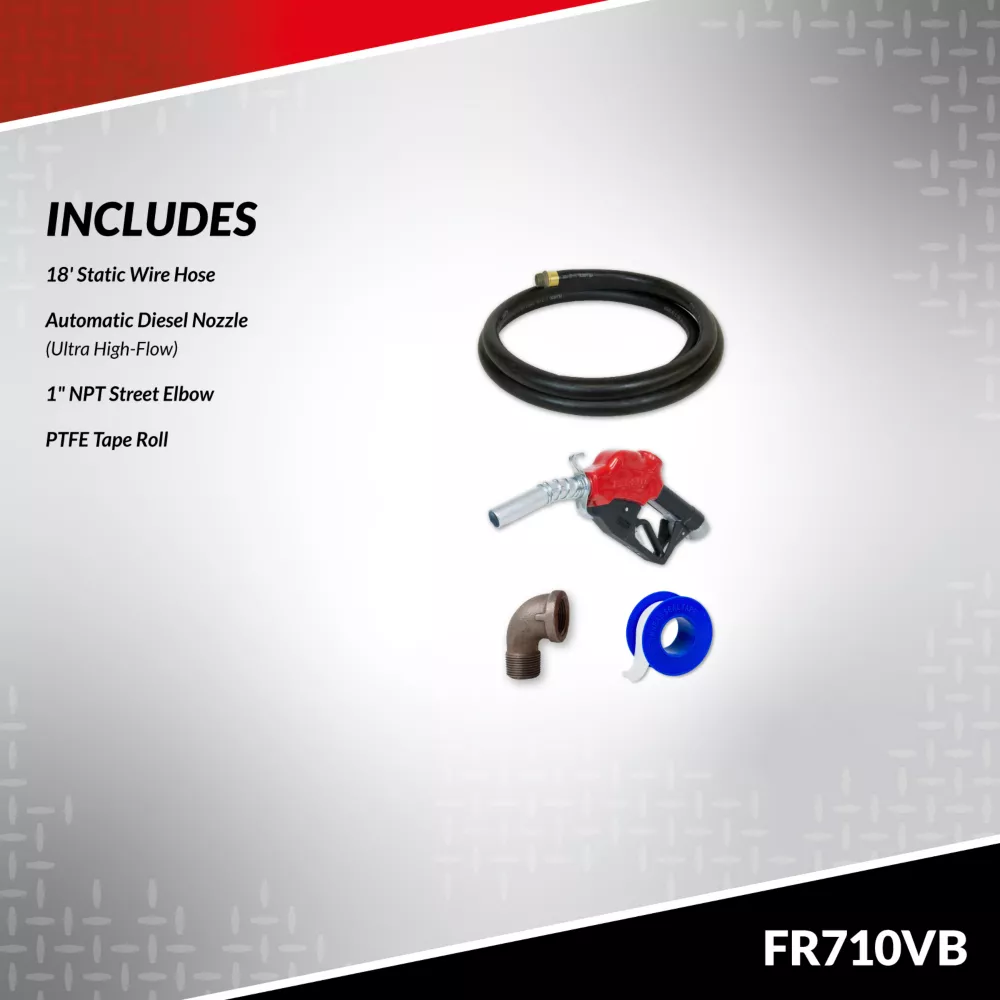

Heavy-duty fuel transfer pump with a discharge hose and automatic nozzle
Pump comes complete with a hose, nozzle and installation components
Our most popular AC fuel transfer pump that transfers fuel at 20 GPM
Tremendous entry-level option; ideal fuel pump for filling medium-sized equipment from above ground storage tanks
Rotary vane technology produces consistent flow performance over the entire life of your pump
Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Fuel transfer pump is backed by an industry-leading limited lifetime warranty to protect your purchase and your business
Discharge hose: 1 in. x 18 ft. UL listed hose with static ground wire
Nozzle: 1 in. ultra hi-flow automatic diesel nozzle (red)
Cable connection: hard-wire
Suction lift of the fuel pump: 15 ft.

Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump with Discharge Hose and Auto Nozzle 20 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	5.5A
Body Materials	Cast iron
Compatible Fluids	Diesel, Gasoline, Heptane, Kerosene, Mineral Spirits, Solvents
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	Self-Priming
Horsepower	0.33 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial, Industrial, Residential
Maximum Flow Rate	20 GPM
Maximum Head Lift	15 ft.
Maximum Operating Pressure	23 PSI
Maximum Operating Temperature	105°F
Minimum Operating Temperature	-4°F
Power Type	Electric
Product Height	13 in.
Product Length	7 in.
Product Weight	44.4 lb.
Product Width	13.75 in.
Voltage	115/230V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR710VB

Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump with Discharge Hose and Automatic Nozzle, 20 GPM Specifications Expand/Collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power Supply AC Amps 5.5 A Body Materials Cast Iron Compatible Fluids Diesel, Gasoline, Heptane, Kerosene, Mineral Spirits, Solvents Discharge Diameter 1 in. Duty cycle 30 min. Features Self-priming power 0.33 HP Hose diameter 1 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial, Industrial, Residential Grade Maximum Flow Rate 20 GPM Maximum Head Lift 15 Feet Maximum Operating Pressure 23 PSI Maximum Operating Temperature 105° F Minimum Operating Temperature -4°F Power Type Electric Product Height 13 in. Product length 7 in. Product weight 44.4 lbs. Product width 13.75 in. Voltage 115/230 V Limited lifetime warranty Manufacturer part number FR710VB
