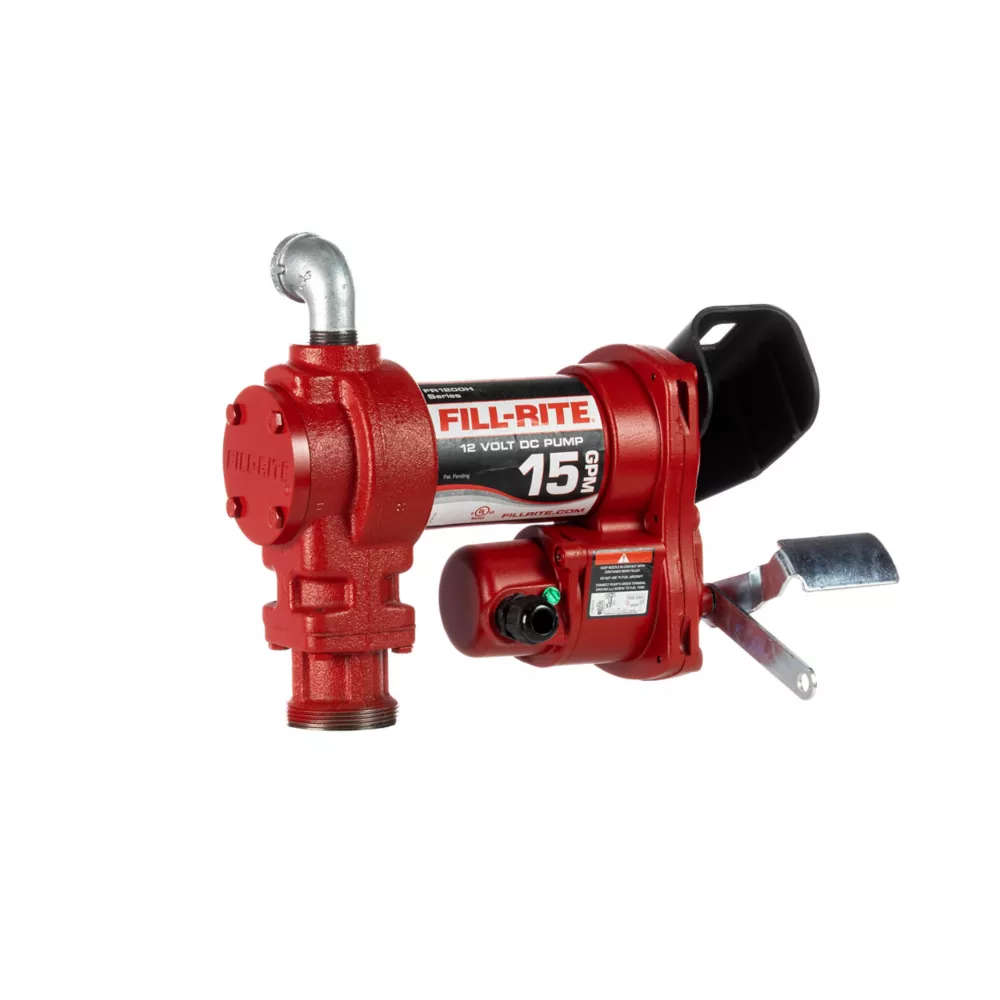

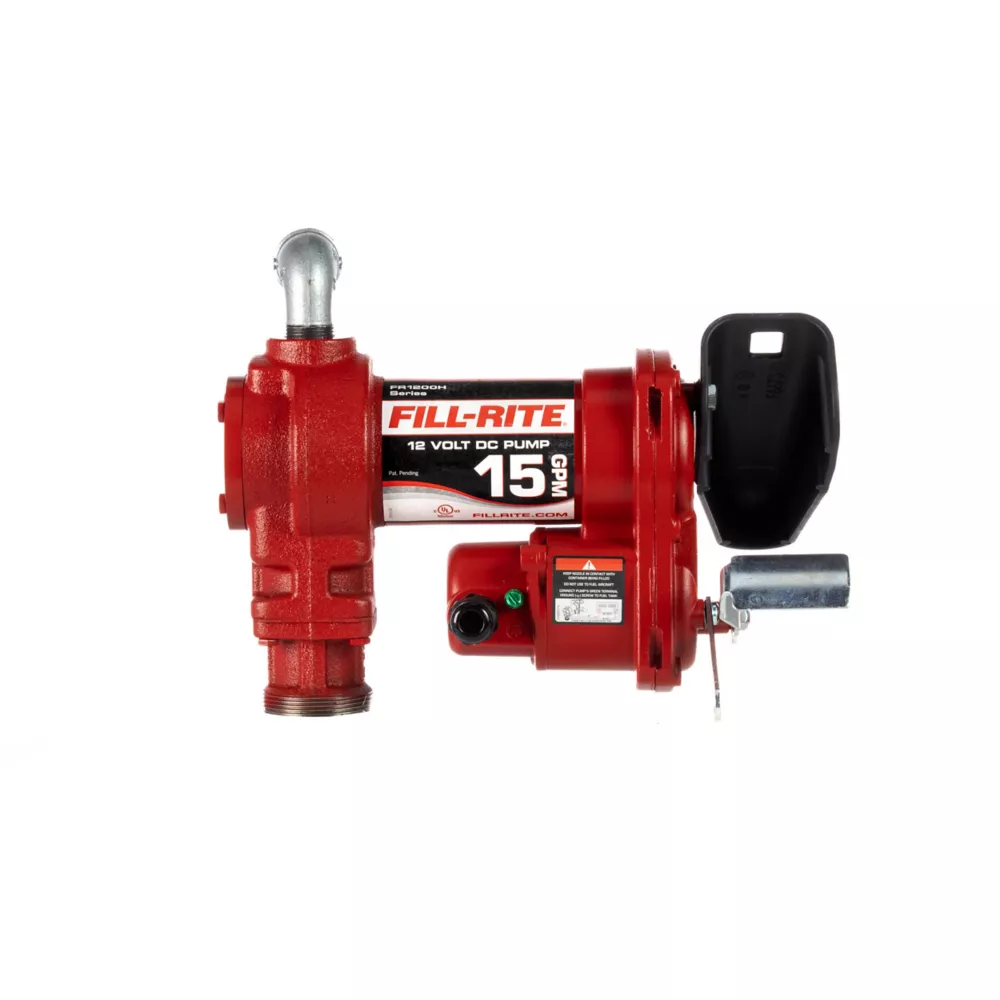

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump 15 GPM Fuel Transfer Pumps Truck & Automotive

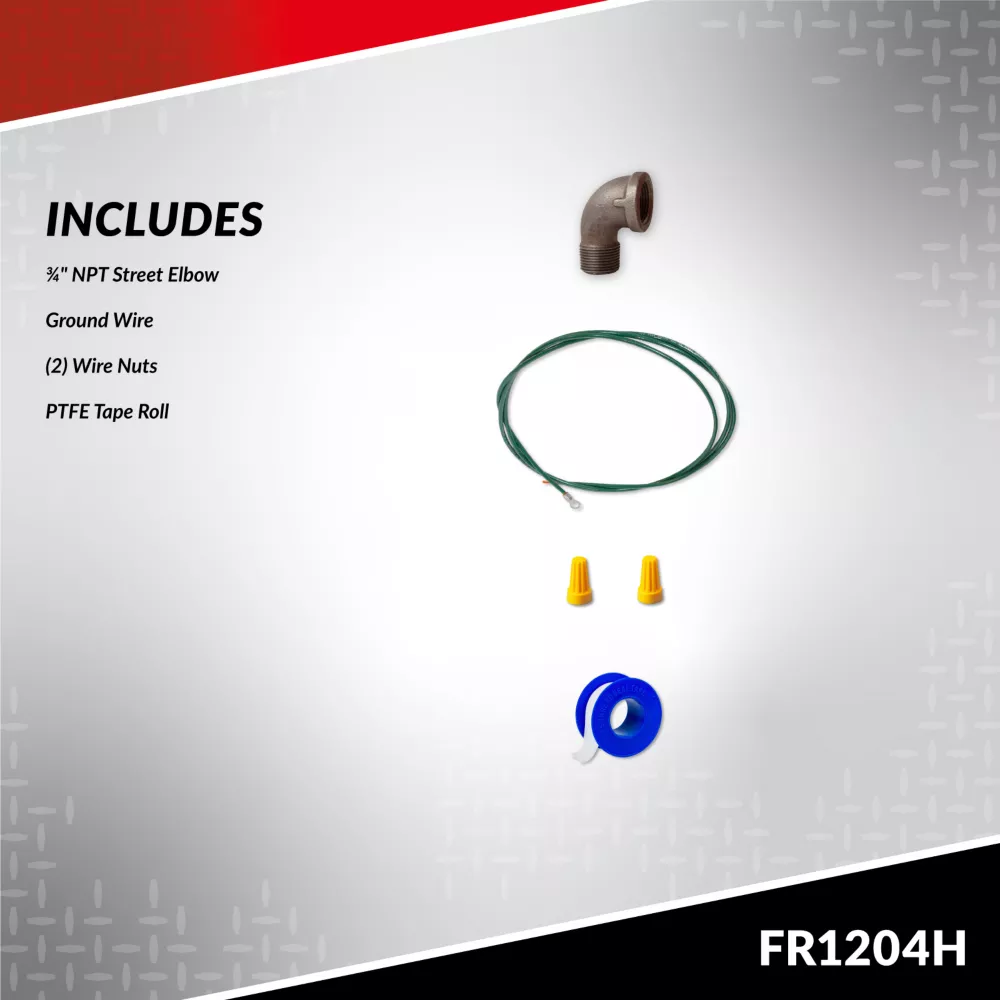

The Fill-Rite 12VDC 15 GPM Fuel Transfer Pump is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump includes installation components and no additional accessories.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, perfect for filling equipment with fuel tanks from 15-60 gal.

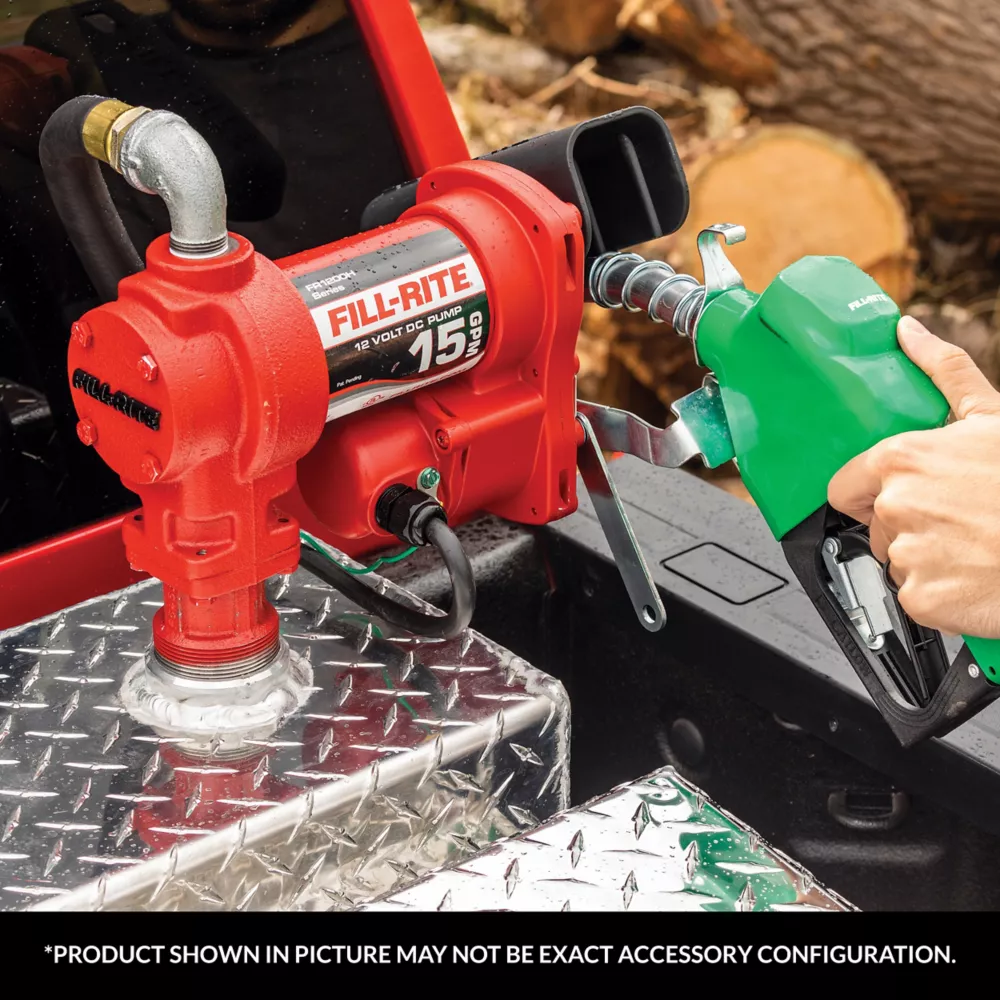

Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
37 ft. discharge head
Suction lift: 8 ft.

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump 15 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with Diesel,Gasoline,Biodiesel up to B20,Mineral Spirits
Horsepower	0.25 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	15 gal./min.
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	12 Volt
Product Height	9.5 in.
Product Length	4.75 in.
Product Weight	19.1 lb.
Product Width	10 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR1204H

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump, 15 GPM Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power DC Amperage 20 Amp Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Compatible with diesel, gasoline, biodiesel up to B20, mineral spirits Power 0.25 hp Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Residential Grade Maximum Flow 15 gal./min. Maximum head lift 8 feet. Maximum operating pressure 16 PSI Maximum operating temperature 105 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type 12 Volt Product Height 9.5 in. Product length 4.75 in. Product weight 19.1 lbs. Product width 10 in. Voltage 12V Limited lifetime warranty Manufacturer part number FR1204H
