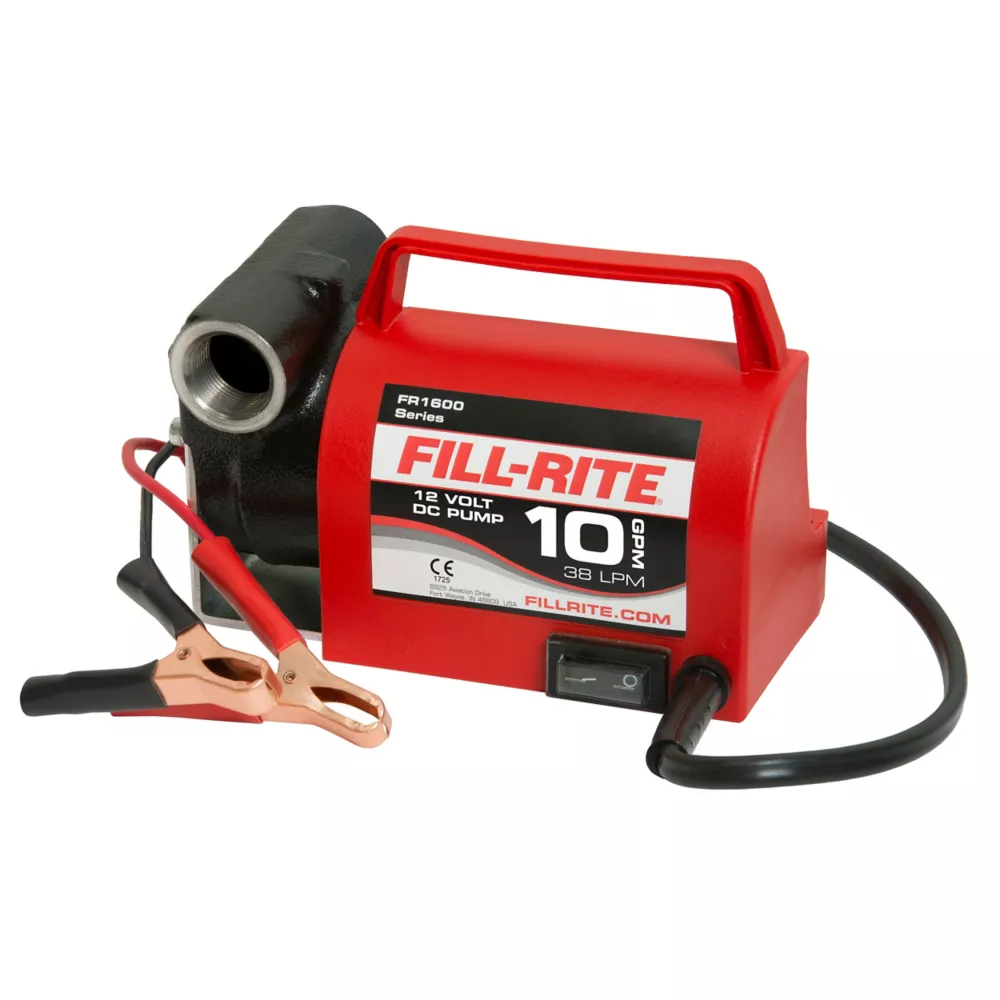

Fill-Rite 1/5 HP 12V 10 GPM Portable Diesel Fuel Transfer Pump Pump and Power Cord Only Fuel Transfer Pumps Truck & Automotive

The Fill-Rite 12VDC 10 GPM Portable Diesel Fuel Transfer Pump with Power Cord is lightweight and easily portable. This fuel transfer pump includes installation components and no additional accessories. Proudly manufactured in the USA, the Fill-Rite fuel pump is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

Durable cast-iron construction provides heavy-duty performance and allows the fuel pump to withstand daily use in diesel applications
Weighing under 8 lb., this fuel transfer pump can be easily transported or held during operation
Battery cable and clips are pre-installed at the factory, saving you time and eliminating frustration
Proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
Toggle switch allows the fuel transfer pump to be turned on and off with the simple touch of a button
Flow rate range of the fuel transfer pump: 0 to 10 GPM
1 year warranty
Made in USA
Provides extreme portability for low-volume diesel transfer, ideal for transferring out of drums and totes into smaller equipment

Fill-Rite 1/5 HP 12V 10 GPM Portable Diesel Fuel Transfer Pump Pump and Power Cord Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	17A
Body Materials	Cast iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self-Priming
Horsepower	0.2 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	0.75 in.
Intended Use Grade	Residential
Maximum Flow Rate	10 GPM
Maximum Head Lift	8 ft.
Maximum Operating Pressure	50 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	4 PSI
Minimum Operating Temperature	-10 deg.
Power Cord Length	6.5 ft.
Power Type	12 Volt
Product Height	4.25 in.
Product Length	5.75 in.
Product Weight	8 lb.
Product Width	7 in.
Voltage	12V
Warranty	2 Year
Manufacturer PartNumber	FR1612

Fill-Rite 1/5 HP 12V Portable Diesel Fuel Transfer Pump, 10 GPM, Pump and Power Cord Only Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power Supply DC Amperage 17 Amp Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Self-priming power 0.2 HP Hose diameter 0.75 in. Inlet Connection Female Threaded Inlet Diameter 0.75 in. Intended Use Grade Residential Maximum Flow Rate 10 GPM Maximum Head Lift 8 feet Maximum Operating Pressure 50 PSI Maximum Operating Temperature 105 deg. Minimum operating pressure 4 PSI Minimum operating temperature -10 deg. Power cord length 6.5 feet Power type 12 volts Product height 4.25 inches Product length 5.75 inches Product weight 8 lbs Product width 7 inches Voltage 12 V Warranty 2 years Part number manufacturer FR1612
