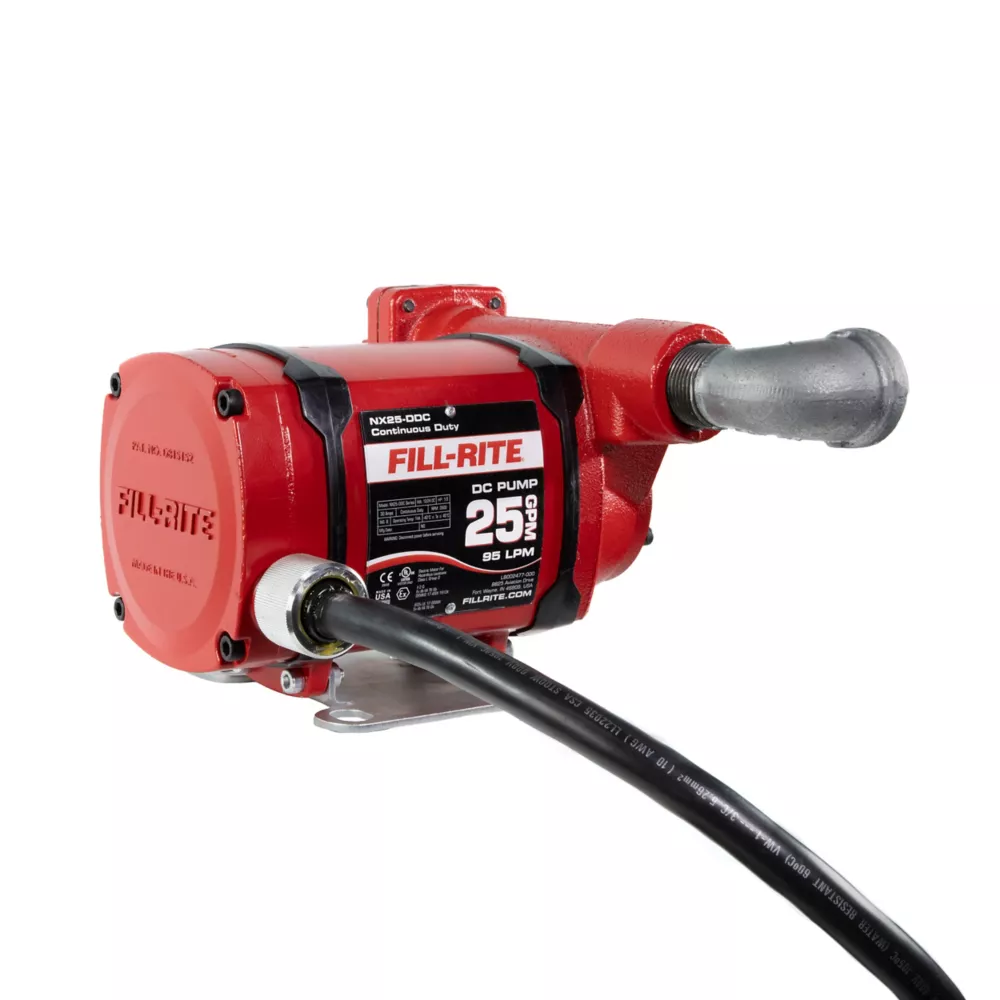

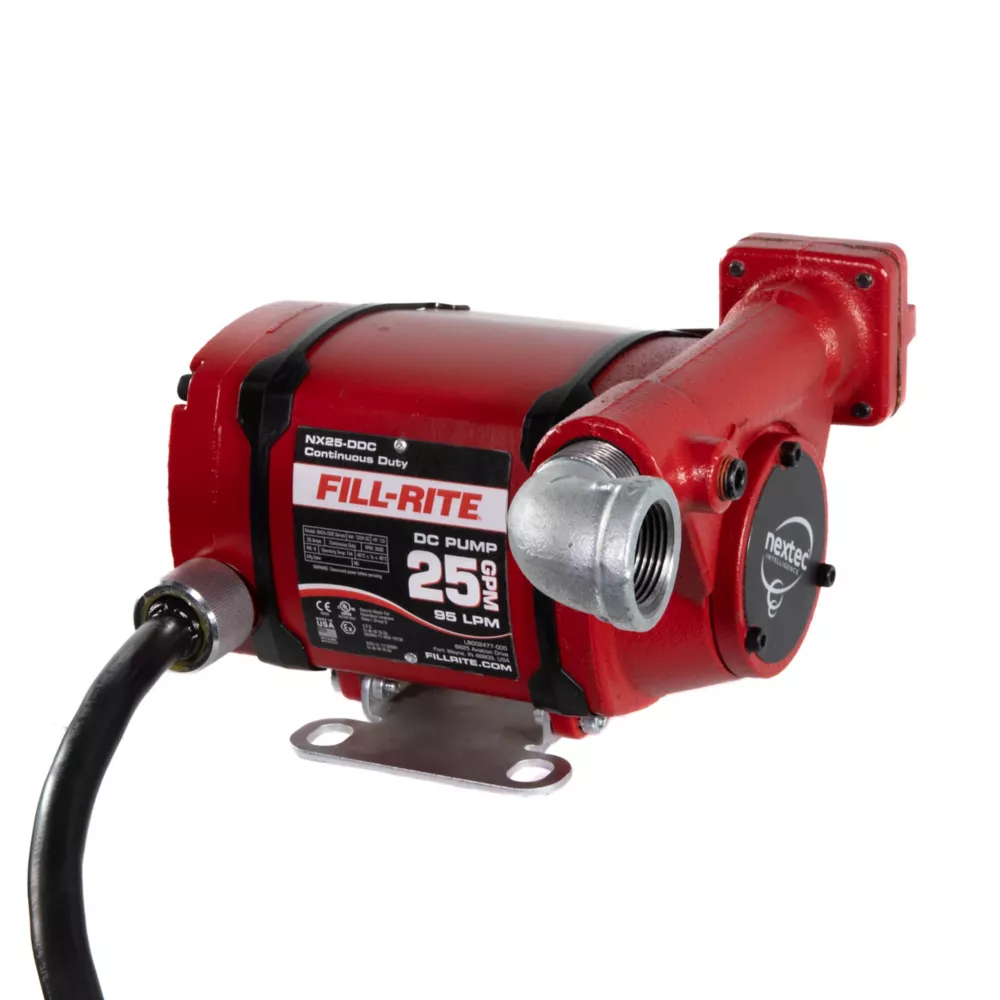

Fill-Rite 12V/24V 25 GPM Cont Duty Pedestal Mounted NPT Threaded Fuel Transfer Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive

The NX25-DDCNF-PX model is a 12/24V DC, 25 GPM premiere fuel transfer pump. This model includes installation components and no additional accessories.

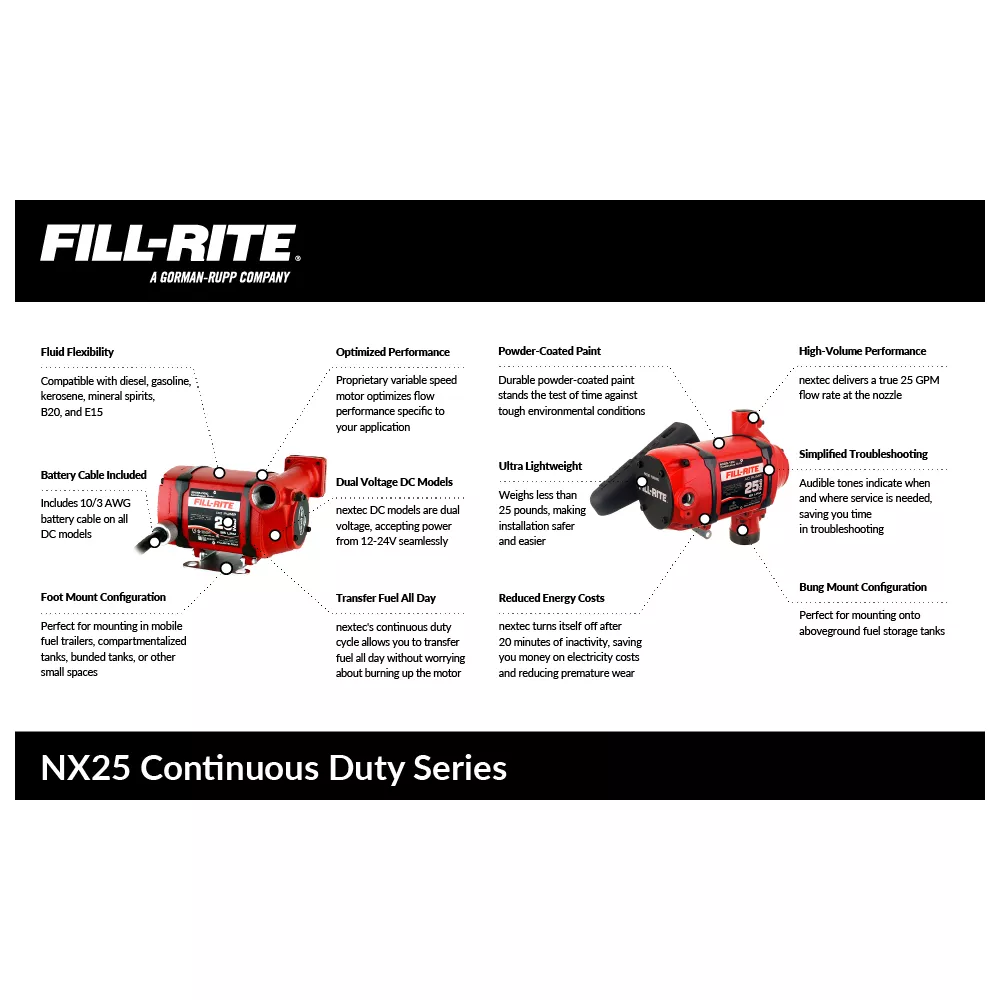

Unmatched Performance - Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
Continuous Operation brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime
Flexible Power Input dual voltage design allows you to power from 12-24V DC batteries without worrying of burning up the motor
Energy Efficient - Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
Ultra-Lightweight pump weighs 60% less at only 25 pounds, making installation faster and strain free
Reduced Maintenance Costs 75% reduction in common field repair costs through patented design and robust construction
Powder-Coated Exterior thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Fill-Rite 12V/24V 25 GPM Cont Duty Pedestal Mounted NPT Threaded Fuel Transfer Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Body Materials	Cast Iron
Compatible Fluids	Diesel, Kerosene
Discharge Connection	Female
Discharge Diameter	1 in.
Duty Cycle	99,999 hr.
Features	Pump Only
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial, Industrial, Residential
Maximum Flow Rate	25 GPM
Maximum Head Lift	48 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	125 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-20 deg.
Power Type	12 Volt
Product Height	6.25 in.
Product Length	8.25 in.
Product Weight	21.4 lb.
Product Width	9.5 in.
Warranty	Limited Lifetime
Manufacturer PartNumber	NX25-DDCNF-PX

Fill-Rite 12V/24V 25 GPM Cont Duty NPT Threaded Ft Mounted Fuel Transfer Pump (Pump Only) Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA Body Materials Cast Iron Compatible Fluids Diesel, Kerosene Discharge Fitting Female Discharge Diameter 1 in. Duty cycle 99,999 hours. Features Pump only Hose diameter 1 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial, Industrial, Residential Grade Maximum Flow Rate 25 GPM Maximum Lift Height 48 Feet Maximum Operating Pressure 25 PSI Maximum Operating Temperature 125 deg. Minimum operating pressure 0 PSI Minimum operating temperature -20 deg. Power Type 12 Volt Product Height 6.25 in. Product length 8.25 in. Product weight 21.4 lbs. Product width 9.5 in. Limited Lifetime Warranty Manufacturer Part Number NX25-DDCNF-PX
