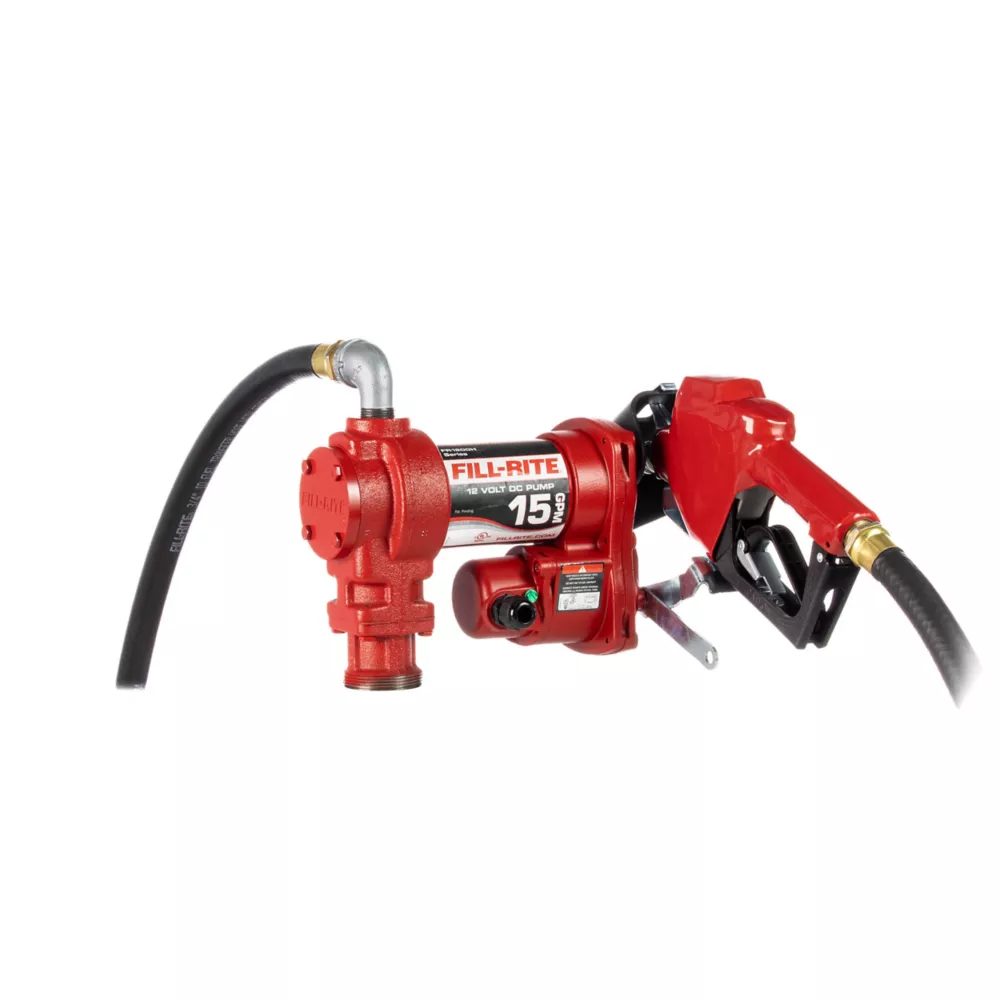

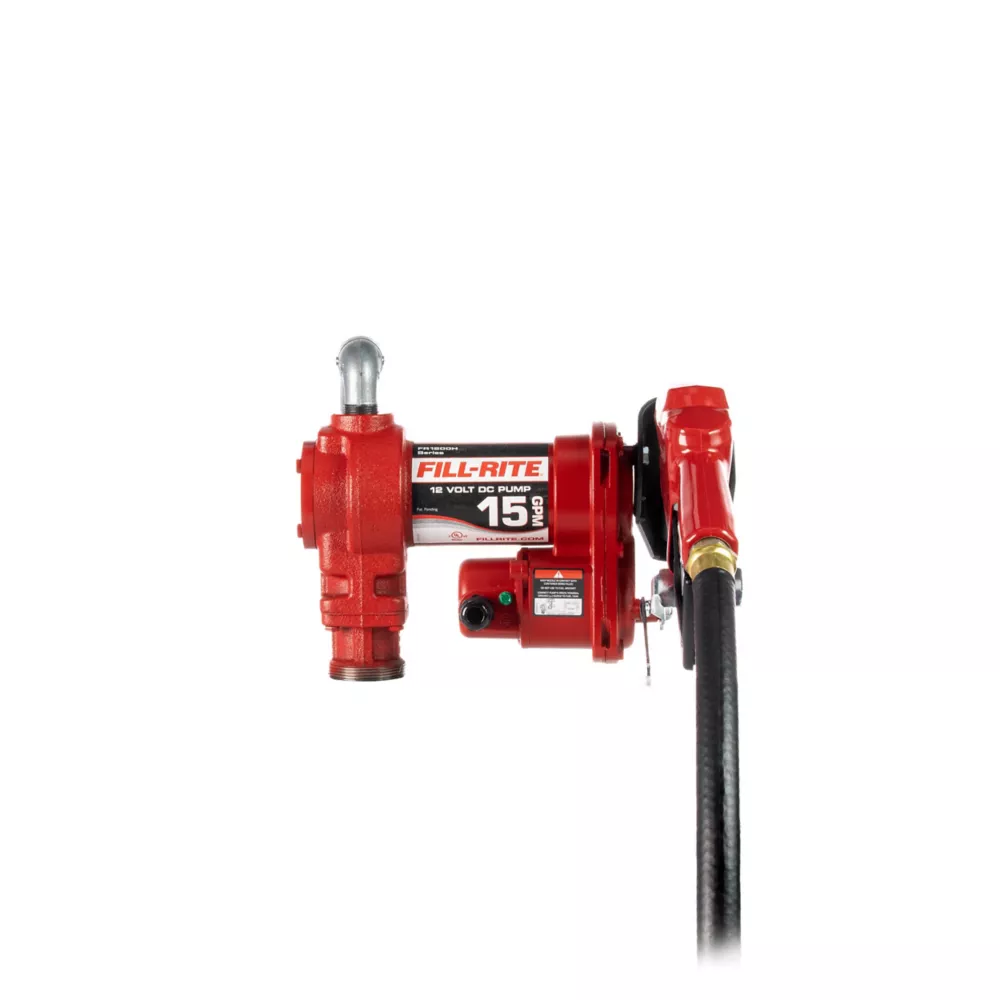

Fill-Rite 12V DC Fuel Transfer Pump Kit with Auto Nozzle 15 GPM Fuel Transfer Pumps Truck & Automotive

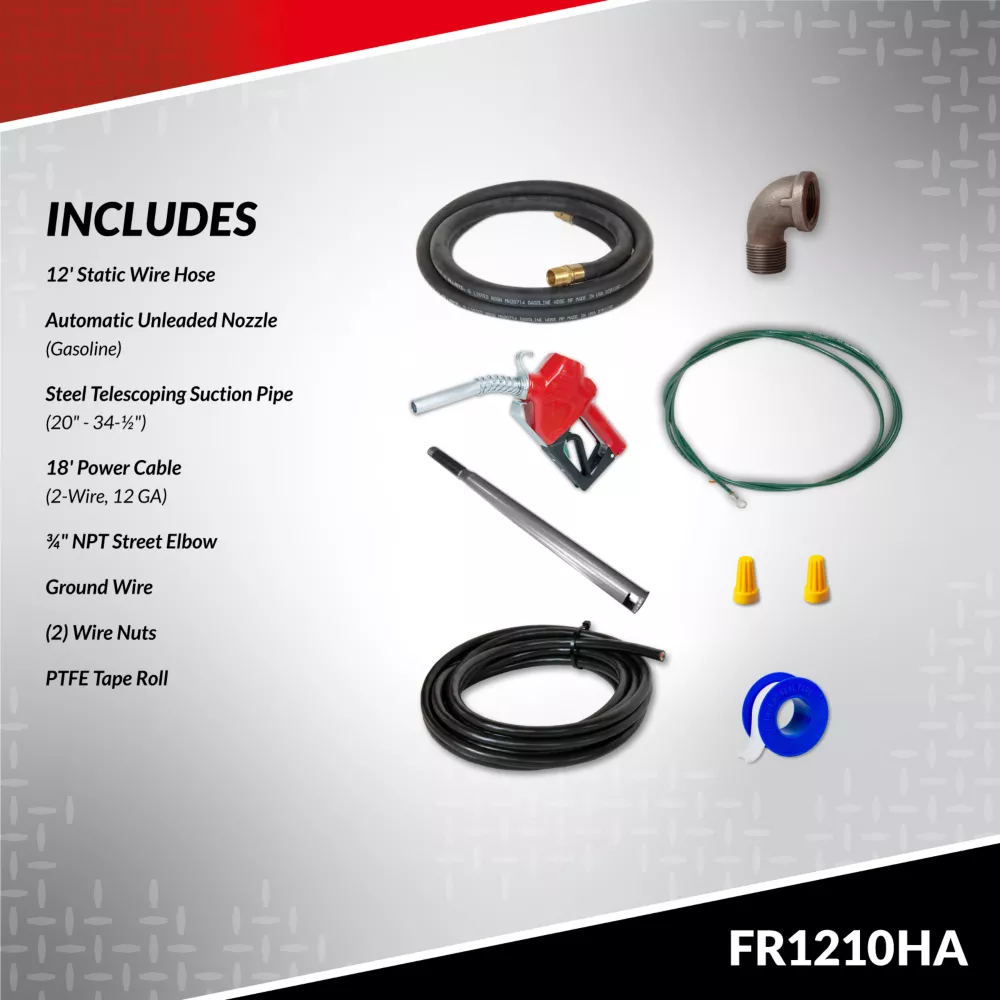

The Fill-Rite 12VDC 15 GPM Fuel Transfer Pump Kit with Auto Nozzle comes with a 15 GPM, heavy-duty fuel transfer pump. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, a suction pipe, and installation components.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally-protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel transfer pump kit is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15-60 gal.
Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

Fill-Rite 12V DC Fuel Transfer Pump Kit with Auto Nozzle 15 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20 Amp
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with Diesel, Gasoline, Biodiesel up to B20, Mineral Spirits
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	15GPM
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0.17 deg.
Power Cord Length	18 ft.
Power Type	12 Volt
Product Height	6.5 in.
Product Length	15.5 in.
Product Weight	18.9 lb.
Product Width	10 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR1210HA

Fill-Rite 12VDC Fuel Transfer Pump Kit with Auto Nozzle, 15 GPM Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power DC Amperage 20 Amp Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Compatible with diesel, gasoline, biodiesel up to B20, mineral spirits Hose diameter 0.75 in. Inlet fitting Male thread Inlet diameter 1 in. Intended Use Residential Grade Maximum Flow Rate 15 GPM Maximum Head Lift 8 ft. Maximum Operating Pressure 16 PSI Maximum Operating Temperature 105 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature 0.17 deg. Power cord length 18 ft. Power Type 12 Volt Product Height 6.5 in. Product length 15.5 in. Product weight 18.9 lbs. Product width 10 in. Voltage 12V Limited lifetime warranty Manufacturer part numberFR1210HA
