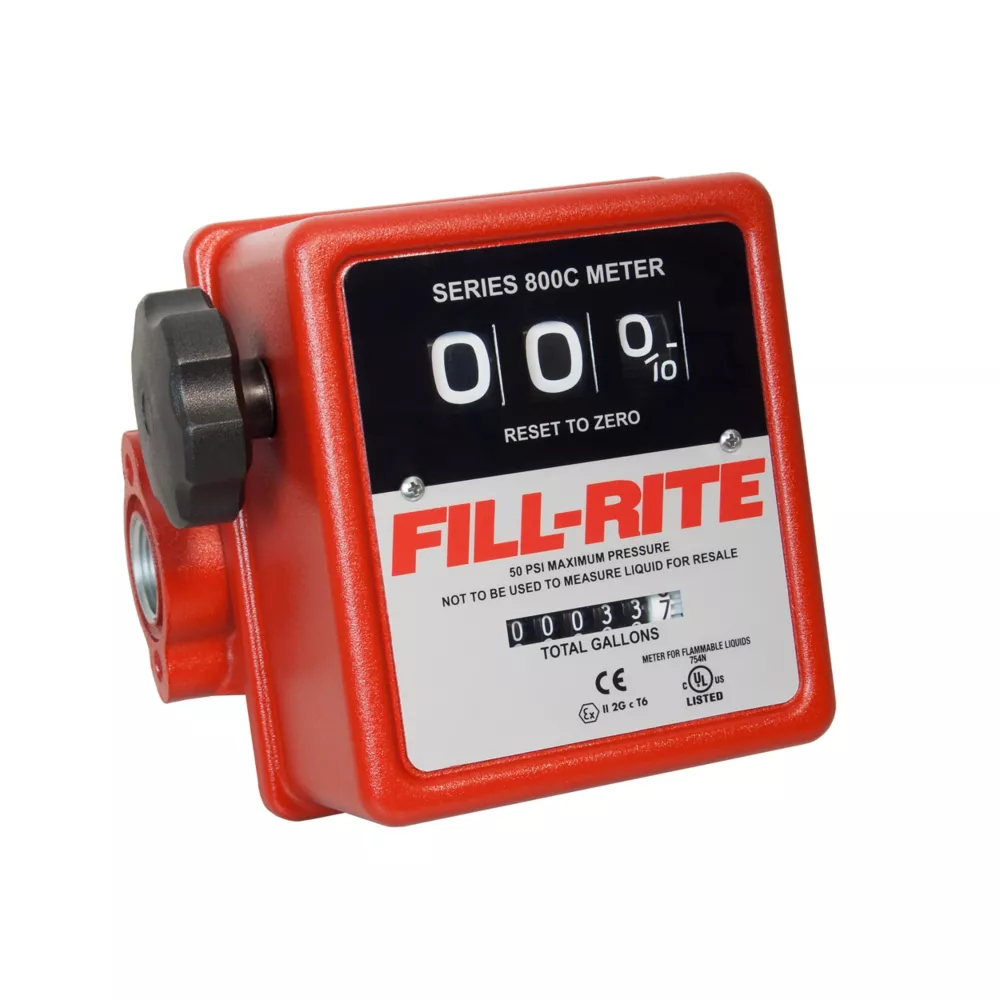

Fill-Rite 3/4 in 40 GPM 3-Wheel Mechanical Fuel Transfer Meter Fuel Transfer Tank Accessories Truck & Automotive
The Fill-Rite 3/4 in. 3-Wheel Mechanical Fuel Transfer Meter is a 3-digit mechanical fuel transfer meter. This fuel transfer meter is equipped with NPT threads and is designed to register 5-20 GPM at +/- 1% accuracy. This model does not include additional installation components.- Mechanical fuel transfer meter is designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
- Built to last with rugged, cast-aluminum construction and designed for maximum durability and lifetime corrosion resistance
- Transfer pump measures fuel within +/- 1% accuracy, ensuring your record-keeping is precise as possible
- 3-digit counter registers flow rates between 5-20 GPM and up to 99.9 gal. or L per batch, making it perfect for equipment with small fuel tanks
- 5-digit, non-resettable counter tracks total volume transferred over lifetime of meter
- Designed for daily use with diesel, gasoline, kerosene, mineral spirits, heptane, and hexane
Fill-Rite 3/4 in 40 GPM 3-Wheel Mechanical Fuel Transfer Meter Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories
| Specification | Description |
|---|---|
| Brand | Fill-Rite |
| Country of Origin | Made in USA |
| Body Materials | Aluminum |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 0 hr. |
| Features | Compatible with Diesel and Gasoline |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.75 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 40GPM |
| Maximum Head Lift | 0 N/A |
| Maximum Operating Pressure | 50 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -40 deg. |
| Power Type | None |
| Product Height | 5.25 in. |
| Product Length | 5 in. |
| Product Weight | 4.3 lb. |
| Product Width | 5.5 in. |
| Warranty | 2 Years |
| Manufacturer PartNumber | 807C |
