Fill-Rite DF120DAN520 8 GPM 120V DEF Transfer Pump with Auto Nozzle Suction Hose Discharge Hose Drum Bracket and Power Cord Fuel Transfer Pumps Truck & Automotive

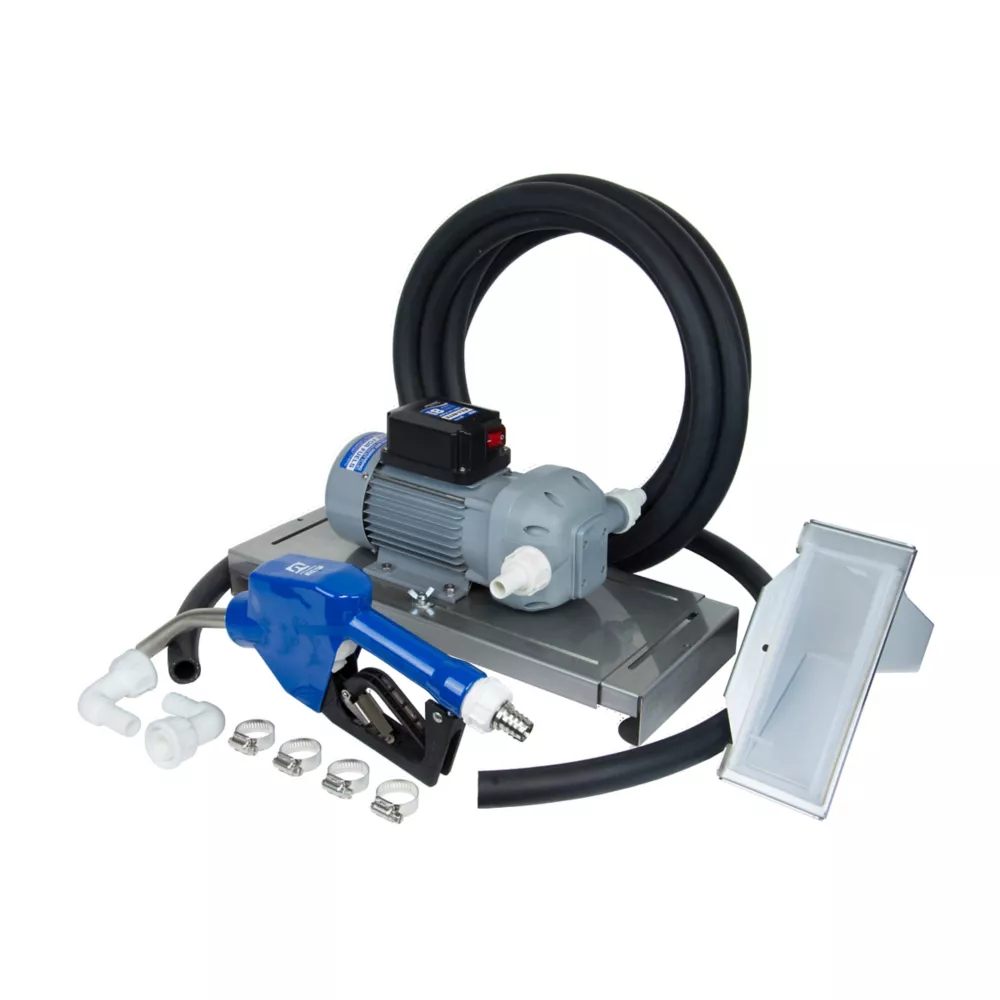

The Fill-Rite 8 GPM 120V DEF Transfer Pump with Auto Nozzle, Suction Hose, Discharge Hose, Drum Bracket and Power Cord is a 120V AC DEF transfer pump. This durable transfer pump bundle includes a stainless steel drum mount, steel suction pipe, discharge hose, automatic nozzle and all fittings needed for installation. The transfer pump features consistent flow performance, quick installation and convenient mounting brackets for IBC totes and barrel drums.

Engineered with multi-diaphragm technology and EPDM seals, this transfer pump excels in daily DEF transfer
Integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal
Fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization
Convenient IBC tote, drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
Create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
Includes a stainless steel drum mount, steel suction pipe, discharge hose, automatic nozzle and all fittings needed for installation
EPDM seals and stainless steel exterior hardware for durability
Transfer pump is proudly manufactured in the U.S.A.
Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure and both on and off-road applications

Fill-Rite DF120DAN520 8 GPM 120V DEF Transfer Pump with Auto Nozzle Suction Hose Discharge Hose Drum Bracket and Power Cord Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Amperage	2.4 Amps
Body Materials	Polypropylene
Compatible Fluids	Water, Diesel Exhaust Fluid
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.25 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Industrial, Residential
Maximum Flow Rate	8 GPM
Maximum Head Lift	8 ft.
Maximum Operating Pressure	34 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	-15 deg.
Power Type	Electric
Product Height	9.5 in.
Product Length	8.25 in.
Product Weight	19.5 lb.
Product Width	19.5 in.
Voltage	120 V
Warranty	2 Years
Manufacturer PartNumber	DF120DAN520

Fill-Rite DF120DAN520 8 GPM 120V DEF Transfer Pump with Auto Nozzle, Suction Hose, Discharge Hose, Drum Bracket, & Power Cord Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA Amperage 2.4 Amp Body Materials Polypropylene Compatible Fluids Water, Diesel Exhaust Fluid Discharge Fitting Female Threaded Discharge Diameter 1 in. Duty cycle 30 min. Features Self-priming power 0.25 hp Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Industrial Grade, Residential Maximum Flow Rate 8 GPM Maximum Head Lift 8 Feet Maximum Operating Pressure 34 PSI Maximum Operating Temperature 140 deg. Minimum operating pressure 0 N/A Minimum operating temperature -15 deg. Power Type Electric Product Height 9.5 in. Product Length 8.25 in. Product Weight 19.5 lb. Product Width 19.5 in. Voltage 120 V Warranty 2 Years Manufacturer Part Number DF120DAN520
