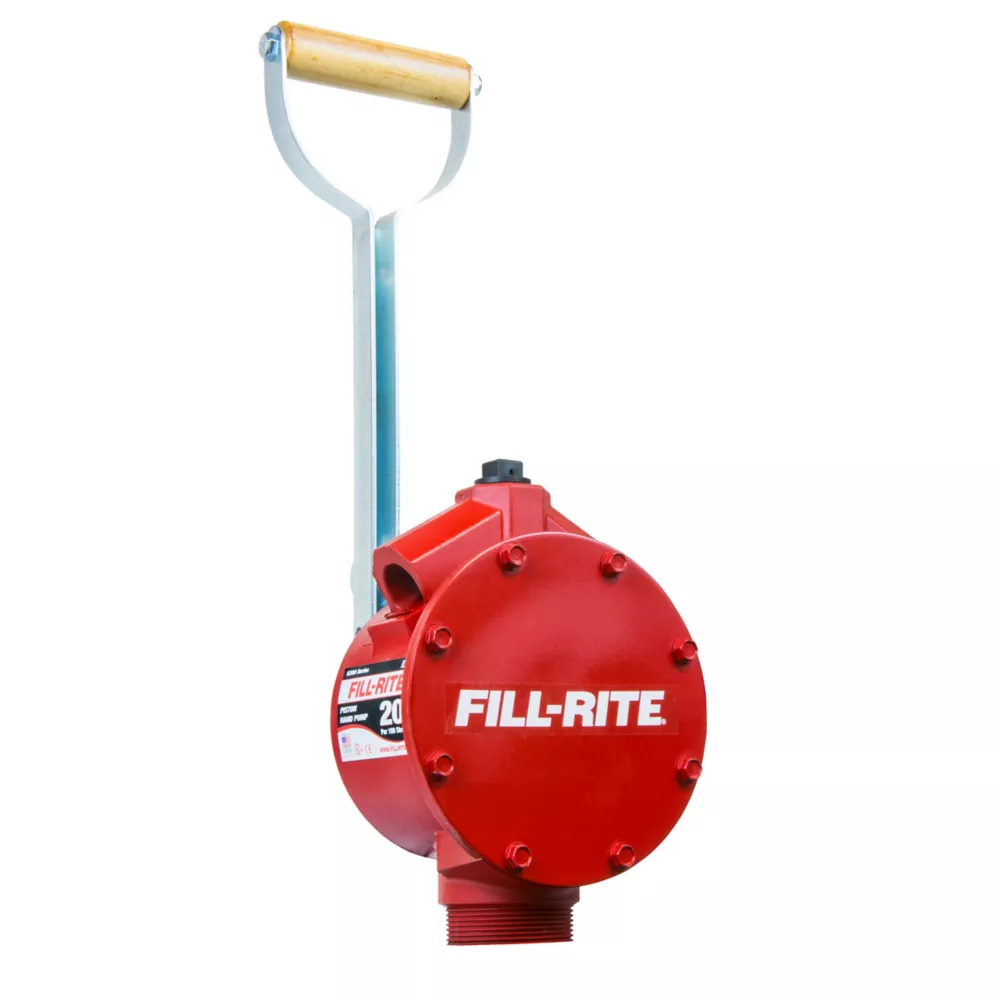

Fill-Rite FR150 Piston Hand Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive

The Fill-Rite Piston Hand Pump (Pump Only) is a 20 gallon per 100 strokes hand lever fuel transfer pump. This piston hand pump includes installation components and no additional accessories. The hand pump is built to last with tough cast-iron construction and is ideal for low volume commercial or recreational transfer.

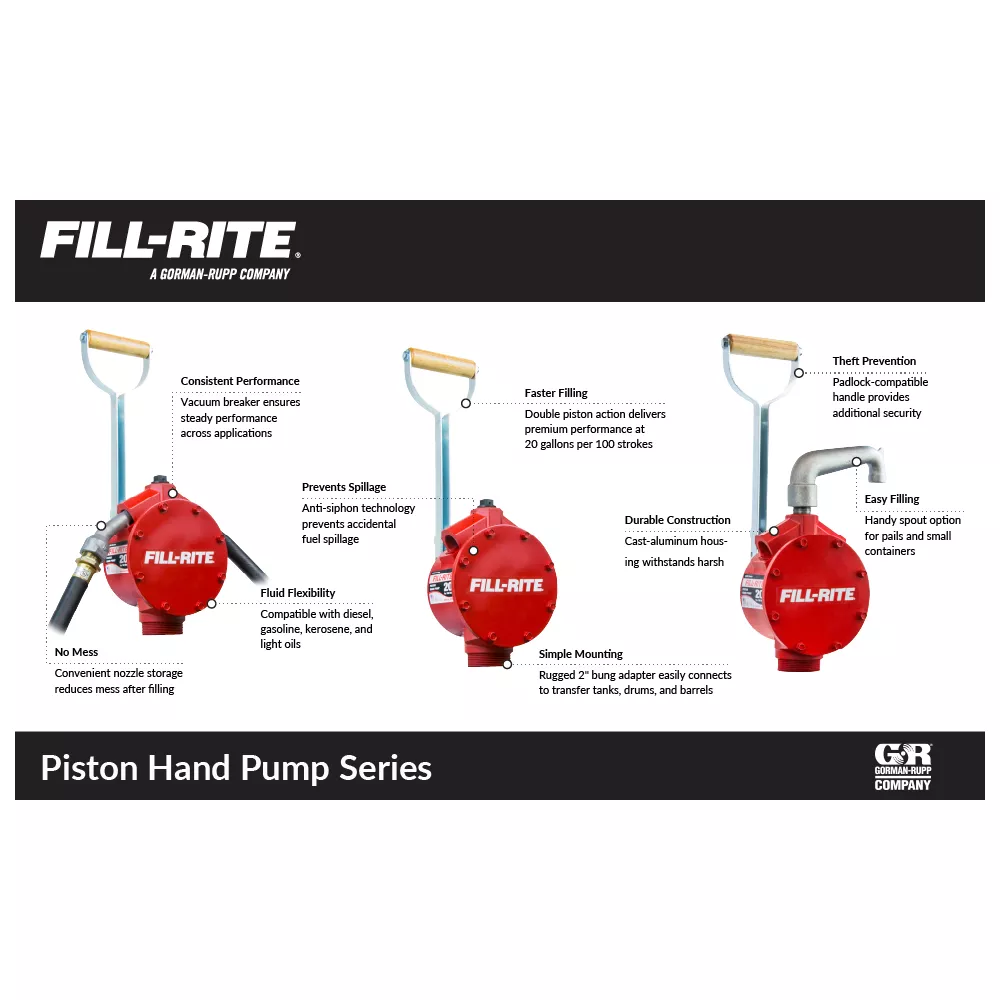

Built to last with rugged cast-aluminum construction; designed for maximum durability and lifetime corrosion-resistance
Double piston action delivers premium performance with 20 gallons every 100 strokes, saving time and reducing physical strain
Ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
Onboard vacuum breaker facilitates uninterrupted performance and creates smoother flow at the discharge
Hand pump has a padlock-compatible handle to add security and protect your investment
Included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
Includes installation components and no additional accessories
Built to last with tough cast-iron construction
Ideal for low-volume commercial or recreational transfer
Hand pump is proudly manufactured in the U.S.A.
Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure and both on and off-road applications

Fill-Rite FR150 Piston Hand Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Amperage	0A
Body Materials	Cast Iron
Compatible Fluids	Mineral Spirits
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min
Features	Self Priming
Horsepower	0 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	20 GPM
Maximum Head Lift	0 in.
Maximum Operating Pressure	0 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Manual
Product Height	20 in.
Product Length	9.25 in.
Product Weight	8.2 lb.
Product Width	6.5 in.
Warranty	2 Year
Manufacturer PartNumber	FR150

Fill-Rite FR150 Piston Hand Pump (Pump Only) Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA Amperage 0A Body Materials Cast Iron Compatible Fluids Mineral Spirits Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty Cycle 30 min Features Self-Priming Power 0 HP Hose Diameter 0.75 in. Inlet Connection Female Threaded Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow 20 GPM Maximum Head Lift 0 in. Maximum operating pressure 0 PSI Maximum operating temperature 140 deg. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type Manual Product Height 20 in. Product length 9.25 in. Product weight 8.2 lbs. Product width 6.5 in. 2 year warranty Manufacturer part number FR150
