Fill-Rite Heavy Duty Fuel Transfer Pump 1/4 HP 12VDC 15 GPM Fuel Transfer Pumps Truck & Automotive

The Fill-Rite 12VDC 15 GPM Heavy-Duty Fuel Transfer Pump is a fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, a suction pipe, and installation components.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15-60 gal.
Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
37 ft. discharge head

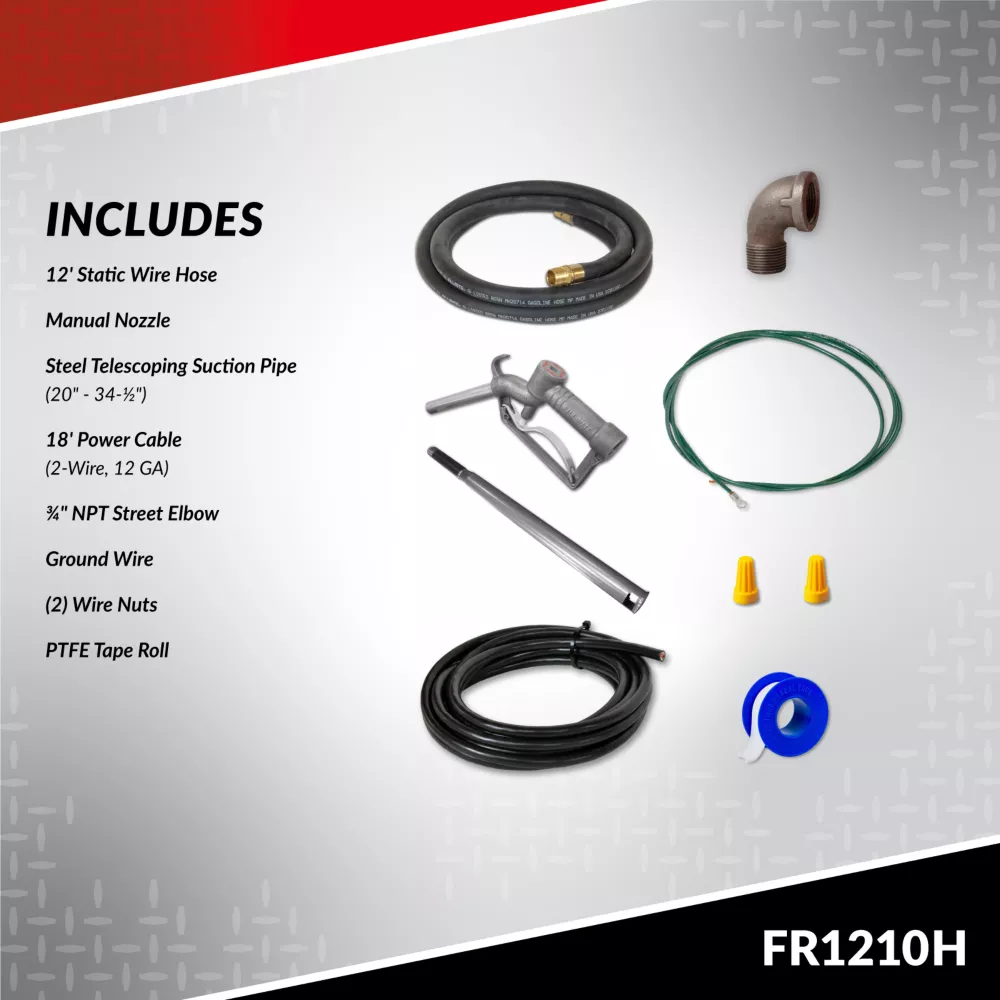

Includes a 3/4 in. x 12 ft. hose with static ground wire, a 3/4 in. cast-aluminum manual nozzle and an 18 ft. 12 gauge cable

Fill-Rite Heavy Duty Fuel Transfer Pump 1/4 HP 12VDC 15 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20 Amp
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with Diesel, Gasoline, Biodiesel up to B20, Mineral Spirits
Horsepower	0.25 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	15 gal./min.
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0.17 deg.
Power Cord Length	18 ft.
Power Type	12 Volt
Product Height	6.5 in.
Product Length	15.5 in.
Product Weight	18.9 lb.
Product Width	10 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR1210H
