Fill-Rite Piston Manual Fuel Transfer Hand Pump with Pour Spout 20 GPM Fuel Transfer Pumps Truck & Automotive

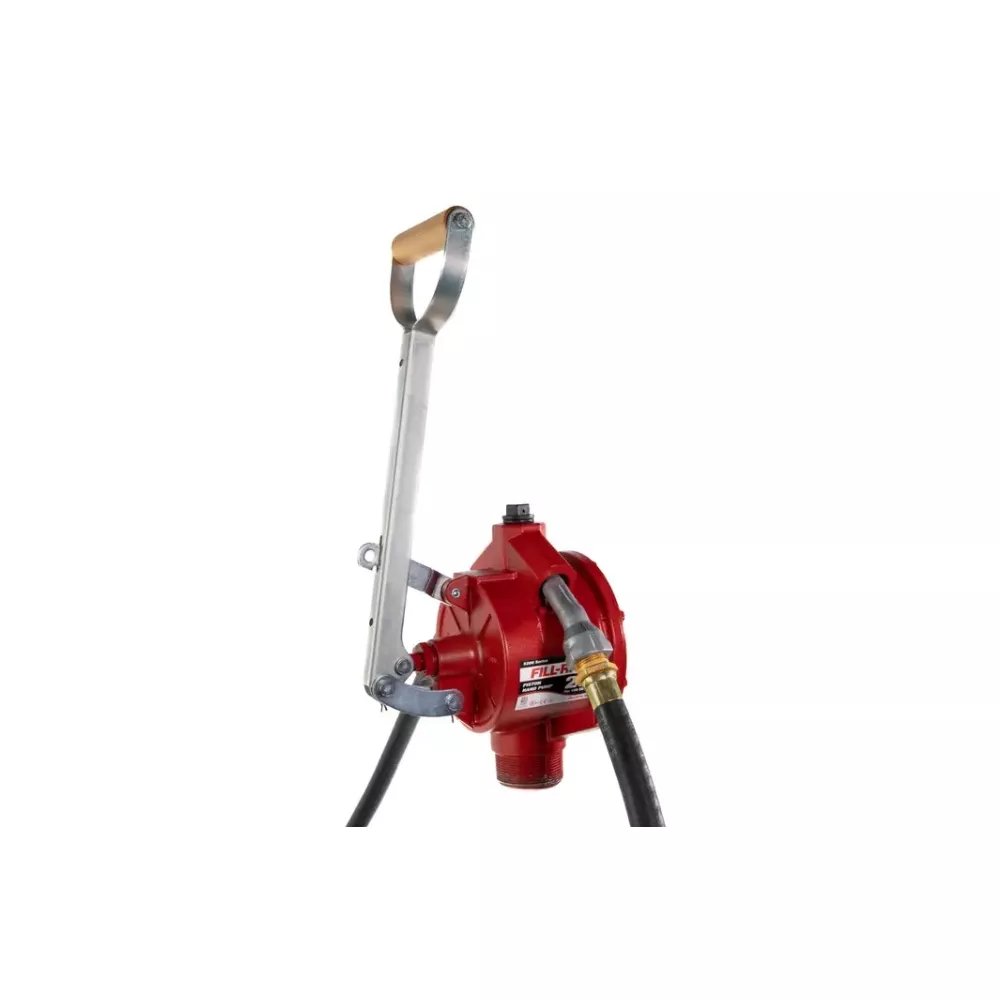

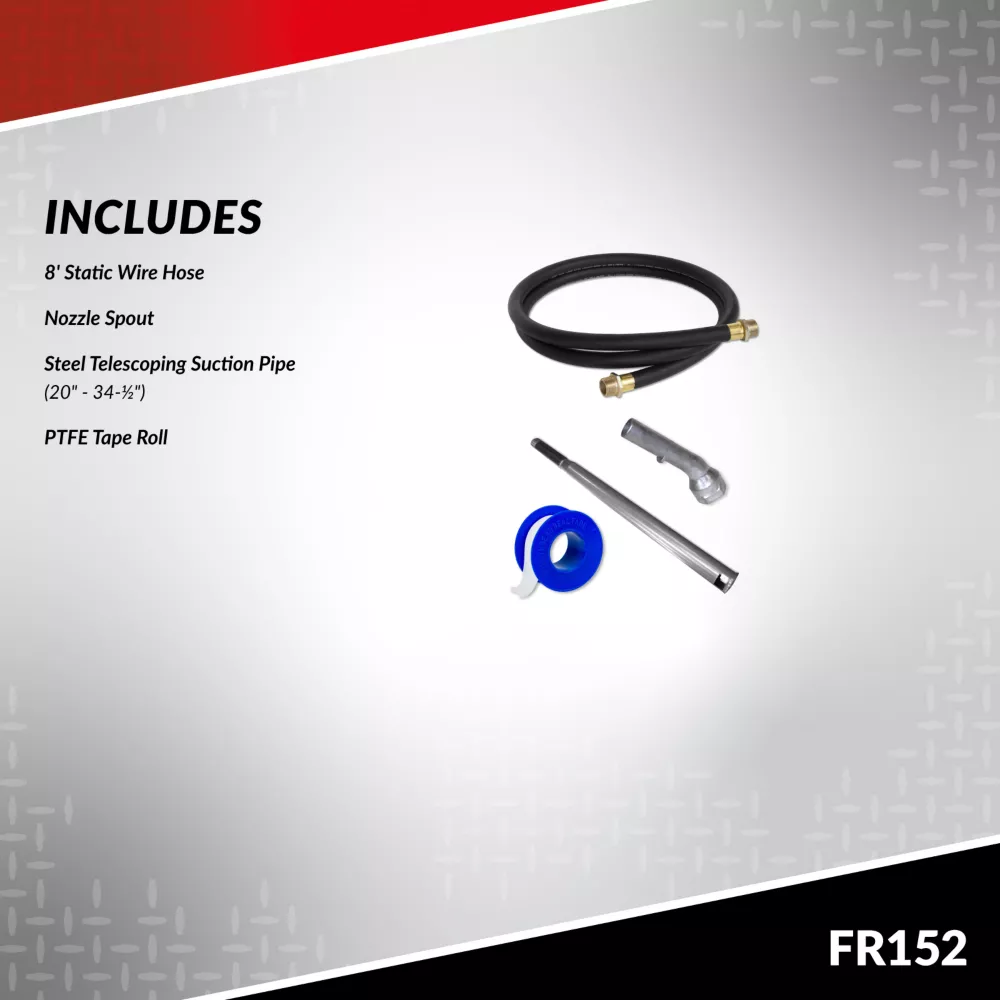

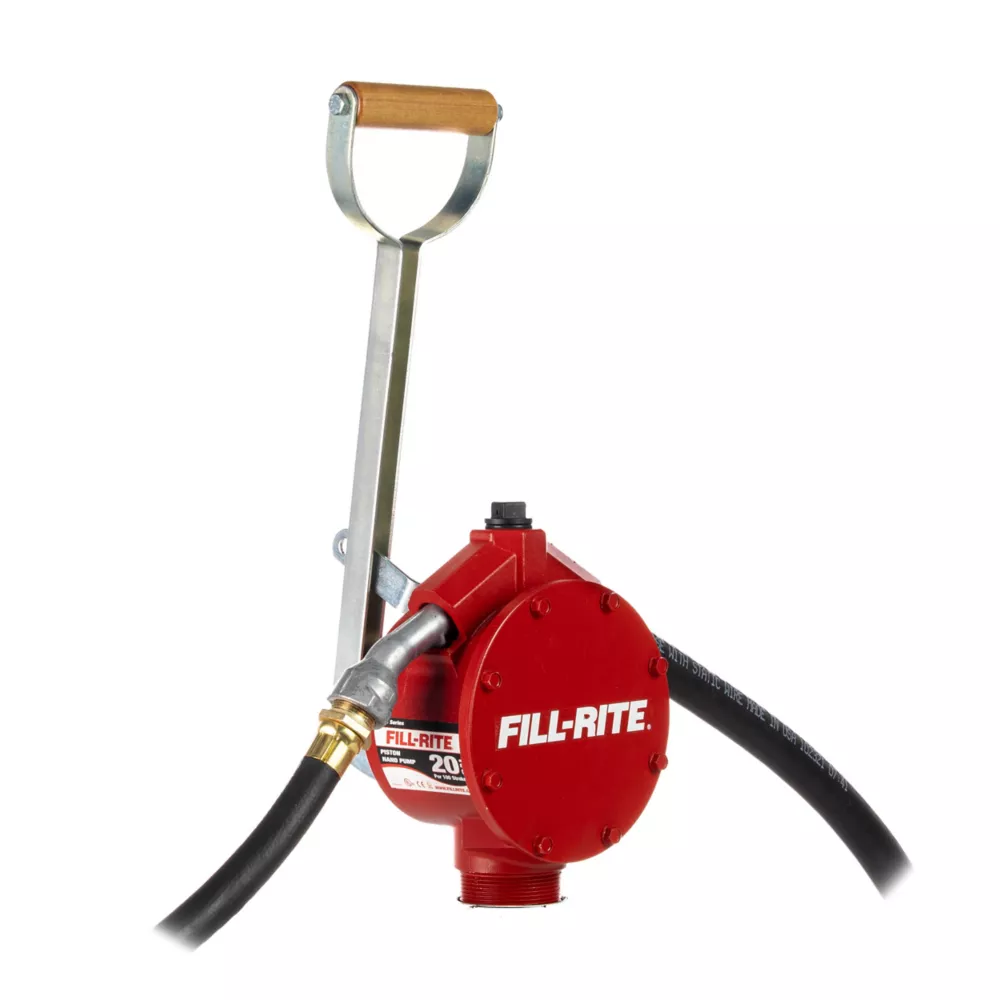

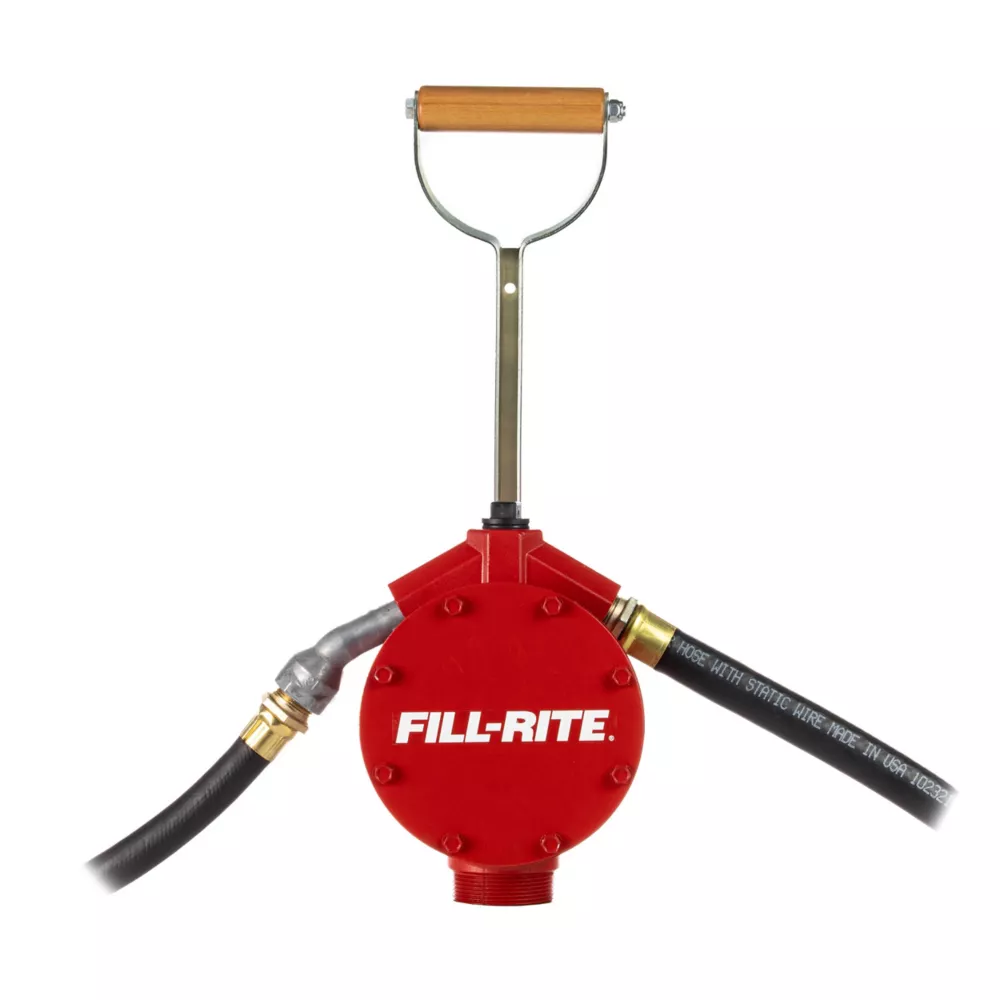

The Fill-Rite Piston Hand-Operated Fuel Transfer Pump with Nozzle Spout is a 20 gal. per 100 strokes, hand-lever fuel transfer pump. This transfer pump and accessory bundle comes complete with a spout, a suction pipe, a discharge hose, and installation components.

Cast-aluminum fuel transfer pump is rugged and designed for maximum durability and lifetime corrosion resistance
Double piston-action delivers premium performance with 20 gal. every 100 strokes, saving time and reducing physical strain
Fill-Rite fuel transfer pump is ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
Onboard vacuum breaker facilitates uninterrupted performance and creates smoother flow at the discharge
Padlock-compatible handle adds security to protect your investment
Included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
Designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

Fill-Rite Piston Manual Fuel Transfer Hand Pump with Pour Spout 20 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	0 hr.
Features	Compatible with Diesel, Gasoline, Light Oils, Mineral Spirits
Hose Diameter	0.62 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	20GPM
Maximum Head Lift	0 in.
Maximum Operating Pressure	0 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Hand Crank
Product Height	20 in.
Product Length	9.25 in.
Product Weight	8.3 lb.
Product Width	6.5 in.
Warranty	2 Years
Manufacturer PartNumber	FR152

Fill-Rite Piston Manual Fuel Transfer Hand Pump with Nozzle Spout, 20 GPM Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA Body Materials Cast Iron Compatible Fluids Diesel Discharge Fitting Female Threaded Discharge Diameter 0.75 in. Duty cycle 0 h. Features Compatible with diesel, gasoline, light oils and mineral spirits Hose diameter 0.62 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 20 GPM Maximum Head Lift 0 in. Maximum operating pressure 0 PSI Maximum operating temperature 105 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type Crank Product Height 20 in. Product Length 9.25 in. Product Weight 8.3 lb. Product Width 6.5 in. Warranty 2 Years Manufacturer Part Number FR152
