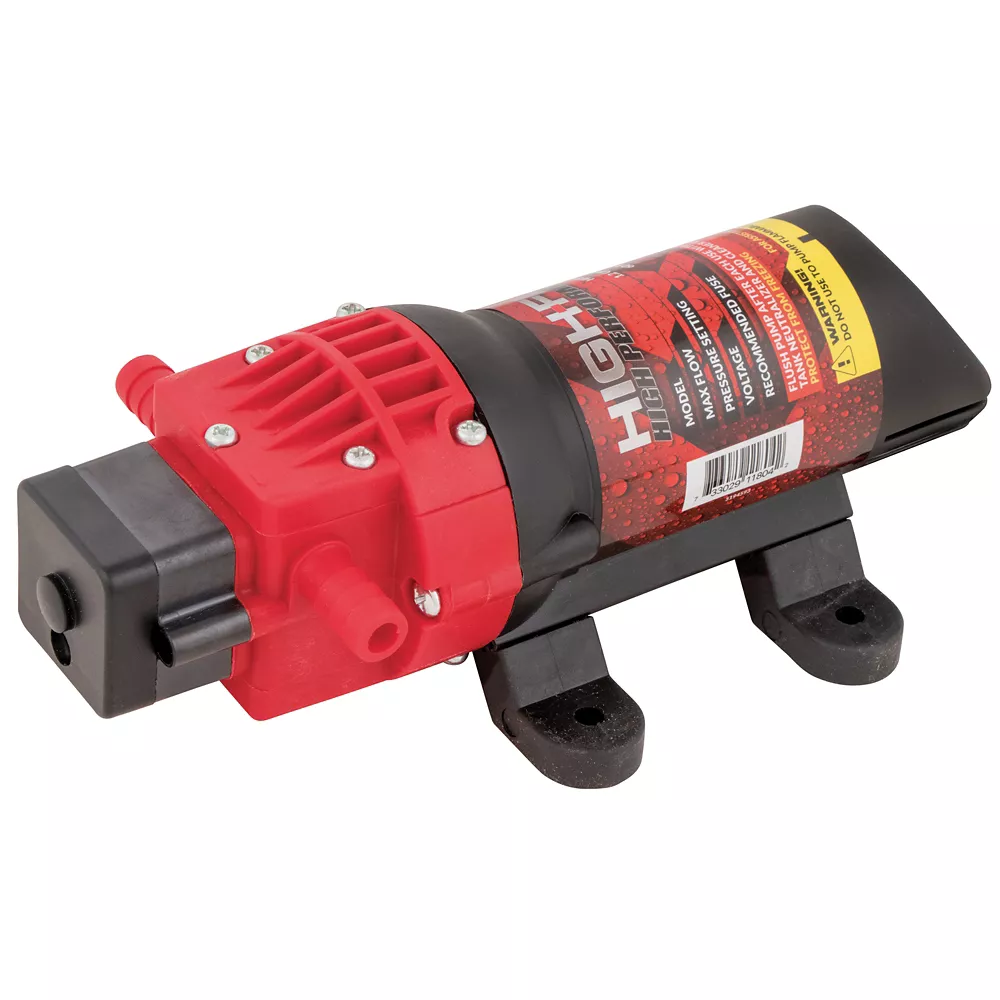

Fimco 1.2 GPM 12V High-Flo High Performance Demand Pump Ag Sprayers Pumps & Repair Farm & Ranch

The Fimco 1.2 GPM 12V High-Flo High-Performance Demand Pump sets the standard for electric pumps. The quick-connect convenience paired with premium parts makes this innovative model a great choice for your spot or broadcast spraying needs. With 60 PSI maximum pressure, this Fimco replacement sprayer pump delivers increased flow rates and a longer lifespan. An integrated demand switch automatically shuts it off at maximum pressure to conserve energy.

1.2 GPM automatic-demand diaphragm electric pump for spot spraying or broadcast spraying needs
Fimco 12VDC power sprayer pump is equipped with a ball-bearing drive
Integrated demand switch automatically shuts off the sprayer pump at a maximum pressure of 60 PSI
In-line fuse protection - 4A max draw
3/8-in. hose barb connection
Self-priming up to 8 ft. increases efficiency and running dry will not damage pump or limit reliability
Built-in check valves help maintain pressure and prevent backflow
100% factory tested for quality assurance
Chemically resistant elastomers provide increased flow rate, delivering superior performance
Internally fan-cooled motor delivers consistent performance under heavy load
Backed by a 2-year (consumer) and 90-day (commercial use) warranty
Replaces pump part numbers 5281370, 5274889, 5275086, 5277980, 5275702, 5275496, 5273882 and 5275015
Max temperature: 130 degrees F

Fimco 1.2 GPM 12V High-Flo High Performance Demand Pump Ag Sprayers Pumps & Repair Farm & Ranch> Ag Sprayers> Ag Sprayer Parts & Accessories> Ag Sprayers Pumps & Repair

Specification	Description
Brand	Fimco
Country of Origin	Imported
Compatibility	Fimco, TSC Sprayers
Discharge Connection	Male
Discharge Port Diameter	0.375 in.
Inlet Connection	Barb
Inlet Diameter	0.375 in.
Maximum Flow Rate	1.2 GPM
Maximum Operating Pressure	60 PSI
Maximum Operating Temperature	130 degrees F
OEM Replacement	5281370, 5274889, 5275086, 5277980, 5275702, 5275496, 5273882 and 5275015
Package Quantity	1
Primary Color	Red
Primary Material	Steel
Product Height	2-1/2 in.
Product Length	7 in.
Product Weight	1 lb. 4.9 oz.
Product Width	4 in.
Pump/Repair Product Type	Pumps
Warranty	2 Year Consumer, 90 Day Commercial
Manufacturer PartNumber	5151086

Fimco 1.2 GPM 12V High-Flo High-Performance Demand Pump Specifications expand/collapse Specification Description Brand Fimco Country of Origin Imported Compatibility Fimco, TSC Sprayers Discharge Connection Male Discharge Port Diameter 0.375 in. Inlet Connection Spline Inlet Diameter 0.375 in. Maximum Flow Rate 1.2 GPM Maximum Operating Pressure 60 PSI Maximum Operating Temperature 130 Degrees F Replacement OEM 5281370, 5274889, 5275086, 5277980, 5275702, 5275496, 5273882 and 5275015 Package Quantity 1 Primary Color Red Primary Material Steel Product Height 2 -1/2 in. Product length 7 in. Product Weight 1 lb 4.9 oz. Product Width 4" Pump/Repair Product Type Pumps Warranty 2 Year Consumer, 90 Day Commercial Manufacturer Part Number 5151086
