FLO-RAPIDE 5 gal Diesel Exhaust Fuel (DEF) Container Fuel Transfer Tank Accessories Truck & Automotive

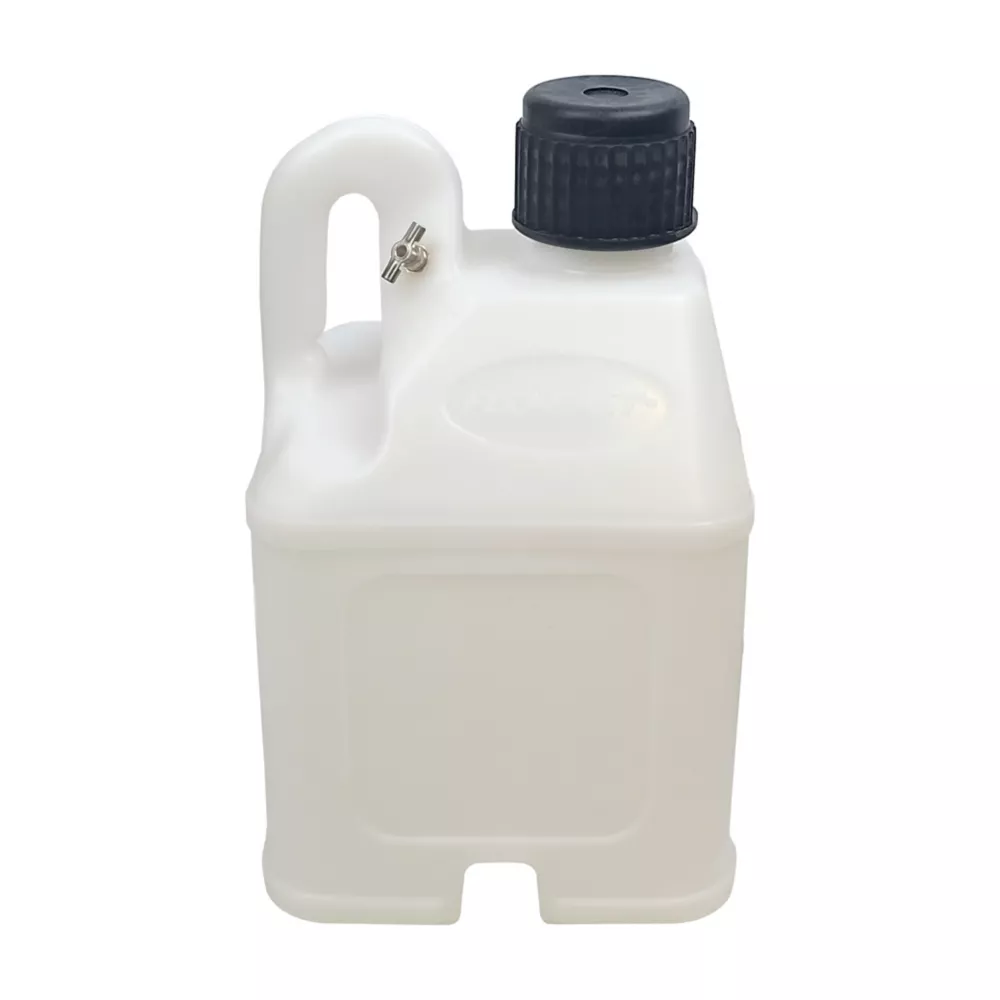

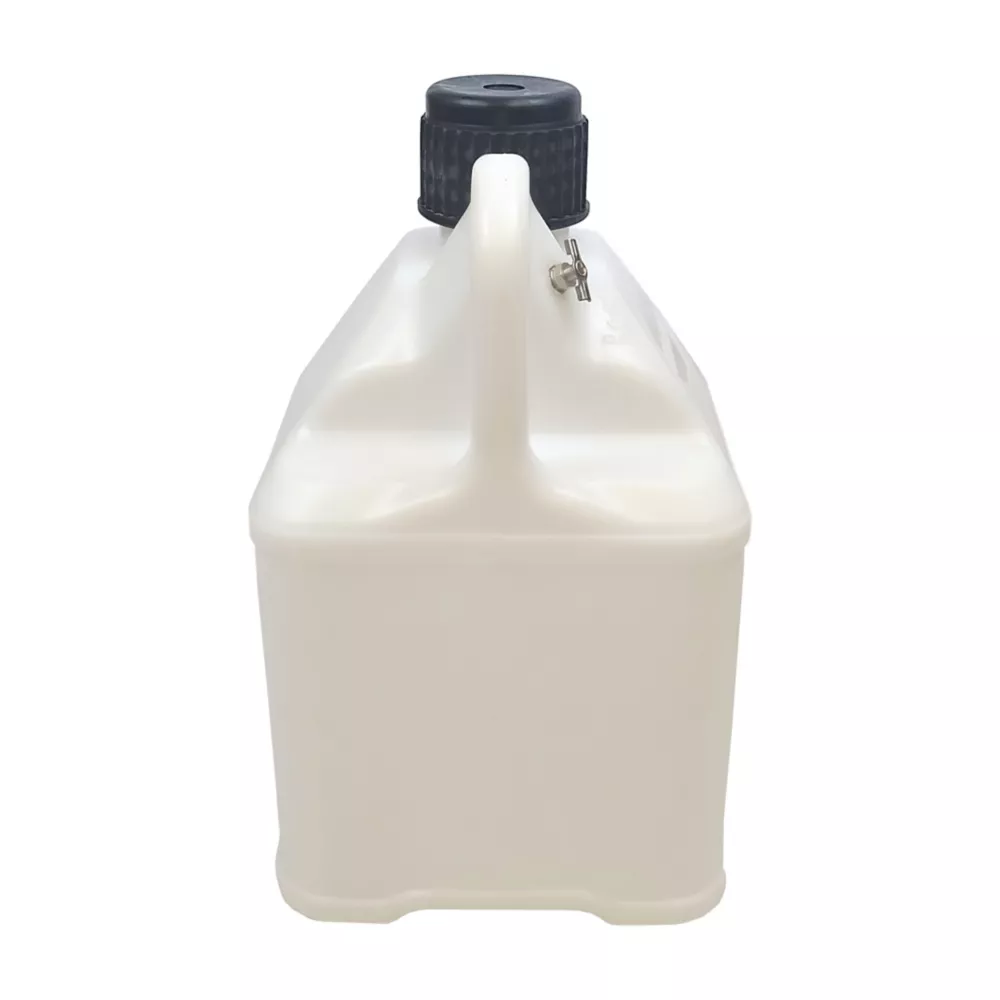

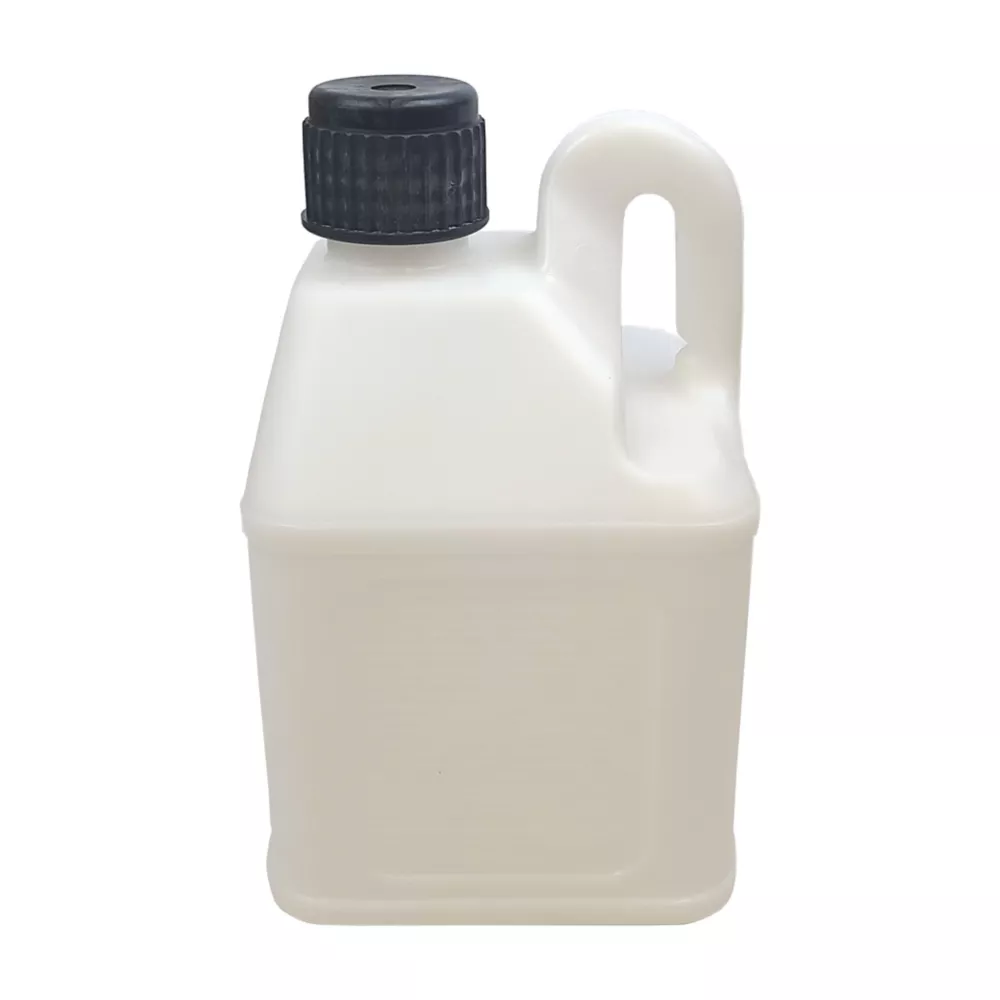

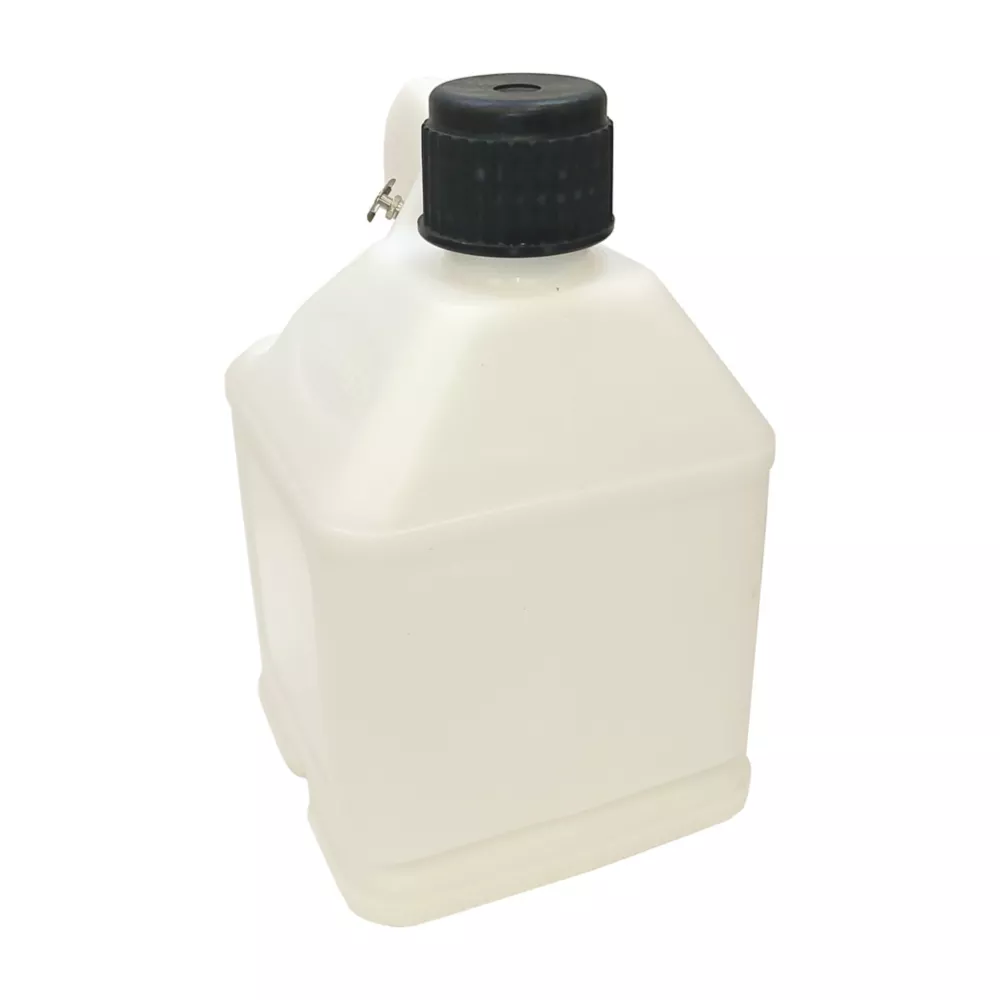

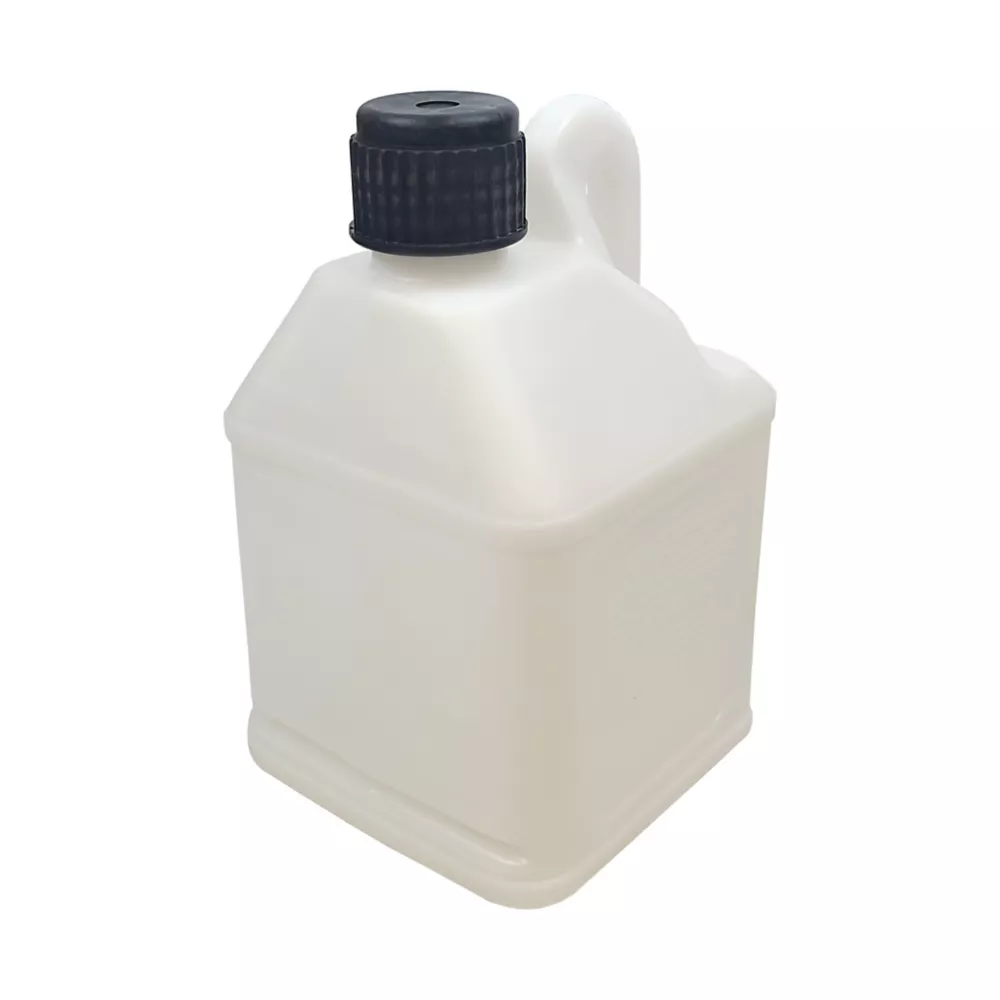

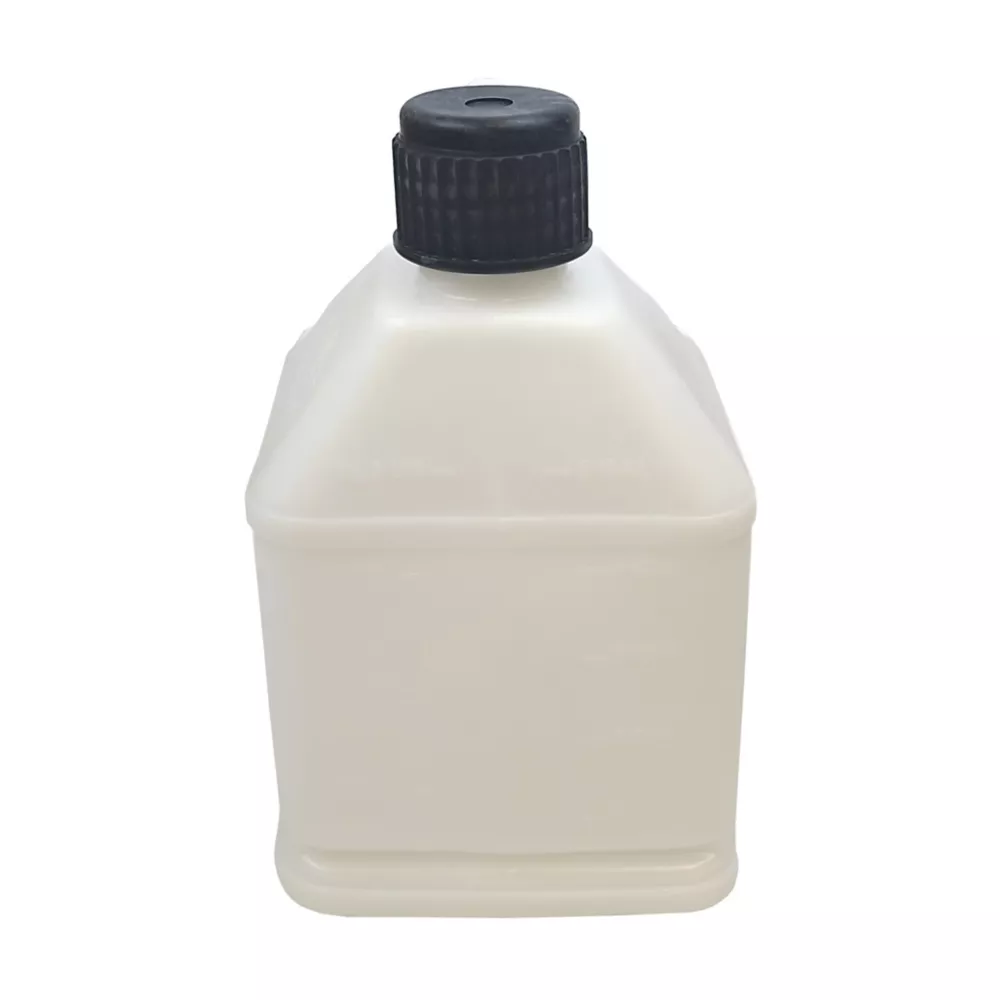

The FLO-FAST 5 gal. Diesel Exhaust Fuel (DEF) Container is rotationally-molded with polyethylene material combined with a single handle on the top and recess handle in the bottom. This makes it ultra-functional and exceptionally durable; therefore, this diesel exhaust fuel container will hold up in any type of environment. The patent-pending technology of the brass air valve maximizes fluid flow, especially when utilized with the FLO-FAST pump. Overall, this 5 gal. DEF container will provide the utility and function necessary for all your portable DEF transfer operations.

Stackable 5 gal. professional utility container is compatible with DEF and a variety of other fluids
Dimensions of the diesel exhaust fuel container: 11 in. x 11 in. x 18.5 in. tall with cap
Rotationally molded polyethylene offers durability

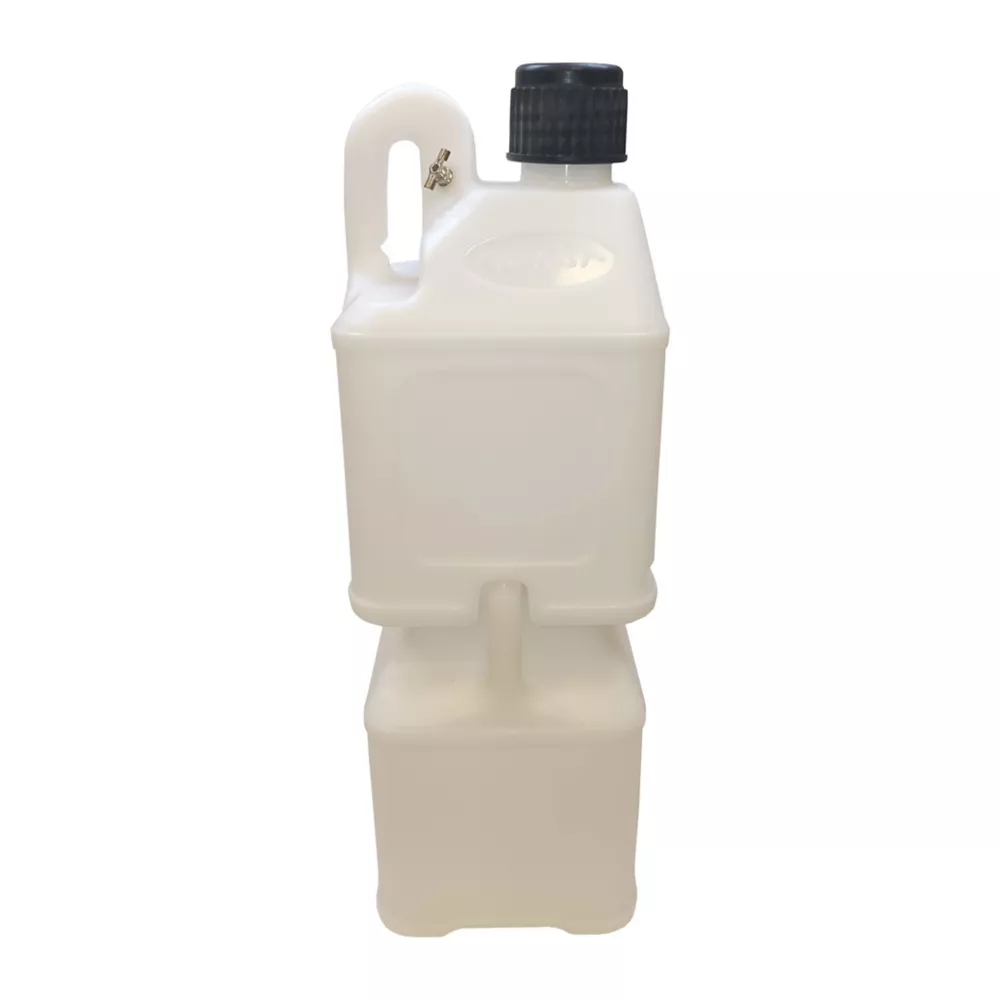

Turn 90 degrees and the container will nest on top of another container
Container holds 5 gal. of fluid with indicators in Gallons and Liters, which are visible on the front side of the can
Heavy duty and ultra durable rotationally-molded container provides consistent wall thickness throughout the jug
3 in. opening with solid-plastic cap and large internal O-ring providing maximum seal
Single handle on top, handle grip on bottom of container makes pouring fast, safe and easy
Molded-in, female stainless steel insert, combined with male vent valve to provide ample airflow when utilizing the FLO-FAST Pump, as well as when pouring with or without a spout
Center section of container allows for ratchet strap/tie down to help secure container
Stainless steel vent provides enhanced strength
Fits under most tonneau covers on trucks
Cap includes: EPDM O-ring
Validate fluid compatibility with EPDM material; always make sure to validate fluid compatibility with materials in this product
DEF container is made in the USA
Comes in white
Backed by a 1 year warranty
For experienced professionals in motorsports, offroad, marine, agriculture and industrial markets
Can be used for storage and transport of feed, water, attractants and other fluids
Natural/white container: if used with hazardous fluids, it's required to have additional hazmat labeling for the contents/fluid
Before pumping and drawing: make sure safety tether squeeze clamp is attached to the equipment, utility vehicle or boat before transferring fluid; the purpose of the squeeze clamp is to ensure the hose will stay in the filler opening
Pumping and drawing: when pumping or drawing fluid with the FLO-FAST pump, you must properly vent the system; turn vent counterclockwise (turns into container) to open vent and clockwise (vent turns outward) to close the vent; if you are using the FLO-FAST pump with fluids that do not lubricate, over time you may have to prime the pump if you are trying to pump or draw fluid with a dry pump; you may need to prime the pump if you are trying to draw or suck fluid from more than 7 ft. away (each pump comes with 5 ft. of hose); 5 ft. accessory extension is for pumping purposes; if you are pumping or drawing at a rate of more than 60 revolutions per minute, you run the risk of over pressurizing the pump
When fluid transfer is complete: carefully raise the line out of the fluid opening and let any residual fluid drain back into the system container; do not set the hose down until all of the fluid has drained back into the container; place plug on the tether line into the aluminum tube to seal the hose; before removing the pump system from containers, make several counterclockwise rotations to pull residual fluid out of the pump housing; leave the pump on container for a minimum of 15 minutes to ensure any fluid inside the pump housing drains back into the container; always remove the FLO-FAST pump from the container and place the original cap back onto the container to properly seal and store fluid; to eliminate any person from pumping fluid accidentally, do not store the FLO-FAST pump in the container; always return the pump and system to a safe area where children/others do not have access to it
Transporting: never transport without securing the containers; do not rest or lay the containers on their side
Storage: DEF should be stored in a cool, dry, well-ventilated area, out of direct sunlight; while the optimum storage temperature is up to 77 degrees F (25 degrees C), temporary exposure to higher temperatures has little to no impact on the quality of DEF; do not store jugs outside or in the sunlight
Warnings: never allow individuals under licensed age to use the FLO-FAST pump or system; never let anyone use the FLO-FAST system or containers that has not read this instruction sheet in full; do not transport the FLO-FAST pump while it is in a container; only use the FLO-FAST pump on industry standard largemouth containers; pouring from these containers can be dangerous and is not recommended with a volatile or combustible fluids; for that reason, we have designed the FLO-FAST pump system to safely transfer these fluids; do not use the FLO-FAST pump on any container that does not fit the FLO-FAST pump; if you choose to use FLO-FAST with any type of volatile fluid like gasoline, methanol, kerosene or any harmful chemical, do not inhale vapors; when filling a container, always place the container on the ground; to allow for fluid expansion, do not overfill the container beyond manufacturers specified levels; if any component breaks on the FLO-FAST portable fluid transfer pump or system, do not use until you have replaced all of the broken components

FLO-RAPIDE 5 gal Diesel Exhaust Fuel (DEF) Container Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories

Specification	Description
Brand	FLO-FAST
Country of Origin	Made in USA
Features	LiquidTransfer
Fill Opening Diameter	3 in.
Maximum Fill Capacity	5 gal.
Maximum Tank Fill Capacity	5 gal
Outlet Diameter	3 in.
Primary Color	White
Primary Material	Polyethylene
Product Height	18.5 in.
Product Length	11.25 in.
Product Weight	6 lb.
Product Width	11 in.
Warranty	1 Year
Manufacturer PartNumber	50103-D

FLO-FAST 5 gal. Diesel Exhaust Fuel (DEF) Container Specifications expand/collapse Specification Description Brand FLO-FAST Country of Origin Made in USA Features Liquid Transfer Filling Opening Diameter 3 in. Maximum fill capacity 5 gal. Maximum tank fill capacity 5 gal. Outlet diameter 3 in. Primary Color White Primary Material Polyethylene Product Height 18.5 in. Product length 11.25 in. Product weight 6 lbs. Product width 11 in. 1 Year Warranty Manufacturer Part Number 50103-D
