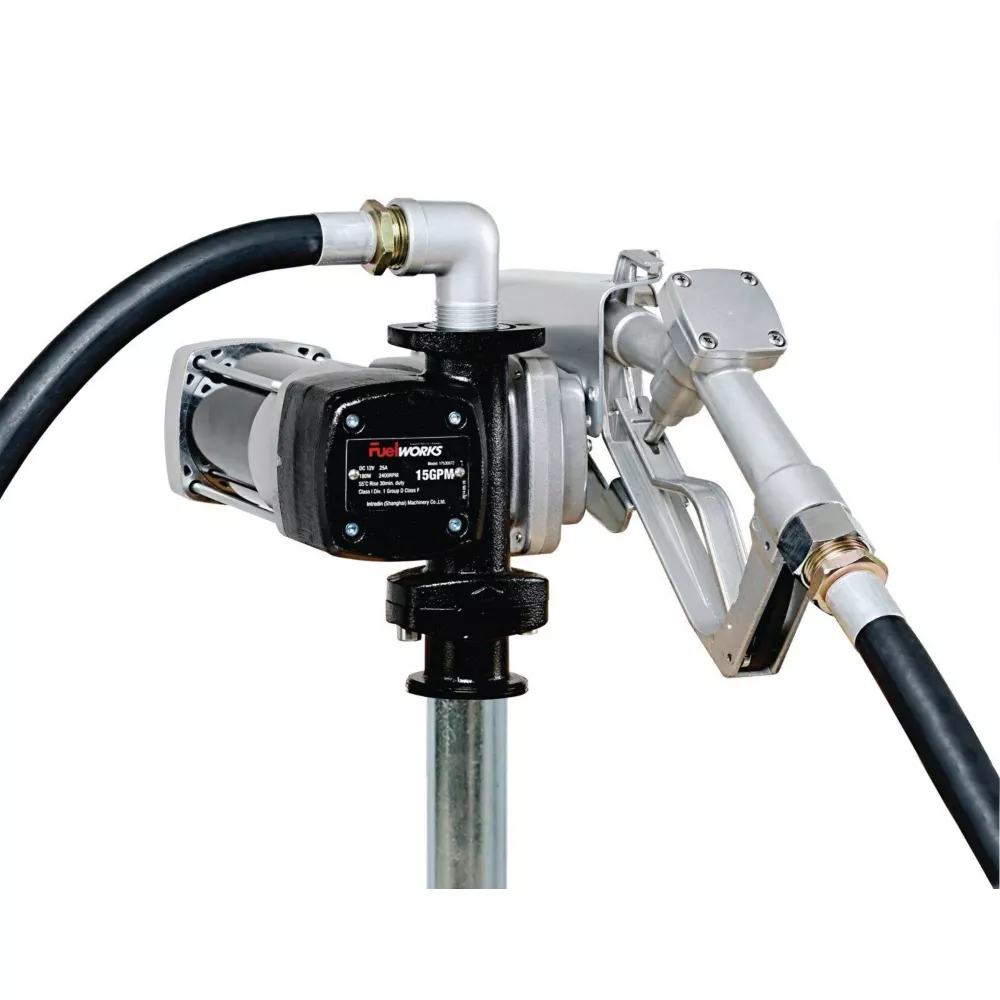

Fuelworks TRI-10305708A Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive

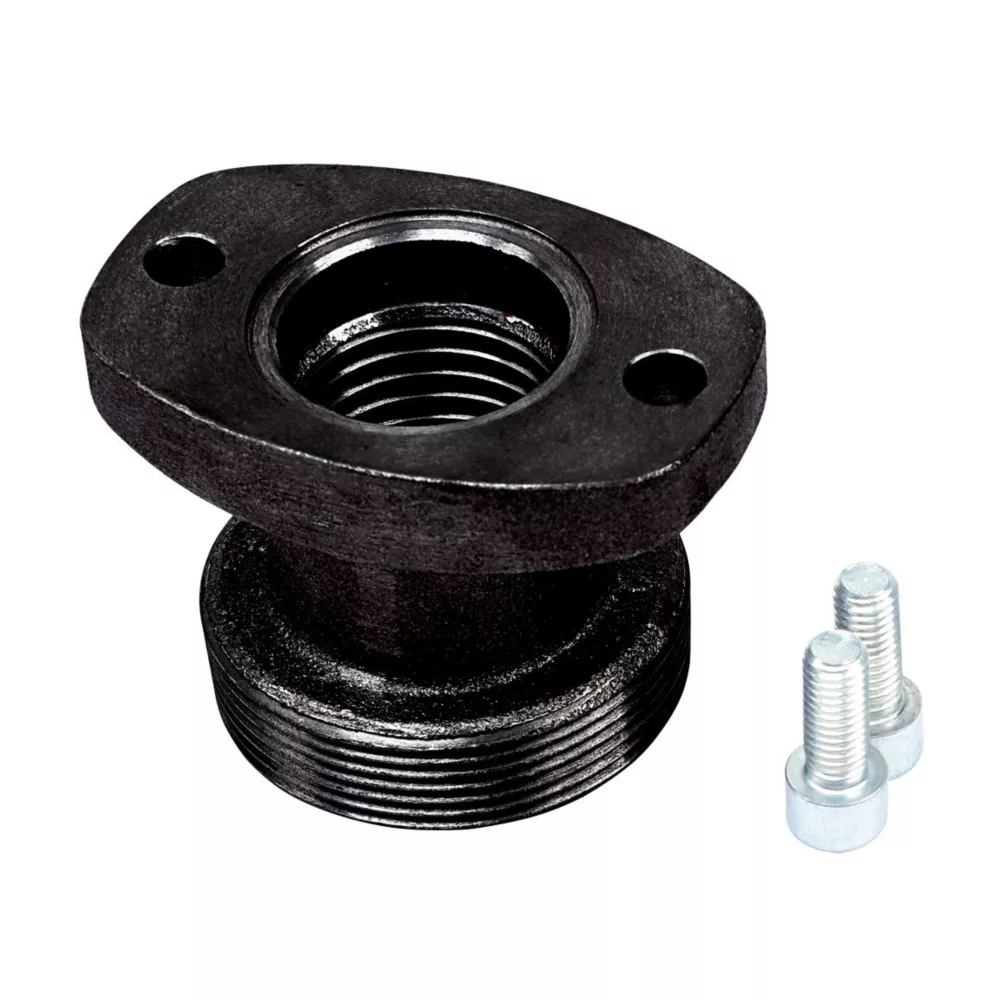

Fuelworks TRI-10305708A Fuel Transfer Pump Kit 15GPM/57LPM DC 12V 180W 22A Rotary Vane Motor with 14' Foot Anti-Static Discharge Hose & Filter, Extensible Suction Tube, 2" Inch Bung Adapter & Aluminum Manual Nozzle

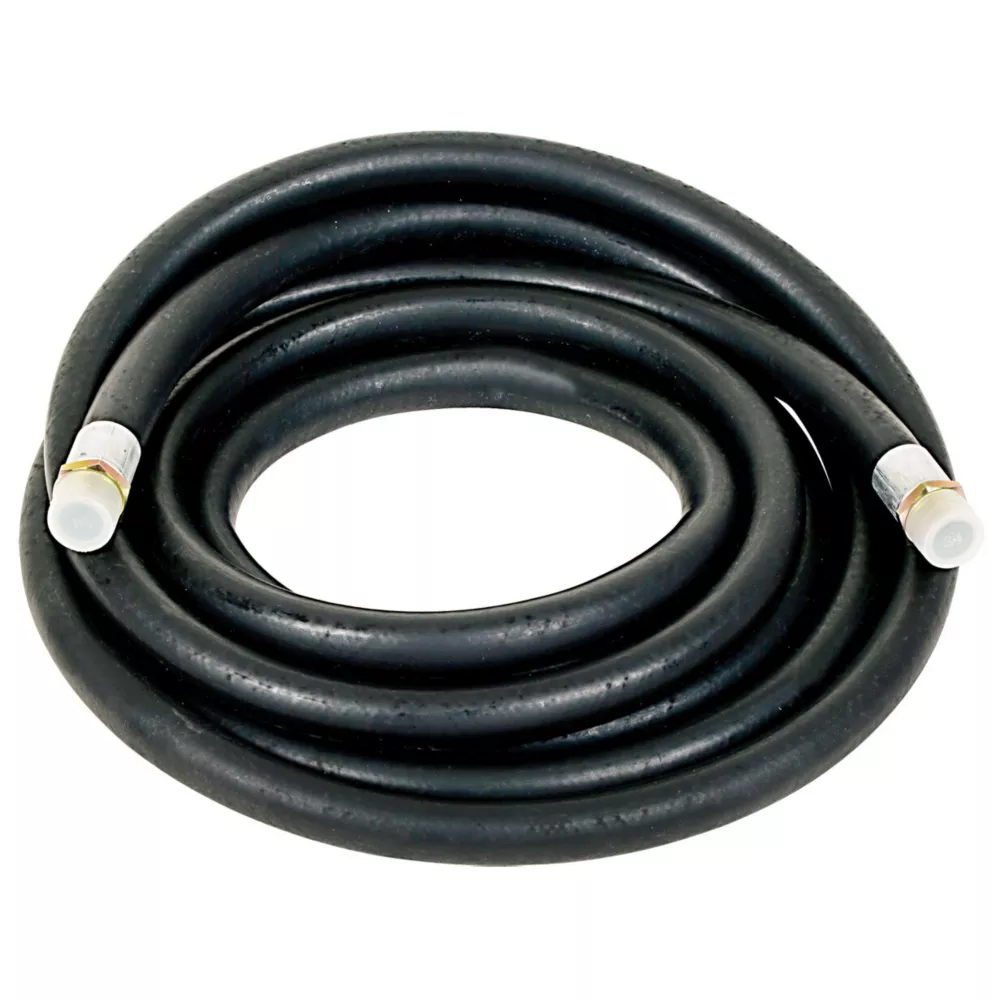

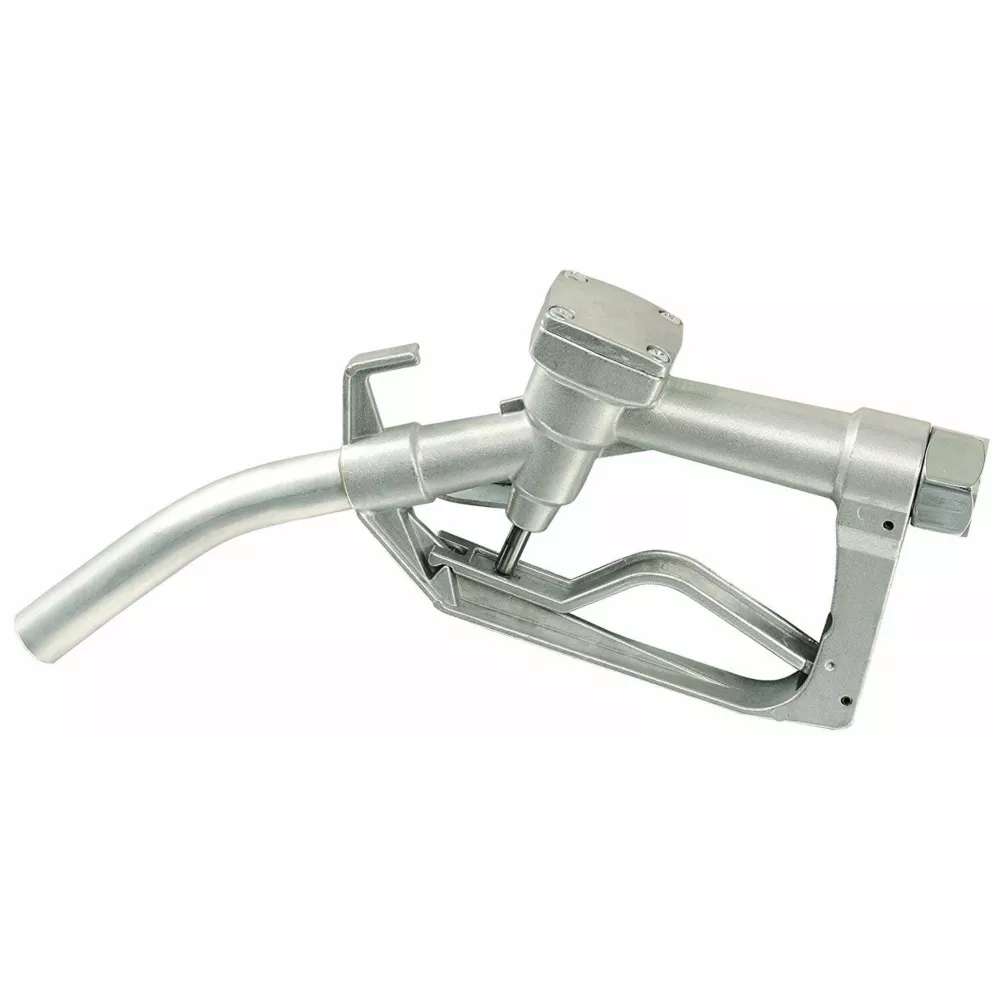

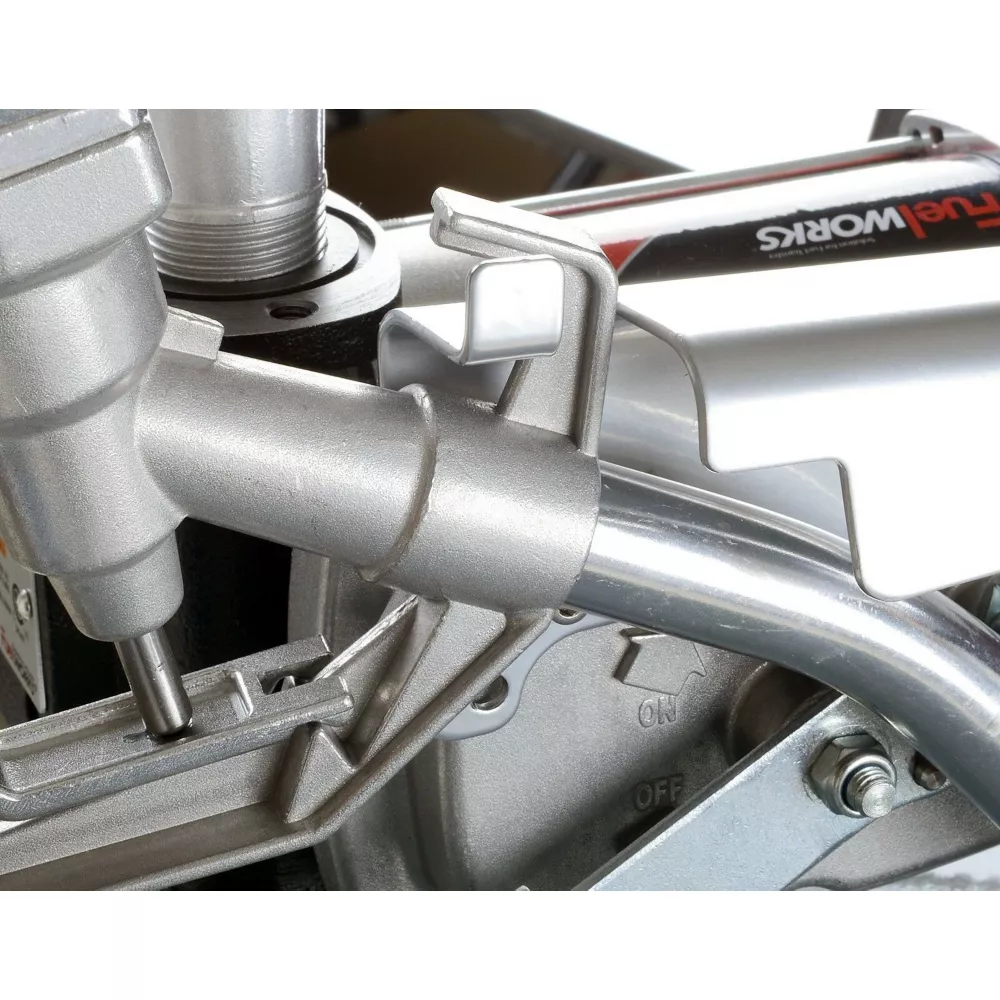

Aluminum Manual Nozzle. UL Listed nozzle has a rapid rate of 300psi to transfer over fuel in quick succession with no hassle. We implemented a lockable nozzle holder so you can pump hands free. Anti-static discharge hose is 14ft long with a 3/4" hose fitting that has strain relieving springs on hose ends.
Quality Performance. Heavy-Duty Pump. Recommended Duty Cycle: 30 minute intervals. Each 30 minute cycle should always be followed by a 30 minute power off cooling phase for best performance.
Pump type: Self Priming, Rotary Vane w/Bypass Valve, Volumetric
Positive Displacement Brush 22A Electric Motor. Provides a constant flow fix speed, regardless of changes in pressure.
Suitable for flammable liquids: Gasoline, Mineral Spirits, Diesel Kerosene

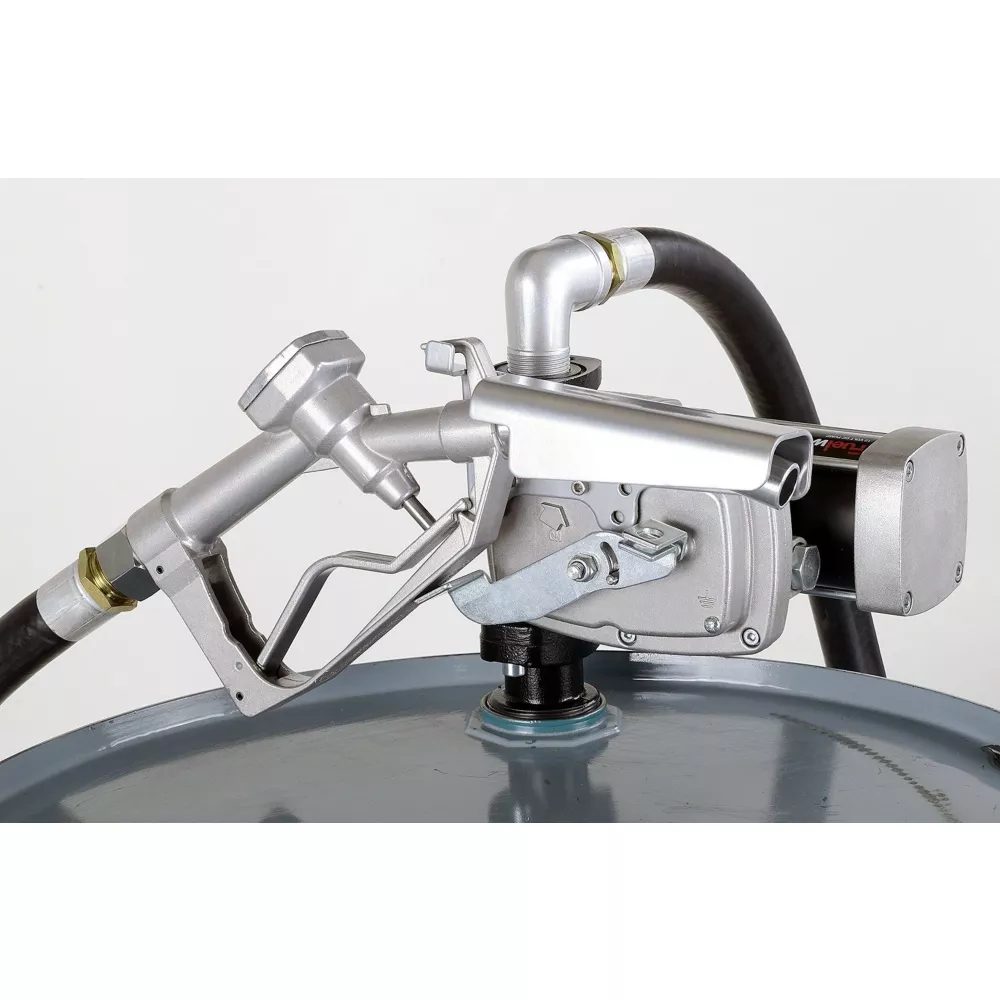

Explosion proof fuel transfer pump is designed for tank or barrel mounting applications.

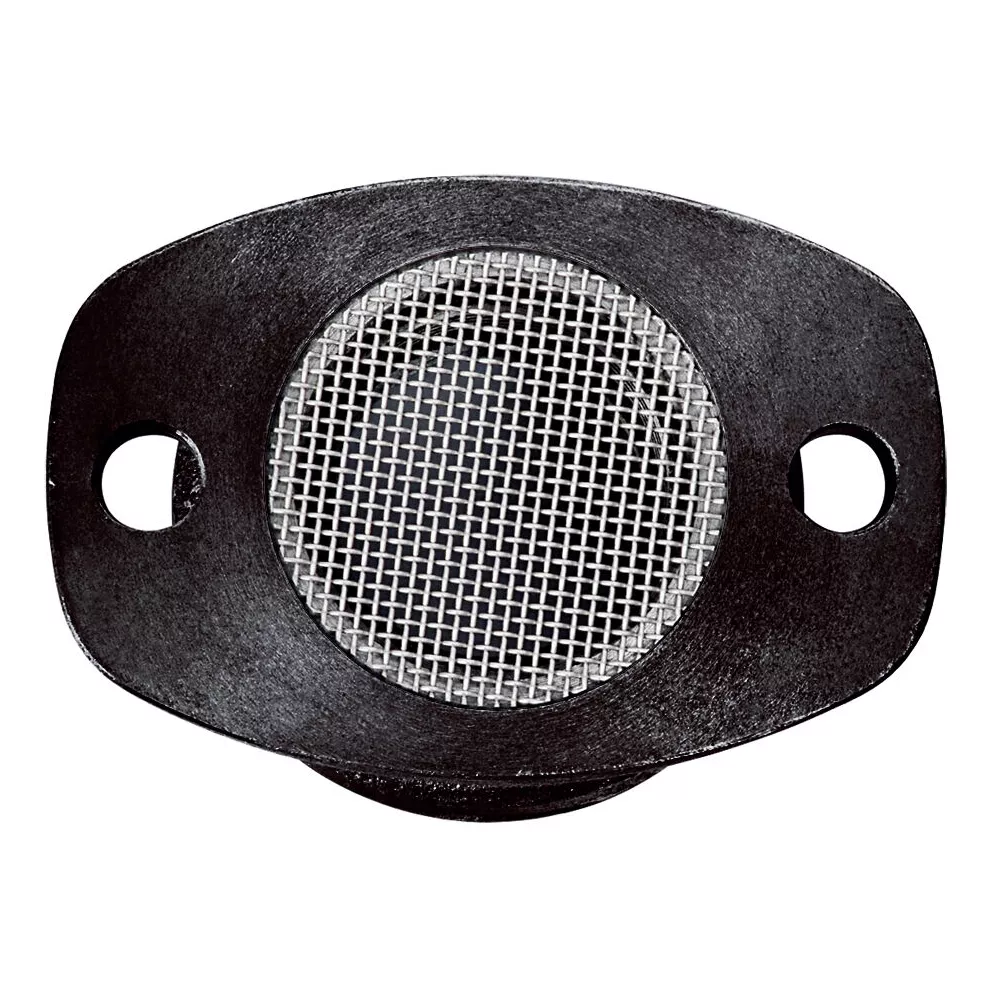

Easy operations: Extendable tube attachment and cartridge filter.
12 months limited parts warranty

Fuelworks TRI-10305708A Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fuelworks
Country of Origin	Imported
AC or DC Powered	DC
Amperage	22A
Body Materials	Aluminum
Compatible Fluids	Diesel, Gasoline, Kerosene, Mineral Spirits
Discharge Connection	MNPT
Discharge Diameter	0.75 in.
Duty Cycle	30 min
Features	Extendable tube attachment. Cartridge filter screens out dirt, rust, and other particles.
Horsepower	180 W
Hose Diameter	0.75 in.
Inlet Connection	None
Inlet Diameter	1 in.
Intended Use Grade	Standard, Industrial
Maximum Flow Rate	57 l/min
Maximum Head Lift	5m
Maximum Operating Pressure	1 bar
Maximum Operating Temperature	140 degrees F
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	-4 degrees F
Power Type	12V
Product Height	10 in.
Product Length	8 in.
Product Weight	33 lb.
Product Width	14 in.
Voltage	12V
Warranty	12 months limited parts warranty
Manufacturer PartNumber	TRI-10305708A

Fuelworks Fuel Transfer Pump Kit TRI-10305708A Specifications Expand/Collapse Specification Description Brand Fuelworks Country of Origin Imported AC or DC Power DC Amperage 22 A Body Materials Aluminum Compatible Fluids Diesel, Gasoline, Kerosene, Mineral Spirits MNPT Discharge Connection Discharge Diameter 0.75 in. Duty cycle 30 min Features Expandable tube attachment. The cartridge filter filters dirt, rust and other particles. Power 180 W Pipe diameter 0.75 in. Inlet Connection None Inlet Diameter 1 in. Intended use Standard quality, industrial Maximum flow rate 57 l/min Maximum head lift 5 m Maximum operating pressure 1 bar Maximum operating temperature 140 degrees F Minimum operating pressure 0 N/A Minimum operating temperature -4 degrees F Type of 12 V power supply Product height 10 in. Product length 8 in. Product weight 33 lbs. Product width 14 in. Voltage 12 V Warranty 12 months limited warranty onParts Manufacturer Part Number TRI-10305708A
