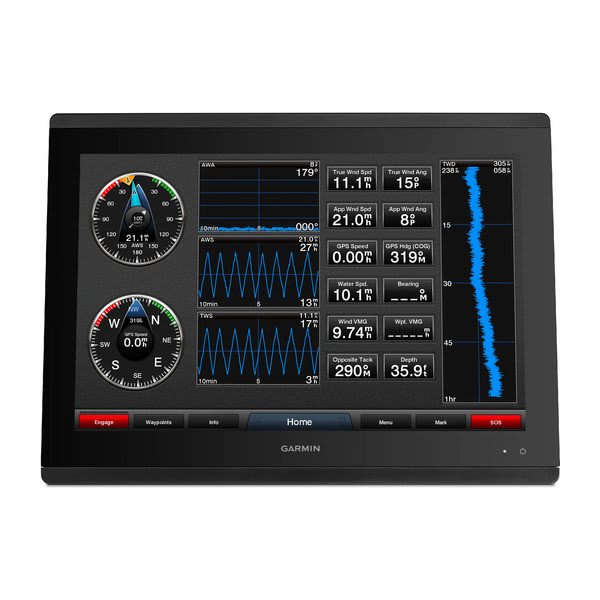

Garmin GPSMAP 8617 MFD with mapping Marine Navigation & Instruments

The large-format MFD lets you enjoy a beautifully powerful, fully networked headset right at your fingertips. The sunlight-readable anti-glare display includes an auto-dimming feature for use in low light or at night. An in-plane switching LCD provides consistent, accurate color from all angles. Install multiple displays with the low profile or mount them flat edge to edge for a sleek glass look. Maximum glass design puts a powerful, networked bar at your fingertips. If you have multiple compatible Garmin devices on your boat, you can share information, such as maps, user data, radars, and IP cameras, between them. Connect to autopilots, digital switching, weather, your FUSION-Link™ audio system, media, VHF, AIS and much more from a single screen. The connectivityBuilt-in Wi-Fi pairs with the free all-in-one mobile app to access OneChart™, smart notifications, software updates, Garmin Quickdraw™ community data and more.

Garmin 100151001 Attributes

Maps: Garmin Navionics+™ Map
Display size: 17 inches
Display type: FHD, IPS with resolution 1920 x 1200 pixels
Interface: Touchscreen
Dimensions: 16-1/2 inches long X 12.1 inches wide X 2.8 inches high
Waterproof: IPX7 waterproof rating

Garmin 100151001 Features and Benefits

Premium Full HD touchscreen features the highest screen resolution from Garmin
Compatible with high-end maps and graphics for the best in Garmin navigation
Easily build your marine system using The best in network connectivity
li>
From ANT technology to rWi-Fi network, there are countless ways to connect to your system
With SmartMode ™ dock controls, everything is designed to deliver You have quick, one-touch access to the information you need you need
One Year Limited Warranty

Garmin 100151001 Installation Instructions

GPSMAP_84xx-86xx-87xx_OM_EN-US.pdf
GPSMAP_8x17_8x22_8x24_Install_EN-US.pdf
ISPI_Marine_All_FCC_ML.pdf
Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf

Garmin Warranties 100151001

Garmin-marine- warranty- Policy.pdf
ISPI_Marine_All_FCC_ML.pdf

Garmin Technical Bulletins 100151001

Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
ISPI_Marine_All_FCC_ML.pdf
GPSMAP_84xx-86xx-87xx_OM_EN-US.pdf

GPSMAP 8617 MFD with mapping

Take control of a magnificent headset

The large format MFDlets you enjoy a beautifully powerful, fully networked headset at your fingertips.

The premium Full HD touchscreen offers Garmin's highest resolution.
It is compatible with high-end maps and graphics to enjoy the best of Garmin navigation.
Easily build your marine system using the best of network connectivity.
From ANT technology to Wi-Fi, there is Countless ways to connect to your system.
Take the guesswork out of navigating with clear laylines and more right on the screen.
With SmartMode station controls , everything is designed to give you one-touch access to the information you need.

Full HD touchscreen

The sunlight-readable, anti-glare display includes an auto-dimming feature for low-light usebrightness or at night. An in-plane switching LCD provides consistent, accurate color from all angles.

Simple, attractive mounting options

Install multiple displays with the low level of integration. Mount them on a profile or mount them flat edge to edge for a sleek glass look. Maximum glass design puts a powerful, networked bar at your fingertips.

Garmin Marine Network

If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radars and IP cameras with each other.

NMEA 2000 and NMEA0183 Networks

Connect to autopilots, digital switching, weather, your FUSION-Link audio system, media, VHF, AIS and more from a single screen.

Activecaptain APPLICATION

The connectBuilt-in Wi-Fi connectivity pairs with the free all-in-one mobile app to access OneChart functionality, smart notifications¹ and software. updates, Garmin Quickdraw community data and more.

Built-in connectivity

It's easy to connect to devices with the Built-in Wi-Fi connectivity, ANT technology, four wired Ethernet ports, NMEA 2000, HDMI and USB ports with full network compatibility.

OneHelm Function

This function brings together all the operations and capabilities of third-party devices, such as Empirbus digital switching, on one screen.

Smartmode Station Controls

Get quick, one-touch access to the information you need to ease high-stress situations like mooring. You can incorporate evaluate sonar, radar, cameras, media in rnetwork and much more.

Connect to radar

You can add your choice of compatible Garmin marine radar, including our powerful Network Radars open xHD2, GMR Fantom open array radars with MotionScope technology or xHD dome radars.

Camera support

Garmin supports certain cameras FLIR for surveillance and situational awareness on your vessel. And with our Surround View camera system, get live, bird's-eye view video and 360-degree helm visibility.

Garmin Sailassist navigation features

View laylines, race start line guidance, enhanced wind rose, heading and course lines above ground, true wind data fields and tide/current cursor/ weather, wind angle, tuning and drift, wind speed, polars and more.

Preloaded mapping

Experience unmatched coverage and detail with preloaded BlueChart g3 coastal charts and LakeV g3 inland charts with built-in Garmin and Navioni. CS content and autoguidance technology² .

Optional Charts and Charts

Bring a new look to your chartplotter. with optional Garmin Navionics+ mapping or premium Garmin Navionics Vision+ with integrated coastal/inland content, access to daily updates, Auto Guidance+² technology and much more.

Quickdraw Contours

Free, easy-to-use software functionality instantly creates your own custom HD fishing maps with 1' contours. No particular surveying expertise is required. You simply fish while it creates maps (requires transducer, sold separately).

Shading of several depth ranges

Designate up to 10 different depth ranges, each with its own color. This makes it easy to see target depths at a glance.

Fast and responsive 10 Hz GPS

Your position and heading are updated 10 times per second. to make your movement on the screen smoother. And the GPS24xd provides dual-frequency3 pinpoint location accuracy to within 1 meter.

Navigation Polars

Use the Polar Chart to see key data, including how fast you need to go. at a certain angle and wind speed so you know if you need to adjust the sail trim.

Sonar Compatibility

Find more fish when you pair with GSD 26 CHIRP Professional Sonar, GSD 24 Advanced Sonar, ClearV Scanning and SideV GCV 20 or GSD 25. sonars or Panoptix panoramic sonar.

In the box

GPSMAP 8617
Snap Covers for Trim Parts
GPS 24xd NMEA 2000 (with adapters for pole mount, flush mount and underdeck mounting)
Protective cover
Flush mounting hardware
Power cable
NMEA base/drop cable 2000 2 m
NMEA 2000 base cable 6 m
NMEA 2000 power cable
NMEA 2000 T- connector and termination kit
Documentation

Connections:

Garmin Marine Network Ports: 4
NMEA 2000 port: 1
NMEA 0183 input ports: 4
NMEA 0183 output ports: 2
USB port: 1
J1939 Port: 1
Video Input Ports: 1-BNC Composite, 1-HDMI (HDCP Compliant)
Video Out Ports: 1-HDMI
Wireless Connectivity: Yes

Garmin 8617 17-inch HD Multifunction Display PreloadedBlueChart g3 (US Coastal Chartss and Western Canada) and LakeVü g3 (indoor maps)

Model: 010-01510-01
UPC: 753759143138

High Full HD screen 17 inch range with pinch zoom touch screen control has the highest resolution in the maritime market
Configure the complete system to provide one-touch access for docking, cruising , fishing, anchoring and more
Beautiful glass bar look with the ability to install multiple flush-mounted or flat-mounted displays edge-to-edge
High-performance processor delivers our fastest map drawing ever and enhanced video processing
Offers a superior user experience across your entire network for radar, sonar and multimedia

The GPSMAP 8617 large format multifunction display features a 17-inch Full HD screen with touch control. The sunlight-readable, anti-glare display is exceptionally easy toview and also includes an auto-dimming feature for use in low light conditions or at night. The new Maximum Glass design lets you enjoy a beautifully powerful, fully networked bar right at your fingertips. The In-Plane Switching (IPS) LCD display—an industry first for this class—provides consistent, accurate color from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows and Mac operating systems. Install multiple displays with the industry's lowest flush-mount profile or mount them flat edge-to-edge to create a sleek glass look. Quick, one-touch access to the information you need makes navigation easier.

For the most detailed, clear and concise charts and maps, the GPSMAP 8617 includes expandable memory forr purchases of essential charts such as BlueChart g3 and BlueChart g3 Vision featuring Navionics data. Charts and maps also include our automatic guidance technology, which displays a suggested route to a destination, based on your boat's specifications.

The GPSMAP 8617 incorporates various sonar technologies as well as an autopilot , connectivity, applications and engine data. and multimedia. User data can be automatically synchronized for all 8400/8600 Series Networked Chartplotters across multiple bars: everything you need is at your fingertips, all on one screen. A fully digital switching system uses CZone technology. You can power your boat when you're away from the dock, turn on the pumps and control the lights, even underwater lights. Almost all your commands are available at your fingertips, eithersteering wheel, either programmed into a remote key fob or into an application on your tablet provided by CZone by Mastervolt.

Discover the fluidity of our fastest map drawing ever. and improved video processing. Add up to 4 IPera camera streams and simultaneous Garmin Helm™ support. Additionally, all of your additional sensors, such as radar, sonar, multimedia and more, will benefit from increased performance to deliver a premium experience across your boat's entire network.

For To facilitate navigation, the GPSMAP 8617 includes presets for sonar, radar, cameras, media and digital switching, which can be independent or integrated into SmartMode. With SmartMode control, you can quickly change all screens on a synchronized helm to a preset mode, for example, fishing, docking, night cruising, etc. One-touch access lets you toggle all mysynchronized monitors from one mode to another without manually switching each monitor separately. Fully customizable layouts, data and gauges let you put the information you need where you want it.

Full network compatibility lets you add more to your boat. The GPSMAP 8617 supports radar, autopilot, instruments, multiple displays, FUSION-Link™ entertainment system, sensors, etc. sonar emote modules, digital switching, weather, thermal cameras, GRID™ remote device and much more. It is also compatible with FLIR cameras and supports SiriusXM.

GSD™ 26 CHIRP professional sonar, GSD 24 advanced sonar and GCV™ 10 or GSD 25 ClearVü and SideVü scanning sonar, and even sonar Garmin Panoptix™ omnidirectional. , can exist on the same system. You can view different sonars together on a single monitor or on multipleMultiple monitors in multi-display systems.

You can add your choice of Garmin marine radars, including our powerful xHD2 open array radars, GMR Fantom™ open-array radars featuring MotionScope technology ™ or xHD dome radars that combine ease of use with advanced open network features.

The GPSMAP 8617 allows you to share features with other compatible GPSMAP units such as radar, additional maps and user data. , including waypoints, routes and tracks. You can also share images from Garmin VIRB action cameras, GC™ 10 marine cameras, and FLIR cameras. User data entered into 1 chartplotter can be automatically synchronized with other chartplotters in a network.

Fast and responsive 10 Hz GPS updates your position and heading 10 times per second to make your smoother movements on the screen. DNow it's quick and easy to drop in and find your way back to up to 5,000 precise waypoints.

Supported navigation features include laylines, compass rose improved, heading and track lines above ground, real wind data fields and tide/current/time cursor. Racing features include pre-race tips, synchronized race timer, virtual start line, burn time and layline data fields. Gauge displays are designed to provide important, much-needed information at a glance, including true and apparent wind angle, trim and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable data fields.

Quickdraw Contours is a free, easy-to-use software feature already installed on your GPSMAP8617. It instantly creates your own custom HD fishing charts with 1 foot outlines. Adapt them to your needs. These are your cards. You own them. Keep the data for yourself or share it with Garmin or your friends. No particular surveying expertise is required. You just fish while it creates maps. You don't need to wait or send your files like other mapping software requires: your results appear instantly. For use with any Garmin Panoptix, any HD-ID™, any CHIRP-compatible Garmin ClearVü™ transducer or NMEA 2000-compatible depth transducer. Is there more than one sonar unit installed on board ? Quickdraw Contours automatically selects the best performing sonar device to provide you with the best results!

Enjoy the ability to control all FUSION-Link compatible audio systems directly from the screen of your tcompatible card racer.

It's easy to connect to peripherals with built-in Wi-Fi connectivity, ANT technology, 4 wired Ethernet ports, NMEA 2000 ports, HDMI and USB with full network compatibility.

Built-in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from almost anywhere. It creates a simple but powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps, and the boating community. No matter where you are, you'll have unlimited access to your mapping, the ability to purchase new maps and diagrams, and access to the Garmin Quickdraw™ Contours community. Stay connected with smart notifications on your tracker screen. You can also plan a trip or pre-fish a lake, and ActiveCaptain will automatically sync with your chartplotter. RecEven get notifications for software updates and decide when to download them to your device.

Designate up to 10 different depth ranges, each with its own color. Makes it easy to see target depths at a glance.

To make commissioning easier and more convenient, you can manage the entire autopilot commissioning process from the scree from your chart plotter.

Garmin supports select Axis cameras and select FLIR cameras. These can be used for surveillance and situational awareness on vessels of any size. You can control your camera's pinch-to-zoom and pan/tilt settings with gestures directly on the tracker screen and view video on multiple screens as well as multiple video streams on the same screen. Use an Axis encoder to convert an analog camera, such asGarmin GC 10, in video over IP.

This tracker supports wireless connections to Garmin VIRB X and XE action cameras so you can capture all the action during your time on water. Most importantly, with a simple software update, you can monitor recordings, take photos, and stream videos from a VIRB Glass Helm 8000/8400/8600 series cards. In fact, you can stream video from up to 4 VIRB X/XE action cameras and view the video on a compatible marine plotter. You can even see previous carefully captured images and videos on the chart plotter and display thumbnail previews for easy selection. Control play, pause, search and replay from your chartplotter. There is even an automatic slideshow mode and the ability to delete VIR images or videosB unwanted. Each VIRB can be named for easy identification. You can also control your VIRB cameras to change VIRB video settings, including aspect ratio, video resolution, frames per second, photo size, field of view and more, directly from the tracker. nautical charts. Send NMEA 2000 boat information from the chartplotter to the VIRB X/XE to overlay as G-Metrix™ data onto video using VIRB Edit or the VIRB mobile app. Some data requires optional accessories.

This chartplotter supports wireless connections to Garmin VIRB X and XE action cameras so you can capture all the action during your time on water. Most importantly, with a simple software update, you can monitor recordings, take photos and stream videos from a VIRB X./XE to your car trackeryour GPSMAP 7400/7600 series or your Glass Helm 8000/8400/8600 series chartplotter. In fact, you can stream video from up to 4 VIRB X/XE action cameras and view the video on a compatible marine plotter. You can even view images and videos previously captured on the tracker and view thumbnail previews for easy selection. Control play, pause, search and replay from your chartplotter. There's even an automatic slideshow mode and the ability to delete unwanted VIRB images or videos. Each VIRB can be named for easy identification. You can also control your VIRB cameras to change VIRB video settings, including aspect ratio, video resolution, frames per second, photo size, field of view and more, directly from the tracker. nautical charts. Send NMEA 2000 boat information from the car plotteradd them to the VIRB X/XE to overlay them as G-Metrix™ data onto the video using VIRB Edit or the VIRB mobile app. Some data requires optional accessories.

Specifications

Physics and performance
Dimensions	16.5 inches x 12 .1 inch x 2.8 inch (41.9 cm x 30.7 cm x 7.1 cm)
Screen size	14.4 inches x 9.1 inches (36.6 x 23.1 cm)
Display resolution	1920 x 1200 pixels
Display type	IPS touch screen (anti-glare finish)
Weight	11.48 lb (5.21 kg)
Waterproofing	IPX7
Power consumption	Maximum power consumption at 10 VDC: 40 W
Antenna	External only
Mounting options	Flush or Flat
Receiver	10 Hz high sensitivity
Garmin Marine Network™ ports	4
Preload maps	BlueChart g3 (coastal maps of the United States and western Canada ) and LakeVü g3 (indoor maps)
Accepts data cards	2 SD cards (with Garmin SD card reader accessory )
Waypoints	5,000
Itineraries	100 (250 waypoints each)
Tracking log	50,000 points; 50 recorded tracks, with 5000 points each
Tide tables	Yes
Compatible with Garmin radar	Yes
Compatible with Garmin sonar	Yes
Garmin SmartMode compatible (customizable monitor presets)	Yes
Supports AIS (tracks target vessel position)	Yes
Supports DSC (displays position data from DSC-enabled VHF radio)	Yes
Supports supports FUSION-Link™ compatible radios	Yes
GSD™ Black Box sonar support	Yes
Support for GCV™ Black Box sonar	Yes
ActiveCaptain Compatible	Yes
Garmin Helm Compatible Garmin Helm Compatible	Yes
GRID™ (Garmin Remote Input Device) compatible	Yes
Dual frequency sonar compatible (50/200 kHz)	Yes (with housing nexternal black housing, sold separately)
Capable of dual beam sonar (77/200 kHz)	Yes (with external black housing black box, sold separately)
CHIRP sonar technology	Yes (with external black box, sold separately)
ClearVü	Yes (with GCV™ black box, Yes (with GCV™ black box, sold separately)sold separately)
SideVü	Yes (with GCV™ black box, sold separately)
NMEA 2000 compatible	Yes
NMEA 0183 input ports	4
NMEA 0183 output ports	2
Output ports Video Input	1 - Composite BNC
Video Output Ports	1 - HDMI
Wireless connectivity	Yes

What's in the box:

GPSMAP 8617
Trim Snap Covers
GPS 19x NMEA 2000 (with post mount, flush mount and underdeck mount adapters)
Protective cover
Gasket and flush mounting hardware
Power cable
2 m NMEA 2000 base/drop cable
6m NMEA 2000 Core Cable
li>
NMEA 2000 Power Cable
NMEA 2000 T-Connector and Terminator Kit
Manual case with documentation

Controls the beautiful 17-inch Full HD Helm Premium display, with touchscreen control function from pinch to zoom, the glass helmet of the highest resolution encountered appearance in the maritime market and the possibility of installing multiple integrated or flat-mounted edge-to-edge displays. performance processor, giving us the fastest enhanced mapping and video processing capabilities in our history, providing excellentuser experience for radar, sonar and multimedia GPSMAP 8617 across the network. Large format multifunction display with 17-inch Full HD touch-controlled display. The sunlight-readable anti-glare display is very easy to look at and also has an auto-dimming function, which can be used in low light or at night. The new larger glass design lets you enjoy the beautiful and powerful, fully networked headset right at your fingertips. Industry-first In-Plane Switching (IPS) LCD displays provide consistent, accurate color from every angle. It also provides standard USB touch output to use as a touch screen monitor for Windows and Mac operating systems. Install multiple monitors in the industry's lowest flush-mount profile, or install them edge-to-edge on a floor plane to create a smooth glass headset look. Quick accessn one click to the required information, making boating easier.
